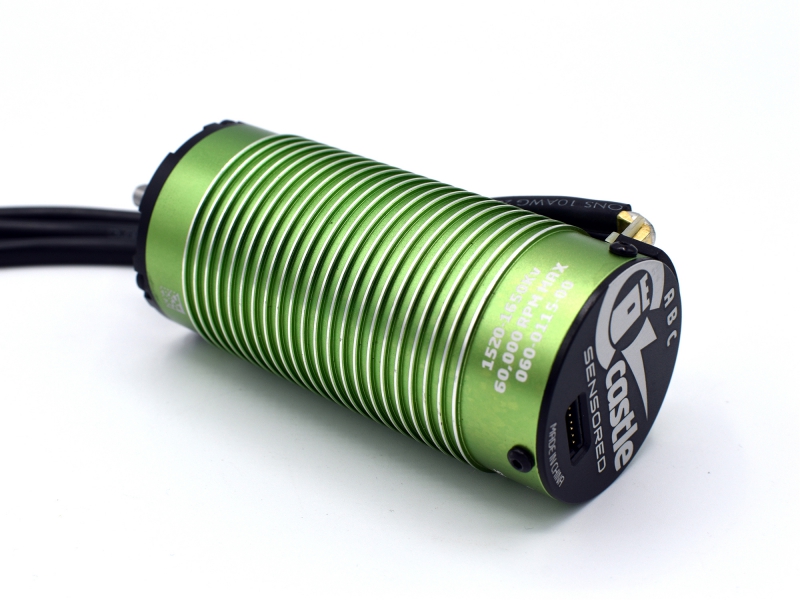

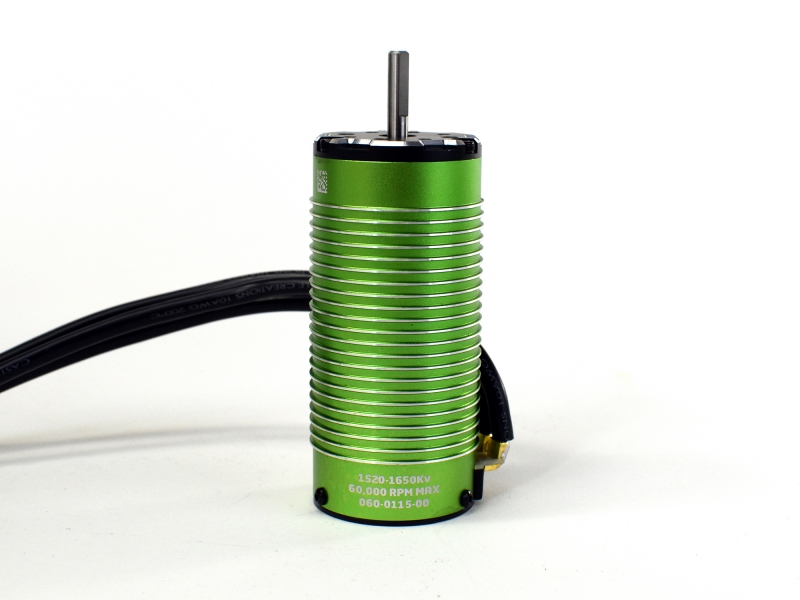

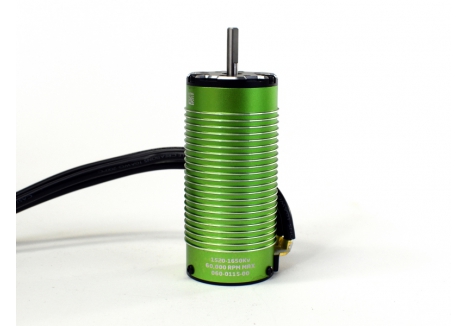

Product Description of Castle M-CC060-0115-00 1520-1650kV V2 sensored brushless motor

The Castle M-CC060-0115-00 1520-1650kV V2 sensored brushless motor for 1/6–1/8 scale RC is engineered for high-torque delivery, smoother startups, and cooler operation across heavy-duty platforms. Designed for 3S–8S LiPo systems and vehicles weighing up to 8.16 kg, this V2 edition features a fully redesigned rotor and stator assembly that enhances magnetic flux and efficiency. Whether you're pushing an Arrma Limitless, launching a Kraton EXB, or tuning a Traxxas E-Revo, the Castle M-CC060-0115-00 motor delivers consistent torque, reduced cogging, and precision throttle control in a rugged, rebuildable format.

Key features of the Castle M-CC060-0115-00 motor

• Redesigned rotor and stator – improves magnetic flux for smoother startups and reduced heat
• Kevlar-wrapped rotor – maintains structural integrity under extreme RPM stress
• Oversized bearings – reduce vibration and extend mechanical lifespan
• Low-resistance stator – enhances thermal efficiency and supports longer run times
• 10AWG wiring – supports high-current flow with 6.5mm bullet connectors
• Temperature-stabilized sensors – maintain signal accuracy under thermal load
• Rebuildable architecture – allows replacement of rotor, shaft, and bearing assemblies

How does the redesigned rotor and stator improve performance?

The Castle M-CC060-0115-00 4-pole motor with redesigned rotor and 10AWG wire features a new internal architecture that enhances magnetic flux and reduces residual drag. This results in smoother startups, lower operating temperatures, and improved efficiency across all driving conditions. The stator’s high-performance 0.2 mm steel lamination stack and low-resistance winding allow the motor to convert more electrical energy into usable torque while minimizing heat buildup. For 1/6–1/8 scale RC builds, this translates into longer runtimes, higher gear ratios, and more consistent throttle response.

Why is the Kevlar-wrapped rotor essential for durability?

The Castle M-CC060-0115-00 with Kevlar-wrapped rotor and oversized NMB bearings is built to withstand the mechanical stress of high-RPM operation. The Kevlar wrap reinforces the rotor against centrifugal force, maintaining balance and preventing deformation during aggressive acceleration. This structural integrity is critical in large-scale platforms where torque demands and rotational loads are extreme. Combined with oversized bearings and a vibration dampening system, the rotor design ensures smoother operation, reduced wear, and extended motor life—even under harsh conditions.

How do temperature-stabilized sensors enhance throttle control?

The Castle M-CC060-0115-00 sensored inrunner motor with 6.5mm bullet connectors and SmartSense integrates high-quality temperature-stabilized sensors that maintain signal accuracy under thermal stress. These sensors enable SmartSense technology to deliver cog-free launches and adaptive timing control throughout the throttle range. QuietSense shielding preserves clean signal transmission, ensuring that ESC-motor synchronization remains stable even during extended runs. This combination of sensor precision and shielding results in buttery smooth throttle transitions and peak performance across all load conditions.

Is this motor compatible with popular large-scale platforms?

Yes. The Castle 1520 motor for Arrma Limitless, Kraton EXB, Traxxas E-Revo, and Redcat Shredder is tailored for high-performance 1/6–1/8 scale vehicles. Its robust construction and 10AWG wiring make it ideal for high-voltage setups, while the 6.5mm bullet connectors ensure secure power delivery. When paired with Castle’s Mamba X or Cobra 10 ESCs, the motor supports full sensor functionality and advanced tuning via Castle Link software. Whether you're racing, bashing, or speed running, this motor provides the torque, control, and reliability needed for competitive builds.

What makes this motor a strategic upgrade for 1/6–1/8 scale RC enthusiasts?

The Castle M-CC060-0115-00 1520-1650kV V2 sensored brushless motor for 1/6–1/8 scale RC combines sensor sophistication, rugged construction, and efficient design to deliver a premium power solution. Its redesigned rotor and stator assemblies reduce cogging and heat, while the Kevlar-reinforced rotor and oversized bearings provide durability under stress. The temperature-stabilized sensors and QuietSense shielding ensure consistent throttle control, and the rebuildable architecture allows users to maintain peak performance over time. For builders seeking precision, reliability, and control in 3S–8S setups, this motor is the best Castle upgrade for buttery smooth throttle and reduced cogging.

For RC enthusiasts looking to enhance their large-scale builds with a high-efficiency, sensor-integrated power solution, the affordable Castle 1520-1650kV V2 motor with rebuildable design and temperature-stabilized sensors offers unmatched value and performance. Buy Castle M-CC060-0115-00 sensored motor for 3S–8S LiPo setups up to 8.16kg.

Technical Specifications of Castle M-CC060-0115-00 1520-1650kV V2 sensored brushless motor

Brand, Model and Product Type

• Brand: Castle Creations
• Model: M-CC060-0115-00
• Product Type: Castle M-CC060-0115-00 1520-1650kV V2 sensored brushless motor for 1/6–1/8 scale RC, Castle M-CC060-0115-00 4-pole motor with redesigned rotor and 10AWG wire, Castle M-CC060-0115-00 sensored inrunner motor with 6.5mm bullet connectors and SmartSense, Castle M-CC060-0115-00 with Kevlar-wrapped rotor and oversized NMB bearings, Castle 1520 motor for Arrma Limitless, Kraton EXB, Traxxas E-Revo, and Redcat Shredder, Castle 1650kV motor with low-resistance stator and CNC-machined end bells

Application and Compatibility

• Vehicle Type: 1/6, 1/7, and 1/8 scale RC vehicles
• Max Vehicle Weight: Up to 8.16 kg (ready-to-run)
• Input Voltage Range: 3S–8S LiPo – supports high-voltage setups
• ESC Compatibility: Compatible with Castle Mamba X and Cobra 10 ESCs

Motor Architecture and Performance

• Motor Type: Brushless – high-efficiency, low-maintenance design
• Motor Design: Inrunner – enclosed rotor for consistent torque output
• Number of Poles: 4 – enhances startup torque and throttle precision
• Slot Configuration: 12-slot – improves magnetic efficiency and reduces heat
• RPM/Volt (Kv): 1650 kV – tuned for torque-rich, cooler running performance

Materials and Build Quality

• Rotor Reinforcement: Kevlar wrap – resists deformation under high RPM stress
• Magnet Composition: 180°C grade neodymium sintered magnets – maintain strength under load
• Bearings: Oversized NMB bearings – reduce vibration and extend motor life
• Stator Assembly: Low-resistance winding with high-purity copper – improves thermal efficiency
• Stator Lamination: 0.2 mm steel – stacked for optimal magnetic performance
• End Bells: CNC-machined T6 aluminium – enhances durability and alignment accuracy

Connectivity and Electrical Interface

• Wire Gauge: 10 AWG – silicone-insulated, high-strand-count for efficient current flow
• Connector Type: 6.5 mm bullet connectors – pre-soldered for secure installation
• Sensor Port: ROAR standard – compatible with sensored ESCs

Integrated Technologies

• SmartSense: Sensor-based startup logic – delivers smooth launches and dynamic timing control
• QuietSense: Shields sensors from magnetic field noise – maintains ESC-motor synchronization
• Sensor Alignment: Automatically delivers uniform timing and torque – no mechanical adjustment required
• Temperature-Stabilized Sensors: Maintain signal accuracy under thermal load

Rebuildability and Maintenance

• Design: Rebuildable – allows replacement of rotor, shaft, and front end bell with bearings

What’s in the Box

• (1) Castle 1520-1650kV V2 4-Pole Sensored Brushless Motor – model M-CC060-0115-00

What You Require

• (1) Compatible Brushless Electronic Speed Control – must support sensored operation
