Overview
Castles commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products is meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we have ever produced! The rotor and stator have been completely redesigned to improve magnetic flux. This results in higher efficiency, smoother start-up, reduced temperatures, and longer run times!
You might be familiar with the brute 1:8 scale version of the 1515-2200Kv V2 (10AWG wire and 6.5mm bullets) that has overpowered buggies, truggies, on-road vehicles for years. Now we are offering our modified eBuggy version (paired with Mamba X 1:10 scale ESC, click here for details), tailored with pre-soldered 4mm bullet connections and 12AWG wire!
Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. Anew rotor replacement will be available in the future. Check back here for updates.1515-2200Kv V2 FEATURES:
Application
Ideal for 1:8 scale buggies on-road vehicles and 1:10 scale monster trucks up to 4.08Kg when paired with the Mamba X or Cobra 10 ESCs.
Vehicle Examples
Tekno EB48, Losi 8IGHT-XE, Mugen MBX8R, Kyosho Inferno MP10e, Associated RC8B4
Motor Features
- Input Voltage range: 2s-6s LiPo (4s max with Mamba X or Cobra 10)
- Redesigned rotor and stator assemblies.
- Reduced magnetic cogging, producing less residual drag brake.
- Increased efficiency, resulting in lower temperatures and longer run times.
- Smoother start-up, reducing cogging or stuttering when starting from a stop.
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
- High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
- Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
- Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
- High-Performance 0.2mm Steel Lamination Stacked Stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with High Quality Temperature-Stabilized Sensors
- T6 Aluminium CNC Machines Front/Rear End bell
- Proudly Designed and Supported in Kansas, USA
- The IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
- QUIETSENSE technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.
- Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
- REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
- ROAR standard sensor port and labeled connections.
- Updated modern and sleek design; looks as cool as it performs.
SMARTSENSE uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSE will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.

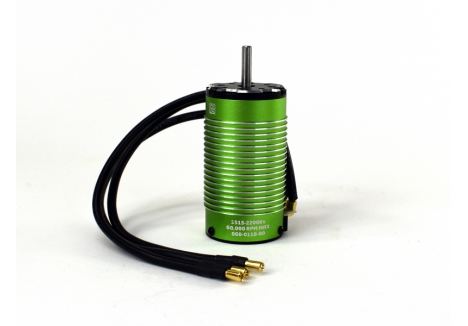

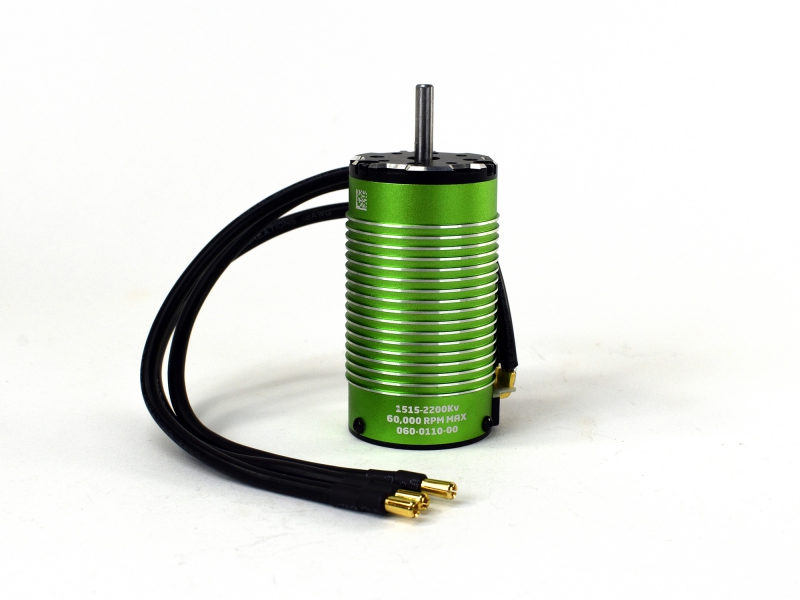

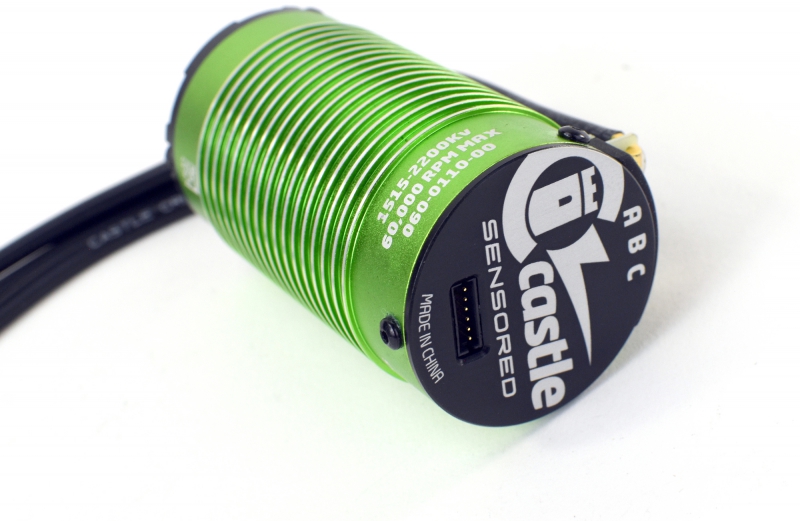

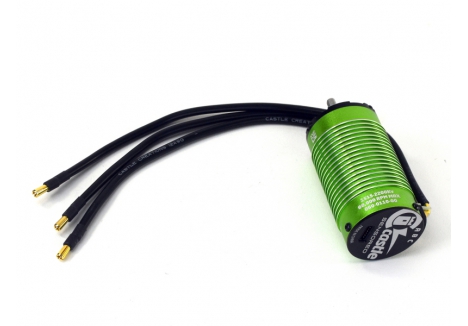

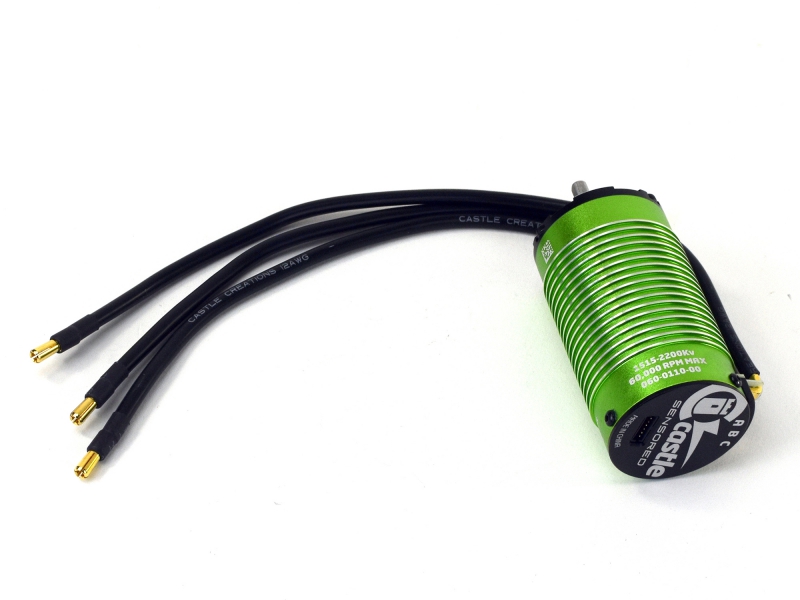

Product Description of Castle M-CC060-0110-00 1515-2200kV V2 sensored brushless motor
The Castle M-CC060-0110-00 1515-2200kV V2 sensored brushless motor for 1/8 scale RC is a refined powerhouse engineered for smoother startups, reduced cogging, and cooler operation across demanding terrain. Designed for 2S–6S LiPo systems and vehicles up to 4.08 kg, this V2 edition features a fully redesigned rotor and stator assembly that enhances magnetic flux and efficiency. Whether you're racing a Tekno EB48, launching a Losi 8IGHT-XE, or pushing a Kyosho MP10e to its limits, the Castle M-CC060-0110-00 motor delivers consistent torque, longer run times, and precision throttle control in a compact, rebuildable format.
Key features of the Castle M-CC060-0110-00 motor
- Redesigned rotor and stator – improves magnetic flux for smoother startups and reduced heat
- Kevlar-wrapped rotor – maintains structural integrity under extreme RPM stress
- Oversized bearings – reduce vibration and extend mechanical lifespan
- Low-resistance stator – enhances thermal efficiency and supports longer run times
- 12AWG wiring – supports high-current flow with pre-soldered 4mm bullet connectors
- Temperature-stabilized sensors – maintain signal accuracy under thermal load
- Rebuildable architecture – allows replacement of rotor, shaft, and bearing assemblies
How does the redesigned rotor and stator improve performance?
The Castle M-CC060-0110-00 4-pole motor with redesigned rotor and 12AWG wire features a new internal architecture that enhances magnetic flux and reduces residual drag. This results in smoother startups, lower operating temperatures, and improved efficiency across all driving conditions. The stator’s high-performance 0.2 mm steel lamination stack and low-resistance winding allow the motor to convert more electrical energy into usable torque while minimizing heat buildup. For 1/8 scale RC builds, this translates into longer runtimes, higher gear ratios, and more consistent throttle response.
Why is the Kevlar-wrapped rotor essential for durability?
The Castle M-CC060-0110-00 with Kevlar-wrapped rotor and oversized NMB bearings is built to withstand the mechanical stress of high-RPM operation. The Kevlar wrap reinforces the rotor against centrifugal force, maintaining balance and preventing deformation during aggressive acceleration. This structural integrity is critical in 1/8 scale platforms where torque demands and rotational loads are extreme. Combined with oversized bearings and a vibration dampening system, the rotor design ensures smoother operation, reduced wear, and extended motor life—even under harsh conditions.
How do temperature-stabilized sensors enhance throttle control?
The Castle M-CC060-0110-00 sensored inrunner motor with 4mm bullet connectors and SmartSense integrates high-quality temperature-stabilized sensors that maintain signal accuracy under thermal stress. These sensors enable SmartSense technology to deliver cog-free launches and adaptive timing control throughout the throttle range. QuietSense shielding preserves clean signal transmission, ensuring that ESC-motor synchronization remains stable even during extended runs. This combination of sensor precision and shielding results in buttery smooth throttle transitions and peak performance across all load conditions.
Is this motor compatible with popular 1/8 scale platforms?
Yes. The Castle 1515 motor for Tekno EB48, Losi 8IGHT-XE, and Kyosho MP10e is tailored for high-performance 1/8 scale buggies, on-road vehicles, and 1/10 monster trucks. Its compact dimensions and 12AWG wiring make it ideal for tight chassis layouts, while the 4mm bullet connectors ensure secure power delivery. When paired with Castle’s Mamba X or Cobra 10 ESCs, the motor supports full sensor functionality and advanced tuning via Castle Link software. Whether you're racing or bashing, this motor provides the torque, control, and reliability needed for competitive builds.
What makes this motor a strategic upgrade for 1/8 scale RC enthusiasts?
The Castle M-CC060-0110-00 1515-2200kV V2 sensored brushless motor for 1/8 scale RC combines sensor sophistication, rugged construction, and efficient design to deliver a premium power solution. Its redesigned rotor and stator assemblies reduce cogging and heat, while the Kevlar-reinforced rotor and oversized bearings provide durability under stress. The temperature-stabilized sensors and QuietSense shielding ensure consistent throttle control, and the rebuildable architecture allows users to maintain peak performance over time. For builders seeking precision, reliability, and control in 2S–6S setups, this motor is the best Castle upgrade for buttery smooth throttle and reduced cogging.
For RC enthusiasts looking to enhance their 1/8 scale builds with a high-efficiency, sensor-integrated power solution, the affordable Castle 1515-2200kV V2 motor with rebuildable design and temperature-stabilized sensors offers unmatched value and performance. Buy Castle M-CC060-0110-00 sensored motor for 2S–6S LiPo setups up to 4.08kg.
Technical Specifications of Castle M-CC060-0110-00 1515-2200kV V2 sensored brushless motor
Brand, Model and Product Type
- Brand: Castle Creations
- Model: M-CC060-0110-00
- Product Type: Castle M-CC060-0110-00 1515-2200kV V2 sensored brushless motor for 1/8 scale RC, Castle M-CC060-0110-00 4-pole motor with redesigned rotor and 12AWG wire, Castle M-CC060-0110-00 sensored inrunner motor with 4mm bullet connectors and SmartSense, Castle M-CC060-0110-00 with Kevlar-wrapped rotor and oversized NMB bearings, Castle 1515 motor for Tekno EB48, Losi 8IGHT-XE, and Kyosho MP10e, Castle 2200kV motor with low-resistance stator and CNC-machined end bells
Application and Compatibility
- Vehicle Type: 1/8 scale buggies, on-road vehicles, and 1/10 monster trucks
- Max Vehicle Weight: Up to 4.08 kg (ready-to-run)
- Input Voltage Range: 2S–6S LiPo (4S max with Mamba X or Cobra 10 ESC)
- ESC Compatibility: Mamba X, Cobra 10 – supports full sensor functionality
Motor Architecture and Performance
- Motor Type: Brushless – high-efficiency, low-maintenance design
- Motor Design: Inrunner – enclosed rotor for consistent torque output
- Number of Poles: 4 – enhances startup torque and throttle precision
- Slot Configuration: 12-slot – improves magnetic efficiency and reduces heat
- RPM/Volt (Kv): 2200 kV – tuned for high-speed 1/8 scale performance
Materials and Build Quality
- Rotor Reinforcement: Kevlar wrap – resists deformation under high RPM stress
- Magnet Composition: 180°C grade neodymium sintered magnets – maintain strength under load
- Bearings: Oversized NMB bearings – reduce vibration and extend motor life
- Stator Assembly: Low-resistance winding with high-purity copper – improves thermal efficiency
- Stator Lamination: 0.2 mm steel – stacked for optimal magnetic performance
- End Bells: CNC-machined T6 aluminium – enhances durability and alignment accuracy
Connectivity and Electrical Interface
- Wire Gauge: 12 AWG – silicone-insulated, high-strand-count for efficient current flow
- Connector Type: 4 mm bullet connectors – pre-soldered for plug-and-play installation
- Sensor Port: ROAR standard – compatible with sensored ESCs
Integrated Technologies
- SmartSense: Sensor-based startup logic – delivers smooth launches and dynamic timing control
- QuietSense: Shields sensors from magnetic field noise – maintains ESC-motor synchronization
- Sensor Alignment: Automatically delivers uniform timing and torque – no mechanical adjustment required
- Temperature-Stabilized Sensors: Maintain signal accuracy under thermal load
Rebuildability and Maintenance
- Design: Rebuildable – allows replacement of rotor, shaft, and front end bell with bearings
- Rotor Note: Rotor replacement part 011-0130-00 is not compatible with V2 motor
What’s in the Box
- (1) Castle 1515-2200kV V2 4-Pole Sensored Brushless Motor – model M-CC060-0110-00
What You Require
- (1) Compatible Brushless Electronic Speed Control – must support sensored operation
