In Stock
Delivery Included
1 Year Warranty
Purpose Built

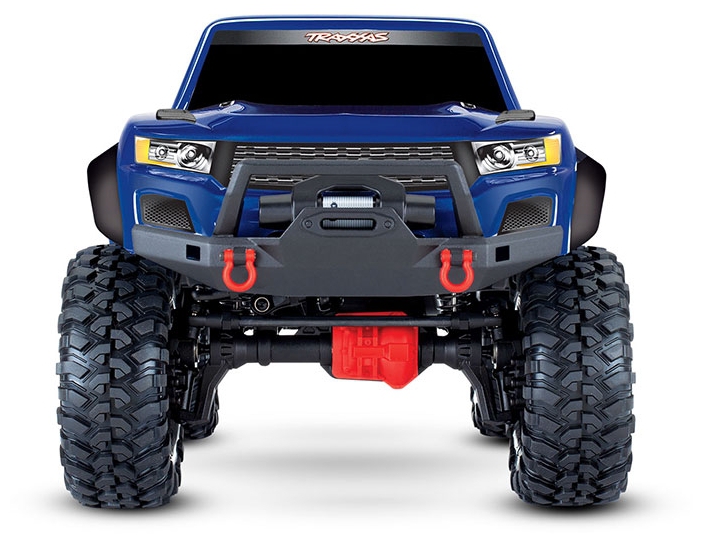

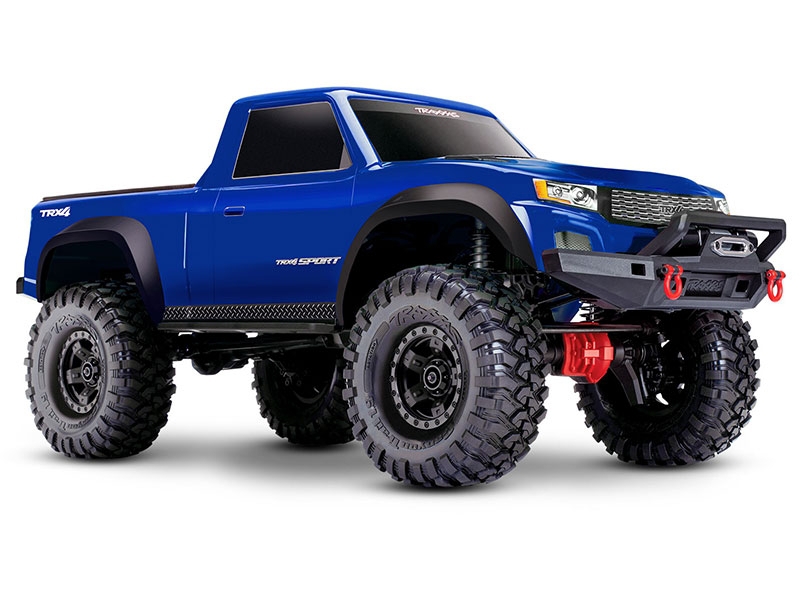

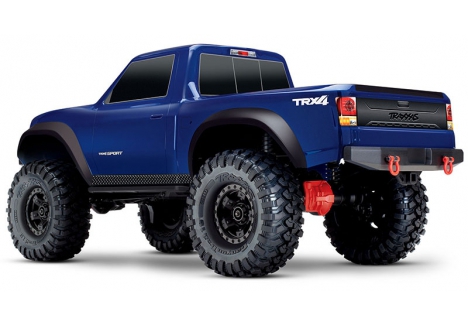

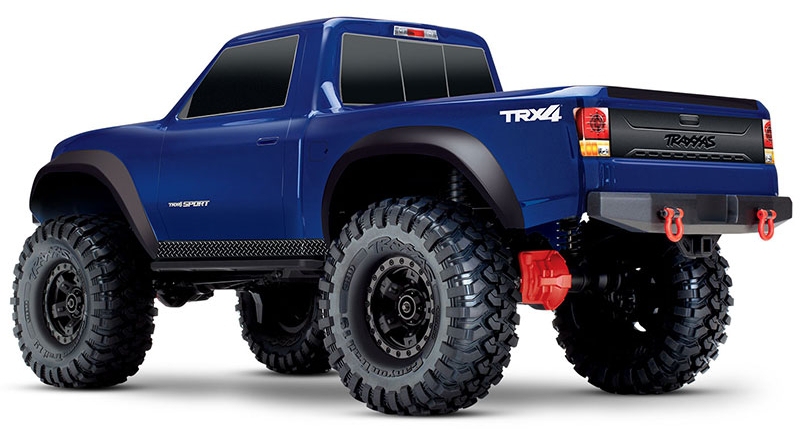

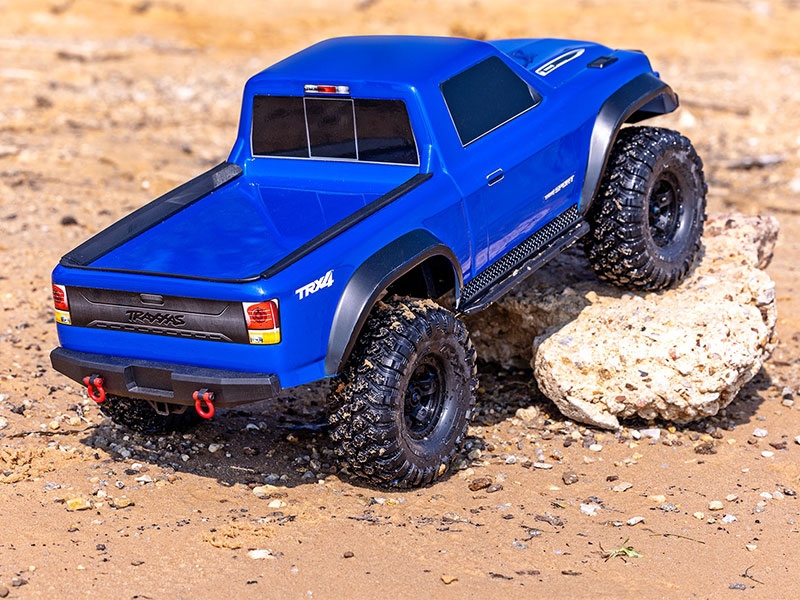

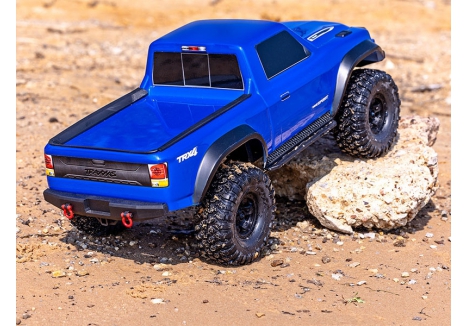

TRX-4® Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a clipless lightweight pickup truck body for a leaner, performance-focused truck. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to a new level.
New Clipless Body Mounting
New to TRX-4 Sport, clipless body mounting combines clean flowing lines with secure latching convenience. TRX-4 Sport’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.
Traxxas TRX-4 Sport Clipless Key Features:
New Clipless Body Mounting - Secure latching system with hidden latches for easy access to the chassis.
Portal Axles - Provides increased ground clearance and improves axle geometry for better off-road capability.
Torque Twist Eliminated - Gear reduction at the wheels eliminates torque twist for straight and powerful forward motion.
Locked Differentials - Differential spools in the front and rear provide maximum grip on slick terrain.
Single Speed Transmission - Geared for torque, with steel gears for durability.

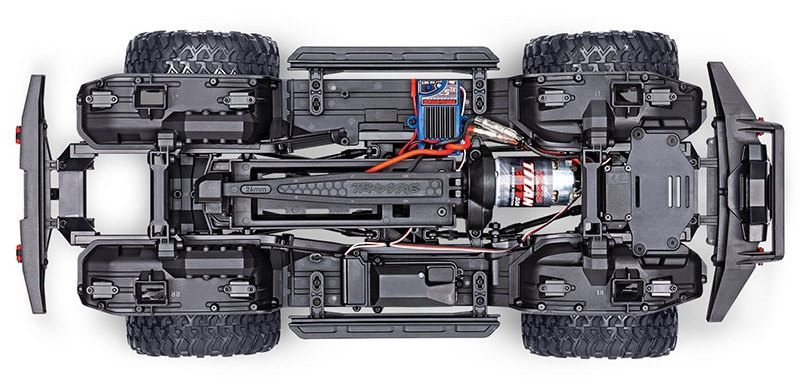

Rigid Steel Frame - Heavy-duty steel ladder frame with molded cross members for exceptional rigidity.
GTS Aluminum Shocks - Oil-filled coil-over shocks with threaded bodies for easy adjustments.
3s Power System - XL-5 HV ESC and Titan 21T motor for efficient power and long run times.
TQ Radio System - Provides long-range, glitch-free control with comfortable design.

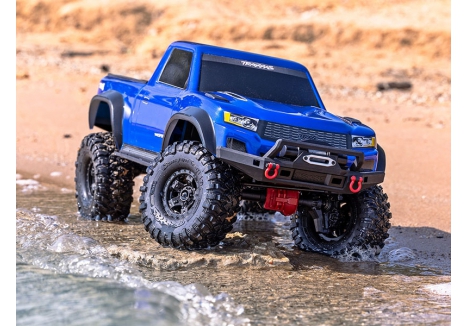

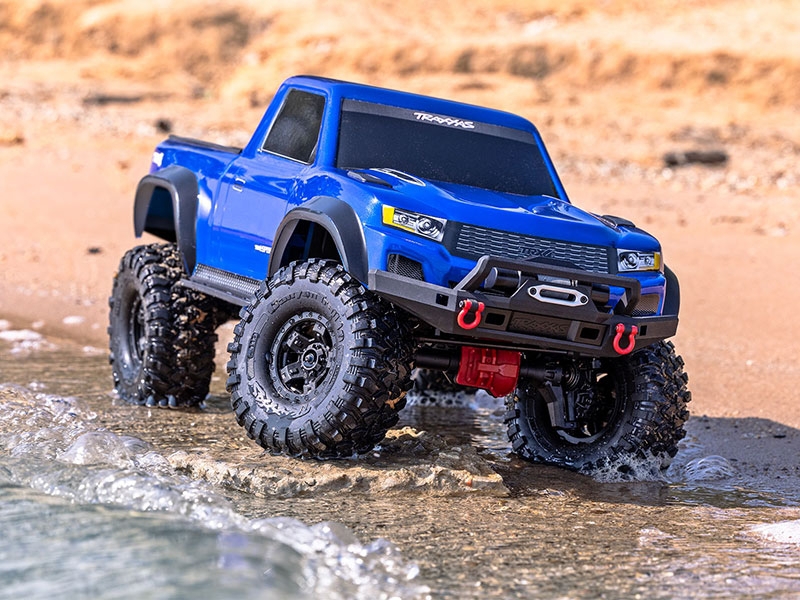

Waterproof Electronics - Fully waterproof design allows for tackling wet conditions without worry.
Traxxas TRX-4 Sport Clipless Key Specification:
- Length: 21.93 inches (557 mm)
- Front Track: 9.78 inches (249 mm)
- Rear Track: 9.78 inches (249 mm)
- Ground Clearance: 3.14 inches (80 mm)
- Weight: 5.79 pounds (2.63 kg)
- Height: 9.47 inches (241 mm)
- Wheelbase: 12.28 inches (312 mm)
- Approach Angle: 58.82°
- Departure Angle: 45.83°
- Breakover Angle: 59°
- Front Shock Length: 3.54 inches (90 mm)
- Rear Shock Length: 3.54 inches (90 mm)
- Front Wheels: 1.9″ x 1.02″ (49 x 26 mm)
- Rear Wheels: 1.9″ x 1.02″ (49 x 26 mm)
- Front Tires: 4.64″ x 1.89″ (118 x 48 mm)
- Rear Tires: 4.64 x 1.89″ (118 x 48 mm)
- Hex Size: 12 mm
- Speed Control: XL-5™ HV
- Motor (electric): 21T reverse rotation
- Transmission: Single speed
- Gear Pitch: 32 pitch
- Differential Type: Spool (no differential)
- Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft driven 4WD
- Steering: Chassis mounted servo
- Servo: 2075X metal gear
- Transmitter: TQ™ 2.4 GHz 2-channel transmitter
- Receiver: 6519
- Skill Level: 1
- Battery Tray: 158.75 L x 47 W x 23/26 mm H
What's in the Box:
- Fully assembled TRX-4 Sport
- TQ 2.4 GHz radio system
- XL-5 HV ESC
- Titan 21T 550 motor
- Quick Start Guide
- High-quality maintenance tools
Needed to Complete:
- Batteries: Requires a Traxxas 3s 5000 mAh LiPo battery or similar.
- Charger: Compatible charger for LiPo battery.
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX82224-4-BLUE
- Product Type: Traxxas TRX4 Sport 1:10 4X4 Electric Crawler Truck, Traxxas TRX4 Sport 4X4 RTR Crawler Truck Blue, TRX4 Sport 1:10 Scale Electric Trail Truck Blue, Traxxas TRX4 Sport with adjustable wheelbase, Traxxas TRX4 Sport crawler truck with portal axles, Traxxas TRX4 Sport with waterproof electronics
Dimensions
- Length: 55.7 cm – suitable for navigating large trail obstacles with stability
- Width: 24.9 cm – wide track enhances lateral stability on uneven terrain
- Height: 24.1 cm – low-profile bumpers contribute to compact vertical clearance
- Front and Rear Track: 24.9 cm – uniform track width supports balanced steering response
- Wheelbase: 31.2 cm – adjustable to four positions for custom trail setups
- Center Ground Clearance: 8 cm – increased by portal axles for obstacle clearance
- Weight: 2.63 kg – lightweight configuration improves crawl agility
Drivetrain and Transmission
- Drivetrain: Full-time shaft-driven 4WD – ensures consistent torque delivery across all wheels
- Differential Type: Spool-locked front and rear – maximises traction during technical climbs
- Gear Pitch: 32 pitch – suitable for high torque applications
- Transmission: Single-speed with steel gears – durable and easy to service
- Transfer Case: Steel gear – enhances drivetrain longevity under load
- Slipper Clutch: Twin friction plate – protects drivetrain from shock loads
Motor and ESC
- Motor Type: Titan® 21T reverse rotation brushed motor – delivers high torque for crawling
- Motor Cooling: Internal fan – maintains performance during extended use
- Motor Weight: 240 g – compact and efficient for trail applications
- ESC Type: XL-5™ HV waterproof – supports five drive profiles for terrain adaptability
- ESC Voltage Range: Compatible with 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- ESC Features: Trail Mode, Crawl Mode, Training Mode™, Race Mode, Sport Mode
- ESC Protection: Two-stage low voltage detection and large heat sink
Steering and Suspension
- Servo: 2075X metal gear digital – waterproof and chassis-mounted for direct steering
- Steering Angle: 45° – enables tight turning radius on technical terrain
- Front Suspension: 3-link with panhard bar – stabilises axle movement
- Rear Suspension: Triangulated 4-link – enhances articulation and traction
- Shock Type: Aluminum GTS oil-filled coilovers – adjustable damping with threaded bodies
- Link Rods: 5 mm steel with 4 mm threaded ends – built for durability

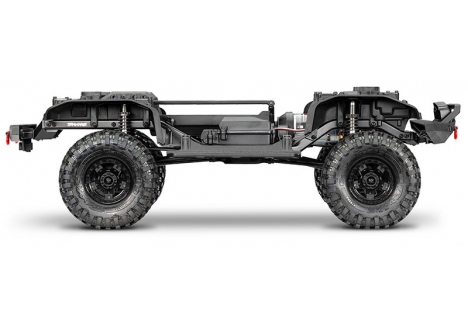

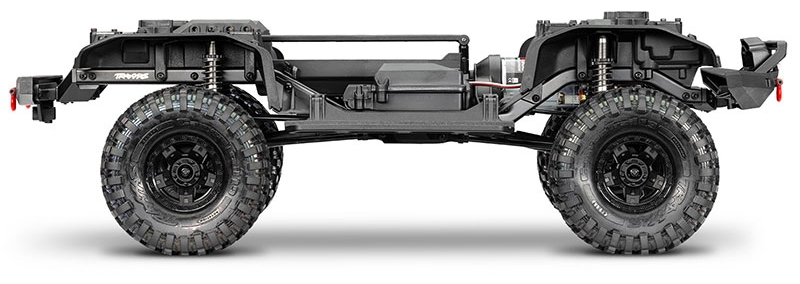

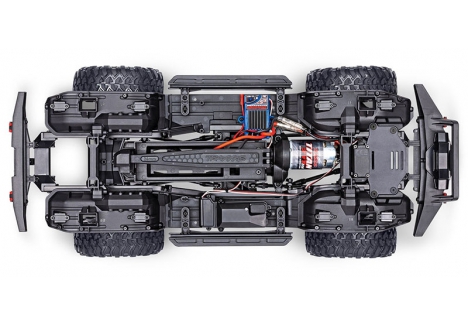

Chassis and Frame
- Frame Material: 1.5 mm thick steel rails – increases torsional rigidity

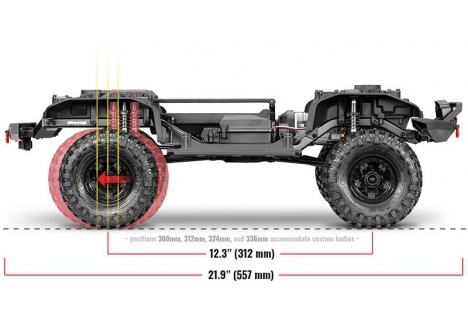

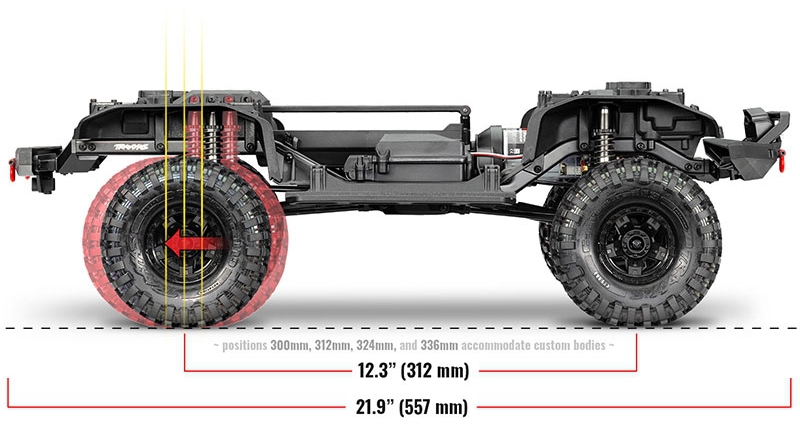

- Wheelbase Adjustment: Four positions – 30 cm, 31.2 cm, 32.4 cm, 33.6 cm
- Shock Tower Adjustment: Rear tower configurable for SWB and LWB setups
- Rock Rails: Width-adjustable – protects body and frame during side impacts
- Wire Routing: Integrated clips – simplifies cable management
Body and Exterior

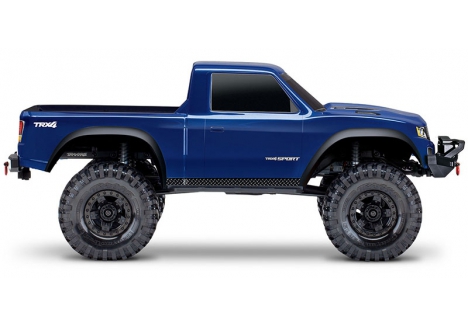

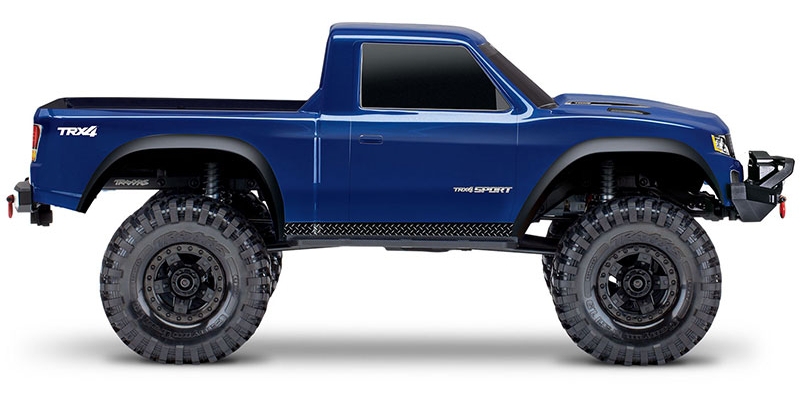

- Body Type: Clipless pickup – reinforced internal cage for rigidity

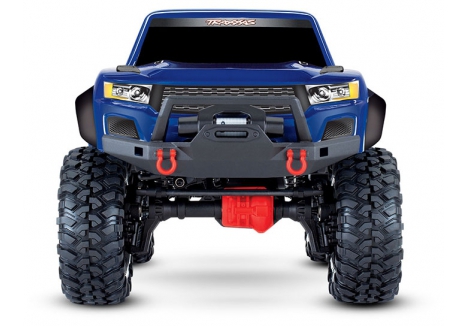

- Bumper Design: Low profile – increases approach and departure angles
- Exterior Details: Red differential covers and D-rings – trail-ready styling
Wheels and Tyres
- Wheel Type: Black 5-spoke – rugged design for off-road durability
- Tyre Type: 1.9″ Canyon Trail™ – trail-tuned foam inserts and S1 rubber compound
- Hex Size: 12 mm steel – supports high torque loads
Electronics and Connectivity
- Radio System: TQ™ 2.4 GHz 2-channel – ergonomic transmitter with internal antenna
- Receiver: Traxxas 6519 3-channel micro – includes fail-safe security
- Receiver Box: Patented O-ring sealed – watertight protection for electronics
What’s in the Box
- TRX-4 Sport Ready-To-Drive model
- XL-5 HV waterproof electronic speed control
- Titan™ 21T reverse rotation motor
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need
- NiMH (6–7 cell) or LiPo (2s–3s) battery pack
- Traxxas EZ-Peak® Live charger (recommended model 2971)
- Four AA alkaline batteries for the transmitter
Sold Separately
- Battery pack
- Battery charger
Warranty
- 1 Year Manufacturer Warranty
