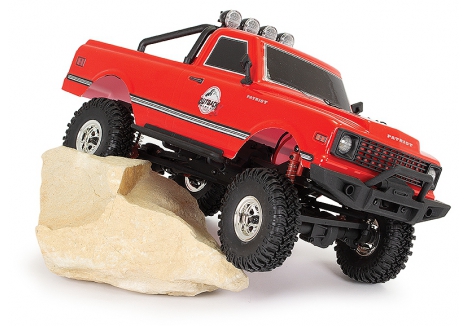

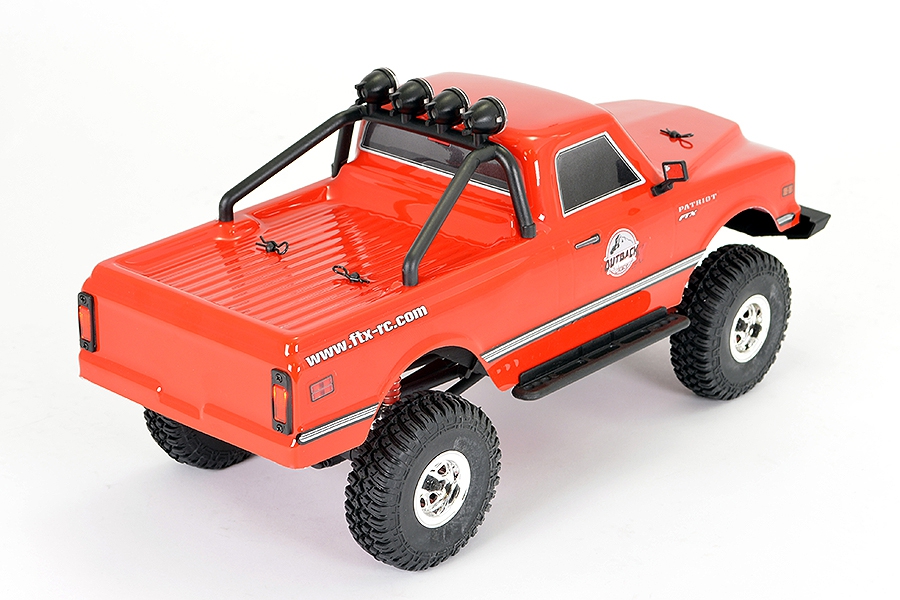

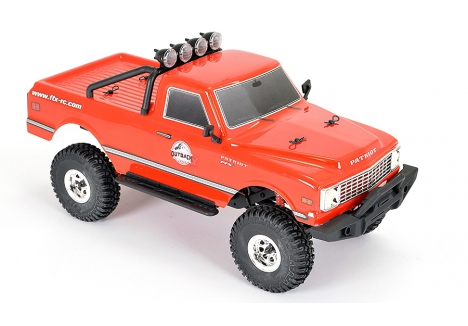

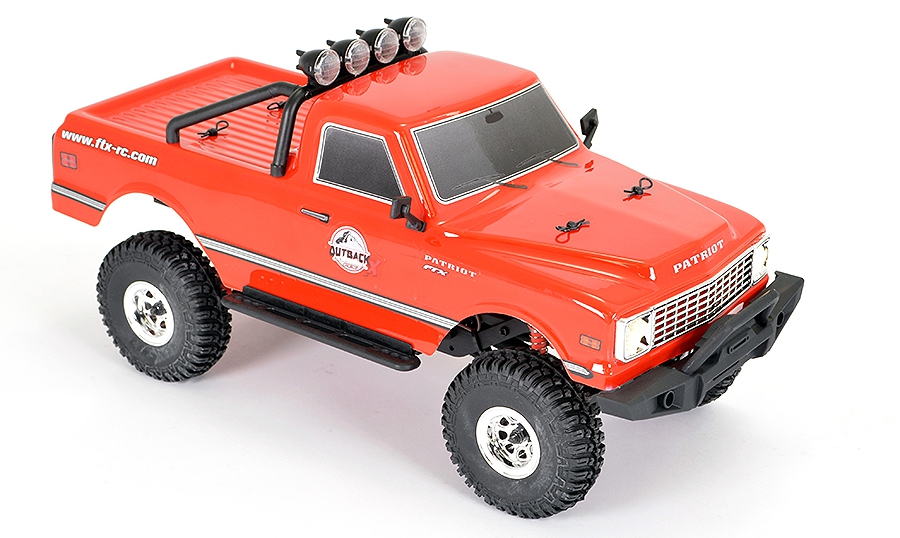

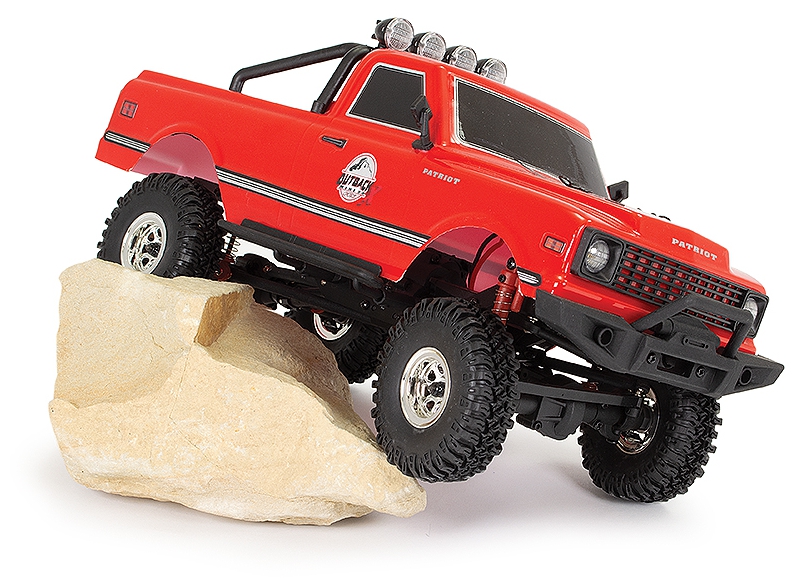

With design cues from it’s smaller 1/24th scale sibling, the Outback X Mini 2.0 1/18th scale trail crawler provides a great balance between sizes for a great scale crawling experience at a fraction of the cost of 1/10th models.
Pick from a selection of three different classic trail off road truck bodyshells that all feature additional moulded accessories, along with factory fitted LED lights. The high torque transmission and 88T micro motor deliver superb slow speed control, while the locked front and rear axles provide the drive to tackle most inclines. Multi-link suspension, coupled with sprung shock absorbers create excellent articulation to help tackle uneven surfaces.
Factory assembled and finished, all that is required is for you to add 4 x AAA batteries to the transmitter, charge the 2S 600mAH LiPo battery via the supplied USB charger and you will be out hitting the trail course. Whether that’s indoors or outdoors depends on, well.....the weather.
Features
- 99% Ready-To-Run
- 2.4ghz radio system

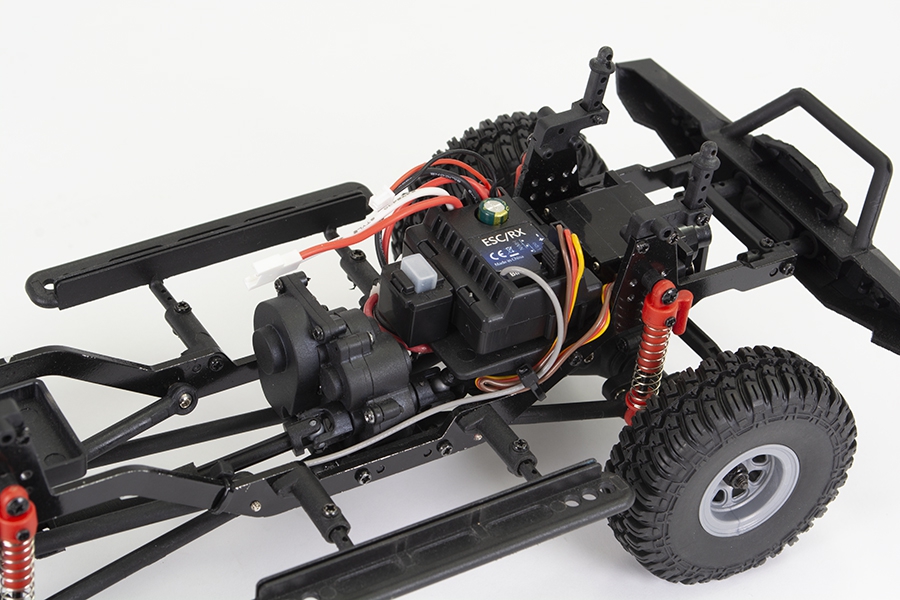

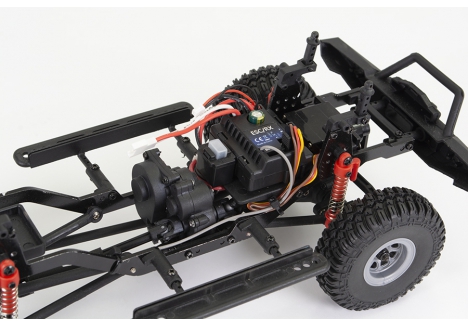

- Waterproof ESC/RX Unit supports 2S Lipo
- Waterproof 1kg 3-wire servo
- Multi-Link suspension system

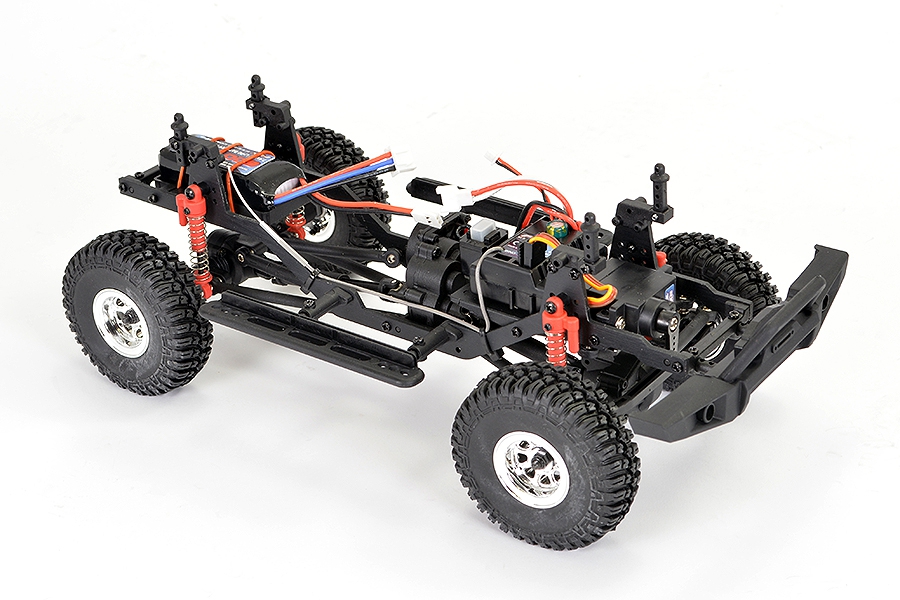

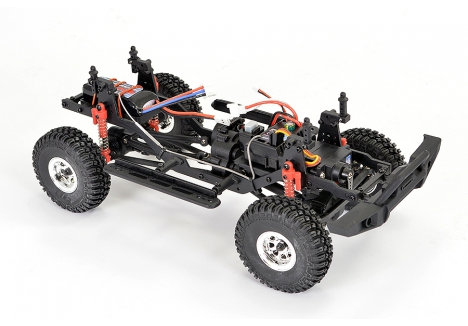

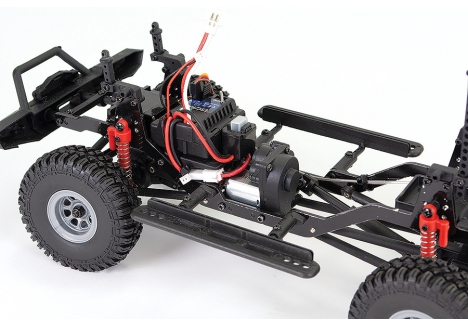

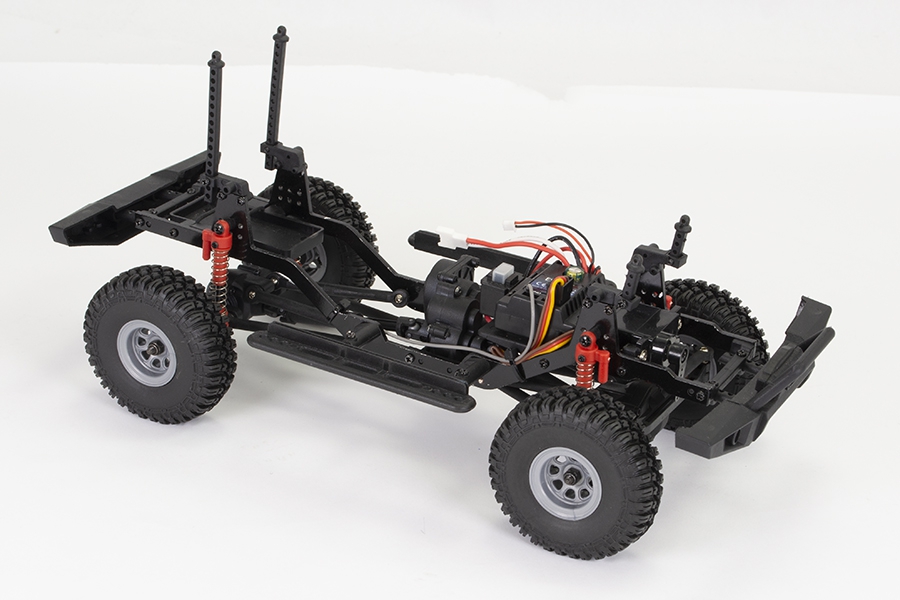

- Aluminium ladder frame chassis with adjustable shock positions
- Coil sprung shock absorbers
- High torque transmission (FDL 104:1)

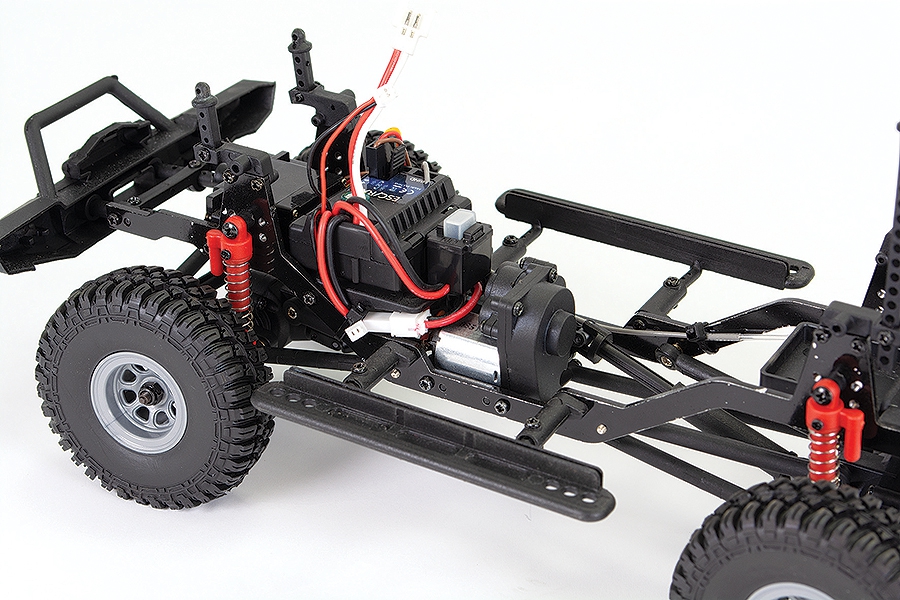

- 3-gear centre transmission w/low CG motor
- Locked front and rear axles
- Front chassis mounted micro servo
- Telescopic UJ centre driveshaft
- Micro 7.4V 600mAh 2S LiPo Battery
- USB Charger

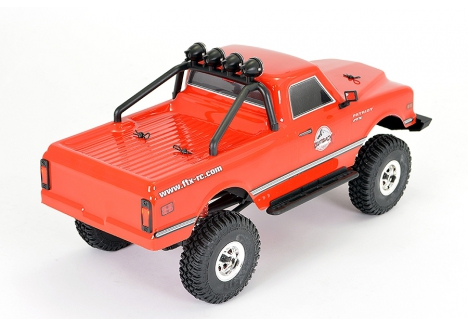

- Choice of classic trail 4x4 Body styles

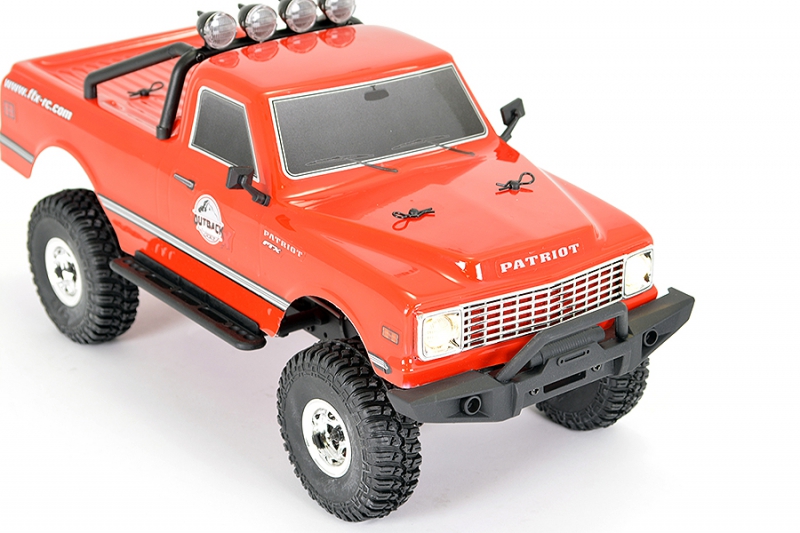

- Front & rear LED lights
- Internal beadlock wheels
- Supersoft rubber tyres for max traction
- Front 65%/Rear 35% chassis weight bias
- Side footplates with body guide
- Scale moulded body accessories
- Brushed 88T 030 micro motor
Specifications
- Length: 275mm
- Width: 115mm
- Height: 120mm
- Ground Clearance: 25mm
- Weight: 280g
- Drive Ratio: 104:1
- Wheelbase: 158mm
- Tyre: ø 57mm x 20mm
Required for Use:
Brand, Model and Product Type
- Brand: FTX
- Model: FTX5522R
- Product Type: FTX Outback Mini X Patriot FTX5522R 1:18 trail RTR, FTX5522R brushed crawler with LED lights and beadlock wheels, FTX Outback Mini X 1/18 scale red trail RC truck, FTX FTX5522R trail crawler with 88T brushed motor and waterproof ESC, FTX Outback Mini X with aluminium ladder chassis and locked axles
Dimensions
- Length: 27.5 cm – compact chassis for tight trail layouts and indoor crawling
- Width: 11.5 cm – narrow stance for precise obstacle navigation
- Height: 12.0 cm – includes moulded body accessories and LED light buckets
- Ground Clearance: 2.5 cm – suitable for navigating uneven terrain and trail debris
- Wheelbase: 15.8 cm – optimized for crawling stability and articulation
- Tyre Size: 5.7 × 2.0 cm – supersoft compound for maximum grip
- Weight: 280 g – lightweight for responsive control and portability
Motor, ESC and Power System
- Motor Type: Brushed 88T 030 micro motor – delivers high torque for slow-speed crawling
- ESC: Waterproof ESC/RX combo unit – supports 2S LiPo and resists trail moisture
- Battery: 7.4V 600mAh 2S LiPo – compact rechargeable battery for consistent runtime
- Charger: USB charger included – portable and beginner-friendly charging solution
Drivetrain and Suspension
- Drive Type: 4WD – shaft-driven system for reliable traction across varied terrain
- Transmission: 3-gear centre with low CG motor – improves stability and torque delivery
- Final Drive Ratio: 104:1 – tuned for crawling precision and control
- Axles: Locked front and rear – maximizes grip on inclines and uneven surfaces
- Driveshafts: Telescopic UJ centre shafts – flexible and durable for trail articulation
Suspension and Chassis
- Suspension: Multi-link with coil springs – articulated setup for crawling over uneven surfaces
- Shock Absorbers: Coil-sprung – absorbs bumps and improves terrain adaptability
- Chassis: Aluminium ladder frame – rigid and lightweight with adjustable shock positions
- Weight Bias: 65% front / 35% rear – optimized for climbing and obstacle handling
Tyres and Wheels
- Tyres: Supersoft rubber – designed for grip and flexibility on varied terrain
- Wheels: Internal beadlock – secure tyre mounting with scale appearance
Electronics and Control
- Servo: Waterproof 1kg 3-wire micro servo – front chassis-mounted for responsive steering
- Radio System: 2.4 GHz – interference-free operation with multi-user compatibility
Use Case and Compatibility
- Scale: 1:18 – balanced size between micro and standard trail rigs
- Use Case: Suitable for indoor and outdoor use – versatile across environments
What’s in the Box
- 1 × Fully assembled FTX Outback Mini X Patriot FTX5522R 1:18 trail RTR
- 1 × 7.4V 600mAh 2S LiPo battery
- 1 × USB charger
What You Require
- 4 × AA batteries – required for transmitter operation (not included)
Warranty
- Manufacturer Guarantee: FTX provides warranty coverage for defects in materials and workmanship
