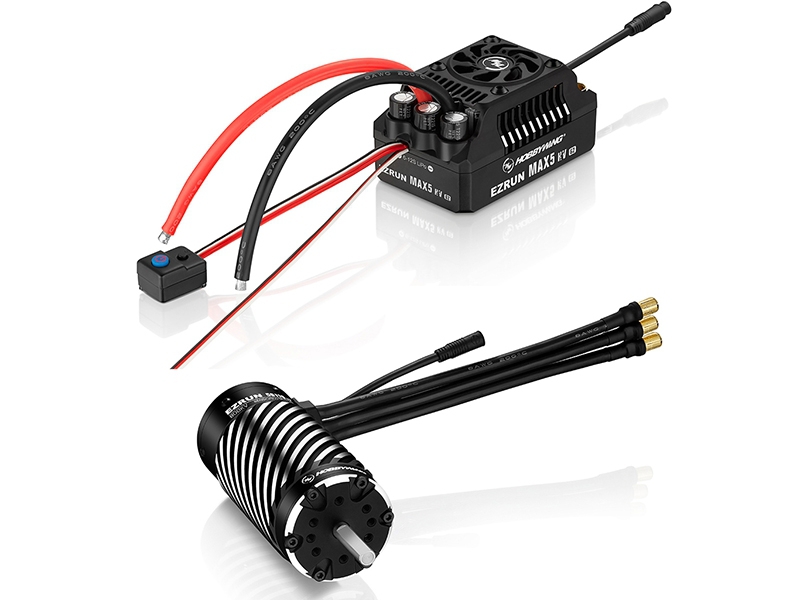

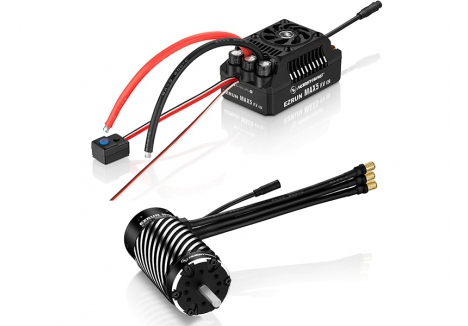

HOBBYWING COMBO EZRUN MAX5 HV G2 ESC 56118SD 1100KV G2 MOTOR
Features
Excellent waterproof and dustproof performance, it is easy to deal with various climatic conditions and harsh environment.
Smart freewheeling technology makes the esc have higher driving efficiency and lower operating temperature, and the stability and reliability of the esc are further improved.
Built-in powerful switch mode BEC, continuous current up to 5A, instant up to 10A, and support 6V-8.4V adjustable, easy to drive various powerful and high-voltage steering servo.
Multiple protection functions: battery low voltage protection, esc overheat protection, throttle signal loss protection, current protection, capacitor overheat protection.
It has an independent programming port. When connecting the program card, it is not necessary to pull the throttle cable out of the receiver, which is more convenient to use
Combo Specifications
- KV: 1100KV
- Lipo's: 6-8S
- No-load Current (A): 8.0A
- Diameter / Length: φ=56mm (2.20") L=119.2mm (4.69")
- Shaft Diameter / Length: φ=8mm (0.31") L=30mm (1.18")
- Bearing size (mm): Front: D22*D8*T7 Rear: D19*D8*T6
- Pole: 4
- Weight: 1287g
- Applications: 1/5 Buggy, Truck
ESC Specifications
- Cont. / Peak Current: 250A / 1600A
- Motor Type: Sensored / Sensorless Brushless Motor
- Application: 1/5th Buggy, Truck
- Motor Limit (Note*): With 8S LiPo: KV < 1200 With 12S Lipo: KV
- LiPo Cells: 6-12S LiPo
- BEC Output: 6V/7.4V8.4V adjustable, continous current 8A (switch-mode)
- Cooling Fan: A stable 6V or 7.4V or 8.4V from the built-in BEC
- Size / Weight: 94.5(L) x 59.4(W) x 50.9(H)mm / 428.5g (Included input wires)
- Programming Port: Independent programming port
Please Note: The range of KV value here is the recommended value under the standard application (combined with the rpm supported by the motor and the actual load of the whole vehicle), and does not represent the maximum rpm supported by esc.
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW38010604
- Product Type: Hobbywing HW38010604 combo with MAX5 HV G2 ESC and 56118SD 1100kV motor, Hobbywing HW38010604 ESC/motor combo for 1/5 scale buggy and truck builds, Hobbywing HW38010604 sensored brushless system with 8S LiPo support and waterproof design
- Product Colour: Black
Motor Specifications
- Motor Type: Sensored brushless – delivers smooth throttle response and precise control
- KV Rating: 1100kV – tuned for aggressive launches and high-speed off-road performance
- No-Load Current: 8.0A – indicates efficient energy draw during idle operation
- Pole Count: 4 – ensures consistent torque delivery across the RPM range
- Motor Diameter: 5.6 cm – compact yet powerful for 1/5 scale platforms
- Motor Length: 11.92 cm – accommodates internal rotor and sensored components
- Shaft Diameter: 0.8 cm – robust alloy steel for secure gear engagement
- Shaft Length: 3.0 cm – supports high-load drivetrain systems
- Motor Weight: 1287 g – heavy-duty build for thermal stability and durability
- LiPo Compatibility: 6–8S – supports high-voltage setups for aggressive terrain control
- Application: 1/5 scale buggy and truck builds – ideal for off-road racing and heavy-duty use
ESC Specifications
- ESC Type: MAX5 HV G2 – engineered for large-scale RC vehicles
- Continuous Current: 250A – delivers sustained power for demanding applications
- Peak Current: 1600A – handles short bursts of torque under extreme load
- Cooling Fan: Powered by built-in BEC – maintains stable operating temperature
- ESC Dimensions: 9.45 cm (L) × 5.94 cm (W) × 5.09 cm (H)
- ESC Weight: 428.5 g – includes input wires
- Motor Limit: Up to 1200kV with 8S LiPo / Up to 800kV with 12S LiPo – ensures safe operation under voltage constraints
BEC System
- BEC Type: Switch-mode – efficient voltage regulation for servo and accessory support
- BEC Output Voltage: Adjustable between 6V, 7.4V, and 8.4V – supports high-voltage servo configurations
- BEC Output Current: 8A continuous / 10A peak – ensures reliable power delivery under load
Protection and Efficiency Features
- Waterproof Design: Sealed electronics – protects against moisture, dust, and debris
- Smart Freewheeling: Enabled – improves driving efficiency and reduces ESC temperature
- Capacitor Protection: Integrated – safeguards against voltage spikes and overheating
- Multiple Protections: Includes low voltage, ESC overheat, throttle signal loss, current overload, and capacitor overheat protection
Programming and Configuration
- Programming Port: Independent – allows tuning without disconnecting throttle cable
What’s in the Box
- 1 × Hobbywing MAX5 HV G2 ESC
- 1 × Hobbywing 56118SD 1100kV G2 Sensored Brushless Motor
What You Require
- 6–8S LiPo battery pack
- Compatible 1/5 scale buggy or truck chassis
Sold Separately
- Hobbywing programming card (optional for advanced tuning)
Product Description of Hobbywing HW38010604 combo with MAX5 HV G2 ESC and 56118SD 1100kV motor
The Hobbywing HW38010604 combo with MAX5 HV G2 ESC and 56118SD 1100kV motor is a black, sensored brushless system engineered for 1/5 scale buggy and truck builds. Designed for aggressive launches and high-speed off-road performance, this waterproof combo delivers powerful torque, advanced protection, and precision control. With 6–8S LiPo compatibility, a 250A ESC, and a heavy-duty 1287g motor, the Hobbywing HW38010604 ESC/motor combo for 1/5 scale buggy and truck builds offers robust performance and reliability for serious RC enthusiasts tackling extreme terrain.
Key features of the Hobbywing HW38010604 combo
- 1100kV motor – tuned for torque-rich acceleration and responsive throttle control
- 250A ESC – delivers sustained high-current output for demanding off-road conditions
- Waterproof and dustproof design – ensures reliable operation in harsh environments
- Smart freewheeling – improves driving efficiency and reduces ESC temperature
- Capacitor protection – safeguards against voltage spikes and thermal stress
- Adjustable BEC – supports 6V, 7.4V, and 8.4V for high-voltage servo systems
- Independent programming port – enables convenient tuning without disconnecting throttle cable
How does the 1100kV motor enhance off-road performance?
The Hobbywing 1100kV motor system with 4-pole rotor and 1287g heavy-duty build is engineered for aggressive launches and high-speed terrain control. Its 4-pole rotor ensures consistent torque across the RPM range, while the sensored configuration provides smooth throttle response and precise handling. The motor’s 8mm shaft and 30mm length support high-load gear systems, making it ideal for large-scale buggy and truck platforms that demand both speed and durability.
What makes the MAX5 HV G2 ESC suitable for extreme builds?
The Hobbywing HW38010604 with 250A ESC and 8mm shaft motor for high torque features a high-capacity ESC capable of delivering 250A continuous and 1600A peak current. This ensures stable power delivery during aggressive driving and protects against overload conditions. Smart freewheeling technology enhances efficiency and reduces heat buildup, while multiple protection functions—including low voltage, overheat, and signal loss—ensure safe operation under stress.
How does waterproofing improve system longevity?
The Hobbywing HW38010604 sensored brushless system with 8S LiPo support and waterproof design is built to withstand moisture, dust, and debris. Its sealed construction protects internal electronics, ensuring reliable performance in mud, snow, and wet terrain. This durability makes it ideal for off-road enthusiasts who demand consistent operation in unpredictable environments.
What are the benefits of the adjustable BEC?
The built-in switch-mode BEC in the affordable Hobbywing ESC/motor combo with 8.4V adjustable BEC and independent programming port delivers up to 8A continuous current and supports voltage settings of 6V, 7.4V, and 8.4V. This allows users to power high-voltage steering servos and accessories without external regulators. The BEC’s stability under load ensures responsive control and reduces the risk of brownouts during peak power draw.
Is this combo easy to configure?
Yes. The Hobbywing MAX5 HV G2 combo with smart freewheeling and capacitor protection includes an independent programming port that allows users to connect a program card without disconnecting the throttle cable. This simplifies tuning and setup, enabling quick adjustments to throttle response, brake settings, and other performance parameters.
For builders seeking a high-performance, waterproof ESC/motor system with advanced protection and tuning capabilities, the best Hobbywing upgrade for aggressive launches and high-speed off-road performance is ready to deliver. Buy Hobbywing HW38010604 combo for 1/5 trucks with 6–8S LiPo compatibility today.
Technical Specifications of Hobbywing HW38010604 combo with MAX5 HV G2 ESC and 56118SD 1100kV motor
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW38010604
- Product Type: Hobbywing HW38010604 combo with MAX5 HV G2 ESC and 56118SD 1100kV motor, Hobbywing HW38010604 ESC/motor combo for 1/5 scale buggy and truck builds, Hobbywing HW38010604 sensored brushless system with 8S LiPo support and waterproof design
- Product Colour: Black
Motor Specifications
- Motor Type: Sensored brushless – delivers smooth throttle response and precise control
- KV Rating: 1100kV – tuned for aggressive launches and high-speed off-road performance
- No-Load Current: 8.0A – indicates efficient energy draw during idle operation
- Pole Count: 4 – ensures consistent torque delivery across the RPM range
- Motor Diameter: 5.6 cm – compact yet powerful for 1/5 scale platforms
- Motor Length: 11.92 cm – accommodates internal rotor and sensored components
- Shaft Diameter: 0.8 cm – robust alloy steel for secure gear engagement
- Shaft Length: 3.0 cm – supports high-load drivetrain systems
- Motor Weight: 1287 g – heavy-duty build for thermal stability and durability
- LiPo Compatibility: 6–8S – supports high-voltage setups for aggressive terrain control
- Application: 1/5 scale buggy and truck builds – ideal for off-road racing and heavy-duty use
ESC Specifications
- ESC Type: MAX5 HV G2 – engineered for large-scale RC vehicles
- Continuous Current: 250A – delivers sustained power for demanding applications
- Peak Current: 1600A – handles short bursts of torque under extreme load
- Cooling Fan: Powered by built-in BEC – maintains stable operating temperature
- ESC Dimensions: 9.45 cm (L) × 5.94 cm (W) × 5.09 cm (H)
- ESC Weight: 428.5 g – includes input wires
- Motor Limit: Up to 1200kV with 8S LiPo / Up to 800kV with 12S LiPo – ensures safe operation under voltage constraints
BEC System
- BEC Type: Switch-mode – efficient voltage regulation for servo and accessory support
- BEC Output Voltage: Adjustable between 6V, 7.4V, and 8.4V – supports high-voltage servo configurations
- BEC Output Current: 8A continuous / 10A peak – ensures reliable power delivery under load
Protection and Efficiency Features
- Waterproof Design: Sealed electronics – protects against moisture, dust, and debris
- Smart Freewheeling: Enabled – improves driving efficiency and reduces ESC temperature
- Capacitor Protection: Integrated – safeguards against voltage spikes and overheating
- Multiple Protections: Includes low voltage, ESC overheat, throttle signal loss, current overload, and capacitor overheat protection
Programming and Configuration
- Programming Port: Independent – allows tuning without disconnecting throttle cable
What’s in the Box
- 1 × Hobbywing MAX5 HV G2 ESC
- 1 × Hobbywing 56118SD 1100kV G2 Sensored Brushless Motor
What You Require
- 6–8S LiPo battery pack
- Compatible 1/5 scale buggy or truck chassis
Sold Separately
- Hobbywing programming card (optional for advanced tuning)
