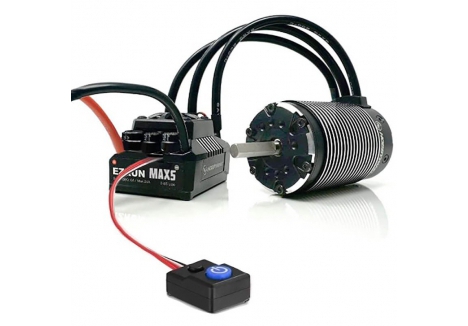

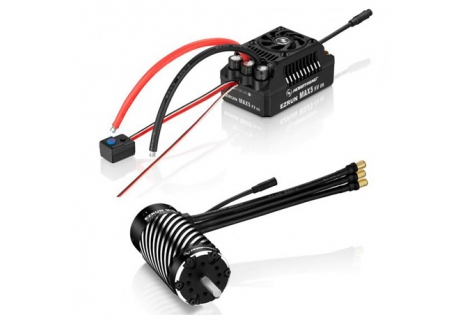

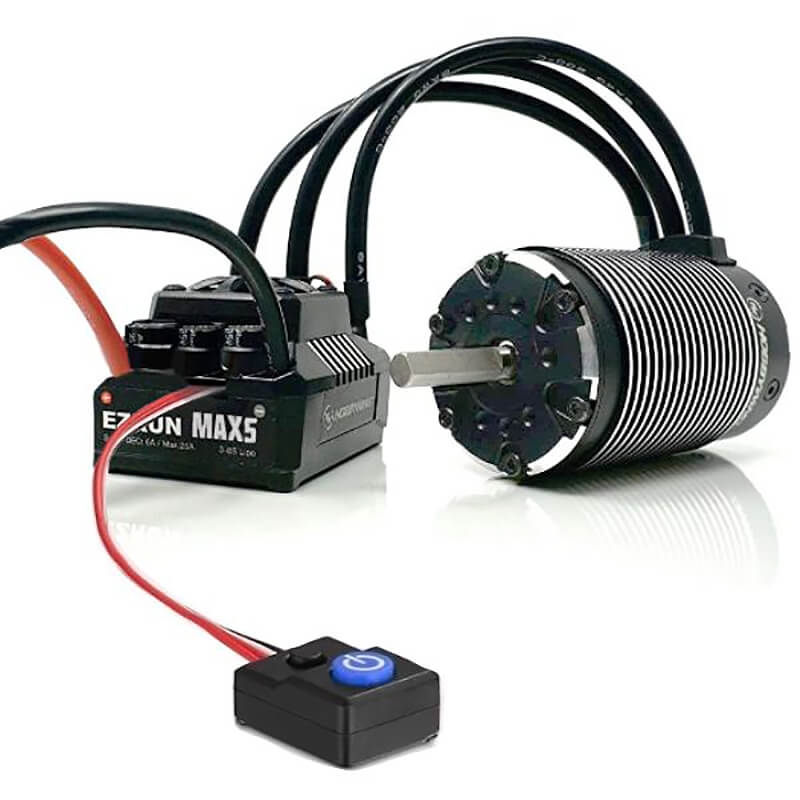

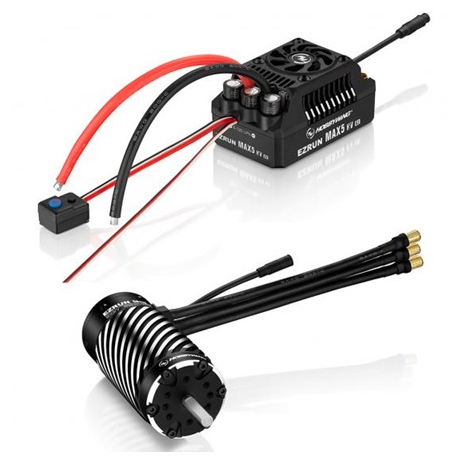

HOBBYWING COMBO EZRUN MAX5 HV G2 ESC 56118SD 650KV G2 MOTOR
Features
Excellent waterproof and dustproof performance, it is easy to deal with various climatic conditions and harsh environment.
Smart freewheeling technology makes the esc have higher driving efficiency and lower operating temperature, and the stability and reliability of the esc are further improved.
Built-in powerful switch mode BEC, continuous current up to 5A, instant up to 10A, and support 6V-8.4V adjustable, easy to drive various powerful and high-voltage steering servo.
Multiple protection functions: battery low voltage protection, esc overheat protection, throttle signal loss protection, current protection, capacitor overheat protection.
It has an independent programming port. When connecting the program card, it is not necessary to pull the throttle cable out of the receiver, which is more convenient to use
Combo Specifications
- KV: 650KV
- Lipo's: 8-12S
- No-load Current (A): 5.5A
- Diameter / Length: φ=56mm (2.20") L=119.2mm (4.69")
- Shaft Diameter / Length: φ=8mm (0.31") L=30mm (1.18")
- Bearing size (mm): Front: D22*D8*T7 Rear: D19*D8*T6
- Pole: 4
- Weight: 1272g
- Applications: 1/5 Buggy, Truck
ESC Specifications
- Cont. / Peak Current: 250A / 1600A
- Motor Type: Sensored / Sensorless Brushless Motor
- Application: 1/5th Buggy, Truck
- Motor Limit (Note*): With 8S LiPo: KV < 1200 With 12S Lipo: KV
- LiPo Cells: 6-12S LiPo
- BEC Output: 6V/7.4V8.4V adjustable, continous current 8A (switch-mode)
- Cooling Fan: A stable 6V or 7.4V or 8.4V from the built-in BEC
- Size / Weight: 94.5(L) x 59.4(W) x 50.9(H)mm / 428.5g (Included input wires)
- Programming Port: Independent programming port
Please Note: The range of KV value here is the recommended value under the standard application (combined with the rpm supported by the motor and the actual load of the whole vehicle), and does not represent the maximum rpm supported by esc.
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW38010603
- Product Type: Hobbywing HW38010603 EZRUN MAX5 HV G2 ESC combo with 56118SD 650kV motor, Hobbywing HW38010603 waterproof ESC and motor set for 1/5 scale buggy or truck, Hobbywing HW38010603 sensored brushless combo with 250A ESC and 8S–12S support, Hobbywing HW38010603 with 8.4V BEC and 4-pole motor for high torque, EZRUN MAX5 G2 combo with smart freewheeling and capacitor protection, 650kV motor and 1600A peak ESC for large-scale RC applications
ESC Specifications
- Continuous Current: 250A – delivers stable power for high-demand RC systems
- Peak Current: 1600A – supports aggressive throttle bursts and heavy loads
- Motor Type Compatibility: Sensored / Sensorless Brushless – supports advanced motor configurations
- Application: 1/5th scale buggy and truck – engineered for large-scale RC platforms
- LiPo Cell Support: 6–12S – accommodates high-voltage setups for extreme performance
- Motor Limit: KV < 1200 (8S), KV < 800 (12S) – ensures safe operation under recommended load conditions
- Cooling Fan Voltage: Stable 6V / 7.4V / 8.4V – powered by built-in BEC for consistent thermal control
- Programming Port: Independent – allows configuration without disconnecting throttle cable
- Protection Features: Battery low voltage, ESC overheat, throttle signal loss, current overload, capacitor overheat
Motor Specifications
- Motor Model: 56118SD G2 – matched for high-torque, high-efficiency performance
- KV Rating: 650kV – optimized for 8S–12S LiPo configurations
- No-load Current: 5.5A – efficient baseline draw for low-resistance operation
- Diameter: 5.6 cm – compact yet powerful motor housing
- Length: 11.92 cm – extended body for increased torque output
- Shaft Diameter: 0.8 cm – compatible with standard 1/5 scale drivetrain components
- Shaft Length: 3.0 cm – provides secure engagement with pinion gears
- Bearing Size: Front: 2.2 cm × 0.8 cm × 0.7 cm; Rear: 1.9 cm × 0.8 cm × 0.6 cm – precision bearings for smooth rotation
- Pole Count: 4 – delivers high torque and efficient acceleration
- Motor Weight: 1272g – substantial build for large-scale RC vehicles
Combo Dimensions and Weight
- ESC Size: 9.45 cm × 5.94 cm × 5.09 cm – compact footprint for 1/5 scale chassis
- ESC Weight: 428.5g (including input wires) – lightweight for its power class
System Features
- Waterproof and Dustproof: Yes – designed to operate in harsh environments and varied climates
- Smart Freewheeling: Yes – improves driving efficiency and reduces heat buildup
- Capacitor Protection: Yes – prevents damage from voltage spikes and overheating
BEC Specifications
- Type: Switch-mode – efficient power regulation for connected components
- Output Voltage: Adjustable 6V / 7.4V / 8.4V – supports high-voltage servos
- Continuous Current: 8A – stable power delivery for demanding applications
- Peak Current: 10A – handles short bursts of high current draw
Applications
- Vehicle Compatibility: 1/5 Buggy, Truck – engineered for large-scale RC platforms
Product Description of Hobbywing HW38010603 EZRUN MAX5 HV G2 ESC combo with 56118SD 650kV motor
The Hobbywing HW38010603 EZRUN MAX5 HV G2 ESC combo with 56118SD 650kV motor is engineered for large-scale RC enthusiasts who demand uncompromising power, precision, and durability. Designed for 1/5 scale buggies and trucks, this sensored brushless combo delivers a commanding 250A continuous current and an astonishing 1600A peak burst, making it ideal for high-voltage setups and extreme terrain. With waterproof and dustproof construction, the Hobbywing HW38010603 waterproof ESC and motor set for 1/5 scale buggy or truck is built to perform in harsh environments without compromising reliability or control.
Key features of the Hobbywing HW38010603 ESC motor combo
- Waterproof and dustproof design – ensures consistent performance in all weather and terrain conditions
- Smart freewheeling technology – improves driving efficiency and reduces operating temperature
- Adjustable high-voltage BEC – supports powerful servos with selectable 6V, 7.4V, or 8.4V output
- Capacitor protection – prevents damage from overheating and voltage spikes
- Independent programming port – simplifies setup without disconnecting throttle cable
- 4-pole motor construction – delivers high torque and smooth acceleration
- 650kV motor rating – optimized for 8S–12S LiPo configurations
How does the waterproof design benefit large-scale RC builds?
The Hobbywing HW38010603 waterproof ESC and motor set for 1/5 scale buggy or truck features a sealed construction that resists water and dust intrusion, allowing users to operate confidently in rain, mud, sand, or snow. This rugged build quality ensures the electronics remain protected during off-road adventures and competitive racing. Whether you're bashing through puddles or navigating rocky trails, the waterproof design maintains consistent performance and extends the lifespan of the components.
What is smart freewheeling and how does it improve efficiency?
The EZRUN MAX5 G2 combo with smart freewheeling and capacitor protection integrates Hobbywing’s proprietary freewheeling technology, which enhances driving efficiency by reducing internal resistance during coasting. This results in lower operating temperatures and improved stability under load. By minimizing energy loss, smart freewheeling contributes to smoother throttle response and longer runtime, especially beneficial in high-voltage setups where thermal management is critical.
Why is the adjustable BEC important for high-voltage servos?
The Hobbywing HW38010603 with 8.4V BEC and 4-pole motor for high torque includes a powerful switch-mode BEC capable of delivering up to 8.4V at 8A continuous current (10A peak). This flexibility allows users to match the voltage output to their servo requirements, ensuring optimal performance and responsiveness. Whether you're running heavy-duty steering servos or high-speed throttle servos, the adjustable BEC provides stable power delivery and protects against voltage drops during peak loads.
How does capacitor protection enhance reliability?
The Hobbywing HW38010603 sensored brushless combo with 250A ESC and 8S–12S support includes advanced capacitor protection that shields the ESC from overheating and voltage surges. This feature is especially important in large-scale RC applications where high current draw and rapid throttle changes can stress electronic components. By regulating capacitor temperature and preventing overload, the system maintains consistent performance and reduces the risk of failure during demanding runs.
What makes the motor ideal for 1/5 scale vehicles?
The 650kV motor and 1600A peak ESC for large-scale RC applications is built around a robust 4-pole design that delivers exceptional torque and acceleration. With a diameter of 5.6 cm and a length of 11.92 cm, the motor is sized to fit 1/5 scale buggies and trucks while providing the power needed for aggressive driving. The 650kV rating is optimized for 8S–12S LiPo setups, offering a balance of speed and control across varied terrain. Bearing sizes and shaft dimensions are precision-engineered for durability and smooth rotation under load.
How does the independent programming port simplify setup?
The Hobbywing HW38010603 EZRUN MAX5 HV G2 ESC combo with 56118SD 650kV motor features an independent programming port that allows users to connect a program card without unplugging the throttle cable from the receiver. This design streamlines configuration and firmware updates, making it easier to adjust settings and optimize performance. Whether you're tuning for a specific track or updating parameters for a new motor, the independent port saves time and reduces wear on connectors.
Why is the Hobbywing HW38010603 combo a top choice for high-voltage RC builds?
The Hobbywing HW38010603 EZRUN MAX5 HV G2 ESC combo with 56118SD 650kV motor combines cutting-edge technology, robust construction, and user-friendly features to deliver unmatched performance in large-scale RC applications. From smart freewheeling and capacitor protection to waterproof durability and adjustable BEC output, every element is engineered for reliability and control. For users seeking the best Hobbywing combo for high-voltage setups with sensored brushless motor, this combo offers the power and precision needed to dominate any terrain. Buy Hobbywing HW38010603 ESC motor combo for 1/5 RC truck with OTA tuning.
Technical Specifications of Hobbywing HW38010603 EZRUN MAX5 HV G2 ESC combo with 56118SD 650kV motor
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW38010603
- Product Type: Hobbywing HW38010603 EZRUN MAX5 HV G2 ESC combo with 56118SD 650kV motor, Hobbywing HW38010603 waterproof ESC and motor set for 1/5 scale buggy or truck, Hobbywing HW38010603 sensored brushless combo with 250A ESC and 8S–12S support, Hobbywing HW38010603 with 8.4V BEC and 4-pole motor for high torque, EZRUN MAX5 G2 combo with smart freewheeling and capacitor protection, 650kV motor and 1600A peak ESC for large-scale RC applications
ESC Specifications
- Continuous Current: 250A – delivers stable power for high-demand RC systems
- Peak Current: 1600A – supports aggressive throttle bursts and heavy loads
- Motor Type Compatibility: Sensored / Sensorless Brushless – supports advanced motor configurations
- Application: 1/5th scale buggy and truck – engineered for large-scale RC platforms
- LiPo Cell Support: 6–12S – accommodates high-voltage setups for extreme performance
- Motor Limit: KV < 1200 (8S), KV < 800 (12S) – ensures safe operation under recommended load conditions
- Cooling Fan Voltage: Stable 6V / 7.4V / 8.4V – powered by built-in BEC for consistent thermal control
- Programming Port: Independent – allows configuration without disconnecting throttle cable
- Protection Features: Battery low voltage, ESC overheat, throttle signal loss, current overload, capacitor overheat
Motor Specifications
- Motor Model: 56118SD G2 – matched for high-torque, high-efficiency performance
- KV Rating: 650kV – optimized for 8S–12S LiPo configurations
- No-load Current: 5.5A – efficient baseline draw for low-resistance operation
- Diameter: 5.6 cm – compact yet powerful motor housing
- Length: 11.92 cm – extended body for increased torque output
- Shaft Diameter: 0.8 cm – compatible with standard 1/5 scale drivetrain components
- Shaft Length: 3.0 cm – provides secure engagement with pinion gears
- Bearing Size: Front: 2.2 cm × 0.8 cm × 0.7 cm; Rear: 1.9 cm × 0.8 cm × 0.6 cm – precision bearings for smooth rotation
- Pole Count: 4 – delivers high torque and efficient acceleration
- Motor Weight: 1272g – substantial build for large-scale RC vehicles
Combo Dimensions and Weight
- ESC Size: 9.45 cm × 5.94 cm × 5.09 cm – compact footprint for 1/5 scale chassis
- ESC Weight: 428.5g (including input wires) – lightweight for its power class
System Features
- Waterproof and Dustproof: Yes – designed to operate in harsh environments and varied climates
- Smart Freewheeling: Yes – improves driving efficiency and reduces heat buildup
- Capacitor Protection: Yes – prevents damage from voltage spikes and overheating
BEC Specifications
- Type: Switch-mode – efficient power regulation for connected components
- Output Voltage: Adjustable 6V / 7.4V / 8.4V – supports high-voltage servos
- Continuous Current: 8A – stable power delivery for demanding applications
- Peak Current: 10A – handles short bursts of high current draw
Applications
- Vehicle Compatibility: 1/5 Buggy, Truck – engineered for large-scale RC platforms
