After 20 years since it first excited R/C drivers all around the world with its dynamic form, the Avante is back! !
Tamiya has given the Avante (2011) the special re-release treatment just like other re-released buggies such as the Buggy Champ and Hotshot.
In March 1988, Tamiya released an electric R/C 4WD racing buggy called the Avante and it has since become an legendary machine in Tamiyas R/C history.
The Avante featured a unique shaft-driven 4WD system which was taken from Tamiyas first 4WD R/C buggy, the Hotshot. It also featured a highly sophisticated design including a FRP double-deck chassis layout, longitudinal motor & battery positions, and a formula-type body with chassis fairing. It was equipped with innovative components such as a compact gearbox with 3 small planetary gears, a center diff to increase stability, a fully adjustable suspension, and cam-lock wheel caps.
The Avante was a distinctive R/C machine which featured an innovative design. After 20 years, some of the Avantes mechanisms have become standard features on modern R/C cars.
Here is a brief introduction of the improved points:

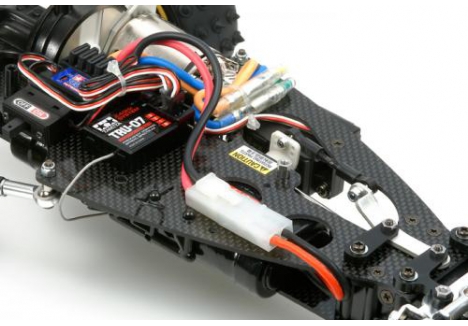

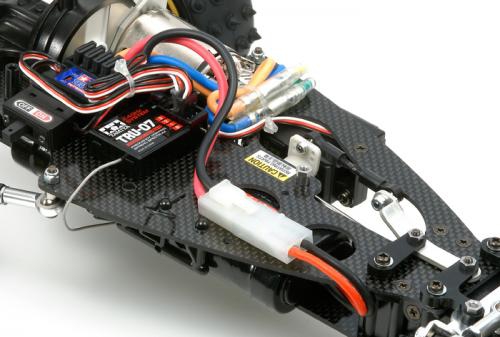

Main chassis material has been changed from FRP to Carbon Fiber.
Original FRP upper/lower decks have been replaced with 2.0mm thick Carbon Fiber decks to further increase chassis strength and rigidity. Chassis layout is optimized for installing modern R/C equipment.

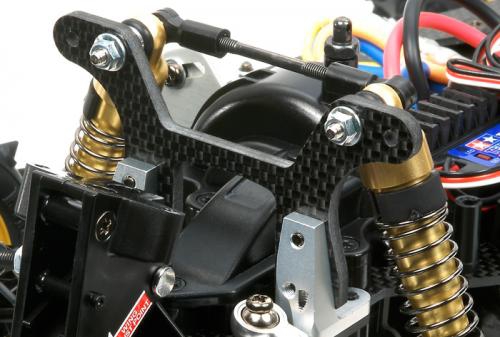

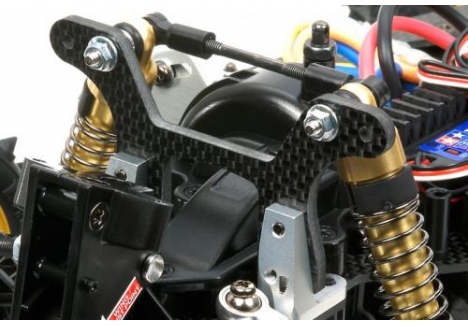

Carbon Fiber Rear Damper Stay
Rear damper stay is thicker than the original and its material has also been changed to carbon fiber. Left and right stays are connected to further increase rigidity.
Universal Drive Shafts
Universal shafts are used for both front and rear to reduce friction loss.
Easier Damper Maintenance
The gold-colored oil damper cylinders feature bottom caps for easier maintenance such as replacing o-rings.

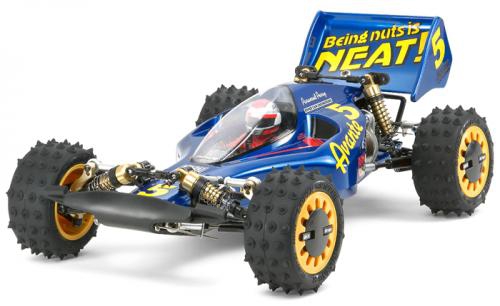

Durable Polycarbonate Body Shell
The body, wing, and chassis fairing have been made with polycarbonate for superb off-road durability.

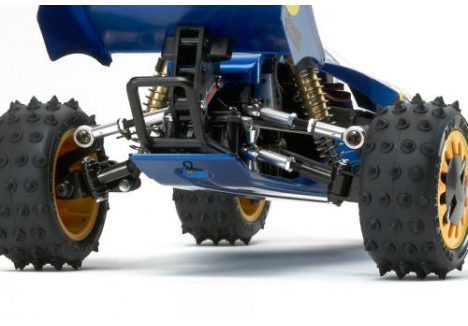

Wheel Axle/Clamp Type Wheel Hubs
Wheel axles have been changed to standard pin-secured type. In conjunction with the original cam-lock type wheels.
Duralumin front knuckles
The original die-cast front knuckles have been replaced with duralumin knuckles to further increase strength and durability.
Compatible with a wide range of battery packs.
The Avante (2011) is compatible with a wide range of battery types.
The Original Packaging is also Revived!
The package for this re-release model comes with the same design and dimensions as the original Avante. In addition, just like the original Avante, all the parts are stored in blister packs. The Avante logo and rear wing sticker will remain the same as the original. Other stickers will be of a new Tamiya design.
Features:
- Self assembly model kit - 2011 Avante
- Avante Special 25T GT Tuned Motor
- Tamiya ESC
- Polycarbonate body and under tray (un-painted*)
- Double-Deck carbon fibre chassis
- Extra thick carbon rear shock tower
- Machined alloy rear shock mount supports
- New and improved machined Duralumin front uprights
- F/R Multi-Link Suspension
- F/R Metal Oil Dampers
- Original Cam-Lock wheels with 38/88mm tyres
Specifications:
- Length: 420mm
- Width: 240mm
- Height: 115mm
- Wheelbase: 260mm
- Tread (L/R): 200mm
- Minimum Ground Clearance: 40mm
- Weight: 1300g
*Requires paint for the bodyshell.
Brand: Tamiya
Part No: HC-58489
Barcode: 4950344584895
Scale: 1:10
Vehicle Type: Buggy
Power Source: Electric - No Motor
Surface Type: Off Road
Build Level: Unassembled (Kit)
The Tamiya TAM58489 Avante 2011 4WD buggy with carbon fiber chassis, planetary diffs, and 25T RS540 motor is a precision re-release of Tamiya’s legendary 1988 racing icon. Updated for modern performance while preserving its classic styling, this 1/10 scale electric buggy features a shaft-driven 4WD layout, double wishbone suspension, and a host of refined components. From its 2mm carbon double deck chassis to its blister-style packaging, the Avante 2011 delivers a nostalgic build experience with cutting-edge racing capability.
Key features of the Tamiya TAM58489 Avante 2011 4WD buggy
- Carbon fiber chassis – 2mm thick double deck layout enhances rigidity and reduces weight
- Planetary front/rear diffs – paired with a center ball diff for balanced traction and cornering control
- 25T RS540 motor – delivers reliable power for competitive 1/10 scale racing

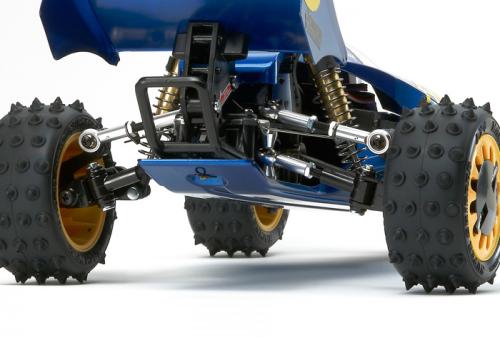

- Double wishbone suspension – metal ball-end shafts allow fine-tuning for terrain and handling
- Cam-loc wheel caps – secure wheel fitment and preserve vintage Avante aesthetics
- Aluminum knuckles – replace original die-cast parts for improved durability and precision
- Blister-style packaging – replicates the original 1988 presentation for collectors
How does the drivetrain support racing performance?
The 4WD buggy with shaft-driven drivetrain, center ball diff, and 3-piece steering tie-rod is engineered for high-speed stability and responsive handling. The shaft-driven system ensures full-time traction, while planetary diffs at the front and rear balance power distribution. A center ball differential adds flexibility during cornering, reducing understeer and improving grip. The 3-piece steering tie-rod setup enhances directional control, making the Avante 2011 suitable for both track racing and technical terrain.
What makes the suspension system race-ready?
The Tamiya TAM58489 racing buggy with double wishbone suspension, cam-loc wheel caps, and 23 ball bearings features a fully independent 4-wheel suspension layout. Each corner is equipped with oil-filled shocks and metal-threaded shafts, allowing precise damping adjustments. The double wishbone design ensures consistent wheel contact and stability, while the cam-loc caps maintain secure wheel placement during aggressive maneuvers. With 23 ball bearings minimizing friction throughout the drivetrain, the buggy delivers smooth, efficient power transfer and responsive suspension action.
How does the chassis enhance durability and control?
The RC buggy kit with 2mm carbon double deck, 3.5mm rear damper stay, and oil-filled shocks is built for strength and precision. The carbon fiber double deck replaces the original FRP design, offering improved rigidity and reduced flex under load. A 3.5mm carbon rear damper stay adds structural support for rear suspension tuning. Oil-filled shocks at all four corners absorb terrain impacts and maintain chassis balance, while maintenance hatches on the gearboxes allow quick inspection and servicing—ideal for competitive racers and hobbyists alike.
What are the dimensions and tire specifications?
The Tamiya TAM58489 with 420mm length, 240mm width, and 260mm wheelbase for 1/10 scale racing realism is proportioned for track-ready performance and visual impact. Its 88mm tires offer grip across varied surfaces, while a gear ratio of 8.33:1 balances acceleration and top speed. With a 200mm tread width front and rear, the buggy maintains directional stability and predictable handling through corners and jumps.
Why choose the Avante 2011 for your collection or track?
The best electric 4WD buggy with carbon chassis, aluminum knuckles, and blister-style retro packaging blends heritage with innovation. It retains the iconic silhouette and packaging of the original Avante while integrating modern materials and drivetrain upgrades. Whether you're reliving the golden age of R/C racing or seeking a high-performance build for today’s tracks, the TAM58489 offers a rewarding experience in both assembly and driving.
Buy Tamiya TAM58489 Avante 2011 for high-performance 1/10 scale racing with classic design and modern upgrades.
Brand, Model and Product Type
- Brand – Tamiya
- Model – TAM58489
- Product Type – Tamiya TAM58489 Avante 2011 4WD buggy with carbon fiber chassis, planetary diffs, and 25T RS540 motor, Tamiya racing buggy with double wishbone suspension, cam-loc wheel caps, and 23 ball bearings, Tamiya re-release kit with aluminum knuckles, blister-style packaging, and classic Avante styling, Tamiya 4WD buggy with shaft-driven drivetrain, center ball diff, and 3-piece steering tie-rod, Tamiya RC buggy kit with 2mm carbon double deck and oil-filled shocks
Dimensions
- Length – 42 cm: optimized for 1/10 scale racing with balanced proportions and aerodynamic stance
- Width – 24 cm: wide track enhances cornering grip and lateral stability
- Height – 14 cm: low-profile build supports high-speed control and reduced air resistance
- Wheelbase – 26 cm: extended layout improves straight-line stability and jump handling
- Tread (Front/Rear) – 20 cm: uniform width supports predictable handling and traction
Motor and Transmission
- Motor type – RS540 (25T): delivers consistent torque and acceleration for competitive racing
- Drivetrain – Shaft-driven full-time 4WD: ensures balanced power delivery across all wheels
- Gear ratio – 8.33:1: tuned for optimal speed and torque balance on track surfaces
Chassis and Suspension
- Chassis – 2mm carbon double deck: lightweight and rigid structure replaces original FRP for improved durability
- Rear damper stay – 3.5mm carbon fiber: enhances rear suspension rigidity and tuning potential
- Suspension – 4-wheel double wishbone: metal ball-end shafts allow fine-tuning and terrain adaptability
- Shock absorbers – Front and rear oil-filled dampers: absorb terrain impacts and maintain chassis balance
- Radius arm protector – Included: absorbs shocks and protects suspension arms from damage
Differentials and Steering
- Front and rear diffs – Planetary gear type: supports smooth power distribution and cornering control
- Center diff – Ball differential: adds flexibility and traction during high-speed turns
- Steering system – 3-piece tie-rod: enhances directional precision and steering response
Bearings and Wheels
- Ball bearings – 23 total: minimize friction and improve drivetrain efficiency
- Wheel caps – Cam-loc design: securely hold wheels in place during aggressive driving
- Tire dimensions – 8.8 cm diameter, 3.8 cm width: supports grip and stability across varied surfaces
Body and Styling
- Styling – Classic Avante silhouette: retains original design elements for nostalgic appeal
- Packaging – Blister-style: replicates 1988 presentation for collectors
- Knuckles – Aluminum construction: replaces die-cast originals for improved strength and precision
Maintenance and Accessibility
- Gearbox hatches – Three included: allow quick inspection and servicing of gear condition
Assembly Type
- Kit configuration – Requires assembly and finishing: ideal for hobbyists seeking a hands-on build
Sold Separately
- Electronic Speed Controller (ESC)
