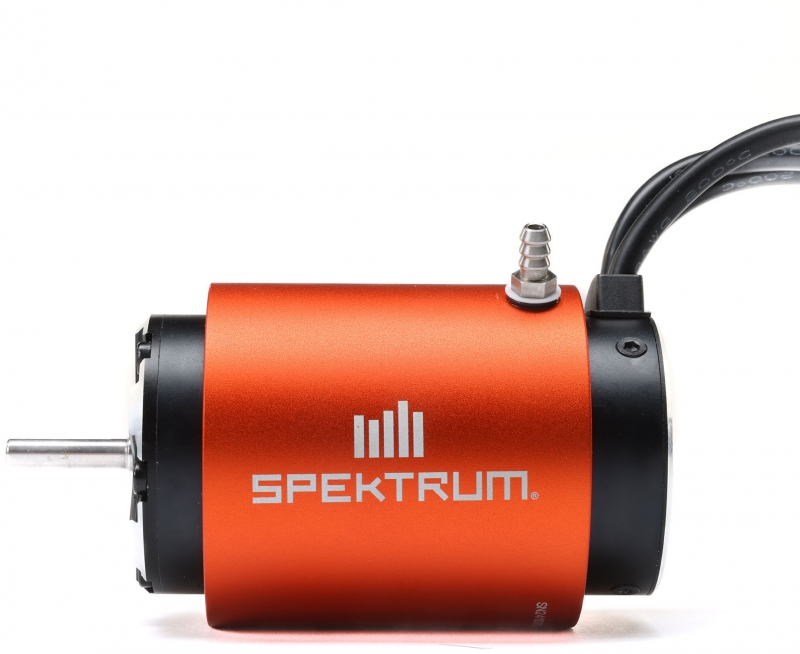

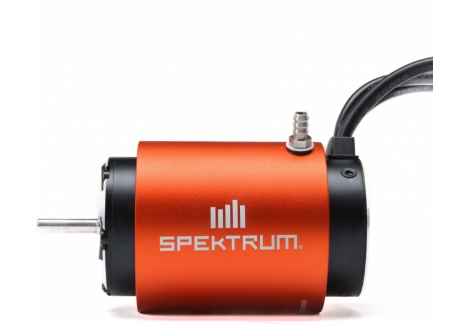

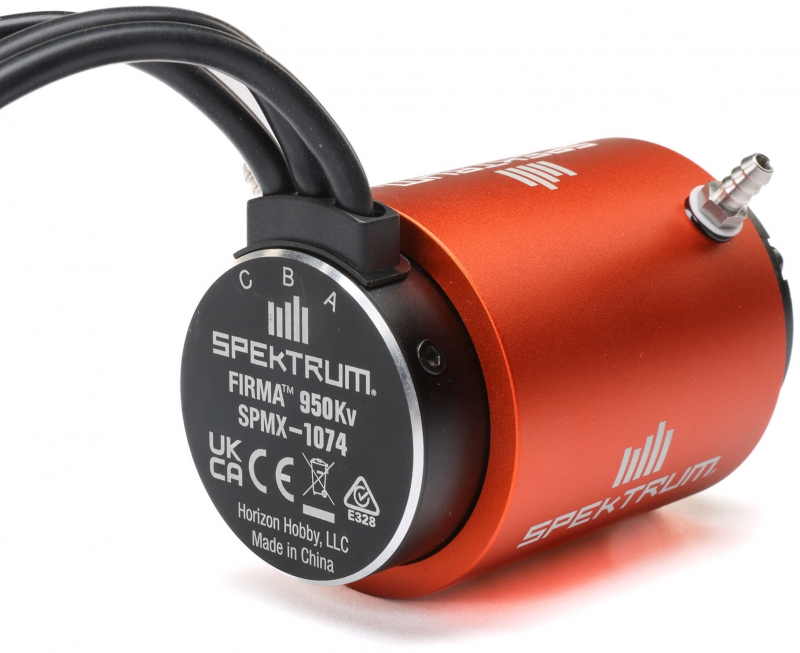

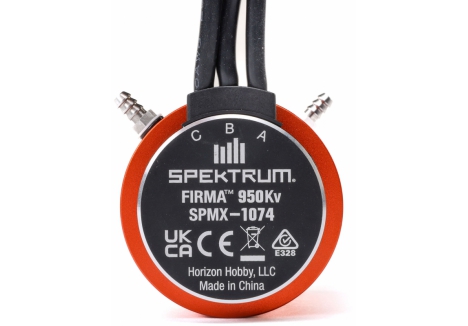

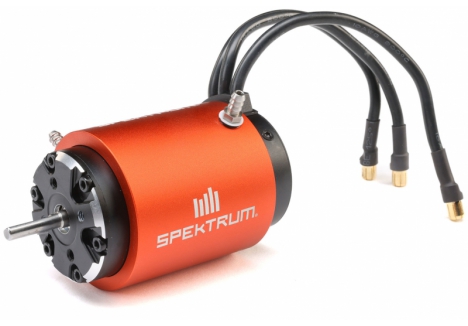

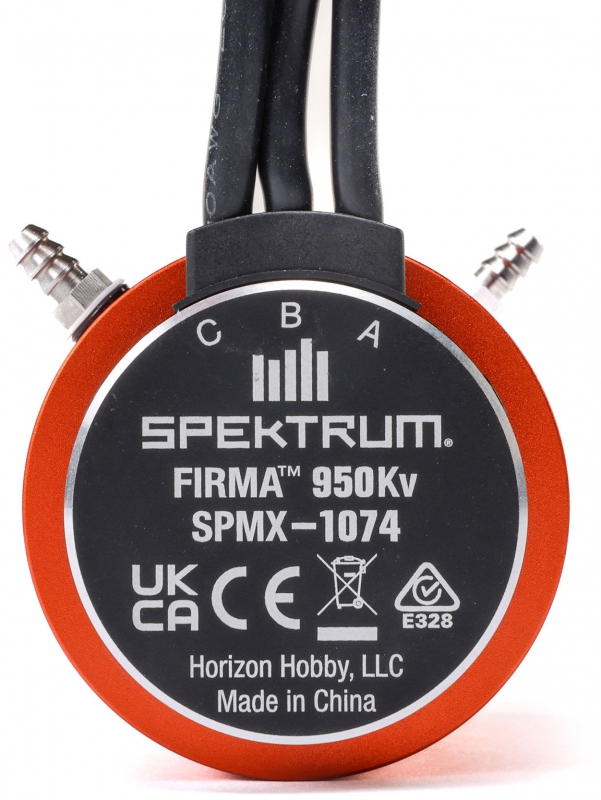

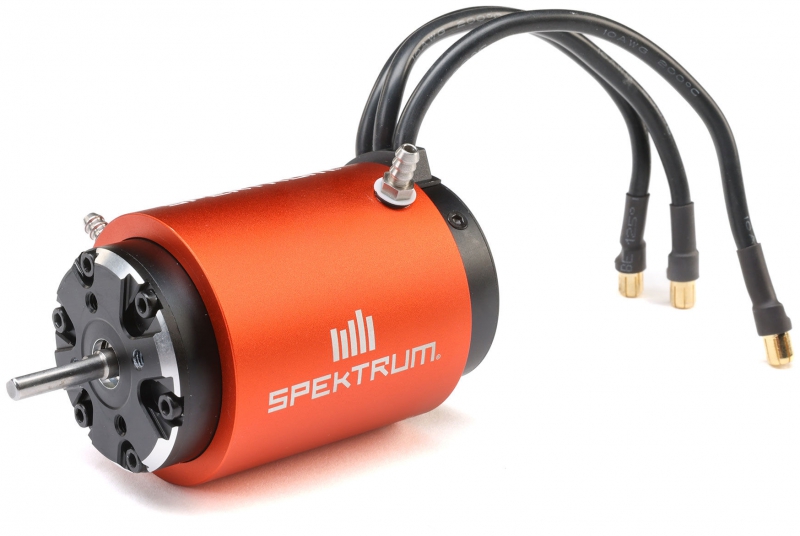

SPM Brushless 4-Pole Marine Motor, 4685 950Kv M-SPMX-1074

Overview

The Spektrum M-SPMX-1074 SPM Brushless 4-Pole Marine Motor is a high-performance brushless motor specifically engineered for large-scale RC boat enthusiasts across the UK and beyond. With its impressive 950Kv rating and sophisticated 4-pole rotor design, this marine motor delivers the acceleration, torque and sustained top-end velocity that serious RC boaters demand. Whether you're piloting a deep-V hull, operating a high-speed catamaran, or upgrading an existing RC boat for competitive racing, the Spektrum 950Kv marine motor represents a significant step forward in brushless marine propulsion technology. This is a purpose-built solution for 6S–8S LiPo systems, making it ideal for enthusiasts who want reliability, efficiency and raw performance on the water.

The M-SPMX-1074 is particularly recognised among RC boaters for its OEM fitment with the Pro Boat Super Sonicwake 48" 8S platform, one of the most demanding high-performance RC boats on the market. However, its versatility extends far beyond that single application—this motor works excellently with a wide range of large-scale marine platforms that require high-current ESC integration and sustained power delivery. If you're searching for a brushless RC motor for your boat that combines reliability with genuine performance, or if you want to upgrade from a worn brushless motor to something that delivers noticeably better acceleration and handling, the Spektrum M-SPMX-1074 is precisely what you need.

RC Model Shop is proud to stock this premium Spektrum marine motor for UK customers. Whether you're a seasoned RC boat racer, an enthusiast who enjoys weekend water sessions, or someone building their first high-performance RC boat platform, this 4-pole brushless motor will transform your on-water experience with responsive throttle control and impressive speed characteristics.

Key Features

• 950Kv Output Rating — The 950Kv specification is optimised specifically for rapid acceleration and high-speed marine performance on 6S–8S LiPo batteries, ensuring your RC boat launches from the line with impressive torque whilst maintaining excellent top-end velocity across open water.
• 4-Pole Rotor Design — The 4-pole rotor architecture delivers torque-rich propulsion throughout the power band and ensures smooth, predictable throttle response that gives you precise control over your RC boat during tight manoeuvres and high-speed runs.
• Sensorless Brushless Technology — By eliminating brushes and commutation contacts, this sensorless brushless design reduces ongoing maintenance requirements and maximises energy efficiency, meaning more of your battery's power is converted directly into propulsion rather than being wasted as heat or friction.
• Integrated Water Cooling Jacket — The built-in water cooling sleeve actively dissipates heat during operation by channelling cool water from your boat's hull around the motor body, which prevents thermal buildup during extended high-throttle runs and significantly extends both motor and ESC lifespan.
• 5mm Hardened Steel Shaft — The robust 5mm shaft is manufactured from hardened steel and engineered to withstand the demands of high-thrust propeller setups and aggressive drivetrains, providing reliability and minimal flex even under extreme load conditions.
• 6mm Bullet Connectors — The motor features industry-standard 6mm bullet connectors that ensure secure, high-current integration with your ESC, minimising electrical resistance and maintaining stable power delivery even when drawing peak amperage during acceleration.

Technical Performance

The Spektrum M-SPMX-1074 represents a significant engineering achievement in brushless marine motor design. Built around a 4-pole rotor housed within a precision aluminium stator, this motor is engineered to operate reliably on 6S–8S LiPo battery systems (22.2V–29.6V nominal), making it suitable only for high-performance, large-scale RC boat platforms. The 950Kv rating means the motor will produce approximately 950 revolutions per minute per volt applied, translating to explosive acceleration on 8S systems whilst maintaining smooth, manageable control characteristics. The sensorless brushless architecture delivers consistent performance without the complexity of sensored electronics, making it an excellent choice for boaters who want straightforward reliability without sacrificing power delivery. The integrated water cooling jacket is engineered to actively manage the thermal stress of sustained high-throttle operation—a critical feature for RC boats that may spend 20–30 minutes per battery cycle at full power across open water. The 5mm hardened steel shaft is designed to handle the radial and axial loads imposed by large, high-thrust propellers, whilst the 6mm bullet connectors ensure that the high currents demanded by this motor (which can easily exceed 100 amps on 8S systems) are delivered with minimal voltage drop. This motor demands pairing with a high-capacity brushless ESC rated for 100+ amps and a high-discharge LiPo battery system; it is not suitable for smaller RC boats, beginners' platforms, or lower-voltage systems. The engineering quality throughout—from the precision winding of the stator to the quality of the bullet connectors—reflects Spektrum's reputation as a leader in RC propulsion technology across land, air and sea platforms.

What's in the Box

• SPM Brushless 4-Pole Marine Motor, 4685 950Kv (M-SPMX-1074)

What You Need to Complete

• Brushless Electronic Speed Controller (ESC) rated for 100+ amps with marine waterproofing
• 6S–8S LiPo battery pack with high discharge rating (minimum 50C recommended)
• RC boat platform compatible with 5mm motor shaft and 6mm bullet connectors
• High-thrust marine-grade propeller matched to your boat's hull and desired speed profile
• Battery charger capable of charging high-capacity LiPo batteries at appropriate rates
• XT90, EC5 or IC5 battery connectors to match your chosen ESC and battery combination

Frequently Asked Questions

• Is the Spektrum M-SPMX-1074 950Kv motor suitable for beginners to RC boating? — No, this is an advanced, high-performance marine motor designed exclusively for experienced RC boat operators. The 950Kv rating is optimised for large-scale boats operating on 6S–8S LiPo systems, which demand expertise in battery management, ESC programming and propeller selection. Beginners should start with lower-voltage systems and slower-speed motors before progressing to this level of performance.
• What is the difference between this 950Kv marine motor and the 740Kv variant I see at RC Model Shop? — The M-SPMX-1074 at 950Kv spins faster than the M-SPMX-1075 at 740Kv, producing higher RPM and therefore greater top-end speed, though with slightly less low-end torque. The 950Kv motor is better suited for racing and high-speed running, whilst the 740Kv variant offers more balanced torque delivery across the power band. Choose the 950Kv if you prioritise top speed; choose the 740Kv if you want more controlled acceleration and better mid-range response.
• What battery does this motor require, and why is voltage so important? — The M-SPMX-1074 is designed specifically for 6S–8S LiPo battery systems, which provide 22.2V (6S) to 29.6V (8S) nominal voltage. At 6S, you'll achieve approximately 14,100 RPM at no load; at 8S, this rises to approximately 18,800 RPM. The higher the voltage, the faster the motor spins and the greater the current draw. You must use a high-discharge LiPo battery (minimum 50C discharge rate recommended) paired with a brushless ESC rated for at least 100 amps continuous.
• How does the integrated water cooling jacket improve performance? — The water cooling jacket actively draws cool water from your boat's hull and circulates it around the motor body, continuously dissipating the heat generated during high-throttle operation. This prevents thermal damage to the windings and internal components, maintains consistent power delivery throughout a battery cycle, and significantly extends the usable lifespan of both motor and ESC. Without adequate cooling, high-performance motors can overheat and lose performance or fail entirely during extended runs.
• What type of brushless ESC should I pair with this motor? — You need a marine-grade brushless ESC rated for a minimum of 100 amps continuous current, waterproofed to IP67 or higher, and compatible with 6S–8S LiPo batteries. Popular options include the Spektrum Firma 120A, 130A and higher-capacity models. The ESC must support the 6mm bullet connectors or be equipped with suitable connector adapters. Ensure your chosen ESC has a programmable timing function to match the sensorless motor's requirements.
• Why are 6mm bullet connectors important on this motor? — The 6mm bullet connectors are sized to safely handle the very high currents (100+ amps) that this motor can draw, particularly during rapid acceleration on 8S systems. Smaller connector sizes would create dangerous voltage drop and heat buildup. The 6mm standard ensures reliable, low-resistance connections between motor, ESC and battery, which is essential for consistent performance and safety.
