Overview

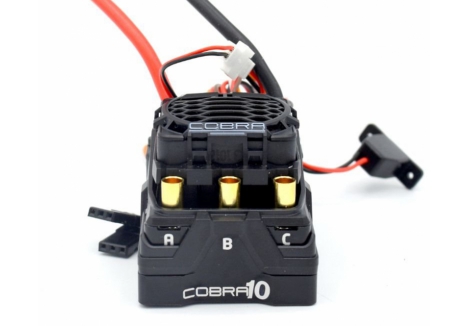

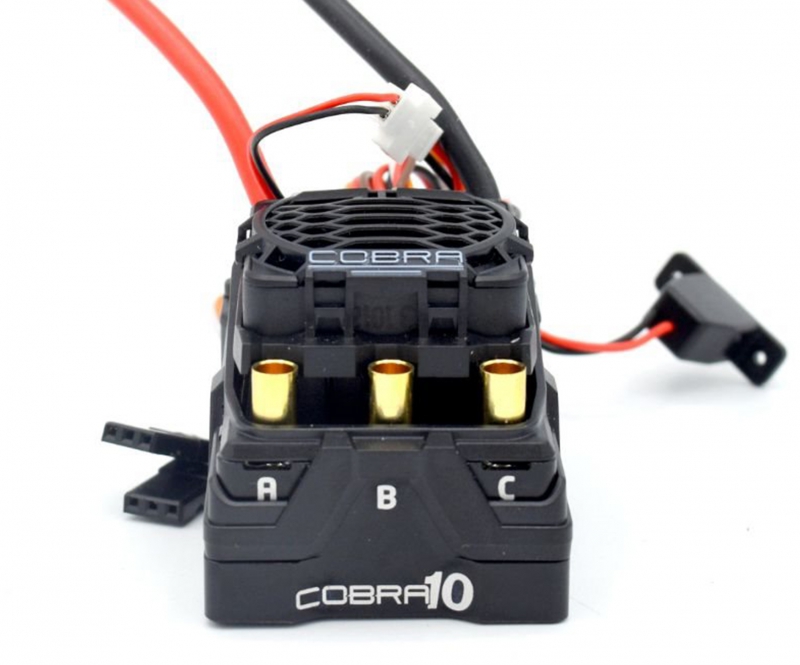

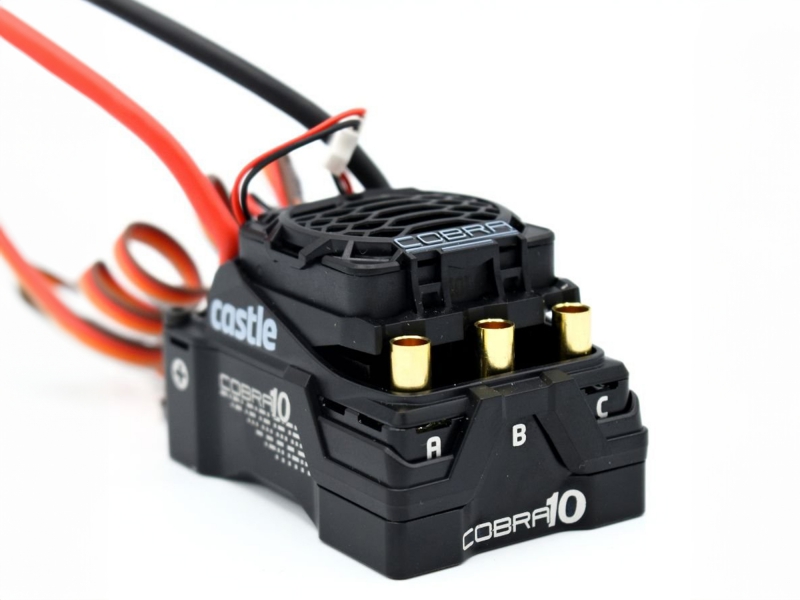

Castle are thrilled to introduce the Cobra 10, their next generation electronic speed controller (ESC) for surface applications.
The Cobra 10 boasts a state-of-the-art 32-bit, dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.
Crafted with a CNC aluminum bottom case, the Cobra 10 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.
One of its defining features is our acclaimed CRYO-DRIVE technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 10 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.
The Cobra 10 is designed for use in 1:10 scale vehicles weighing up to 3.17Kg (7lbs) and 1:8 scale buggies geared for off road racing weighing up to 4.08Kg (9lbs).
In The Box
- Cobra 10 ESC
- Castle Link V4 USB Adapter
- 250mm Direct Connect Sensor Wire
- Castle Decals
- ESC Quick Start Guide
Features
- 32-Bit Processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Ability to download specific sessions.
- Hill Hold feature
- Incredibly strong drag brake enhancement feature for rock crawling. Eliminates any creep or movement of the motor on an incline
- Additional tuning features include:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
- Mounting holes located in bottom of aluminum case for installation into vehicle.
- Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo)
- SmartSense, Sensored Only and Brushed Motor Operation Modes
- Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 25mm cooling fan
- Waterproof design for all weather conditions
- Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Cryo Drive
Castle's newest software technology, CRYO-DRIVE minimizes the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.
SmartSense
When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SmartSense software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with electric timing. Smooth sensored startups and high-efficiency sensorless running makes the COBRA 10 system produce more power and less heat. QUIETSENSE is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.
On-The-Fly Adjustment
The COBRA 10 allows "on-the-fly" adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.
Data Logging
The COBRA 10 contains NEW DATA LOGGING FEATURES:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
You can view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, battery current and voltage, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life.
Castle Link
For over 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters download the BRAND NEW simple to install software from the Castle Creations website and you are ready to personalize your controller's settings. Requires Windows 10 or higher.
Waterproof
The COBRA 10 is housed in a rugged CNC-machined aluminium case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.
Alerts
COBRA 10 features Audible Alerts that will notify you, via audible chimes, of possible issues with calibrations and error conditions to help diagnose problems.
Brand, Model and Product Type
- Brand: Castle
- Model: P-CC010-0174-00
- Product Type: Castle P-CC010-0174-00 COBRA 10 ESC with 25.2V input, CRYO-DRIVE™, and SmartSense™ motor support, Castle P-CC010-0174-00 waterproof ESC with 8A peak BEC, enhanced data logging, and CNC aluminum case, Castle P-CC010-0174-00 programmable ESC for 1/10 scale vehicles and 1/8 scale buggies up to 9lbs, Castle P-CC010-0174-00 with dual-core 32-bit processor, 30mm cooling fan, and 4.0mm bullet connectors, Castle ESC for Castle 1406–1415 motors and select 15-series e-buggy setups
Dimensions
- ESC Length: 5.59 cm – compact footprint for tight chassis layouts
- ESC Width: 3.83 cm – fits standard 1/10 and 1/8 scale mounting plates
- ESC Height: 3.66 cm – allows efficient airflow and cooling
- ESC Weight: 114 g – lightweight for improved handling and balance
ESC Specifications
- Input Voltage Range: 2S–6S LiPo (6.0V–25.2V) – supports wide power configurations
- BEC Output: Adjustable from 5.0V to 8.0V in 0.1V increments (8A peak) – powers demanding servos
- Running Modes: SmartSense™, Sensored Only, Brushed – flexible motor compatibility
- Cooling System: Oversized 30mm thermally controlled fan – removable for wet conditions
- ESC Housing: CNC-machined aluminum case with waterproof epoxy potting – protects against moisture and debris
- Heatsink: Premium forged elliptical fin design – maximizes heat dissipation
- Connectors: 4.0mm female bullets – secure motor interface
- Battery Wire: 12AWG – high strand count for efficient current delivery
- On/Off Switch: Waterproof – convenient and reliable power control
- Brake Mode: Proportional – adjustable for precise stopping power
- Reversible Mode: Yes – can be disabled for racing setups
- Audible Alerts: Yes – chimes for diagnostics and error notifications
Processor and Control Features
- Processor: Dual-core 32-bit – enables smoother motor control and faster response
- Hill Hold: Yes – eliminates motor creep on inclines
- Drag Brake Enhancement: Yes – ideal for rock crawling and technical terrain
- AUX Wire Tuning: Enabled – real-time adjustments for torque, throttle, brake, and drag brake
- Transmitter Programming: Supports six common adjustable settings including cutoff voltage and drag brake
Data Logging and Software
- Data Logging: Enhanced – double sample frequency, 8x longer sessions, onboard accelerometer
- Recorded Metrics: Motor RPM, ESC temperature, voltage, throttle input, motor timing, acceleration
- Looping Feature: Yes – prevents interruptions during recording
- Castle Link Support: Yes – includes Castle Link V4 USB adapter with USB-C connector
- Software Compatibility: Castle Link for Windows 10 or higher – full access to tuning parameters
- Mobile App: In development – not currently supported
Application Guidelines
- Vehicle Compatibility: 1/10 scale vehicles up to 7lbs and 1/8 scale buggies up to 9lbs
- Recommended Motors: Castle 1406, 1410, 1412, 1415 sensored motors and select 15-series for e-buggy setups
- Battery Recommendation: 5000mAh minimum, 30C continuous discharge or higher
- Not Intended For: Drag racing applications
What’s in the Box
- 1 × Castle COBRA 10 ESC
- 1 × Castle Link V4 USB Adapter
- 1 × 250mm Direct Connect Sensor Wire
- 1 × Castle Decal Sheet
- 1 × ESC Quick Start Guide
What You Require / What You Will Need
- High-current battery connector rated for 70+ amps – Castle 6.5mm or 4.0mm Polarized Connectors, Traxxas Power Connectors, or Deans Ultra Plugs
- Compatible 2S–6S LiPo battery – recommended 4S for optimal performance
- Windows 10 or higher PC for Castle Link software
Sold Separately
- Castle CC Bullet connectors if needed
- Dielectric grease for sensor wire moisture protection
Product Description of Castle P-CC010-0174-00 COBRA 10 ESC with 25.2V input, CRYO-DRIVE™, and SmartSense™ motor support
The Castle P-CC010-0174-00 COBRA 10 ESC with 25.2V input, CRYO-DRIVE™, and SmartSense™ motor support is a next-generation electronic speed controller engineered for precision, durability, and intelligent control in 1/10 scale vehicles and 1/8 scale buggies up to 9lbs. Designed with a dual-core 32-bit processor and housed in a rugged CNC aluminum case, this ESC delivers smooth motor response, advanced tuning capabilities, and robust thermal performance. Whether you're racing on the track or navigating technical terrain, the Castle P-CC010-0174-00 offers the power and flexibility needed to elevate your RC experience.
Key features of the Castle P-CC010-0174-00 ESC
- Dual-core 32-bit processor – delivers smoother motor control and faster response
- CRYO-DRIVE™ thermal management – reduces heat buildup during partial throttle operation
- SmartSense™ motor support – enables smooth sensored startups and efficient sensorless transitions
- Enhanced data logging – includes accelerometer, motor timing, and extended recording sessions
- Waterproof CNC aluminum case – protects electronics in harsh environments
- AUX wire tuning – allows real-time adjustments from your transmitter
- Hill hold and drag brake enhancement – eliminates motor creep on inclines
How does CRYO-DRIVE™ improve thermal performance?
The Castle waterproof ESC with 8A peak BEC, enhanced data logging, and CNC aluminum case features CRYO-DRIVE™, a proprietary software technology that minimizes the time electrical components spend generating heat. By dynamically controlling which components are active during motor operation, the system maintains lower operating temperatures during partial throttle use. This allows users to run longer sessions, higher gear ratios, and heavier vehicles without compromising performance or risking thermal shutdown.
What makes the dual-core processor essential for precision control?
The Castle P-CC010-0174-00 with dual-core 32-bit processor, 30mm cooling fan, and 4.0mm bullet connectors is built for responsive and accurate motor control. The dual-core architecture enables faster sampling rates and smoother transitions between motor states, especially when paired with Castle’s SmartSense™ technology. This ensures consistent torque delivery and low-speed drivability, making the ESC ideal for technical driving and competitive racing. The processor also supports enhanced data logging, allowing users to capture and analyze detailed performance metrics.
How does the COBRA 10 ESC support real-time tuning?
The COBRA 10 ESC with hill hold, drag brake enhancement, and AUX wire tuning includes an AUX wire that enables on-the-fly adjustments directly from your transmitter. Once configured via Castle Link, users can modify torque control, max throttle, drag brake, and reverse curves while driving. This dynamic tuning capability is ideal for adapting to changing terrain or refining performance during competitive runs. The ESC also supports six common adjustable settings via transmitter programming, including cutoff voltage and braking profiles.
What data logging capabilities are built into the Castle P-CC010-0174-00?
The Castle 6S ESC with CRYO-DRIVE™, SmartSense™, and 8A BEC for demanding servos offers advanced data logging features that double the sample frequency and extend recording time eightfold compared to previous models. Metrics include motor RPM, ESC temperature, battery voltage, throttle input, motor timing, and acceleration via onboard accelerometer. A looping feature ensures uninterrupted recording, and sessions can be downloaded for detailed analysis using Castle Link. These insights help users optimize gearing, throttle curves, and thermal performance for maximum efficiency.
Is the Castle P-CC010-0174-00 suitable for both 1/10 and 1/8 scale platforms?
Yes, the Castle programmable ESC for 1/10 scale vehicles and 1/8 scale buggies up to 9lbs is designed for versatility and high-performance applications. It supports 2S–6S LiPo input and is compatible with Castle 1406–1415 motors and select 15-series e-buggy setups. The ESC’s 8A peak BEC can power demanding servos, while its waterproof design and CNC aluminum housing ensure durability in all weather conditions. Whether you're building a lightweight 1/10 scale racer or a rugged 1/8 scale off-road buggy, the COBRA 10 adapts to your setup with precision and reliability.
What makes this ESC ideal for high-performance builds?
The Castle P-CC010-0174-00 COBRA 10 ESC with 25.2V input, CRYO-DRIVE™, and SmartSense™ motor support combines cutting-edge hardware with intelligent software to deliver unmatched control and thermal efficiency. With a 30mm cooling fan, forged elliptical heatsink, and waterproof epoxy potting, the ESC is built to withstand extreme conditions. Audible alerts notify users of calibration issues and error conditions, while the included Castle Link V4 USB adapter provides full access to firmware updates and tuning parameters. Backed by Castle’s legacy of innovation, this ESC is a cornerstone for serious RC enthusiasts.
For drivers seeking a rugged, intelligent, and adaptable solution, buy Castle P-CC010-0174-00 COBRA 10 ESC for high-performance 1/10 scale RC platforms.
Technical Specifications of Castle P-CC010-0174-00 COBRA 10 ESC with 25.2V input, CRYO-DRIVE™, and SmartSense™ motor support
Brand, Model and Product Type
- Brand: Castle
- Model: P-CC010-0174-00
- Product Type: Castle P-CC010-0174-00 COBRA 10 ESC with 25.2V input, CRYO-DRIVE™, and SmartSense™ motor support, Castle P-CC010-0174-00 waterproof ESC with 8A peak BEC, enhanced data logging, and CNC aluminum case, Castle P-CC010-0174-00 programmable ESC for 1/10 scale vehicles and 1/8 scale buggies up to 9lbs, Castle P-CC010-0174-00 with dual-core 32-bit processor, 30mm cooling fan, and 4.0mm bullet connectors, Castle ESC for Castle 1406–1415 motors and select 15-series e-buggy setups
Dimensions
- ESC Length: 5.59 cm – compact footprint for tight chassis layouts
- ESC Width: 3.83 cm – fits standard 1/10 and 1/8 scale mounting plates
- ESC Height: 3.66 cm – allows efficient airflow and cooling
- ESC Weight: 114 g – lightweight for improved handling and balance
ESC Specifications
- Input Voltage Range: 2S–6S LiPo (6.0V–25.2V) – supports wide power configurations
- BEC Output: Adjustable from 5.0V to 8.0V in 0.1V increments (8A peak) – powers demanding servos
- Running Modes: SmartSense™, Sensored Only, Brushed – flexible motor compatibility
- Cooling System: Oversized 30mm thermally controlled fan – removable for wet conditions
- ESC Housing: CNC-machined aluminum case with waterproof epoxy potting – protects against moisture and debris
- Heatsink: Premium forged elliptical fin design – maximizes heat dissipation
- Connectors: 4.0mm female bullets – secure motor interface
- Battery Wire: 12AWG – high strand count for efficient current delivery
- On/Off Switch: Waterproof – convenient and reliable power control
- Brake Mode: Proportional – adjustable for precise stopping power
- Reversible Mode: Yes – can be disabled for racing setups
- Audible Alerts: Yes – chimes for diagnostics and error notifications
Processor and Control Features
- Processor: Dual-core 32-bit – enables smoother motor control and faster response
- Hill Hold: Yes – eliminates motor creep on inclines
- Drag Brake Enhancement: Yes – ideal for rock crawling and technical terrain
- AUX Wire Tuning: Enabled – real-time adjustments for torque, throttle, brake, and drag brake
- Transmitter Programming: Supports six common adjustable settings including cutoff voltage and drag brake
Data Logging and Software
- Data Logging: Enhanced – double sample frequency, 8x longer sessions, onboard accelerometer
- Recorded Metrics: Motor RPM, ESC temperature, voltage, throttle input, motor timing, acceleration
- Looping Feature: Yes – prevents interruptions during recording
- Castle Link Support: Yes – includes Castle Link V4 USB adapter with USB-C connector
- Software Compatibility: Castle Link for Windows 10 or higher – full access to tuning parameters
- Mobile App: In development – not currently supported
Application Guidelines
- Vehicle Compatibility: 1/10 scale vehicles up to 7lbs and 1/8 scale buggies up to 9lbs
- Recommended Motors: Castle 1406, 1410, 1412, 1415 sensored motors and select 15-series for e-buggy setups
- Battery Recommendation: 5000mAh minimum, 30C continuous discharge or higher
- Not Intended For: Drag racing applications
What’s in the Box
- 1 × Castle COBRA 10 ESC
- 1 × Castle Link V4 USB Adapter
- 1 × 250mm Direct Connect Sensor Wire
- 1 × Castle Decal Sheet
- 1 × ESC Quick Start Guide
What You Require / What You Will Need
- High-current battery connector rated for 70+ amps – Castle 6.5mm or 4.0mm Polarized Connectors, Traxxas Power Connectors, or Deans Ultra Plugs
- Compatible 2S–6S LiPo battery – recommended 4S for optimal performance
- Windows 10 or higher PC for Castle Link software
Sold Separately
- Castle CC Bullet connectors if needed
- Dielectric grease for sensor wire moisture protection
