Overview
Like every component in the SpektrumT Smart ecosystem, FirmaT Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you more confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever without installing extra components that work independently. You won't need additional wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.
Firma ESCs gather the data and send it to your transmitter in real-time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Features
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Multiple options for easy programming:
- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by SpektrumT engineers, in partnership with the industry's leading ESC manufacturer
- Ideal for 2WD and 4WD 1/10th scale surface applications running on 2S - 4S Lipo setups
- High current adjustable BEC (6v or 7.4v @ 4 Amps)
- Compact for easy installation in most applications
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant ICT connectors, backwards compatible with ECT connectors
- Limited 1-year warranty

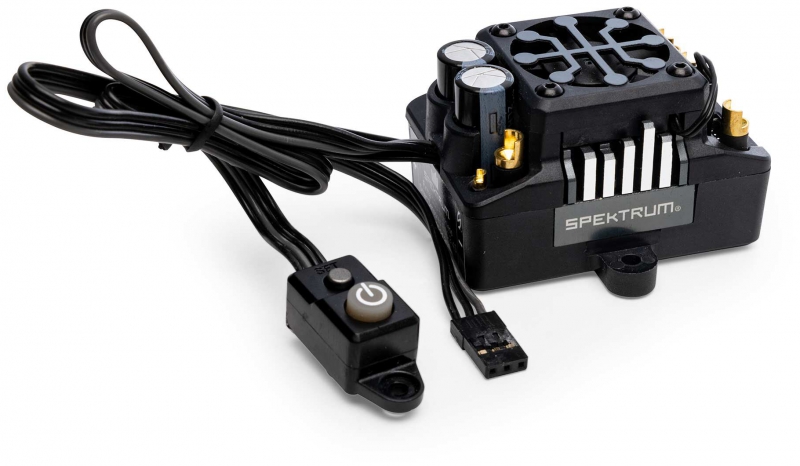

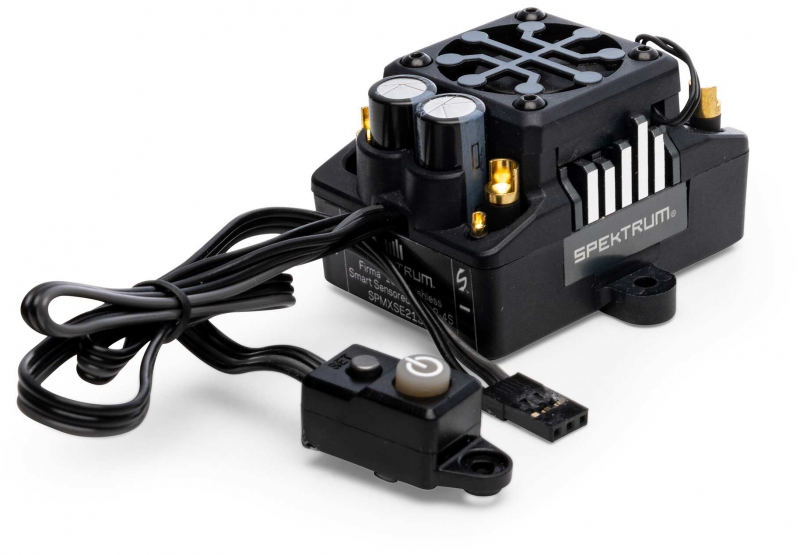

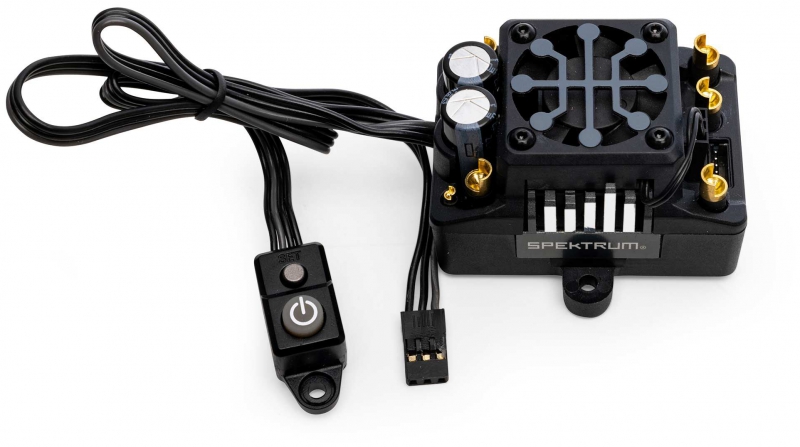

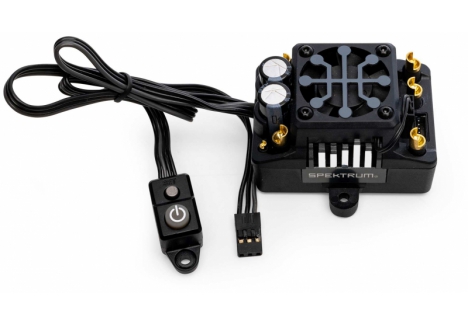

The Spektrum P-SPMXSE2130S Firma 130A Smart ESC with 2S–4S LiPo support, IC5 input, and sensored motor control is a precision-engineered brushless ESC designed for 1/10 scale RC platforms. Built for torque-sensitive applications like short course trucks, buggies, crawlers, and on-road racers, it delivers ultra-smooth throttle response, real-time telemetry, and rugged splash-resistant protection. With Smart ecosystem integration, firmware updatability, and flexible programming options, this ESC offers elite-level control and diagnostics for serious surface drivers.
Key features of the Spektrum P-SPMXSE2130S Firma 130A Smart ESC
- Sensored brushless control – optimized for low-speed precision and smooth acceleration
- Smart telemetry – real-time RPM, voltage, current, and ESC temperature feedback
- Multiple programming options – button interface, Smart ESC Programming Box, and SmartLink USB app
- Splash-resistant housing – protects against moisture and debris in surface conditions
- Failsafe logic and multi-point protection – includes over-current, thermal, and low-voltage safeguards
- 4A adjustable BEC – selectable 6V or 7.4V output for servo compatibility
- Compact form factor – tight chassis fitment with integrated mounting tabs
Why is the Spektrum P-SPMXSE2130S ideal for 1/10 scale RC platforms?
The Spektrum P-SPMXSE2130S brushless ESC for 1/10 scale RC vehicles with cooling fan and aluminum heat sink is designed for high-performance surface applications. With 130A continuous current and support for sensored motors, it delivers consistent torque and refined throttle modulation. The integrated cooling fan and aluminum heat sink maintain thermal stability during extended runs, while the splash-resistant casing ensures reliability across varied terrain. Whether you're crawling, racing, or bashing, this ESC offers the control and durability needed to push your setup further.
How does Smart telemetry enhance diagnostics and control?
The Smart ESC for short course trucks, buggies, crawlers, and on-road racers with one-wire telemetry provides seamless telemetry integration without the need for external sensors or modules. Through a single wire, the ESC transmits RPM, temperature, battery voltage, and current draw directly to your Spektrum transmitter in real time. This allows drivers to monitor system health, make informed adjustments, and optimize performance on the fly. When paired with a Spektrum Smart LiPo battery, the ESC also delivers detailed battery diagnostics such as cycle count, cell voltage, and remaining capacity.
What programming options are available for the Spektrum P-SPMXSE2130S?
The Spektrum digital ESC with 4mm motor leads, 130A output, and SmartLink programming options supports multiple programming pathways to suit different user preferences. For quick adjustments, the onboard button interface allows basic configuration without external tools. For advanced tuning, users can connect the Smart ESC Programming Box or use the SmartLink USB app to access a full suite of settings. These options enable customization of throttle curves, brake strength, cutoff thresholds, and more—ensuring the ESC can be tailored to match your driving style and terrain conditions.
Can the Spektrum P-SPMXSE2130S handle wet and rugged environments?
Yes—with limitations. The best splash-resistant ESC with Smart telemetry, IC5 connector, and real-time RPM and voltage feedback is designed to withstand moisture and debris but is not fully waterproof. Its splash-resistant housing protects against light exposure to water and dust, making it suitable for most surface conditions. The high heat-resistant IC5 connector ensures reliable power delivery, while the compact dimensions allow for flexible placement within tight chassis layouts. For submersion or heavy water exposure, a fully waterproof ESC is recommended.
Buy Spektrum P-SPMXSE2130S Firma 130A Smart ESC for 2S–4S sensored brushless RC platforms.
Brand, Model and Product Type
- Brand: Spektrum
- Model: P-SPMXSE2130S
- Product Type: Spektrum P-SPMXSE2130S Firma 130A Smart ESC with 2S–4S LiPo support, IC5 input, and sensored motor control, Spektrum P-SPMXSE2130S splash-resistant surface ESC with Smart telemetry, 4mm motor bullets, and 4A adjustable BEC, Spektrum P-SPMXSE2130S brushless ESC for 1/10 scale RC vehicles with cooling fan and aluminum heat sink, Smart ESC for short course trucks, buggies, crawlers, and on-road racers with one-wire telemetry, High-performance surface ESC with multi-point protection, firmware updates, and tight chassis fitment
Electrical and Performance Specifications
- ESC Type: Brushless – supports both sensored and sensorless motor configurations
- Application: Surface – ideal for 1/10 scale RC trucks, buggies, crawlers, and on-road racers
- Input Voltage: 2S–4S LiPo (7.4V–14.8V) – supports high-performance setups
- Maximum Continuous Current: 130A – delivers sustained power for aggressive driving

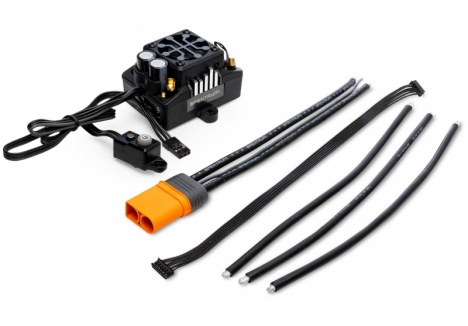

Connector and Output Configuration

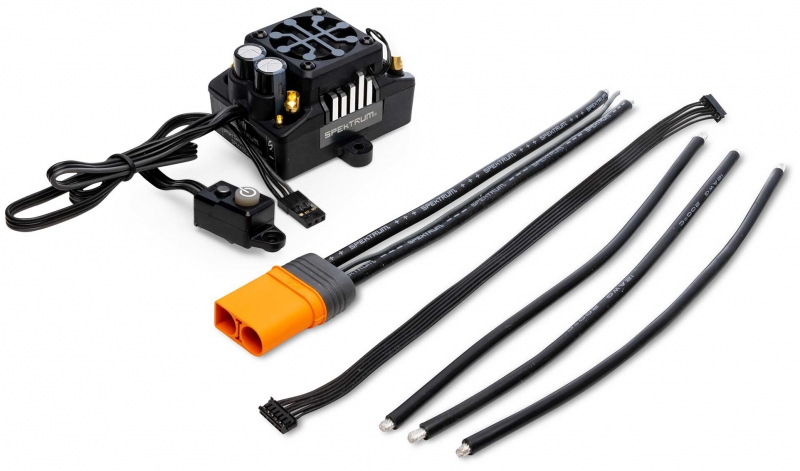

- Battery Connector: IC5 – high heat-resistant input, backwards compatible with EC5
- Motor Output Lead: 4mm bullet connectors – secure and efficient connection for brushless motors
Processor and Control Features
- Processor: 32-bit ARM M4 – enables high-resolution signal input and precise motor output
- Programmable: Yes – supports multiple programming methods for flexible configuration
- Programming Options: Button interface, Smart ESC Programming Box, SmartLink USB App
- Forward/Reverse: Yes – includes full directional control for surface vehicle maneuverability
- Brakes: Yes – adjustable braking force for terrain-specific tuning
Telemetry and Smart Technology
- Telemetry: Smart all-in-one – transmits RPM, voltage, current, and ESC temperature via one-wire link
- Smart Battery Data: Compatible with Spektrum Smart LiPo – displays cycles, capacity, and cell voltage in real time
Protection and Safety Features
- Waterproof Rating: Splash-resistant – suitable for light moisture and debris exposure (not submersible)
- Failsafe Protection: Yes – maintains control during signal loss or system fault
- Thermal Protection: Yes – prevents overheating during extended use
- Overload Protection: Yes – safeguards against electrical surges
- Low-Voltage Cutoff: Programmable – protects battery from over-discharge
BEC Specifications
- BEC Type: Adjustable – provides stable power delivery to receiver and servos
- BEC Voltage: Selectable 6V or 7.4V – supports a range of servo configurations
- BEC Continuous Current: 4A – suitable for high-demand surface electronics

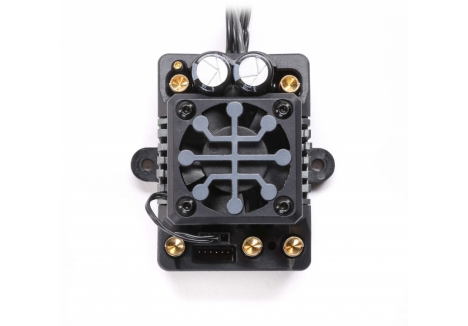

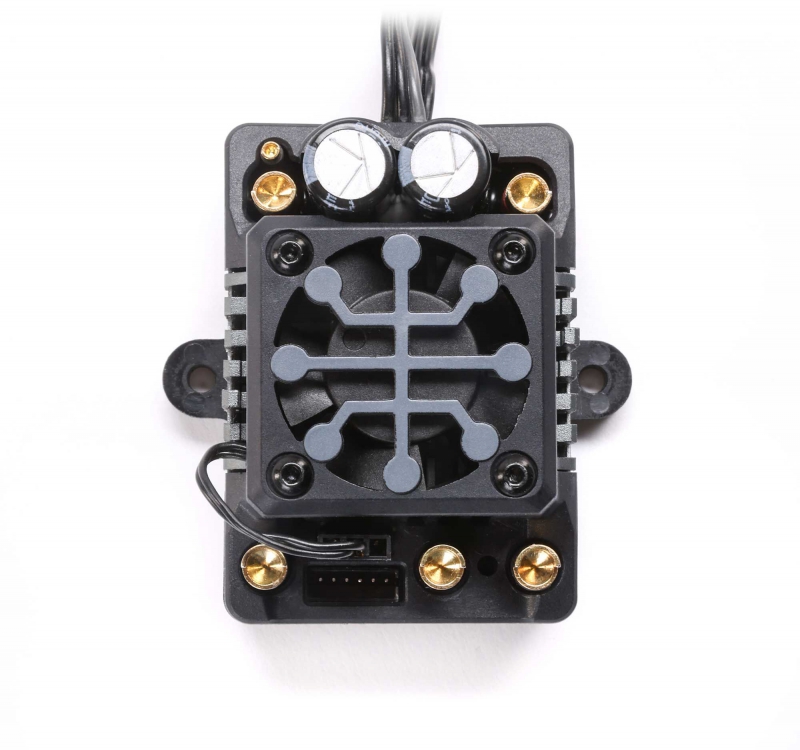

Construction and Mounting
- Case Material: Rugged plastic – impact-resistant for off-road durability
- Heat Sink: Integrated aluminum – improves thermal efficiency under load

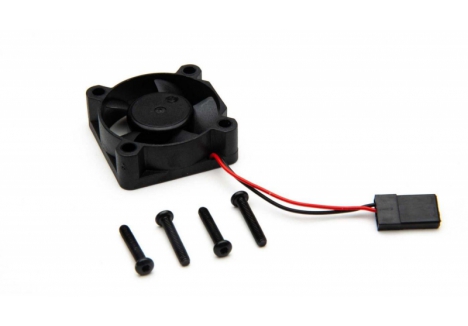

- Cooling Fan: Yes – active cooling for sustained high-current operation
- Mounting Tabs: Included – enables secure installation in surface vehicle chassis
- Installation: Ready to install – no soldering required
What’s in the Box
- 1 × Spektrum Firma Smart ESC
- 1 × Spektrum Smart Sticker Sheet
- 1 × Product Manual
What You Require / What You Will Need
- 1 × Spektrum Surface Receiver
- 1 × Spektrum Smart Technology LiPo Battery
- 1 × Spektrum Transmitter
