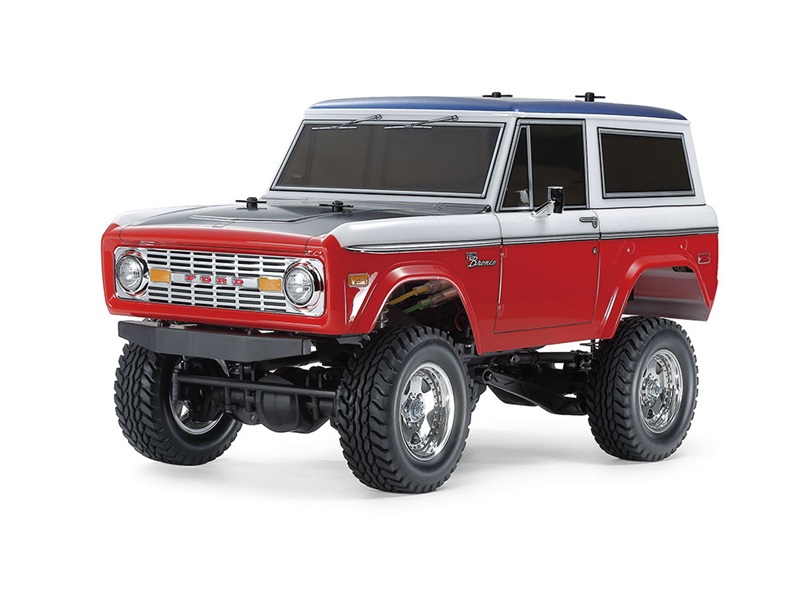

The vehicle depicted in this R/C assembly kit recreates the first-generation FORD Bronco on the cross-country CC-02 chassis.
The first-generation Ford Bronco was relatively compact and extremely capable off-road, and this 4WD vehicle participated in numerous races thanks to custom fabrication teams of the day. The Baja Bronco edition was sold from 1971 to 1975 to commemorate its victories in prestigious Baja race events such as the Baja 500 and 1000. The Baja edition had a white and red body with a blue roof and black hood plus reinforced components such as suspension. This special Bronco enjoys great popularity even to this day!
CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with spoke wheels and semi-pneumatic rubber tires.
- 1/10 scale R/C model assembly kit. Length: 395mm, width: 196mm, height: 215mm. Wheelbase: 242mm (Short wheelbase variant of the CC-02).
- Lightweight, durable polycarbonate body.

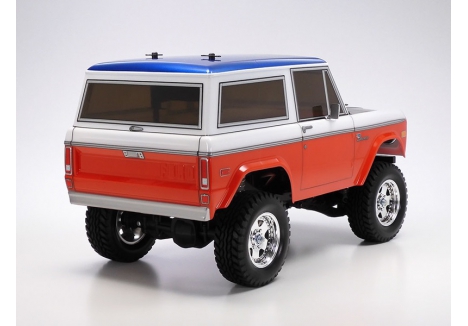

- The distinctive color scheme with red, white, and blue requires painting from the builder.
- Matte-finish hood is recreated by stickers.
- The CC-02 chassis has a ladder frame, which was inspired by full-size vehicles, provides both rigidity and allows stable performance even on tricky rocky and dirt roads.

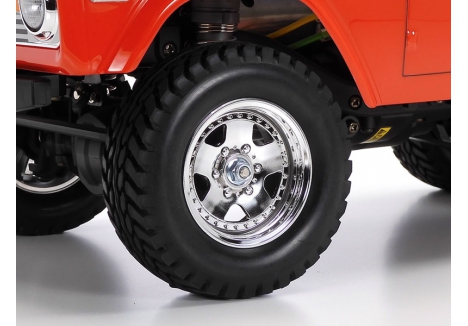

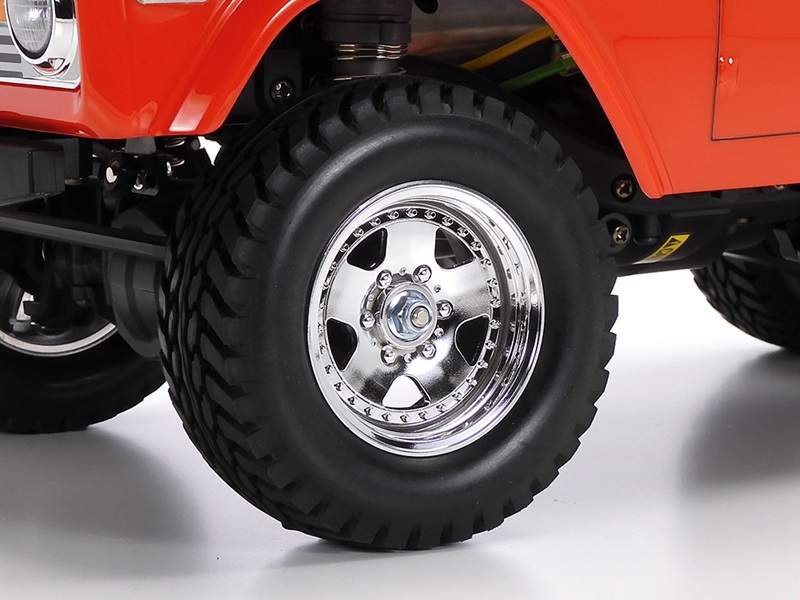

- 5-spoke wheels are paired with block pattern tires.
- Includes short propeller shafts.
- Includes ESC and 540-Type brushed motor.
Required to complete: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint.
Brand: Tamiya
Part No: HC-58736
Barcode: 4950344587360
Scale: 1:10
Power Source: Electric - Brushed
Vehicle Type: Monster Truck
Surface Type: Off Road
Build Level: Unassembled (Kit)

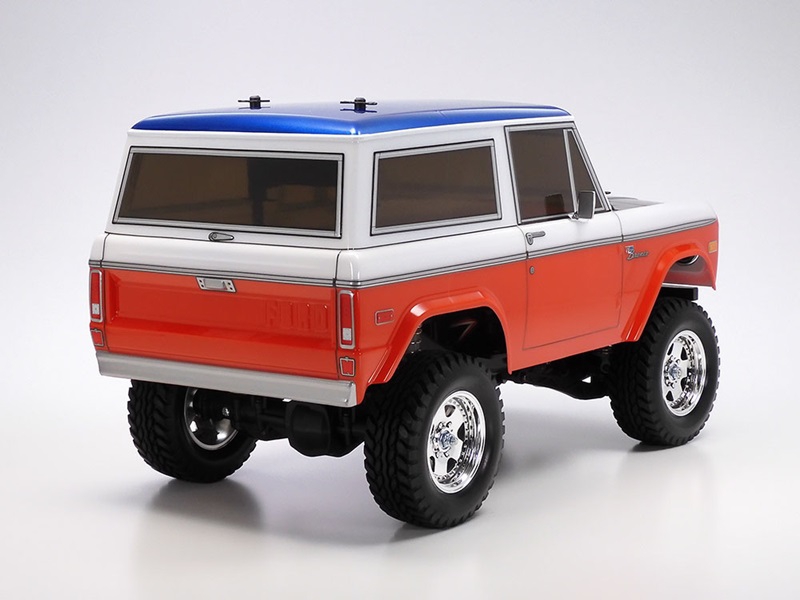

The Tamiya Ford Baja Bronco CC-02 RC Car (TAM58736) pays tribute to the legendary 1973 Ford Bronco, a compact and capable off-road icon that dominated desert racing in the early '70s. This Tamiya TAM58736 Ford Bronco RC Kit recreates the Baja Bronco edition with a detailed polycarbonate body, plated grille and light covers, and optional LED compatibility for added realism. Designed for trail and rocky terrain, it’s built on the versatile CC-02 chassis for durability and control.
Key Features of the Tamiya Ford Bronco 4WD Off-Road Truck

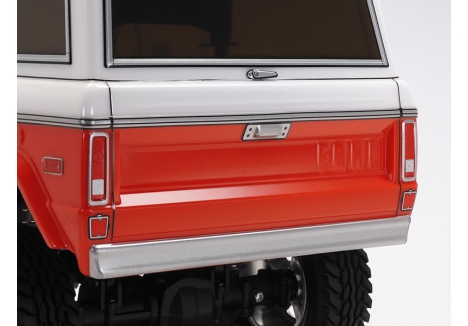

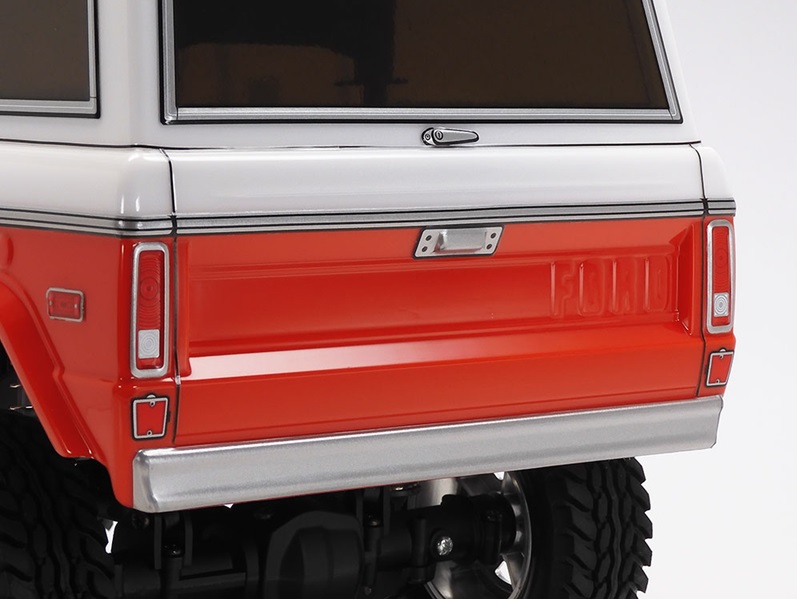

- Authentic 1973 Baja Bronco styling – polycarbonate body with plated details
- Optional LED-ready – light up the front and rear with separately sold LEDs
- CC-02 chassis – ladder frame design for strength and scale realism

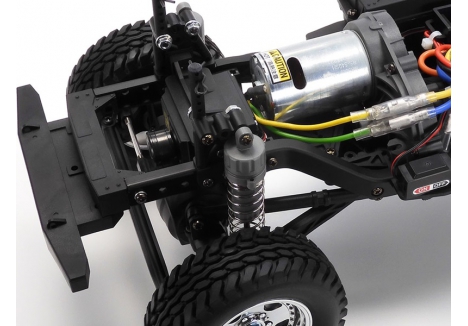

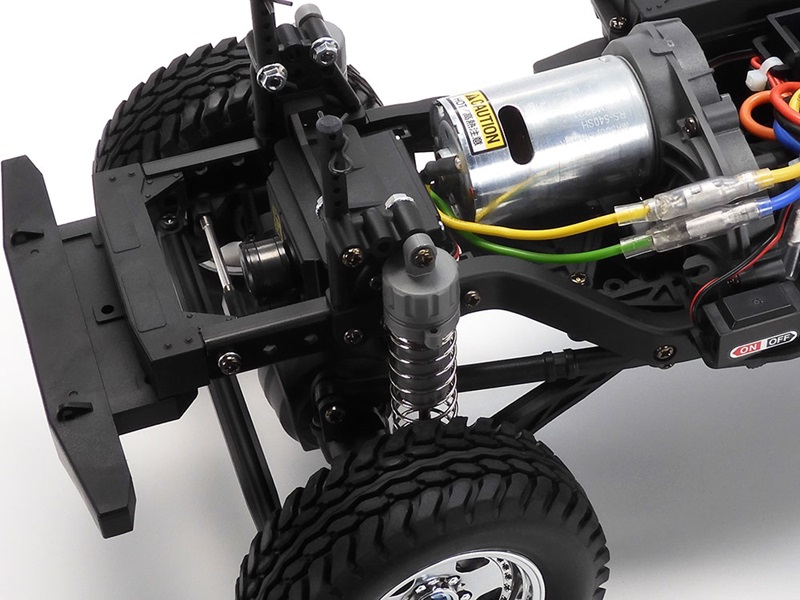

- Longitudinal motor layout – realistic drivetrain configuration
- Shaft-driven 4WD – delivers power to front and rear differential gears

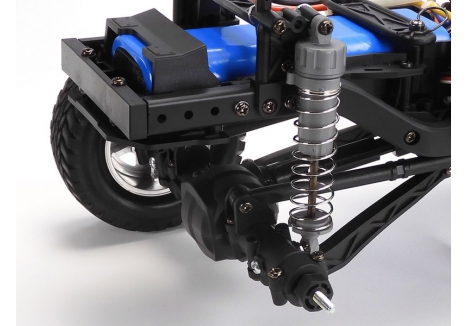

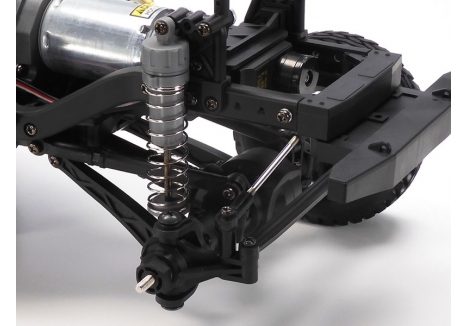

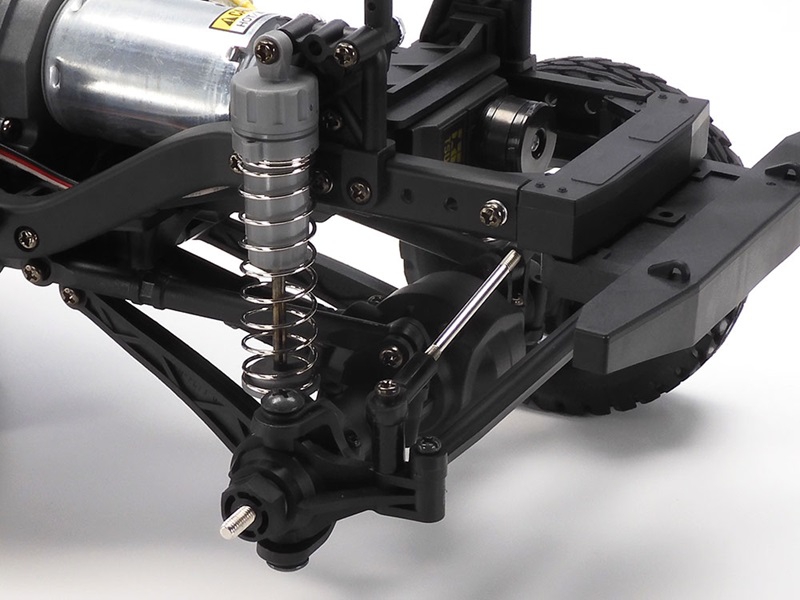

- Four-link rigid suspension – front and rear with CVA oil dampers
- Block-pattern tires – mounted on plated five-spoke wheels for grip and style
Why choose the Tamiya CC-02 chassis ladder frame off-roader?
The CC-02 chassis is engineered for rugged terrain, with a ladder frame inspired by full-size off-road vehicles. Its separated gearbox and transfer case layout mimics real-world drivetrains, while propeller shafts transmit power to bevel-type differential gears at both ends. The four-link rigid suspension and oil dampers ensure stability and articulation on rocky trails, making this an ideal Tamiya 4WD rigid suspension desert racer.
Is this the best Tamiya Ford Bronco 4WD trail truck?
For fans of scale realism and off-road capability, the best Tamiya Ford Bronco 4WD trail truck combines iconic styling with advanced mechanical design. The 242mm wheelbase and block-pattern tires provide excellent trail handling, while the ladder frame and suspension setup offer durability and control.
Looking for an affordable Tamiya CC-02 off-road RC model?
This kit offers premium features at a competitive price point, making it an affordable Tamiya CC-02 off-road RC model for hobbyists and collectors alike. Whether you're building for display or tackling rocky terrain, the Baja Bronco delivers performance and style in equal measure.
Buy Tamiya Ford Baja Bronco CC-02 RC kit today and experience the thrill of desert racing in 1/10 scale.
Technical Specifications of the Tamiya Ford Baja Bronco CC-02 RC Car (TAM58736)
Brand, Model & Product Type
- Brand: Tamiya
- Model: TAM58736
- Product Type: Tamiya Ford Baja Bronco CC-02 RC Car, Tamiya TAM58736 Ford Bronco RC Kit, Tamiya Ford Bronco 4WD Off-Road Truck
Dimensions & Weight
- Length: 395 mm – compact and trail-ready
- Width: 196 mm – stable stance for off-road control
- Height: 215 mm – scale-accurate Bronco profile
- Wheelbase: 242 mm – optimized for CC-02 chassis
- Tread: 160 mm (front), 163 mm (rear)
- Tire Diameter: 90 mm
- Tire Width: 33 mm
Chassis & Drivetrain
- Chassis Type: Ladder frame – inspired by full-size off-roaders
- Motor Position: Longitudinal – behind front axle
- Drive System: Shaft-driven 4WD – realistic and efficient
- Differential Gears: 3-bevel type – front and rear
- Gear Ratio: 17.33:1 (with kit-standard 16T pinion)
- Motor Type: Type 540 – reliable brushed motor
Suspension & Steering

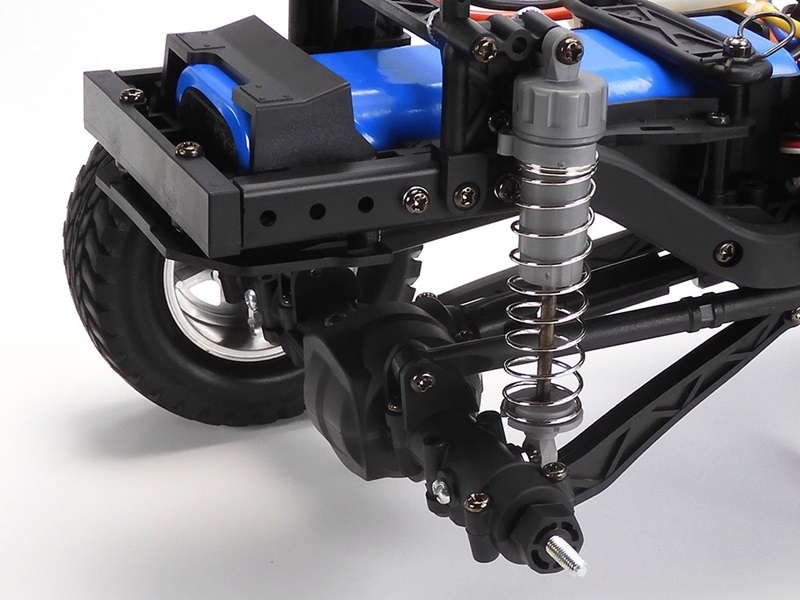

- Suspension: 4-link rigid suspension – front and rear
- Dampers: CVA oil dampers – smooth control on rough terrain
Body & Styling
- Body Material: Polycarbonate – lightweight and durable

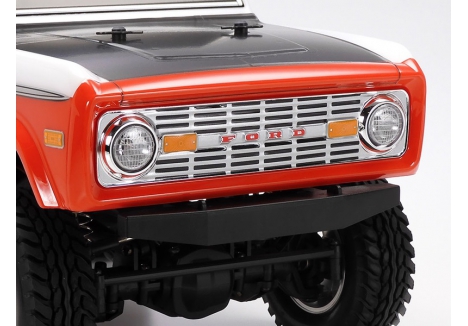

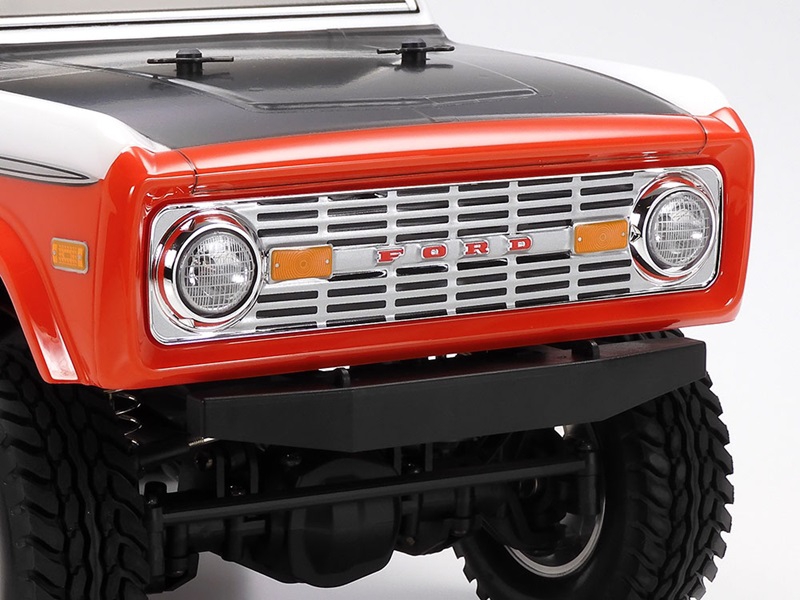

- Detailing: Plated grille, light covers, side mirrors
- Sticker Set: Includes black hood decal and body accents
- LED Compatibility: Front and rear light positions ready for optional LEDs
- Wheels: Plated five-spoke – paired with block-pattern tires
Required Items (Not Included)
- R/C System: 2-channel transmitter
- Transmitter Batteries: R6/AA/UM3 batteries
- Vehicle Battery: Compatible pack and charger
- ESC: Contact local Tamiya agent for recommended unit
