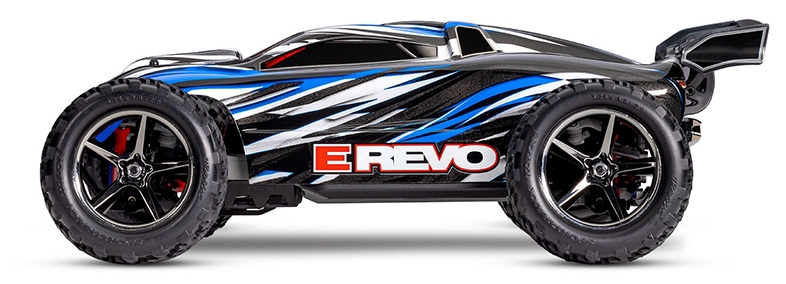

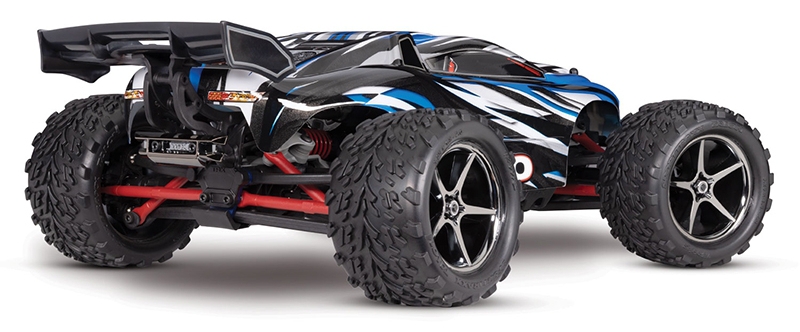

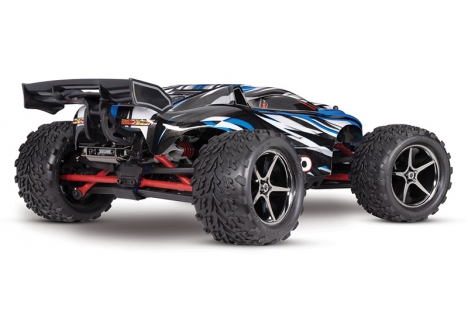

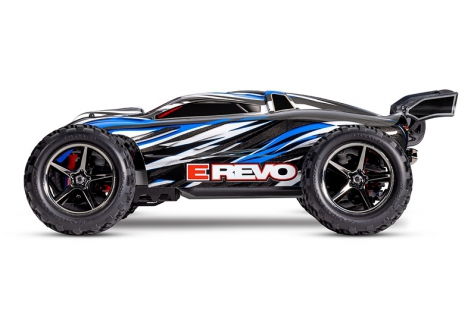

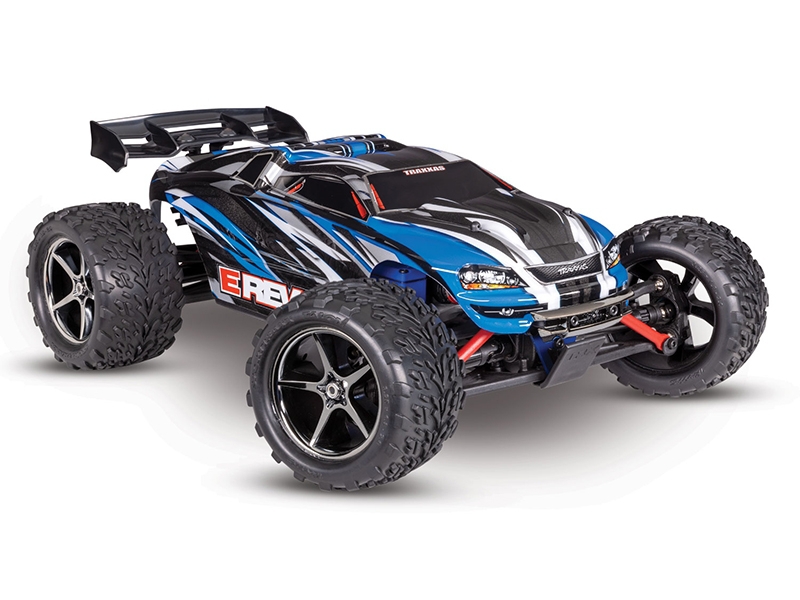

Traxxas E-Revo 1/16 Scale 4WD Brushed Monster RC Truck with Battery & USB-C Charger – TRX71054-8-BLUE

Brand, Model & Product Type

• Brand: Traxxas
• Model: TRX71054-8-BLUE
• Product Type: Traxxas E-Revo TRX71054-8-BLUE 1/16 4WD RC truck, Traxxas 1/16 scale blue monster truck RTR TRX71054-8-BLUE, Traxxas brushed 4x4 RC truck with Titan 550 motor TRX71054-8-BLUE, Traxxas XL-2.5 ESC monster truck with waterproof electronics TRX71054-8-BLUE, Traxxas 1/16 E-Revo with dual battery compartments TRX71054-8-BLUE

Dimensions & Weight

• Length: 32 cm – compact footprint for responsive off-road control
• Width: 23.9 cm – wide stance enhances stability during high-speed cornering
• Height: 11.7 cm – low profile design reduces rollover risk and improves aerodynamics
• Wheelbase: 20.2 cm – optimised for terrain adaptability and steering precision
• Front Track: 23.9 cm – ensures balanced grip and directional control
• Rear Track: 23.9 cm – matches front track for consistent handling
• Weight: 1.24 kg – lightweight build supports nimble acceleration and efficient power delivery

Motor & ESC

• Motor Type: Titan® 12T 550 brushed motor – oversized armature delivers high torque with internal cooling fan for thermal stability
• Motor Dimensions: 7.8 cm overall length, 5.7 cm can length, 3.6 cm diameter – compact yet powerful for 1/16 scale
• Motor Weight: 240 g – lightweight for efficient power-to-weight ratio
• Motor Shaft Size: 3 mm – compatible with standard RC drivetrain components
• Motor Connector Type: Bullet – secure and reliable electrical connection
• ESC Type: XL-2.5™ waterproof brushed ESC – supports NiMH and LiPo batteries with two-stage low-voltage detection
• ESC Drive Profiles: Sport, Race, and Training Mode™ – tailored throttle response for all skill levels
• ESC Setup: EZ-Set® one-button configuration – simplifies tuning and operation
• ESC Case Size: 4.65 x 2.65 x 2.2 cm – compact housing for tight chassis integration
• ESC Weight: 33 g – lightweight for minimal impact on overall vehicle mass
• ESC Power Wire: 16 gauge – supports high current flow with minimal resistance

Battery & Charging

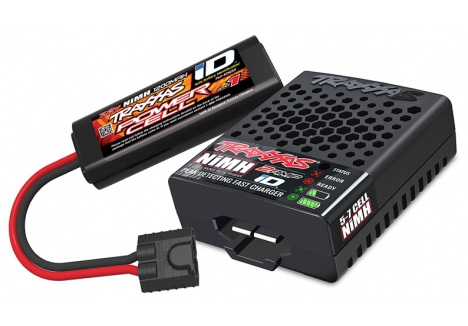

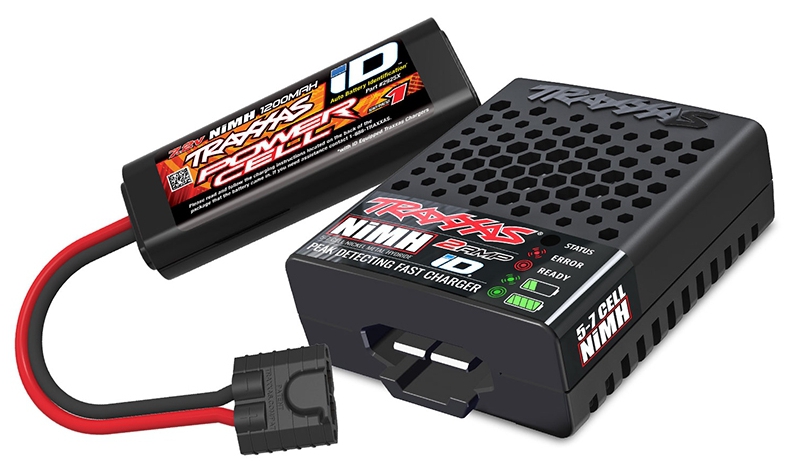

• Battery Type: 7.2 V NiMH iD® 6-cell 1200 mAh – reliable power source with safe charging technology
• Battery Connector: Traxxas High-Current Connector – ensures secure and efficient energy transfer
• Charger Type: 2-amp USB-C fast charger – convenient and quick charging via modern USB-C interface
• Battery Compartment Size: 8.9 x 3.55 x 2 cm – dual integrated compartments with quick-release doors

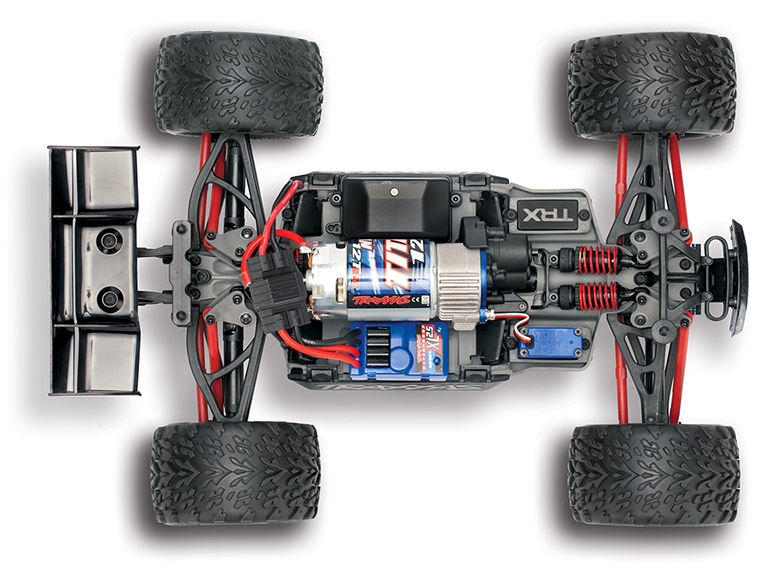

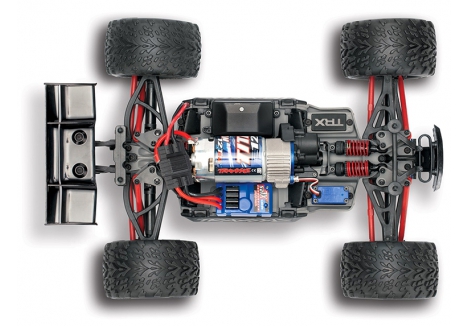

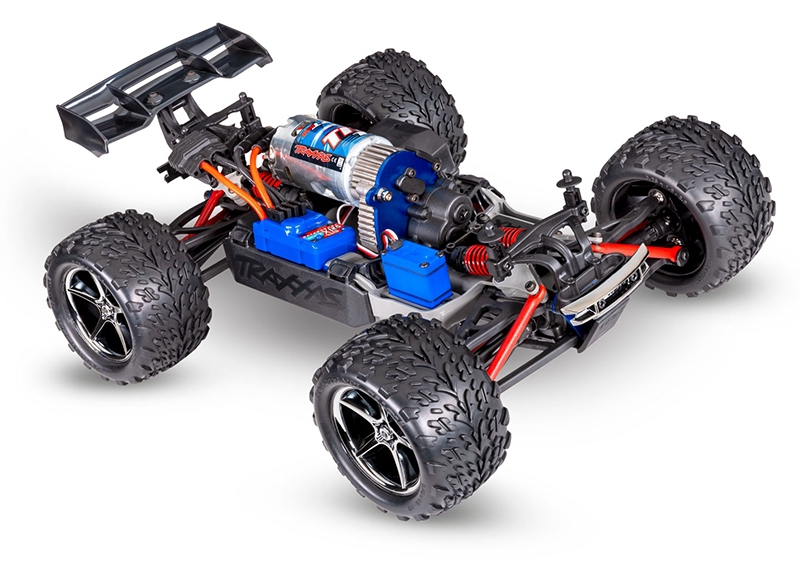

Chassis & Suspension

• Chassis Design: Fiber-composite monocoque – low-CG layout for improved handling and durability
• Cooling Vents: Intake and exhaust – helps regulate battery temperature during operation
• Suspension Type: Twin-arm pivot ball – delivers extreme travel and terrain adaptability
• Shock Absorbers: Inboard oil-filled GTR™ shocks – adjustable damping with pre-load collars
• Springs: Red powder-coated – durable and visually distinctive
• Rod Ends: Captured design – prevents disconnection during aggressive driving

Drivetrain & Transmission

• Drivetrain: Full-time shaft-driven 4WD – ensures consistent power delivery across all wheels
• Transmission: Sealed heavy-duty single speed – protects internal components from debris and moisture
• Slipper Clutch: Adjustable – allows fine-tuning of traction and drivetrain protection
• Differentials: Sealed, silicone-filled with steel gears – enhances durability and smooth power distribution
• Driveshafts: Heavy-duty telescoping U-joint – supports high torque and rugged terrain
• Gear Ratio (Internal): 5.04:1 – optimised for acceleration and control
• Gear Pitch: 48 pitch – standardised for compatibility and smooth meshing

Steering & Control

• Servo Type: Traxxas 2080 digital waterproof – precise steering with integrated servo saver
• Radio System: TQ™ 2.4 GHz 2-channel – ergonomic transmitter with internal antenna for reliable control
• Receiver: Traxxas 6519 3-channel micro receiver – includes fail-safe security for uninterrupted operation
• Receiver Box: Patented O-ring sealed watertight – protects electronics from moisture and debris

Wheels & Tyres

• Tyres: Pre-glued Talon™ – high-performance foam inserts for grip and shock absorption
• Wheels: 53 mm Gemini™ 5-spoke chrome – combines durability with race-inspired aesthetics

Bearings & Hardware

• Bearings: Rubber-sealed ball bearings – reduce friction and extend component life
• Hardware: Precision hex – ensures secure assembly and easy maintenance

What’s In The Box

• E-Revo (1/16 Scale) with XL-2.5™ ESC and Titan® 550 Motor
• Quick Start Guide
• TQ™ 2.4 GHz radio system
• Traxxas 7.2 V 6-cell NiMH battery with iD®
• 2-amp USB-C fast charger
• High quality maintenance tools

What You’ll Need

• Four AA alkaline batteries for the transmitter

Warranty

• Warranty Coverage: 1 Year Manufacturer Warranty
