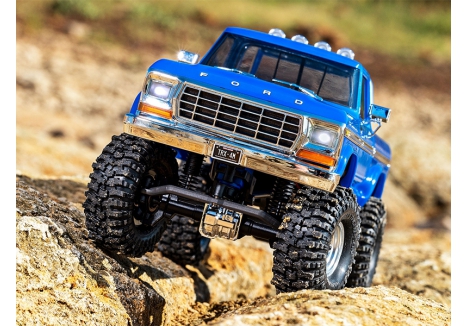

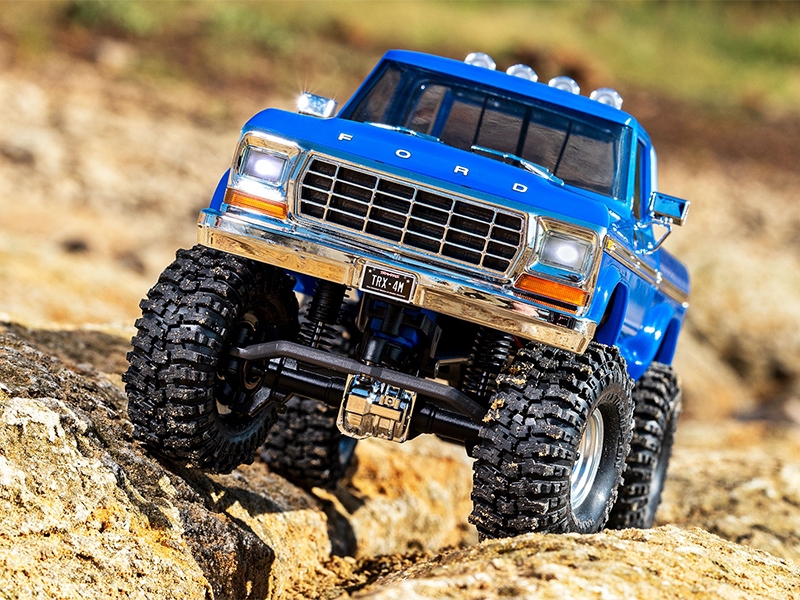

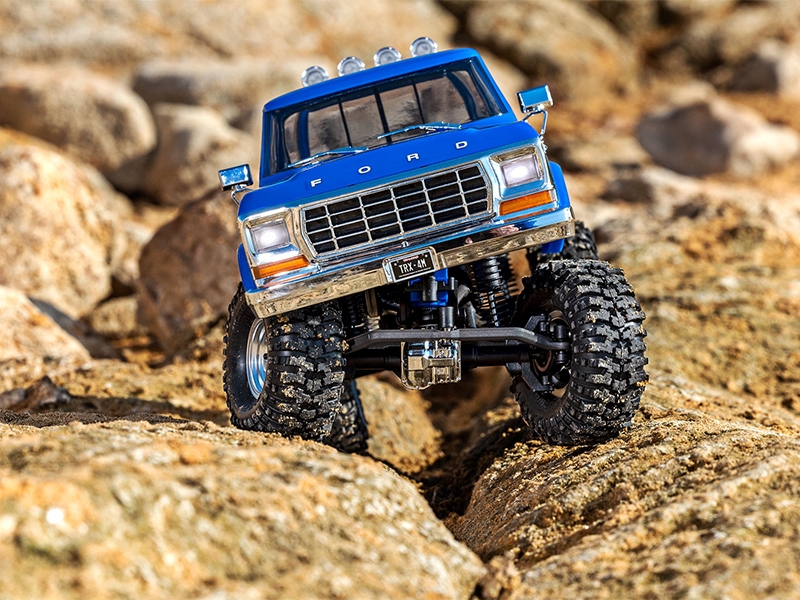

Small-scale adventure takes a big leap in performance with TRX-4M High Trail Edition trucks. Available with either a Chevrolet® K10 or Ford® F-150® body, High Trail trucks offer over 35% more center ground clearance than a standard TRX-4M.
Both trucks ride on larger Mickey Thompson® Baja Pro XS tires with an extended wheelbase for even more all-terrain capability. From indoor fun to outdoor adventure, TRX-4M High Trail Edition pickups deliver the quality and performance you expect from Traxxas.

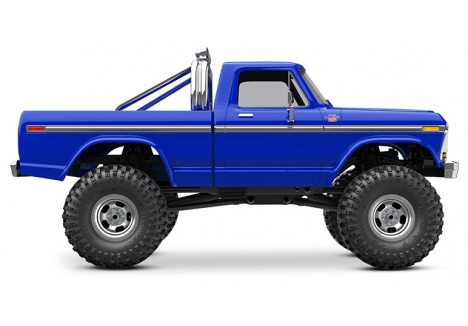

LONG ARM LIFT KIT
The High Trail edition’s Factory Installed Long Arm Lift Kit and larger tires raise the center ground clearance over 35% for a dramatic lifted stance. Revised shock mounts and extended links ensure the truck maintains its carefully-tuned suspension geometry for peak performance on challenging terrain.
NEW LARGER 2.4″ TIRES
Larger 2.4″ Mickey Thompson® Baja Pro™ XS replicate the full size tire’s aggressive tread pattern and fill out the High Trail Edition’s wheel wells for an authentic “lifted truck” look. Sticky compound rubber and trail-tuned foam inserts give extra “bite” for superior traction on the trail.
EXTENDED WHEELBASE

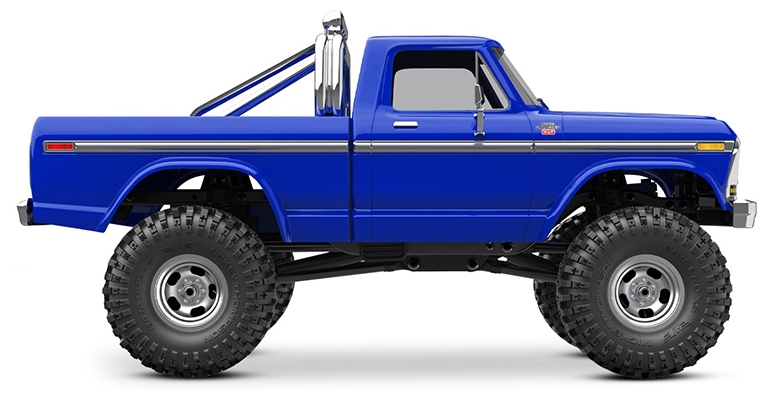

The High Trail Edition’s steel frame rails extend the wheelbase out to 162mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.
DETAILED CLIPLESS BODY
The TRX-4M Chevrolet K10 clipless body holds tight on the trail but releases in just seconds with a hidden latching system to preserve its clean lines. The tough ABS body featured molded-in color with highly detailed chrome trim for complete scale authenticity.
Vehicle Specs:
Length: 10.6 inches (269mm)
Front Track: 5.0 inches (127mm)
Rear Track: 5.0 inches (127mm)
Center Ground Clearance: 1.57 inches (40mm)
Weight (with battery): 1.03lbs (468g)
Height: 5.0 inches (127mm)
Wheelbase: 6.38 inches (162mm)
Approach Angle: 62°
Breakover Angle: 51.5°
Departure Angle: 52°
Shock Length (front and rear): 2.0 inches (51mm)
Hex Size: 7mm
Differential Type: Fully Locked; 2:1 Axle Ratio
Wheels (front and rear): 1.0 x 0.49 inches (25.4 x 12.5mm)
Tires (front and rear): 2.4 x 1.0 inches (61.9 x 25.6mm)
Electronic Control Module: ECM-2.5™
(Combo ESC, Receiver, Lighting Control*)
Motor (electric): Titan® 180 87T
Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft-Driven 4WD
Steering: Axle-Mounted Servo
Radio System: TQ™ 2.4GHz 2-Channel Transmitter
Servo: #2065T Heavy Duty Waterproof
Skill Level: 1
Battery Tray: 50.5mm L X 31mm W

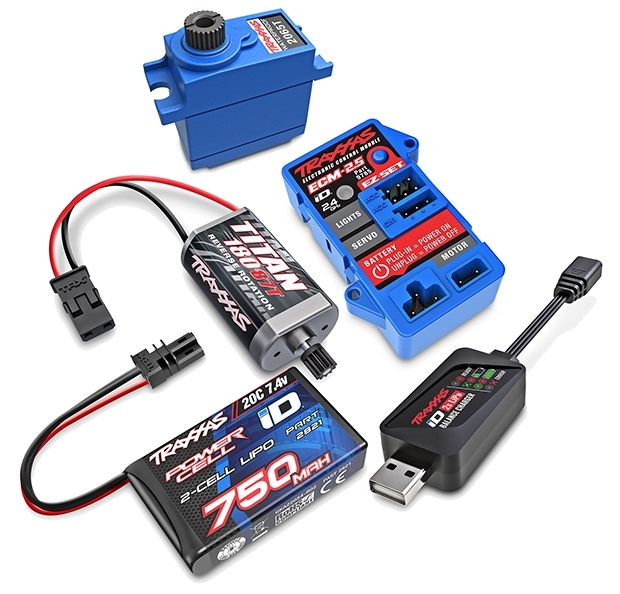

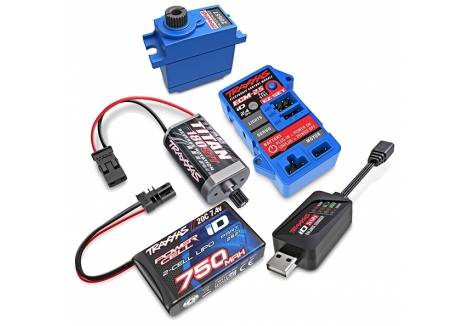

What’s In The Box:
TRX-4M® High Trail™ model
Licensed ABS hard body
Titan® 180 87-turn motor
ECM-2.5™ Electronic Control Module
TQ transmitter
7.4 volt 750mAh 2-cell LiPo battery
2-amp USB fast charger with iD®
High quality maintenance tools
What You’ll Need:
Four AA alkaline batteries for the transmitter
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX97044-1-BLUE
- Product Type: Traxxas TRX-4M TRX97044-1-BLUE 1/18 Ford F-150 High Trail truck RTR, Traxxas blue mini trail truck with Titan 180 motor TRX97044-1-BLUE, Traxxas 4WD scale crawler with LiPo battery and charger TRX97044-1-BLUE, Traxxas TRX-4M Ford F-150 with High Trail suspension and GTM shocks TRX97044-1-BLUE, Traxxas 1/18 trail truck with ECM-2.5 electronics and waterproof servo TRX97044-1-BLUE, Traxxas mini crawler with Mickey Thompson tires and steel ladder chassis TRX97044-1-BLUE
Dimensions
- Length: 26.9 cm – compact size for tight trail navigation
- Width: 12.7 cm – balanced stance for scale terrain performance
- Height: 12.7 cm – lifted High Trail suspension for increased clearance
- Wheelbase: 16.2 cm – optimized for stability and articulation
- Center Ground Clearance: 4.0 cm – allows confident obstacle traversal
- Weight: 468 g – lightweight for nimble trail handling
- Battery Compartment: 5.1 cm x 3.1 cm – accommodates included LiPo battery securely
Motor and Power System
- Motor Type: Titan 180 87-turn brushed motor – delivers smooth torque for scale crawling
- Motor Length: 4.2 cm – compact design for forward mounting
- Motor Diameter: 2.1 cm – fits snugly within the chassis layout
- Motor Weight: 33 g – lightweight for improved weight distribution
Electronic Control Module and ESC
- ESC Type: ECM-2.5 brushed ESC – integrated with receiver and LED controller
- ESC Dimensions: 4.5 cm x 3.2 cm x 1.5 cm – compact for modular installation
- ESC Weight: 26 g – lightweight for low-CG performance
- Drive Profiles: Sport, Trail, and Crawl modes – selectable for terrain-specific control
- Setup: EZ-Set one-button configuration – simplifies tuning and operation
- Protection Features: Low voltage detection and motor overload protection – safeguards electronics during use
Radio System and Steering
- Transmitter: TQ 2.4 GHz 2-channel – full-size with long-range precision
- Servo: 2065T waterproof steering servo – metal gear with 45° steering angle
- Steering Design: Direct steering with no servo saver – maximizes responsiveness

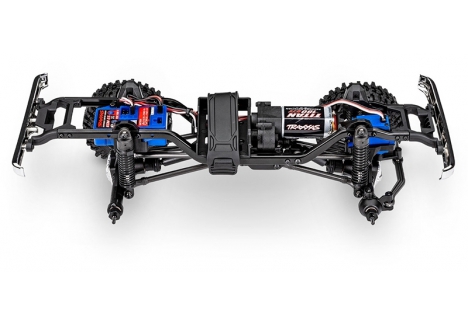

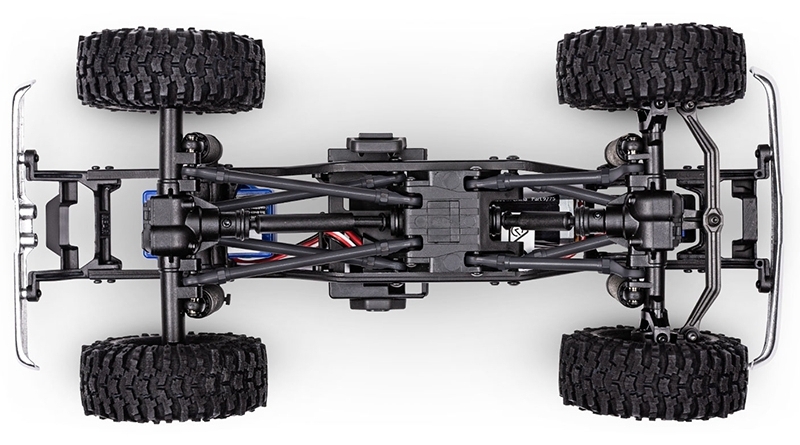

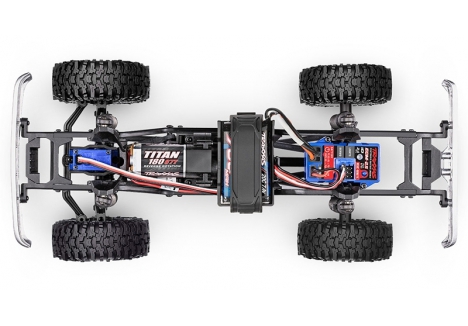

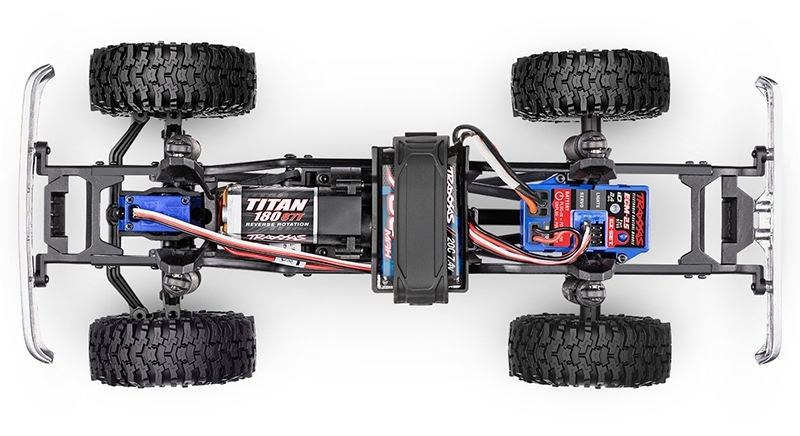

Chassis and Suspension

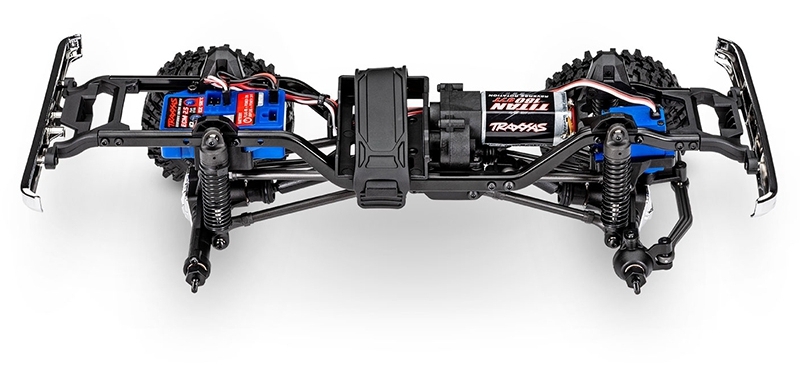

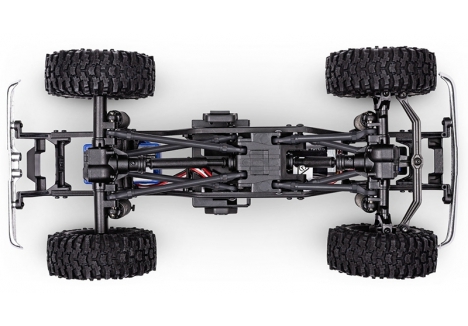

- Chassis Type: Extended heavy-duty steel ladder frame – deep C-channel with reinforced center section
- Suspension: Lifted High Trail suspension – revised shock towers and triangulated 4-link geometry
- Rod Ends: Heavy-duty – built for rugged trail articulation
- Shocks: Oil-filled GTM shocks – adjustable preload and realistic damping
Wheels and Tires
- Wheel Type: 1″ replica slotted chrome mag wheels – scale realism with 7 mm hex
- Tires: Mickey Thompson Baja Pro XS – trail-tuned compound for grip and durability
Drivetrain and Transmission
- Drivetrain: Shaft-driven 4WD – full-time traction for scale terrain
- Axles: Solid steel with locked spool differentials – ensures consistent power delivery
- Driveshafts: Heavy-duty CV center driveshafts – built for rugged trail use
- Transmission: Single-speed direct drive – simple and efficient for trail crawling
- Gear Ratio: 11.38 internal – tuned for torque and control
- Gear Pitch: 64 pitch – fine gearing for smooth operation

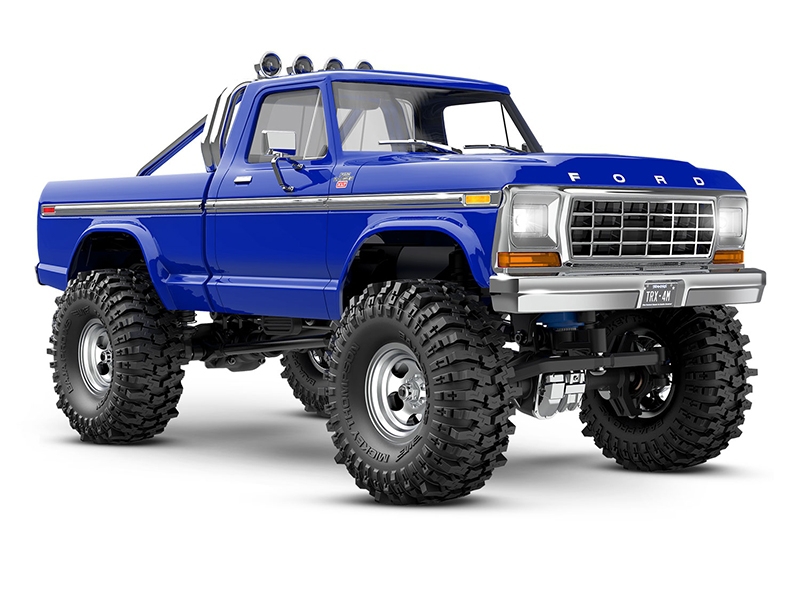

Body and Exterior Features

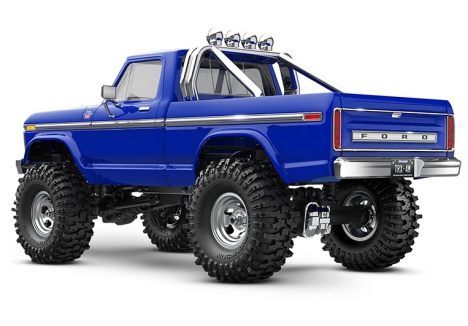

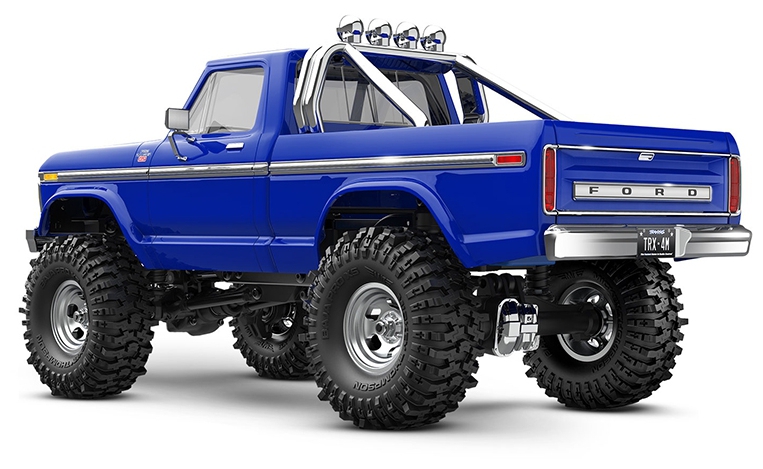

- Body Type: Officially licensed Ford F-150 – molded ABS hard body with clipless mounting
- Exterior Details: Fender flares, rock sliders, side mirrors, door handles, roll bar, and wipers – adds realism and protection
- Color: Molded-in blue – resists chipping and flaking
- Lighting: LED-ready headlights – compatible with Pro Scale LED functionality
Battery and Charging
- Battery Type: 2-cell 7.4V 750 mAh LiPo – high-capacity pack for extended runtime
- Charging: 2-amp USB-powered charger – includes iD technology for safe and fast charging
- Battery Tray: Low-CG design with wide rubber strap – improves stability and secures battery
Low-Maintenance Features
- Bushings: Self-lubricating – reduces wear and maintenance
- Hardware: Durable hex – ensures secure assembly and easy servicing
Optional Upgrades (Sold Separately)
- Optional transmission ratios – low range or speed gearing available for performance tuning
What's In The Box
- Traxxas TRX-4M Ford F-150 High Trail truck TRX97044-1-BLUE
- Licensed ABS hard body
- Titan 180 87-turn brushed motor
- ECM-2.5 Electronic Control Module
- TQ 2.4 GHz transmitter
- 7.4V 750 mAh 2-cell LiPo battery
- 2-amp USB fast charger with iD
- High-quality maintenance tools
What You’ll Need
- Four AA alkaline batteries for the transmitter
