RC4WD Marlin Crawlers Trail Finder 2 RTR w/Mojave II Crawler Body Set Z-RTR0034

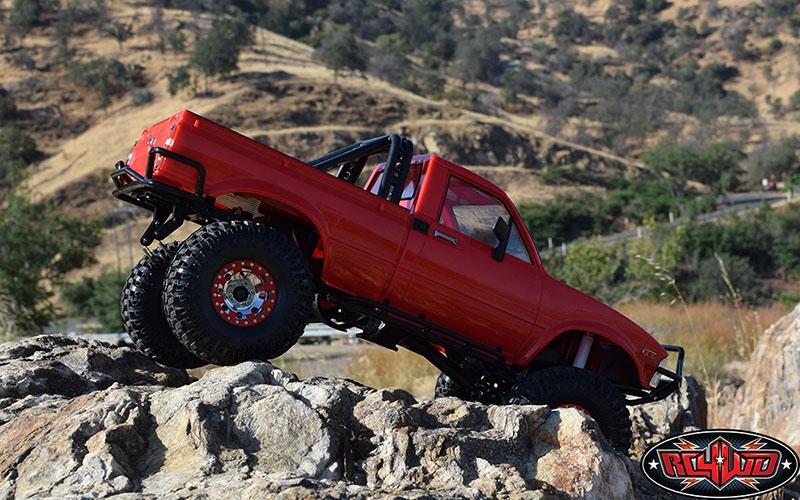

RC4WD Marlin Crawlers Trail Finder 2 RTR w/Mojave II Crawler Body Set Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow or mud than the TF2 RTR. Part scale truck, part adventurer, your TF2 RTR is ready for your mud kicking trail-loving lifestyle!
The TF2 RTR has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 RTR. Performance of the TF2 RTR is smooth and with its single speed transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 RTR is truly a work of art in both appearance and performance.
Every TF2 RTR is compatible with a full range of options and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The TF2 RTR.
Your adventure awaits....
Yota II Ultimate Scale Cast Axles
Custom Designed for True to Scale Looks
Twister High Torque Metal Gear Digital Servo
Chassis Mounted Steering Servo
540 Crawler Brushed Motor 45T
Super Soft Flex Leaf Springs For TF2 Interco IROK 1.7'' Scale Tires R3 Single Speed Transmission
Realistic Aluminum Ladder Frame Chassis
Center Mounted Realistic 4x4 Transfer Case
Outcry II Waterproof ESC
Plastic Fuel Cell Receiver Box
Superlift Superide 80MM Shock Absorbers
TRO 1.7" Stamped Steel Beadlock Wheels
6-Cell 3000MAH NiMH Battery Pack
NiMH Peak Battery Charger Hammer Transfer Case
Ratio: 1.47: 1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Single Speed Transmission
Ratios Pinion/Spur 14/64 = 4.57:1
Internal Ratio = 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Cast Yota II Axles
Ratio: 15/40 = 2.67: 1
Width at Hex: 180.5mm
TF2 Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops
Drive Shafts
High Quality Plastic Material, Very Durable High Quality Steel Yokes
Wheels
Name: TRO 1.7" Stamped Steel Beadlock Wheels
Hub: 12mm Hex
Width: 25mm
OD: 50mm
Features: Stamped Steel, Aluminum Hubs, Internal Beadlock, Very Scale Looking, 6 Lug Design
Truck Dimensions
Wheelbase: 287mm (11.3")
Width: 512mm (20")
Height: 230mm (9")
Ground Clearance: 72mm (2.83")
Final Drive Ratio: 31.9:1
Weight: 6.45Lbs/2.93Kg

DRIVETRAIN

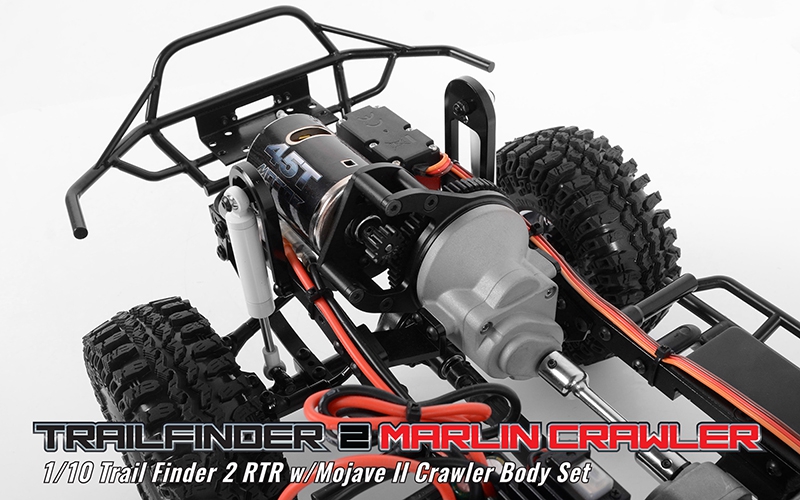

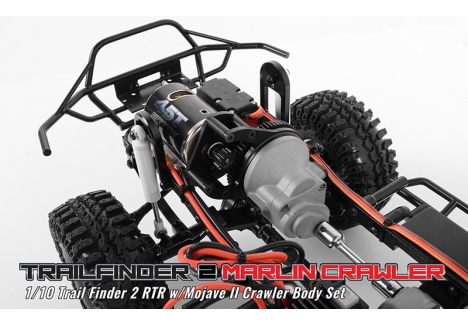

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

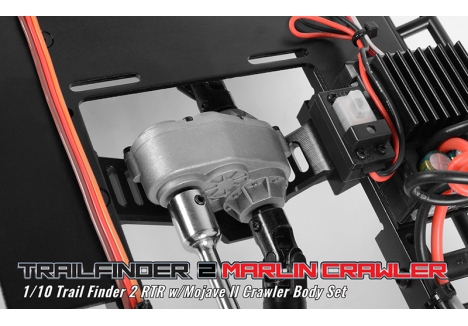

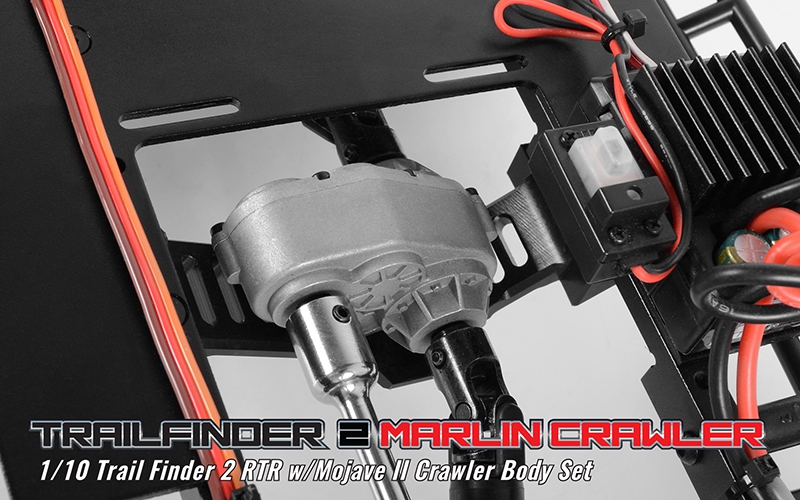

The TF2 RTR includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and the heavy duty .8 Mod Widened Gears for durability.
Drawing on the success of the RC4WD MOA Gear Sets, the TF2 RTR Drivetrain has the most durable gears RC4WD has to offer so the TF2 RTR will stay on the trail, day after day.
The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Driveshafts for the TF2 RTR are designed with heavy duty metal uni-joints with tough plastic shafts for great driveline angles and durability on the trails.
SUSPENSION
The TF2 RTR Chassis features a molded fuel cell that doubles as an electronics storage box. There is also an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options!
The TF2 RTR includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

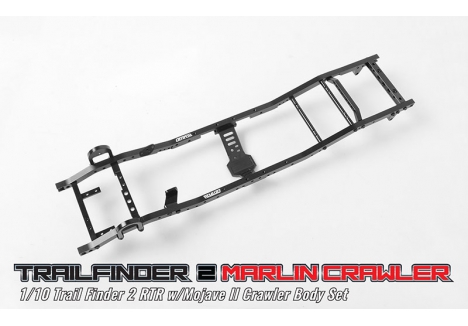

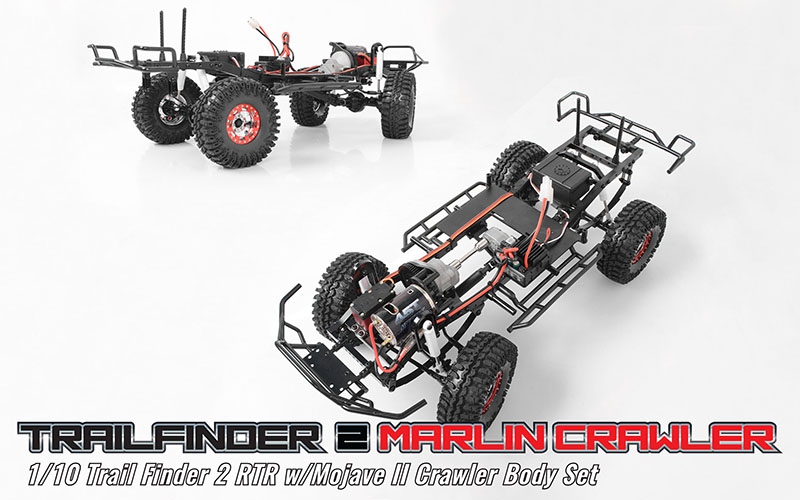

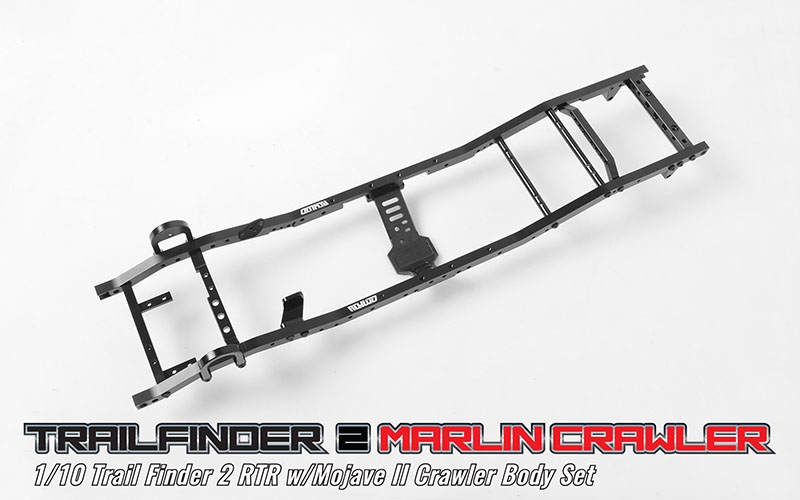

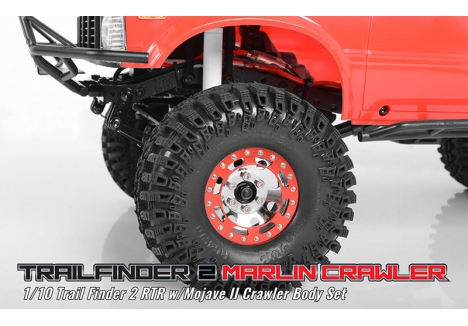

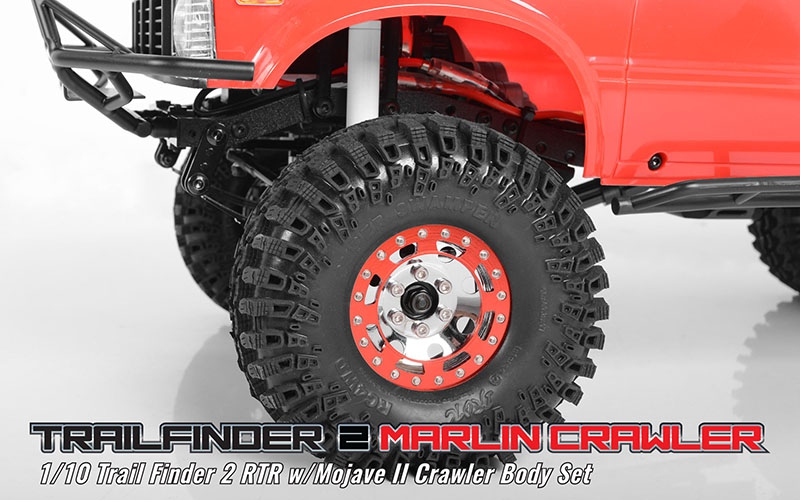

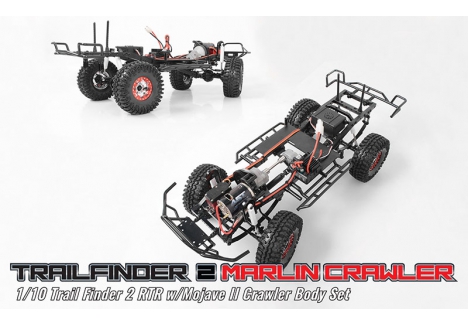

The TF2 RTR Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts for maximum strength. Optional 4-link conversion is available on our store site. The TF2 RTR includes a set of TRO 1.7" Stamped Steel Beadlock Wheels in a beautiful red anodized finish with chrome details. These steel stamped wheels with CNC machined parts offer amazing details in the popular 6 lug design. Every TF2 RTR needs a tough set of tires and the included Interco IROK 1.7" Scale Tires provide just that! These tires are known for handling rocks, mud snow and whatever else you can throw at it with its durable advanced X2SS soft & sticky compound. DETAILS

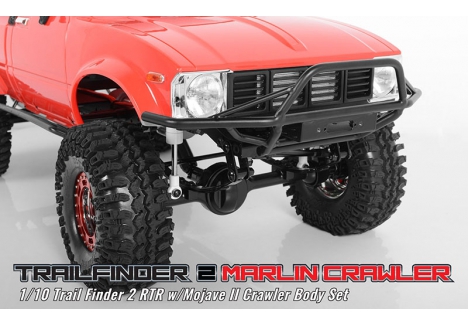

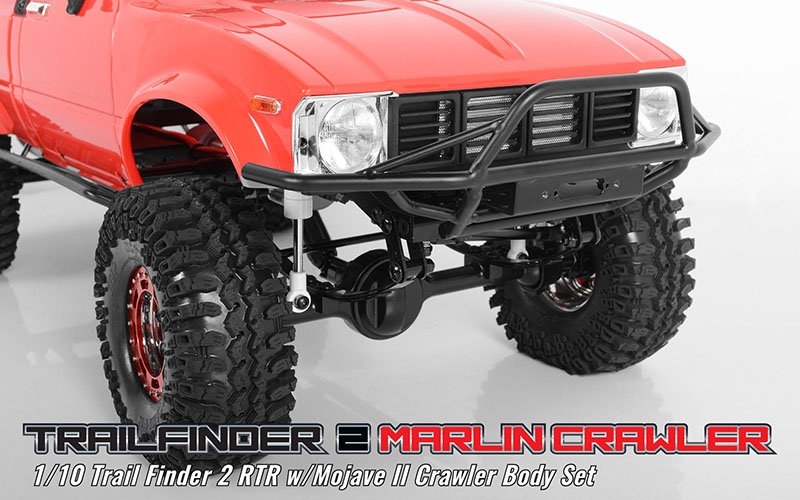

The TF2 Marlin Crawler Body Set includes pre-painted wipers, mirror, light details and door handles for ultimate in scale looks. Realistic dashboard decals come pre-installed.

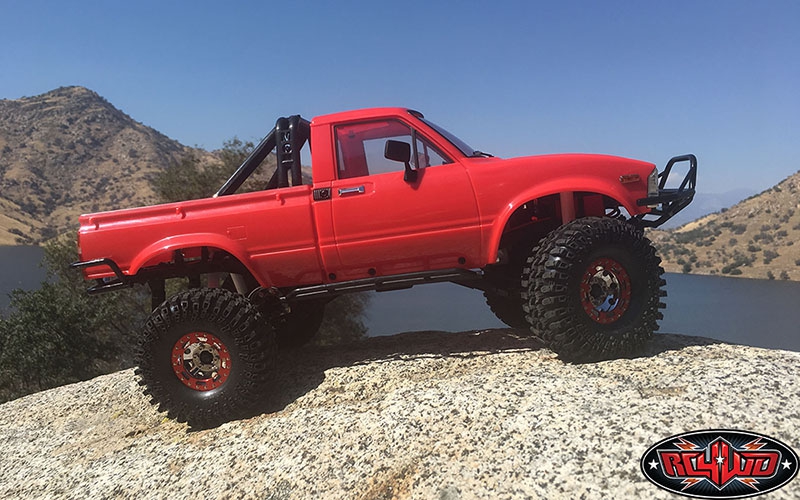

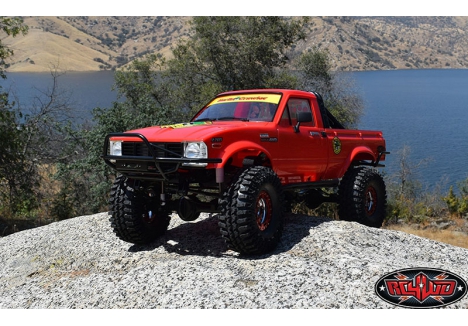

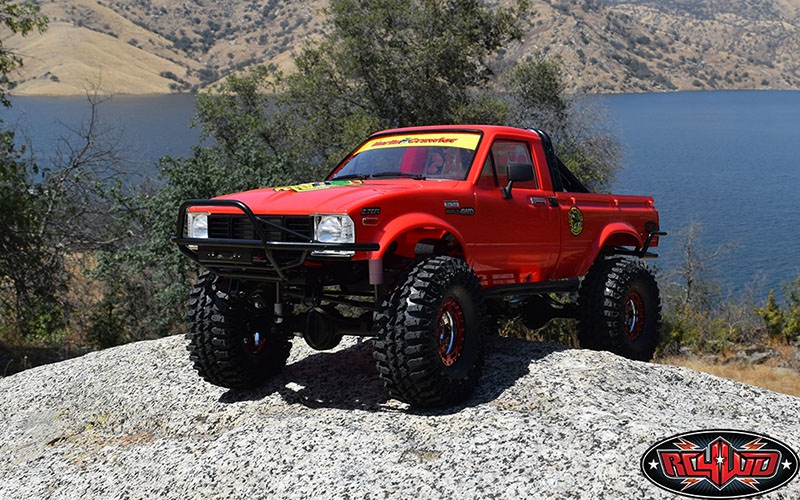

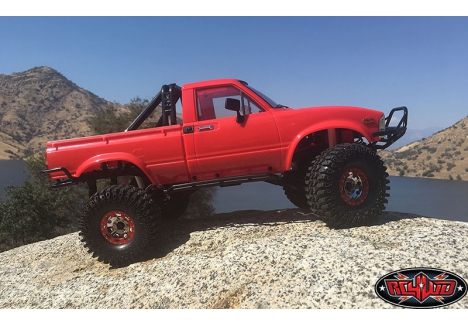

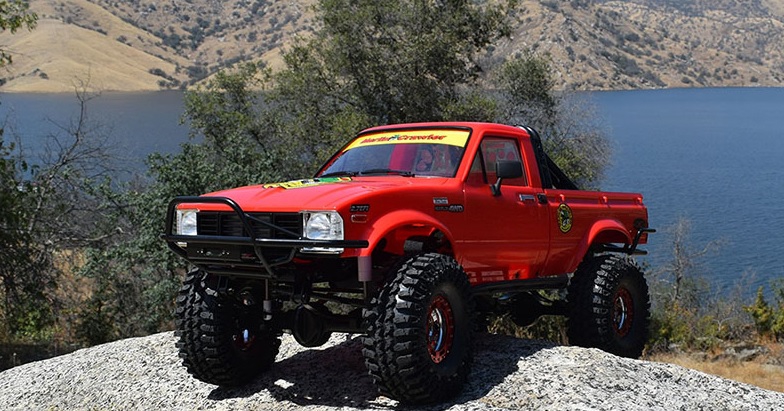

The unmistakable lines of a classic. The TF2 Marlin Crawler Body Set is an exact replica of the full scale vehicle. No other scale body comes this close to realism.
The TF2 Marlin Crawler Body Set includes a great dropped bed molded directly into the body. Pre-painted black, it’s perfect for carrying all your scale accessories or spare wheel and tire. The TF2 Marlin Crawler Body Set includes a roll bar with signature MC details to protect the cab from any unplanned tumbles so you're always covered.
The crisp lines and bold details are all captured. Chrome plated parts are included as well as colored lenses for all signal lights. All lamps can be illuminated with minimum modifications.
ELECTRONICS
The TF2 RTR includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control a winch and add even more fun to your scale adventure!
The TF2 RTR is powered by the RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you’re sure to get where you’re going!

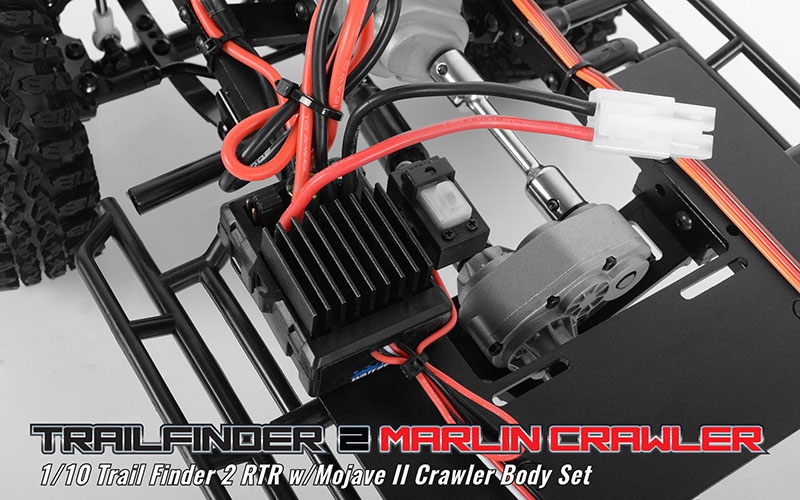

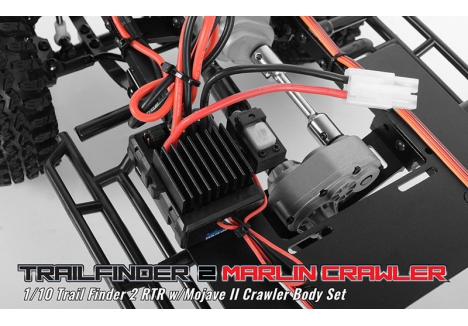

The TF2 RTR features the popular RC4WD Outcry II Waterproof ESC Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.
A great truck needs a great servo to get you out of those tough spots and the TF2 RTR features the Twister. A high torque metal gear digital servo to handle all your steering duties.

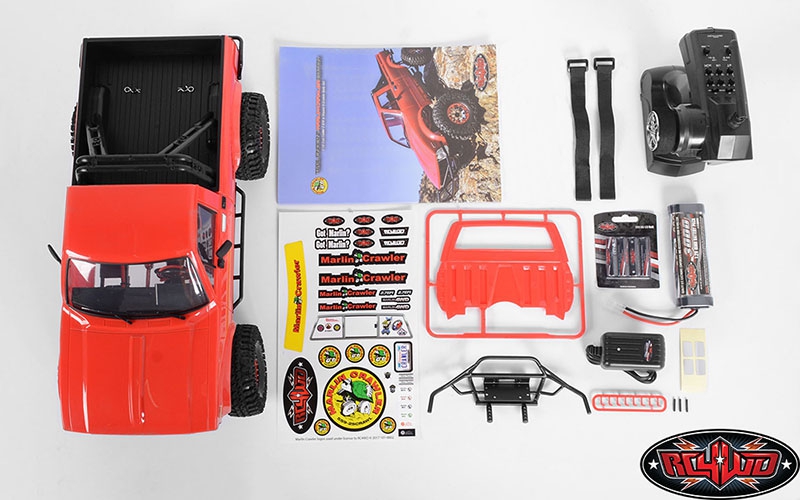

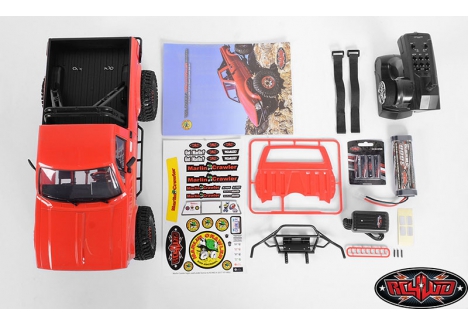

Its ALL in the box. Everything you need is provided to get you on the trails today! What's Included:

1x RC4WD Marlin Crawlers Trail Finder 2 RTR w/Mojave II Crawler Body Set
Instruction Manual: Click here to download

Press Information: Click here to download Notes:

While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Do not over tighten screws, otherwise you may strip the thread.
Marlin Crawlers and the Turtle Logos are registered trademarks of Marlin Crawlers Inc. The Marlin Crawlers logos are property of Marlin Crawlers Inc. and used under license to RC4WD.
