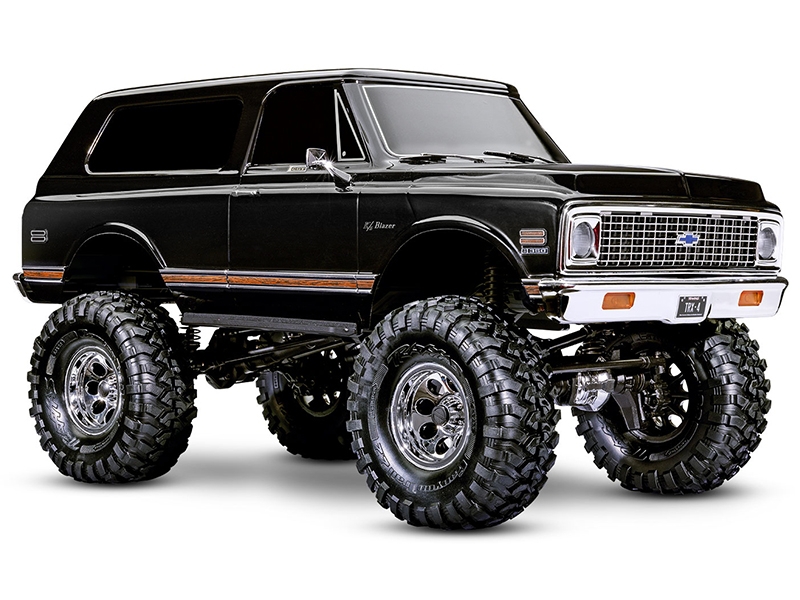

Traxxas TRX-4 1972 Chevrolet K5 Blazer High Trail Edition 1:10 4WD All-Terrain Crawler, Black (+ TQi 4-ch, XL-5 HV, Titan 550) TRX92086-4-BLK

Brand, Model and Product Type

• Brand: Traxxas
• Model: TRX92086-4-BLK
• Product Type: Traxxas TRX92086-4-BLK TRX-4 1972 Chevrolet K5 Blazer High Trail Edition 1:10 4WD RTR, Traxxas TRX92086-4-BLK TRX-4 K5 Blazer with Long Arm Lift Kit and Canyon Trail tyres, Traxxas TRX92086-4-BLK TRX-4 Chevrolet K5 Blazer High Trail with Titan 21T brushed motor, Traxxas TRX-4 Chevrolet K5 Blazer TRX92086-4-BLK with clipless body mounting system, Traxxas TRX-4 K5 Blazer with XL-5 HV waterproof electronic speed control, Traxxas TRX-4 1972 Chevrolet K5 Blazer with portal axles and steel ladder frame

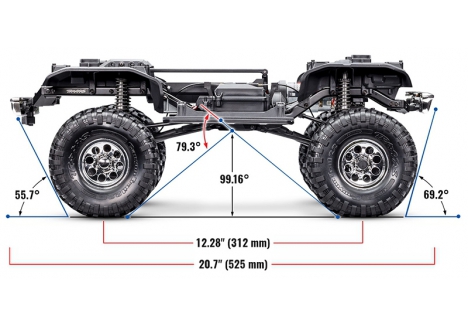

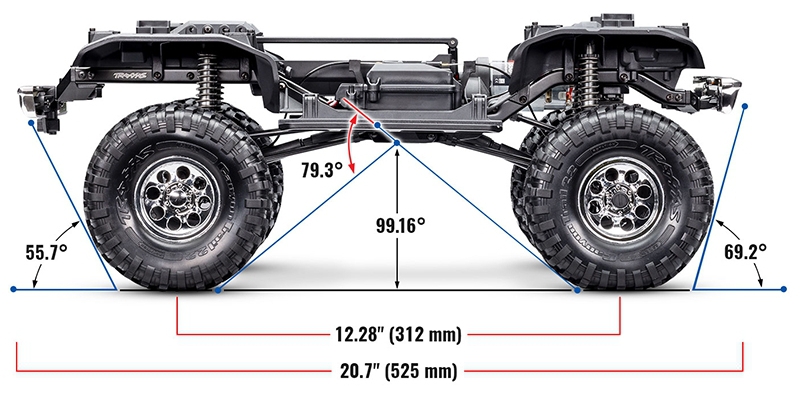

Dimensions

• Length: 52.5 cm – supports extended wheelbase and lifted geometry
• Width: 27.0 cm – ensures stable stance and tyre clearance
• Height: 28.5 cm – accommodates lifted suspension and scale body detail
• Wheelbase: 31.2 cm – optimised for articulation and trail control
• Ground Clearance: 9.9 cm – enhanced by portal axles and Long Arm Lift Kit
• Weight: 3.30 kg – balanced for traction and handling

Chassis and Suspension

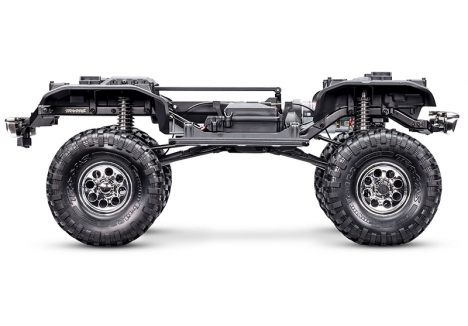

• Chassis Type: Steel ladder frame – full-length 1.5 mm rails with integrated wire routing
• Suspension: Front: 3-link with panhard; Rear: triangulated 4-link – heavy-duty rod ends and steel hollow balls
• Shocks: Extended aluminium GTS coil-over – oil-filled, threaded bodies with adjustable collars
• Lift Kit: Factory-installed Long Arm – increases clearance and accommodates 2.2″ wheels

Drivetrain and Transmission

• Drive Type: Shaft-driven 4WD – full-time traction across all terrain
• Differential Type: Remote locking steel gear – cable-actuated for trail control
• Transmission: 2-speed high/low – remote shifting with dual horizontal shafts
• Gear Pitch: 32 pitch – compatible with high-torque applications
• Transfer Case: Steel gear – supports drivetrain durability
• Axles: Portal – increase clearance and eliminate torque twist
• Stub Axles: 6 mm – hardened steel for strength
• Driveshafts: Steel CV front and hardened steel rear – built for rugged terrain

Body and Exterior

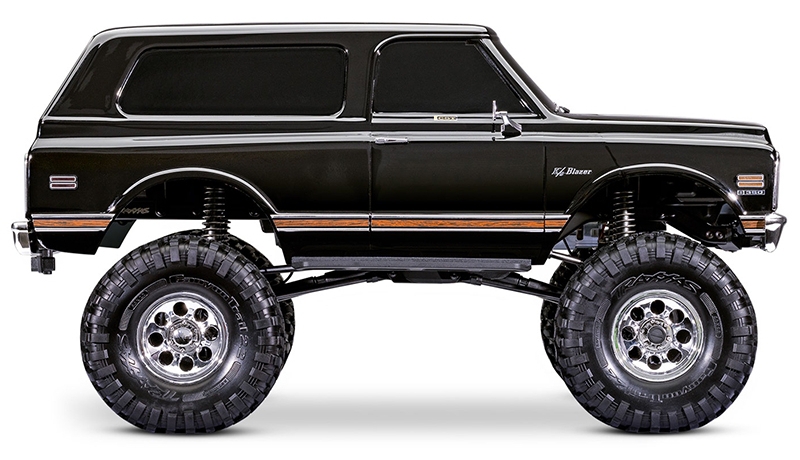

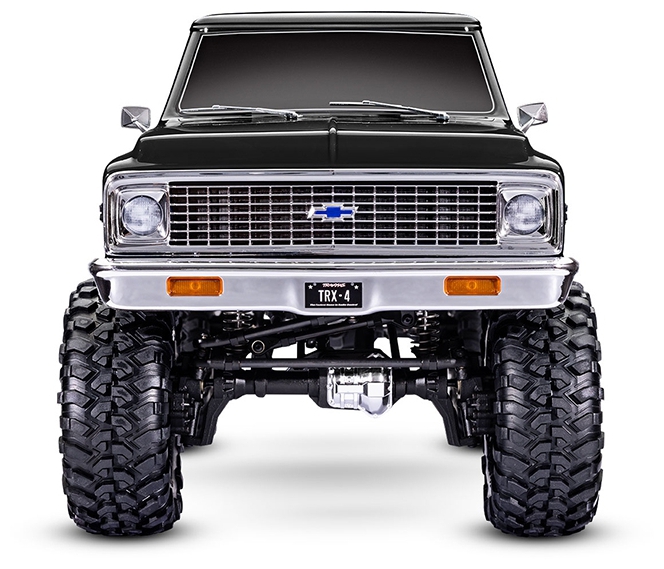

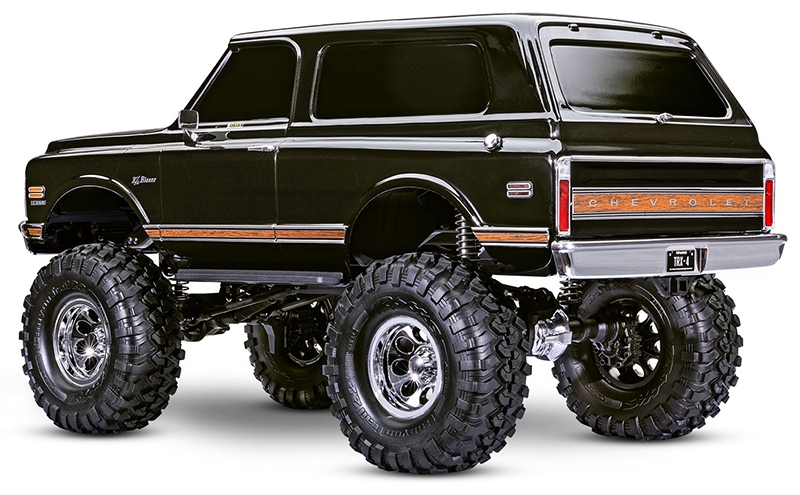

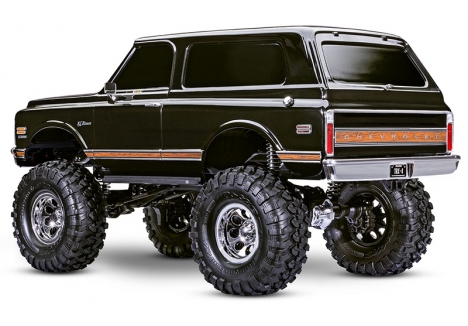

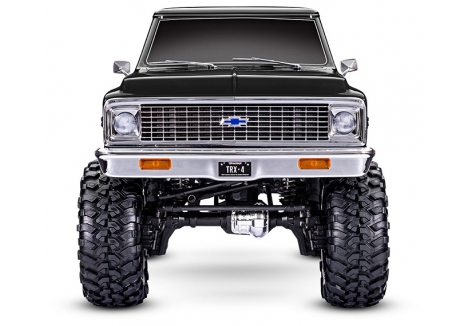

• Body Type: Licensed 1972 Chevrolet K5 Blazer – injection-moulded grille, mirrors, and trim
• Mounting System: Clipless – hidden latching for clean lines and quick access
• Internal Cage: Reinforced – mounts directly to chassis for rigidity
• Lighting: LED-ready – headlights, tail lights, and side markers
• Decals: Authentic sheet – completes vintage styling

Wheels and Tyres

• Wheels: 2.2″ chrome mag – hub inserts for scale realism
• Tyres: Canyon Trail – trail-tuned foam inserts and S1 rubber compound
• Hex Size: 12 mm – standard fitment

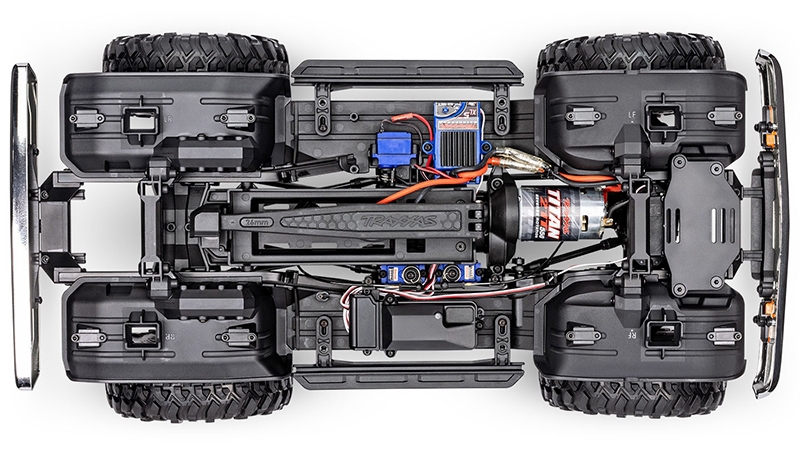

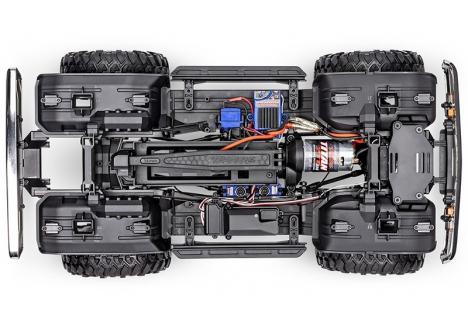

Electronics and Control

• Motor: Titan 550 21T reverse rotation – high-torque brushed with internal cooling fan
• ESC: XL-5 HV – waterproof with five drive profiles and drag brake
• Radio System: TQi 2.4 GHz – 4-channel transmitter with cruise control and 6533 receiver
• Receiver: 5-channel micro – integrated telemetry ports and fail-safe security
• Servo: 2075X metal gear – digital high-torque waterproof with 45° steering angle

Battery and Power

• Battery Compatibility: 6–7 cell NiMH (7.2–8.4 V) and 2–3S LiPo (7.4–11.1 V)
• Battery Compartment: 15.9 cm x 4.7 cm x 2.3 cm (26 mm height max)
• Battery: Sold separately – accepts full-size and 1/16 scale packs with optional strap
• Charger: Sold separately – EZ-Peak Live charger recommended
• Transmitter Batteries: 4x AA alkaline – required for operation

What’s in the Box

• Traxxas TRX-4 K5 Blazer High Trail Edition RTR vehicle
• XL-5 HV waterproof ESC
• Titan 21T brushed motor
• TQi 2.4 GHz radio system with cruise control
• High-quality maintenance tools

What You Will Need

• Compatible NiMH or LiPo battery
• Battery charger
• 4x AA alkaline transmitter batteries

Sold Separately

• Battery and charger
• Traxxas Link Wireless Module (6511)

Warranty

• 1-year manufacturer warranty – refer to Traxxas official policy for coverage details
