FEATURES
- Lifted Performance - Long Arm Lift Kit and oversize Mickey Thompson Tyres raise the centre ground clearance 35% higher
- Enhanced Versatility - Larger size with tight turning radius for maneuverability on tough off-road terrain
- Extended Steel Ladder Frame - New extended rigid steel ladder frame for stability
- Trail-Ready Chassis & Driveline - Four-link suspension, spool-equipped solid axles, and heavy-duty telescoping centre driveshafts
- Tight Turning Radius - 45 steering angle for exceptional maneuverability
- Detailed ABS Bodies - Tinted windows, chrome trim, and other moulded body accessories for scale authenticity
- LED Headlights - Standard LED headlights for enhanced scale appearance
- Waterproof Electronics - Fully waterproof electronics for all-weather adventure
- Titan 180 87T Motor - Powerful motor for precise low-speed torque and surprising speed
- High Capacity LiPo Battery and Fast Charger - 750 mAh 2-cell LiPo battery with over an hour of runtime and USB-powered charger
CONTENTS
- 1/18 TRX-4M High Trail Edition
- TQ 2.4GHz 2-channel transmitter
- High-capacity 750mAh 2-cell LiPo battery
- 2-amp USB fast charger
- Product manual
NEEDED TO COMPLETE
- 4 AA Alkaline batteries for the transmitter
DETAILS
HIGH TRAIL PERFORMANCE FOR TRX-4M

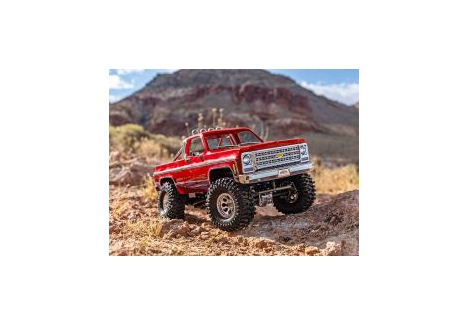

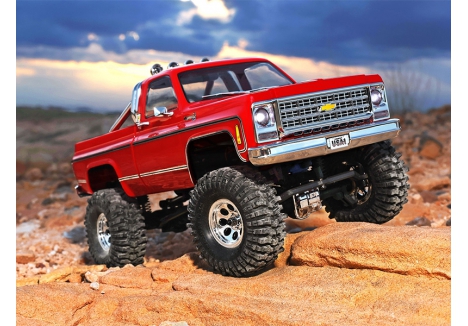

Small-scale adventure takes a big leap in performance with the TRX-4M Chevrolet K10 High Trail Edition. The lifted High Trail pickup offers over 35% more centre ground clearance than a standard TRX-4M with an extended wheelbase for even more all-terrain capability. Oversize Mickey Thompson Baja Pro XS Tyres enhance traction and give K10 a dramatic lifted truck profile. From indoor fun to outdoor adventure, TRX-4M K10 High Trail Edition delivers the quality and performance you expect from Traxxas.
The TRX-4M High Trail Edition Chevrolet K10 on Traxxas.com
Long Arm Lift Kit The High Trail edition's Factory Installed Long Arm Lift Kit and larger Tyres raise the centre ground clearance over 35% for a dramatic lifted stance. Revised shock mounts and extended links ensure the truck maintains its carefully-tuned suspension geometry for peak performance on challenging terrain.
New Larger 2.4in Tyres Larger 2.4in Mickey Thompson Baja Pro XS replicate the full size tyre's aggressive tread pattern and fill out the High Trail Edition's wheel wells for an authentic "lifted truck" look. Sticky compound rubber gives extra "bite" for superior traction on the trail.

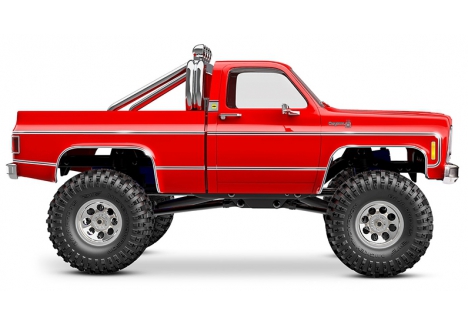

Extended Wheelbase The High Trail Edition's steel frame rails extend the wheelbase out to 162mm to capture the pickup's real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.
Detailed Clipless Body The TRX-4M Chevrolet K10 clipless body holds tight on the trail but releases in just seconds with a hidden latching system to preserve its clean lines. The tough ABS body featured moulded-in colour with highly detailed chrome trim for complete scale authenticity.
Lifted Performance TRX-4M K10 High Trail Edition's Long Arm Lift Kit and oversize Tyres raise the centre ground clearance 35% higher than the standard truck. Extended links maintain TRX-4M's superior suspension geometry.
Extreme Versatility TRX-4M provides all the fun and versatility of a compact crawler without any of the limitations. TRX-4M is larger and yet more manoeuvrable than 1/24 scale vehicles with its tighter turning radius. The K10 High Trail Edition's oversize Tyres and superior centre ground clearance open the door for tough off-road terrain and big challenges.

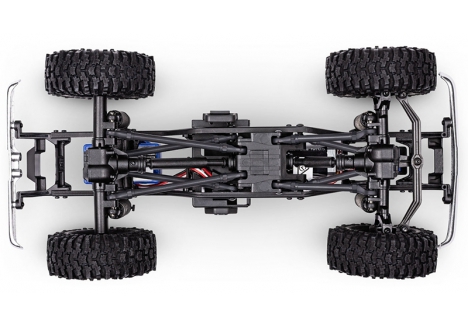

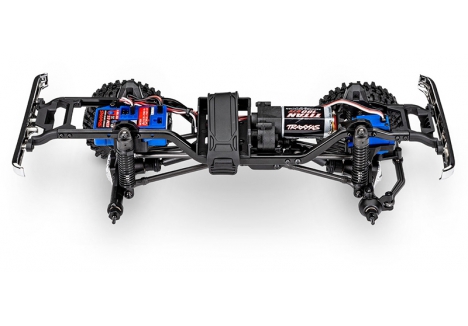

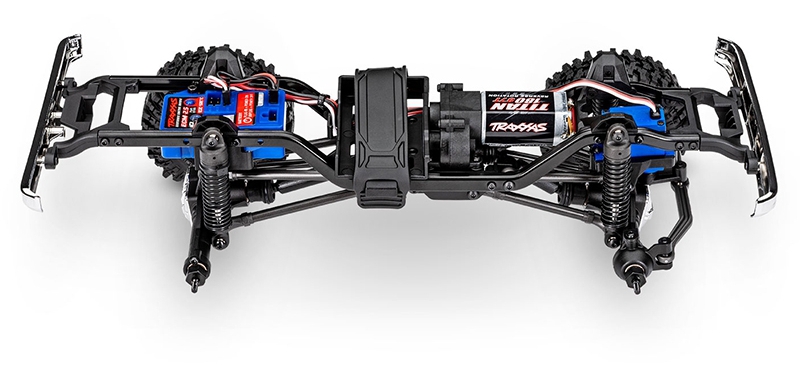

Extended Steel Ladder Frame TRX-4M High Trail Edition performs like a full-size crawler because it's built like one. A new extended rigid steel ladder frame runs from bumper to bumper to virtually eliminate flex. You'll feel the added stability of its longer wheelbase on steep climbs or while navigating technical terrain.

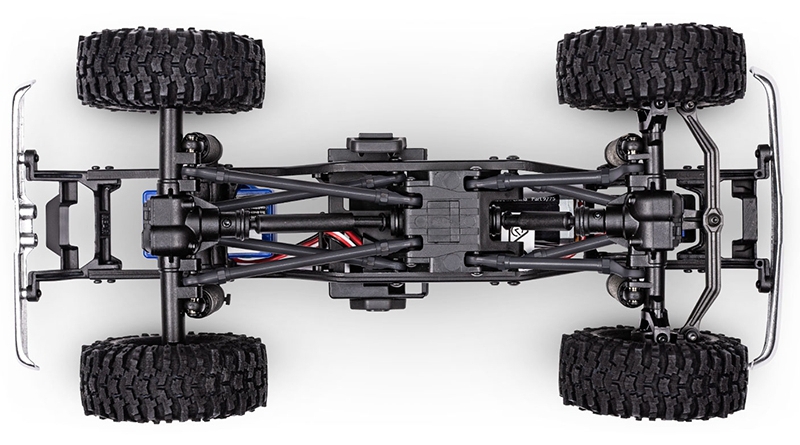

Trail-Ready Chassis & Driveline TRX-4M High Trail Edition rides on a sophisticated four-link suspension with extended heavy duty linkages. Spool-equipped solid axles supply non-stop climbing power with excellent articulation and extended centre ground clearance to climb over the toughest obstacles. Heavy duty telescoping centre driveshafts send the motor's torque to the axles with a smooth-running CV design.
Tight Turning Radius TTRX-4M outmaneuvers much smaller trucks thanks to its exceptional 45 steering angle an impressive feat considering its larger and more versatile size.
Detailed ABS Bodies Constructed out of tough ABS, TRX-4M High Trail Edition faithfully capture all the details of the Chevrolet K10 in exacting 1:18 scale. Tinted windows, chrome trim, a pickup bed, and other moulded body accessories give K10 a truly authentic appearance.

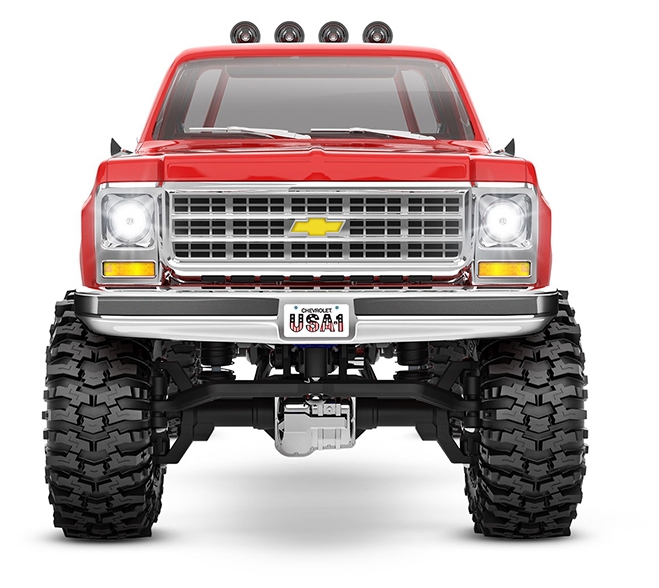

LED Headlights The High Trail Edition's standard LED headlights enhance K10's scale appearance and create new avenues for fun as you challenge your driving skills through sofa-cushion tunnels or over garden obstacles when the sun goes down.
Soft-Compound Tyres TRX-4M High Trail Edition rolls on Mickey Thompson Baja Pro XS Tyres to give K10 that lifted truck look. The oversize Tyres improve K10's centre ground clearance and put more rubber to the ground for exceptional off-road performance. Detailed 8-hole chrome mag wheels round out the package for a stunning scale appearance.
Waterproof Electronics You'll never need to change course to avoid puddles, mud, or snow with the lifted K10 High Trail Edition. We built TRX-4M for all-weather adventure with fully-waterproof electronics.

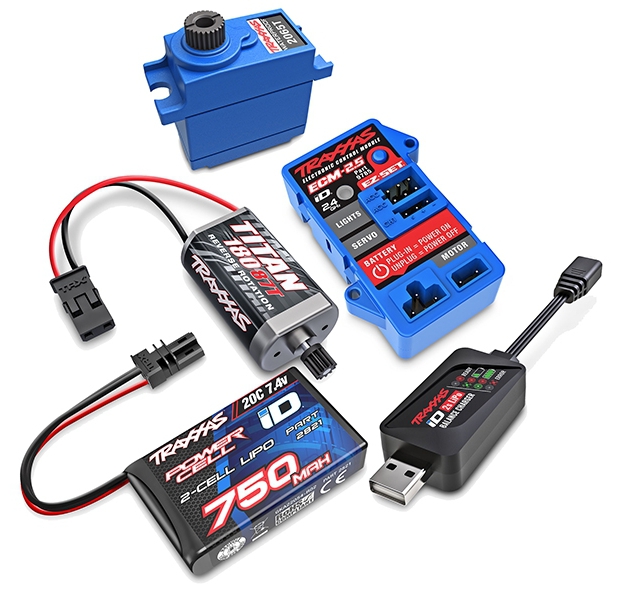

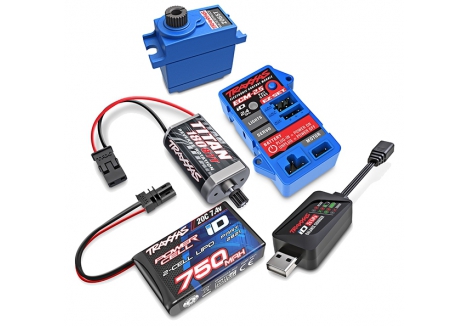

Innovative New Electronics The all-in-one ECM-2.5 incorporates all the features of an XL-5 speed control, TQ receiver, and Pro Scale Lighting Control Module into one sleek waterproof package. The ECM-2.5 features three realistic driving modes with smooth, precise control and outstanding throttle response.
Titan 180 87T Motor The powerful 87-turn Titan 180 motor delivers precise low-speed torque to propel TRX-4M's oversize Tyres up and over technical obstacles. On the trail, TRX-4M offers surprising speed to keep pace as you walk alongside to find the next challenge.
High Capacity LiPo Battery and Fast Chargers A high-capacity 750 mAh 2-cell LiPo battery provides over an hour of runtime with 7.4 volts of high-performance power and Traxxas iD safety and simplicity. The included USB-powered charger provides quick and reliable fast charging at up to 2-amps of charging capability.
TQ Transmitter TRX-4M comes with a full-size TQ transmitter for all-day comfort, reliability, and precise long-range control.
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX97064-1-RED
- Product Type: Traxxas TRX97064-1-RED 1/18 TRX-4M Chevrolet K10 trail truck red, Traxxas TRX97064-1-RED High Trail crawler with Titan 180 motor, Traxxas TRX97064-1-RED scale RC truck with waterproof electronics, Traxxas TRX-4M red crawler with clipless ABS body and LED headlights TRX97064-1-RED, Traxxas TRX97064-1-RED trail truck with long arm lift kit and 4WD drivetrain, Traxxas TRX97064-1-RED RC truck with ECM-2.5 control module and extended wheelbase
Dimensions
- Length: 26.9 cm – compact for tight trail navigation
- Width: 12.7 cm – balanced stance for stability
- Height: 12.7 cm – lifted profile with enhanced ground clearance
- Front Track: 12.7 cm – matched to rear for consistent handling
- Rear Track: 12.7 cm – ensures symmetrical traction
- Wheelbase: 16.2 cm – extended for improved climbing and scale realism
- Centre Ground Clearance: 4.0 cm – raised by over 35% via Long Arm Lift Kit
- Weight: 468 g – lightweight for agile performance
Motor and Power System
- Motor Type: Titan 180 brushed motor – 87-turn configuration for trail-tuned torque
- Motor Position: Forward-mounted for optimal crawling dynamics
- Motor Weight: 33 g – compact and efficient
- Motor Dimensions: Length 4.2 cm, Diameter 2.1 cm – fits securely in chassis
Electronic Control Module
- ESC Type: ECM-2.5 – brushed ESC integrated with receiver and LED controller
- ESC Case Size: 4.5 cm x 3.2 cm x 1.5 cm – compact waterproof housing
- ESC Weight: 26 g – lightweight and durable
- Drive Profiles: Sport Mode, Trail Mode with drag brake, Crawl Mode with 100% hill holding brake
- Protection Features: Low voltage detection, motor overload protection
- LED Support: Built-in Pro Scale LED functionality
Drivetrain and Suspension
- Drivetrain: Full-time shaft-driven 4WD – consistent grip across terrain
- Transmission: Single-speed direct drive – simple and reliable
- Differential Type: Locked spool – maximises traction
- Gear Ratio: Internal 11.38 – tuned for crawling control
- Gear Pitch: 64 pitch – precision gearing
- Lift Kit: Factory-installed Long Arm Lift Kit – raises clearance and maintains geometry
- Suspension: Triangulated 4-link front and rear – stable articulation
- Shock Type: Oil-filled GTM shocks – realistic damping and adjustable preload

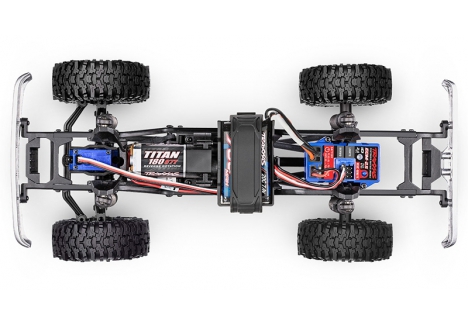

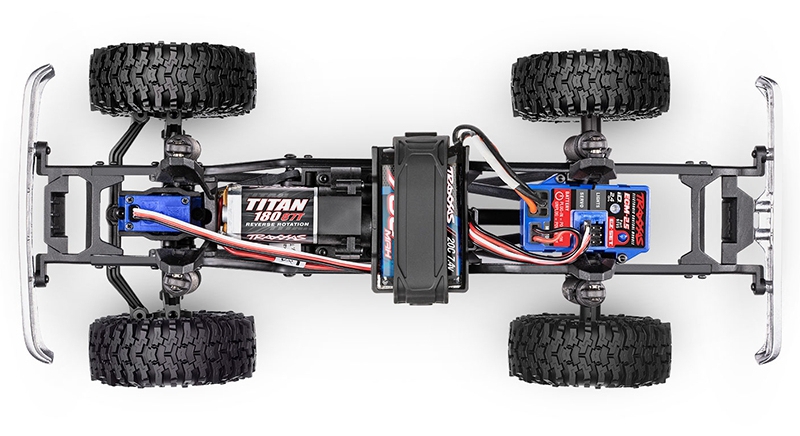

Chassis and Frame
- Frame Type: Extended heavy-duty steel ladder frame – deep C-channel for rigidity
- Rails: Bumper-to-bumper steel rails – structural integrity across the chassis
- Battery Tray: Low-CG design – improves stability and handling
- Battery Strap: Wide rubber strap – secure fit during trail use
Steering System
- Servo Type: 2065T steering servo – metal main gear for durability
- Steering Angle: 45° – superior turning radius
- Steering Design: Direct steering – no servo saver for precise input
Wheels and Tyres
- Wheel Type: 1 inch replica 8-hole chrome mag wheels – scale realism
- Tyre Type: Mickey Thompson Baja Pro XS – aggressive tread and sticky compound
- Hex Size: 7 mm – standard fitment
Battery and Charging
- Battery Type: 2-cell LiPo – 7.4 volts, 750 mAh capacity
- Run Time: Over one hour – trail-ready endurance
- Charger Type: 2-amp USB-powered charger – fast and safe charging
- Charging Technology: iD technology – optimised for safety and efficiency
Radio System
- Transmitter: TQ 2.4 GHz 2-channel – full-size with long-range control
- Comfort: Ergonomic design – all-day usability
Body and Exterior
- Body Type: Clipless ABS hard body – molded-in colour with chrome trim
- Exterior Details: Fender flares, rock sliders, side mirrors, door handles, roll bar, wipers
- Headlights: LED headlights – scale illumination
- Latching System: Hidden heavy-duty clips – secure and quick-release
What's in the Box
- TRX-4M High Trail model
- Licensed ABS hard body
- Titan 180 87-turn motor
- ECM-2.5 Electronic Control Module
- TQ transmitter
- 7.4 volt 750 mAh 2-cell LiPo battery
- 2-amp USB fast charger with iD
- High quality maintenance tools
What You’ll Need
- Four AA alkaline batteries for the transmitter
Sold Separately
- Optional Low Range or Speed Gearing transmissions – modular design swaps out in minutes
Warranty
- 1 year warranty – manufacturer-backed coverage
