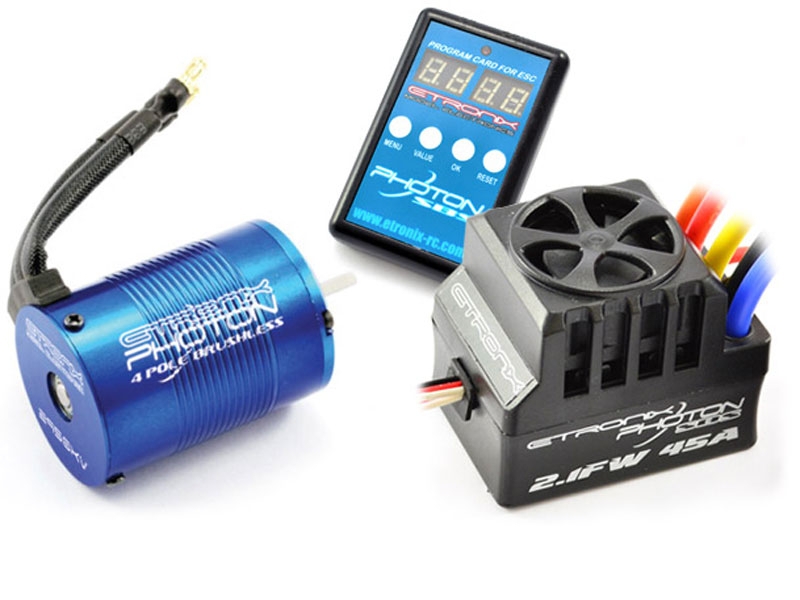

Etronix Photon 2.1FW System W/9.0r 4350kv Motor/45A ESC ET0417

Model No: ET0417


Next Working Day Delivery Order before 2pm

In Stock for Immediate Dispatch

£76.55

Inc VAT & delivery

Next Day Delivery

We Accept
In Stock
1 Year

The convenience and performance of brushless technology is available for everyone with the Photon Sensorless Waterproof System from Etronix. Simple to set-up and with a range of sensible KV rated motors for most r/c car applications and abilities the Photon is the ideal brushless start-up package or upgrade from a stock brushed set-up.An ideal choice for any 1/10th buggy, truggy, short course or truck application.

Supplied with (ET0107) Etronix Photon SBS LED Programming Card

Adjustable Parameters

Cutoff Voltage (automatically detects the number of cells)
Running Mode (forward w/o reverse, forward/reverse, forward with pause then reverse)
Motor Timing (very low, low, normal, high, very high)
Initial Acceleration (low, medium, high, very high)
Throttle Percent Reverse (20% through to 100%)
Throttle Limit (0% through to 90%)
Percentage Braking (10% through to 100%)
Percentage Drag Brake (0% through to 30%)
Motor Rotation (normal, reverse)
Neutral Range (deadband setting 2% through to 10%)
45A Specifications
2-3S Lipo
6-10S NiMH/NiCd, 7 Cell Recommended
2A 6V BEC Output
4 Pole sensorless bushless motor
45A Constant current
260A Burst Current
*Please note power wire and motor wires require soldering


Manufacturer: Etronix
Part Number: ET0417
EAN :5055323967856
Battery Connector Type: No Connector
Power Rating Upto: 45 Amps
Motor Size: 540
Max Lipo Volt Rating: 11.1v / 3s
KV Rating (Brushless): 4001 - 5000kv
Motor Class :Modified
Battery Compatibility: LiPo/NiMh
Motor Connector Type: No Connector
Bore: 3.2mm
Brushless Motor Type: Sensorless
