Tamiya is proud to announce a brand new 1/10 R/C 2WD off-road buggy model featuring the combination of classic design and modern performance. Its brand new chassis is a hybrid monocoque-roll cage and employs rear trailing arm suspension inspired by the full-size UTVs.
The new body is designed by famed Japanese artist Atsushi Arino.
About the Model
This is a 1/10 R/C assembly kit. Length: 414mm, height: 136mm, width: 233mm. Wheelbase: 283mm.
The classically designed 0.7mm thick polycarbonate body is designed by Atsushi Arino, and is split into three sections to recreate the tapered lower shape of the actual Utility Vehicle.

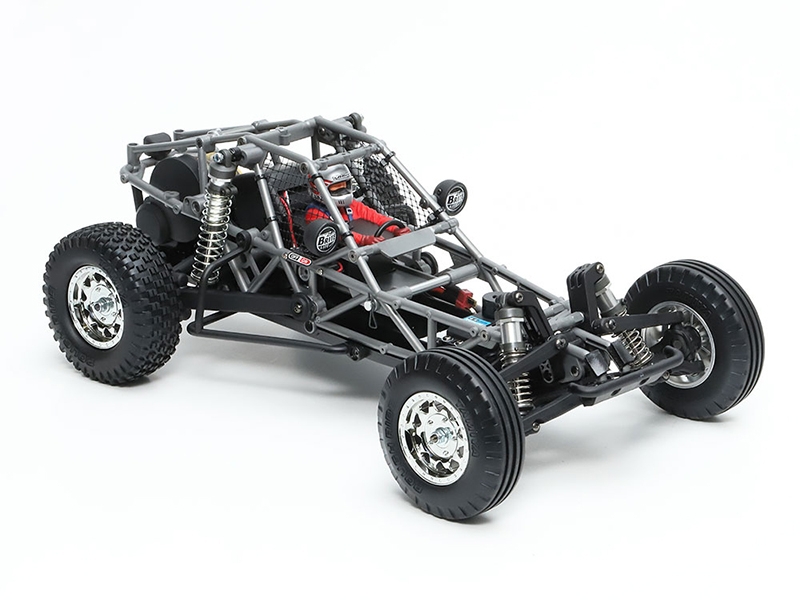

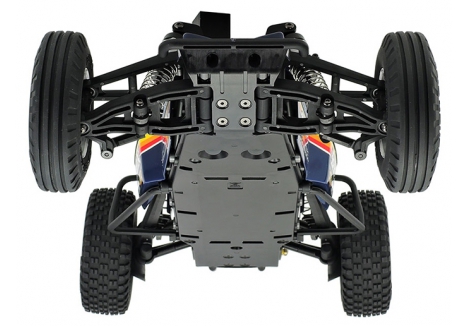

Newly designed 2WD chassis is based on the one-piece monocoque frame and roll cage to allow use of realistic bodies.

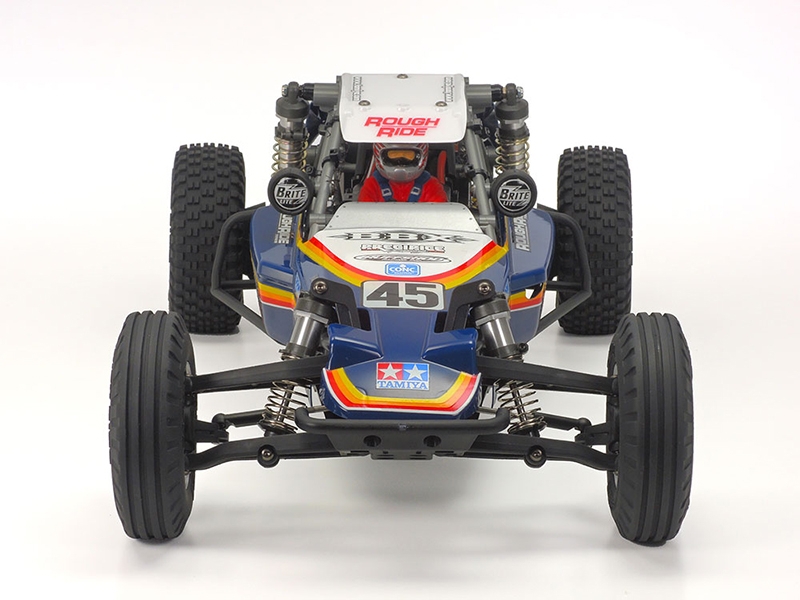

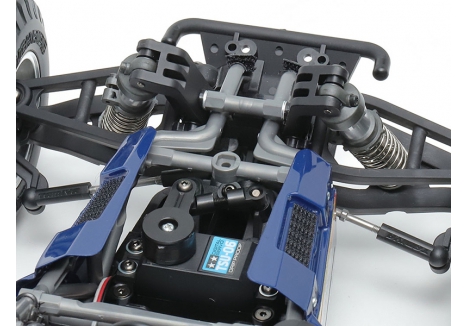

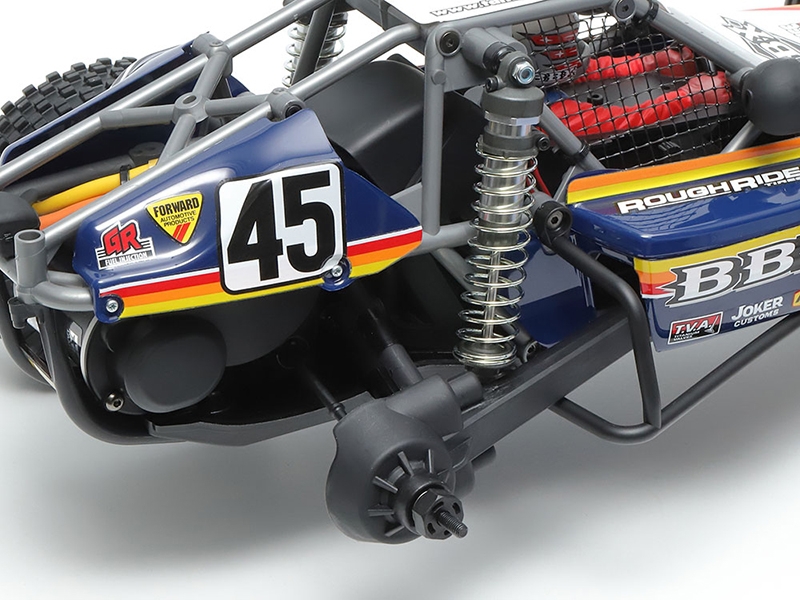

The BB-01 chassis also employs new front double wishbone suspension with A-shaped arms and rear trailing arm suspension with long trailing arms which are inspired by UTVs and give great performance.

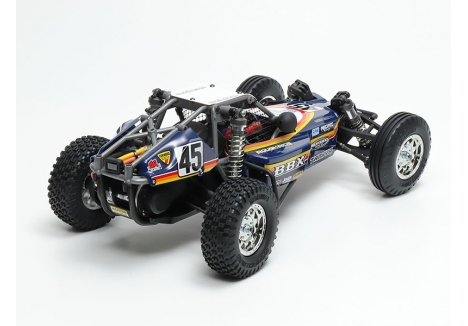

The 2WD chassis with rear motor features rear-positioned engine inspired by the same layout of the actual vehicles, and allows great rear traction.
The four wheel double wishbone suspension system uses CVA oil dampers for superlative performance, and new front/rear aluminum aeration dampers for great performance and jazzy look.
TA06 rear differential allows use of wealth of Grade-Up parts.
Features full ball bearings and universal drive shaft.

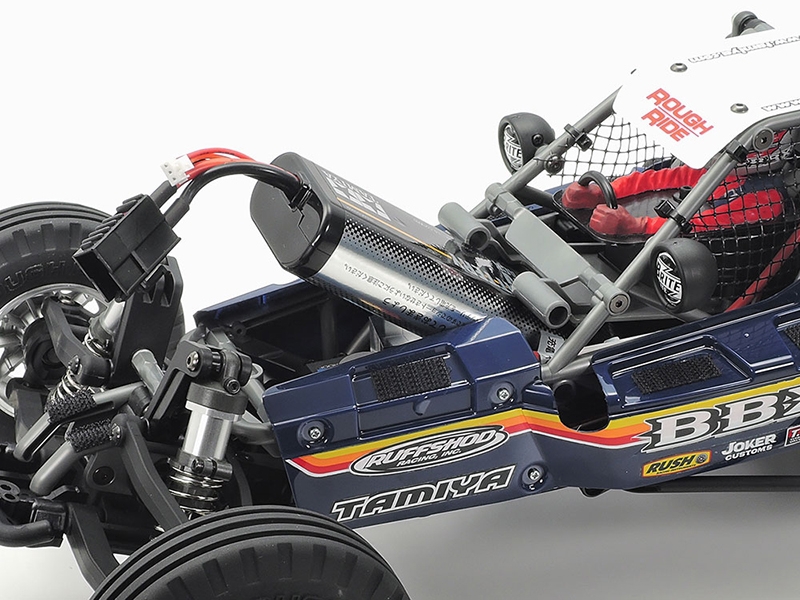

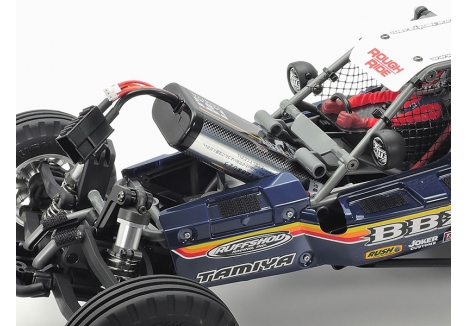

Rear roll cage can be removed by detaching screws, which ensures ease of maintenance around motor.

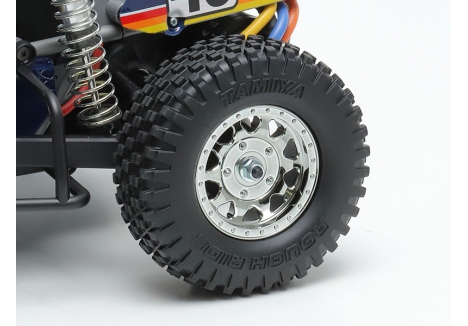

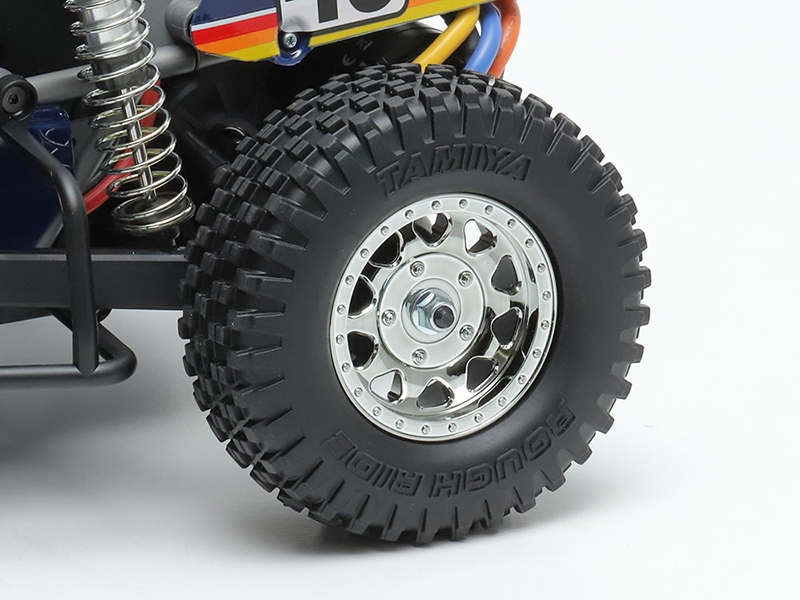

New metal-plated beadlock type wheels are paired with new large-diameter tires.
Driver figure and light cases are planned for extra realism, plus high-torque servo saver, and tire mount adapter..
Please note, no motor or ESC are included.
Brand: Tamiya
Part No: HC-58719
Barcode: 4950344587193
Scale: 1:10
Vehicle Type: Buggy
Power Source: Electric - Brushed
Surface Type: Off Road
Build Level: Unassembled (Kit)

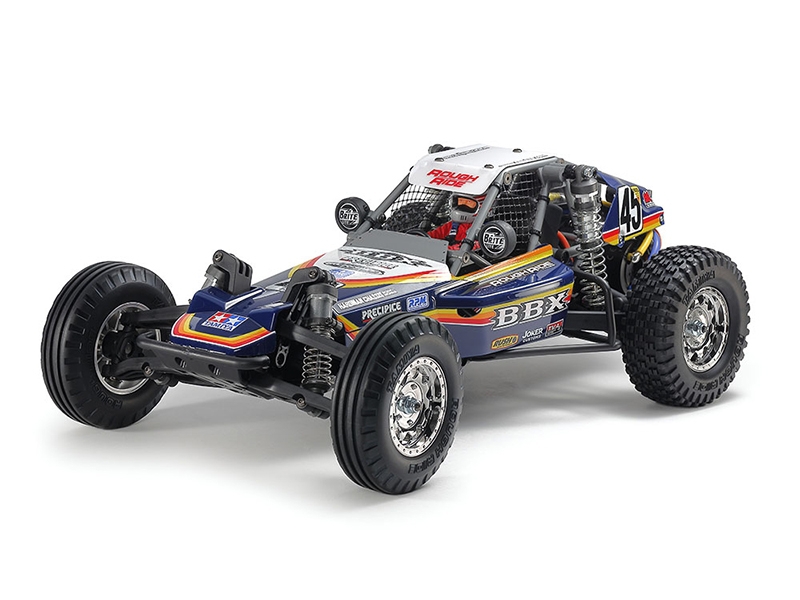

Tamiya BBX BB-01 1/10 Off-Road Buggy Kit
The Tamiya BBX BB-01 buggy kit channels classic American single-seater racing style into a modern R/C assembly. Its hybrid monocoque-roll cage structure and rear-mounted motor deliver balanced weight distribution and precise rigidity for confident off-road performance.
Key features of the Tamiya BBX BB-01 buggy kit
- Slim hybrid chassis – provides optimum weight balance and torsional strength for stable cornering.
- Rear-transverse motor layout – ensures maximum traction via the Tamiya BB-01 rear wheel drive chassis design.
- Independent double wishbone & trailing arm suspension – adapts to varied terrain with smooth articulation.
- CVA aluminum aeration oil dampers – part of the Tamiya BBX aluminium oil dampers kit, offering consistent damping under rugged use.
- Sealed gearbox with ball differential – embodying the Tamiya BBX ball differential buggy advantage for precise power distribution.
- Three-piece polycarbonate body – features safety nets, roll cage with light pods, and retro dune buggy styling.
How does the Tamiya BBX BB-01 buggy kit deliver off-road traction?
The Tamiya BBX BB-01 buggy kit employs a rear-mounted motor paired with a sealed ball differential gearbox, yielding smooth torque splitting. Rugged square-spike rear tires and rib-pattern front tires lock into dirt and gravel, boosting corner exits and acceleration.
What suspension setup does the Tamiya BBX BB-01 buggy kit use?
Equipped with front double wishbone arms featuring a 25° skid angle and rear trailing arms, the Tamiya 1/10 BBX off-road buggy offers customizable alignment. High-spec aluminum aeration oil dampers maintain ride height and absorb jarring impacts for precise handling.
Hybrid Monocoque-Roll Cage Chassis Benefits

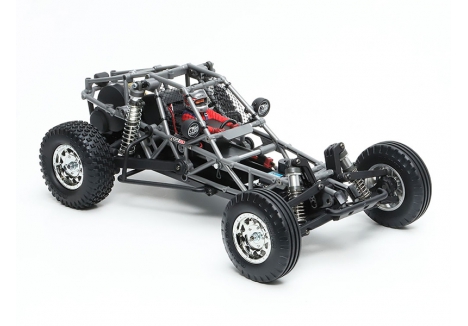

The Tamiya BB-01 rear wheel drive chassis unites a lower deck and protective roll cage for super-realistic looks and easy motor access beneath the liftable rear section. This design enhances durability and simplifies maintenance during race-day pit stops.
Is the Tamiya BBX BB-01 R/C car kit beginner-friendly?
The modular build of the Tamiya BBX TAM58719 R/C car allows hobbyists to assemble body cowling, install full ball bearings, and secure beadlock wheels with minimal experience. A reliable servo saver reduces damage risk, making this kit ideal for first-time builders.
Durable Aluminum Aeration Oil Dampers
The inclusion of premium CVA dampers in the Tamiya BBX aluminium oil dampers kit ensures consistent rebound control across varied terrain. These oil-filled cylinders aid in reducing maintenance needs and enhance damping precision for smoother landings.
Off-Road Performance and Value
Featuring high-quality ball bearings, beadlock wheels, and an adjustable ball differential, the Tamiya BBX BB-01 buggy kit stands out as the affordable Tamiya BBX kit for hobbyists and racers. Its complete feature set rivals premium models at a competitive price point.
Build, Customize, and Race
Whether you crave classic dune buggy aesthetics or demand professional-level handling, the Tamiya BBX BB-01 buggy kit excels. Featuring durable components ready for hop-up parts, this chassis is recognized as the best Tamiya off-road buggy with aluminium dampers on the track. Buy Tamiya BBX BB-01 1/10 scale buggy kit today.
Technical Specifications of the Tamiya BBX BB-01 1/10 Off-Road Buggy Kit
Brand, Model and Product Type
- Brand: Tamiya
- Model: TAM58719
- Product Type: Tamiya BBX BB-01 buggy kit, Tamiya BBX TAM58719 R/C car, Tamiya 1/10 BBX off-road buggy, Tamiya BB-01 rear wheel drive chassis, Tamiya BBX aluminium oil dampers kit
Dimensions and Weight
- Length: 41.4 cm (414 mm) for optimal on-road stability.
- Width: 23.3 cm (233 mm) balancing cornering precision and clearance.
- Height: 13.6 cm (136 mm) ensuring a low center of gravity.
- Wheelbase: 28.3 cm (283 mm) for responsive steering feedback.
- Tread (Front): 19.6 cm (196 mm) front ribs for directional stability.
- Tread (Rear): 20.2 cm (202 mm) square spikes for maximum grip.
Chassis & Drivetrain
- Chassis: Hybrid lower deck and roll cage monocoque for durability.
- Drive Type: Rear-wheel drive trailing arm setup delivering superior traction.
- Differential: Sealed ball differential gearbox ensuring smooth torque distribution.
- Gear Ratio: 12.42:1 with included 18T pinion gear for efficient power delivery.
- Universal Shafts: Cross joints with low-friction assembly for precise power transfer.
Suspension & Steering

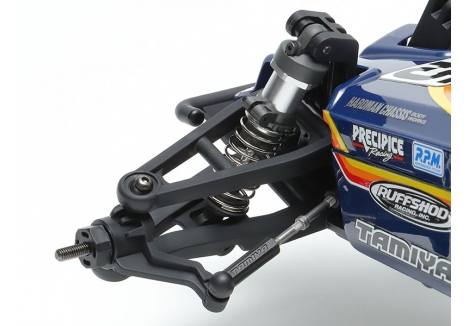

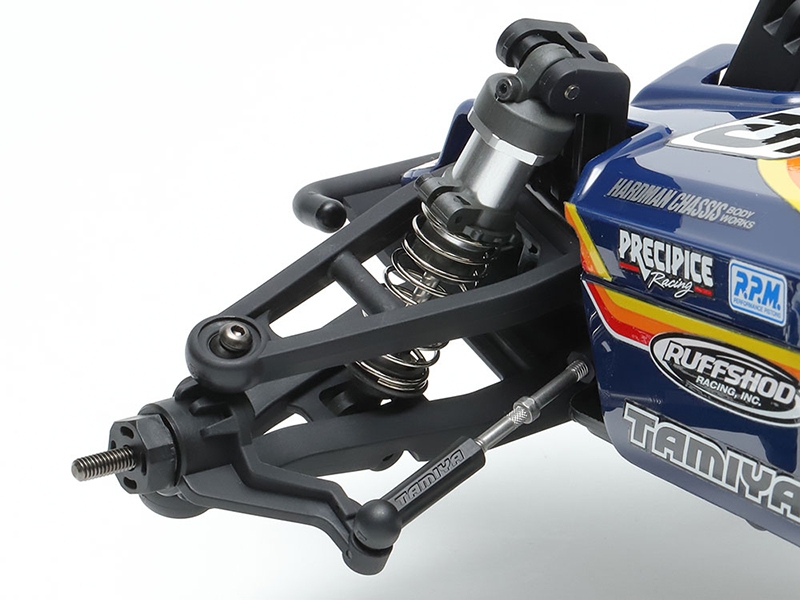

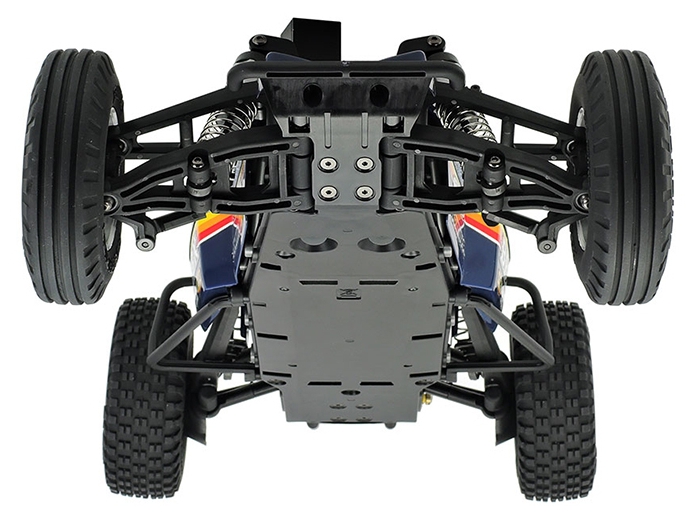

- Front Suspension: A-shaped double wishbone with 25° skid angle for stability.

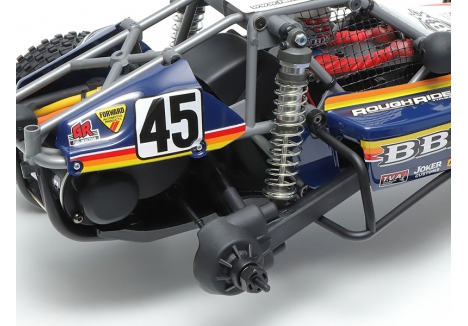

- Rear Suspension: Trailing arm design with adjustable alignment settings.
- Dampers: Aluminum aeration CVA oil-filled units (4 pcs.) for consistent rebound.
- Steering Tie-Rod: 3-piece setup enhancing steering accuracy.

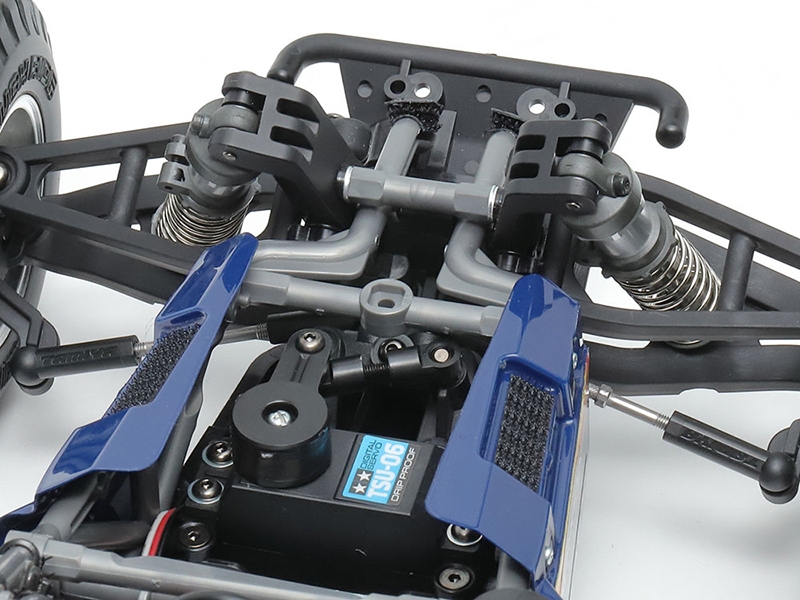

- Servo Saver: Hi-torque spring-loaded protector to safeguard steering servo.
Wheels, Tires & Accessories
- Wheels: Metal-plated beadlock hex hubs for secure tire mounting.
- Tires: Front rib pattern (3.0 cm width / 9.2 cm diameter) and rear square spike (3.8 cm width / 9.6 cm diameter) for terrain grip.
- Body Cowling: Six-piece polycarbonate with roll cage and light pod mounts.
- Driver Figure: Included for realistic scale detail.
- Spare Tire Mount: Adapter for optional fifth tire storage.
- Beadlock Nuts: Aluminum serrated wheel nuts (4 pcs.) for secure fastening.
Power & Electronics
- Motor: Type 540 sold separately, compatible with shafts over 10.5 mm.
- ESC: Electronic speed controller sold separately.
- Batteries: R6/AA/UM3 for transmitter; battery pack & charger sold separately.
- Radio System: Requires 2-channel R/C system (sold separately).
- Receivers & Servos: Sold separately to suit preferences.
Build & Maintenance
- Hybrid monocoque and roll cage simplifies motor access under liftable rear section.
- Full ball bearings in all major assemblies reduce friction and maintenance intervals.
- Universal drive shafts and cross joints ensure consistent steering response.
- Easy-hop-up design compatible with TA-06 oil-filled differential and other upgrade parts.
Warranty
- 1 year manufacturer's warranty
