Tamiya is proud to welcome a new addition, TT-02 Type-SRX Chassis Kit - to the TT-02 Type-S Series which is popular among both beginners and race users. The TT-02 Type-SRX chassis kit is an upgraded version of the TT-02 Type-S Series with enhanced durability and performance for racing. This chassis kit uses Items 22049 and 22047 with updated parts. Also, parts included in this chassis kit are chosen (more cost-effective than buying each part) for users who want to learn setup before levelling up to middle class chassis.
FEATURES:

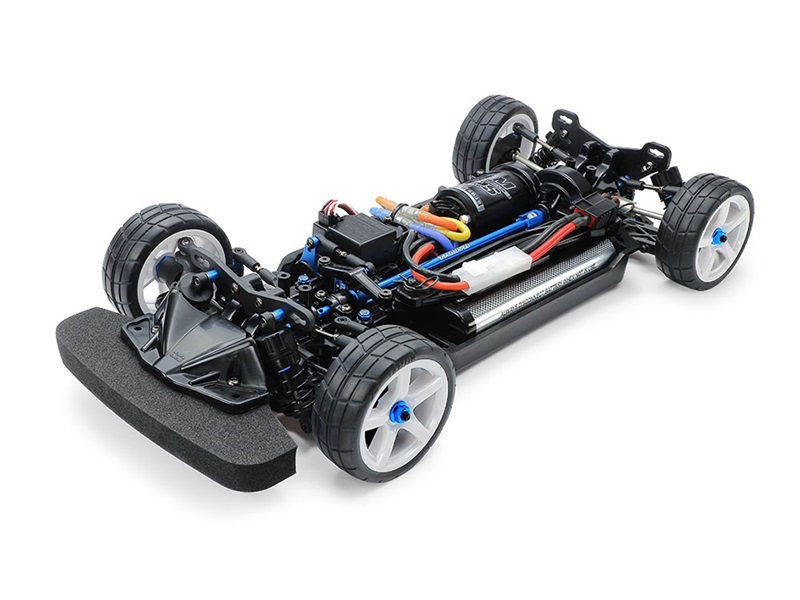

This is a 1/10 scale R/C chassis assembly kit.
Items 22049 (*1) and 22047 (*2) ensure ease of assembly and stable drivability.
*1: Diff. joint cups are lightweight aluminum, and give a weight reduction of 7.8g compared to Item 22049?s standard ones.
*2: Direct cups are designed for this chassis kit for improved durability.

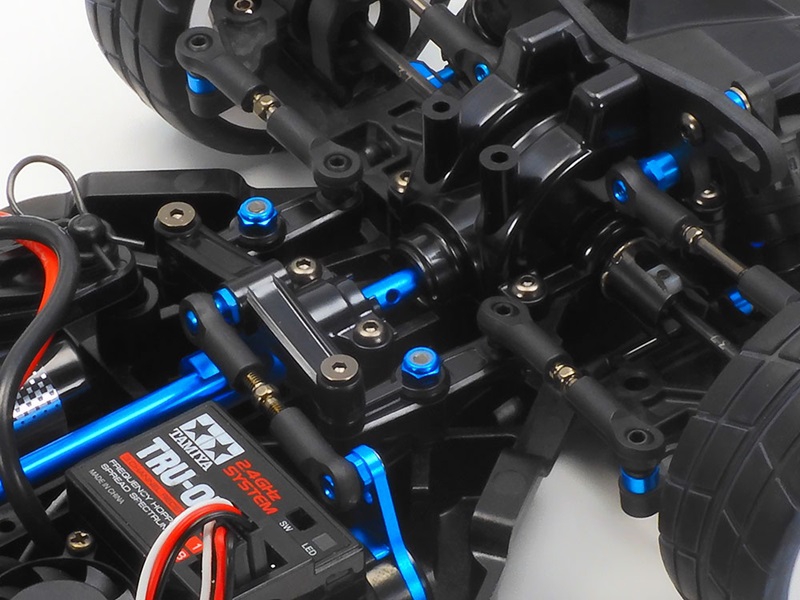

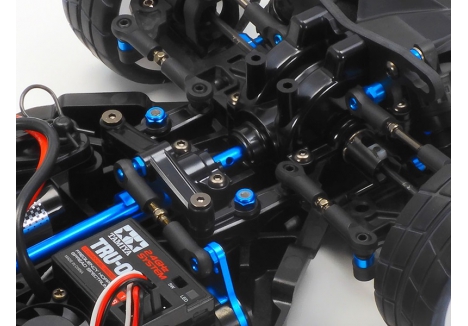

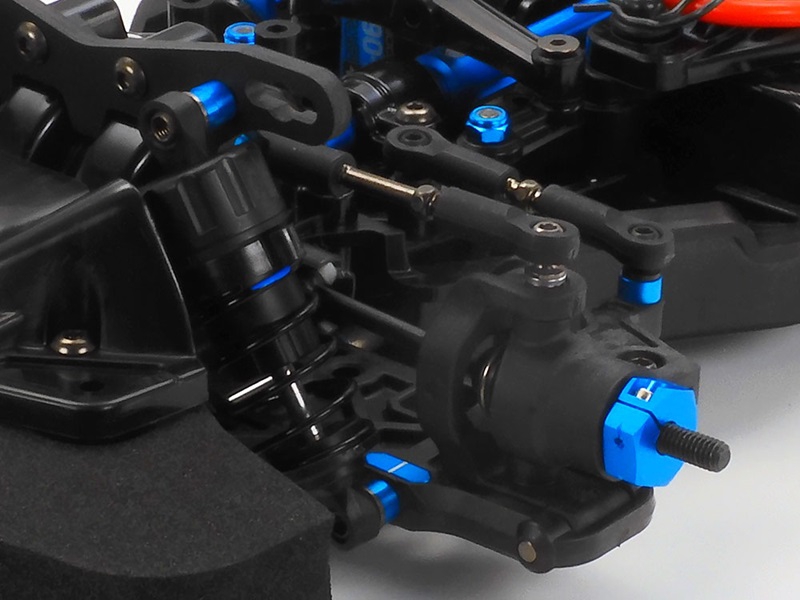

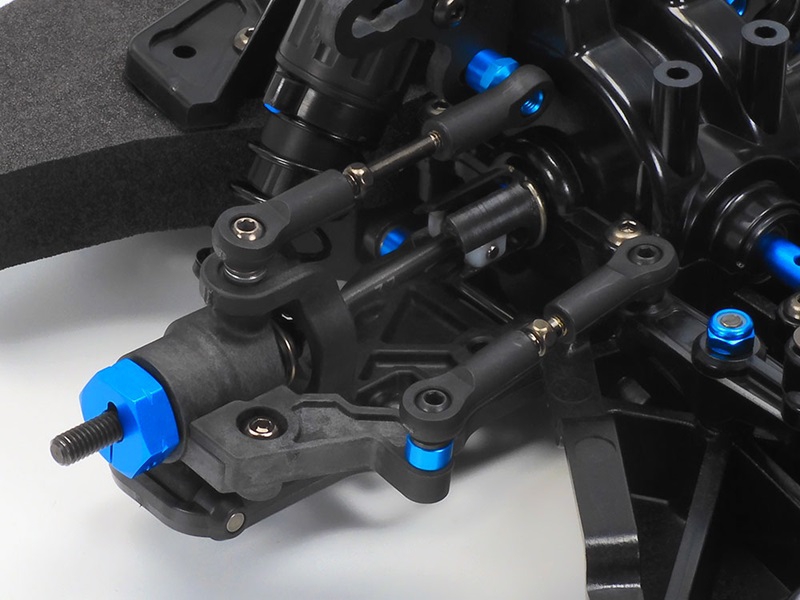

This chassis kit features reliable 4-wheel independent double wishbone suspension from Item 42345 (1/10 R/C TRF420 Chassis Kit) for effective setup.
Newly shaped propeller joints are compatible with swing shaft protectors, and these parts have plastic parts at joint sections of stainless pins and aluminum joints to limit wear of parts.
Uses Item 22054 which allows stable steering and cornering for superior performance at races.

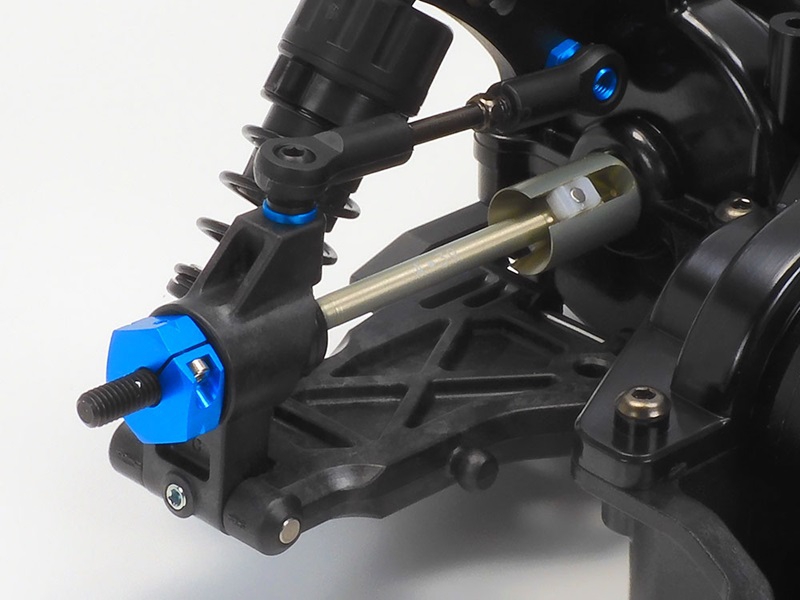

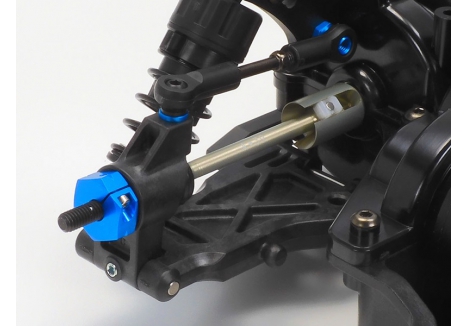

Rear drive shafts are 39mm size which are specific for this chassis. These also have a hard coat to enhance durability and lubricity.
High speed gears and 27T pinion gears (gear ratio: 6.55: 1) are included as the kit-standard parts.
TT-02 hi-torque servo saver gives steering angle to limit damage of steering and servo.
Features full ball bearings.
Comes with a carrying case dedicated for the TT-02 Type-SRX chassis.
HOP-UP OPTION PARTS (included):
Item 22054: 37mm Drive Shafts for Double Cardan Joint Shafts (2pcs.)

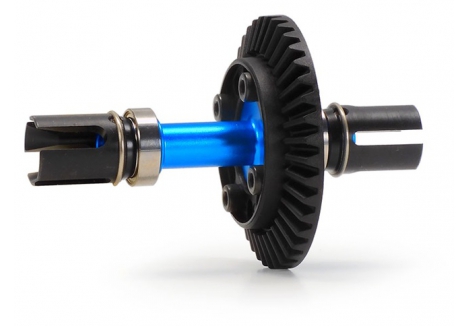

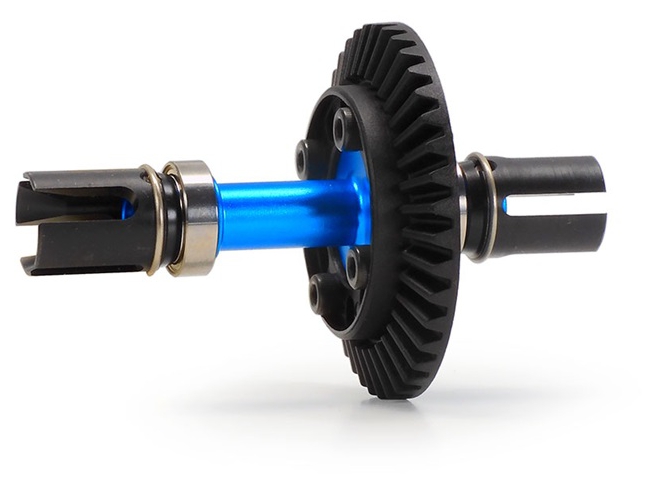

Item 22049: XV-02/TT-02 Oil Gear Differential Unit
Item 22047: XV-02/TT-02 Front Direct Coupling Set (39T)
Item 54981: 06 Module Hard Coated Aluminum Pinion Gear (27T)
Item 54886: TRF419 Suspension Upgrade Set
Item 54799: TT-02 Hi-Torque Servo Saver Set (w/Aluminum Horn)

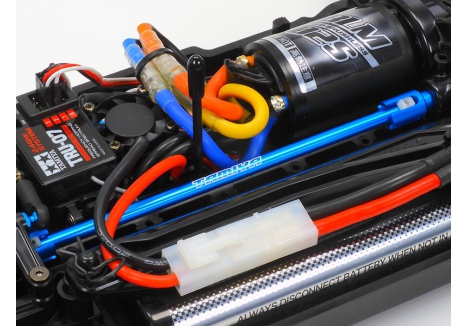

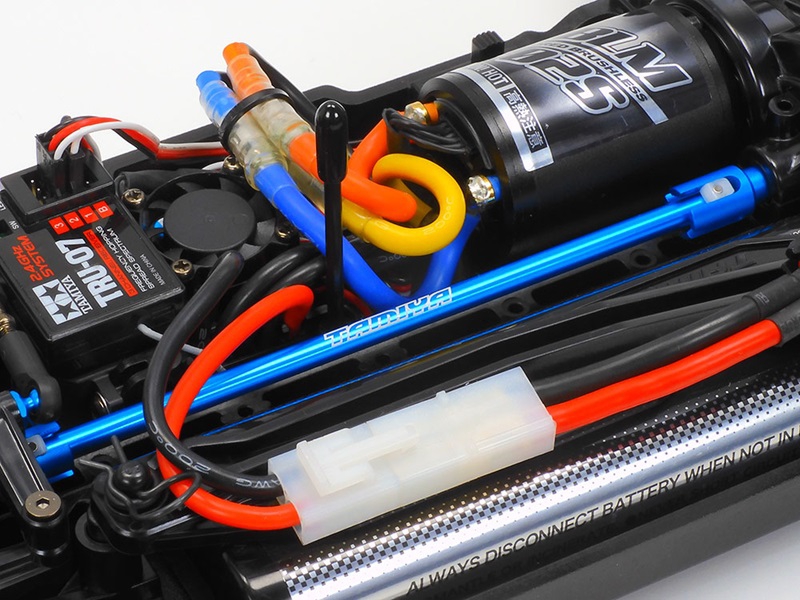

Item 54501: TT-02 Aluminum Propeller Shaft
Item 54500: TT-02 High Speed Gear Set (68T)

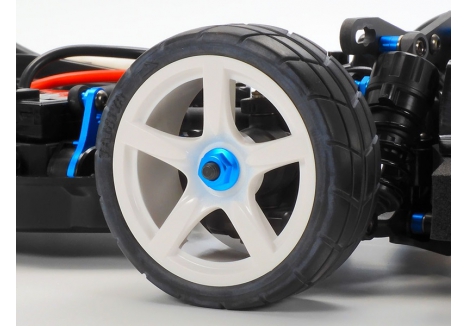

Item 53823: Clamp Type Aluminum Wheel Hub (5mm Thick)
Item 53576: TRF Damper Oil Seal (4pcs.)
Item 42357: Cross Joints for Low Friction Assembly Universal Shafts
Item 42323: Short Ball Connector Nuts for TRF Dampers (8pcs.)
Item 42143: 4mm Aluminum Serrated Wheel Nut (4pcs./Blue))
Manufacturer: Tamiya
Part Number: 58720
EAN: 4950344587209
Drive: 4WD
Surface Type: On-Road
Assembly Type: Un-Assembled (Kit)
Scale: 1:10
Vehicle: On-Road
Skill Leve:l Skill Level 3
Power Bundles: Power Bundle Required
Motor Type: No Motor Supplied
Tamiya TT-02 Type SRX 1/10 4WD On-Road Chassis Kit
The Tamiya TT-02 Type SRX chassis kit merges the proven TT-02 platform with advanced Hop-Up Options and precision-engineered parts to elevate beginner racers to the next level. Every component is designed for tuneability, durability, and track-ready performance.
Key features of the Tamiya TT-02 Type SRX chassis kit
- Rear oil-filled differential gear unit – delivers smooth power transfer for consistent corner exits.
- Aluminum diff joint cups – reduce weight by 7.8 g for sharper handling and faster response.

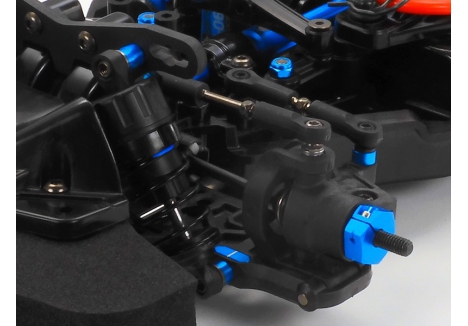

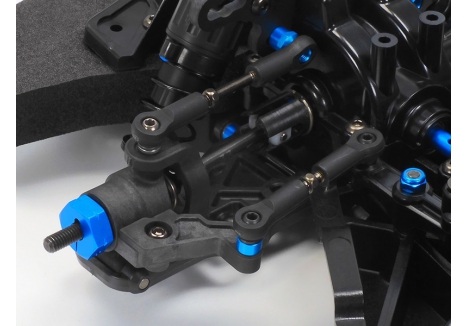

- 4-wheel independent double wishbone suspension – provides precise camber control and road feedback.
- Newly shaped propeller joints – compatible with swing shaft protectors to minimize on-track wear.
- Hard-coated 39 mm drive shafts – offer low-friction durability under intense racing conditions.
- 27T pinion and 68T spur gears – achieve a 6.55:1 ratio for rapid acceleration and high top speed.
How does the Tamiya TT-02 Type SRX chassis kit improve handling?
The Tamiya TT-02 Type SRX chassis kit features precision-machined aluminum propeller joints and a front direct coupling set, ensuring minimal drivetrain lash. Combined with the rear oil gear differential, racers experience predictable traction and cornering stability, lap after lap.
What makes the suspension on this Tamiya TT-02 chassis stand out?
Equipped with the Tamiya CVA oil damper suspension kit and TRF420 suspension upgrade parts, the chassis delivers smooth damping across bumps and jumps. The adjustable rear mount lets you dial in rebound and ride height for the perfect on-track balance.
Enhanced Double Wishbone Suspension
The Tamiya TRF420 suspension upgrade parts include high-strength arms that optimize camber settings, giving drivers real-time feedback through the steering wheel. This setup is often cited as the best Tamiya 4WD RC chassis with double wishbone suspension by competitive racers looking for precise response.
Durable Drivetrain Components
This kit’s robust drivetrain combines a front direct coupling set (39T) with a lightweight aluminum rear oil gear differential. Full ball bearings reduce rotational friction, while the TT-02 Hi-Torque servo saver protects your steering servo during high-load maneuvers.
Is the Tamiya TT-02 Type SRX chassis kit a good value?
With premium aluminum parts, sealed CVA oil dampers, and high-speed pinion and spur gears included as standard, the Tamiya TT-02 Type SRX chassis kit delivers professional-level performance at an affordable Tamiya TT-02 racing kit with high-speed gears price point. It’s perfect for enthusiasts upgrading from stock kits.
Building and Customization
The chassis kit arrives unassembled, offering a hands-on build experience. You’ll install the 37 mm drive shafts, clamp-type aluminum wheel hubs, and cross joints for low-friction operation. This customization not only teaches mechanical skills but lets you fine-tune every aspect of your RC car.
Ready to Race
Whether you’re stepping into your first on-road event or looking for a tune-friendly platform, the Tamiya TT-02 Type SRX chassis kit checks all the boxes. Its comprehensive feature set and hop-up options make it the go-to chassis for both weekend warriors and aspiring pros. Buy Tamiya TT-02 Type SRX 1/10 chassis kit for racing today.
Technical Specifications of the Tamiya TT-02 Type SRX chassis kit
Brand, Model and Product Type
- Brand: Tamiya
- Model: TAM58720
- Product Type: Tamiya TT-02 Type SRX chassis kit, Tamiya 1/10 on-road 4WD RC kit, Tamiya TAM58720 high performance chassis, Tamiya oil gear diff 4WD chassis, Tamiya CVA oil damper suspension kit
Dimensions and Weight
- Length: 36.1 cm (361 mm) – optimized for stability and straight-line speed.
- Width: 18.3 cm (183 mm) – ensures precise cornering clearance.
- Wheelbase: 25.8 cm (258 mm) – balanced track width for responsive steering.
Drivetrain & Transmission
- Drive Type: Shaft-driven 4WD for even power distribution.
- Differential: Oil gear differential unit (Item 22049) for smooth torque transfer.
- Gear Ratio: 6.55:1 via standard 27T aluminum pinion and 68T hard-coated spur gears.
- Propeller Shaft: Aluminum propeller shaft (Item 54501) for consistent power delivery.
- Universal Shafts: Cross joints with low-friction assembly (Item 42357).
Suspension & Steering
- Front Coupling: Direct coupling set (39T) for precise input response.
- Suspension Arms: TRF419 upgrade set for durable double wishbone geometry.
- Dampers: CVA oil-filled dampers with TRF damper oil seals (4pcs.).
- Servo Saver: Hi-Torque servo saver set with aluminum horn to protect steering servo.
- Wheel Hubs: Clamp-type aluminum hubs (5 mm thick) for rigid wheel mounting.
Energy & Power
- Motor Compatibility: Type 540 motor sold separately.
- ESC: Electronic speed controller sold separately.
- Batteries: R6/AA/UM3 for transmitter; battery pack & charger sold separately.
Accessories & Extras
- Full ball bearings for all major drivetrain and steering pivot points.
- 37 mm double cardan drive shafts (2 pcs.) for improved steering stability.
- Short ball connector nuts for TRF dampers (8 pcs.) for easy maintenance.

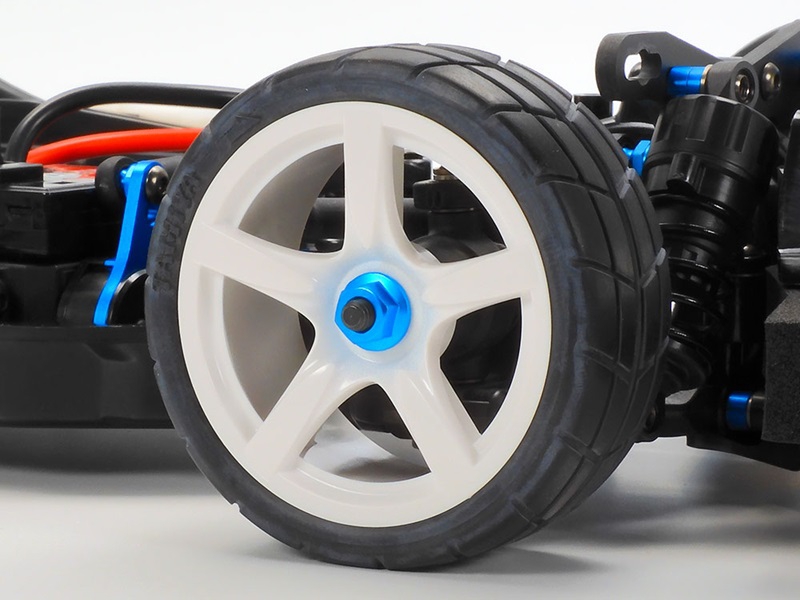

- 4 mm aluminum serrated wheel nuts (4 pcs., blue) to secure wheels under load.
- Dedicated carrying case sized for TT-02 Type SRX chassis.
Connectivity & Control
- Radio system: 2-channel R/C system required (sold separately).
- Receiver and servos: sold separately.
Vehicle Details
- Scale: 1/10
- Completion Level: Kit (unassembled)
- Vehicle Type: On-Road 4WD racing chassis
- Shock Type: CVA oil-filled
- Steering: 2WS
Warranty
- 1 year manufacturer’s warranty covers kit components against defects.
