A True Legend

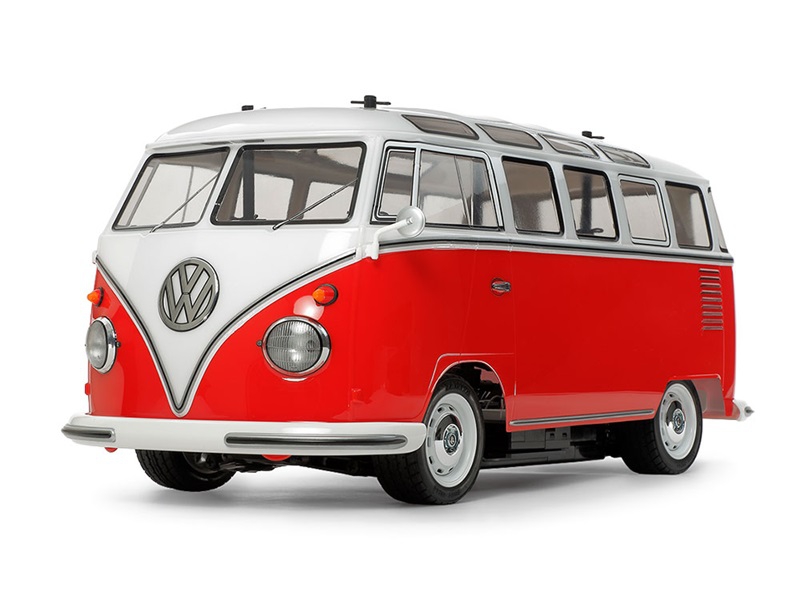

This R/C model assembly kit recreates the “23-window” type of the much-loved first generation (T1) Volkswagen Type 2, known as the Volkswagen Bus to many of its legions of fans, with an accurate polycarbonate body in detailed 1/10 scale. Combined with classic style wheels and tread patterned tires, it is mounted on the rear-wheel drive M-06 chassis.
Great RR Performance from the M-06
The M-06 chassis features a rear-mounted motor, rear-drive setup and features a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses metal-plated wheels, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. A large bumper is included.

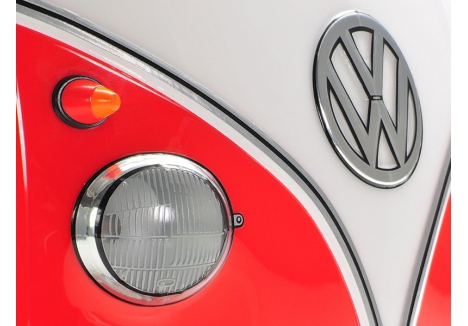

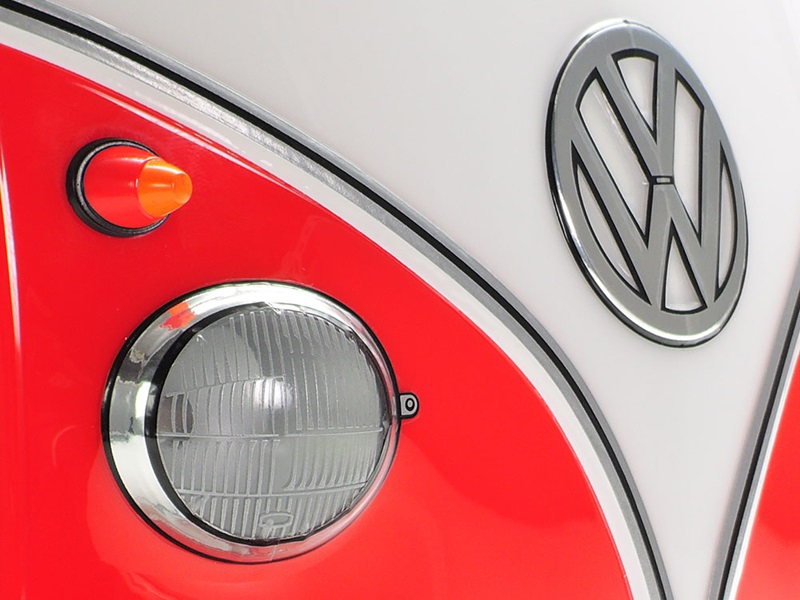

- Intall separately sold LEDs in the front and rear lights for super realism! Turn signals are separate parts.

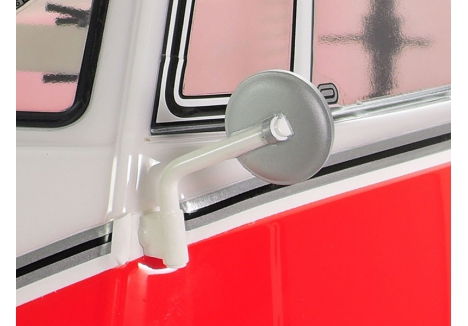

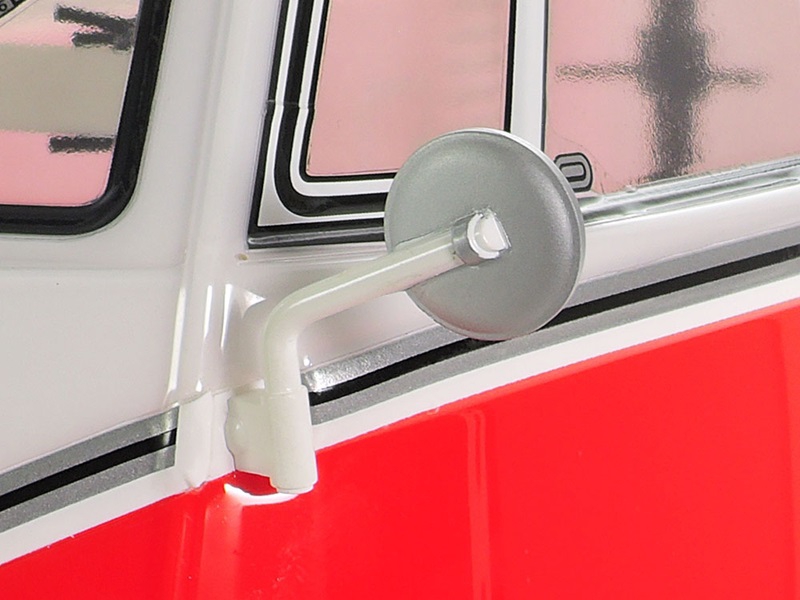

- Separate parts are also employed to depict the distinctive round side mirrors and their slimline stalks.

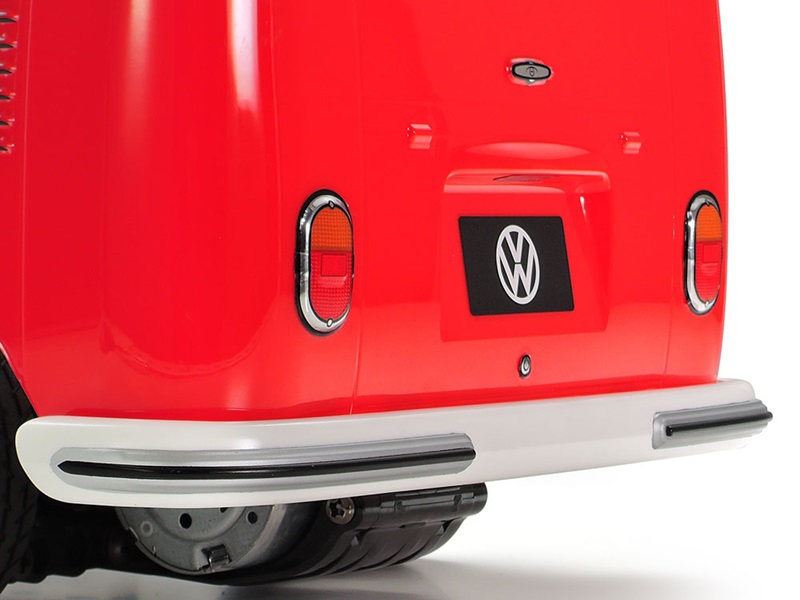

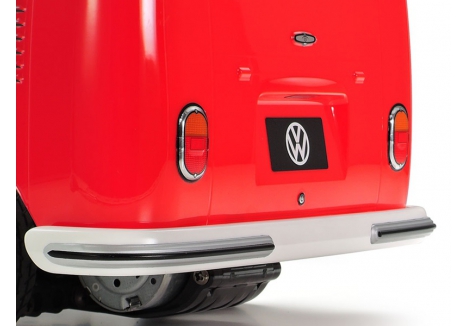

- The rear of the model also shows off excellent attention to detail, including a separate bumper part.

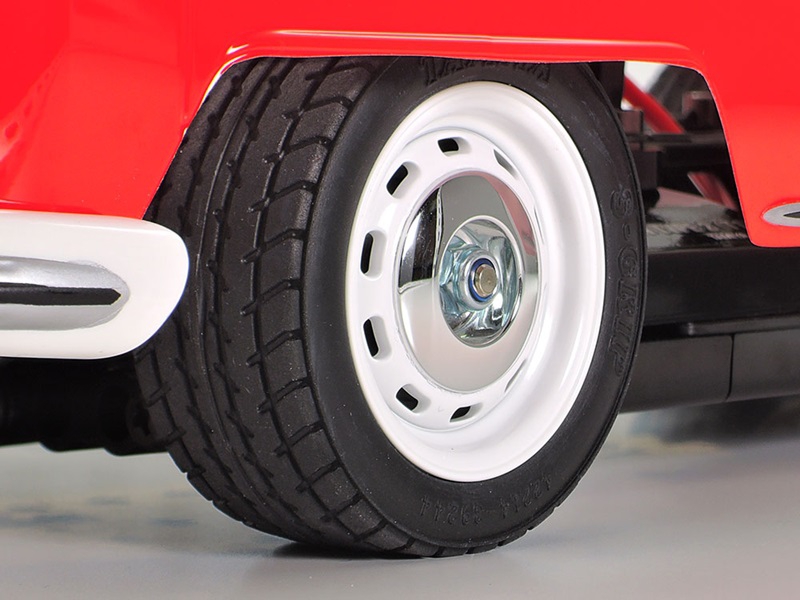

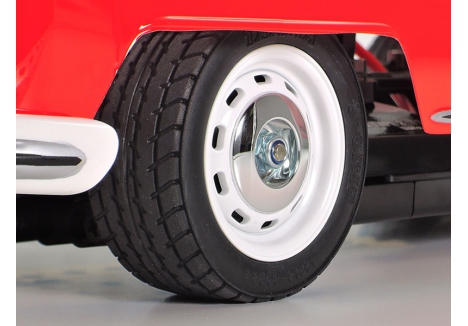

- Dish wheels feature gleaming plated components. Paint the rim sections with TS-26 Pure white to finish.

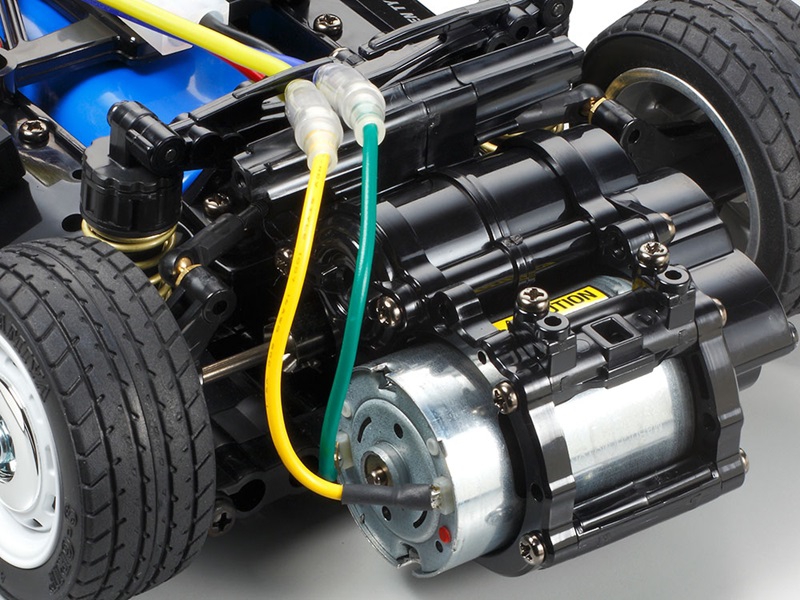

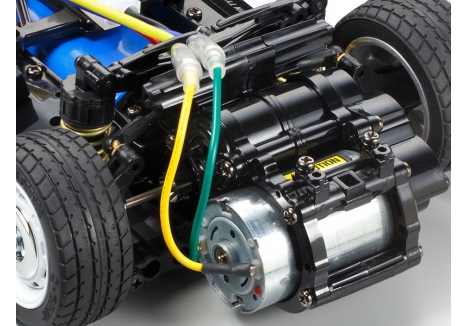

- The rear-mounted motor, rear-wheel drive setup provides the model with excellent traction at the rear.

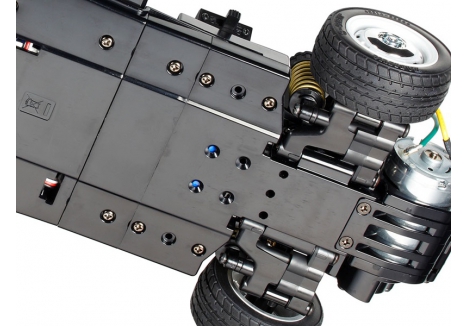

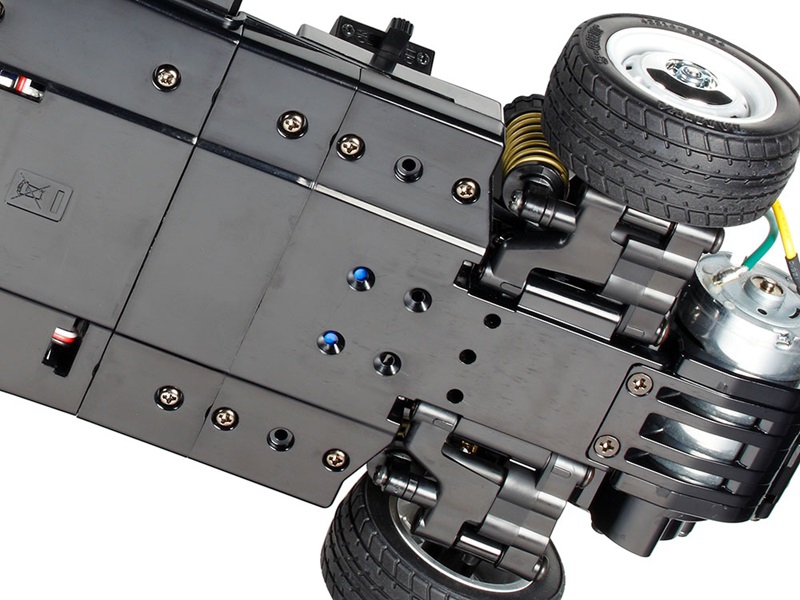

- Three different wheelbase lengths are accessible by switching the position of rear section parts.
Specifications
Length: 426mm, Width: 195mm, Height: 177mm
Wheelbase: 239mm
Tread (F/R): 138mm
Rear-Motor, Rear-Wheel Drive
3-Bevel Differential Gear
3-Piece Steering Tie-Rod
4-Wheel Independent Double Wishbone Suspension
F/R Friction Dampers
Gear Ratio = 5.8:1
Tire Width/Diameter (F/R): 25mm/59mm
Type 540 Motor
Includes ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
Separately Required Items
- 2-Channel R/C System
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger
Brand: Tamiya
Part No: HC-58668
Barcode: 4950344065905
Scale: 1:10
Power Source: Electric - Brushed
Surface Type: On Road
Vehicle Type: Touring / Rally Car
Build Level: Unassembled (Kit)
