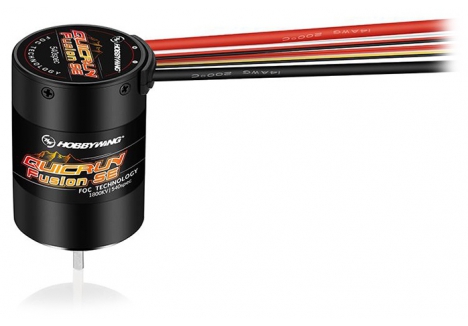

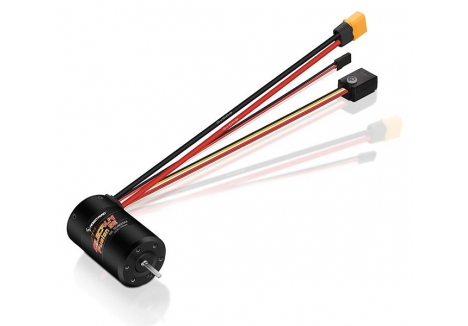

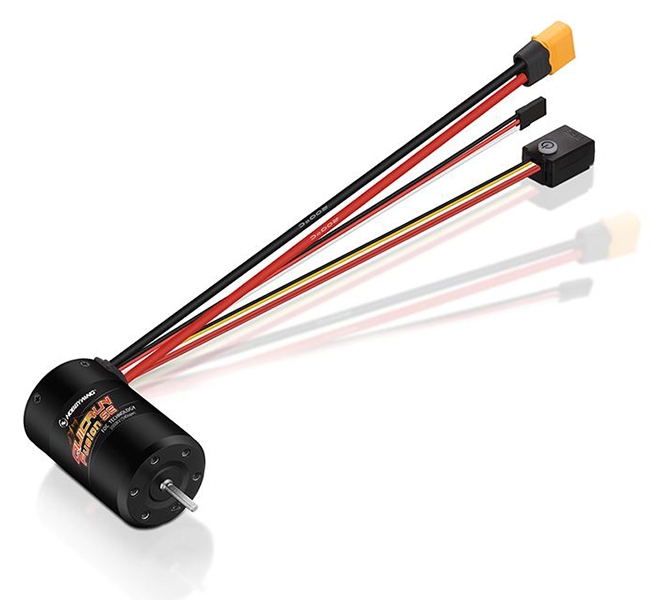

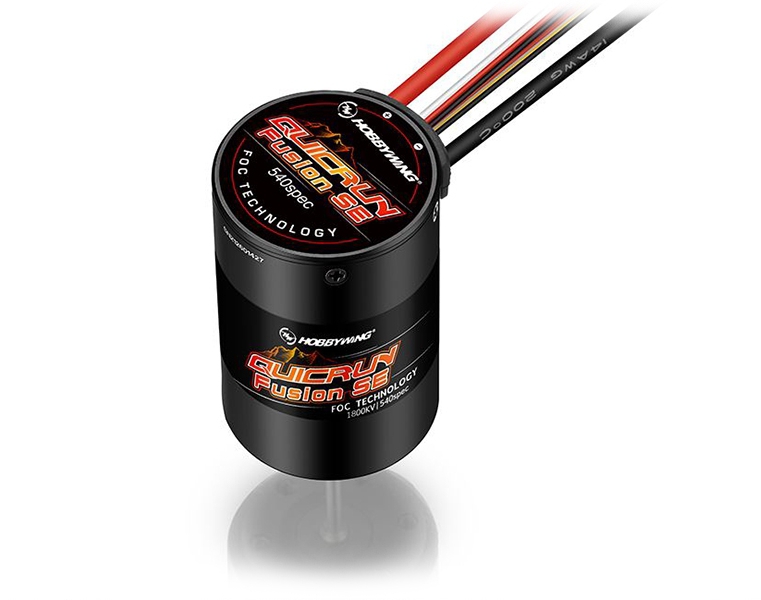

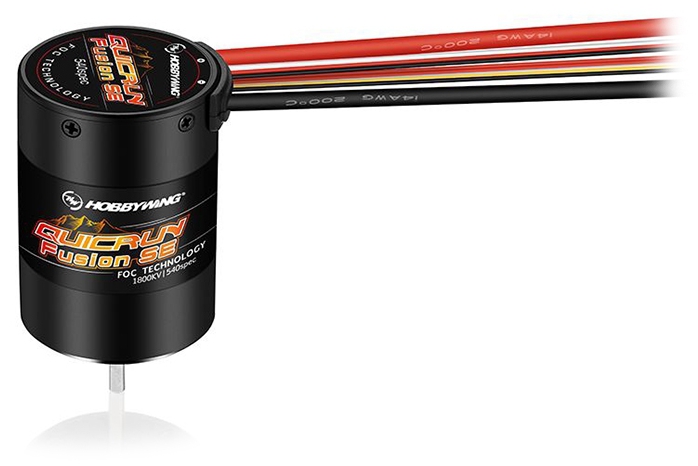

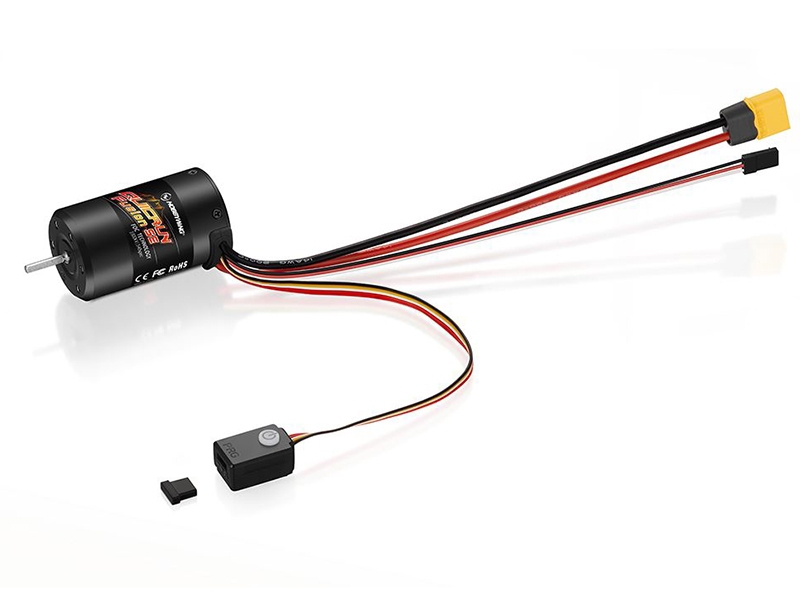

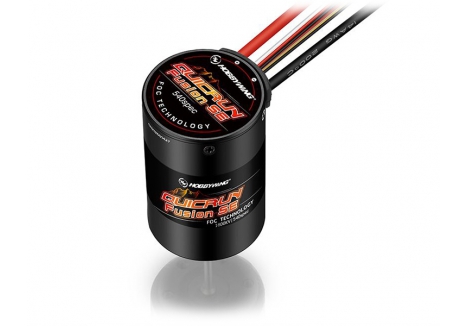

Introducing the QUICRUN Fusion SE for Crawlers from Hobbywing. A combined speed control and motor package.
Aesthetically Appealing
The Fusion SE provides an integrated space-saving design forbuilders. With a 58mm length, the Fusion SE has been shortened slightly to allow it to ?t into more vehicles.
FOC Powered
With proven design heritage FOC has been a game changer for the crawling segment. The extreme ef?ciency operates at lower temps and provides extended runtimes. The nearly silent operation provides amazing power and response at all speeds while providing extremely low RPM control. Compared to normal brushless, FOC systems provide a dramatic increase in response and power delivery.
The smart torque output control feature of the built-in FOC ESC ensures unmatched downhill and uphill driving. The ESC can automatically adjust the motor output to RPM to match the driver inputs.
Intelligent Torque Output
Intelligent Torque Output is a smart management system that allows the ESC to adjust the motor for inclines or descent under any load to match the throttle.
U- matched hill holding
With 8 levels of drag brake force (Power) and 9 levels of Drag Brake Rate, drivers can fine-tune their vehicle’s hill-holding power and general driving. Overall, drag brakes can be 2 times stronger than normal brushless setups.
Designed for Durability
Silicon rubber gaskets, electronic buttons, and quality hardware ensure a long life for the Fusion SE. Made to take the abuse and conditions of daily RC bashers.
Ready for all weather and track conditions.
IP-67 waterproof rating ensures the Fusion SE has protection from water, dust, and about anything else that gets thrown at it. Designed to withstand all conditions time and time again.
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and is tested under controlled laboratory conditions. Its effect is in the GB / T 4208-2017 (domestic) / IEC 60529 (overseas) standard to IP67 level. Splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.
Specifications
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - Waterproof
Cont./Peak Current - 40A
Input Voltage - 2-3S Lipo/6-9 Cell NiMH
BEC Output - 6V/7.4V@4A?6A peak
Motor KV - 1200KV & 1800KV
Diameter/length of Motor - 36mm / 58.1mm
Shaft diameter / exposed shaft length - 3.175mm / 16.5mm
Motor Poles - 4
Wires & Connectors
Input Wires - Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Input Connectors - XT60
(Note: All the wire length above is the original length not the length you see from the outside.)
ESC Programing via
SET Button on ESC - Not Supported
LED Program Box - Supported
LCD Program Box - Not Supported
OTA Programmer - Not Supported
Program Port - Independent programming interface(switch position)
Firmware
Firmware Upgrade - Not Supported
Size & Weight
Size - 36X58.1mm
Weight - 201g (including wires&connectors
Applications
Vehicles - 1/10throck crawler
Manufacturer: Hobbywing
Part Number: HW30404317
EAN :5051294182892
Battery Connector Type: XT-60
Waterproofing :Waterproof
Power Rating Upto: 40 Amps
Motor Size: 540
Max Lipo Volt Rating: 11.1v / 3s
KV Rating (Brushless): < 2000kv
Motor Class: Crawler
Battery Compatibility: LiPo/NiMh
Bore: 3.2mm
Brushless Motor Type: Sensored
