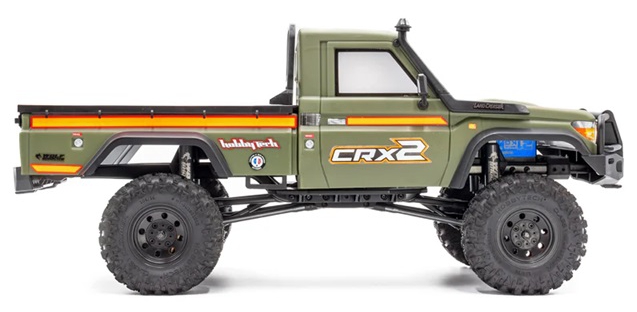

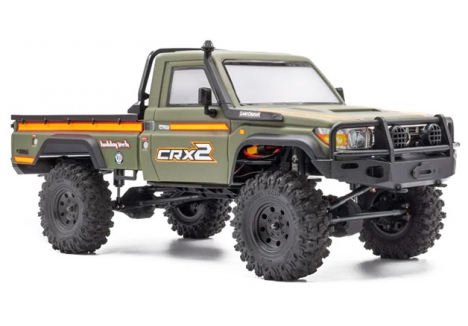

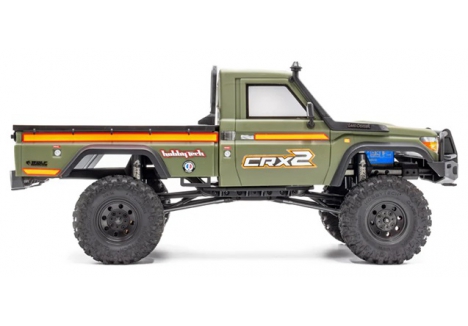

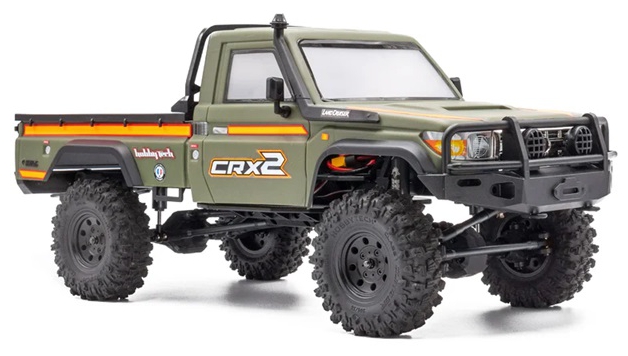

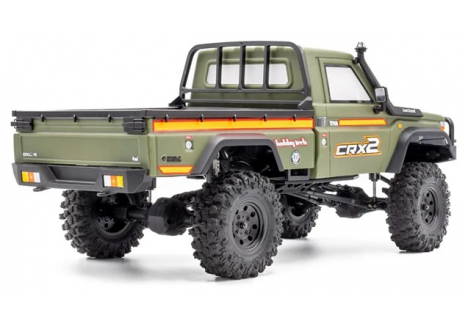

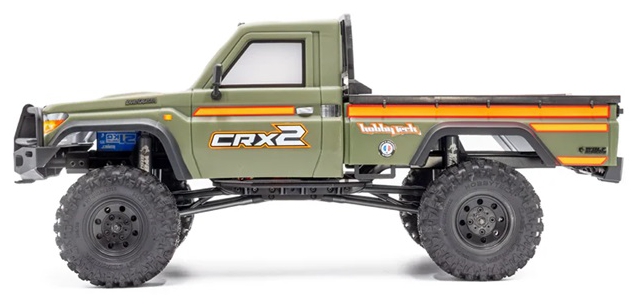

Hobbytech CRX2 Builders Kit LC70 Painted Body 313wb

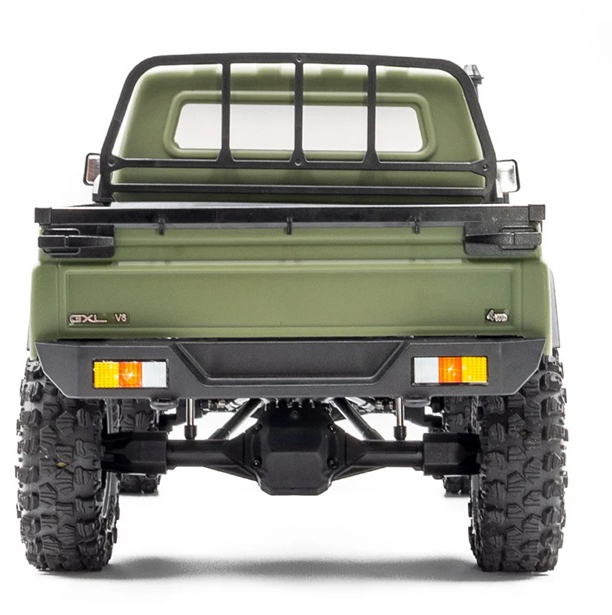

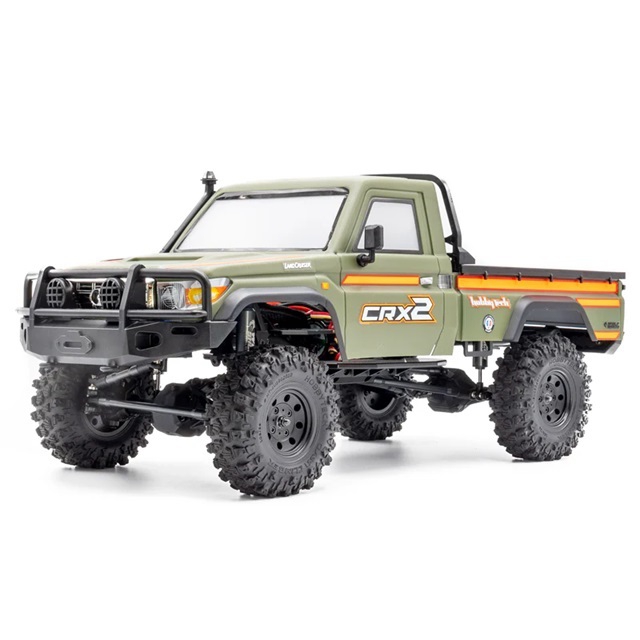

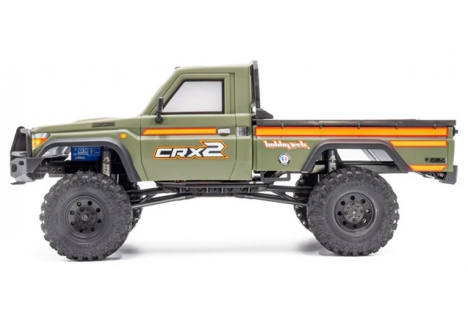

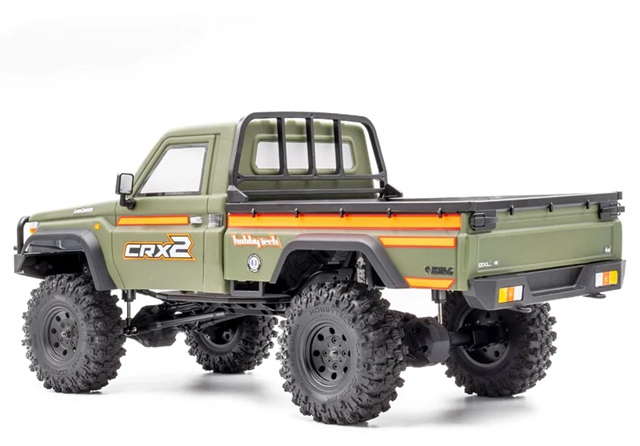

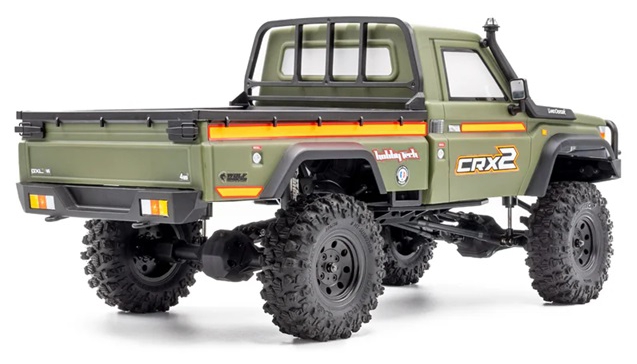

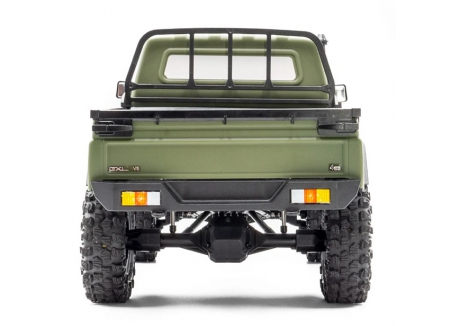

The CRX2 kit Including the LC70 painted body
Tilt body assembly (without clips)
1.9 inch tires and rims
Painted bodywork
Sheet of stickers
Without electronics and requires assembly
What's New

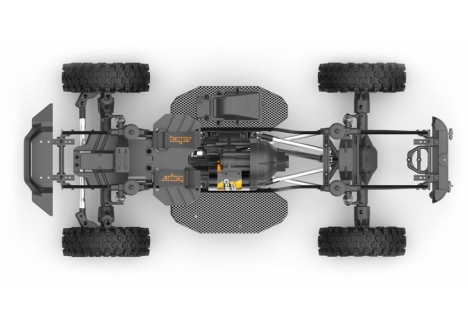

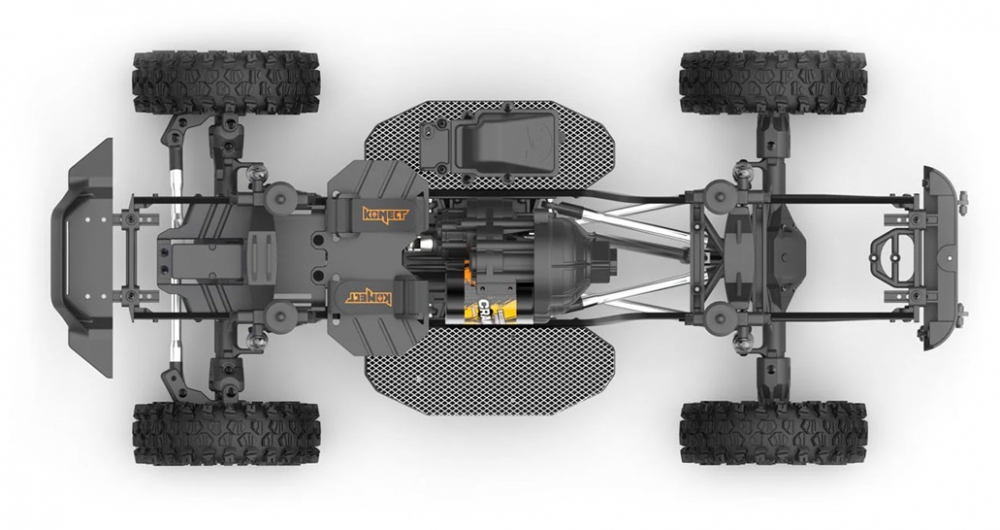

New chassis with adjustable wheelbase
New anti-torque twist
gearbox New aluminium WOLF SHOCKS shock absorbers ( droop and semi-droop)
New “realistic” central universal joints in treated steel
New front and rear axles
New front spindles with 0° Ackerman angle
New spindle carriers with PANHARD support
New front and rear suspension links
New multi-position battery support
New shock absorber supports
New CMS plate (servo mounting on chassis)
New central stiffening bars
Adjustable wheelbase - Thanks to its adjustable wheelbase, it is possible to adapt a large number of bodies on the CRX2 Multi-position frame.
0° The new stub axles as well as the new CVD driveshafts make it possible to have an Ackerman angle of 0°. When cornering, the wheels remain parallel which improves the steering angle and manoeuvrability of the model.
Battery support - It is possible to choose different positions for the battery depending on the desired performance and weight distribution. The system also allows the use of different battery sizes and formats.
Anti Torque Twist System - To avoid the Torque twist effect (wheel that rises when accelerating), the new transmission allows the central driveshafts to turn in the opposite direction. The CRX2 can scale with much more stability and efficiency because of this feature.
TYRES, "CLIMBER" 121/45 #HT-SU1802000
This tyre designed and manufactured by Hobbytech ensures perfect traction for your scale vehicle. This tyre is all the rage amongst the scale crawler fraternity! These tyres are also compatible with the TRX4 and come with a foam insert. and it mounts on
Diameter: 121 mm Width: 45 mm
Fitment: 1.9 rims
Complete Wolf type shock absorbers 90mm
Adjusting the “Wolf” shock absorbers for the CRX2:
Recommended assembly = semi-droop: small soft spring at the bottom and medium-sized soft spring at the top.
“Scale” type realism assembly = droop adjustment: medium-sized flexible spring at the bottom and small flexible spring at the top.
Lubrication = fill a part of the body with very fluid silicone oil (100 cps for example)
Not Included
Brushless combo (recommended combo: KN-40-540-1800-FUS)
Servo
Battery
Charger
Radio
ShareShare on Facebook
Hobbytech CRX2 LC70 Builders Kit Painted Body 313 mm Wheelbase HT-8-CRX2-LC70
The Hobbytech CRX2 LC70 kit brings true-to-scale rock crawling to hobbyists with its 313 mm adjustable wheelbase and painted LC70 tilt body. Built on the robust Hobbytech CRX2 adjustable wheelbase chassis, this kit includes the advanced Hobbytech CRX2 anti torque twist system for flawless straight-line traction, plus aluminum WOLF SHOCKS absorbers for droop and semi-droop tuning.
Key features of the Hobbytech CRX2 LC70 kit
- Adjustable wheelbase – adapt frames from 313 mm to fit multiple bodies
- Anti-torque twist gearbox – counter-rotating shafts eliminate wheel lift under load
- Wolf aluminum shocks – 90 mm droop and semi-droop tuning with progressive springs
- Zero-Ackerman steering – CVD driveshafts and stub axles keep wheels parallel in turns
- Realistic steel universal joints – treated for durability and scale authenticity
- Multi-position battery support – accommodates various pack sizes and weight bias
- CMS servo-mount plate – rigid chassis mounting for precise steering feedback
- Central stiffening bars – reinforce frame under heavy rock-crawling stress
- New front/rear suspension links – tuned for smooth articulation over obstacles
- Painted LC70 tilt body – pre-cut, with decal sheet for custom scale looks
How does the Hobbytech CRX2 anti torque twist system enhance stability?
The Hobbytech CRX2 anti torque twist system reverses the central gearbox shafts’ rotation to counteract axle torque. This prevents one wheel from rising during acceleration, ensuring both tyres maintain ground contact for consistent traction on steep rock faces.
What tuning options do the WOLF SHOCKS provide?
The aluminum “Wolf” shocks support both droop and semi-droop setups. For semi-droop, install the smaller soft spring at the bottom and medium at the top. For a scale-realism droop assembly, reverse the spring sizes. Fill bodies with 100 cSt silicone oil to fine-tune damping performance.
Advanced chassis innovation
The new Hobbytech CRX2 adjustable wheelbase chassis features aluminum side channels with resin cross members and multi-position mounts. You can slide the battery tray forward or backward to optimise weight distribution for climbing or technical boulder obstacles.
Why choose the Hobbytech LC70 painted tilt body?
This Hobbytech LC70 painted tilt body delivers factory-finished detail on lightweight polycarbonate. The tilt design allows quick chassis access—ideal for in-field repairs—while the decal sheet accents authentic scale looks.
Is the Hobbytech HT-8-CRX2-LC70 crawler kit beginner-friendly?
Yes. The Hobbytech HT-8-CRX2-LC70 crawler arrives with pre-assembled shocks, painted body, tires and rims. Clear instructions guide builder through axle, driveshaft and shock installation—perfect for newcomers seeking an affordable Hobbytech CRX2 scale builder kit for sale.
Built for scale realism
From zero-Ackerman steering spindles to realistic treated-steel universal joints, every detail on this chassis elevates scale authenticity. The hex hub beadlock wheels grip “Climber” tyres with side-wall tread, making this kit one of the best Hobbytech CRX2 off-road chassis with 1.9 tyres.
Where can you buy the Hobbytech CRX2 LC70 rock crawler kit?
Gear up for your next adventure—buy Hobbytech CRX2 LC70 rock crawler kit today.
Technical Specifications ofHobbytech HT-8-CRX2-LC70
Brand, Model and Product Type
- Brand: Hobbytech
- Model: HT-8-CRX2-LC70
- Product type: Hobbytech CRX2 LC70 kit, Hobbytech CRX2 builder's kit 313mm, Hobbytech HT-8-CRX2-LC70 crawler, Hobbytech CRX2 adjustable wheelbase chassis, Hobbytech CRX2 anti torque twist system
Dimensions & Wheelbase
- Wheelbase: 31.3 cm (adjustable) to fit multiple scale bodies
- Body Mount: Multi-position supports various LC70 and other bodies
Chassis & Transmission
- Frame: Aluminum side channels with resin cross members for rigid flex control
- Drivetrain: Shaft-driven 4WD planetary gearbox with 32.4:1 ratio
- Universal Joints: Realistic treated-steel cross-pin design
- Anti-Torque Twist: Counter-rotation gearbox prevents wheel lift
Suspension & Handling
- Shock Absorbers: WOLF aluminum 90 mm CVA shocks, droop/semi-droop configurations
- Springs: Progressive soft springs top and bottom for tunable ride height
- Suspension Links: Adjustable front/rear multi-link geometry
- Steering: Zero-Ackerman stub axles and CVD driveshafts for parallel wheel tracking
Body & Accessories
- Body Shell: Pre-painted LC70 tilt polycarbonate with decal sheet
- Tires & Rims: 1.9″ “Climber” tread tyres (121 × 45 mm) on beadlock wheels
- Mounts: CMS servo plate and central stiffening bars included
Battery & Assembly
- Battery Support: Multi-position tray for LiPo/NiMH pack options
- Requires: Electronics, servos, ESC and battery (sold separately)
Additional Features
- New shock absorber supports for stable shock mounting
- New spindle carriers with Panhard bar support for lateral stability
- New central stiffening bars to reinforce frame under load
- New front and rear suspension links optimized for scale articulation
Warranty
- 1 year manufacturer’s warranty covering kit components
