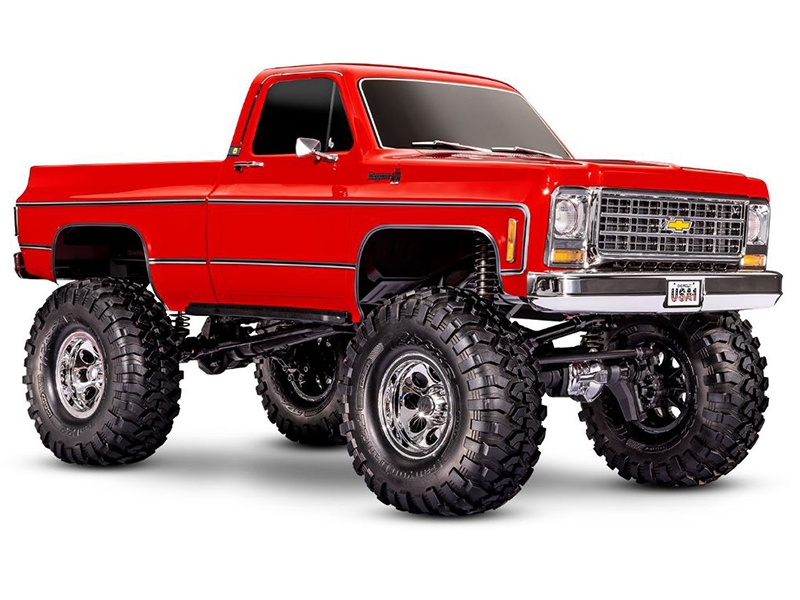

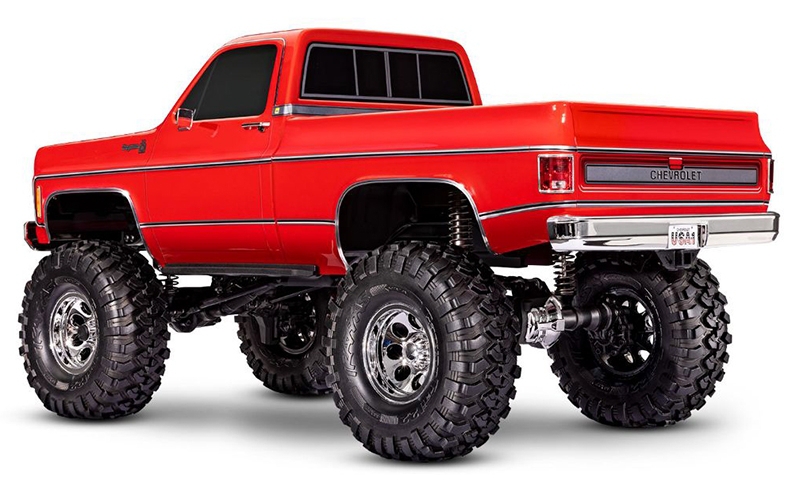

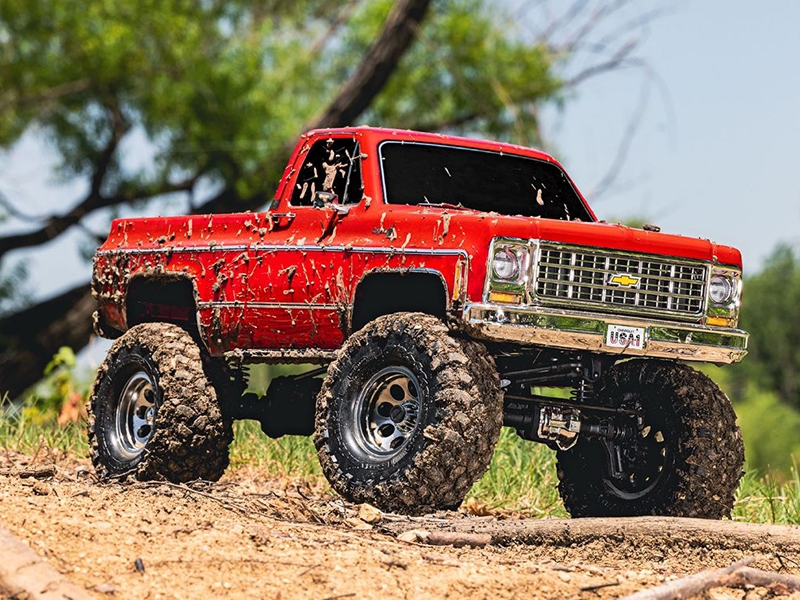

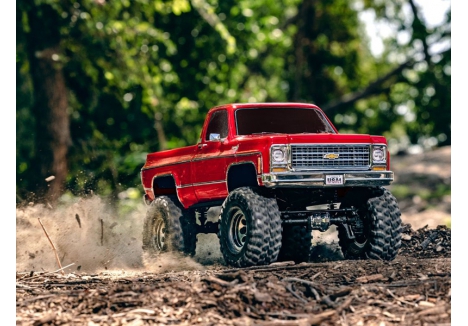

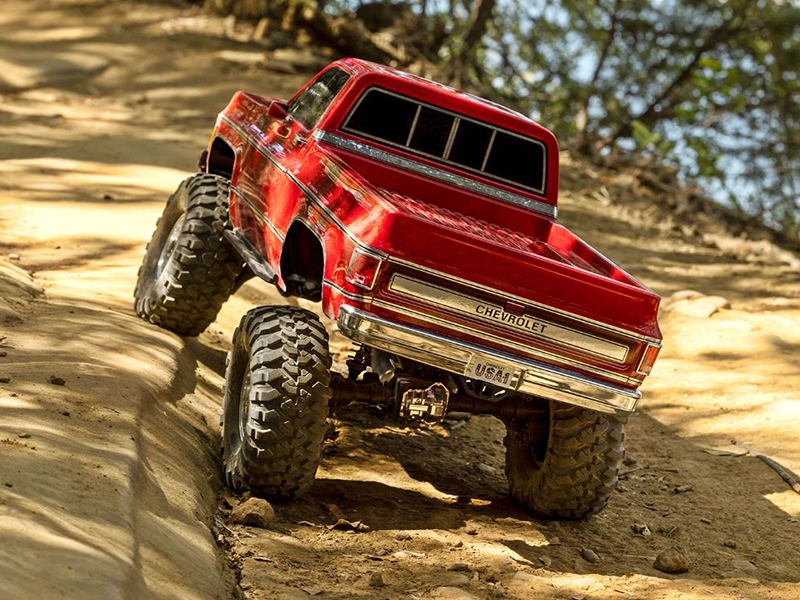

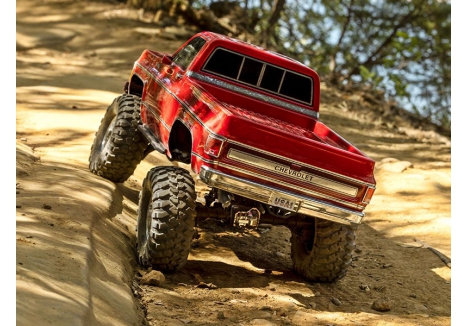

Get ready for extreme scale adventure with the lifted TRX-4® Chevrolet® K10 High Trail Edition pickup. The highly detailed K10 replica body stands over an inch higher than a standard TRX-4 thanks to its factory-installed lift kit and oversize 2.2” tires. K10’s extended wheelbase further enhances TRX-4’s already legendary off-road capability for even more fun on the trail. Storm mud bogs, cross deeper streams, and clear bigger obstacles than ever before with the TRX-4 High Trail Edition K10.

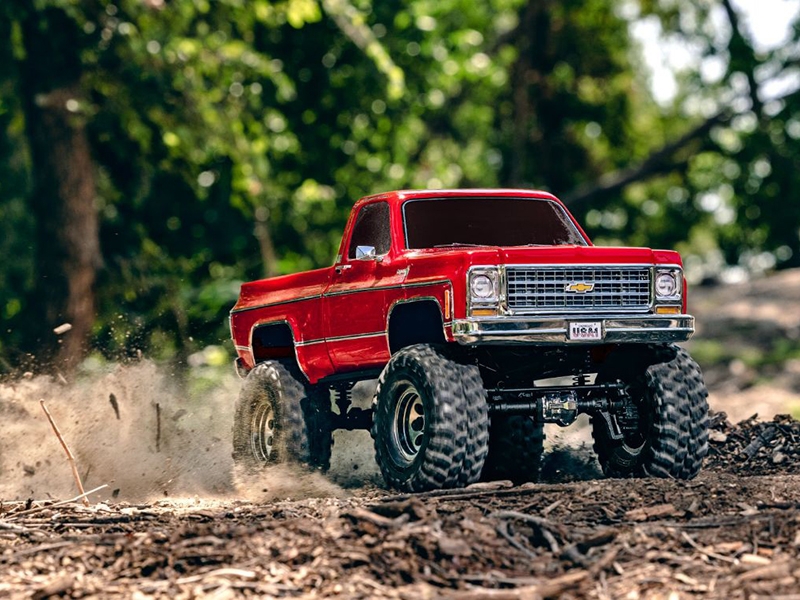

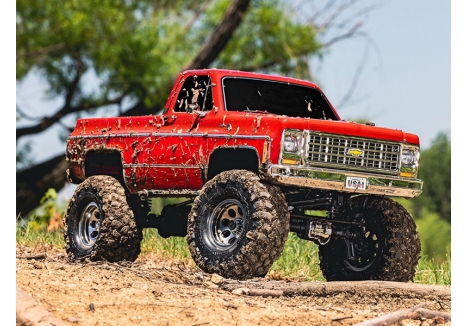

LIFTED OFF-ROAD ADVENTURE
Traxxas elevates scale adventure with the lifted TRX-4® Chevrolet® K10 High Trail Edition. Thanks to its factory-installed Long Arm Lift Kit and oversize tires, the highly detailed K10 replica body stands over an inch taller than our standard TRX-4. The K10’s extended wheelbase further enhances the TRX-4’s already legendary off-road capability for even more fun on the trail. The TRX-4 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and Traxxas-Tough™ durability.

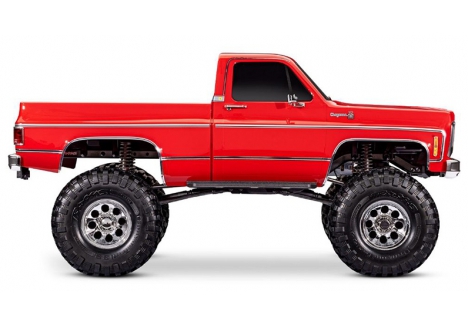

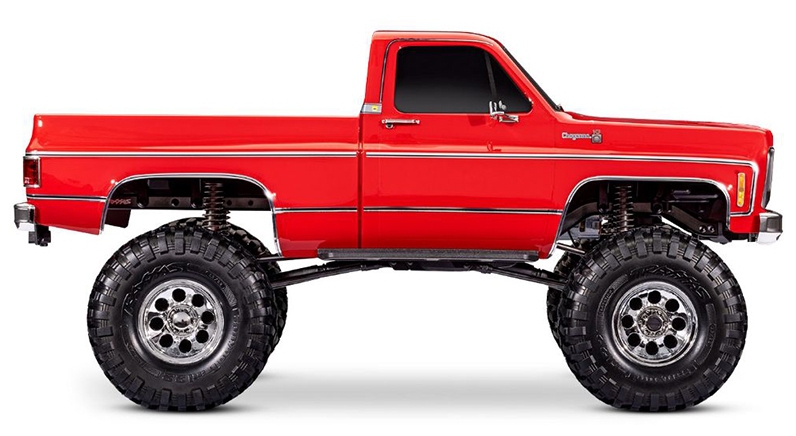

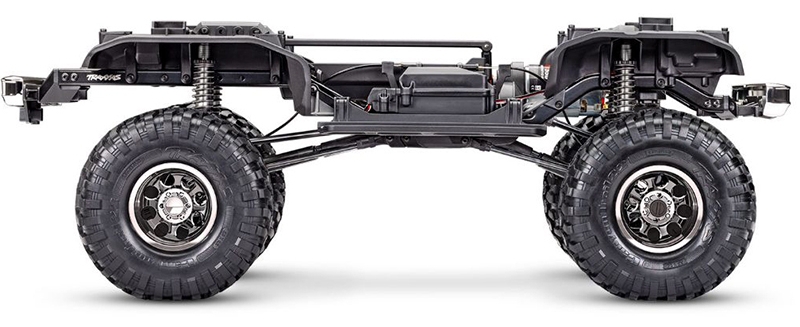

EXTENDED 336MM WHEELBASE

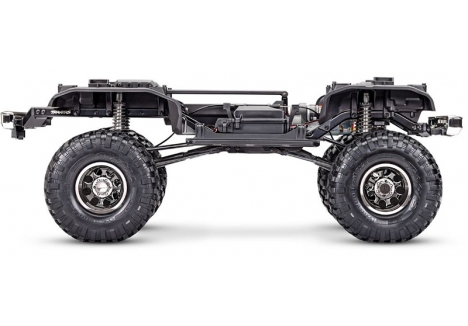

K10’s steel frame rails extend the wheelbase out to 336mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.
HIGH TRAIL EDITION

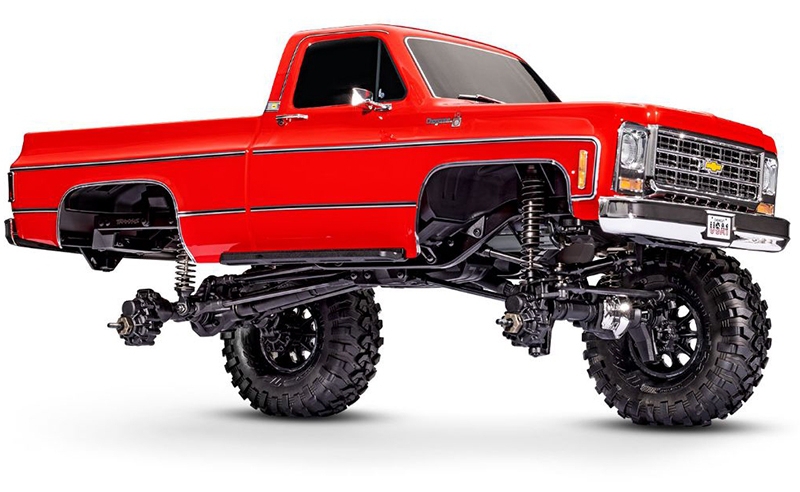

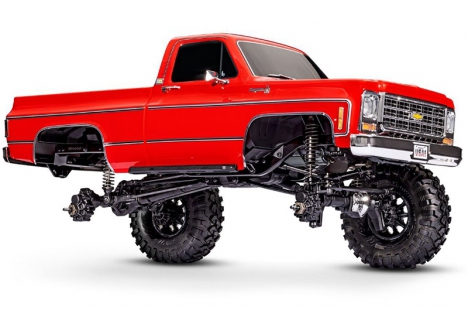

The factory-installed Long Arm Lift Kit raises K10 High Trail™ Edition over an inch taller for superior ground clearance. Large 2.2” mag wheels and Canyon Trail tires tame even the most technical trails to extend your scale adventures farther than ever before
CLIPLESS BODY MOUNTING

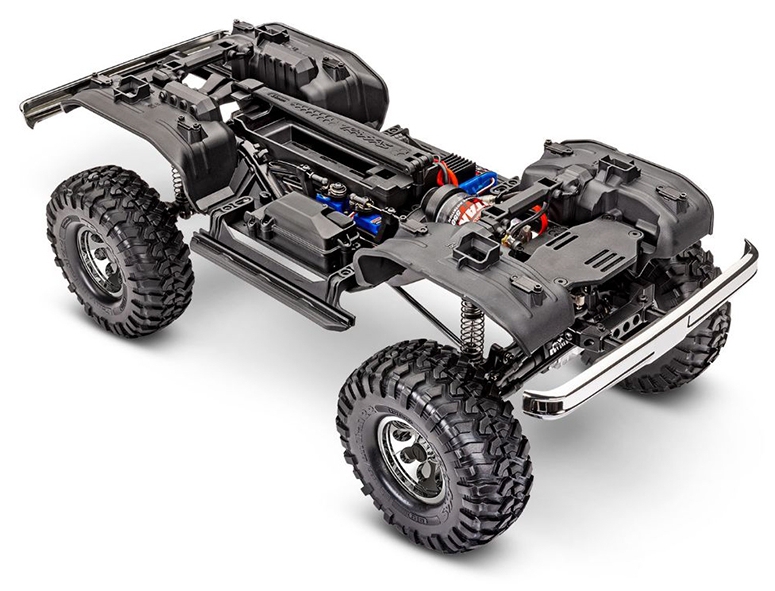

K10’s clipless body holds tight on the trail but releases in just seconds to access the chassis. This hidden latching system adds a new level of convenience and scale realism to the TRX-4 by removing traditional body clips which can interrupt the body’s clean lines.
Vehicle Specs
Length: 22.20 inches (563mm)
Front Track: 10.60 inches (270mm)
Rear Track: 10.60 inches (270mm)
Center Ground Clearance: 4 inches (99mm)
Weight (w/o battery): 7.38lbs (3.35kg)
Height (overall): 10.89 inches (277mm)
Wheelbase: 13.23 inches (336mm)
Approach Angle: 70°
Departure Angle: 52°
Breakover Angle: 67°
Front Shock Length: 4.33 inches (110mm)
Rear Shock Length: 4.33 inches (110mm)
Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
Front Tires: 5.3 x 2.14 inches (135 x 54mm)
Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking

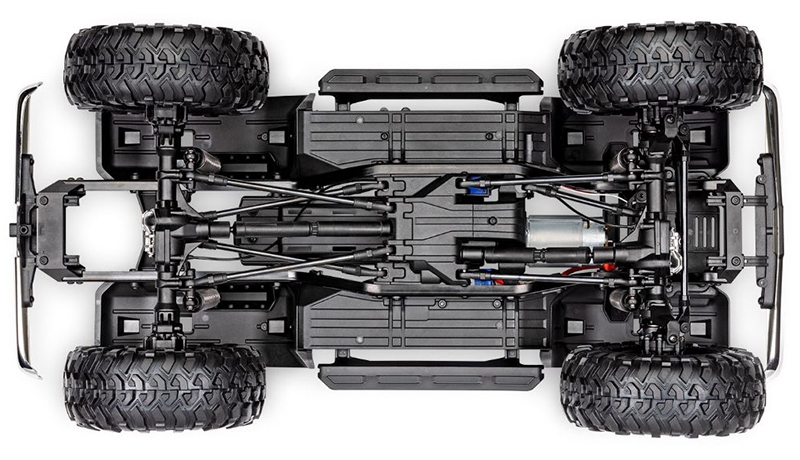

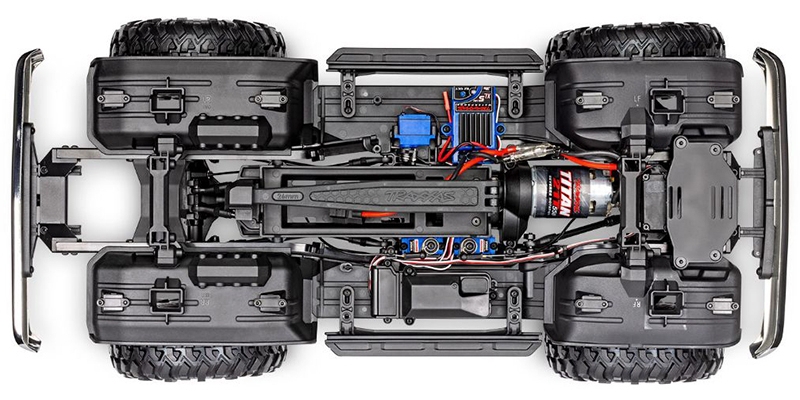

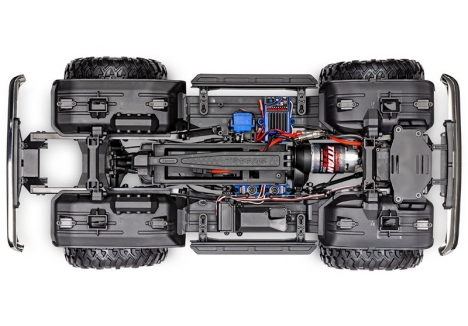

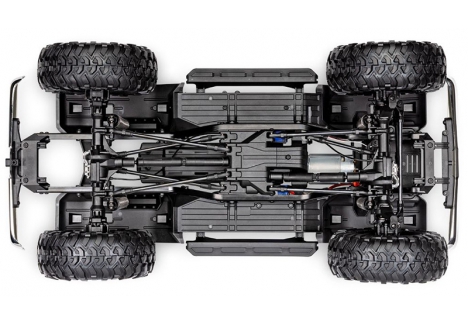

Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H
What’s In The Box:
TRX-4, Ready-To-Race® model
XL-5 HV waterproof electronic speed control
Titan® 21T reverse rotation motor
TQi™ 2.4GHz radio system with cruise control
High quality maintenance tools
What You’ll Need:
Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971).
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
Brand, Model & Product Type
- Brand: Traxxas
- Model: TRX92056-4-RED
- Product Type: Traxxas TRX92056-4-RED TRX-4 Chevrolet K10 High Trail Edition scale crawler, Traxxas TRX92056-4-RED TRX-4 1/10 trail truck with Chevrolet K10 body, Traxxas TRX92056-4-RED TRX-4 lifted trail crawler with Long Arm Lift Kit, Traxxas TRX92056-4-RED trail crawler with Titan 21T brushed motor, Traxxas TRX-4 Chevrolet K10 with portal axles and 2-speed transmission, Traxxas TRX-4 lifted trail truck with Canyon Trail tyres
Dimensions
- Scale: 1/10 – ideal for realistic trail performance and scale detailing
- Length: 52.6 cm – accommodates extended wheelbase and lifted suspension
- Width: 27 cm – provides a stable footprint for off-road terrain
- Height: 27.7 cm – includes oversized tyres and Long Arm Lift Kit
- Wheelbase: 33.6 cm – extended for improved articulation and stability
- Ground Clearance: 10.2 cm – raised via portal axles and lift kit for obstacle clearance
- Weight: 3.35 kg – balanced for trail durability and control
Motor & Electronic Speed Control
- Motor Type: Titan 550 21T reverse rotation brushed motor – delivers high torque for trail crawling
- Motor Cooling: Internal cooling fan – maintains performance during extended runs
- Motor Connectors: Bullet connectors – ensure secure and efficient power delivery
- ESC Type: XL-5 HV brushed ESC – waterproof and trail-tuned for varied terrain
- ESC Drive Profiles: Sport, Race, Training, Trail, Crawl – includes patented hill-hold brake
- ESC Voltage Range: Compatible with 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- ESC Features: Large heat sink, two-stage low voltage protection, Traxxas EZ-Set one-button setup
Drivetrain & Transmission
- Drive System: Full-time shaft-driven 4WD – ensures consistent traction across all wheels
- Transmission: 2-speed high/low range – remote shifting for terrain adaptability
- Differentials: Remote locking steel gear differentials – cable-actuated for on-demand control
- Axles: Portal axles – increase clearance and eliminate torque twist
- Transfer Case: Steel gear construction – built for durability under load
- Gear Pitch: 32 pitch – supports rugged trail gearing
Suspension & Steering
- Front Suspension: 3-link with panhard bar – maintains precise steering geometry
- Rear Suspension: Triangulated 4-link – enhances articulation and stability
- Shock Type: Extended aluminium GTS coilover shocks – oil-filled with threaded bodies
- Shock Features: Silver-anodized finish, dual X-ring shaft seals, adjustable ride height
- Steering Servo: 2075X metal gear digital servo – waterproof and high-torque
- Steering Geometry: Corrected for bump steer – delivers superior 45° steering angle
Body & Scale Features

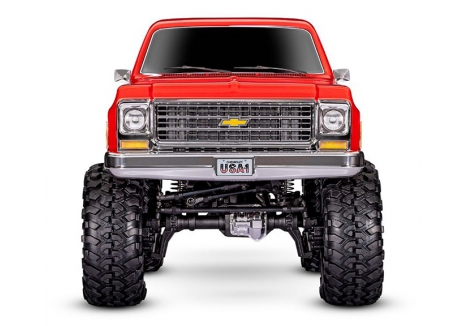

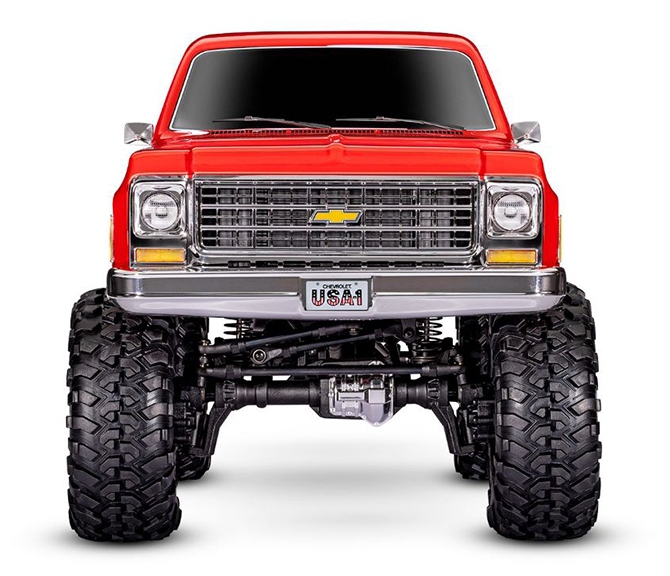

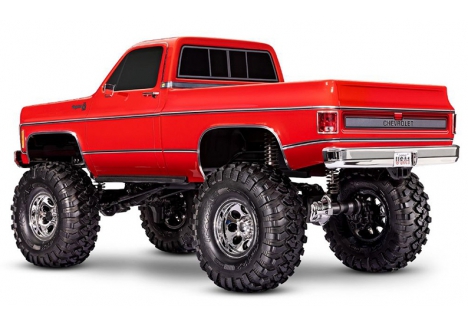

- Body Type: Licensed 1979 Chevrolet K10 pickup – painted red with chrome detailing
- Mounting System: Clipless body mounting – smooth exterior with internal body cage
- Scale Details: Chrome grille, bumpers, mirrors, door handles, wipers, authentic decal sheet

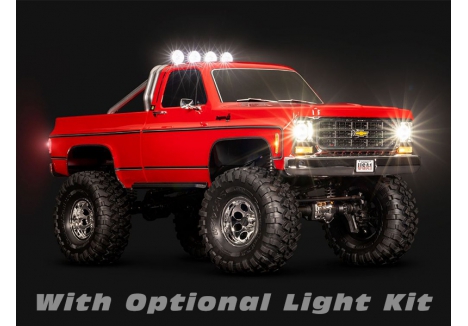

- LED Compatibility: Headlight and tail light bezels are LED-ready
- Interior Structure: Nylon composite wheel wells and floor pans – add realism and rigidity
Wheels & Tyres
- Wheel Type: 2.2 inch 8-hole chrome mag wheels – includes hub inserts
- Tyres: Canyon Trail tyres – trail-tuned foam inserts and S1 rubber compound
- Hex Size: 12 mm steel hex – supports rugged trail use
Radio System & Connectivity
- Transmitter: TQi 2.4 GHz 4-channel – includes cruise control and adjustable endpoints
- Receiver: Traxxas 6533 – 5-channel micro receiver with fail-safe and telemetry ports
- App Compatibility: Supports optional Traxxas Link Wireless Module (6511) – enables full app functionality
- Model Memory: Stores settings for up to 30 Traxxas Link enabled models
Battery Compartment
- Main Compartment: 15.9 cm x 4.7 cm x 2.3–2.6 cm – accepts full-size long packs
- Access System: Hinged battery strap – quick access without pins
- Secondary Tray: Accepts smaller 1/16 scale batteries with optional strap

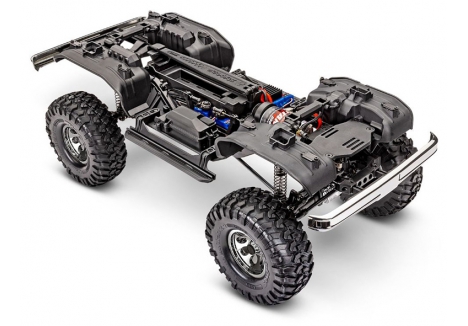

Frame & Build Features
- Frame Rails: Full-length 1.5 mm thick steel – provides structural integrity
- Bumper Adjustment: Fore and aft movement – supports scale tuning
- Rock Rails: Adjustable width – enhances protection and realism
- Wire Routing: Integrated clips – maintain clean installation
What's in the Box
- TRX-4 Chevrolet K10 High Trail Edition RTR model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation brushed motor
- TQi 2.4 GHz radio system with cruise control
- High-quality maintenance tools
What You’ll Need
- Battery: Compatible NiMH (4–7 cell) or LiPo (2s–3s) – sold separately
- Charger: Traxxas EZ-Peak Live charger (model 2971) recommended – sold separately
- Transmitter Batteries: Four AA alkaline batteries – required
Sold Separately
- Battery pack
- Battery charger
- Traxxas Link Wireless Module (6511)
Warranty
- Warranty: 1-year manufacturer warranty
