In Stock
Delivery Included
1 Year Warranty
FEATURES
- Officially Licensed 1979 Chevrolet K10 Pickup Body
- Clipless Body mounting
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Factory-Installed Long Arm Lift Kit
- Extended Wheelbase
- Portal Axles
- Full-time shaft driven 4-wheel drive
- Innovative Battery Compartment - Hinged battery strap allows quick and easy battery access
- Two speed high/low range with remote shifting
- Chassis mounted 2075X metal gear digital servo
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Pre-mounted oversize 2.2 Canyon Trail tyres with trail-tuned foam inserts
- TQi 2.4GHz 4-channel transmitter Traxxas Link enabled
CONTENTS
- 1x TRX-4, Ready-To-Race model
- 1x XL-5 HV waterproof electronic speed control
- 1x Titan 21T reverse rotation motor
- 1x TQi 2.4GHz radio system with cruise control
- 1x High quality maintenance tools
NEEDED TO COMPLETE
- 4x AA batteries (for the transmitter)
- Batteries - TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
- Charger - Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #TRX2971)
DETAILS
Traxxas elevates scale adventure with the lifted TRX-4 Chevrolet K10 High Trail Edition. Thanks to its factory-installed Long Arm Lift Kit and oversize tyres, the highly detailed K10 replica body stands over an inch taller than our standard TRX-4. The K10's extended wheelbase further enhances the TRX-4's already legendary off-road capability for even more fun on the trail. The TRX-4 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and Traxxas-Tough durability.
The 1979 Chevrolet K10 Truck on Traxxas.com
High Trail Edition
The factory-installed Long Arm Lift Kit raises K10 High Trail Edition over an inch taller for superior ground clearance. Large 2.2 mag wheels and Canyon Trail tyres tame even the most technical trails to extend your scale adventures farther than ever before
Extended 336mm Wheelbase
K10's steel frame rails extend the wheelbase out to 336mm to capture the pickup's real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.
Clipless Body Mounting
K10's clipless body holds tight on the trail but releases in just seconds to access the chassis. This hidden latching system adds a new level of convenience and scale realism to the TRX-4 by removing traditional body clips which can interrupt the body's clean lines.

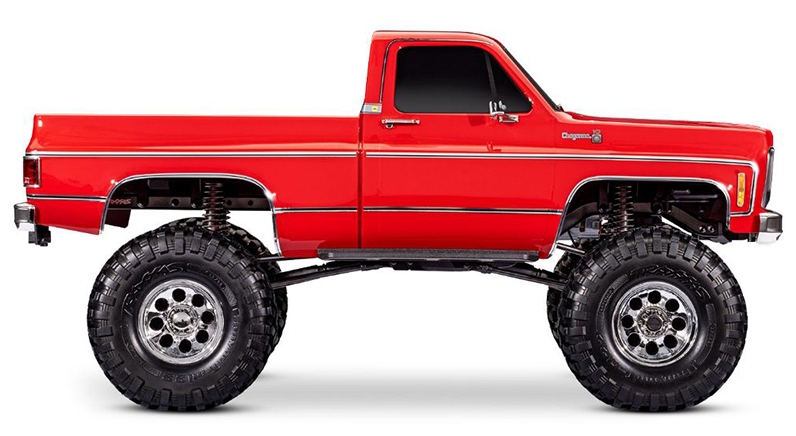

Factory-Installed Lift Kit
K10 High Trail Edition's factory-installed lift kit and oversize tyres add over an inch of trail-conquering ground clearance. Extended 100mm GTS shocks deliver silky-smooth damping performance with greater wheel articulation for increased off-road capability. Extended steel links and a revised servo mount maintain TRX-4's superior suspension geometry.

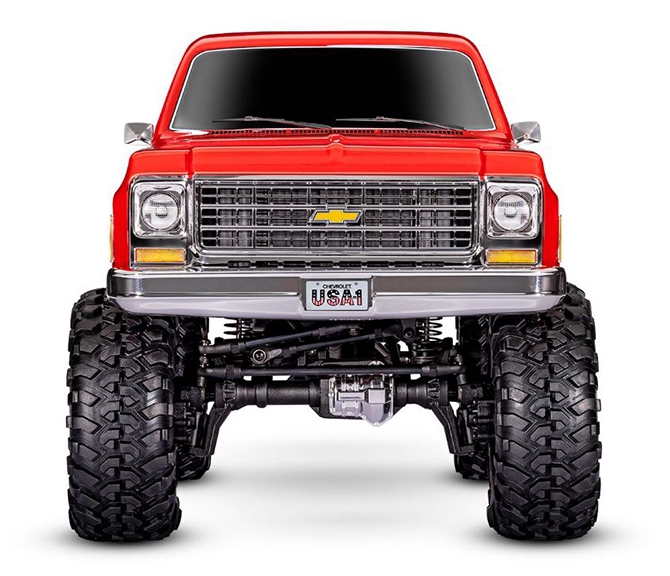

Scale Details
K10 High Trail Edition's factory-installed lift kit and oversize tyres add over an inch of trail-conquering ground clearance. Extended 100mm GTS shocks deliver silky-smooth damping performance with greater wheel articulation for increased off-road capability. Extended steel links and a revised servo mount maintain TRX-4's superior suspension geometry.

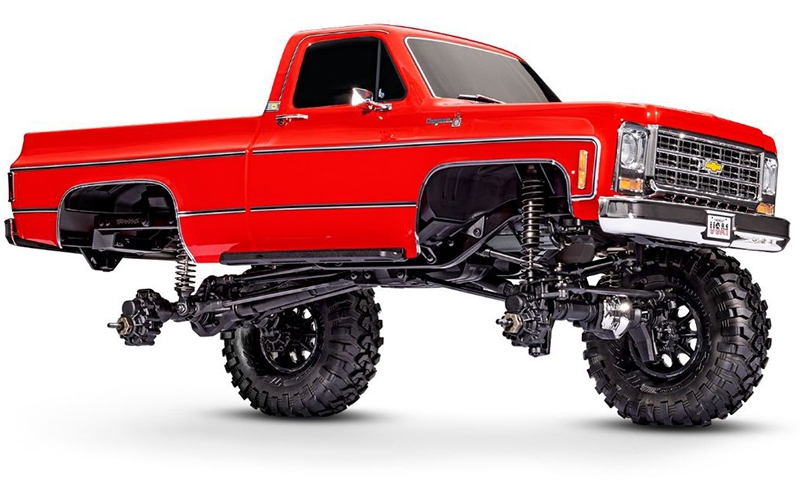

Clipless Body Mounting
K10's clipless body mounts hold tight, but release in seconds without the need for clips and body posts. An integrated quick-release system secures the body invisibly.
Oversize 2.2" Wheels & Tyres
Aggressive S1-compound Canyon Trail tyres feature large lugs for increased grip with 2-stage foam inserts for realistic trail performance. The tyres come mounted and pre-glued to large 2.2 8-hole chrome mag wheels with detailed replica locking hubs to conceal the wheel nuts.

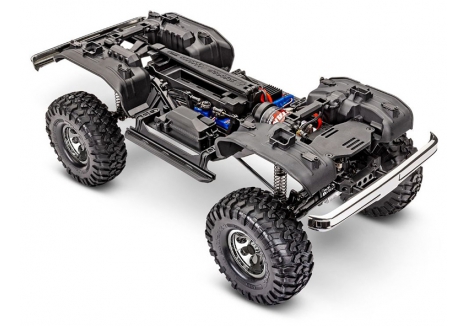

TRX-4 Capability
K10 High Trail Edition comes standard with all the award-winning features of other TRX-4 models with the added benefit of higher ground clearance. That includes portal axles; remote-operated T-Lock differentials; High/Low 2-speed transmission; aluminium GTS shocks; steel ladder frame and more.

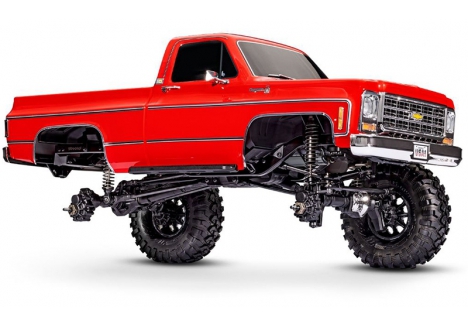

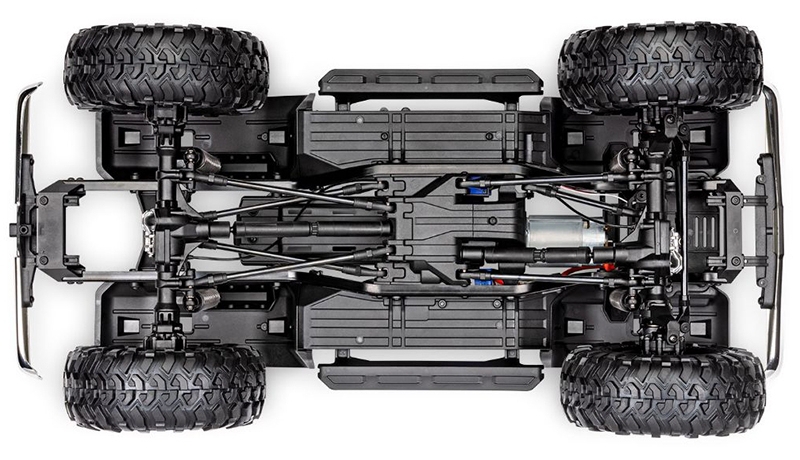

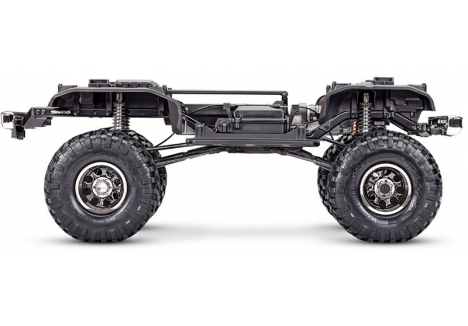

The Power of Portals
K10's portal axles work in tandem with the Long-Arm Lift Kit to lift the truck for huge centre ground clearance. With over 2 inches of clearance under the centre pumpkin, the K10 pickup climbs over obstacles that would snag other trucks. The portal axles' internal gear reduction virtually eliminates torque twist, keeping the K10 straight and on course.

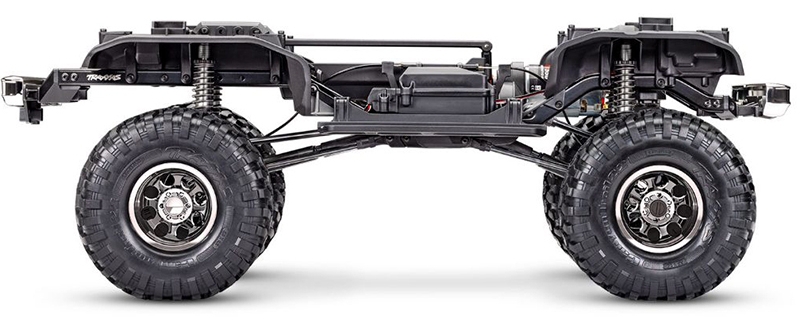

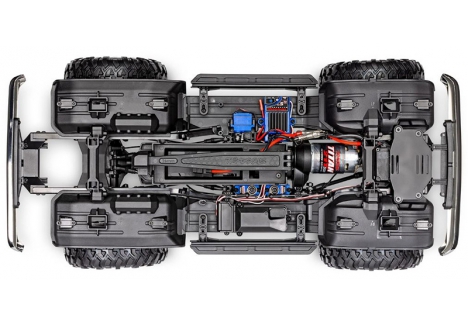

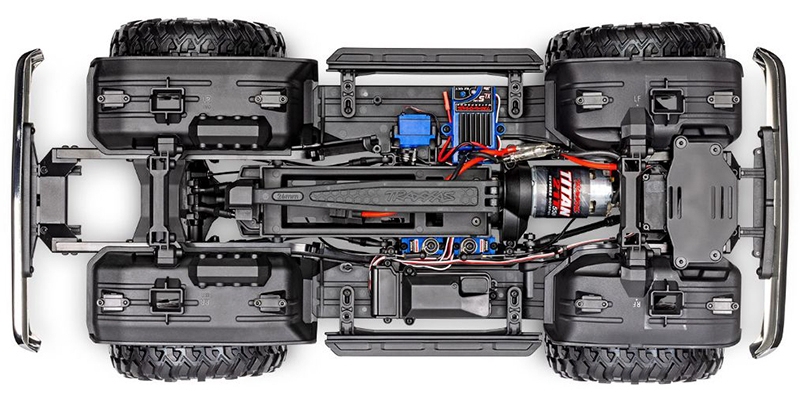

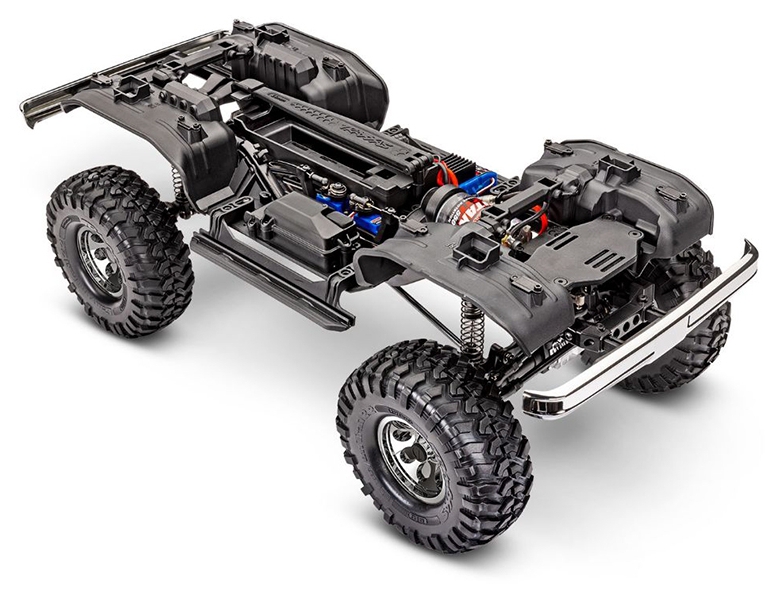

Extended Steel Frame
K10 High Trail Edition's extended steel ladder frame runs from bumper to bumper with moulded cross members to create an extremely rigid backbone. You'll feel the added stability of its extended wheelbase on steep climbs or while navigating technical terrain.
3S Power System
The XL-5 HV electronic speed control brings 3s LiPo capability for strong efficient running. The powerful 21T Titan motor provides torque for hauling heavy loads and climbing steep grades. This efficient system provides exceptional run time with a Traxxas 3s 5000mAh iD LiPo battery pack!
TQi Radio System
Operate the 2-speed transmission and T-Lock diffs with a touch, and activate Cruise Control to hold the throttle for long-haul comfort it's all built into the TQi. You can even customise settings via smartphone with the #TRX6511 Wireless Module (sold separately).
Waterproof Electronics

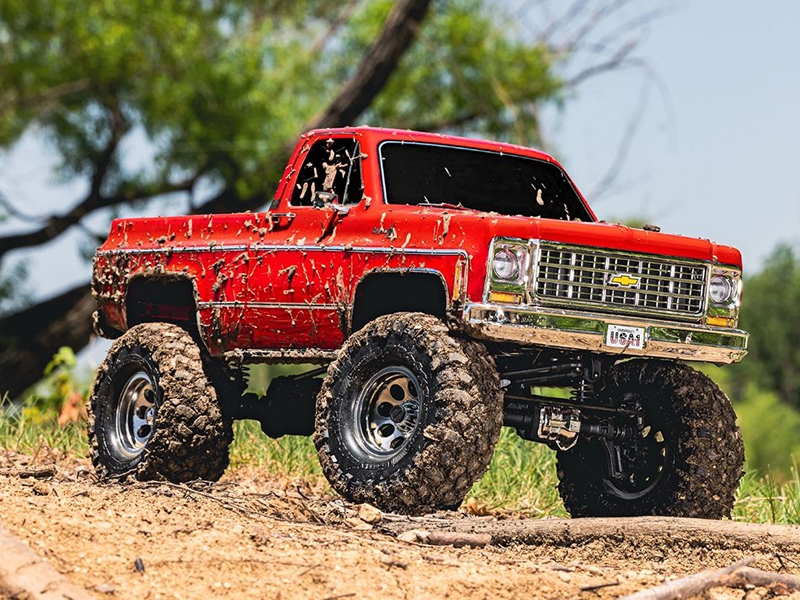

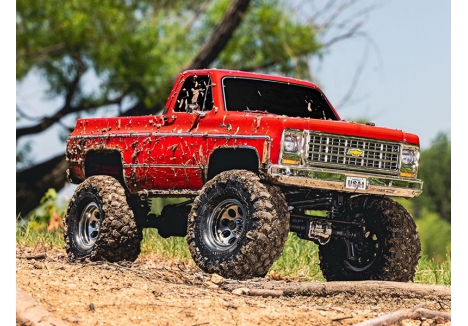

K10 High Trail Edition shrugs off mud, snow, and streams with its waterproof electronics. The speed control and servos are waterproof, and the receiver is fully protected by a watertight enclosure. Like all TRX-4 models, K10 delivers all-season, all-weather adventure.

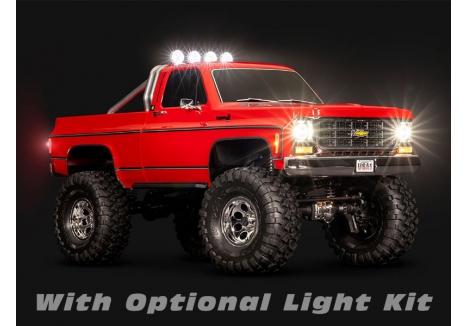

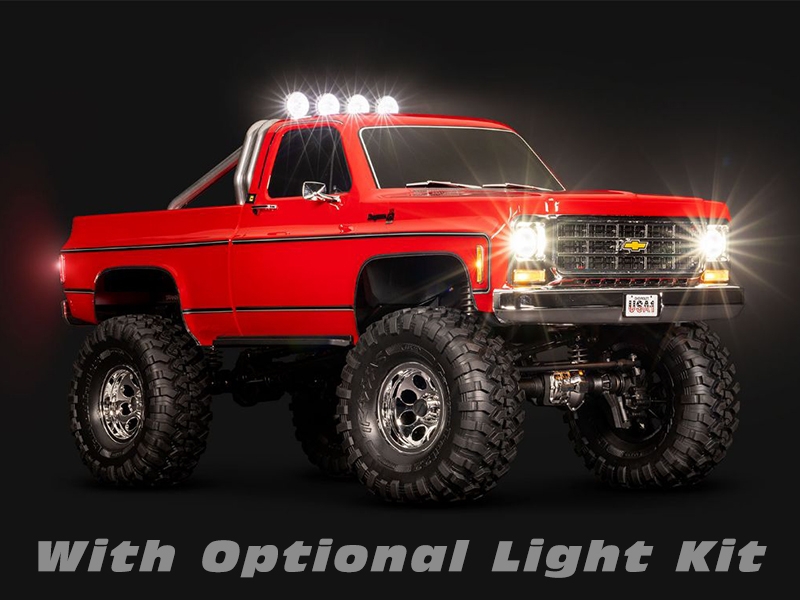

Accessory LED Lighting Available
Take your K10's realism to the next level with the optional TRX9262X LED Light Bar and the TRX8038 LED Light Kit used on the TRX-4 Blazer (both sold separately). The Pro Scale Advanced Lighting Control System adds full-function headlights, brake and reverse lights, turn signals, multiple driving modes, and much more to your TRX-4.
Brand, Model & Product Type
- Brand: Traxxas
- Model: TRX92056-4-RED
- Product Type: Traxxas TRX92056-4-RED TRX-4 Chevrolet K10 High Trail Edition scale crawler, Traxxas TRX92056-4-RED TRX-4 1/10 trail truck with Chevrolet K10 body, Traxxas TRX92056-4-RED TRX-4 lifted trail crawler with Long Arm Lift Kit, Traxxas TRX92056-4-RED trail crawler with Titan 21T brushed motor, Traxxas TRX-4 Chevrolet K10 with portal axles and 2-speed transmission, Traxxas TRX-4 lifted trail truck with Canyon Trail tyres
Dimensions
- Scale: 1/10 – ideal for realistic trail performance and scale detailing
- Length: 52.6 cm – accommodates extended wheelbase and lifted suspension
- Width: 27 cm – provides a stable footprint for off-road terrain
- Height: 27.7 cm – includes oversized tyres and Long Arm Lift Kit
- Wheelbase: 33.6 cm – extended for improved articulation and stability
- Ground Clearance: 10.2 cm – raised via portal axles and lift kit for obstacle clearance
- Weight: 3.35 kg – balanced for trail durability and control
Motor & Electronic Speed Control
- Motor Type: Titan 550 21T reverse rotation brushed motor – delivers high torque for trail crawling
- Motor Cooling: Internal cooling fan – maintains performance during extended runs
- Motor Connectors: Bullet connectors – ensure secure and efficient power delivery
- ESC Type: XL-5 HV brushed ESC – waterproof and trail-tuned for varied terrain
- ESC Drive Profiles: Sport, Race, Training, Trail, Crawl – includes patented hill-hold brake
- ESC Voltage Range: Compatible with 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- ESC Features: Large heat sink, two-stage low voltage protection, Traxxas EZ-Set one-button setup
Drivetrain & Transmission
- Drive System: Full-time shaft-driven 4WD – ensures consistent traction across all wheels
- Transmission: 2-speed high/low range – remote shifting for terrain adaptability
- Differentials: Remote locking steel gear differentials – cable-actuated for on-demand control
- Axles: Portal axles – increase clearance and eliminate torque twist
- Transfer Case: Steel gear construction – built for durability under load
- Gear Pitch: 32 pitch – supports rugged trail gearing
Suspension & Steering
- Front Suspension: 3-link with panhard bar – maintains precise steering geometry
- Rear Suspension: Triangulated 4-link – enhances articulation and stability
- Shock Type: Extended aluminium GTS coilover shocks – oil-filled with threaded bodies
- Shock Features: Silver-anodized finish, dual X-ring shaft seals, adjustable ride height
- Steering Servo: 2075X metal gear digital servo – waterproof and high-torque
- Steering Geometry: Corrected for bump steer – delivers superior 45° steering angle
Body & Scale Features
- Body Type: Licensed 1979 Chevrolet K10 pickup – painted red with chrome detailing
- Mounting System: Clipless body mounting – smooth exterior with internal body cage
- Scale Details: Chrome grille, bumpers, mirrors, door handles, wipers, authentic decal sheet
- LED Compatibility: Headlight and tail light bezels are LED-ready
- Interior Structure: Nylon composite wheel wells and floor pans – add realism and rigidity
Wheels & Tyres
- Wheel Type: 2.2 inch 8-hole chrome mag wheels – includes hub inserts
- Tyres: Canyon Trail tyres – trail-tuned foam inserts and S1 rubber compound
- Hex Size: 12 mm steel hex – supports rugged trail use
Radio System & Connectivity
- Transmitter: TQi 2.4 GHz 4-channel – includes cruise control and adjustable endpoints
- Receiver: Traxxas 6533 – 5-channel micro receiver with fail-safe and telemetry ports
- App Compatibility: Supports optional Traxxas Link Wireless Module (6511) – enables full app functionality
- Model Memory: Stores settings for up to 30 Traxxas Link enabled models
Battery Compartment
- Main Compartment: 15.9 cm x 4.7 cm x 2.3–2.6 cm – accepts full-size long packs
- Access System: Hinged battery strap – quick access without pins
- Secondary Tray: Accepts smaller 1/16 scale batteries with optional strap
Frame & Build Features
- Frame Rails: Full-length 1.5 mm thick steel – provides structural integrity
- Bumper Adjustment: Fore and aft movement – supports scale tuning
- Rock Rails: Adjustable width – enhances protection and realism
- Wire Routing: Integrated clips – maintain clean installation
What's in the Box
- TRX-4 Chevrolet K10 High Trail Edition RTR model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation brushed motor
- TQi 2.4 GHz radio system with cruise control
- High-quality maintenance tools
What You’ll Need
- Battery: Compatible NiMH (4–7 cell) or LiPo (2s–3s) – sold separately
- Charger: Traxxas EZ-Peak Live charger (model 2971) recommended – sold separately
- Transmitter Batteries: Four AA alkaline batteries – required
Sold Separately
- Battery pack
- Battery charger
- Traxxas Link Wireless Module (6511)
Warranty
- Warranty: 1-year manufacturer warranty
The Traxxas TRX92056-4-RED TRX-4 Chevrolet K10 Cheyenne High Trail Edition in red is a 1/10 scale rock crawler engineered for drivers who demand elevated off-road performance, authentic scale detail, and rugged durability. This lifted trail crawler features a highly detailed Chevrolet K10 replica body mounted over a factory-installed Long Arm Lift Kit and oversized 2.2 inch Canyon Trail tyres. The result is a vehicle that stands over an inch taller than standard TRX-4 models, offering superior ground clearance and enhanced obstacle-clearing capability. With an extended 336mm wheelbase and steel ladder frame, the TRX-4 Chevrolet K10 Cheyenne High Trail Edition delivers a smoother, more stable ride across technical terrain while maintaining true-to-life proportions.
Key features of the Traxxas TRX92056-4-RED TRX-4 Chevrolet K10 Cheyenne High Trail Edition
- Long Arm Lift Kit – increased ride height for improved ground clearance and trail capability
- Extended 336mm wheelbase – enhanced climbing stability and scale realism
- Clipless body mounting – clean exterior lines with quick-release access to the chassis
- 2.2 inch mag wheels and Canyon Trail tyres – aggressive grip for technical terrain
- Steel ladder frame chassis – reinforced with nylon composite crossmembers for strength and durability
- Remote-locking differentials – adjustable traction control for varied trail conditions
- 2-speed transmission – remote shifting between high and low gear for versatile off-road driving
- XL-5 HV waterproof ESC – consistent brushed power delivery in all weather conditions
What makes the Long Arm Lift Kit essential for trail crawling?
The factory-installed Long Arm Lift Kit on the Traxxas TRX92056-4-RED TRX-4 Chevrolet K10 Cheyenne High Trail Edition raises the centre ground clearance by over an inch compared to standard TRX-4 configurations. This elevated stance allows the trail crawler to clear larger rocks, roots, and uneven terrain with ease. The lift kit works in harmony with the Canyon Trail tyres and 2.2 inch mag wheels to deliver improved approach angles and obstacle negotiation. Whether navigating steep inclines or crossing muddy bogs, the lifted profile gives drivers the confidence to tackle more demanding environments without compromising control or realism.
How does the extended 336mm wheelbase improve off-road stability?
The 336mm wheelbase of the Traxxas TRX-92056-4-RED with Long Arm Lift Kit and Canyon Trail tyres plays a critical role in its off-road capability. By lengthening the steel ladder frame, the model achieves better weight distribution and climbing stability. This extended layout reduces the likelihood of tipping during steep ascents and improves ride smoothness over rough terrain. The longer wheelbase also enhances the scale proportions of the Chevrolet K10 replica body, delivering both functional and visual benefits. Combined with the reinforced chassis structure, this configuration ensures reliable performance across challenging trail conditions.
Is the clipless body mounting system practical for trail use?
Absolutely. The clipless body mounting system on the Traxxas TRX92056-4-RED TRX-4 Chevrolet K10 Cheyenne High Trail Edition offers both aesthetic and functional advantages. The hidden latching mechanism eliminates visible body clips, resulting in a cleaner, more realistic appearance. On the trail, the body remains securely attached during aggressive driving but can be released in seconds for battery changes or maintenance. This system enhances convenience without sacrificing durability, making it ideal for users who value both scale realism and practical usability. The red finish complements the flowing lines of the body, reinforcing the truck’s visual impact.
How do the wheels and tyres enhance grip and control?
The 2.2 inch mag wheels and Canyon Trail tyres fitted to the Traxxas TRX-92056-4-RED with Long Arm Lift Kit and Canyon Trail tyres are engineered for aggressive off-road performance. The tyres measure 135mm in diameter and 54mm in width, offering a wide contact patch for enhanced grip. Their deep tread pattern allows the trail crawler to maintain traction on loose surfaces, rocks, and inclines. The wheels are paired with foam inserts for consistent performance and durability. Together, these components support the lifted stance and contribute to the truck’s ability to tackle complex trails with confidence.
Why is the drivetrain ideal for all-terrain conditions?
The drivetrain of the Traxxas TRX92056-4-RED TRX-4 Chevrolet K10 Cheyenne High Trail Edition features a shaft-driven 4WD system with remote-locking differentials and a 2-speed transmission. This configuration allows users to adjust traction and gearing on the fly, adapting to changing trail conditions. The XL-5 HV waterproof electronic speed control ensures reliable throttle response in wet environments, while the 21T reverse rotation motor delivers consistent brushed power. The electronic “Hill Hold” brake maintains position on steep inclines, and the chassis-mounted servo provides precise steering control. These systems work together to deliver a responsive and durable trail experience.
Affordable scale realism with premium trail features
The Traxxas TRX-92056-4-RED with Long Arm Lift Kit and Canyon Trail tyres offers an affordable way to experience premium trail crawling features. From its extended wheelbase and lifted stance to its clipless body and remote-shifting transmission, every detail is engineered for performance and realism. The red colour scheme adds bold styling to a truck that’s built for adventure. With a skill level rating of 1, this model is accessible to beginners while offering enough capability to satisfy experienced trail drivers. For those seeking the best combination of scale detail and off-road control, this trail crawler delivers.
Ready to explore technical terrain with elevated performance and scale realism? Buy Traxxas TRX-92056-4-RED with high ground clearance and 2-speed transmission today and experience the trail like never before.
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX92056-4-RED
- Product Type: Traxxas TRX92056-4-RED TRX-4 Chevrolet K10 Cheyenne High Trail Edition, Traxxas TRX-4 Chevrolet K10 Trail Crawler Red, Traxxas TRX-4 1:10 Scale Rock Crawler Red, Traxxas TRX-92056-4-RED with Long Arm Lift Kit and Canyon Trail tyres, Traxxas TRX-92056-4-RED with clipless body mounting and remote-locking differentials
- Product Colour: Red
Dimensions and Weight
- Length: 56.3 cm – extended chassis improves climbing stability and enhances scale proportions
- Front Track: 27.0 cm – wide stance supports balance and control on uneven terrain
- Rear Track: 27.0 cm – matched rear width ensures consistent handling across all surfaces
- Height (overall): 27.7 cm – accommodates lifted suspension and large tyres
- Wheelbase: 33.6 cm – extended wheelbase improves approach angles and trail performance
- Ground Clearance (centre): 9.9 cm – raised clearance from Long Arm Lift Kit for obstacle navigation
- Weight (without battery): 3.35 kg – lightweight yet durable for trail endurance
Wheels and Tyres
- Front Wheels: 5.6 cm x 3.4 cm – mag wheel design for scale accuracy and strength
- Rear Wheels: 5.6 cm x 3.4 cm – matched dimensions for balanced traction
- Front Tyres: 13.5 cm x 5.4 cm – Canyon Trail tread for aggressive grip on technical terrain
- Rear Tyres: 13.5 cm x 5.4 cm – foam inserts support consistent off-road performance
- Hex Size: 1.2 cm – standard fitment for wheel compatibility
Chassis and Suspension
- Chassis Structure: Steel ladder frame – reinforced with nylon composite crossmembers for rigidity and impact resistance
- Suspension: Long Arm Lift Kit – factory-installed to raise ride height and improve clearance
- Shock Length (Front and Rear): 11.0 cm – long-travel shocks for trail damping and articulation
Drivetrain and Transmission
- Drive System: Shaft-driven 4WD – delivers reliable traction across all four wheels
- Transmission: 2-speed high/low – remote shifting for adaptable crawling and trail cruising
- Differential Type: 4-gear remote-locking – adjustable grip for front and rear axles
- Gear Pitch: 32 pitch – durable gearing for brushed motor torque
- Brake Type: Electronic “Hill Hold” – maintains position on steep inclines
Motor and Electronics
- Motor Type: 21T reverse rotation brushed – reliable power for scale trail driving
- Speed Control: XL-5 HV waterproof ESC – supports NiMH and LiPo batteries with consistent throttle response
- Waterproofing: Fully waterproof electronics – enables all-weather operation and trail reliability
Control and Radio System
- Transmitter: TQi 2.4 GHz 4-channel – includes cruise control and remote gear shifting
- Receiver: Model 6533 – compatible with TQi transmitter and telemetry features
- Steering: Chassis-mounted servo – precise control with metal gear durability
- Servo Model: 2075X – high-torque metal gear for rugged terrain response
Battery and Power Requirements
- Battery Tray Dimensions: 15.88 cm x 4.7 cm x 2.3/2.6 cm – accommodates a range of NiMH and LiPo packs
- Battery Compatibility: 4–7 cell NiMH or 2s–3s LiPo – supports flexible power configurations
- Transmitter Power: Requires four AA alkaline batteries – easy to source and replace
Included in the Box
- TRX-4 Ready-To-Race model – fully assembled and equipped for trail use
- XL-5 HV waterproof electronic speed control – preinstalled and calibrated
- 21T reverse rotation brushed motor – factory-fitted for reliable performance
- TQi 2.4 GHz radio system – includes cruise control and remote shifting functions
- Maintenance tools – essential for adjustments and upkeep
Finance Options
Click to see Novuna Finance Information
Novuna Personal Finance Available on this product
| DEPOSIT |
MONTHS |
APR |
MONTHLY PAYMENTS |
TOTAL AMOUNT PAYABLE |
| 24 Month Credit |
| £51.30 |
24 |
19.9% |
24 x £23.11 |
£605.94 |
| 36 Months Credit |
| £51.30 |
36 |
19.9% |
36 x £16.76 |
£654.66 |
| 48 Months Credit |
| £51.30 |
48 |
19.9% |
48 x £13.63 |
£705.54 |
| Buy Now Pay Later 48 months (6 months Deferred) |
| £51.30 |
48 |
24.9% |
48 x £16.08 |
£823.14 |
| Buy Now Pay Later 48 months (10 months Deferred) |
| £51.30 |
48 |
24.9% |
48 x £17.00 |
£867.30 |
| Buy Now Pay Later 48 months (12 months Deferred) |
| £51.30 |
48 |
24.9% |
48 x £17.97 |
£913.86 |
We want to make sure your delivery goes smoothly, so here are some important details about our service:
- For orders above £120, we offer delivery to most mainland UK addresses. For orders under £120, we can still deliver to Northern Ireland and the outlying isles, as long as the item can be sent by Royal Mail, weighs less than 30kg, and fits within 61cm × 46cm × 46cm. Some highland and remote areas may carry an extra delivery charge as couriers often apply surcharges in these locations. If you live in one of these areas, feel free to contact us before ordering so we can confirm the delivery options and costs for you.
- Most of our products include delivery in the price. If your order is under £90, a small delivery fee will apply but do not worry this will always be clearly shown at checkout before you complete your purchase.
- Depending on what you choose at checkout, your order will usually be delivered either the next working day or within 2 working days. For next day delivery please place your order before 2:00pm. Orders are dispatched Monday to Friday only. Some items may take a little longer and if that is the case we will always show the expected delivery time on the product page.
- If your order includes items with different dispatch times we will normally wait and send everything together once all items are in stock. If one of the items is going to take a while we will give you the choice either wait for everything to arrive or let us send the available items now and deliver the rest later. It is up to you.
- We use trusted delivery partners to make sure your order gets to you safely and on time. We use DPD for next working day deliveries and Royal Mail for the 2 day option.
- As soon as your order is on its way we will send you a tracking number by email. If you provide your mobile number at checkout we will also send delivery updates straight to your phone so you can keep an eye on progress.
- If a product is marked as "Dispatched within 3 working days" delivery usually takes around 3 to 5 working days from when your order is placed.
- For customers in Inverness and other parts of the Scottish Highlands deliveries can take up to 2 working days even if you select next day delivery as couriers do not currently offer a guaranteed next day service to those areas.
