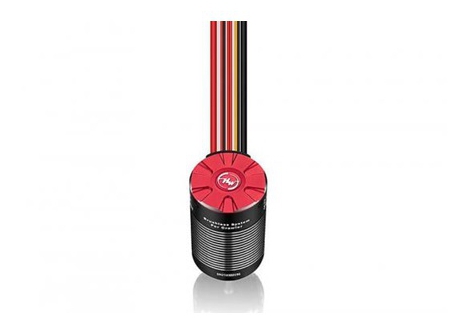

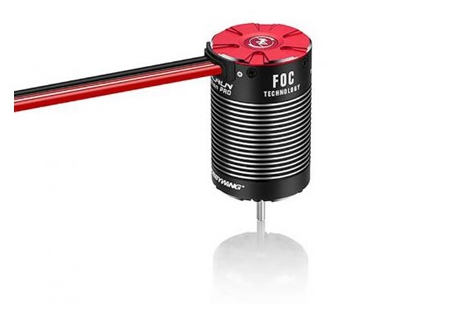

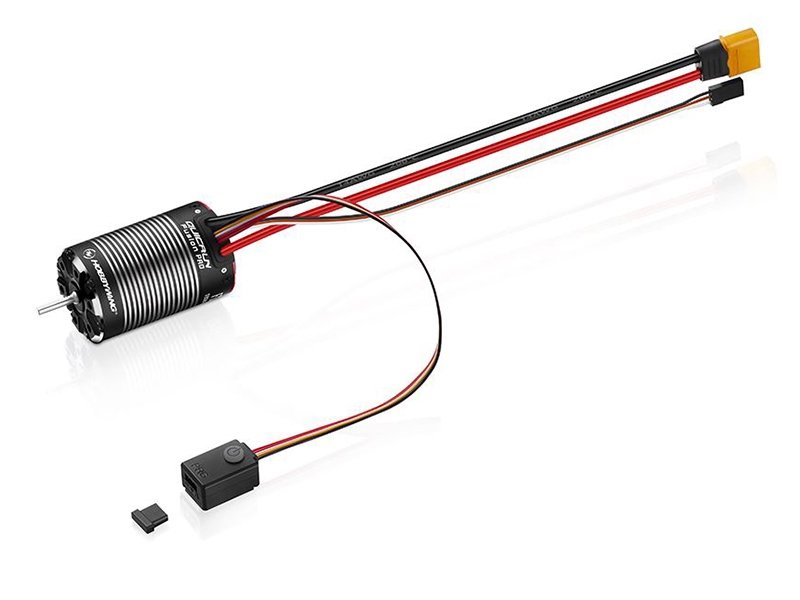

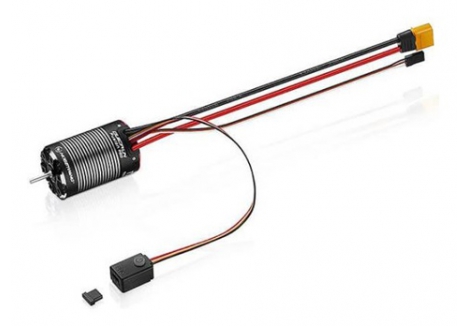

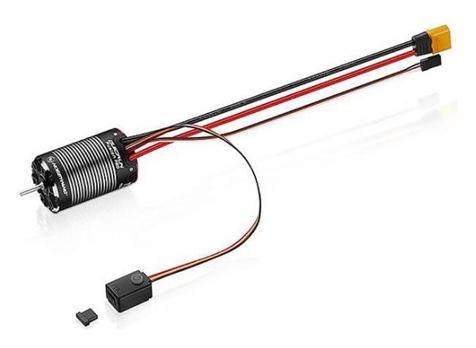

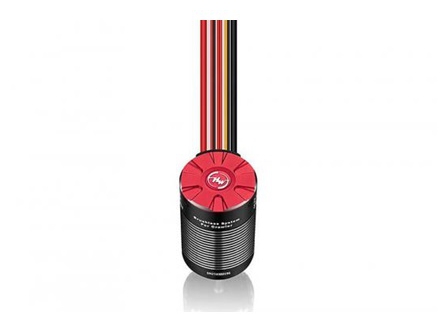

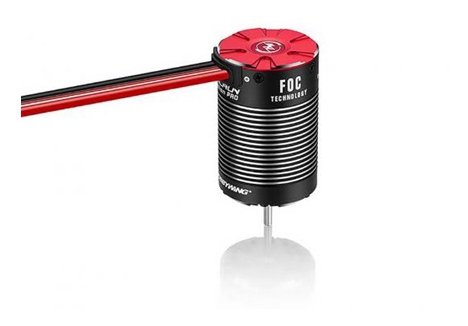

Introducing the Hobbywing QuicRun Fusion Pro. FOC Integrated Power System for Crawlers. (Field Oriented Control) All-in-one design for optimized length The design has been integrated and optimized to provide a cleaner and sleeker layout appearance. The overall length is now at 58mm and is 6mm
FOC Integrated Power System for Crawlers.
(Field Oriented Control)
All-in-one design for optimized length
The design has been integrated and optimized to provide a cleaner and sleeker layout appearance. The overall length is now at 58mm and is 6mm shorter than the previous version. Thes maller footprint has the same length as the AXE540L motor to provide for a spacious and an easy assembly process.
Supports three operating modes
Supports a variety of application needs such as the "constant speed mode (Forward and Reverse)", "normal mode (Forward and reverse with brake)" and "normal mode without constant speed function(Forward and Reverse)"
High Driving Efficiency for Long Battery Life
The FOC drive upgrade increases its entire power system efficiency by 8% while the power consumption loss is reduced by 30% compared with the previous generation. The new 2300KV fusion is significantly more powerful than the previous 1800KV version with an even lower temperature rise while climbing at low speed.
Intelligent Torque Output & Speed Closed-loop Control for Easy Control
The Fusion system is equipped with Intelligent Torque output and Closed loop speed control to maintain the motor’s RPM as the vehicle conditions changes. Regardless of going uphill, downhill or underload, the intelligent output torque senses the operation and allows for simple operation.
Refine parameter items
The ESC is equipped with 13 adjustable parameter items to meet the needs of fine-tuning adjustments. New parameters such as "MAX. Brake Force", "RPM Decrease Rate ", "start mode ( Punch)", "Neutral Range" and other practical parameters are included.
Professional Drag Brake Adjustments & Super Parking Capacity
Fusion pro is equipped with 8-speed drag brake force and 9-speed drag brake-rate adjustment to meet the needs of different models, different field and different handling habits. The maximum drag brake force is about twice of that to the brushless power system of the same size, providing superior parking capability on the slope.
Advanced and Secure Electronic Switch
Compared to the standard on/off switches, the dust, dirt, and waterproof switch housing ensures reliable and longer life. Heavy impact or harsh surface will no longer affect and damaged the switch, eliminating any unwanted damage. Users will be able to enjoy bashing their RC cars.
Type
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof
Specifications
Cont./Peak Current: 60A/200A
Input Voltage: 2-3S Lipo/6-9 Cell NiMH
BEC Output: Switch Mode:6V/7.4V?6A

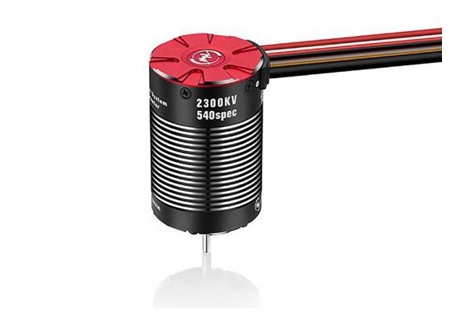

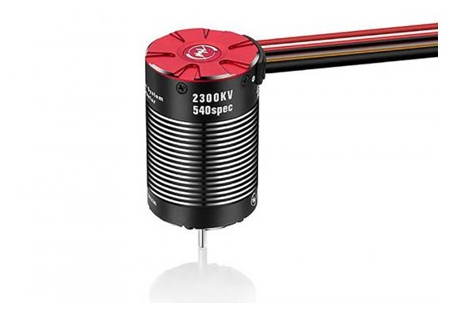

Motor KV: 2300KV
Diameter/length of Motor: 37mm / 58mmm
Shaft diameter / exposed shaft length: 3.175mm / 16mm
Motor Poles: 4
Wires & Connectors
Input Wires: Red-14AWG-330mm*1 / Black-14AWG-330mm*1
Input Connectors: XT60
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW30120402
- Product Type: Hobbywing HW30120402 Fusion Pro 2in1 ESC with 2300kV motor and FOC control, Hobbywing HW30120402 crawler system with 60A ESC and 6V/7.4V BEC, Hobbywing HW30120402 brushless combo with waterproof housing and XT60 plug, Hobbywing HW30120402 with intelligent torque output and closed-loop speed control, Hobbywing Fusion Pro ESC with 13 tuning parameters and 9-speed drag brake adjustment
- Product Colour: Black
Dimensions
- Motor Diameter: 3.7 cm – compact size allows easy integration into tight 1/10 crawler chassis
- Motor Length: 5.8 cm – optimized footprint for streamlined installation and improved space efficiency
- Shaft Diameter: 0.3175 cm – standard size for secure pinion gear compatibility
- Exposed Shaft Length: 1.6 cm – provides ample engagement for gear mounting
- Total Weight: 209 g – includes wires and connectors; balanced for stability and performance
Electrical and Performance Specifications
- Motor KV Rating: 2300KV – tuned for high torque and responsive low-speed crawling
- Motor Pole Count: 4 – ensures smooth and consistent torque delivery across terrain
- Continuous Current: 60A – supports sustained power output during extended climbs
- Peak Current: 200A – handles short bursts of torque for steep ascents and technical maneuvers
- Input Voltage Range: 2–3S LiPo / 6–9 cell NiMH – compatible with standard crawler battery configurations
BEC System
- BEC Type: Switch-mode – efficient power regulation for servo and accessory support
- BEC Output Voltage: Selectable between 6V and 7.4V – accommodates high-voltage servos used in 1/10 crawlers
- BEC Output Current: 6A – delivers consistent power to steering and auxiliary systems under load
Control and Tuning Features
- FOC Drive System: Enabled – provides ultra-silent operation and precise throttle modulation
- Torque Output: Intelligent – automatically adjusts based on terrain and load conditions
- Speed Regulation: Closed-loop control – maintains consistent RPM regardless of slope or resistance
- ESC Tuning Parameters: 13 adjustable settings – includes punch, brake force, RPM decay rate, and neutral range
- Drag Brake System: 9-speed rate adjustment – fine-tunes slope parking and descent control for technical terrain
Durability and Environmental Protection
- Waterproof Housing: Fully sealed – protects internal electronics from moisture, dust, and debris
- Electronic Switch: Impact-resistant and waterproof – ensures reliable operation in rugged outdoor environments
Wiring and Connectors
- Input Wires: 14AWG Red and Black – 33 cm length for flexible routing and secure power delivery
- Input Connector: XT60 – pre-installed for high-current compatibility and secure battery connection
Vehicle Compatibility
- Scale: 1/10 – designed for rock crawlers requiring precision control and torque stability
- Vehicle Type: Rock crawler – optimized for low-speed climbing, slope parking, and terrain adaptation
- Motor Type: Brushless sensored – ensures smooth throttle response and accurate speed control
What’s in the Box
- 1 × Hobbywing QUICRUN Fusion Pro 2300kV Sensored Brushless 2in1 ESC System
What You Require
- 2–3S LiPo or 6–9 cell NiMH battery pack
- Compatible 1/10 scale crawler chassis
Sold Separately
- ESC programming card (optional for advanced tuning)
Product Description of Hobbywing HW30120402 Fusion Pro 2in1 ESC with 2300kV motor and FOC control
The Hobbywing HW30120402 Fusion Pro 2in1 ESC with 2300kV motor and FOC control is a black, sensored brushless system engineered specifically for 1/10 scale rock crawlers. This integrated solution combines a 60A ESC and a 4-pole motor into a compact 58mm unit, streamlining installation while delivering exceptional low-speed control and torque output. Designed to meet the demands of technical crawling, slope stability, and terrain adaptation, the Hobbywing HW30120402 crawler system with 60A ESC and 6V/7.4V BEC introduces advanced field-oriented control (FOC) technology, intelligent torque management, and closed-loop speed regulation. These innovations ensure the motor maintains consistent RPM under changing loads, offering a smoother and more predictable driving experience across varied terrain.
Key features of the Hobbywing HW30120402 Fusion Pro
- FOC drive system – delivers ultra-silent operation and precise throttle modulation
- Compact 58mm integrated design – simplifies installation and improves chassis space efficiency
- Closed-loop speed control – maintains consistent RPM under load for smoother crawling
- Intelligent torque output – adapts to terrain changes for enhanced climbing and descent control
- Advanced drag brake tuning – includes 9-speed rate adjustment for slope parking stability
- Waterproof switch housing – protects against dust, debris, and impact damage
How does the FOC drive system enhance crawling performance?
The Hobbywing HW30120402 Fusion Pro 2in1 ESC with 2300kV motor and FOC control utilizes field-oriented control to deliver ultra-smooth and silent operation at low speeds. This technology enables precise modulation of torque and throttle, which is critical for rock crawling applications where subtle inputs and terrain feedback dictate performance. Compared to traditional brushless systems, the FOC drive in the Hobbywing HW30120402 brushless combo with waterproof housing and XT60 plug reduces noise and vibration, allowing for a more refined and controlled driving experience. The system’s ability to operate quietly and efficiently makes it ideal for scale builds and technical trail navigation.
Why is the compact 58mm design beneficial for 1/10 scale crawlers?
The integrated layout of the Hobbywing 2in1 crawler motor with 4-pole design and 58mm compact footprint offers significant advantages in space management and installation simplicity. By combining the ESC and motor into a single unit, the overall footprint is reduced by 6mm compared to previous versions, matching the dimensions of the AXE540L motor. This streamlined form factor allows for easier mounting in tight chassis configurations and frees up room for other components such as battery packs or scale accessories. The reduced wiring complexity also minimizes potential points of failure, improving reliability and ease of maintenance for hobbyists and competitive builders alike.
What role does closed-loop speed control play in terrain adaptation?
The Hobbywing HW30120402 with intelligent torque output and closed-loop speed control is engineered to maintain consistent motor RPM regardless of terrain changes or load fluctuations. This feature is especially valuable during uphill climbs, downhill descents, or when navigating uneven surfaces. The closed-loop system monitors motor performance in real time and adjusts output to ensure smooth and predictable behavior. Combined with the intelligent torque output, the ESC delivers responsive power that adapts to the crawler’s operational demands, reducing the need for constant throttle correction and improving overall drivability.
How does drag brake tuning improve slope parking and descent control?
The Hobbywing Fusion Pro ESC with 13 tuning parameters and 9-speed drag brake adjustment includes a highly customizable drag brake system designed to meet the needs of various terrain types and driving preferences. With eight levels of drag brake force and nine levels of drag brake rate, users can fine-tune the system to achieve optimal slope holding and downhill control. The maximum drag brake force is approximately double that of comparable brushless systems, providing superior parking capability on steep inclines. This level of control is essential for scale realism and technical crawling, where precise braking can prevent rollbacks and improve line accuracy.
What makes the waterproof switch housing more durable?
The Hobbywing HW30120402 brushless combo with waterproof housing and XT60 plug features a sealed electronic switch housed in a dustproof and impact-resistant casing. Unlike traditional mechanical switches that are prone to failure from moisture, debris, or physical damage, this advanced design ensures long-term reliability in harsh environments. The switch is engineered to withstand heavy impacts and surface abrasions, making it ideal for outdoor use where terrain conditions can be unpredictable. This added durability enhances the overall resilience of the system and reduces the likelihood of electrical failure during operation.
How does the Fusion Pro compare to previous generations?
Compared to its predecessor, the new Hobbywing HW30120402 crawler system with 60A ESC and 6V/7.4V BEC offers a significant upgrade in both power and efficiency. The 2300kV motor delivers more torque and climbing capability than the older 1800kV version, while operating at lower temperatures during extended use. The FOC drive system increases overall efficiency by 8% and reduces power consumption by 30%, resulting in longer runtimes and improved battery life. These enhancements make the Fusion Pro a compelling choice for builders seeking performance gains without sacrificing reliability or control.
Is the Hobbywing HW30120402 Fusion Pro suitable for competitive crawling?
Absolutely. The Hobbywing HW30120402 Fusion Pro 2in1 ESC with 2300kV motor and FOC control is designed to meet the demands of competitive 1/10 scale crawling. Its advanced control systems, compact design, and customizable parameters provide the precision and adaptability required for technical courses and timed challenges. The system’s ability to maintain consistent performance across varied terrain, combined with its silent operation and slope stability, makes it a top-tier choice for serious enthusiasts. Whether you're building for scale realism or performance competition, the Fusion Pro delivers the control and reliability needed to excel.
For builders seeking a high-efficiency, terrain-adaptive crawler system with advanced tuning capabilities, the affordable Hobbywing 2300kV crawler system with waterproof switch and 30% power savings offers exceptional value and performance. Buy Hobbywing HW30120402 Fusion Pro for 1/10 rock crawlers with silent FOC drive today.
Technical Specifications of Hobbywing HW30120402 Fusion Pro 2in1 ESC with 2300kV motor and FOC control
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW30120402
- Product Type: Hobbywing HW30120402 Fusion Pro 2in1 ESC with 2300kV motor and FOC control, Hobbywing HW30120402 crawler system with 60A ESC and 6V/7.4V BEC, Hobbywing HW30120402 brushless combo with waterproof housing and XT60 plug, Hobbywing HW30120402 with intelligent torque output and closed-loop speed control, Hobbywing Fusion Pro ESC with 13 tuning parameters and 9-speed drag brake adjustment
- Product Colour: Black
Dimensions
- Motor Diameter: 3.7 cm – compact size allows easy integration into tight 1/10 crawler chassis
- Motor Length: 5.8 cm – optimized footprint for streamlined installation and improved space efficiency
- Shaft Diameter: 0.3175 cm – standard size for secure pinion gear compatibility
- Exposed Shaft Length: 1.6 cm – provides ample engagement for gear mounting
- Total Weight: 209 g – includes wires and connectors; balanced for stability and performance
Electrical and Performance Specifications
- Motor KV Rating: 2300KV – tuned for high torque and responsive low-speed crawling
- Motor Pole Count: 4 – ensures smooth and consistent torque delivery across terrain
- Continuous Current: 60A – supports sustained power output during extended climbs
- Peak Current: 200A – handles short bursts of torque for steep ascents and technical maneuvers
- Input Voltage Range: 2–3S LiPo / 6–9 cell NiMH – compatible with standard crawler battery configurations
BEC System
- BEC Type: Switch-mode – efficient power regulation for servo and accessory support
- BEC Output Voltage: Selectable between 6V and 7.4V – accommodates high-voltage servos used in 1/10 crawlers
- BEC Output Current: 6A – delivers consistent power to steering and auxiliary systems under load
Control and Tuning Features
- FOC Drive System: Enabled – provides ultra-silent operation and precise throttle modulation
- Torque Output: Intelligent – automatically adjusts based on terrain and load conditions
- Speed Regulation: Closed-loop control – maintains consistent RPM regardless of slope or resistance
- ESC Tuning Parameters: 13 adjustable settings – includes punch, brake force, RPM decay rate, and neutral range
- Drag Brake System: 9-speed rate adjustment – fine-tunes slope parking and descent control for technical terrain
Durability and Environmental Protection
- Waterproof Housing: Fully sealed – protects internal electronics from moisture, dust, and debris
- Electronic Switch: Impact-resistant and waterproof – ensures reliable operation in rugged outdoor environments
Wiring and Connectors
- Input Wires: 14AWG Red and Black – 33 cm length for flexible routing and secure power delivery
- Input Connector: XT60 – pre-installed for high-current compatibility and secure battery connection
Vehicle Compatibility
- Scale: 1/10 – designed for rock crawlers requiring precision control and torque stability
- Vehicle Type: Rock crawler – optimized for low-speed climbing, slope parking, and terrain adaptation
- Motor Type: Brushless sensored – ensures smooth throttle response and accurate speed control
What’s in the Box
- 1 × Hobbywing QUICRUN Fusion Pro 2300kV Sensored Brushless 2in1 ESC System
What You Require
- 2–3S LiPo or 6–9 cell NiMH battery pack
- Compatible 1/10 scale crawler chassis
Sold Separately
- ESC programming card (optional for advanced tuning)
