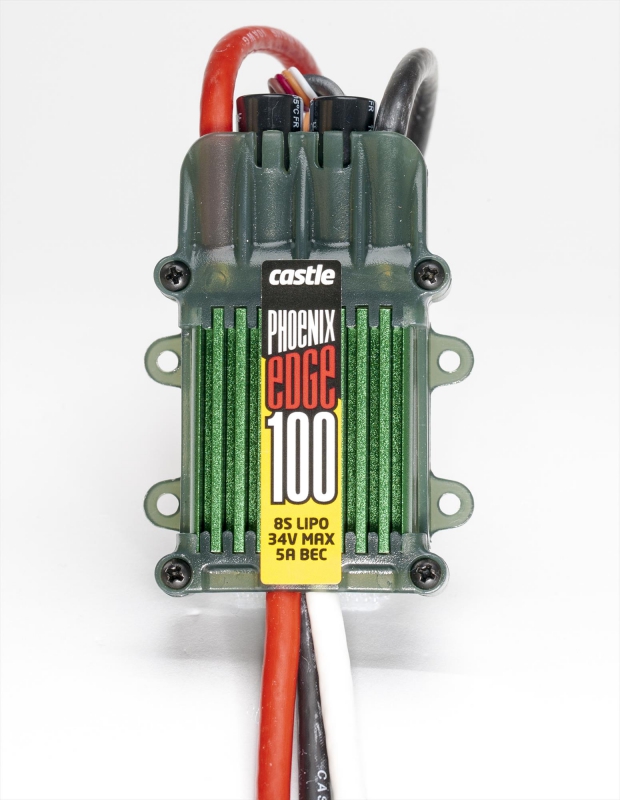

Product Description of Castle P-CC10000 Phoenix Edge 100 ESC with 100A continuous rating, 8S max input, and 5A BEC

The Castle P-CC10000 Phoenix Edge 100 ESC with 100A continuous rating, 8S max input, and 5A BEC is a compact, high-performance electronic speed controller engineered for 500–600 class helicopters and .40–.90 fixed-wing aircraft. Designed to deliver consistent power and intelligent control, this ESC supports up to 33.6V and integrates a selectable BEC voltage range from 5V to 8.4V. With telemetry compatibility, data logging, and advanced AUX wire functionality, the Castle P-CC10000 offers a complete solution for pilots seeking reliability, configurability, and safety in demanding flight environments. Whether you're flying aerobatics or managing rotor speed in a heli, this ESC provides the precision and resilience needed for confident operation.

Key features of the Castle P-CC10000 Phoenix Edge 100

• Selectable 5–8.4V BEC – supports a wide range of servos and onboard electronics
• Telemetry compatibility – enables real-time monitoring of voltage, temperature, and system status
• AUX wire functionality – supports RPM output, governor gain input, and arming lockout
• Data logging – captures performance metrics for post-flight analysis and optimization
• USB and Bluetooth programming – allows full access to firmware updates and tuning parameters
• Flashing LED alerts – provides visual feedback for fault detection and system diagnostics

Why is the Castle P-CC10000 ideal for mid-size helis and aerobatic aircraft?

The Castle P-CC10000 ESC for 500–600 class helis and .40–.90 fixed-wing aircraft with 33.6V max voltage is built to handle the power demands of mid-size platforms with precision and stability. Its 100A continuous current rating ensures reliable performance during full-throttle operation, while the 8S LiPo input capacity supports high-voltage configurations. The ESC’s compact dimensions (71.9mm length, 50.8mm width, 23.2mm depth) and lightweight design (126.6g with wires) allow for flexible installation in tight spaces. Whether you're executing aggressive maneuvers or maintaining rotor stability, the Castle P-CC10000 delivers the control and responsiveness needed for high-performance flight.

How does the selectable BEC enhance system compatibility?

The Castle P-CC10000 with 5–8.4V selectable BEC, 72g weight without wires, and 71.9mm length includes a user-configurable BEC that allows pilots to tailor voltage delivery to match servo specifications. The 5A peak output supports both standard and high-voltage digital servos, while the selectable voltage range ensures compatibility across diverse onboard systems. This flexibility eliminates the need for external regulators and simplifies wiring, making the ESC ideal for streamlined aircraft builds. For heli applications, Castle recommends using an external BEC or RX/servo power source to ensure optimal performance and redundancy.

What can the AUX wire do for advanced flight setups?

The Phoenix Edge 100 ESC with RPM output, governor gain input, and flashing LED alerts features a white AUX wire that unlocks multiple advanced functions. Pilots can use it to adjust helicopter governor gain mid-flight, output RPM data to compatible gyros, or activate an audible beacon after an unexpected landing. The AUX wire also supports ESC arming lockout, enhancing safety during setup and transport. When connected to a receiver channel programmed as an arm lock switch, the ESC will not arm until the channel signal exceeds 50%, preventing accidental activation. These features make the Castle P-CC10000 a flexible and intelligent control solution for serious flyers.

How does telemetry support improve flight safety?

The Castle telemetry-capable ESC with data logging, AUX wire, and Castle Link programmability integrates seamlessly with Castle Telemetry Link modules for S.BUS2 and X-BUS systems. This allows pilots to monitor ESC temperature, input voltage, and receiver battery status in real time. Audible alerts and LED codes provide immediate feedback on system health, helping prevent unexpected shutdowns or crashes. Telemetry data can also be used to fine-tune flight profiles and identify performance bottlenecks, making the Castle P-CC10000 a smart investment for safety-conscious flyers. Data logging further enhances post-flight analysis, enabling users to review RPM, voltage, and current trends for optimization.

Why is Castle Link programming essential for the Castle P-CC10000?

The Castle ESC for 2S–8S LiPo aircraft with USB and Bluetooth programming options includes a coupon for a free Castle Link USB adapter, giving users access to Castle’s full suite of programming features. Through the Castle Link Windows software or iOS app (with B-Link Bluetooth Adapter), pilots can adjust throttle curves, BEC voltage, and AUX wire functions. Firmware updates are available at no charge, and users can save multiple setup profiles for different aircraft. The intuitive interface and demo mode make it easy to explore features and restore factory defaults when needed. Manual programming via transmitter stick is also supported for basic adjustments.

What makes the Castle P-CC10000 a trusted choice for advanced aircraft?

The Castle programmable ESC with 33.6V max voltage, 5A peak BEC, and Castle Link USB access combines high-current capability, intelligent control features, and robust construction in one compact unit. Its telemetry integration, AUX wire versatility, and USB/Bluetooth programmability offer unmatched configurability for aerobatic and rotorcraft platforms. With built-in safety features like arming lockout and LED diagnostics, the Castle P-CC10000 ensures reliable operation across diverse flight environments. Whether you're flying precision maneuvers or managing rotor speed, this ESC delivers the power and control required for confident flight.

For pilots seeking a telemetry-capable, programmable solution with advanced safety and control features, the Castle P-CC10000 Phoenix Edge 100 ESC with 100A continuous rating, 8S max input, and 5A BEC is a proven choice. Buy Castle P-CC10000 Phoenix Edge 100 ESC for 500–600 class helis and aerobatic aircraft.

Technical Specifications of Castle P-CC10000 Phoenix Edge 100 ESC with 100A continuous rating, 8S max input, and 5A BEC

Brand, Model and Product Type

• Brand: Castle
• Model: P-CC10000
• Product Type: Castle P-CC10000 Phoenix Edge 100 ESC with 100A continuous rating, 8S max input, and 5A BEC, Castle P-CC10000 telemetry-capable ESC with data logging, AUX wire, and Castle Link programmability, Castle P-CC10000 ESC for 500–600 class helis and .40–.90 fixed-wing aircraft with 33.6V max voltage, Castle P-CC10000 with 5–8.4V selectable BEC, 72g weight without wires, and 71.9mm length, Castle ESC for 2S–8S LiPo aircraft with USB and Bluetooth programming options

Dimensions

• Length: 7.19 cm – compact footprint for mid-size helis and aerobatic aircraft
• Width: 5.08 cm – suitable for fuselage and canopy installations
• Depth: 2.32 cm – accommodates internal components and cooling design
• Weight (with wires): 126.6 g – robust build for high-current applications
• Weight (without wires): 72.9 g – lightweight for streamlined installations

Electrical and Performance Specifications

• Input Voltage Range: 2S–8S LiPo – supports up to 33.6V for high-voltage aircraft systems
• Max Continuous Amperage: 100A – delivers sustained power for demanding flight profiles
• Max Voltage: 33.6V – optimized for aerobatic and heli setups
• Internal BEC: Yes – integrated for streamlined power delivery
• BEC Voltage: Selectable from 5V to 8.4V – configurable to match servo requirements
• BEC Output: 5A peak – supports standard and high-voltage digital servos

Connectivity and Control Features

• Battery Connectors: Compatible with Castle 6.5mm polarized connectors – sold separately
• Motor Connectors: Supports 5.5mm bullets – sold separately or pre-installed on motor
• AUX Wire: Yes – enables RPM output, governor gain input, audible beacon, and arming lockout
• Castle Link Compatibility: Yes – USB programming supported via included coupon
• Bluetooth Programming: Supported via Castle Link iOS App and B-Link Bluetooth Adapter
• LED Alerts: Yes – flashing patterns indicate system status and fault conditions

Programming and Software

• Programmability: Fully programmable via Castle Link – includes access to firmware updates and expanded parameters
• Software Compatibility: Castle Link for Windows Vista, 7, 8, 10 – Mac users may use virtualization software
• Setup Profiles: Save and load configurations – supports multiple aircraft setups
• Factory Reset: Available – restore ESC to default settings via Castle Link

Telemetry and Data Logging

• Telemetry Capable: Yes – compatible with Castle Telemetry Link for S.BUS2 and X-BUS systems
• Data Logging: Yes – records performance metrics for post-flight analysis
• Recorded Metrics: ESC temperature, input voltage, RPM, and system alerts

Safety and Protection Features

• Arming Lockout: Yes – supports ESC and receiver arming lock via AUX wire
• Arm Lock Key: Included – prevents accidental arming during setup or transport
• RC Arm Lock: Enabled when AUX channel signal is below 50% – enhances safety

Application Guidelines

• Aircraft Compatibility: Designed for 500–600 class helicopters and .40–.90 fixed-wing aircraft
• Installation Notes: For heli setups, use external BEC or RX/servo power source (not included)
• Range Check: Always perform at full, half, and zero throttle before flight
• Futaba Transmitter Users: Must reverse throttle channel signal – refer to Futaba documentation

What’s in the Box

• 1 × Castle Phoenix Edge 100 ESC
• 1 × Coupon for Castle Link USB Adapter
• 1 × Coupon for Arming Lockout Key and Harness

What You Require / What You Will Need

• Battery connectors – Castle 6.5mm polarized recommended (sold separately)
• Motor connectors – 5.5mm bullets required (sold separately)
• Castle Link USB Adapter – redeemable via included coupon
• Windows PC for Castle Link software – required for programming and firmware updates

Sold Separately

• Castle Telemetry Link for S.BUS2 or X-BUS – required for telemetry integration
• B-Link Bluetooth Adapter – optional for mobile programming via iOS
