Brand, Model and Product Type

• Brand: Castle
• Model: P-CC013100
• Product Type: Castle P-CC013100 Talon 120HV ESC with 20A peak BEC, 12S max input, and telemetry support, Castle P-CC013100 high-voltage ESC for heli and fixed-wing setups with 6000W continuous power, Castle P-CC013100 aluminum-case ESC with selectable 6V/8V BEC and Castle Link programmability, Castle P-CC013100 with built-in 5.5mm bullets, 120A continuous rating, and 50.4V max voltage, Castle ESC for 3S–12S LiPo aircraft with USB programming and flashing LED alerts

Dimensions

• Length: 10.54 cm – compact enough for fuselage and canopy installations
• Width: 5.11 cm – allows flexible mounting across heli and fixed-wing platforms
• Depth: 2.04 cm – slim profile supports airflow and optional fan integration
• Weight (with wires): 186 g – lightweight for high-power aircraft without compromising durability

Electrical and Performance Specifications

• Input Voltage Range: 3S–12S LiPo – supports up to 50.4V for high-voltage flight systems
• Max Continuous Amperage: 120A – delivers up to 6000W of sustained power
• Max Voltage: 50.4V – suitable for advanced heli and fixed-wing configurations
• Internal BEC: Yes – integrated for streamlined power delivery to servos
• BEC Voltage: Selectable 6V or 8V – configurable to match servo requirements
• BEC Output: 10A continuous, 20A peak – supports high-draw digital servos and onboard systems

Connectivity and Control Features

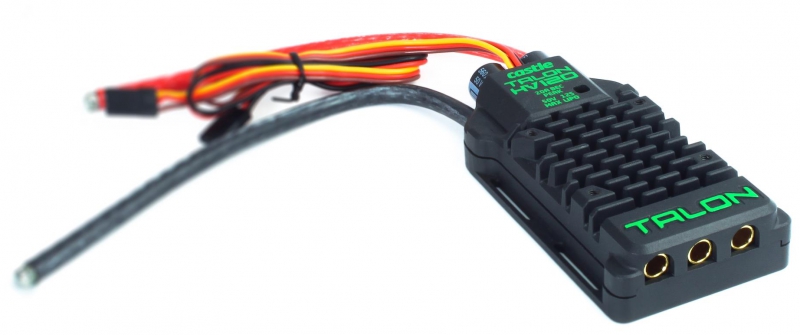

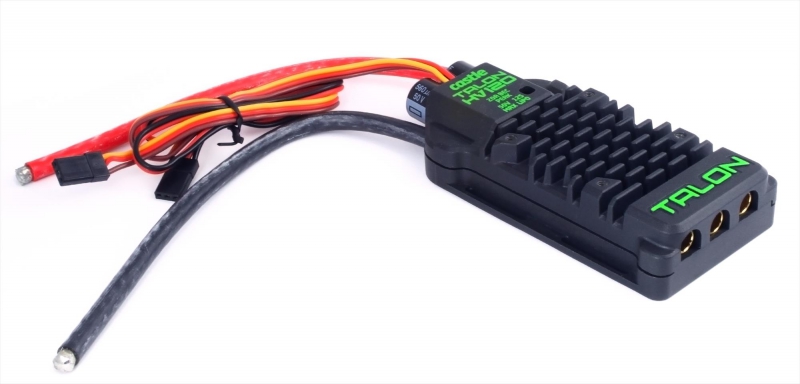

• Motor Connectors: Built-in 5.5mm female bullets – matching male bullets included for secure installation
• Battery Connector: Not included – must be selected based on current requirements
• Castle Link Compatibility: Yes – USB programming supported via included coupon for Castle Link adapter
• Telemetry Capable: Yes – compatible with Castle Telemetry Link for S.BUS2 and X-BUS systems
• LED Alerts: Yes – flashing patterns indicate system status and fault conditions

Cooling and Installation

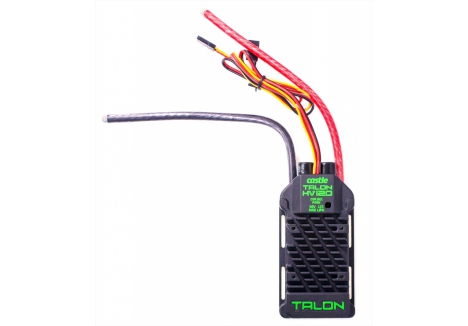

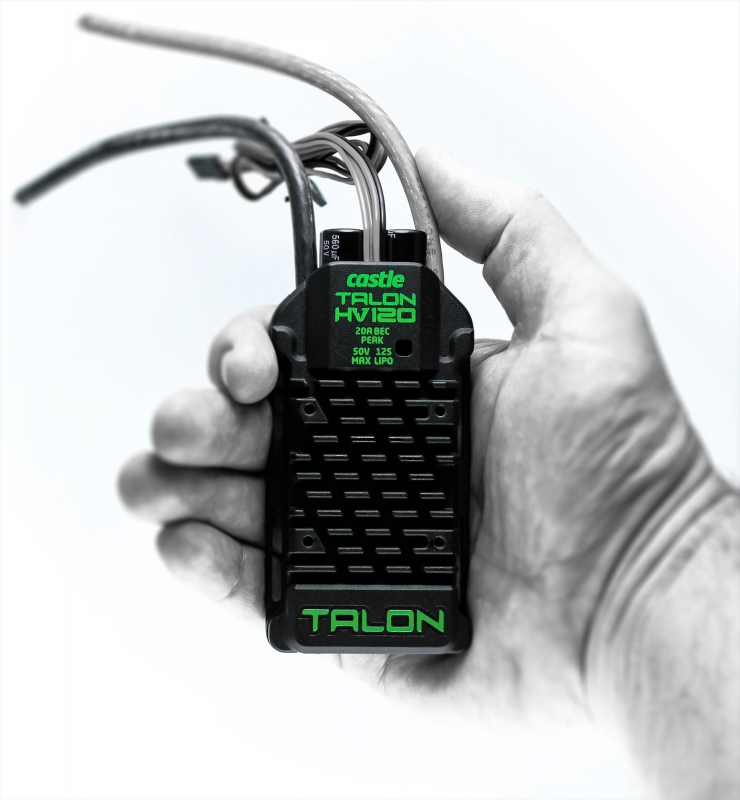

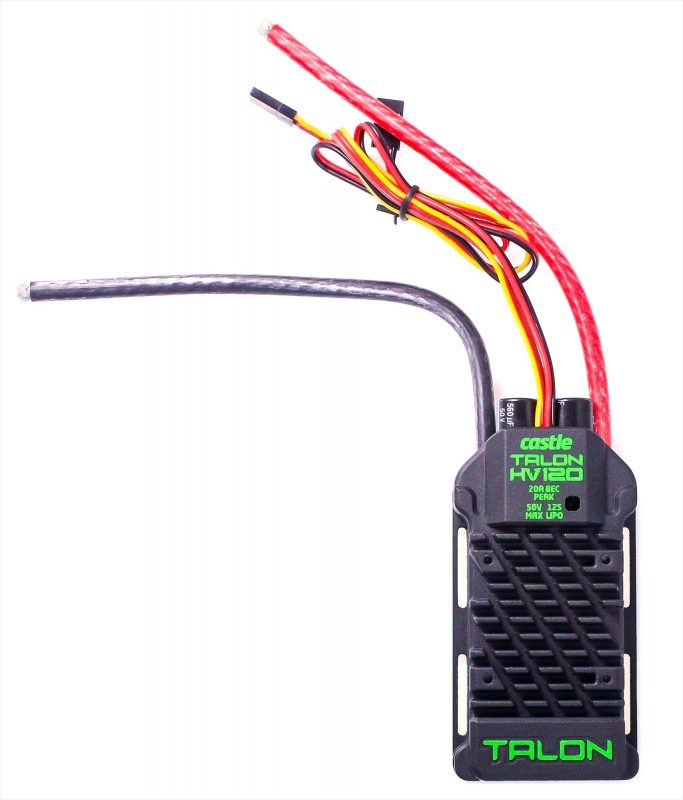

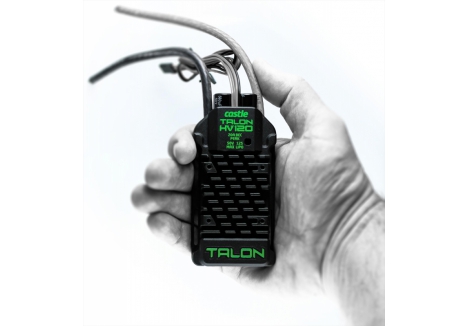

• ESC Housing: CNC-machined aluminum case – promotes heat dissipation and structural integrity
• Optional Cooling Fan: 40mm fan (sold separately) – recommended for enclosed or low-airflow setups
• Mounting Considerations: Suitable for fuselage and canopy installations – compact dimensions support versatile placement

Programming and Software

• Programmability: Fully programmable via Castle Link – includes access to firmware updates and expanded parameters
• Software Compatibility: Castle Link for Windows Vista, 7, 8, 10 – Mac users may use virtualization software
• Setup Profiles: Save and load configurations – supports multiple aircraft setups
• Factory Reset: Available – restore ESC to default settings via Castle Link

What’s in the Box

• 1 × Castle Talon 120HV ESC
• 1 × Set of matching 5.5mm male bullets
• 1 × Coupon for Castle Link USB Adapter

What You Require / What You Will Need

• Battery connectors – sold separately, must support required current draw
• Castle Link USB Adapter – redeemable via included coupon
• Windows PC for Castle Link software – required for programming and firmware updates

Sold Separately

• Castle Link USB Adapter (if coupon not redeemed)
• Castle Telemetry Link for S.BUS2 or X-BUS – required for telemetry integration
• Optional 40mm cooling fan – recommended for enclosed installations

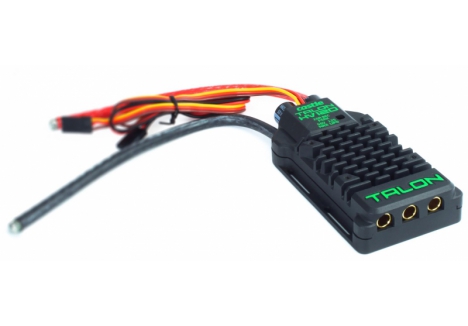

Product Description of Castle P-CC013100 Talon 120HV ESC with 20A peak BEC, 12S max input, and telemetry support

The Castle P-CC013100 Talon 120HV ESC with 20A peak BEC, 12S max input, and telemetry support is a high-voltage powerhouse engineered for demanding heli and fixed-wing aircraft setups. Designed to deliver up to 6000W of continuous power, this ESC combines robust construction, intelligent control, and flexible programmability. With a 120A continuous current rating and a selectable 6V/8V BEC, the Castle P-CC013100 offers precision voltage regulation for high-draw servos and onboard systems. Its sleek aluminum case ensures efficient heat dissipation, while telemetry compatibility and USB programming support make it a versatile solution for advanced flight configurations.

Key features of the Castle P-CC013100 Talon 120HV

• Selectable 6V/8V BEC – supports a wide range of servos and onboard electronics
• Built-in 5.5mm motor bullets – ensures secure and efficient power delivery
• Telemetry support – enables real-time monitoring of voltage, temperature, and system status
• USB programming via Castle Link – allows full access to firmware updates and tuning parameters
• Flashing LED alerts – provides visual feedback for system diagnostics and safety
• Optional 40mm fan – enhances cooling in enclosed or low-airflow installations

What makes the Castle P-CC013100 ideal for high-voltage aircraft?

The Castle P-CC013100 high-voltage ESC for heli and fixed-wing setups with 6000W continuous power is built to handle extreme electrical loads with precision and reliability. Its 12S LiPo input capacity and 50.4V max voltage rating make it suitable for large-scale aircraft requiring sustained power delivery. The 120A continuous rating ensures consistent performance during full-throttle operation, while the integrated BEC provides up to 20A peak output to support high-torque servos and flight systems. Whether mounted under a canopy or within a fuselage, the Castle P-CC013100 maintains thermal stability thanks to its aluminum housing and optional cooling fan.

How does the selectable BEC enhance system flexibility?

The Castle P-CC013100 aluminum-case ESC with selectable 6V/8V BEC and Castle Link programmability features a user-configurable BEC that allows pilots to choose between 6V and 8V output. This flexibility ensures compatibility with a wide range of servos and onboard electronics, from standard analog units to high-voltage digital systems. The BEC delivers 10A continuous and 20A peak output, making it one of the most capable internal regulators available in the hobby market. Before flight, users should verify servo draw to ensure safe operation, especially in high-demand configurations.

Why is telemetry support important for flight safety?

The Talon 120HV ESC with 10A continuous BEC, telemetry link support, and optional 40mm fan includes telemetry compatibility for both Futaba S.BUS2 and Spektrum X-BUS systems. When paired with the appropriate Castle Telemetry Link module, users can monitor critical flight data such as ESC temperature, input voltage, and receiver battery status in real time. This capability reduces the risk of unexpected shutdowns and allows pilots to respond proactively to system alerts. Audible warnings and flashing LED codes further enhance situational awareness, making the Castle P-CC013100 a smart choice for safety-conscious flyers.

How does Castle Link improve programming and diagnostics?

The Castle ESC for 3S–12S LiPo aircraft with USB programming and flashing LED alerts is fully compatible with Castle Link software, which provides access to expanded programming parameters and firmware updates. Users can adjust throttle curves, BEC voltage, and other settings via a Windows PC using the included USB adapter coupon. Castle Link also enables profile saving, factory resets, and demo mode functionality. While data logging is not supported on this model, telemetry integration and LED alerts provide sufficient feedback for most flight scenarios. Always disconnect the BEC power wire before connecting to Castle Link to avoid hardware damage.

What installation considerations should pilots keep in mind?

The Castle P-CC013100 with built-in 5.5mm bullets, 120A continuous rating, and 50.4V max voltage includes integrated 5.5mm female motor connectors and matching male bullets for quick setup. Battery connectors are sold separately and must be selected based on current requirements. For motors with stiff wires, Castle recommends using flexible silicone extensions to prevent stress on the ESC terminals. The optional 40mm fan operates between 4.8V and 7.4V and is recommended for installations with limited airflow. The ESC’s compact dimensions (105.4mm length, 51.1mm width, 20.4mm depth) allow for versatile mounting across various aircraft platforms.

Why is the Castle P-CC013100 a trusted choice for serious pilots?

The best 12S ESC with 20A peak BEC, telemetry support, and Castle Link USB programming combines high-voltage capability, intelligent control, and robust construction in one compact unit. With telemetry integration, selectable BEC output, and USB programmability, this ESC offers the flexibility and reliability needed for advanced flight systems. Its aluminum case and optional fan ensure thermal stability, while built-in motor connectors simplify installation. Whether you're flying a high-performance heli or a precision fixed-wing aircraft, the Castle P-CC013100 delivers the power and control required for confident flight.

For pilots seeking a high-voltage, telemetry-capable solution with flexible programming and robust performance, the Castle P-CC013100 Talon 120HV ESC with 20A peak BEC, 12S max input, and telemetry support is a proven choice. Buy Castle P-CC013100 Talon 120HV ESC for 6000W heli and fixed-wing power systems.

Technical Specifications of Castle P-CC013100 Talon 120HV ESC with 20A peak BEC, 12S max input, and telemetry support

Brand, Model and Product Type

• Brand: Castle
• Model: P-CC013100
• Product Type: Castle P-CC013100 Talon 120HV ESC with 20A peak BEC, 12S max input, and telemetry support, Castle P-CC013100 high-voltage ESC for heli and fixed-wing setups with 6000W continuous power, Castle P-CC013100 aluminum-case ESC with selectable 6V/8V BEC and Castle Link programmability, Castle P-CC013100 with built-in 5.5mm bullets, 120A continuous rating, and 50.4V max voltage, Castle ESC for 3S–12S LiPo aircraft with USB programming and flashing LED alerts

Dimensions

• Length: 10.54 cm – compact enough for fuselage and canopy installations
• Width: 5.11 cm – allows flexible mounting across heli and fixed-wing platforms
• Depth: 2.04 cm – slim profile supports airflow and optional fan integration
• Weight (with wires): 186 g – lightweight for high-power aircraft without compromising durability

Electrical and Performance Specifications

• Input Voltage Range: 3S–12S LiPo – supports up to 50.4V for high-voltage flight systems
• Max Continuous Amperage: 120A – delivers up to 6000W of sustained power
• Max Voltage: 50.4V – suitable for advanced heli and fixed-wing configurations
• Internal BEC: Yes – integrated for streamlined power delivery to servos
• BEC Voltage: Selectable 6V or 8V – configurable to match servo requirements
• BEC Output: 10A continuous, 20A peak – supports high-draw digital servos and onboard systems

Connectivity and Control Features

• Motor Connectors: Built-in 5.5mm female bullets – matching male bullets included for secure installation
• Battery Connector: Not included – must be selected based on current requirements
• Castle Link Compatibility: Yes – USB programming supported via included coupon for Castle Link adapter
• Telemetry Capable: Yes – compatible with Castle Telemetry Link for S.BUS2 and X-BUS systems
• LED Alerts: Yes – flashing patterns indicate system status and fault conditions

Cooling and Installation

• ESC Housing: CNC-machined aluminum case – promotes heat dissipation and structural integrity
• Optional Cooling Fan: 40mm fan (sold separately) – recommended for enclosed or low-airflow setups
• Mounting Considerations: Suitable for fuselage and canopy installations – compact dimensions support versatile placement

Programming and Software

• Programmability: Fully programmable via Castle Link – includes access to firmware updates and expanded parameters
• Software Compatibility: Castle Link for Windows Vista, 7, 8, 10 – Mac users may use virtualization software
• Setup Profiles: Save and load configurations – supports multiple aircraft setups
• Factory Reset: Available – restore ESC to default settings via Castle Link

What’s in the Box

• 1 × Castle Talon 120HV ESC
• 1 × Set of matching 5.5mm male bullets
• 1 × Coupon for Castle Link USB Adapter

What You Require / What You Will Need

• Battery connectors – sold separately, must support required current draw
• Castle Link USB Adapter – redeemable via included coupon
• Windows PC for Castle Link software – required for programming and firmware updates

Sold Separately

• Castle Link USB Adapter (if coupon not redeemed)
• Castle Telemetry Link for S.BUS2 or X-BUS – required for telemetry integration
• Optional 40mm cooling fan – recommended for enclosed installations
