Brand, Model and Product Type

• Brand: Castle Creations
• Model: P-CC010-0155-00
• Product Type: Castle P-CC010-0155-00 Mamba X ESC with 2S–6S input, 8A peak BEC, and SmartSense™ mode, Castle P-CC010-0155-00 waterproof ESC with telemetry, datalogging, and sensorless/sensored motor support, Castle P-CC010-0155-00 programmable ESC with 4mm bullet connectors and 12AWG silicone wires, Castle P-CC010-0155-00 with CNC aluminum case, removable fan, and 30V max input protection, Mamba X ESC with AUX wire tuning, S.BUS2 telemetry link, and Castle Link USB/B-Link app support, Castle ESC for 1/8 scale buggies up to 9lbs with 4S max and 1512–1515 motor compatibility

Input and Power Specifications

• Input Voltage Range: 2S–6S LiPo (7.4V–25.2V max)
• Maximum Input Voltage: 25.2V – protected against overvoltage damage
• BEC Output: Adjustable 5.5V, 6.0V, 7.5V, or 8.0V (8A peak)
• Recommended Battery Capacity: 5000mAh minimum for 1/10 and 1/8 scale vehicles
• Recommended Battery Type: LiPo with 30C continuous discharge or higher

Motor Compatibility

• Motor Support: Sensored, Sensorless, and SmartSense™ brushless motors
• Recommended Motors: Castle 1512–1800Kv and 1515–2200Kv for 1/8 scale setups
• Motor Connectors: 4.0mm female bullet connectors

ESC Features and Capabilities

• Programmability: Fully programmable via Castle Link USB or B-Link Bluetooth Adapter
• Telemetry Capable: Yes – compatible with Futaba T4PX and T7PX via S.BUS2
• Data Logging: Yes – records RPM, voltage, temperature, throttle input, and more
• AUX Wire: Yes – enables real-time tuning from transmitter
• Brake: Proportional – adjustable drag and max brake settings
• Reversible: Yes – can be disabled for racing applications
• On/Off Switch: Yes – integrated for easy power control

Construction and Cooling

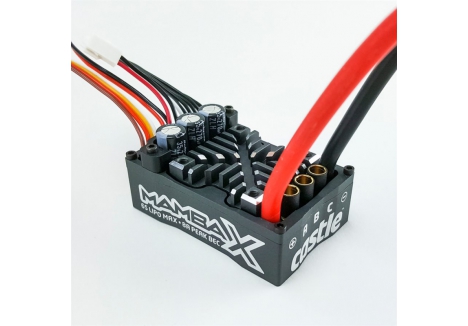

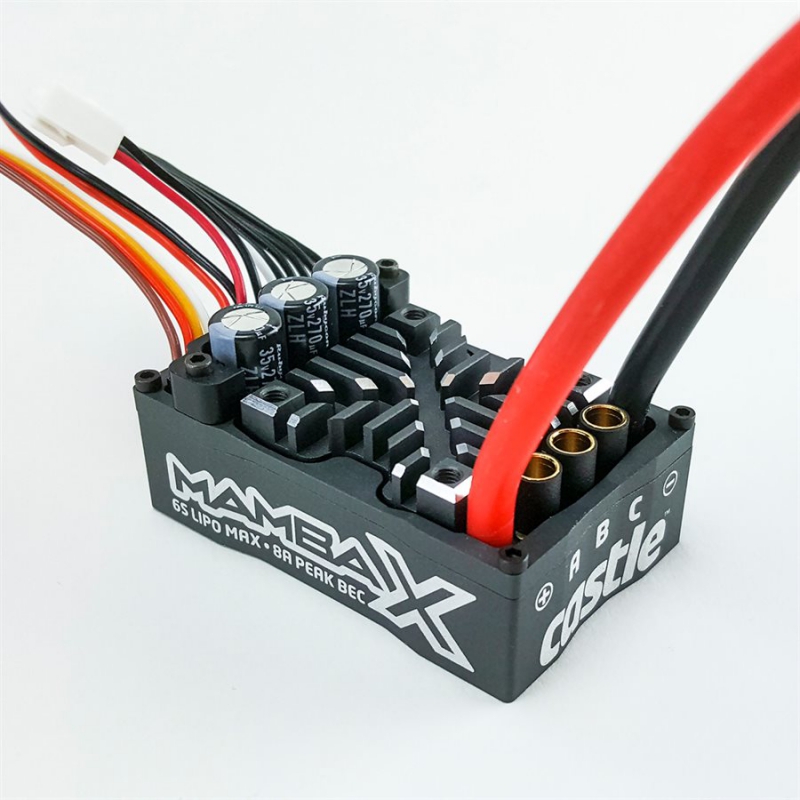

• Case Material: CNC-machined aluminum with waterproof epoxy potting

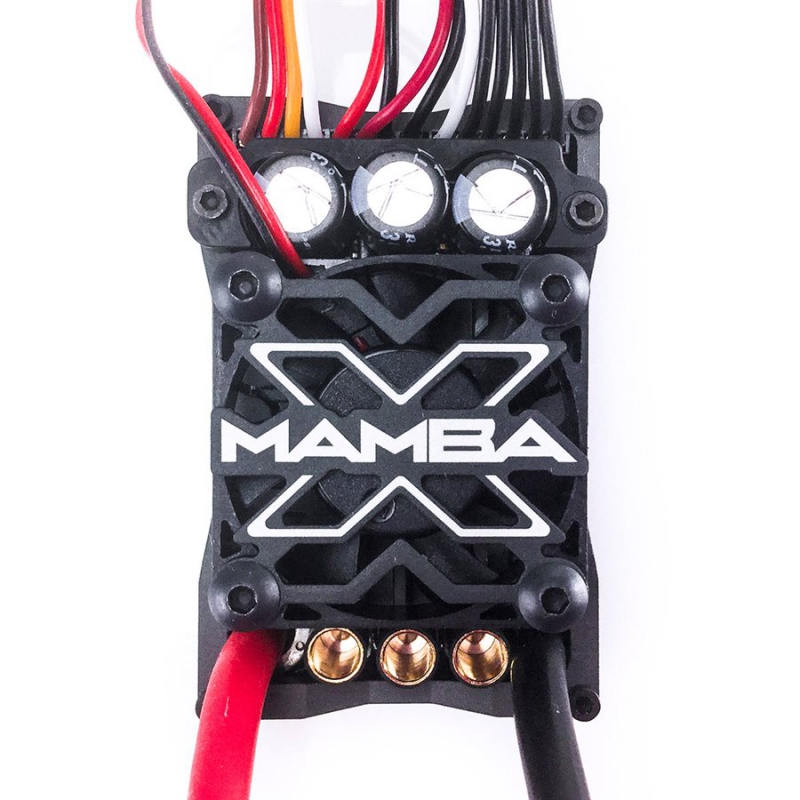

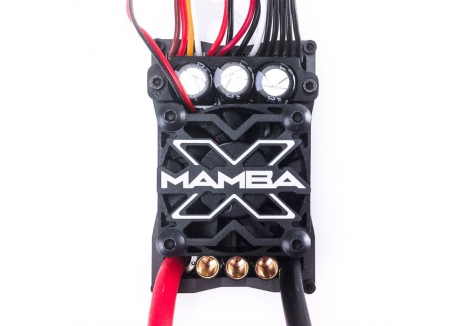

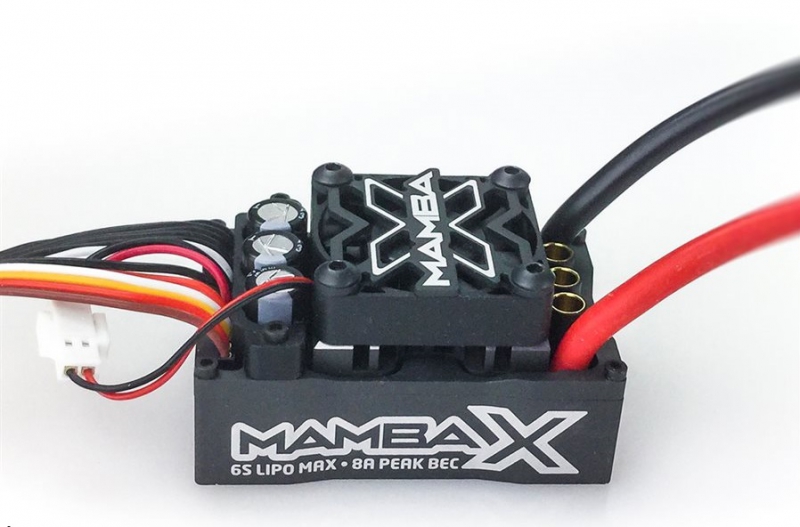

• Cooling Fan: 30mm thermally controlled, removable (not waterproof)
• Power Wires: 12AWG high-strand silicone-coated copper
• Integrated Capacitors: Yes – for voltage stability under load

Dimensions and Weight

• Length: 2.14" (54.4mm)
• Width: 1.39" (35.2mm)
• Height: 1.18" (30.0mm)
• Weight (with wires): 3.56 oz. (101g)

Application Guidelines

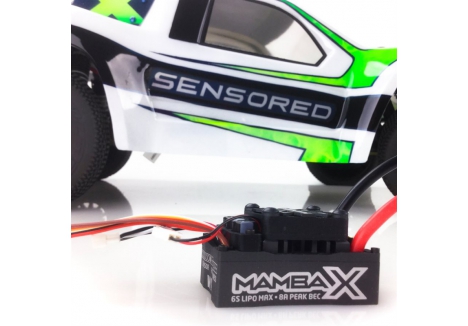

• Vehicle Type: 1/8 scale off-road buggies and high-performance setups
• Max Vehicle Weight: Up to 9lbs (4kg) ready-to-run
• Max Voltage for 1/8 Scale: 4S LiPo (16.8V)
• ESC Certification: ROAR and RECON G6 approved

Connectivity and Software

• Castle Link Support: Yes – USB and Bluetooth via B-Link Adapter
• Mobile App: Castle Link App for iOS and Android (free download)
• Firmware Updates: Yes – free via Castle Link software

Included in the Box

• 1 × Mamba X ESC with sensor harness
• 1 × Driver’s Ed Guide / Quick Start Guide
• 1 × Mamba Decal Sheet

Sold Separately

• Castle Link USB Programming Kit
• B-Link Bluetooth Adapter
• Battery connectors (Castle 6.5mm, Castle 4.0mm, Traxxas®, or Deans® Ultra Plugs)

Product Description of Castle P-CC010-0155-00 Mamba X ESC with 2S–6S input, 8A peak BEC, and SmartSense™ mode

The Castle P-CC010-0155-00 Mamba X ESC with 2S–6S input, 8A peak BEC, and SmartSense™ mode is a fully programmable, waterproof electronic speed controller designed for high-performance 1/8 scale RC buggies and off-road platforms. Engineered with advanced telemetry, datalogging, and real-time tuning capabilities, this ESC delivers precision control and robust power handling in demanding environments. Whether you're racing competitively or pushing your setup to the limit, the Mamba X offers seamless integration with sensored and sensorless brushless motors, making it a versatile and intelligent upgrade for serious RC enthusiasts.

Key features of the Castle P-CC010-0155-00

• Wide 2S–6S input range – supports up to 25.2V for flexible power setups
• SmartSense™ mode – combines smooth sensored startups with efficient sensorless running
• 8A peak adjustable BEC – programmable from 5.5V to 8.0V for servo and receiver optimization
• Telemetry and datalogging – captures real-time performance data for diagnostics and tuning
• Waterproof CNC aluminum case – rugged design with epoxy potting for all-weather use
• Removable 30mm cooling fan – thermally controlled for efficient heat management
• Castle Link and B-Link app support – USB and Bluetooth programming options for full customization
• AUX wire tuning – allows on-the-fly adjustments via transmitter input

How does SmartSense™ mode improve motor control?

The Castle P-CC010-0155-00 waterproof ESC with telemetry, datalogging, and sensorless/sensored motor support features SmartSense™ mode, which uses motor sensors for smooth startups and low-speed precision. Once the motor is in motion, the ESC transitions to sensorless mode with electronic timing, maximizing efficiency and reducing heat. This hybrid approach ensures consistent torque delivery and responsive throttle control across all driving conditions, making it ideal for off-road racing and technical terrain.

What makes the BEC system so versatile?

The integrated BEC in the Castle P-CC010-0155-00 programmable ESC with 4mm bullet connectors and 12AWG silicone wires delivers up to 8A peak current and is adjustable between 5.5V and 8.0V. This flexibility allows users to fine-tune voltage output for high-torque servos, advanced receivers, and telemetry systems. Whether you're running lightweight setups or power-hungry electronics, the BEC ensures stable voltage delivery and protects against brownouts during peak loads.

How does telemetry and datalogging enhance performance?

Enabled by default, the Castle ESC with datalogging, telemetry, and programmable throttle/brake profiles records key performance metrics such as motor RPM, ESC temperature, battery voltage, and throttle input. This data can be reviewed via Castle Link or the B-Link app, allowing users to analyze run conditions and optimize gearing, throttle curves, and braking profiles. Real-time telemetry support with Futaba transmitters adds another layer of insight, helping drivers monitor system health and make informed adjustments on the fly.

Is the Castle P-CC010-0155-00 built for durability?

The Castle P-CC010-0155-00 with CNC aluminum case, removable fan, and 30V max input protection is designed to withstand harsh environments and high-current demands. Its CNC-machined aluminum housing is potted in waterproof epoxy, protecting internal components from moisture, dust, and vibration. The removable 30mm fan provides active cooling during intense runs, while integrated capacitors and 12AWG silicone wires ensure reliable current flow. Audible and LED alerts notify users of common issues like over-temperature and low-voltage cutoff, adding diagnostic convenience to its rugged build.

What makes this ESC ideal for 1/8 scale buggies?

The Castle ESC for 1/8 scale buggies up to 9lbs with 4S max and 1512–1515 motor compatibility is optimized for off-road racing platforms that demand precision and power. It supports up to 4S LiPo in 1/8 setups and is recommended for use with Castle’s 1512–1800Kv or 1515–2200Kv motors. With full programmability via Castle Link and real-time tuning through the AUX wire, drivers can adjust throttle, brake, and drag settings mid-run. ROAR and RECON G6 certification ensures competitive compliance and performance reliability.

Why choose the Castle P-CC010-0155-00 for your next build?

The Castle P-CC010-0155-00 Mamba X ESC with 2S–6S input, 8A peak BEC, and SmartSense™ mode offers a complete solution for drivers who demand intelligent control, robust power delivery, and advanced customization. With waterproof construction, telemetry integration, and support for both USB and Bluetooth programming, this ESC adapts to any terrain and driving style. Buy Castle P-CC010-0155-00 Mamba X ESC for off-road RC buggies and high-performance setups.

Technical Specifications of Castle P-CC010-0155-00 Mamba X ESC with 2S–6S input, 8A peak BEC, and SmartSense™ mode

Brand, Model and Product Type

• Brand: Castle Creations
• Model: P-CC010-0155-00
• Product Type: Castle P-CC010-0155-00 Mamba X ESC with 2S–6S input, 8A peak BEC, and SmartSense™ mode, Castle P-CC010-0155-00 waterproof ESC with telemetry, datalogging, and sensorless/sensored motor support, Castle P-CC010-0155-00 programmable ESC with 4mm bullet connectors and 12AWG silicone wires, Castle P-CC010-0155-00 with CNC aluminum case, removable fan, and 30V max input protection, Mamba X ESC with AUX wire tuning, S.BUS2 telemetry link, and Castle Link USB/B-Link app support, Castle ESC for 1/8 scale buggies up to 9lbs with 4S max and 1512–1515 motor compatibility

Input and Power Specifications

• Input Voltage Range: 2S–6S LiPo (7.4V–25.2V max)
• Maximum Input Voltage: 25.2V – protected against overvoltage damage
• BEC Output: Adjustable 5.5V, 6.0V, 7.5V, or 8.0V (8A peak)
• Recommended Battery Capacity: 5000mAh minimum for 1/10 and 1/8 scale vehicles
• Recommended Battery Type: LiPo with 30C continuous discharge or higher

Motor Compatibility

• Motor Support: Sensored, Sensorless, and SmartSense™ brushless motors
• Recommended Motors: Castle 1512–1800Kv and 1515–2200Kv for 1/8 scale setups
• Motor Connectors: 4.0mm female bullet connectors

ESC Features and Capabilities

• Programmability: Fully programmable via Castle Link USB or B-Link Bluetooth Adapter
• Telemetry Capable: Yes – compatible with Futaba T4PX and T7PX via S.BUS2
• Data Logging: Yes – records RPM, voltage, temperature, throttle input, and more
• AUX Wire: Yes – enables real-time tuning from transmitter
• Brake: Proportional – adjustable drag and max brake settings
• Reversible: Yes – can be disabled for racing applications
• On/Off Switch: Yes – integrated for easy power control

Construction and Cooling

• Case Material: CNC-machined aluminum with waterproof epoxy potting
• Cooling Fan: 30mm thermally controlled, removable (not waterproof)
• Power Wires: 12AWG high-strand silicone-coated copper
• Integrated Capacitors: Yes – for voltage stability under load

Dimensions and Weight

• Length: 2.14" (54.4mm)
• Width: 1.39" (35.2mm)
• Height: 1.18" (30.0mm)
• Weight (with wires): 3.56 oz. (101g)

Application Guidelines

• Vehicle Type: 1/8 scale off-road buggies and high-performance setups
• Max Vehicle Weight: Up to 9lbs (4kg) ready-to-run
• Max Voltage for 1/8 Scale: 4S LiPo (16.8V)
• ESC Certification: ROAR and RECON G6 approved

Connectivity and Software

• Castle Link Support: Yes – USB and Bluetooth via B-Link Adapter
• Mobile App: Castle Link App for iOS and Android (free download)
• Firmware Updates: Yes – free via Castle Link software

Included in the Box

• 1 × Mamba X ESC with sensor harness
• 1 × Driver’s Ed Guide / Quick Start Guide
• 1 × Mamba Decal Sheet

Sold Separately

• Castle Link USB Programming Kit
• B-Link Bluetooth Adapter
• Battery connectors (Castle 6.5mm, Castle 4.0mm, Traxxas®, or Deans® Ultra Plugs)
