The E-Flite F-EFLG520 retract set for 60–120 size aircraft is a premium electric gear upgrade engineered for RC pilots who demand scale realism, mechanical strength, and installation simplicity in large warbird and sport plane builds. Designed to replicate the complex retraction geometry of full-scale aircraft, the E-Flite F-EFLG520 95 degree rotating gear features a 95° sweep combined with 90° rotation, allowing the gear to retract flat into the wing for aerodynamic efficiency and visual fidelity. Whether you're assembling a P-47 Thunderbolt, restoring an F4U Corsair, or refining a custom sport aircraft, this system delivers precision, durability, and drop-in compatibility for aircraft up to 15 lb.
Key features of the E-Flite F-EFLG520 retract set
- 95° retraction sweep + 90° rotation – replicates complex full-scale warbird gear geometry
- Strut-ready design – accepts 5 mm diameter custom or scale struts for enhanced realism
- CNC-machined aluminum housing – built to handle high landing loads and rough field conditions
- Steel/brass internal gearing – engineered for long-term durability and structural integrity
- Electric brushed motor with integrated PCB – simplifies setup and ensures consistent actuation
- Chrome-plated metal struts – resist corrosion and elevate scale appearance
- JR-style universal connectors – compatible with most RC receivers for plug-and-play installation
- Bolt-in mounting – no modification required for Hangar 9 and other large-scale ARFs
- Overcurrent protection – safeguards motor during stall or overload conditions
Why is the E-Flite F-EFLG520 retract set ideal for complex warbird builds?
The E-Flite F-EFLG520 retract set for 60–120 size aircraft is optimized for models that require intricate gear behavior, such as the Corsair and Thunderbolt. Its 95° retraction sweep combined with 90° rotation allows the gear to fold inward and lie flat within the wing, mirroring the geometry of full-scale aircraft. This configuration not only enhances aerodynamic performance but also delivers unmatched scale realism, making it a top-tier choice for experienced RC pilots building historically accurate warbirds.
How does the strut-ready design support customization?
The E-Flite F-EFLG520 with chrome struts and CNC housing accepts 5 mm diameter struts, enabling pilots to install custom or scale-specific components that match their aircraft’s stance and structural needs. This flexibility is especially valuable for builders focused on visual fidelity and ground clearance. Whether you're replicating the gear profile of a Corsair or tailoring a sport plane’s landing geometry, the strut-ready design supports individualized upgrades without compromising compatibility or strength.
What makes the actuation system reliable and easy to install?
The E-Flite retracts with brushed motor and scale sweep feature a self-contained electric motor with integrated PCB, eliminating the need for servos, linkages, or pneumatic systems. This streamlined setup reduces installation time and maintenance while delivering consistent deployment speeds across a voltage range of 4.8V to 6.0V. With actuation times averaging 2.5 seconds, the gear responds smoothly to pilot input, and built-in overcurrent protection ensures safe operation under stall conditions, extending the life of the motor and internal components.
Why is this the best E-Flite retract system for scale realism and aerodynamic efficiency?
The best E-Flite retracts with 2.5 sec deployment and universal connectors combine advanced retraction geometry, robust materials, and responsive actuation in one refined package. The CNC-machined aluminum housing and steel/brass internals are engineered to withstand the rigors of large aircraft operation, while the chrome-plated struts enhance visual appeal and resist corrosion. The plug-in JR connectors ensure broad compatibility, and the bolt-in mounting system simplifies integration into Hangar 9 and other large-scale ARFs. For RC pilots seeking a high-performance gear upgrade, the F-EFLG520 delivers unmatched realism and reliability.
For scale geometry, structural durability, and aerodynamic precision, buy E-Flite F-EFLG520 for large RC aircraft with 5 mm struts today.
Overview
The E-Flite 60–120 95-Degree Electric Rotating Retracts (F-EFLG520) represent a premium electric gear solution engineered for RC pilots who demand scale realism, mechanical strength, and installation simplicity in large warbird and sport plane builds. Whether you're assembling a P-47 Thunderbolt, restoring an F4U Corsair, or refining a custom sport aircraft, this retract system delivers precision, durability, and drop-in compatibility for aircraft up to 15 lb (6.8 kg). Designed by E-Flite, one of the most recognised names in quality RC aircraft components, these rotating retracts offer a tidy electric solution for model aircraft where complex gear behaviour is essential.
Operating on standard receiver-pack voltages of 4.8–6.0 V with remarkably modest idle and stall current draw, the EFLG520 retracts streamline installation and power management in suitable airframes. Each unit weighs just 4.6 oz (130 g), making them lightweight enough for aircraft builders who need to manage weight carefully without compromising on strength or reliability. This electric actuation system provides the 95-degree rotation required to replicate the complex retraction geometry of full-scale aircraft, allowing the gear to retract flat into the wing for aerodynamic efficiency and visual fidelity that transforms your RC plane from a simple flying model into a convincing scale replica.
If you're serious about RC aviation in the UK and want authentic-looking landing gear that actually works reliably on every flight, the E-Flite F-EFLG520 95-Degree Electric Rotating Retracts are the choice of experienced builders and competition flyers alike. RC model shops across the UK stock this product because it consistently delivers what pilots demand: mechanical reliability, ease of installation, and the visual authenticity that makes large-scale RC aircraft truly special.
Key Features
- 95-Degree Rotating Design — The retracts feature a 95-degree sweep combined with 90-degree rotation, allowing the gear to fold inward and lie completely flat within the wing structure, mirroring the geometry of full-scale aircraft and maximising the aerodynamic benefit of retractable landing gear on your RC model.
- Electric Brushed Motor with Integrated PCB — The integrated brushed motor and onboard printed circuit board simplify installation and ensure consistent, reliable actuation every single time you operate the retract mechanism, reducing the risk of mechanical failure or inconsistent deployment.
- Strut-Ready Design — The system accepts 5 mm diameter custom or scale struts, giving you complete flexibility to build with your choice of landing gear components and allowing you to achieve the exact scale appearance you're aiming for with your specific aircraft model.
- CNC-Machined Aluminium Housing — Precision-engineered aluminium construction is built to handle high landing loads and rough field conditions, ensuring your retracts will survive countless landings without bending, cracking, or losing functionality even in challenging outdoor environments.
- Steel and Brass Internal Gearing — The durable internal gearing is engineered with steel and brass components for long-term durability and structural integrity, meaning your retracts will continue operating smoothly for season after season of flying.
- Chrome-Plated Metal Struts — The included chrome-plated metal struts resist corrosion and significantly elevate the scale appearance of your aircraft, providing an authentic look that makes your model stand out at the flying field.
- JR-Style Universal Connectors — Compatible with most RC receivers available today, these standard connectors provide plug-and-play installation without requiring adapters or modifications, saving you time during the build process.
- Bolt-In Mounting — No modification is required for Hangar 9 and other large-scale ARF (Almost Ready to Fly) kits, meaning you can install these retracts into your aircraft with confidence and minimal fuss.
- Overcurrent Protection — Built-in overcurrent protection safeguards the motor during stall or overload conditions, protecting your investment and preventing damage if the retract mechanism becomes obstructed or jammed.
- Low Current Draw Design — With idle current draw of just 0.05 A and stall current of 0.9 A, these retracts are remarkably efficient, minimising power demands on your receiver battery and simplifying overall aircraft power management during flight operations.
Technical Performance
The E-Flite F-EFLG520 95-Degree Electric Rotating Retracts deliver exceptional engineering quality that reflects decades of RC aircraft design expertise. Operating across the standard 4.8–6.0 V range, these units integrate seamlessly with most receiver packs used in RC aircraft throughout the UK and beyond. The brushed motor technology, combined with integrated PCB circuitry, provides reliable actuation with minimal setup complexity. Each retract unit weighs 4.6 oz (130 g), which is carefully engineered to minimise the weight penalty of motorised retractable gear whilst maintaining the structural strength required to handle the stresses of repeated landing impacts and taxiing. The CNC-machined aluminium housing represents precision manufacturing that ensures consistent performance and long service life. Internal gearing fabricated from steel and brass components provides the mechanical advantage needed to retract landing gear smoothly under load, with the 95-degree rotation arc allowing the gear to tuck completely flat into the wing cavity. The low idle current draw of 0.05 A means your receiver battery experiences minimal drain when the retracts are not actively engaging, whilst the 0.9 A stall current remains well within the capability of standard RC receiver power supplies. This efficient power profile makes the EFLG520 ideal for aircraft up to 15 lb (6.8 kg), the size class at which proper electric retraction becomes truly essential for achieving the visual authenticity that separates impressive scale models from generic flying platforms. Chrome-plated steel struts resist the corrosion that would otherwise degrade appearance over a season of outdoor flying, particularly in the UK climate where moisture and salt air can be challenging for exposed metal components.

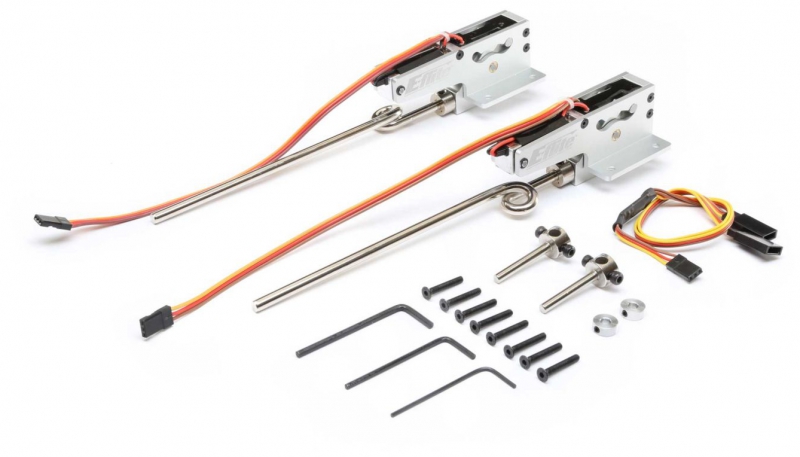

What's in the Box
- Two E-Flite 60–120 95-Degree Electric Rotating Retract units (left and right pair)
- Chrome-plated metal landing gear struts
- Mounting hardware and fasteners
- JR-style connectors for receiver integration
Frequently Asked Questions
- Are these retracts suitable for Hangar 9 aircraft like the Corsair and Thunderbolt? — Yes, these E-Flite retracts are specifically engineered with bolt-in mounting that requires no modification for Hangar 9 and other large-scale ARF kits, making them a drop-in solution for these popular warbird models available throughout the UK.
- What voltage do these electric retracts require? — The EFLG520 retracts operate on 4.8–6.0 V, which matches standard receiver packs used in most RC aircraft, simplifying your power management and allowing you to avoid additional battery circuits or voltage regulators.
- Can I use these retracts on aircraft heavier than 15 lb? — These retracts are specified for aircraft up to 15 lb (6.8 kg), and attempting to use them on heavier models risks mechanical failure and potential landing gear collapse, so it is important to stay within the weight specification for safety and reliability.
- What is the difference between 95-degree and 90-degree retracts? — The 95-degree specification refers to the retraction sweep angle, combined with 90-degree rotation of the gear itself, allowing the wheels to tuck completely flat into the wing cavity for maximum aerodynamic benefit and authentic scale appearance, which is more complex than simple 90-degree strut-ready designs that do not include the rotation component.
- How much current do these retracts draw? — With idle current draw of just 0.05 A and stall current of 0.9 A, the EFLG520 retracts are remarkably efficient, placing minimal demand on your receiver battery and simplifying the electrical architecture of your aircraft build.
- Can I use custom landing gear struts with these retracts? — Yes, the strut-ready design accepts any 5 mm diameter custom or scale struts, giving you complete flexibility to build with your preferred landing gear components and achieve the exact appearance you want for your specific aircraft model.
- Are these suitable for beginners in RC aviation? — Whilst these retracts represent premium engineering, their integration with bolt-in mounting systems and standard JR-style connectors makes installation straightforward for anyone with basic mechanical ability, though builders should ensure their aircraft is within the 15 lb weight limit and voltage specification before installation.
- What protection features do these retracts include? — The integrated PCB includes overcurrent protection that safeguards the motor during stall or obstruction conditions, preventing damage to the mechanism and extending the service life of your retract system.
