Manufacturer: Tamiya
Part Number: 58614
EAN: 4950344065608
Motor Type: Brushed
Drive :4WD
Surface Type: Off-Road
Assembly Type: Un-Assembled (Kit)
Scale: 1:10
Vehicle: Rock Crawler
Skill Level :Skill Level 2
Power Bundles: Power Bundle Required

Product Description of Tamiya Suzuki Jimny JB23 RC car TAM58614

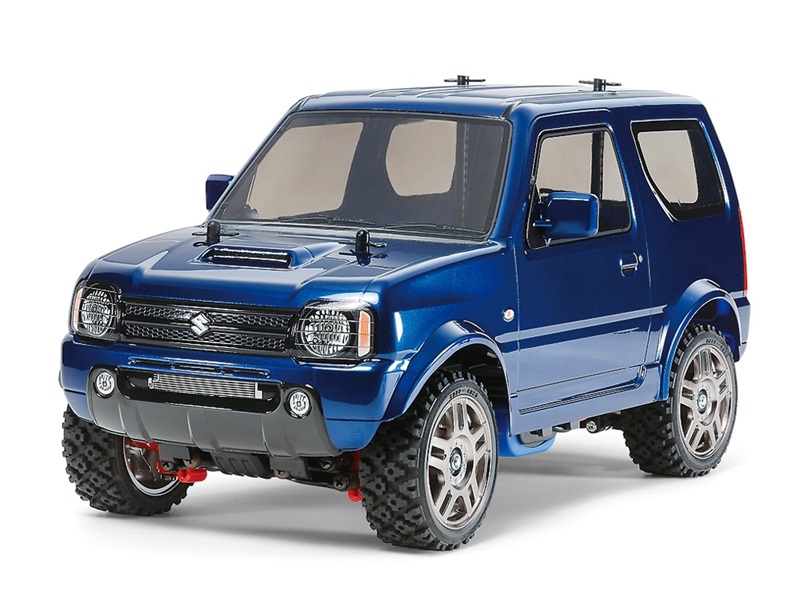

The Tamiya Suzuki Jimny JB23 RC car TAM58614 is a rugged and compact off-road model built for adventure across a variety of surfaces. Based on the versatile MF-01X chassis, this 1/10 scale RC kit replicates the iconic JB23 variant of the Suzuki Jimny, a long-standing favourite in Japan’s kei car segment. The model features a durable polycarbonate body with realistic contours, separate side mirror parts, and detailed stickers for the grille and lights, delivering a visually authentic build that’s ready to tackle dirt tracks and flat terrain alike.

Key features of the Tamiya Suzuki Jimny JB23 RC car TAM58614

• Polycarbonate body – lightweight and impact-resistant for off-road use
• Separate side mirror parts – adds realism and scale accuracy
• Rally Block tires – designed for grip and control on dirt surfaces
• 4-wheel double wishbone suspension – smooth damping and stable handling
• Rear-mounted motor – optimized for traction and drivetrain balance
• Shaft-driven 4WD system – delivers consistent power to all wheels
• Monocoque frame – tough and compact for rugged terrain
• Adjustable wheelbase – supports S, M, and L configurations with optional parts

What makes the Tamiya TAM58614 4WD RC Suzuki Jimny JB23 kit MF-01X ideal for off-road driving?

The Tamiya TAM58614 4WD RC Suzuki Jimny JB23 kit MF-01X is engineered for off-road performance with a shaft-driven 4WD system that ensures reliable traction across uneven surfaces. Power from the rear-mounted motor is transmitted through gear-driven rear wheels and a propeller shaft to the front differential, maintaining consistent drive across all four wheels. The compact monocoque frame integrates front and rear gearboxes with 3-bevel differential gears, offering smooth power delivery and durability for dirt tracks and flat terrain.

How does the Tamiya MF-01X chassis with polycarbonate Suzuki Jimny JB23 body TAM58614 enhance realism and durability?

The Tamiya MF-01X chassis with polycarbonate Suzuki Jimny JB23 body TAM58614 combines scale realism with rugged construction. The JB23 body is molded in durable polycarbonate, capturing the rounded contours and compact proportions of the full-size vehicle. Separate side mirror parts and detailed stickers for the grille and lights elevate the visual authenticity. The MF-01X chassis itself is built around a tough 3-piece monocoque frame, offering structural integrity and modularity for wheelbase adjustments. This combination ensures the model looks great and performs reliably in off-road conditions.

Is the Tamiya shaft-driven 4WD RC car suitable for dirt surfaces and flat terrain?

Absolutely. The Tamiya shaft-driven 4WD RC car for off-road and dirt surfaces is designed to excel on challenging terrain. The Rally Block tires, with a width of 27mm and diameter of 69mm, provide excellent grip and stability on loose surfaces. The 4-wheel independent double wishbone suspension, paired with friction dampers, absorbs shocks and maintains control during uneven runs. Whether you're navigating dirt paths or flat gravel, the MF-01X chassis delivers a confident and enjoyable driving experience.

What suspension and drivetrain features support the Tamiya rally block tyre RC kit?

The Tamiya rally block tyre RC kit with 4-wheel double wishbone suspension is equipped with a suspension system that enhances both comfort and control. Each wheel benefits from independent double wishbone geometry, allowing for responsive movement and consistent ground contact. Friction dampers provide smooth damping, reducing bounce and improving stability. The drivetrain features a rear-mounted motor and shaft-driven 4WD layout, with differential gears in both front and rear gearboxes to ensure balanced power distribution and traction.

How customizable is the Tamiya Suzuki Jimny JB23 RC car TAM58614 for different wheelbases?

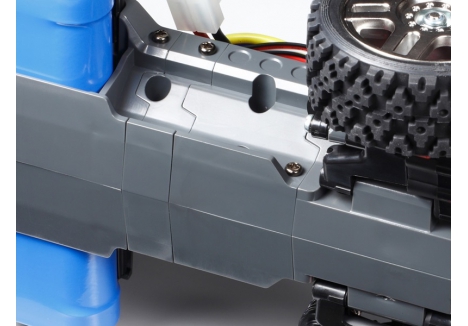

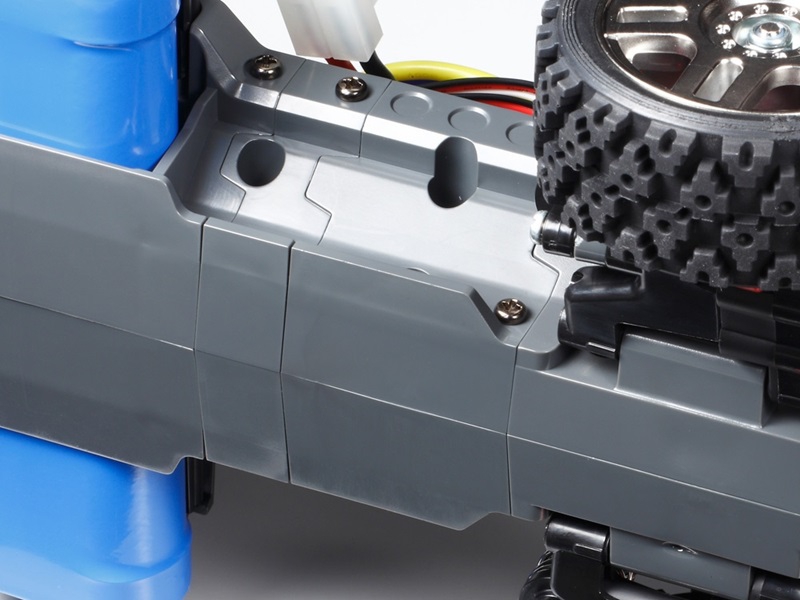

The Tamiya Suzuki Jimny JB23 RC car TAM58614 offers modular customization through its 3-piece monocoque frame. By changing the central spacer block and fitting a separately sold propeller shaft, users can adjust the wheelbase to S (210mm), M (225mm), or L (239mm) configurations. This flexibility allows hobbyists to tailor the model’s handling characteristics to their preferred terrain or driving style, making it a versatile platform for experimentation and performance tuning.

What components are required to complete the Tamiya 1/10 scale Suzuki Jimny off-road model TAM58614?

To complete the Tamiya 1/10 scale Suzuki Jimny off-road model TAM58614, users will need a 2-channel R/C unit with an electronic speed controller, a compatible battery pack and charger, and R6/AA/UM3 batteries for the transmitter. These components are sold separately but are essential for bringing the model to life. Once assembled, the kit offers a rewarding off-road experience with realistic styling and dependable performance.

For hobbyists looking to buy Tamiya Suzuki Jimny RC car kit with MF-01X chassis TAM58614, this model delivers a compelling mix of rugged design, scale realism, and off-road capability. Whether you're exploring dirt tracks or customizing your build, the TAM58614 offers durability and excitement in every drive.

Technical Description of Tamiya Suzuki Jimny JB23 RC car TAM58614

Brand, Model and Product Type

• Brand: Tamiya
• Model: TAM58614
• Product Type: Tamiya Suzuki Jimny JB23 RC car, TAM58614, MF-01X chassis, Tamiya 1/10 scale Suzuki Jimny off-road model TAM58614, Tamiya TAM58614 4WD RC Suzuki Jimny JB23 kit MF-01X, Tamiya MF-01X chassis with polycarbonate Suzuki Jimny JB23 body TAM58614, Tamiya shaft-driven 4WD RC car for off-road and dirt surfaces

Dimensions and Weight

• Length: 34.7 cm – compact size for off-road agility
• Width: 17.0 cm – provides a stable footprint for rugged terrain
• Height: 21.5 cm – elevated clearance for dirt surface navigation
• Wheelbase: 22.5 cm (M) – supports modular adjustment to S or L configurations
• Tread (Front & Rear): 13.8 cm – balanced stance for consistent handling

Chassis and Drive System

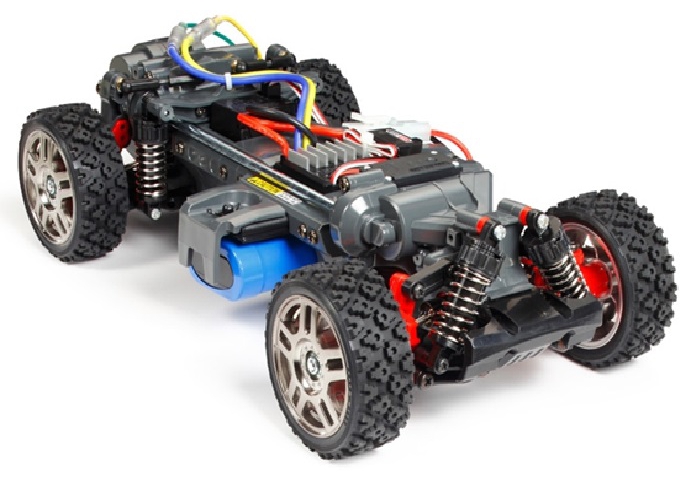

• Chassis Type: MF-01X – compact monocoque frame with integrated gearboxes
• Drive: Shaft-driven 4WD – delivers power to all wheels for off-road traction
• Motor Position: Rear-mounted – enhances rear-wheel torque and drivetrain balance
• Differentials: 3-bevel gears in front and rear – smooth power distribution
• Propeller Shaft: Transmits power from rear motor to front gearbox

Suspension and Tires

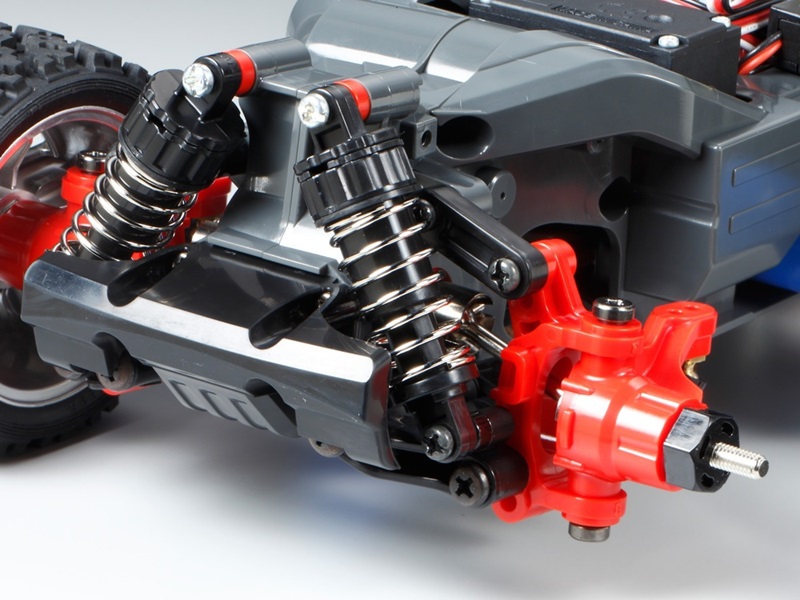

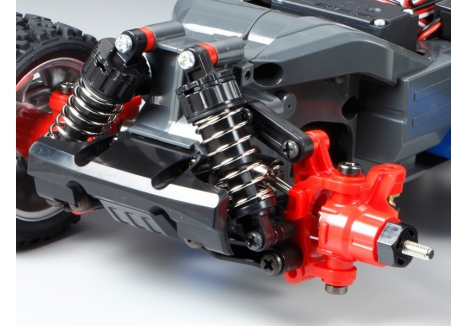

• Suspension Type: 4-wheel independent double wishbone – responsive and stable
• Dampers: Friction dampers – absorb shocks for smoother off-road driving
• Tires: Rally Block – 27mm width / 69mm diameter for dirt grip

Motor and Electronics

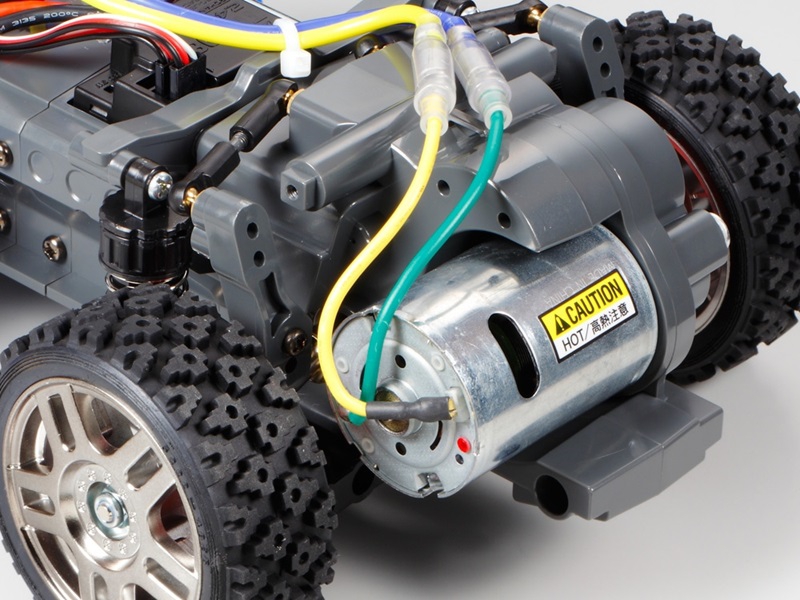

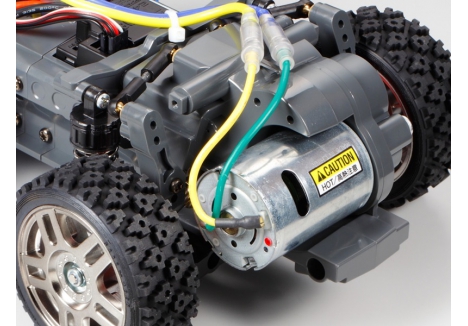

• Motor Type: Type 540 – reliable brushed motor for consistent performance
• ESC: Electronic Speed Controller – sold separately, required for operation

Assembly and Compatibility

• Assembly Type: Unassembled kit – allows for hands-on building and customization
• Surface Type: Off-road and flat dirt – optimized for rugged terrain
• Wheelbase Options: Adjustable to S (21.0 cm), M (22.5 cm), or L (23.9 cm) with optional parts

Required Accessories

• Radio System: 2-channel R/C unit with ESC – required for full control and speed regulation
• Battery Pack: Compatible 7.2V pack – powers the motor and electronics
• Charger: Required – must match battery specifications
• Transmitter Batteries: R6/AA/UM3 – used to power the radio transmitter

Warranty

• Warranty: 1 year – covers manufacturing defects and workmanship issues
