Product Overview
Castle Creations is proud to announce our new flagship surface product, the MAMBA X EXTREME 1:10 SCALE WATERPROOF ESC. We at Castle wanted to address three main concepts while designing a new ESC for the modern day RC enthusiast; VERSATILITY, RELIABILITY, and PERFORMANCE. These are the pillars of the Mamba X design and the driving forces behind the feature-packed controller.
The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*.The Mamba X with 1412-2100K with 5mm shaft sensored motor is perfect for 2WD and 4x4 short course trucks, monster trucks and rock racers running up to 3s LiPo and weighing up to 6.5 lbs; it can be run on a 4s LiPo with very conservative gearing and keep a close eye on temperatures. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 4s LiPo.
Features
- ESC voltage range 2S-6S (4s max with included motor)
- 1412-2100K with 5mm shaft Sensored Motor
- Waterproof
- 8A Adjustable BEC (5.25V-8.0V)
- Data-logging
- Rugged CNC Aluminum Case
- Castle Link Programming Support
- Convenient Transmitter Programming
- Auxiliary Wire Functionality for "on-the-fly" adjustments
- SmartSense Technology
- Integrated Capacitors
- Removable 30mm Cooling Fan
- Integrated 4mm Bullet Connectors
- 12 AWG Power Wires
- Waterproof Switch
- Audible Alerts and LED Alerts for easy diagnoses of common issues
- ROAR Certified ESC
- RECON G6 Certified ESC
In the Box
- Mamba X ESC with Sensor Harness
- 1412-2100K with 5mm shaft 4-pole 12-slot sensored motor
- Coupon for free Castle Link USB
- Mamba Decals
- Driver's Ed and Quick Start Guide
- Gearing Chart for Castle Motors
*In 1/8th scale setups, the Mamba X is intended to be used for off-road racing in buggies weighing up to 9 lbs (including batteries and ready-to-run). In these 1/8th scale racing setups, the Mamba X should be run at 4S Lipo (16.8V) max and is recommended to be paired with the Castle 1512-1800Kv (P/N: 060-0062-00) or Castle 1515-2200Kv (P/N: 060-0063-00) motor, with appropriate gearing only.
When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SmartSense software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with electric timing. Smooth sensored startups and high-efficiency sensorless running makes the Mamba Monster X 8S system produce more power and less heat. QUIETSENSE is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.
The Mamba X allows "on-the-fly" adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.
Enabled by default, the Mamba X captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, battery current and voltage, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life. You can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection.
.png)
For over 20 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply redeem the coupon for the Castle Link adapter included with your Mamba X purchase or download the Castle Link iOS App and purchase the B-Link Bluetooth Adapter. Download the simple to install software from our website and you are ready to personalize your controller's parameters. Don't forget to use the "check for updates" feature in Castle Link to download new software as it becomes available. New features are yours at no cost, a perk for choosing Castle
Mamba X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the "unknown" parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
Housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.
Mamba X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.

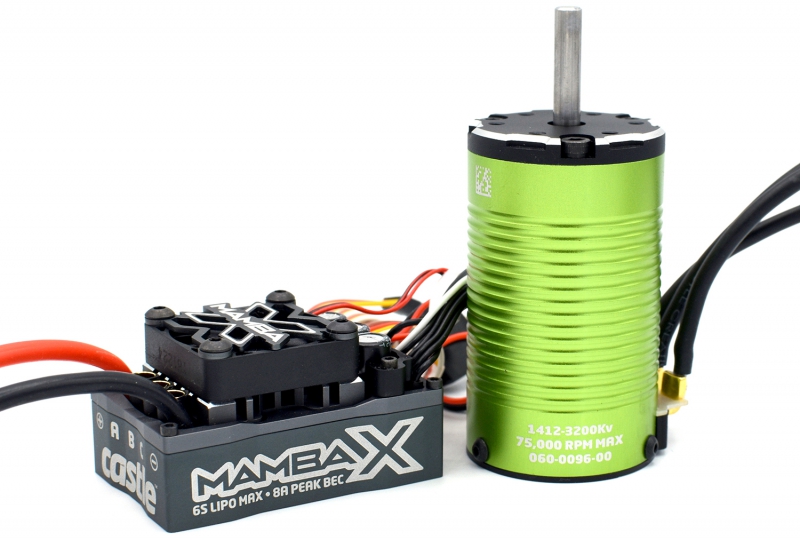

Product Description of Castle P-CC010-0155-15 Mamba X SCT ESC and 1412-2100KV motor combo with SmartSense™ and waterproof design
The Castle P-CC010-0155-15 Mamba X SCT ESC and 1412-2100KV motor combo with SmartSense™ and waterproof design is engineered for RC enthusiasts who demand precision, durability, and intelligent control in short course trucks, stadium trucks, and rock racers. Designed to handle 2S–4S LiPo setups, this integrated system combines Castle’s advanced speed controller with a high-performance sensored motor, delivering smooth startups, real-time tuning, and robust telemetry support. Built to withstand harsh terrain and aggressive driving, the Castle P-CC010-0155-15 combo offers a complete solution for 1/10 scale platforms up to 6.5lbs, ensuring consistent performance and long-term reliability across a wide range of use cases.
Key features of the Castle P-CC010-0155-15 combo
- Smart startup control – delivers smooth, cog-free launches with sensored motor precision
- Real-time tuning – AUX wire enables dynamic adjustments while driving
- Advanced telemetry – monitor ESC temperature, RPM, and voltage in real time
- Waterproof construction – CNC aluminum case with epoxy potting for all-weather durability
- Wireless programming – supports Castle Link app via B-Link Bluetooth Adapter
- High-efficiency cooling – removable 30mm fan and integrated capacitors for thermal stability
- Versatile voltage support – compatible with 2S–4S LiPo setups for SCT and monster truck platforms
How does the Castle P-CC010-0155-15 combo deliver smooth and efficient power?
At the heart of the Castle P-CC010-0155-15 programmable ESC + 1412 motor for 2S–4S setups in SCT and monster trucks is SmartSense™ technology, which enables seamless transitions between sensored and sensorless operation. During startup, the motor’s sensors provide precise torque control and low-speed drivability, eliminating cogging and hesitation. Once in motion, the ESC switches to sensorless mode with electronic timing, maximizing efficiency and reducing heat buildup. This dual-mode operation ensures that the system delivers consistent power across all driving conditions, whether you're launching off the line or navigating technical terrain.
What makes the telemetry and datalogging features so valuable?
The Castle P-CC010-0155-15 25.2V ESC with 8A peak BEC, telemetry, datalogging, and sensored motor pairing includes built-in telemetry support for Futaba T4PX and T7PX transmitters via S.BUS2. This allows users to monitor real-time data such as ESC temperature, motor RPM, and battery voltage directly from their transmitter. Additionally, the ESC captures and stores performance data during each run, which can be reviewed using Castle Link software. This datalogging capability provides insights into throttle input, current draw, and thermal behavior, helping users fine-tune their setups for optimal performance and battery longevity.
Can the Castle P-CC010-0155-15 combo be tuned while driving?
Yes, the Mamba X SCT combo with AUX wire tuning, Castle Link USB/B-Link app support, and QUIETSENSE™ startup includes an AUX wire that enables real-time tuning from your transmitter. Once configured through Castle Link, users can adjust torque control, drag brake, max throttle, and other parameters on the fly. This dynamic tuning capability is especially useful during competitive runs or when adapting to changing terrain. Combined with QUIETSENSE™ motor technology, which enhances startup accuracy and minimizes electrical noise, the system offers unmatched control and responsiveness in demanding environments.
How does the Castle P-CC010-0155-15 combo handle extreme conditions?
Durability is a core strength of the Castle P-CC010-0155-15 with CNC aluminum case, removable fan, and 4mm bullet connectors. The ESC is housed in a rugged CNC-machined aluminum case and potted in waterproof epoxy, protecting internal components from moisture, dust, and vibration. The factory-equipped 30mm fan is thermally controlled and removable, allowing users to manage cooling based on environmental conditions. Integrated capacitors and 12AWG silicone-coated copper wires ensure stable current flow during peak loads, while 4mm bullet connectors provide secure motor connections. These features make the combo ideal for aggressive driving and unpredictable terrain.
Is the Castle P-CC010-0155-15 combo suitable for 1/10 scale platforms?
Absolutely. The Castle ESC and motor combo for 1/10 scale SCTs, stadium trucks, and rock racers up to 6.5lbs is specifically designed for lightweight platforms that demand high torque and responsive control. The included 1412-2100KV motor features a 5mm shaft, 36mm diameter, and 62.5mm length, delivering up to 75,000 RPM. Its sensored design ensures smooth acceleration and precise throttle modulation, while the ESC’s 4S maximum input voltage provides ample power for short course and monster truck applications. Whether you're racing on track or bashing off-road, this combo offers the performance and reliability needed to stay ahead.
What programming options are available for the Castle P-CC010-0155-15 combo?
The Castle P-CC010-0155-15 Mamba X SCT ESC and 1412-2100KV motor combo with SmartSense™ and waterproof design supports full programmability via Castle Link USB and the B-Link Bluetooth Adapter. Users can wirelessly access settings using the Castle Link app for iOS and Android, adjusting throttle curves, brake profiles, cutoff voltages, and more. Firmware updates are free and accessible through the app or desktop software, ensuring the system remains up to date with the latest features. This flexibility allows users to personalize their setup for specific driving styles and conditions, enhancing both performance and user experience.
Why is this combo considered one of the best options for 4S RC setups?
The best sensored ESC and motor combo with SmartSense™, telemetry, and 100A+ peak current handling offers a rare combination of precision, power, and adaptability. With support for 2S–4S LiPo, advanced telemetry, and real-time tuning, this combo is built for serious RC drivers who want full control over their vehicle’s behavior. The sensored motor ensures smooth launches and accurate throttle response, while the ESC’s waterproof design and programmable features make it suitable for all-weather use. Whether you're upgrading a stadium truck or building a competitive short course rig, this combo delivers the performance edge needed to excel.
What makes wireless programming via B-Link so convenient?
Wireless programming is a standout feature of the Castle SCT combo with 2100KV motor, 25.2V input, and wireless programming via B-Link. The compact B-Link Bluetooth Adapter allows users to adjust ESC settings directly from their smartphone, eliminating the need for cables or desktop software. This is especially useful for field tuning, firmware updates, and quick setup changes between runs. Combined with the Castle Link app’s intuitive interface, users can access a full suite of customization tools anytime, anywhere, making the combo one of the most user-friendly options available for high-performance RC platforms.
For RC enthusiasts seeking a powerful, intelligent, and adaptable solution, buy Castle P-CC010-0155-15 Mamba X SCT combo for high-performance 4S RC setups.
Technical Specifications of Castle P-CC010-0155-15 Mamba X SCT ESC and 1412-2100KV motor combo with SmartSense™ and waterproof design
Brand, Model and Product Type
- Brand: Castle
- Model: P-CC010-0155-15
- Product Type: Castle P-CC010-0155-15 Mamba X SCT ESC and 1412-2100KV motor combo with SmartSense™ and waterproof design, Castle P-CC010-0155-15 25.2V ESC with 8A peak BEC, telemetry, datalogging, and sensored motor pairing, Castle P-CC010-0155-15 programmable ESC + 1412 motor for 2S–4S setups in SCT and monster trucks, Castle P-CC010-0155-15 with CNC aluminum case, removable fan, and 4mm bullet connectors, Castle ESC and motor combo for 1/10 scale SCTs, stadium trucks, and rock racers up to 6.5lbs
Dimensions
- ESC Length: 5.44 cm – compact size for tight chassis layouts
- ESC Width: 3.52 cm – fits standard 1/10 scale mounting configurations
- ESC Height: 3.00 cm – low-profile design for efficient airflow
- ESC Weight (with wires): 101 g – lightweight for improved handling
- Motor Length: 6.25 cm – optimized for short course truck applications
- Motor Diameter: 3.6 cm – standard size for 1/10 scale platforms
- Motor Shaft Length: 2.1 cm – compatible with most gear setups
- Motor Shaft Diameter: 0.5 cm – precision fit for high-torque output
- Motor Weight (with wires): 265.4 g – balanced for performance and durability
ESC Specifications
- Input Voltage Range: 2S–6S LiPo (7.4V–25.2V) – supports wide power configurations
- Maximum Input Voltage: 25.2V – ideal for high-performance 4S setups
- Recommended Voltage with Included Motor: 4S max – ensures optimal performance and thermal safety
- ESC Operating Environment: Waterproof – epoxy-potted CNC aluminum case for all-weather use
- Cooling System: Thermally controlled 30mm fan – removable for wet conditions
- BEC Output: Adjustable 5.5V, 6.0V, 7.5V, or 8.0V (8A peak) – supports high-torque servos and advanced receivers
- ESC Connectors: 4.0mm female bullet connectors – secure motor interface
- Power Wires: 12AWG silicone-coated copper – high strand count for efficient current delivery
- Integrated Capacitors: Yes – stabilizes voltage under peak loads
- Brake Mode: Proportional – adjustable drag and max brake settings
- Reversible Mode: Yes – can be disabled for racing applications
- On/Off Switch: Included – easy power control
- ESC Certifications: ROAR and RECON G6 – approved for competitive use
Motor Specifications
- Motor Type: Sensored brushless – precision control with SmartSense™ startup
- Motor Kv Rating: 2100Kv – delivers up to 75,000 RPM for short course trucks
- Recommended Voltage: 2S–4S LiPo – optimized for 1/10 scale platforms
- Mounting Hole Pattern: M3 @ 25mm – standard fit for most motor plates
- Sensor Board: Silicone conformal coated – moisture-resistant design
- Sensor Connections: Not water-resistant – dielectric grease recommended for wet use
- Motor Connectors: 4mm male Castle bullet connectors – reliable and easy to install
Programming and Connectivity
- Castle Link Support: Yes – USB programming via Castle Link adapter
- Mobile App Support: Yes – Castle Link app for iOS and Android
- Wireless Programming: Enabled via B-Link Bluetooth Adapter (sold separately)
- Firmware Updates: Free – accessible through Castle Link software
- AUX Wire Functionality: Yes – allows real-time tuning from transmitter
- Telemetry Compatibility: S.BUS2 – supports Futaba T4PX and T7PX transmitters
- Data Logging: Enabled – records RPM, voltage, temperature, and throttle input
What’s in the Box
- 1 × Mamba X ESC with sensor harness
- 1 × Castle 1412-2100KV sensored motor (5mm shaft)
- 1 × Mamba Decal Sheet
- 1 × Driver’s Ed Guide / Quick Start Guide
What You Require / What You Will Need
- Battery connector – Castle 6.5mm or 4.0mm Polarized Connectors, Traxxas Power Connectors, or Deans Ultra Plugs
- Compatible 2S–4S LiPo battery – minimum 5000mAh, 30C continuous discharge recommended
- Castle Link USB adapter or B-Link Bluetooth Adapter for programming
Sold Separately
- Castle Link USB Programming Kit
- B-Link Bluetooth Adapter
- Quick Connect Duo for streamlined Castle Link access
