Application:
Ideal for 1:10 scale 2WD and 4WD SC Trucks, up to 4s operation
Max Vehicle Weight:
Up to 6.5 lbs. ready-to-run.
Product Overview
Drivers in all applications demand clean starts when coming off the line. Crawler fans require high-precision low speed control and torque for climbing, racers need precision and predictability, and dragsters don't have a millisecond to spare. To achieve all of these performance demands and more, we have integrated rotor position sensor technology with our improved high power and high efficiency motor design. Through the use of our sensors, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup. Users will experience PRECISE throttle control and BUTTERY SMOOTH starts plus the RAW POWER and LONGER RUN TIMES that our highly efficient motors produce.
WHAT MAKES AN EXCEPTIONAL MOTOR?
When tasked with designing a sensored motor our engineers started with the question,What makes a motor great?
Efficiency
- You can push it harder (gear it up)
- You can run it longer (with the same battery)
- It stays cool under extreme loads
Reliability
- Ability to withstand the harsh demands of any RC application
- Long-life, high-quality components
- Proven manufacturing techniques
EFFICIENCY IS KEY
The higher the efficiency of a motor the more power it can produce without overheating, which allows you to safely run higher gear ratios. The higher the efficiency of a motor, the less power it takes to produce the same output power, which allows you to run longer on a single charge. The higher the efficiency of the motor, the less energy it turns into heat; keeping it cool under extreme loads. Efficiency equals performance.
RELIABILITY CAN'T BE IGNORED
Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it. Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible. High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions. Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the highest efficiency possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn't put our name on anything less.
THE DESIGN: KEEPING IT COOL
- Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
- QUIETSENSET technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and
- ESC in sync at all times. Use of a Flux Shield in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.
- Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
- REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
- Updated modern and sleek design; looks as cool as it performs.
Immense care is taken by our US design team during every step of the development process. While using the highest quality components is important, design is equally important. Our experienced, in-house engineering team, located in Olathe, Kansas, has spent countless hours simulating and developing the most efficient design. Development includes magnetic simulations, custom winding techniques, and rigorous, real-world testing of the final product.
You will reap the benefits of longer run times on one battery and a cooler running motor that can be pushed harder.
INTEGRATED SOPHISTICATION
Castle engineers always add a little something extra in their designs that takes your performance to the next level. We have not skimped here. Many customers have utilized our industry leading software functionality that Castle Link* offers. When paired with a Castle Creations sensor supported ESC, like the MAMBA MAX PRO, MAMBA X or COPPERHEAD, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors.
SMARTSENSE uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSET will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.
With a Castle sensored ESC and sensored motor you will have the ULTIMATE POWER PLANT for your vehicle. Users will experience PRECISE throttle control, BUTTERY SMOOTH starts, PEAK PERFORMANCE and EFFICIENCY throughout the full throttle range. You will feel the POWER and LONGER RUN TIMES that a WORLD-CLASS motor produces..

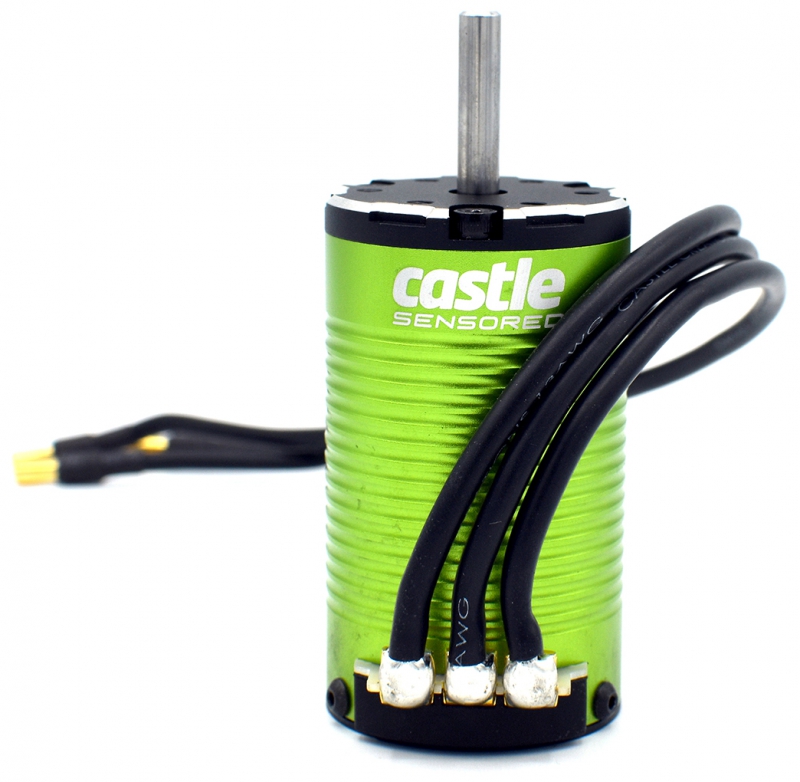

Product Description of Castle M-CC060-0096-00 1412-3200kV sensored brushless motor
The Castle M-CC060-0096-00 1412-3200kV sensored brushless motor with 5mm shaft is purpose-built for 1/10 scale short course and monster trucks that demand rapid acceleration, precise throttle control, and thermal resilience. Tuned for 2S–4S LiPo setups and vehicles up to 6.5 lbs, this motor combines Castle’s advanced sensor suite with a high-efficiency 4-pole, 12-slot inrunner architecture. The Castle M-CC060-0096-00 4-pole motor for 1/10 SC trucks and monster trucks features SmartSense™ hybrid startup logic and QuietSense™ shielding to eliminate cogging and maintain ESC-motor synchronization across all load conditions. Reinforced with a Kevlar-wrapped rotor and oversized NMB bearings, it delivers consistent torque, smoother launches, and long-term durability for aggressive off-road driving.
Key features of the Castle M-CC060-0096-00 1412-3200kV motor
- Kevlar-reinforced rotor – resists deformation under high RPM stress
- Oversized bearings – reduce vibration and extend operational lifespan
- Low-resistance stator – improves thermal efficiency and runtime
- SmartSense startup logic – delivers smooth launches and dynamic timing control
- QuietSense shielding – maintains clean sensor signals for consistent throttle response
- Rebuildable design – allows rotor, shaft, and bearing replacement
- ROAR sensor port – ensures compatibility with race-compliant ESCs
How does SmartSense improve hybrid startup control?
The Castle M-CC060-0096-00 sensored inrunner motor with SmartSense and QuietSense uses rotor position sensors to initiate smooth, cog-free launches. Once in motion, it transitions seamlessly into sensorless mode for ultra-efficient drive performance. This hybrid timing system dynamically adjusts to changing load conditions, delivering peak torque and throttle precision whether crawling through technical terrain or launching off the line. For 1/10 scale trucks, SmartSense ensures buttery smooth control and optimal power delivery across the full throttle range.
Why is QuietSense essential for ESC-motor sync?
QuietSense technology shields the motor’s sensors from magnetic field interference, preserving clean communication between the motor and ESC. This prevents desynchronization during throttle transitions and ensures consistent timing under load. For short course and monster truck platforms, QuietSense delivers predictable handling, smoother acceleration, and reduced startup hesitation—especially valuable in competitive or high-impact environments.
What makes the rotor and stator design ideal for high-efficiency builds?
The Castle 3200kV motor with low-resistance stator and high-purity copper windings is engineered to minimize electrical resistance and heat buildup. Its proprietary winding techniques and Kevlar-reinforced rotor allow the motor to run cooler and more efficiently, even under aggressive gearing. This results in longer runtimes, reduced thermal stress, and consistent performance across repeated sessions. Whether you're racing or bashing, the stator’s efficiency translates directly into speed, control, and reliability.
Is this motor compatible with race-legal ESCs?
Yes. The Castle 1412 motor with ROAR sensor port and vibration dampening system includes a ROAR-compliant sensor interface and clearly labeled connections, ensuring compatibility with sensored ESCs used in sanctioned racing. The vibration dampening system protects internal components from mechanical stress, while the rebuildable design allows users to maintain peak performance by replacing worn assemblies. This makes it a versatile and future-proof upgrade for serious RC enthusiasts.
Why is this motor the best Castle upgrade for throttle smoothness?
The Castle M-CC060-0096-00 1412-3200kV sensored brushless motor with 5mm shaft delivers a premium blend of startup precision, thermal efficiency, and rugged durability. Its 4-pole configuration enhances torque and responsiveness, while SmartSense and QuietSense technologies ensure consistent timing and buttery smooth throttle control. Whether you're navigating tight corners or launching off jumps, this motor is the best Castle upgrade for buttery smooth throttle and hybrid startup control.
For drivers seeking a sensored motor with advanced timing logic, Kevlar reinforcement, and oversized bearings, the affordable Castle 1412-3200kV motor with rebuildable design and CNC end bells offers unmatched value and performance. Buy Castle M-CC060-0096-00 sensored motor for 2S–4S LiPo setups up to 6.5 lbs.
Technical Specifications of Castle M-CC060-0096-00 1412-3200kV sensored brushless motor
Brand, Model and Product Type
- Brand: Castle Creations
- Model: M-CC060-0096-00
- Product Type: Castle M-CC060-0096-00 1412-3200kV sensored brushless motor with 5mm shaft, Castle M-CC060-0096-00 4-pole motor for 1/10 SC trucks and monster trucks, Castle M-CC060-0096-00 sensored inrunner motor with SmartSense and QuietSense, Castle M-CC060-0096-00 with Kevlar-wrapped rotor and oversized NMB bearings, Castle 1412 motor with ROAR sensor port and vibration dampening system, Castle 3200kV motor with low-resistance stator and high-purity copper windings
Application and Compatibility
- Vehicle Type: 1/10 scale 2WD and 4WD short course trucks, monster trucks
- Max Vehicle Weight: Up to 6.5 lbs (ready-to-run)
- Input Voltage Range: 2S–4S LiPo – optimized for high-RPM setups
- ESC Compatibility: Castle Mamba Max Pro, Mamba X, Copperhead – supports full sensor functionality
Motor Architecture and Performance
- Motor Type: Brushless – high-efficiency, low-maintenance design
- Motor Design: Inrunner – enclosed rotor for consistent torque output
- Number of Poles: 4 – enhances startup torque and throttle precision
- Slot Configuration: 12-slot – improves magnetic efficiency and reduces heat
- RPM/Volt (Kv): 3200 kV – tuned for fast acceleration and high-speed performance
Dimensions and Weight
- Motor Size: 1412 – compact format for tight chassis configurations
- Outer Diameter: 3.6 cm – optimized for 1/10 scale installations
- Product Length: 6.2 cm – supports short course and monster truck setups
- Shaft Diameter: 0.5 cm (5 mm) – hardened steel for secure gear fitment
- Shaft Length: 2.1 cm – compatible with standard pinion mounting
Materials and Build Quality
- Rotor Reinforcement: Kevlar wrap – resists deformation under high RPM stress
- Magnet Composition: High-temperature neodymium sintered magnets – maintain strength under load
- Bearings: Oversized NMB bearings – reduce vibration and extend motor life
- Stator Assembly: Low-resistance winding with high-purity copper – improves thermal efficiency
- End Bells: CNC-machined aluminum – enhances durability and alignment accuracy
Connectivity and Electrical Interface
- Connector Type: 6.5 mm bullet – ensures secure, low-resistance power transfer
- Sensor Port: ROAR standard – compatible with race-legal sensored ESCs
Integrated Technologies
- SmartSense: Sensor-based startup logic – delivers smooth launches and dynamic timing control
- QuietSense: Shields sensors from magnetic field noise – maintains ESC-motor synchronization
- Sensor Alignment: Automatically delivers uniform timing and torque – no mechanical adjustment required
Rebuildability and Maintenance
- Design: Rebuildable – allows replacement of rotor, shaft, and front end bell with bearings
What’s in the Box
- (1) Castle 1412-3200kV 4-Pole Sensored Brushless Motor – model M-CC060-0096-00
What You Require
- (1) Compatible Brushless Electronic Speed Control – must support sensored operation
