FEATURES
- Now with WideMaxx kits installed
- Now with expanded battery bay to accommodate 6700mAh LiPo (TRX2890X)
- Now with 2.8" Sledgehammer Tyres
- X-Maxx toughness in 1/10 scale
- VXL-4s waterproof 3S-4S LiPo compatible electronic speed control with real-time telemetry via Traxxas Link

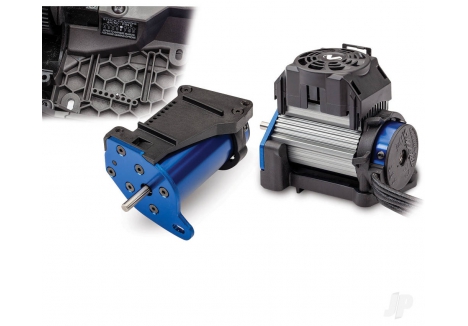

- Velineon 540XL 4-pole 2400kV brushless motor with aluminium heat sink

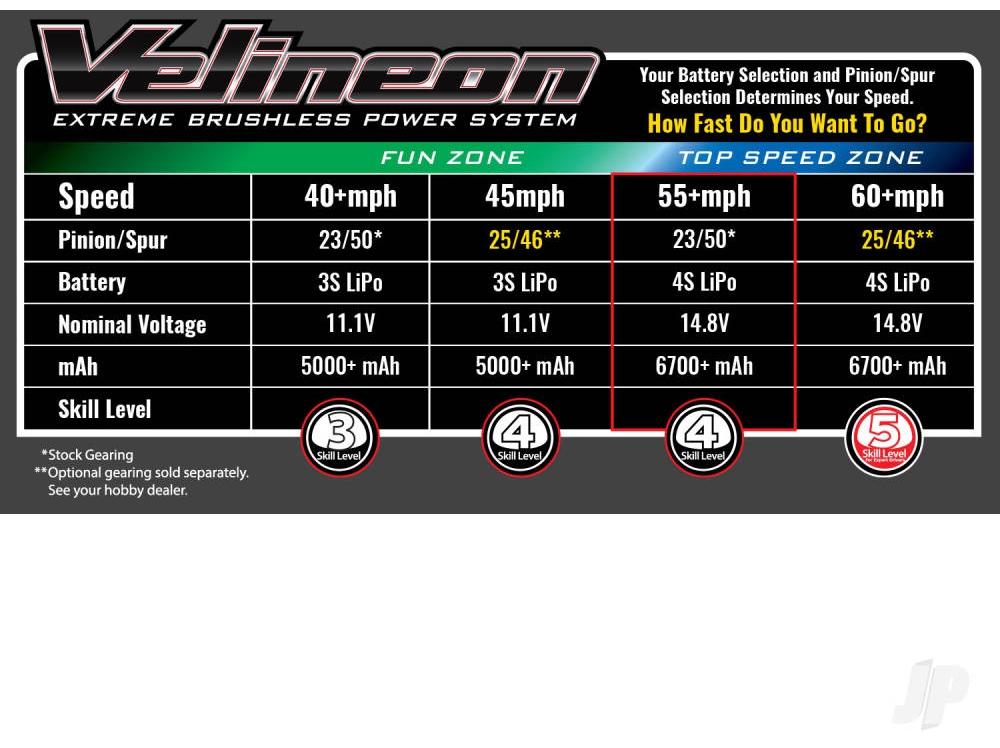

- 55+ MPH out of the box using single 4S LiPo battery (sold separately)
- 60+ MPH with optional gearing and single 4S LiPo battery (sold separately)

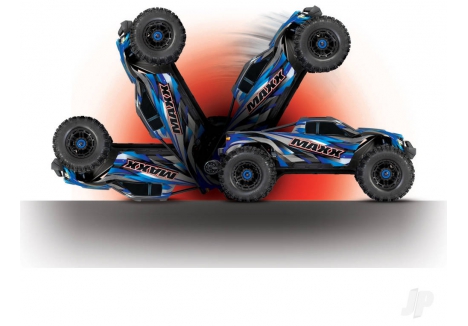

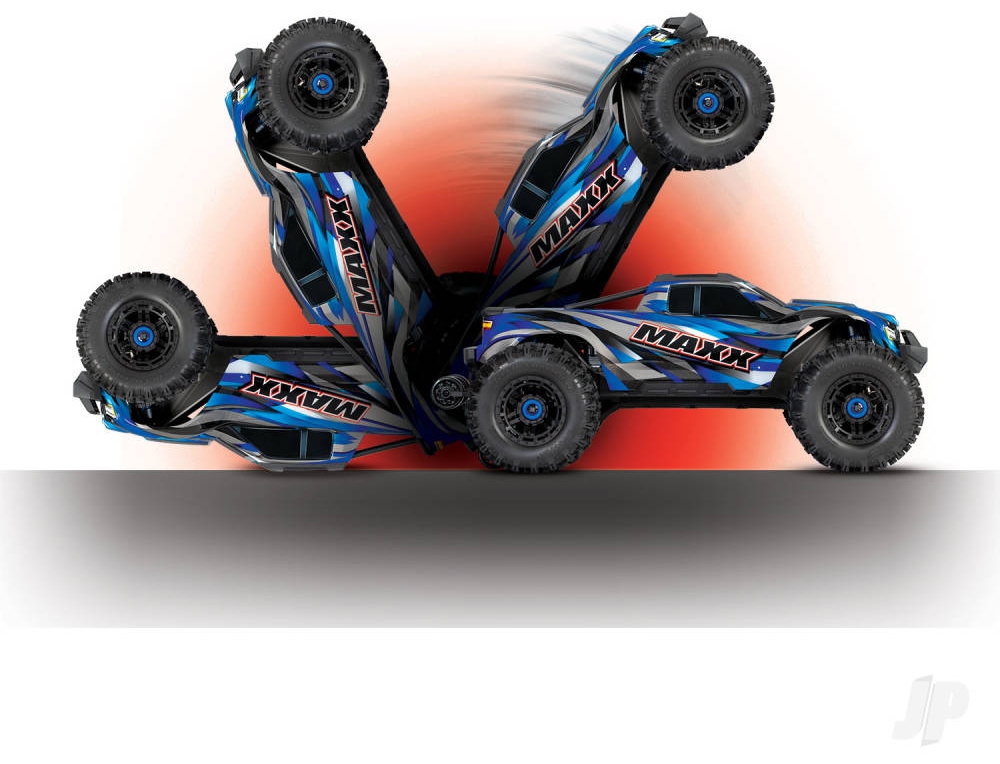

- Traxxas Stability Management with Self-Righting
- TQi 2.4 GHz radio system
- Clipless body mount system

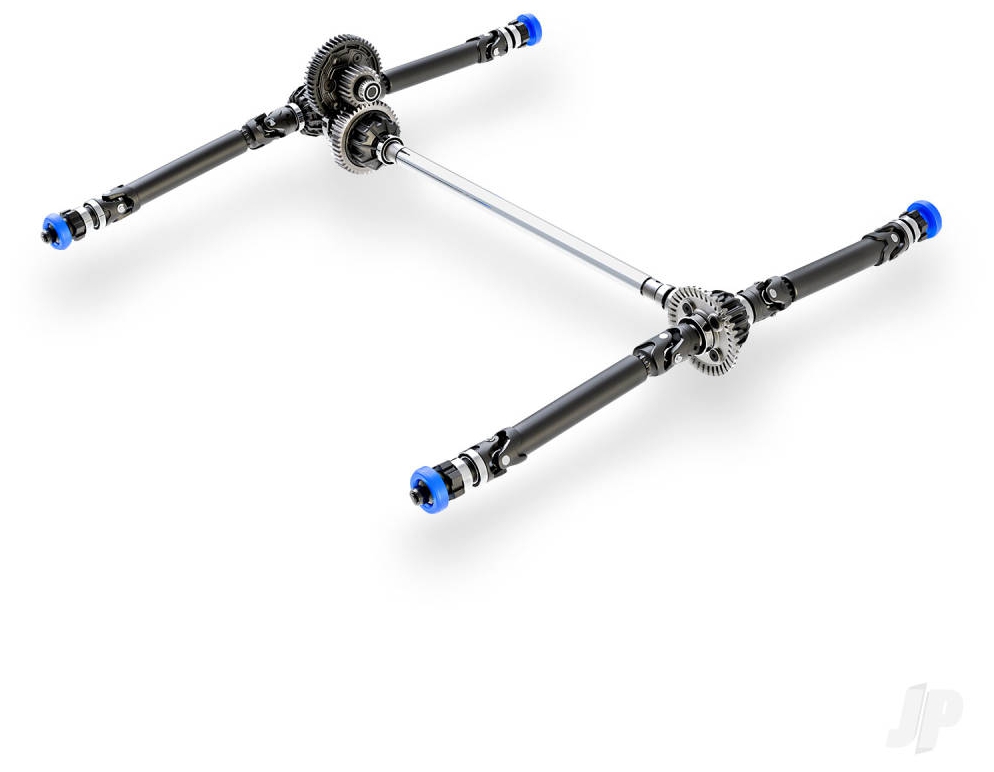

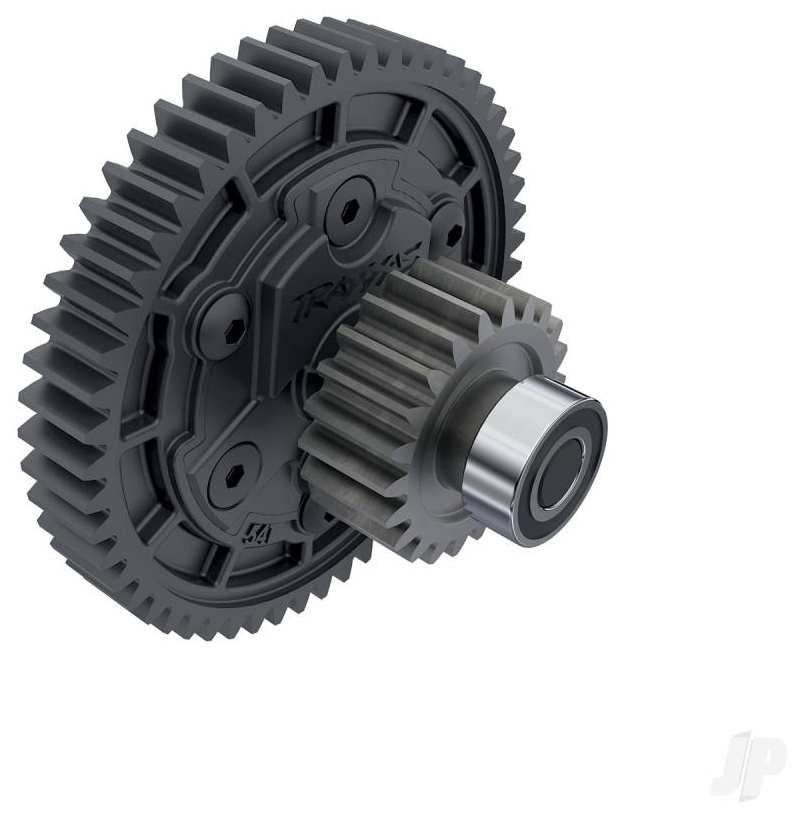

- Full-time shaft-driven 4-wheel drive with Torque-Biasing Centre Drive to absorb shocks and distribute power. Includes heavy-duty Cush Drive and extreme-duty telescoping driveshafts

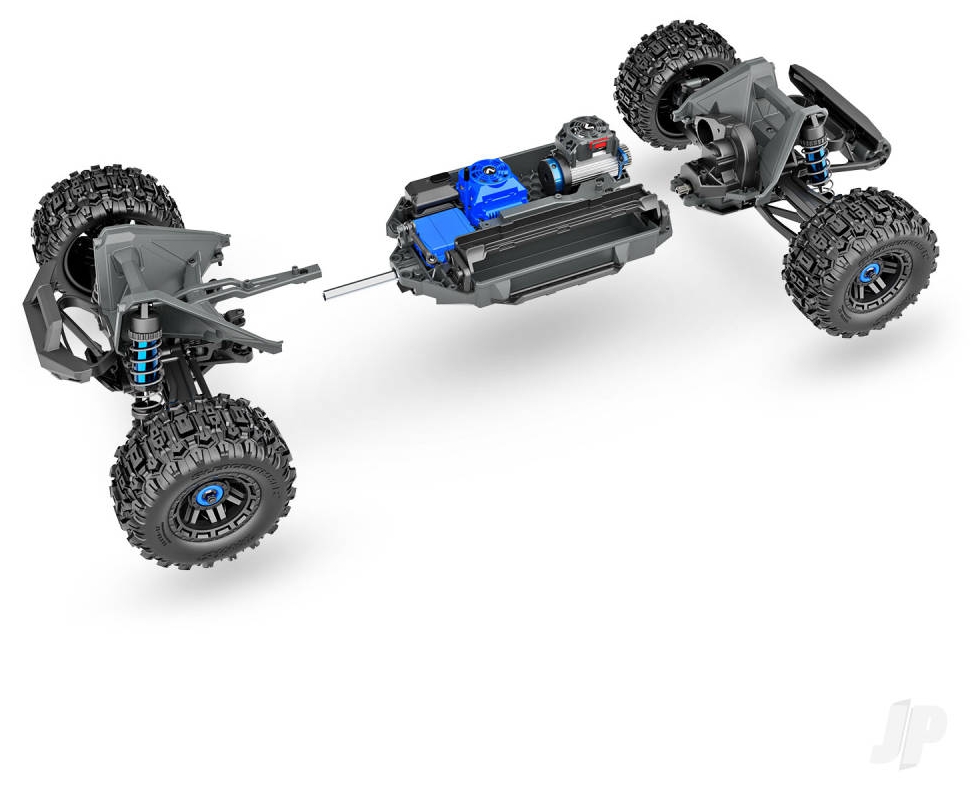

- Extended modular chassis design interlocks with front and rear bulkheads for easy service and access to components
- Extended battery tray accepts Traxxas largest 6700mAh 4-cell LiPo battery and is protected deep in the chassis
- Heavy-duty steering bellcranks and servo
- WideMaxx double-shear suspension arms are wider for improved handling. Tough new composite formula resists impact damage, even in cold weather with double shear strength for all critical suspension points

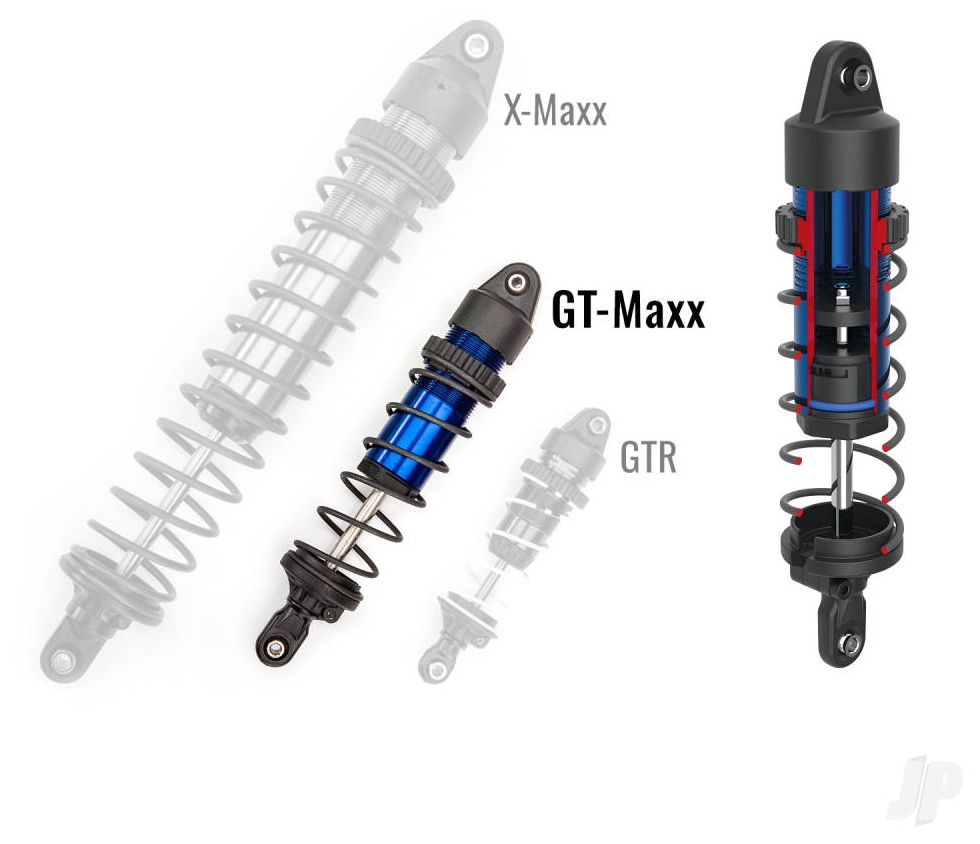

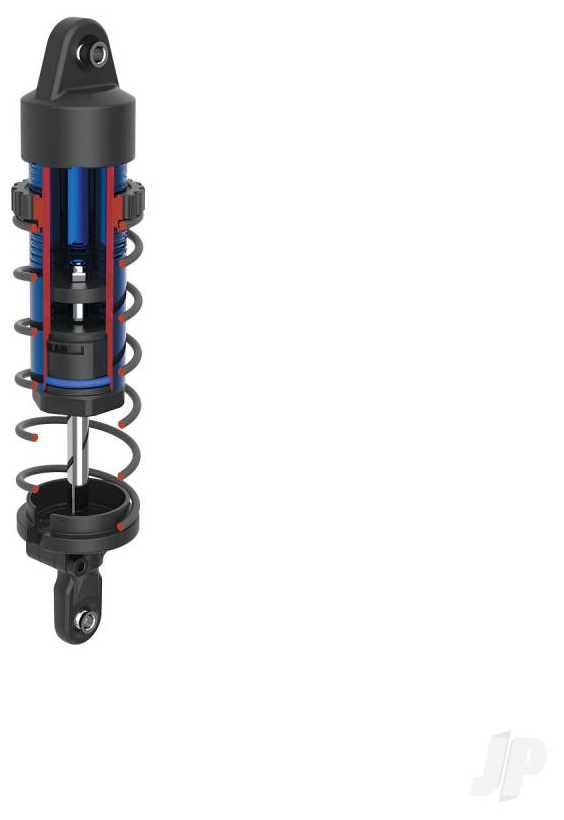

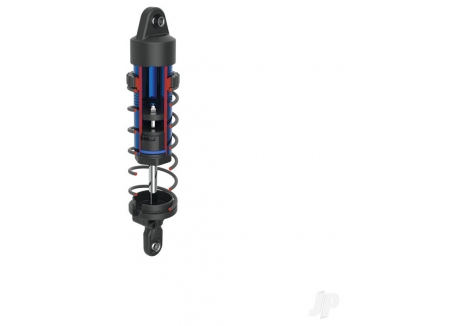

- GT-Maxx machined aluminium threaded body shocks with extra-large bore and capacity
- Tough energy absorbing front and rear bumpers with lower front and rear skids for impact and abrasion resistance
- TSM-rated tough 2.8 wheels with keyed 17mm hex receptor and Sledgehammer extreme tyres with 1-piece foam inserts, pre-glued and ready for action
CONTENTS
- 1x Maxx Ready-To-Race model with Traxxas 540XL brushless motor
- 1x VXL-4s waterproof electronic speed control with integrated telemetry
- 1x Quick Start Guide
- 1x TQi 2.4GHz radio system
- 1x High quality maintenance tools
NEEDED TO COMPLETE
- 4x AA batteries (for the transmitter)
- 1x LiPo Battery - Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported
- 1x LiPo Balance Charger with iD - Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (model #TRX2971)
DETAILS

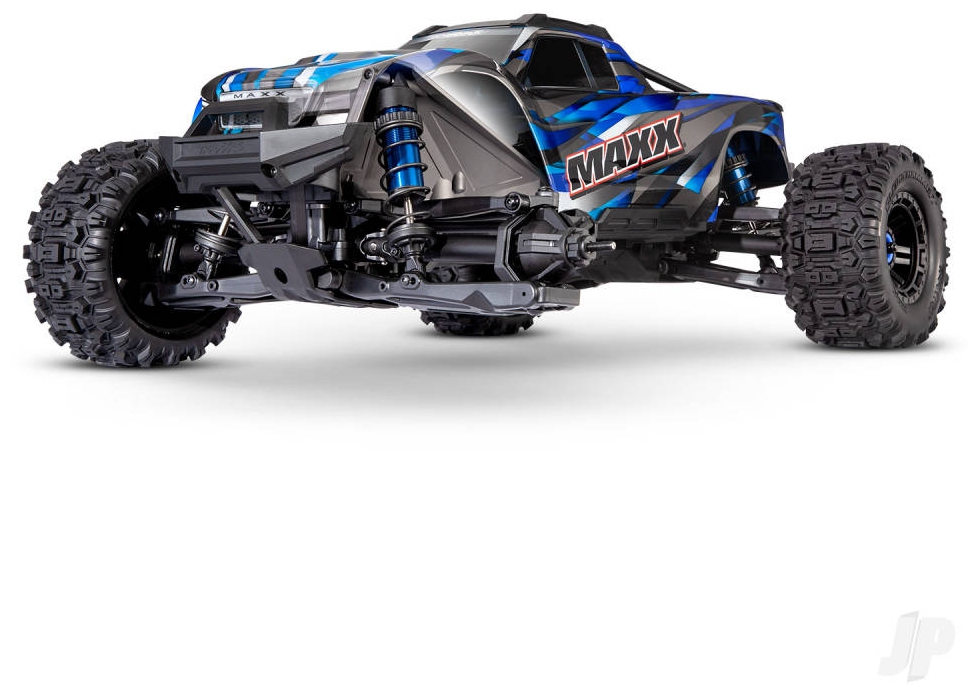

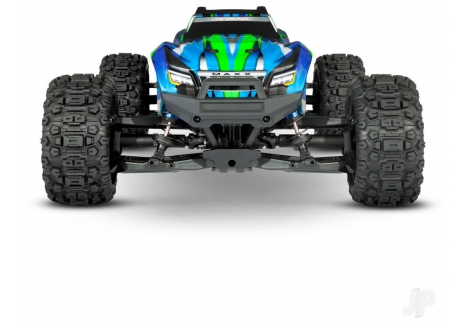

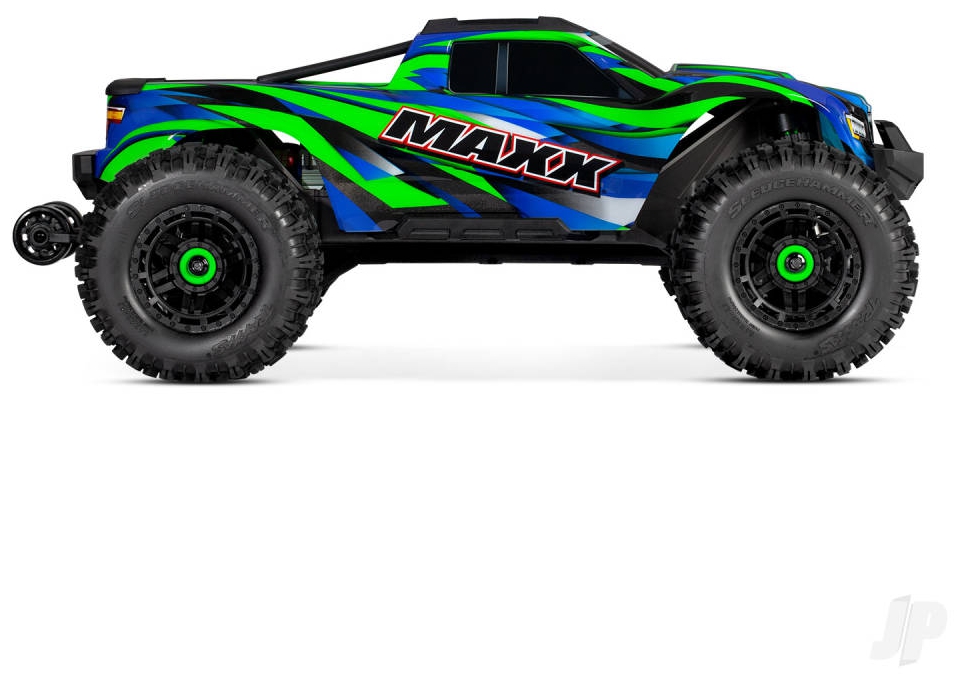

The Traxxas X-Maxx is a giant that forever changed the face of RC monster trucks. Its radical cutting-edge design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. The 1:10 Traxxas Maxx expertly packages X-Maxx s innovative design elements and jaw-dropping strength into a lighter, more compact, even more ferocious beast. Now the newest Maxx is even bigger, with a longer wheelbase, beefier Sledgehammer tyres, and that incredible WideMaxx stance for even more intense action. Let the fun begin!
The new Maxx on Traxxas.com

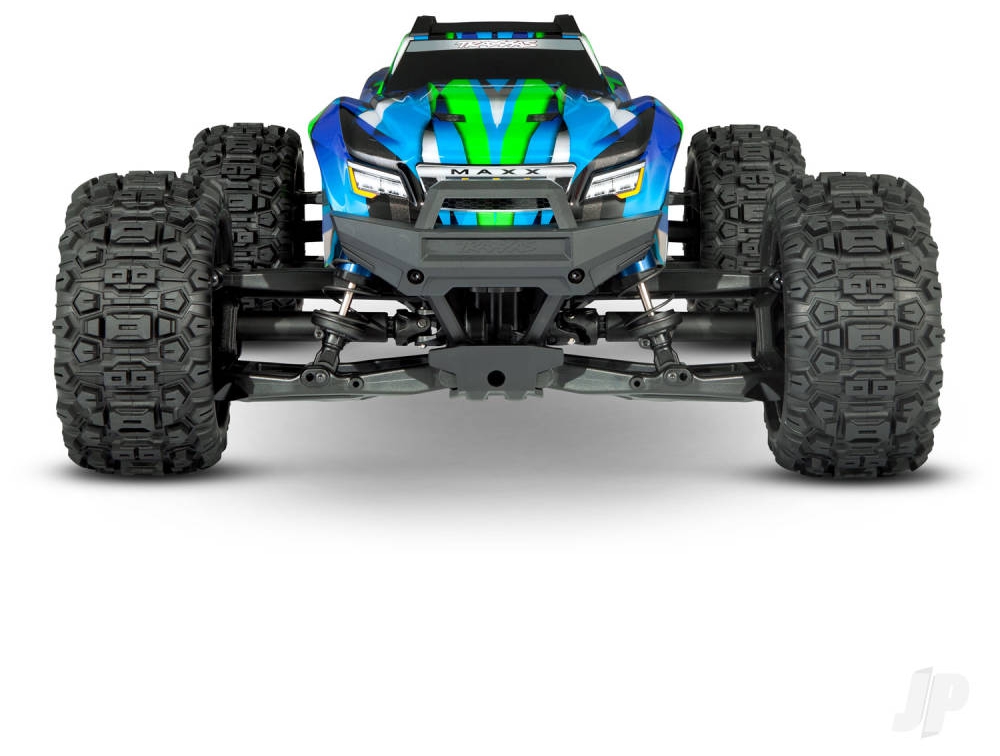

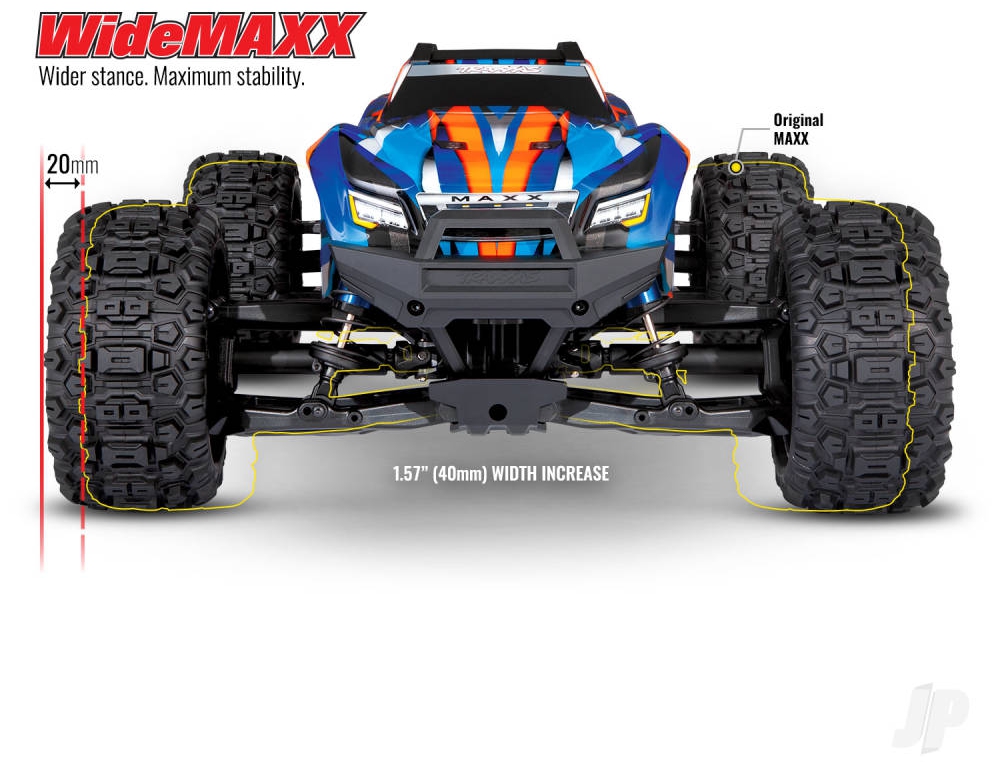

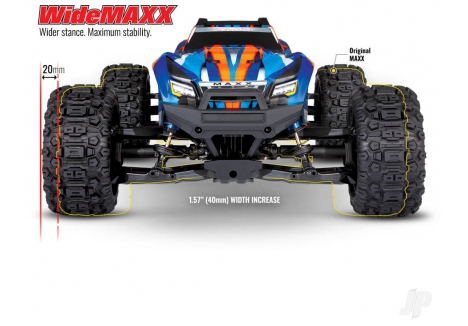

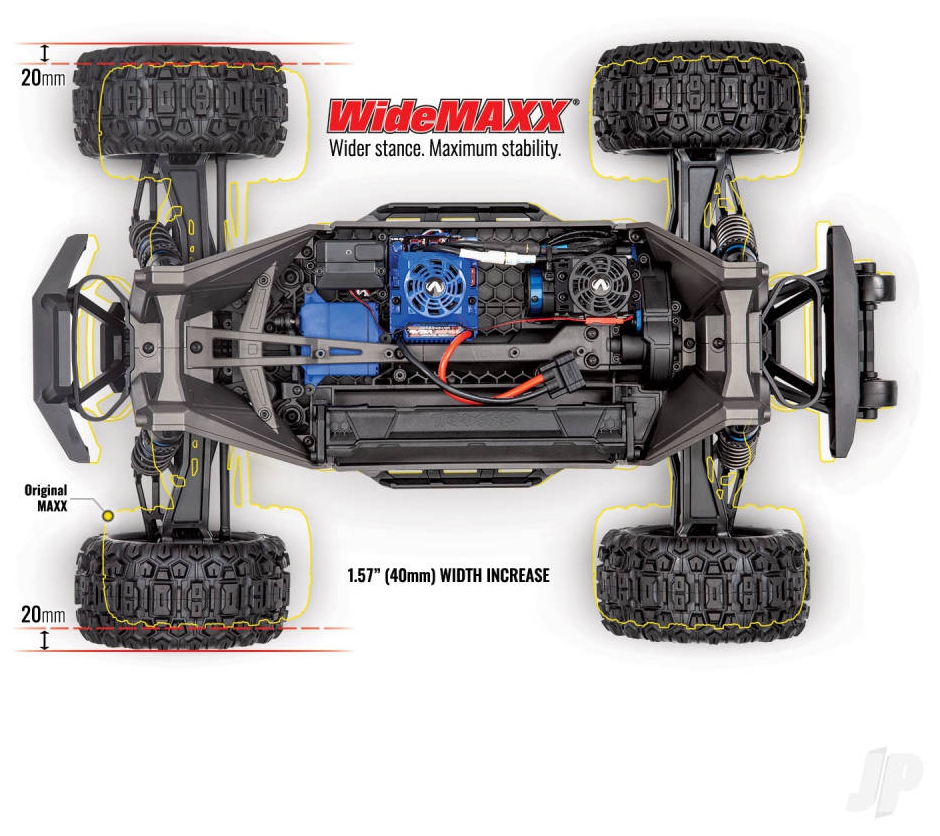

WideMaxx from the Start WideMaxx stance stretches the wheels out over 1.5 inches (40 mm) wider for even greater stability.

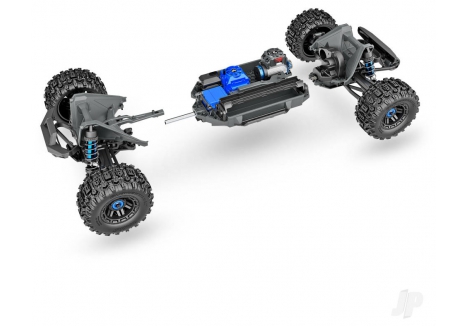

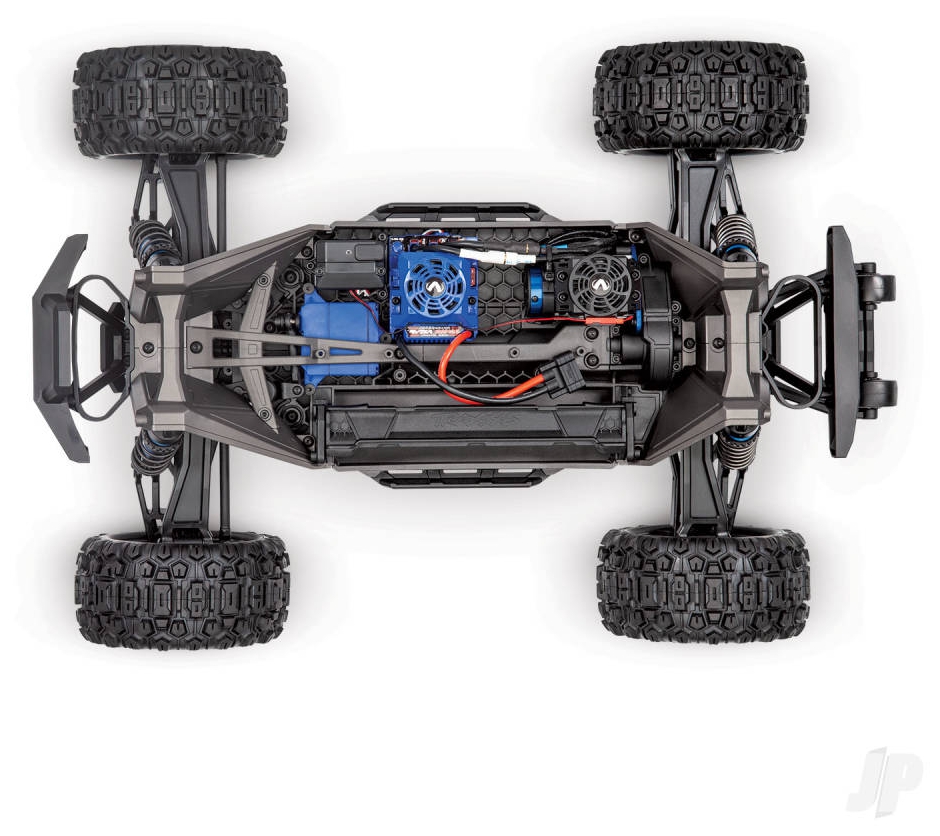

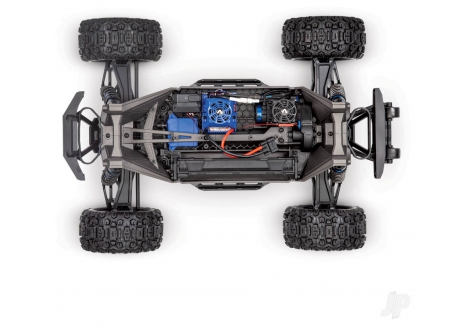

Longer Chassis The extended chassis length now accommodates our most powerful batteries, the same 6700mAh 4-cell LiPo batteries used in the X-Maxx.

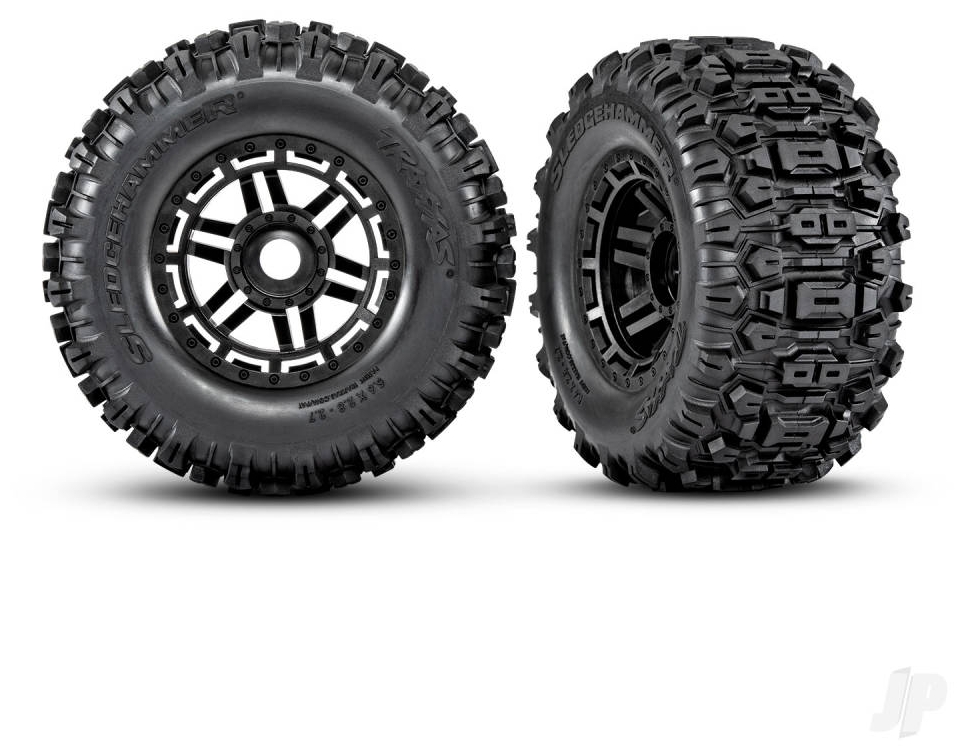

Sledgehammer Tyres Taller Sledgehammer Tyres feature an aggressive open-block tread design that clears away mud and debris for unrivalled traction.
Six New Colours Maxx makes a statement with six all-new ProGraphix clipless bodies with our brightest and boldest colour options yet.
The Maxx Experience Beauty Maxx turns up the dial on fun with even more of what you crave. The new Maxx doubles down on strength and durability with a longer and wider stance for greater stability to match its blistering 60+ mph performance. Bury the throttle, fly through corners, and let the new Maxx turn your wildest full-throttle dreams into reality.
60+ MPH Maxx Muscle Traxxas Velineon brushless power hits hard with massive 4s punch for an awe-inspiring 60+ mph top speed and effortless wheelies on demand. The high-output 540XL motor features a beefy 5 mm shaft, aluminium heat sink, and a powerful fan. Of course it s all fully protected with Traxxas innovative waterproofing.

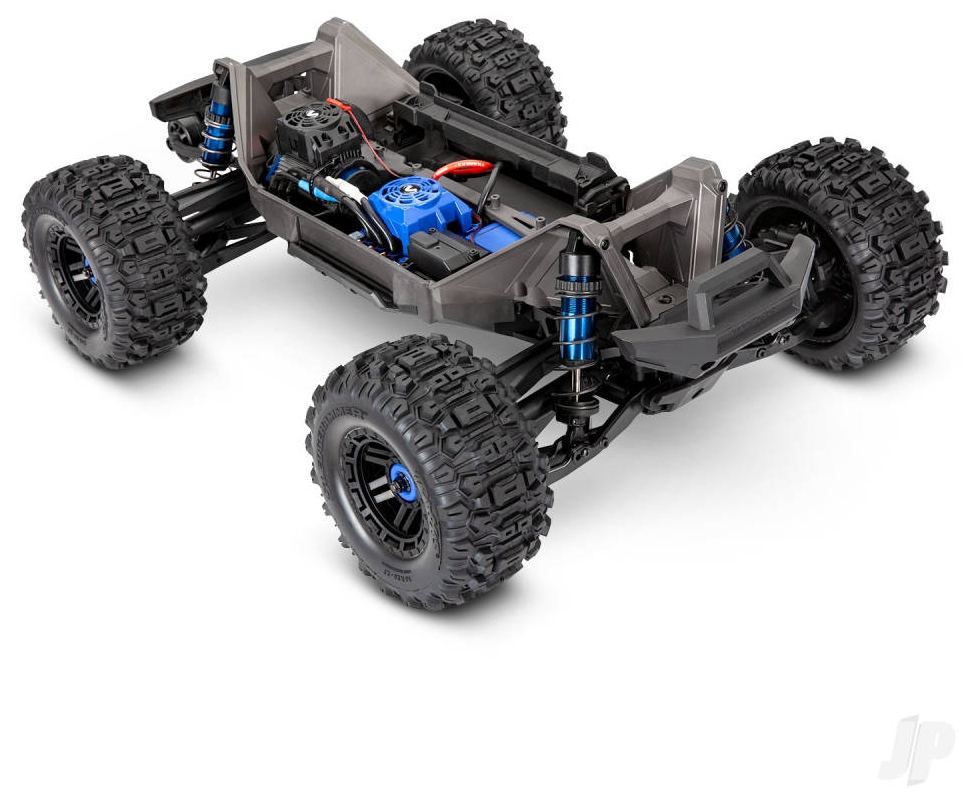

Traxxas Tough Maxx is overbuilt with components found on much larger and heavier vehicles to withstand extreme punishment and intense driving action. The Maxx chassis absorbs and dissipates impact energy across the entyre structure for superior strength. Huge threaded-aluminium GT-Maxx shocks with oversized shafts soak up massive jumps for high-flying fun at every turn.
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX89086-4-GRN
- Color: Green – bold ProGraphix® finish with clipless body system
- Product Type: Traxxas TRX89086-4-GRN brushless monster truck, Traxxas TRX89086-4-GRN 1/10 scale RC basher, Traxxas TRX89086-4-GRN 4WD WideMaxx truck, Traxxas monster truck with WideMaxx suspension and Sledgehammer tyres, Traxxas RC car with clipless body and TSM stability control
Dimensions
- Product Length: 57.2 cm – extended chassis for high-speed stability and impact absorption
- Product Width: 40.5 cm – WideMaxx suspension arms increase cornering grip and rollover resistance
- Product Height: 23.2 cm – elevated stance supports ground clearance and jump recovery
- Wheelbase: 35.2 cm – optimized for balance during acceleration and aerial landings
- Ground Clearance: 6.7 cm – suitable for rough terrain and obstacle navigation
- Product Weight: 4.7 kg – reinforced composite and aluminium components for durability

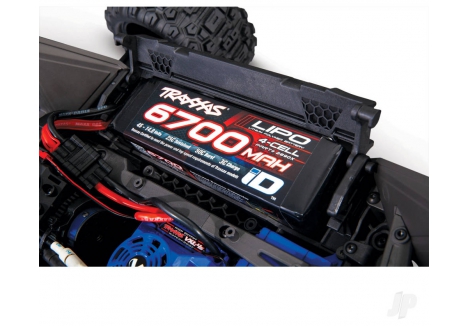

- Battery Compartment: 18.6 × 4.8 × 4.3 cm – accommodates 6700 mAh 4-cell LiPo battery

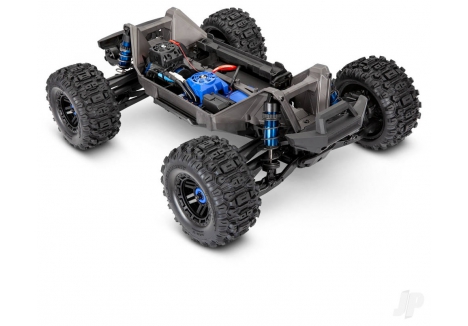

Chassis and Structural Components

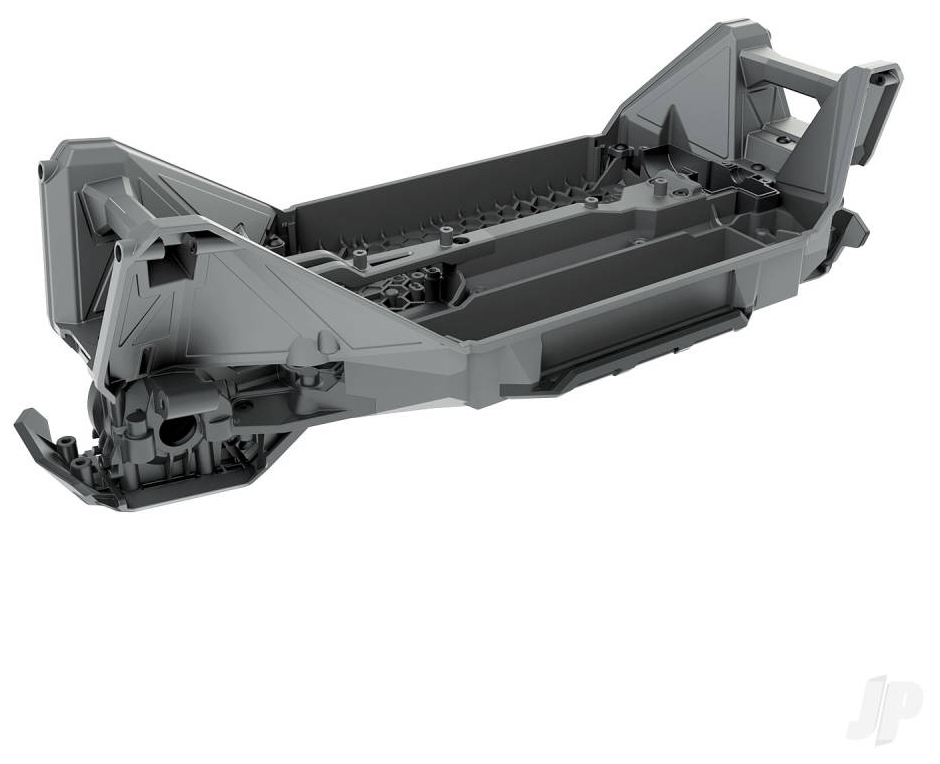

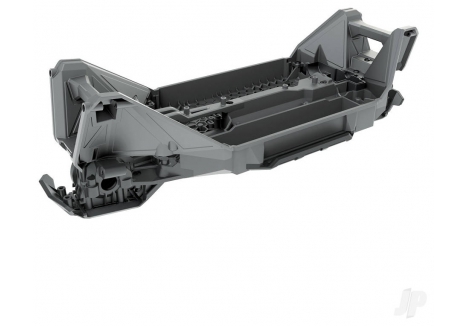

- Chassis Type: Modular composite – interlocks with bulkheads to absorb and distribute impact energy

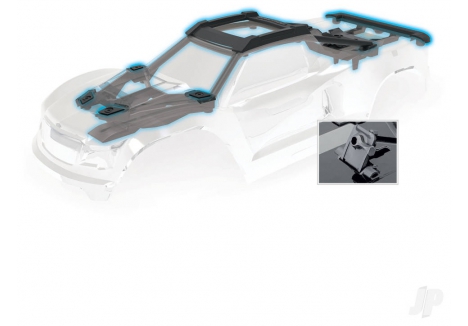

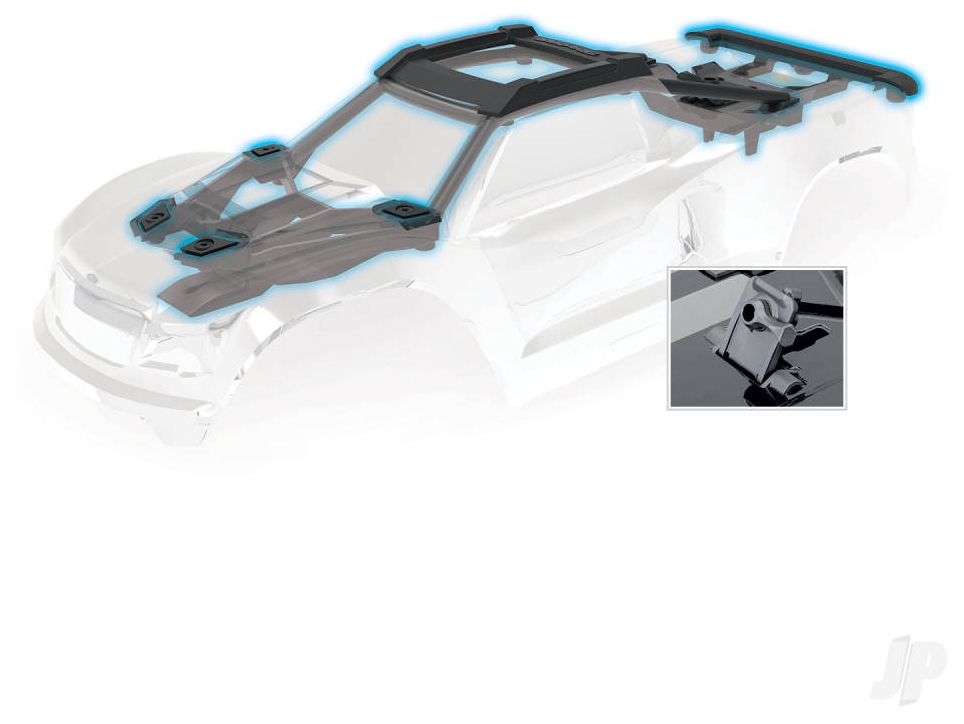

- Body Mount: Clipless – pivoting rear latch system eliminates body posts and clips

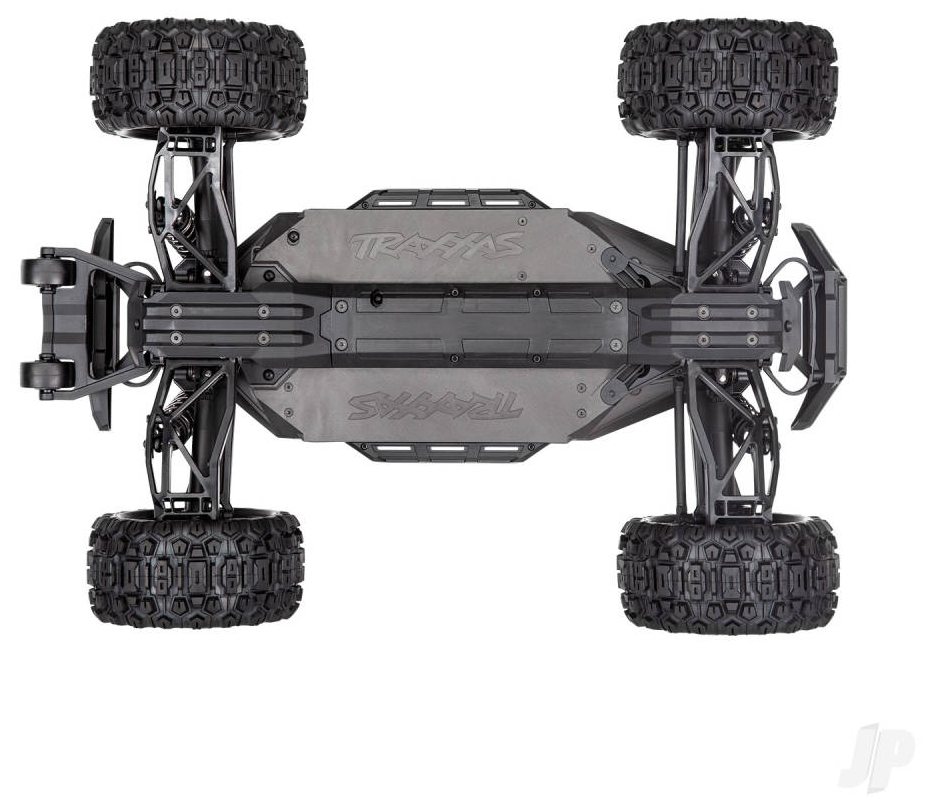

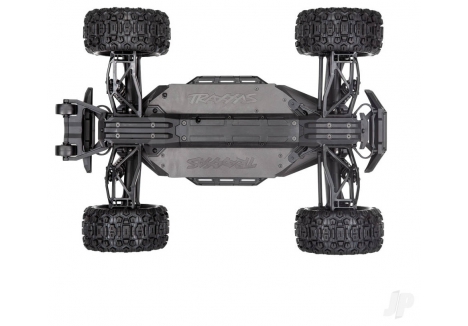

- Skid Plates: Lower front and rear – protect against abrasion and hard landings
- Nerf Bars: Integrated – side impact resistance for chassis protection
- Wheelie Bar: Rear-mounted – includes integrated carry handle
Power System and Electronics

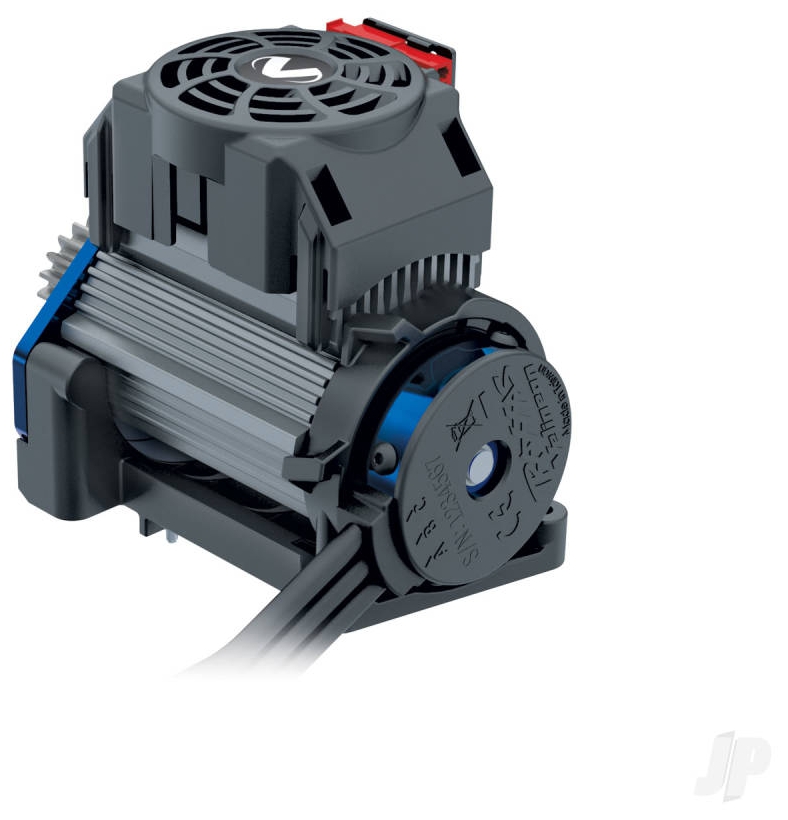

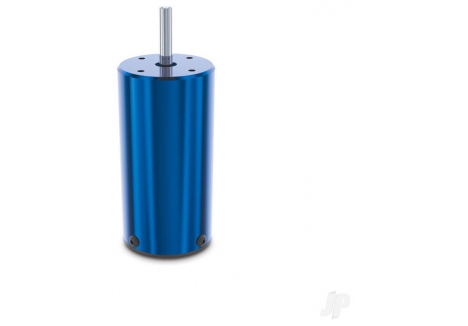

- Motor: Velineon 540XL 2400 kV – long-format 4-pole brushless motor with aluminium heat sink and cooling fan

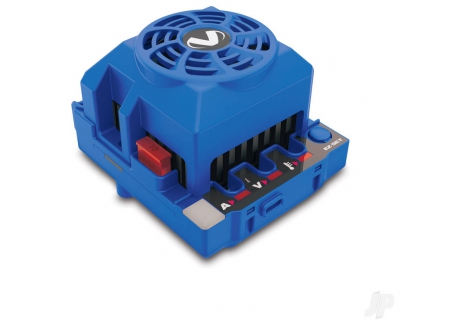

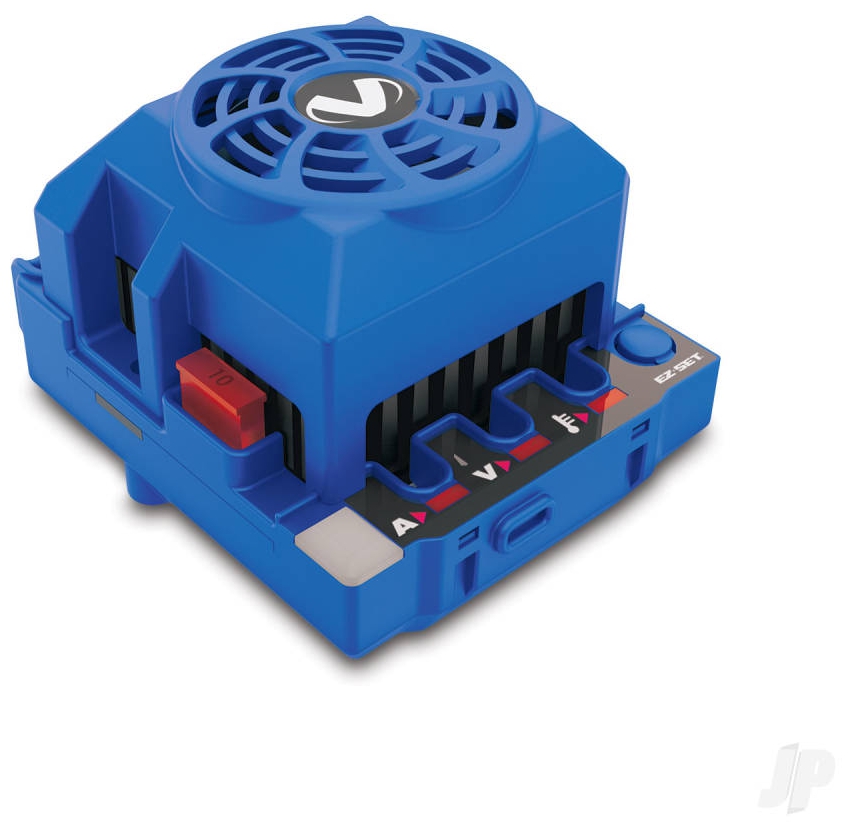

- ESC: Velineon VXL-4S – waterproof, 3S–4S LiPo compatible with integrated telemetry and LED status lights
- Connectors: 6.5 mm bullet motor connectors, Traxxas High-Current battery connectors
- Wiring: 10-gauge silicone – high-efficiency power delivery
Drivetrain and Transmission

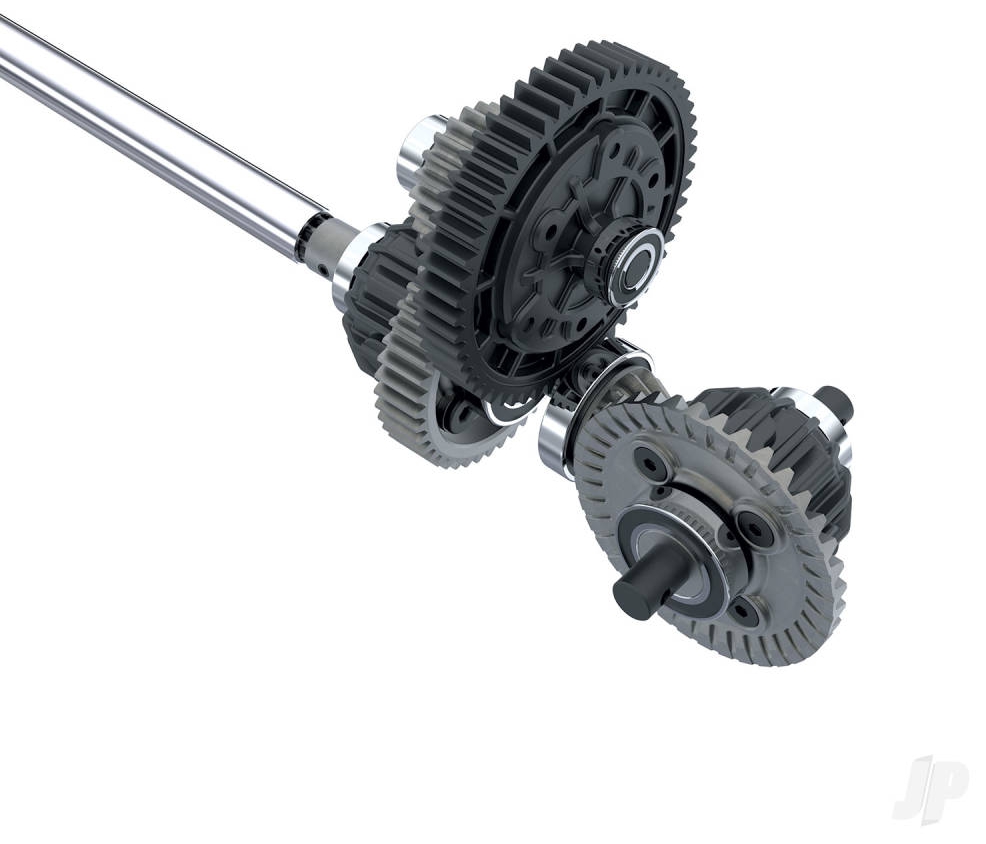

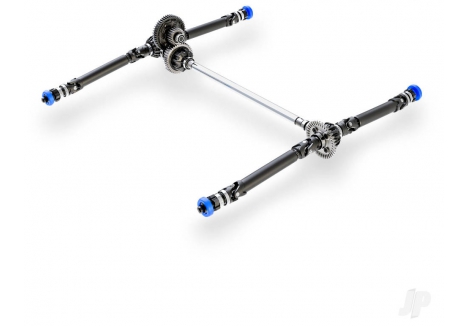

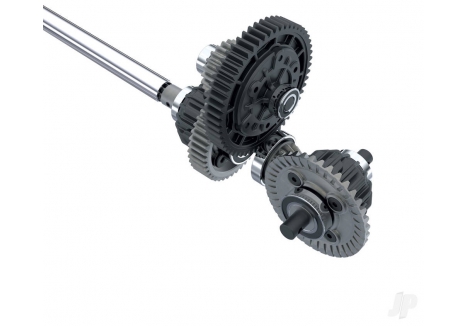

- Drive Type: Shaft-driven 4WD – full-time torque-biased centre drive

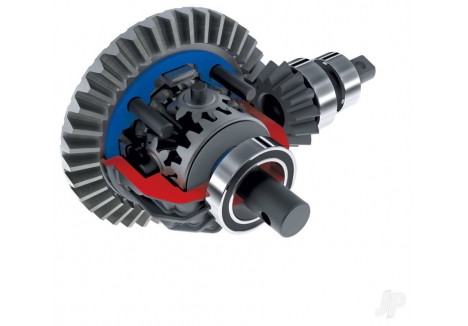

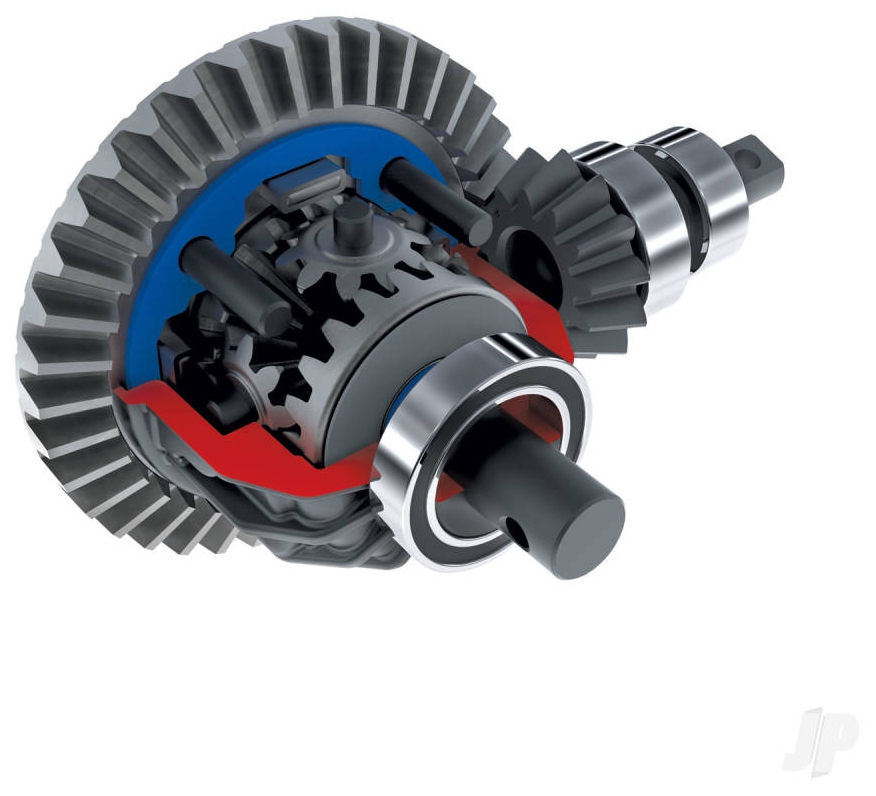

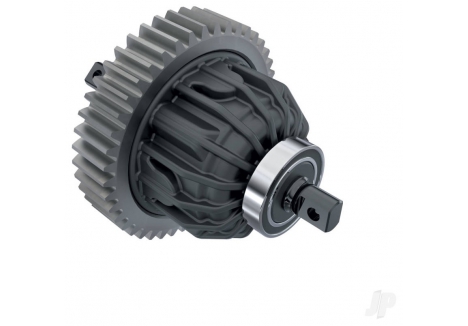

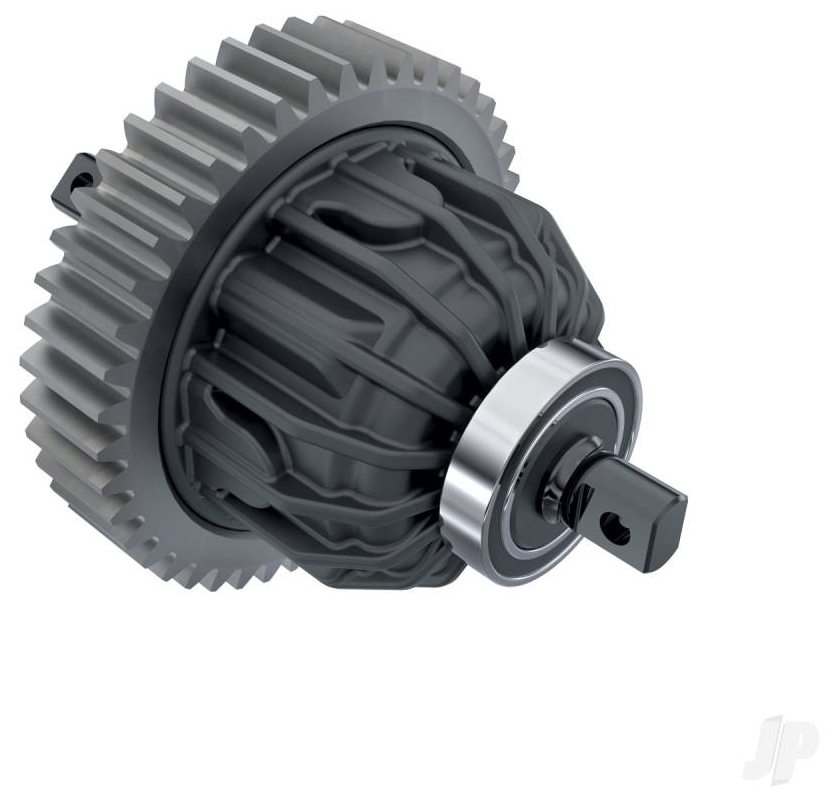

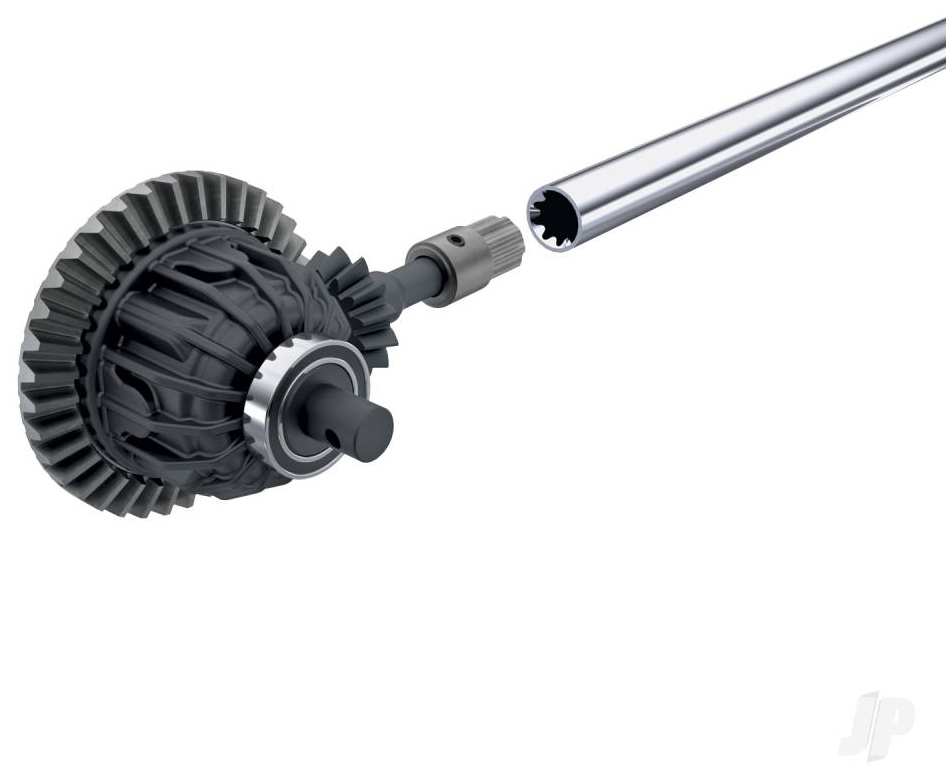

- Differentials: Sealed, hardened steel bevel gear – silicone fluid-filled with limited slip

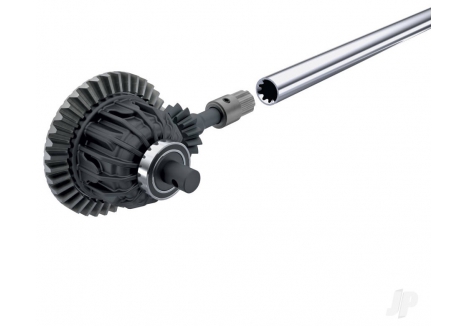

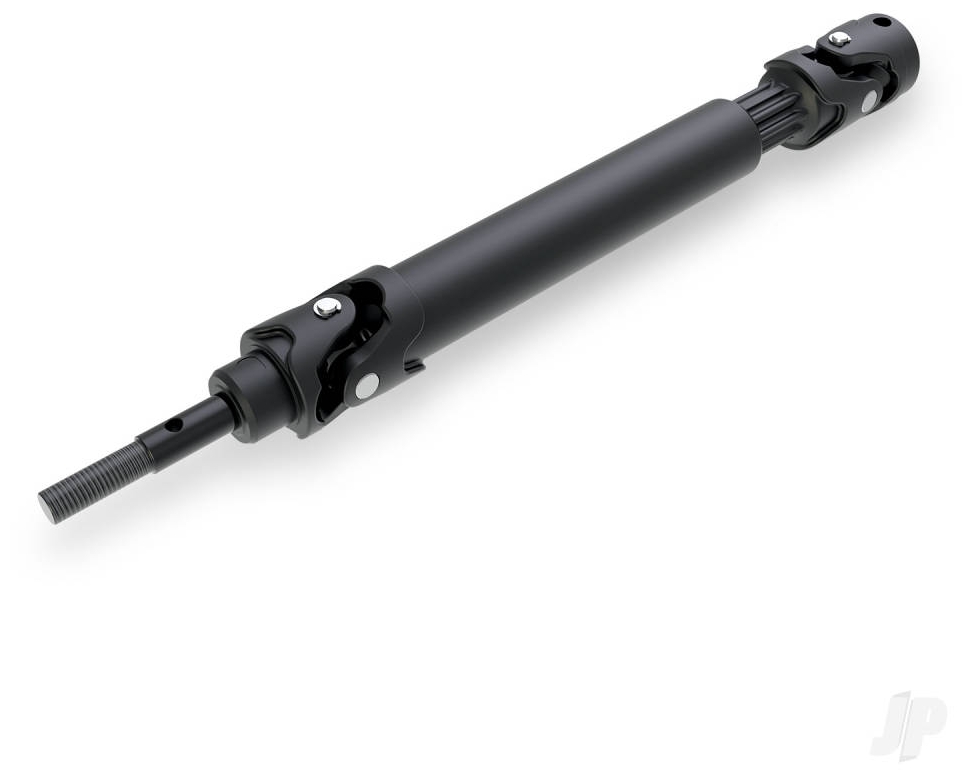

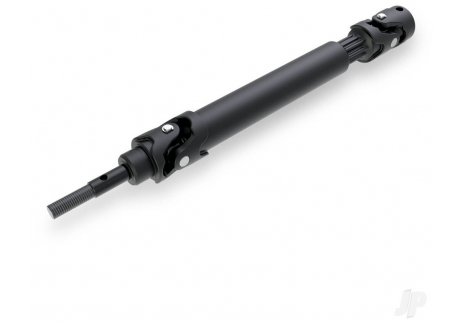

- Driveshafts: Extreme-duty telescoping – splined aluminium centre shaft

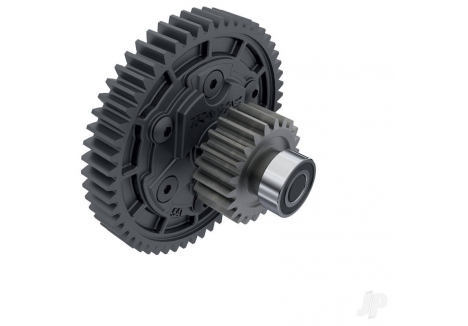

- Gear Ratio: Internal 12.37:1 – optimized for torque and speed balance
- Gear Pitch: 1.0 metric – durable and efficient
Suspension and Handling
- Suspension Type: WideMaxx double-shear arms – 40 mm wider for improved handling

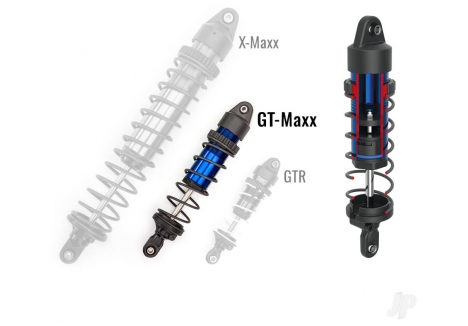

- Shocks: GT-Maxx – aluminium threaded body, oversized damper shaft, dual X-ring seal cartridge
- Steering System: Heavy-duty bellcranks and servo saver – triangulated mounting for strength

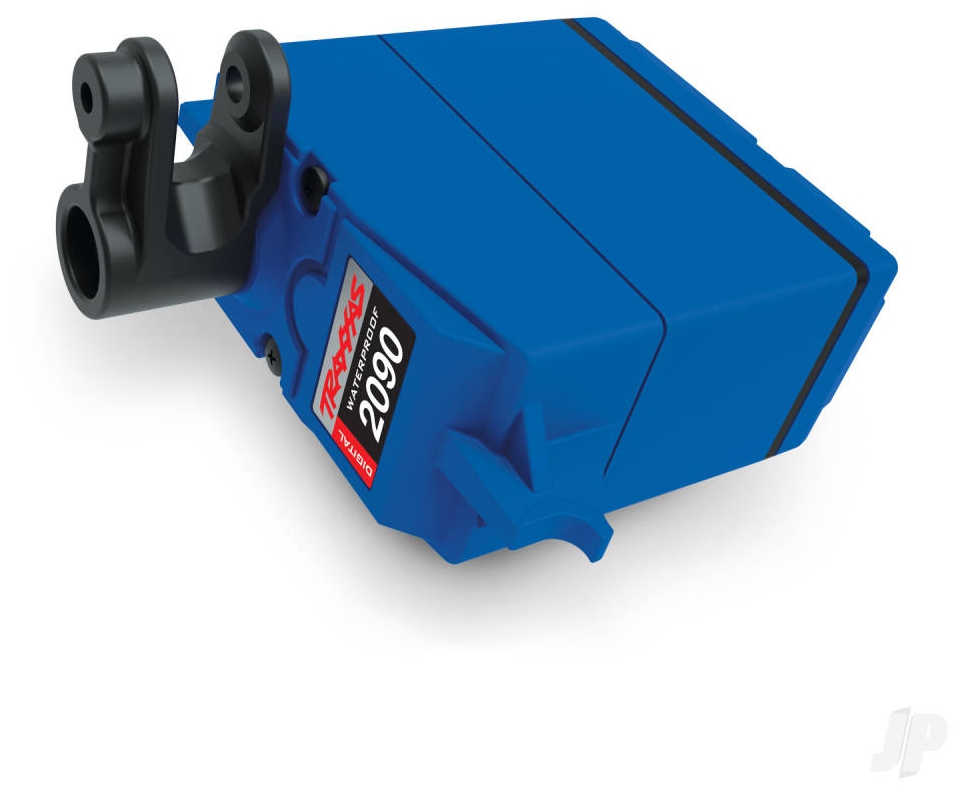

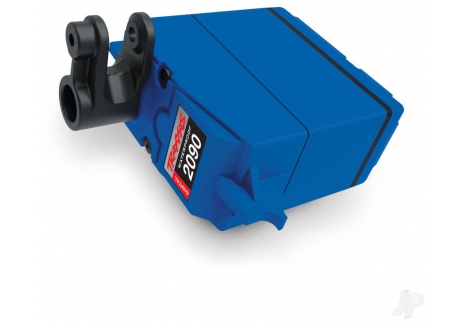

- Servo: 2090 digital high-torque waterproof – 285 oz-in torque, 0.18 sec transit speed
Tyres and Wheels

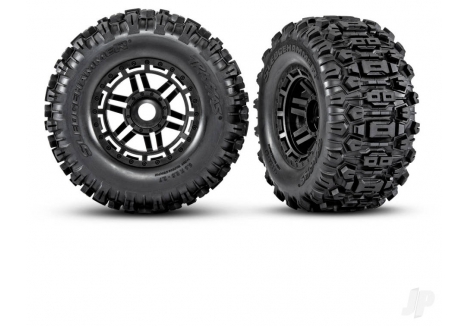

- Tyre Type: Sledgehammer – aggressive open-block tread for mud clearance and traction
- Wheel Size: 2.8″ – keyed 17 mm hex receptor
- Inserts: 1-piece foam – pre-glued and ready for action
Radio System and Control Features
- Transmitter: TQi 2.4 GHz – high-output with multi-function knob and adjustable dual rates

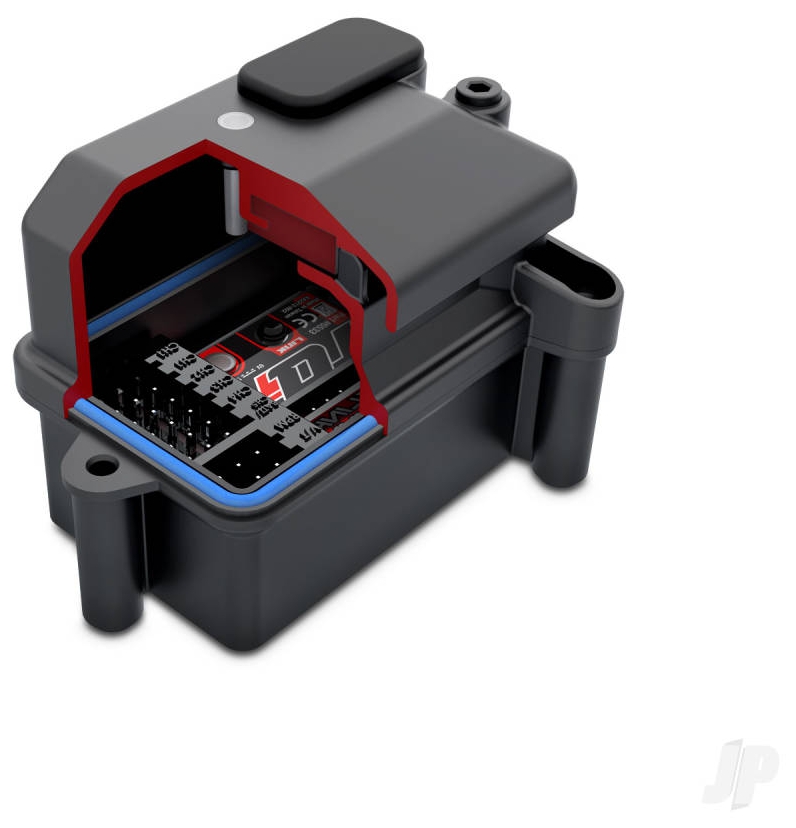

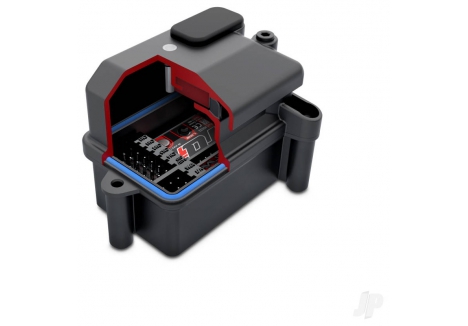

- Receiver: Traxxas Link-enabled 5-channel micro receiver (6533) – telemetry-ready with fail-safe security
- Stability Control: TSM – adjustable from transmitter, prevents spinouts and improves handling
Telemetry and Smart Features
- Telemetry Ports: Integrated – supports real-time monitoring via Traxxas Link
- Model Memory: Auto-loads settings for up to 30 Traxxas Link-enabled models
What’s in the Box

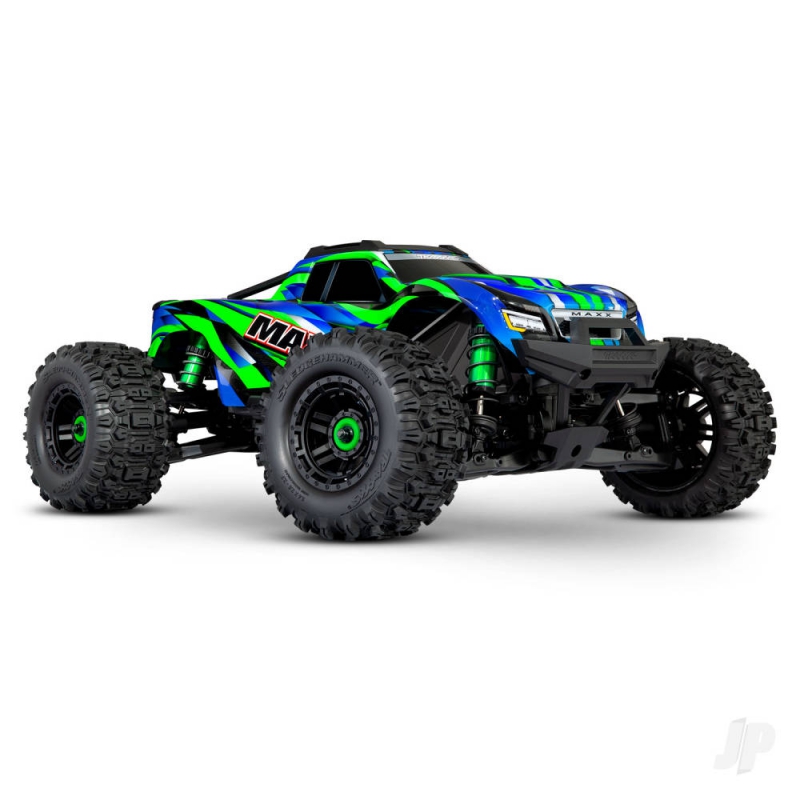

- 1 × Traxxas Maxx VXL 1/10 4WD WideMaxx Monster Truck – Green
- 1 × Velineon 540XL Brushless Motor (Installed)
- 1 × Velineon VXL-4S Waterproof ESC (Installed)
- 1 × TQi 2.4 GHz Transmitter
- 1 × Traxxas Link-enabled 5-channel Micro Receiver (Installed)
- 1 × Quick Start Guide
- 1 × High-quality Maintenance Tools
What You Require
- 1 × 4-cell 14.8 V Power Cell LiPo Battery (Recommended)
- 1 × Compatible LiPo Balance Charger with iD®
- 4 × AA Alkaline Batteries for Transmitter
Sold Separately
- LiPo Battery – required for operation
- Battery Charger – compatible with 4S LiPo packs
- AA Batteries – for transmitter
Product Description of Traxxas TRX89086-4-GRN brushless monster truck
The Traxxas TRX89086-4-GRN brushless monster truck is a 1/10 scale RC basher engineered for extreme speed, rugged durability, and advanced control. Finished in bold green and built on the WideMaxx platform, the Traxxas TRX89086-4-GRN 1/10 scale RC basher delivers 60+ mph performance with 4S brushless power and a chassis designed to absorb punishment. Whether you're launching off ramps, tearing through gravel, or pushing the limits on asphalt, the Traxxas TRX89086-4-GRN 4WD WideMaxx truck combines brute force with precision handling. From its Velineon 540XL motor and VXL-4S ESC to its GT-Maxx shocks, clipless body system, and telemetry-ready receiver, every component is built for high-impact fun and race-grade control.
Key features of the Traxxas TRX89086-4-GRN brushless monster truck
- WideMaxx suspension – 40 mm wider stance for improved stability and cornering speed
- VXL-4S ESC and 540XL motor – delivers 60+ mph speed potential with 4S LiPo power
- GT-Maxx shocks – aluminium threaded bodies with oversized shafts for extreme damping
- Clipless body system – reinforced shell with pivoting latch for fast access and durability
- TSM stability control – adjustable assistance to prevent spinouts and maintain control
- Telemetry-ready receiver – integrated ports for real-time performance monitoring
- Aluminium chassis and modular design – absorbs impact and simplifies maintenance
How does WideMaxx suspension improve handling?
The Traxxas monster truck with WideMaxx suspension and Sledgehammer tyres features double-shear suspension arms that extend the track width by 40 mm. This wider stance enhances cornering grip and straight-line stability, especially during high-speed runs and aggressive turns. The composite suspension arms are formulated to resist impact damage, even in cold weather, while steel pivot balls and sealed bearings ensure durability. Combined with fixed camber and toe links, the WideMaxx system gives the Traxxas TRX89086-4-GRN brushless monster truck race-grade geometry and rugged resilience.
What kind of power system drives the Maxx?
At the heart of the Traxxas TRX89086-4-GRN with 540XL motor and VXL-4S ESC is a 2400 kV 4-pole brushless motor paired with a waterproof VXL-4S ESC. The motor features a 5 mm shaft, aluminium heat sink, and integrated cooling fan for sustained performance. The ESC supports 3S–4S LiPo batteries and includes machined heat sinks, LED status lights, and integrated protection circuits. With optional gearing and a single 4S LiPo battery, the Traxxas TRX89086-4-GRN 1/10 scale RC basher reaches speeds over 60 mph, delivering explosive acceleration and effortless wheelies.
How do GT-Maxx shocks support extreme terrain?
The Traxxas TRX89086-4-GRN 4WD WideMaxx truck is equipped with GT-Maxx shocks featuring aluminium threaded bodies, oversized damper shafts, and dual X-ring seal cartridges. These shocks absorb massive jumps and rough terrain with ease, maintaining composure during high-impact landings. Adjustable spring retainers and bolted lower perches allow for fine-tuning, while pivot ball caps ensure smooth articulation. Whether you're bashing through dirt or launching off ramps, the GT-Maxx suspension system keeps the Traxxas monster truck with WideMaxx suspension and Sledgehammer tyres planted and predictable.
What makes the clipless body system a practical upgrade?
The Traxxas RC car with clipless body and TSM stability control features a reinforced shell with a pivoting rear latch mechanism that eliminates traditional body clips. This system allows for quick one-hand installation and removal, while protecting against tearing and impact damage. The modular composite chassis interlocks with bulkheads to absorb and distribute energy, and the sealed driveline keeps out dirt and grit. Combined with integrated nerf bars and skids, the clipless body system enhances both usability and durability for the Traxxas TRX89086-4-GRN brushless monster truck.
How does TSM stability control improve driving confidence?
Traxxas Stability Management (TSM) helps prevent spinouts and loss of control by adjusting steering and throttle assistance in real time. The system is fully adjustable from the transmitter, allowing drivers to dial in the level of support they need. Whether you're navigating slippery surfaces or pushing top speed, TSM ensures the Traxxas RC car with clipless body and TSM stability control remains responsive and manageable. Paired with the TQi 2.4 GHz radio system and telemetry-ready receiver, TSM gives the Traxxas TRX89086-4-GRN 1/10 scale RC basher a competitive edge in any terrain.
What scale features enhance realism and performance?
The Traxxas TRX89086-4-GRN brushless monster truck includes Sledgehammer tyres with aggressive tread patterns for mud-clearing traction, 2.8″ wheels with keyed 17 mm hex receptors, and a wheelie bar with integrated carry handle. The extended battery tray accommodates 6700 mAh 4-cell LiPo packs, secured with pivoting hold-downs for easy access. Aluminium heat sinks, 10-gauge silicone wire, and waterproof electronics ensure reliability in all conditions. These features make the Traxxas TRX89086-4-GRN 4WD WideMaxx truck a standout in both performance and presentation.
Is this the best Traxxas 1/10 RC car for speed and control?
For drivers seeking the best Traxxas 1/10 RC car with aluminium chassis and 60+ mph speed potential, the Maxx VXL delivers a complete package of power, precision, and durability. With WideMaxx suspension, GT-Maxx shocks, and a telemetry-ready receiver, this truck is built to handle aggressive terrain and high-speed bashing. Whether you're racing competitively or exploring solo trails, the Traxxas TRX89086-4-GRN brushless monster truck offers unmatched control and excitement in its class.
For those looking for an affordable Traxxas monster truck with waterproof electronics and 4S power system, the Maxx VXL combines premium features with ready-to-run convenience. Buy Traxxas TRX89086-4-GRN truck with GT-Maxx shocks and telemetry-ready receiver and unleash full-throttle performance with confidence and control.
Technical Specifications of Traxxas TRX89086-4-GRN brushless monster truck
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX89086-4-GRN
- Color: Green – bold ProGraphix® finish with clipless body system
- Product Type: Traxxas TRX89086-4-GRN brushless monster truck, Traxxas TRX89086-4-GRN 1/10 scale RC basher, Traxxas TRX89086-4-GRN 4WD WideMaxx truck, Traxxas monster truck with WideMaxx suspension and Sledgehammer tyres, Traxxas RC car with clipless body and TSM stability control
Dimensions
- Product Length: 57.2 cm – extended chassis for high-speed stability and impact absorption
- Product Width: 40.5 cm – WideMaxx suspension arms increase cornering grip and rollover resistance
- Product Height: 23.2 cm – elevated stance supports ground clearance and jump recovery
- Wheelbase: 35.2 cm – optimized for balance during acceleration and aerial landings
- Ground Clearance: 6.7 cm – suitable for rough terrain and obstacle navigation
- Product Weight: 4.7 kg – reinforced composite and aluminium components for durability
- Battery Compartment: 18.6 × 4.8 × 4.3 cm – accommodates 6700 mAh 4-cell LiPo battery
Chassis and Structural Components
- Chassis Type: Modular composite – interlocks with bulkheads to absorb and distribute impact energy
- Body Mount: Clipless – pivoting rear latch system eliminates body posts and clips
- Skid Plates: Lower front and rear – protect against abrasion and hard landings
- Nerf Bars: Integrated – side impact resistance for chassis protection
- Wheelie Bar: Rear-mounted – includes integrated carry handle
Power System and Electronics
- Motor: Velineon 540XL 2400 kV – long-format 4-pole brushless motor with aluminium heat sink and cooling fan
- ESC: Velineon VXL-4S – waterproof, 3S–4S LiPo compatible with integrated telemetry and LED status lights
- Connectors: 6.5 mm bullet motor connectors, Traxxas High-Current battery connectors
- Wiring: 10-gauge silicone – high-efficiency power delivery
Drivetrain and Transmission
- Drive Type: Shaft-driven 4WD – full-time torque-biased centre drive
- Differentials: Sealed, hardened steel bevel gear – silicone fluid-filled with limited slip
- Driveshafts: Extreme-duty telescoping – splined aluminium centre shaft
- Gear Ratio: Internal 12.37:1 – optimized for torque and speed balance
- Gear Pitch: 1.0 metric – durable and efficient
Suspension and Handling
- Suspension Type: WideMaxx double-shear arms – 40 mm wider for improved handling
- Shocks: GT-Maxx – aluminium threaded body, oversized damper shaft, dual X-ring seal cartridge
- Steering System: Heavy-duty bellcranks and servo saver – triangulated mounting for strength
- Servo: 2090 digital high-torque waterproof – 285 oz-in torque, 0.18 sec transit speed
Tyres and Wheels
- Tyre Type: Sledgehammer – aggressive open-block tread for mud clearance and traction
- Wheel Size: 2.8″ – keyed 17 mm hex receptor
- Inserts: 1-piece foam – pre-glued and ready for action
Radio System and Control Features
- Transmitter: TQi 2.4 GHz – high-output with multi-function knob and adjustable dual rates
- Receiver: Traxxas Link-enabled 5-channel micro receiver (6533) – telemetry-ready with fail-safe security
- Stability Control: TSM – adjustable from transmitter, prevents spinouts and improves handling
Telemetry and Smart Features
- Telemetry Ports: Integrated – supports real-time monitoring via Traxxas Link
- Model Memory: Auto-loads settings for up to 30 Traxxas Link-enabled models
What’s in the Box
- 1 × Traxxas Maxx VXL 1/10 4WD WideMaxx Monster Truck – Green
- 1 × Velineon 540XL Brushless Motor (Installed)
- 1 × Velineon VXL-4S Waterproof ESC (Installed)
- 1 × TQi 2.4 GHz Transmitter
- 1 × Traxxas Link-enabled 5-channel Micro Receiver (Installed)
- 1 × Quick Start Guide
- 1 × High-quality Maintenance Tools
What You Require
- 1 × 4-cell 14.8 V Power Cell LiPo Battery (Recommended)
- 1 × Compatible LiPo Balance Charger with iD®
- 4 × AA Alkaline Batteries for Transmitter
Sold Separately
- LiPo Battery – required for operation
- Battery Charger – compatible with 4S LiPo packs
- AA Batteries – for transmitter
Finance Options
Click to see Novuna Finance Information
Novuna Personal Finance Available on this product
| DEPOSIT |
MONTHS |
APR |
MONTHLY PAYMENTS |
TOTAL AMOUNT PAYABLE |
| 24 Month Credit |
| £56.00 |
24 |
19.9% |
24 x £25.23 |
£661.52 |
| 36 Months Credit |
| £56.00 |
36 |
19.9% |
36 x £18.29 |
£714.44 |
| 48 Months Credit |
| £56.00 |
48 |
19.9% |
48 x £14.88 |
£770.24 |
| Buy Now Pay Later 48 months (6 months Deferred) |
| £56.00 |
48 |
24.9% |
48 x £17.55 |
£898.40 |
| Buy Now Pay Later 48 months (10 months Deferred) |
| £56.00 |
48 |
24.9% |
48 x £18.56 |
£946.88 |
| Buy Now Pay Later 48 months (12 months Deferred) |
| £56.00 |
48 |
24.9% |
48 x £19.62 |
£997.76 |
We want to make sure your delivery goes smoothly, so here are some important details about our service:
- For orders above £120, we offer delivery to most mainland UK addresses. For orders under £120, we can still deliver to Northern Ireland and the outlying isles, as long as the item can be sent by Royal Mail, weighs less than 30kg, and fits within 61cm × 46cm × 46cm. Some highland and remote areas may carry an extra delivery charge as couriers often apply surcharges in these locations. If you live in one of these areas, feel free to contact us before ordering so we can confirm the delivery options and costs for you.
- Most of our products include delivery in the price. If your order is under £90, a small delivery fee will apply but do not worry this will always be clearly shown at checkout before you complete your purchase.
- Depending on what you choose at checkout, your order will usually be delivered either the next working day or within 2 working days. For next day delivery please place your order before 2:00pm. Orders are dispatched Monday to Friday only. Some items may take a little longer and if that is the case we will always show the expected delivery time on the product page.
- If your order includes items with different dispatch times we will normally wait and send everything together once all items are in stock. If one of the items is going to take a while we will give you the choice either wait for everything to arrive or let us send the available items now and deliver the rest later. It is up to you.
- We use trusted delivery partners to make sure your order gets to you safely and on time. We use DPD for next working day deliveries and Royal Mail for the 2 day option.
- As soon as your order is on its way we will send you a tracking number by email. If you provide your mobile number at checkout we will also send delivery updates straight to your phone so you can keep an eye on progress.
- If a product is marked as "Dispatched within 3 working days" delivery usually takes around 3 to 5 working days from when your order is placed.
- For customers in Inverness and other parts of the Scottish Highlands deliveries can take up to 2 working days even if you select next day delivery as couriers do not currently offer a guaranteed next day service to those areas.
