Overview

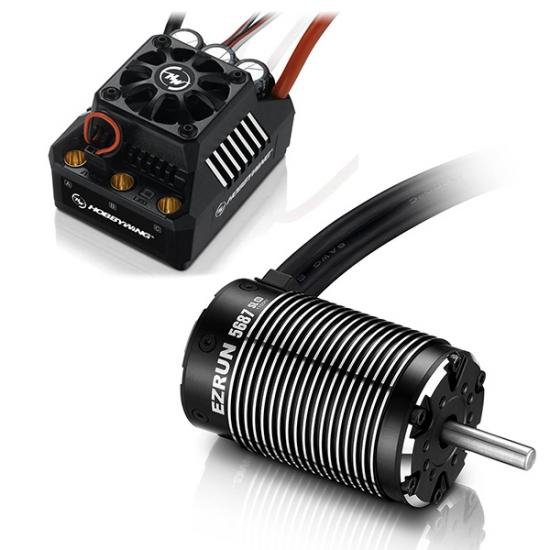

The Hobbywing Black EZRUN Combo MAX6 ESC and 5687 1100KV Brushless Motor represents a premium-grade power solution for serious RC enthusiasts building high-performance 1/5 and 1/6 scale vehicles. This expertly engineered combo brings together two of Hobbywing's finest components, delivering unmatched power, reliability and responsiveness for everything from lightweight trophy trucks to competitive touring cars and buggies. Whether you're building a custom 1/6 scale RC car, setting up a 1/5 scale basher, or preparing for competitive racing, this combo provides the professional-grade electronics and motor performance you need to dominate on any terrain.
Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX6 ESC is able to deliver unmatched power and performance for even the most hardcore of racing applications. The combo is also responsive enough to protect itself from damage due to overloading, physical abuse, overuse or even human error, making it an ideal option for high-end aggressively powered builds across the UK RC car market. With the included 5687 1100KV motor, this combo is particularly well-suited to 1/5 scale light-duty vehicles and 1/6 scale RC builds that demand exceptional torque and consistent performance.
The EZRUN MAX6 ESC has been specifically designed for large-scale RC applications, delivering the kind of electrical performance and protection features that professional RC builders and competitive racers expect. Coupled with the robust 5687 1100KV brushless motor, this is a combo that excels across multiple 1/6 scale vehicle platforms including touring cars, buggies and truggy builds, while the 1100KV rating makes it equally at home powering 1/5 scale light-duty vehicles with precision control and stable output.
Key Features
- 160A ESC with Advanced Firmware — The EZRUN MAX6 ESC is rated for continuous operation at up to 160 amps, providing exceptional power delivery whilst maintaining sophisticated over-current protection and thermal management to ensure your investment stays protected during intense racing sessions and aggressive driving styles.
- High Voltage Built-in BEC with 25A Output — The MAX6 incorporates the world's first HV built-in BEC (Battery Elimination Circuit) with switchable output voltage of 6V to 7.4V and an impressive 25-amp output capacity, perfectly suited to running multiple high-voltage servos simultaneously on large-scale RC vehicles without voltage sag or performance loss.
- Anti-Spark Circuitry Protection — Advanced electronic anti-spark circuitry protects battery connectors from damage and helps prevent physical injury from sparking when connecting higher voltage battery packs (5S/6S/7S/8S LiPo), a critical safety feature for serious RC enthusiasts.
- Electronic Switch with 50,000+ Cycle Lifespan — The MAX6 features an advanced electronic switch rated for over 50,000 on/off cycles, eliminating mechanical contact wear and providing reliable, maintenance-free operation across thousands of charging and usage cycles.
- Completely Waterproof and Dust-Proof Design — The entire ESC is housed in a completely waterproof, dust-proof and shock-resistant enclosure, allowing the MAX6 to be used in all weather conditions without any risk of damage from water, mud, dust or environmental contamination, making it suitable for all-conditions RC driving across the UK.
- 5687 1100KV Brushless Motor with 8mm Shaft — The included 5687 motor features a 1100KV rating optimised for 1/5 scale light-duty vehicles and 1/6 scale RC builds, combined with an 8mm shaft diameter that provides secure engagement with standard gear systems whilst maintaining exceptional torque stability and thermal efficiency.
- Sensorless Technology for Simplicity and Reliability — The motor operates using sensorless brushless technology, eliminating the need for additional sensor wiring and reducing system complexity whilst maintaining smooth acceleration and rock-solid stable output even during instant full-torque start-ups.
- Compatible with LiPo and NiMH Batteries — The MAX6 accepts input voltage from 3-8S LiPo batteries or 9-24 cell NiMH packs, providing flexibility for builders who prefer either lithium polymer chemistry or the durability of nickel metal-hydride batteries for their RC builds.
- Flexible Parameter Adjustment — Users have the choice of adjusting the ESC parameters as per their preference and ability, allowing fine-tuning of acceleration, throttle response, brake performance and protection thresholds to match individual driving styles and vehicle setups.
- No Load Current of Just 4.1A — The 5687 motor draws only 4.1 amps at no-load, indicating excellent efficiency and minimal drain on your battery pack when the vehicle is running but not under throttle, extending runtime on the track or trail.
Technical Performance
This premium combo delivers exceptional technical performance across all the specifications that matter to serious RC builders. The EZRUN MAX6 ESC provides 160 amps of continuous current capacity with intelligent firmware that monitors temperature, battery voltage and load conditions in real-time to deliver peak performance whilst protecting your expensive brushless motor from damage. The 56mm diameter and 87mm length 5687 brushless motor has been engineered with high-performance rotor and winding structure, producing incredible acceleration capabilities with the rock-solid, stable output that separates competition-grade equipment from consumer-level alternatives. The motor's 1100KV rating provides optimal torque characteristics for 1/5 scale light-duty vehicles and 1/6 scale RC cars, delivering the perfect balance between top speed and acceleration across varied terrain. The combo accepts battery input of 3-8S LiPo or 9-24 cell NiMH batteries, covering virtually all modern RC power systems in the UK market. The 8mm shaft diameter is engineered to work with standard high-load gear systems, whilst the completely waterproof design means you can run this combo in wet conditions, muddy fields and dusty environments without concern for long-term reliability. Build quality throughout reflects Hobbywing's commitment to engineering excellence, with gold-plated connectors, reinforced solder joints and robust internal circuitry that delivers consistent performance season after season.
What's in the Box
- Hobbywing EZRUN MAX6 160A Brushless ESC
- Hobbywing 5687 1100KV Brushless Motor with 8mm shaft
What You Need to Complete
- LiPo or NiMH battery pack (3-8S LiPo or 9-24 cell NiMH recommended)
- Battery charger compatible with your chosen battery chemistry
- RC vehicle chassis (1/5 or 1/6 scale compatible)
- Radio control system with compatible receiver
- Servo(s) for steering and throttle control
- Battery connector adaptor if your vehicle uses different connectors than the included bullets
Frequently Asked Questions
- What type of RC vehicles is the EZRUN MAX6 5687 1100KV combo suitable for? — This combo is specifically designed for 1/5 scale light-duty vehicles and 1/6 scale RC cars including touring cars, buggies, and truggy platforms. The 1100KV motor rating provides optimal torque delivery for these scales, though it can also be used in 1/7 scale on-road and truck applications where slightly lower speeds are acceptable.
- What batteries does this combo require? — The EZRUN MAX6 ESC accepts input voltage from 3-8S LiPo batteries or 9-24 cell NiMH packs. Most modern 1/5 and 1/6 scale RC builders use 2S to 6S LiPo batteries depending on their vehicle and desired performance characteristics. Always check your specific vehicle's manual for recommended battery configurations.
- Is the combo waterproof? — Yes, the EZRUN MAX6 ESC is completely waterproof, dust-proof and shock-resistant, allowing operation in all weather conditions without damage from water, mud or dust. This makes it excellent for UK RC driving where wet and muddy conditions are common.
- What is the 160A rating and why does it matter? — The 160A continuous current rating indicates the maximum sustained electrical current the ESC can safely handle. This high rating provides headroom for powerful brushless motors, ensuring the ESC won't thermal cutoff during aggressive acceleration and high-speed running. Essentially, it means this combo can handle serious power levels without electrical limitations.
- Can I use multiple servos with the built-in BEC? — Yes, the EZRUN MAX6 features a high-voltage BEC with 25-amp output capacity and switchable voltage of 6V or 7.4V, allowing you to power multiple high-voltage servos simultaneously. This is perfect for larger 1/5 and 1/6 scale vehicles that require multiple steering and throttle servos without voltage sag.
- What does the 1100KV rating mean? — KV stands for Kilo-volts and indicates how many RPM the motor will turn per volt applied. The 1100KV rating means this motor will spin at approximately 1100 RPM for every volt of battery voltage. Lower KV ratings produce more torque and lower top speeds, making 1100KV ideal for torque-focused applications like 1/5 scale light-duty builds where power delivery matters more than pure speed.
- Is this suitable for beginners? — This is professional-grade equipment designed for experienced RC builders rather than complete beginners. The combo requires understanding of battery chemistry, ESC programming, and vehicle assembly. However, if you already have RC experience and are upgrading to higher performance, this combo is outstanding value with its advanced features and reliability.
- What's the difference between this and the 4985 1650KV version? — The main difference is the motor KV rating. This 5687 1100KV version is optimised for 1/5 scale light-duty vehicles and 1/6 scale RC cars where torque is prioritised. The 4985 1650KV version in model 38010801 is better suited to 1/6 and 1/7 scale on-road cars, SCT and truck builds where higher top speeds are desired. Both share the same EZRUN MAX6 ESC but deliver different speed characteristics.
- Does it have anti-spark protection? — Yes, the MAX6 incorporates advanced anti-spark circuitry that protects battery connectors from damage and helps prevent sparking when connecting high-voltage battery packs. This is essential for safety when working with 6S LiPo and larger packs.
Why Buy from RC Model Shop?
RC Model Shop is a trusted UK RC retailer and authorised dealer for all the brands we stock, including Traxxas, ARRMA, Losi, FTX, Hobbywing, Spektrum and more. Based in Walsall, we have a physical store where customers are welcome to come in, view products and purchase in store. Whether you are a seasoned competitor, a weekend basher, or just discovering the world of RC for the first time, our team of experienced RC enthusiasts is here to help you find the perfect setup and provide ongoing support. Order the Hobbywing Black EZRUN Combo MAX6 ESC and 5687 1100KV Brushless Motor for 1/5 & 1/6 RC Builds, 8mm Shaft – HW38010802 today with confidence, knowing you are buying from an authorised retailer with genuine products, expert knowledge and a commitment to customer satisfaction. Shop online or visit us in Walsall — we look forward to helping you get the most out of your RC experience.
- Brand: Hobbywing
- Model Number: HW38010802
- Product Type: EZRUN MAX6 ESC and 5687 1100KV Brushless Motor Combo
- Colour: Black
- Scale: 1/5 (light-duty) and 1/6
- Application: 1/5 light-duty vehicles, 1/6 scale vehicles, touring cars, buggies, truggy platforms
- ESC Model: EZRUN MAX6
- ESC Part Number: 30105000
- ESC Maximum Current: 160A continuous
- ESC Input Voltage: 3-8S LiPo / 9-24 Cells NiMH
- ESC Waterproofing: Completely waterproof, dust-proof and shock-resistant
- ESC Features: Anti-spark circuitry, electronic switch with 50,000+ cycle lifespan
- Motor Model: EZRUN 5687 SL
- Motor Part Number: 30402550
- Motor KV Rating: 1100KV
- Motor Diameter: 56mm
- Motor Length: 87mm
- Motor Shaft Diameter: 8mm
- Motor Weight: 916g
- Motor No Load Current: 4.1A
- Motor Timing: 0
- Motor Type: Brushless sensorless
- Motor Bore: 8mm
- Motor Connector Type: 6.5mm bullets
- Battery Compatibility: LiPo and NiMH
- Maximum LiPo Voltage: 22.2V / 6S
- BEC Output Voltage: Switchable 6V / 7.4V
- BEC Output Current: 25A
- Water Resistant: Yes
- Power Rating: Up to 150 amps
- Combo Part Number: COMBO-MAX6-5687SL/1100KV
- EAN: 5051294143985
Product Description of Hobbywing HW38010802 combo with MAX6 ESC and 5687 1100KV motor
The Hobbywing HW38010802 combo with MAX6 ESC and 5687 1100KV motor is a high-performance, sensorless brushless system engineered for 1/5 and 1/6 scale RC builds. Finished in sleek black, this ESC/motor pairing is designed to deliver uncompromising torque, acceleration, and durability across rugged terrain and high-speed racing environments. Built with premium materials and advanced firmware, the system is tailored for users who demand consistent output and robust protection under extreme conditions. Whether you're launching off the line or navigating uneven surfaces, the Hobbywing HW38010802 brushless combo with waterproof ESC and 8mm shaft motor provides the stability and responsiveness needed for serious RC applications.
Key features of the Hobbywing HW38010802 combo
- Waterproof ESC housing – ensures safe operation in wet, dusty, and unpredictable environments
- 8mm motor shaft – supports high-load gear systems and secure drivetrain engagement
- Anti-spark circuitry – protects connectors and reduces risk during battery connection
- Gold-plated connectors – pre-soldered for efficient current transfer and reduced resistance
- Switch-mode BEC – adjustable voltage output for high-voltage servo compatibility
- Electronic switch – rated for over 50,000 cycles, housed in shock-resistant casing
- 160A continuous ESC output – delivers sustained power for aggressive terrain and racing
How does the waterproof ESC housing improve reliability?
The Hobbywing HW38010802 ESC/motor combo for 1/5 and 1/6 scale RC builds features a fully sealed ESC enclosure that protects internal electronics from water, dust, and debris. This waterproof design allows users to operate confidently in all weather conditions, including mud, snow, and rain. The dustproof and shock-resistant casing further enhances durability, making the ESC suitable for high-impact environments and rough terrain. By shielding sensitive components from external contaminants, the waterproof housing extends the lifespan of the ESC and ensures consistent performance during prolonged use.
Why is the 8mm motor shaft critical for high-load applications?
The Hobbywing 1100KV motor system with 4-pole rotor and 916g heavy-duty build incorporates an 8mm diameter shaft crafted from polished alloy steel. This robust shaft design supports high-torque output and secure gear engagement, especially in large-scale RC platforms where drivetrain stress is elevated. The 30mm shaft length provides additional surface area for gear mounting, reducing slippage and improving mechanical stability. Whether you're executing full-throttle launches or navigating steep inclines, the 8mm shaft ensures reliable power transfer and minimizes drivetrain wear over time.
What protection does the anti-spark circuit offer?
The Hobbywing MAX6 combo with anti-spark circuit and gold-plated connectors integrates internal circuitry that mitigates sparking during battery connection. This feature is especially valuable when working with high-voltage LiPo packs, where sudden current surges can damage connectors or cause physical injury. By suppressing spark generation, the anti-spark system protects both the ESC and the user, ensuring a safer and more controlled setup process. This added layer of protection also preserves the integrity of gold-plated connectors, extending their lifespan and maintaining optimal conductivity.
How do gold-plated connectors enhance current flow?
The Hobbywing HW38010802 combo with MAX6 ESC and 5687 1100KV motor includes 6.5mm female gold-plated connectors pre-soldered onto the ESC’s PCB. These connectors offer superior conductivity and corrosion resistance, ensuring efficient current transfer between the ESC and motor. The pre-soldered configuration simplifies installation and reduces setup time, while the gold plating minimizes electrical resistance and heat buildup. This design choice supports high-current applications and contributes to the overall reliability of the system, especially during extended runs and peak load conditions.
What flexibility does the switch-mode BEC provide?
The Hobbywing HW38010802 with 160A ESC and 6V/7.4V switch-mode BEC features a built-in voltage regulator that supports adjustable output between 6V and 7.4V. This flexibility allows users to power high-voltage steering servos and auxiliary systems without the need for external regulators. The BEC delivers up to 6A continuous current, ensuring stable power delivery under load. By integrating voltage control directly into the ESC, the system simplifies wiring and enhances compatibility with a wide range of RC components, making it ideal for custom builds and performance upgrades.
How does the electronic switch improve usability?
The Hobbywing HW38010802 brushless combo with waterproof ESC and 8mm shaft motor includes an advanced electronic switch rated for over 50,000 on/off cycles. Housed in a shock-resistant casing, this switch offers reliable activation and long-term durability. Unlike mechanical switches that degrade over time, the electronic design maintains consistent performance and eliminates the risk of contact wear. This feature enhances user convenience and ensures dependable operation across a wide range of driving conditions, from casual bashing to competitive racing.
Is the 160A ESC output sufficient for extreme terrain?
The Hobbywing HW38010802 ESC/motor combo for 1/5 and 1/6 scale RC builds is equipped with a MAX6 ESC capable of delivering 160A continuous current and 1050A peak output. This high-capacity power delivery supports aggressive launches, sustained acceleration, and demanding off-road maneuvers. The ESC’s firmware is designed to protect against overload, thermal stress, and signal loss, ensuring safe operation even under extreme conditions. Whether you're racing across open terrain or tackling technical obstacles, the ESC maintains stable output and responsive control throughout the drive cycle.
What makes the Hobbywing HW38010802 combo suitable for high-end builds?
The Hobbywing HW38010802 combo with MAX6 ESC and 5687 1100KV motor is engineered for users seeking high-end performance and reliability in large-scale RC platforms. Its combination of waterproof construction, anti-spark protection, adjustable BEC, and high-current output makes it ideal for custom builds and competitive setups. The system’s compatibility with 3–8S LiPo batteries provides flexibility for tuning and voltage scaling, while the heavy-duty motor construction ensures consistent torque and thermal stability. From wheelies to high-speed straightaways, the combo delivers the power and control needed for advanced RC applications.
For RC enthusiasts looking to upgrade their drivetrain with a robust, feature-rich system, the affordable Hobbywing ESC/motor combo with 3–8S LiPo support and 87mm motor length offers exceptional value and performance. Buy Hobbywing HW38010802 combo for Traxxas XO-1 and CEN GST-E builds today.
Technical Specifications of Hobbywing HW38010802 combo with MAX6 ESC and 5687 1100KV motor
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW38010802
- Product Type: Hobbywing HW38010802 combo with MAX6 ESC and 5687 1100KV motor, Hobbywing HW38010802 ESC/motor combo for 1/5 and 1/6 scale RC builds, Hobbywing HW38010802 brushless combo with waterproof ESC and 8mm shaft motor, Hobbywing HW38010802 with 160A ESC and 6V/7.4V switch-mode BEC, Hobbywing MAX6 combo with anti-spark circuit and gold-plated connectors
- Product Colour: Black
Dimensions
- ESC Size: 7.0 cm (L) × 5.6 cm (W) × 4.65 cm (H) – compact footprint for large-scale RC installations
- ESC Weight: 240 g – lightweight design with integrated wiring for simplified mounting
- Motor Diameter: 5.6 cm – engineered for torque stability and thermal efficiency
- Motor Length: 8.7 cm – accommodates high-performance rotor and winding structure
- Motor Shaft Diameter: 0.8 cm – supports high-load gear systems with secure engagement
- Motor Shaft Length: 3.0 cm – extended reach for compatibility with oversized drivetrains
- Motor Weight: 916 g – heavy-duty build for sustained output and heat resistance
Electrical and Performance Specifications
- ESC Continuous Current: 160A – delivers stable power for aggressive terrain and racing
- ESC Peak Current: 1050A – supports full-throttle launches and high-load bursts
- Motor KV Rating: 1100KV – tuned for torque-rich acceleration and responsive control
- Motor Type: Brushless sensorless – designed for high-efficiency and low-maintenance operation
- Motor Pole Count: 4 – ensures consistent torque delivery across the RPM range
- No-Load Current: 4.1A – indicates efficient energy draw during idle operation
- Battery Compatibility: 3–8S LiPo / 9–24 cell NiMH – supports flexible voltage setups for performance tuning
Cooling and Protection Systems
- Cooling Fan Size: 3.5 cm × 3.5 cm × 1.0 cm – maintains optimal ESC temperature during extended runs
- Fan Voltage Range: 5V–7.4V – powered by built-in BEC for consistent airflow
- Waterproof and Dustproof ESC Housing: Fully sealed design protects electronics from moisture and debris
- Anti-Spark Circuit: Integrated protection reduces connector damage and physical risk during battery hookup
- Electronic Switch: Rated for 50,000+ cycles – housed in shock-resistant casing for long-term durability
- Protection Features: Includes low voltage cutoff, ESC overheat protection, throttle signal loss safeguard, current overload prevention, and capacitor thermal protection
Connectivity and Control
- Program Port: FAN/Program Port – supports external programming tools and WiFi module
- Input Wires: 10AWG Red and Black – 20 cm length for flexible routing and installation
- Output Connectors: 6.5 mm gold-plated female connectors – pre-soldered onto PCB for efficient current transfer
Built-in BEC System
- BEC Type: Switch-mode – integrated voltage regulation for servo and accessory support
- BEC Output Voltage: Adjustable between 6V and 7.4V – compatible with high-voltage steering servos
- BEC Output Current: 6A – ensures reliable power delivery under load
Applications
- Vehicle Compatibility: Designed for 1/5 and 1/6 scale RC builds – ideal for high-speed terrain and off-road use
- Use Case: Suitable for Traxxas XO-1, CEN GST-E, and other large-scale platforms requiring aggressive torque and stable output
What’s in the Box
- 1 × Hobbywing MAX6 V3 ESC
- 1 × Hobbywing 5687 1100KV Sensorless Brushless Motor (Black)
What You Require
- Compatible 1/5 or 1/6 scale RC chassis
- 3–8S LiPo battery pack or 9–24 cell NiMH setup
Sold Separately
- Hobbywing WiFi module or external programming card
