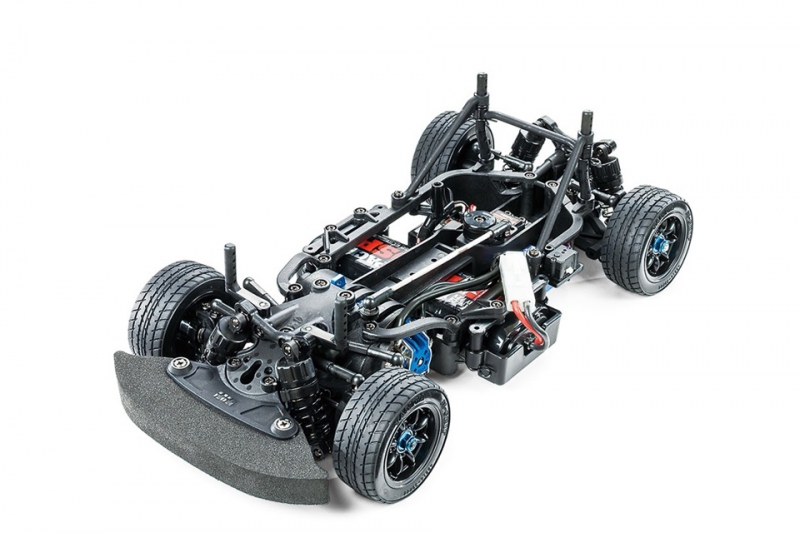

The Tamiya M-Chassis platform has been around since the early 1990’s. Now in its 7th generation, the M-07 Concept is a significant evolution from its predecessors. Designed by the same designer who brought the TA-07 Pro Touring Car chassis to life, this chassis takes a number of design cues from Tamiya’s touring car models and features a largely changed design from its numeric predecessors. The goal set forth with this new platform; ease of maintenance and responsive drive characteristics, all of which were attained during its development. The all-new features incorporated into the M-07 CONCEPT make it truly rewarding to drive for those who would like to experience the excitement of R/C racing.
Specification:
This is a 1/10 scale R/C chassis assembly kit. Length: 332mm, width: 164mm.
The core of the chassis is a 1-piece monocoquewith integrated upper frame elements. It is designed to offer excellent rigidity with easy maintenance.
Choose between 2 different wheelbases (M: 225mm, L: 239mm), simply by changing rear arm attachment direction.
Newly designed front and rear suspension use long arms for ideal leverage ratio, in tandem with long steering
linkage components. Rear toe can be adjusted simply using spacers.

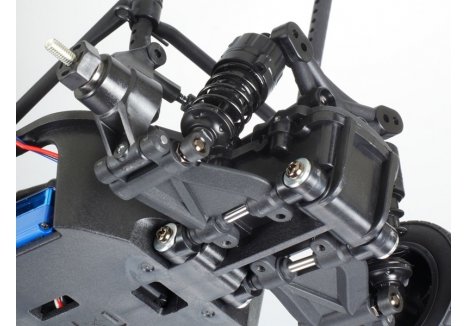

4-wheel double wishbone suspension is fitted with CVA oil shocks
Features:
The TA06-design gear differential is paired with universal drive shafts and full ball bearings.
A host of Hop-Up Options are being released simultaneously. See later pages.
The chassis was designed with easy access to the stabilizers (sold separately) for quick, precise adjustments–vital at the racetrack.
Body mounts have a new reinforced design for more secure body attachment.
The chassis gives its driver excellent “feedback,” allowing you to judge with clarity how your setup changes have impact.
Requires: Radio Control System with 1 Servo, Electronic Speed Controller (ESC), Motor, 7.2v Battery & Charger, Bodyshell and suitable Paint for the Bodyshell, Tyres, Tools for Assembly.
Manufacturer: Tamiya
Part Number: 58647
EAN: 4950344586479
Drive: 2WD
Motor Type: No Motor Supplied
Surface Type :On-Road
Assembly Type: Un-Assembled (Kit)
Scale: 1:10
Skill Level Skill: Level 3
Vehicle: On-Road
Product Description of Tamiya M-07 Concept Chassis Kit for 1/10 Scale RC Cars – TAM58647
The Tamiya M-07 Concept Chassis Kit for 1/10 Scale RC Cars – TAM58647 represents a significant evolution in front-wheel drive RC platforms. Designed for high-performance racing and precision tuning, this chassis kit is built around a rigid monocoque frame with detachable lower and upper sections. The result is a structurally sound and maintenance-friendly design that allows easy access to key components like the differential unit. With selectable wheelbase options and advanced suspension geometry, the M-07 Concept offers a versatile and responsive driving experience for competitive RC enthusiasts.
Key features of the Tamiya M-07 Concept Chassis Kit
- Rigid monocoque frame with detachable lower section for simplified maintenance
- Selectable wheelbase options: 225mm (M) or 239mm (L) for body compatibility
- Full ball bearings for reduced friction and smoother drivetrain performance
- Universal drive shafts and gear differential unit for consistent power delivery
- CVA oil dampers with long suspension arms for enhanced shock absorption
- Adjustable camber and toe angle for precise handling setup
- 3-piece steering tie-rod for responsive control and direct feedback
What makes the Tamiya M-07 chassis with CVA oil dampers and long suspension arms ideal for racing?
The Tamiya M-07 chassis with CVA oil dampers and long suspension arms is engineered for competitive performance. The long arms and steering linkage components optimise damper leverage ratios, allowing for smoother suspension movement and better cornering stability. The CVA oil dampers absorb shocks effectively, maintaining tyre contact and reducing bounce on uneven surfaces. These features make the chassis highly responsive and adaptable to various track conditions, giving racers a clear edge in precision and control.
How does the Tamiya FWD chassis with monocoque frame TAM58647 improve durability and serviceability?
The Tamiya FWD chassis with monocoque frame TAM58647 combines structural rigidity with practical design. The monocoque frame includes a detachable lower section, allowing quick access to the differential unit from the underside without full disassembly. This design reduces downtime and simplifies maintenance, especially during race events. The front-midship motor placement and front-wheel drive layout contribute to balanced weight distribution and predictable handling, making the chassis both durable and easy to manage.
Is the Tamiya RC chassis kit with adjustable wheelbase suitable for multiple body styles?
Yes, the Tamiya RC chassis kit with adjustable wheelbase offers compatibility with a wide range of Tamiya M-chassis body sets. Users can configure the wheelbase to either 225mm or 239mm, depending on the body style they wish to use. This flexibility allows hobbyists to customise their builds while maintaining optimal performance. The chassis also supports gear ratio adjustments using separately sold pinion gears, enabling further tuning for speed and torque preferences.
What drivetrain components enhance the smoothness of the Tamiya front-wheel drive M-07 chassis kit TAM58647?

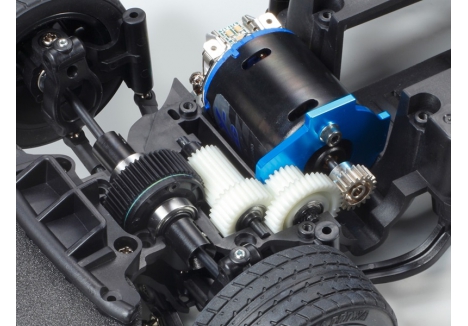

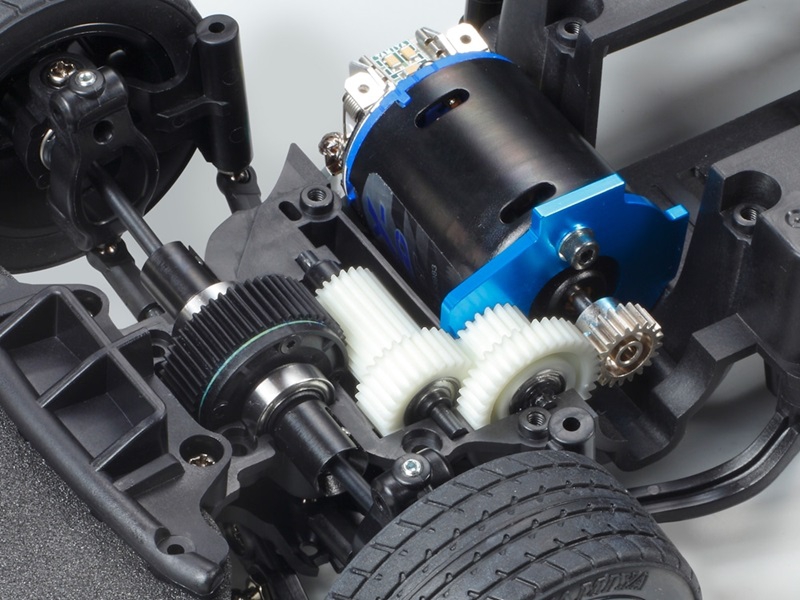

The Tamiya front-wheel drive M-07 chassis kit TAM58647 features a silky-smooth drivetrain powered by full ball bearings, a gear differential unit, and universal drive shafts. These components work together to minimise friction and maximise efficiency, resulting in consistent power delivery and reduced wear over time. The gear ratio is set at 5.78:1 using the included 20T pinion gear, with options to adjust between 7.22:1 and 4.81:1 using separately sold gears. This setup ensures that the chassis performs reliably under various racing conditions.
Why choose the Tamiya 1/10 scale M-07 Concept kit TAM58647 for your next build?
The Tamiya 1/10 scale M-07 Concept kit TAM58647 is a premium choice for RC builders who value performance, flexibility, and ease of maintenance. Its advanced suspension geometry, adjustable wheelbase, and precision drivetrain make it suitable for both competitive racing and hobbyist experimentation. The inclusion of full ball bearings and CVA oil dampers ensures a smooth and controlled ride, while the monocoque frame simplifies servicing. For those seeking the best Tamiya front-wheel drive chassis for 1/10 scale racing, the M-07 Concept delivers unmatched value and engineering.
Looking for a high-performance platform that’s easy to tune and maintain? Buy Tamiya M-07 Concept RC chassis with full ball bearings TAM58647 and elevate your racing experience today.
Technical Description of Tamiya M-07 Concept Chassis Kit for 1/10 Scale RC Cars – TAM58647
Brand, Model and Product Type
- Brand: Tamiya
- Model: TAM58647
- Product Type: Tamiya M-07 Concept chassis kit for RC cars, Tamiya 1/10 scale M-07 Concept kit, Tamiya front-wheel drive M-07 chassis kit, Tamiya FWD chassis with monocoque frame, Tamiya RC chassis kit with adjustable wheelbase, Tamiya M-07 chassis with CVA oil dampers and long suspension arms
Dimensions and Weight
- Length: 33.2 cm – compact chassis length including bumper for agile handling
- Width: 16.4 cm – narrow profile for responsive cornering
- Wheelbase: Selectable 22.5 cm or 23.9 cm – compatible with multiple Tamiya M-chassis body sets
Chassis and Frame
- Chassis Type: Rigid monocoque frame with detachable lower section for easy maintenance
- Motor Position: Front-midship motor layout for balanced weight distribution
- Drive System: Front-wheel drive configuration for predictable handling
Suspension and Dampers

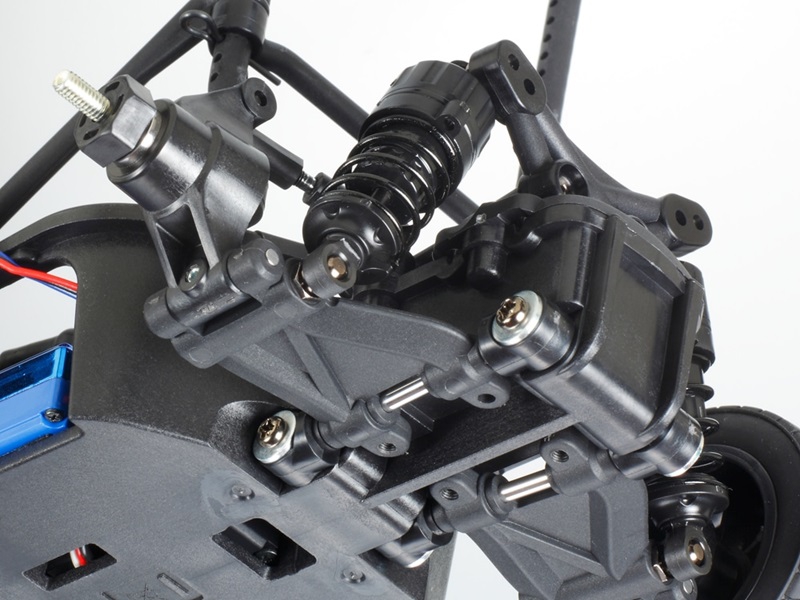

- Suspension Type: 4-wheel independent double wishbone suspension for terrain adaptability
- Dampers: CVA oil dampers with long suspension arms for improved shock absorption
- Camber Adjustment: Adjustable camber settings for fine-tuned cornering performance
- Toe Angle Adjustment: Rear toe angle adjustable via spacer insertion at suspension mounts
Steering and Handling

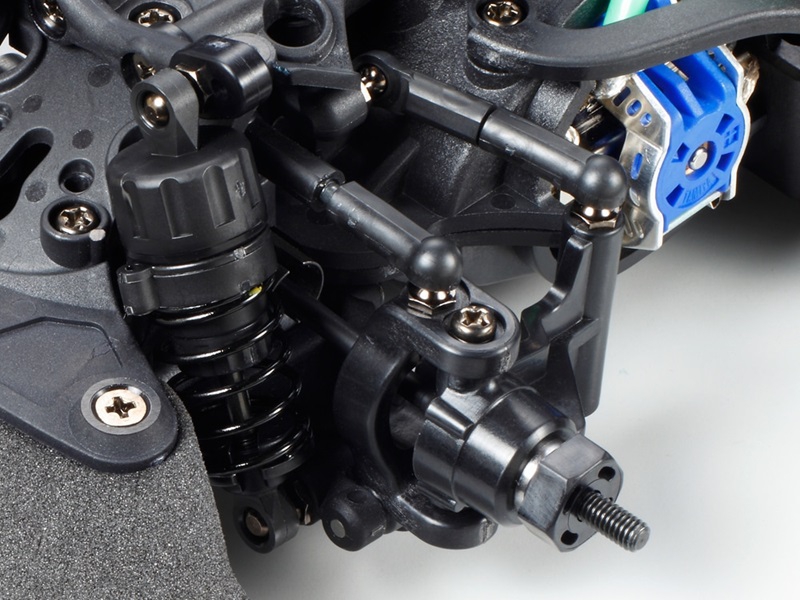

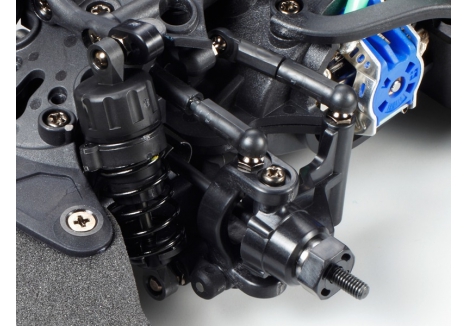

- Steering System: 3-piece steering tie-rod for direct and responsive control
- Servo Saver: Hi-torque servo saver included for steering protection and precision
Drivetrain and Bearings
- Bearings: Full ball bearings for reduced friction and smoother drivetrain operation

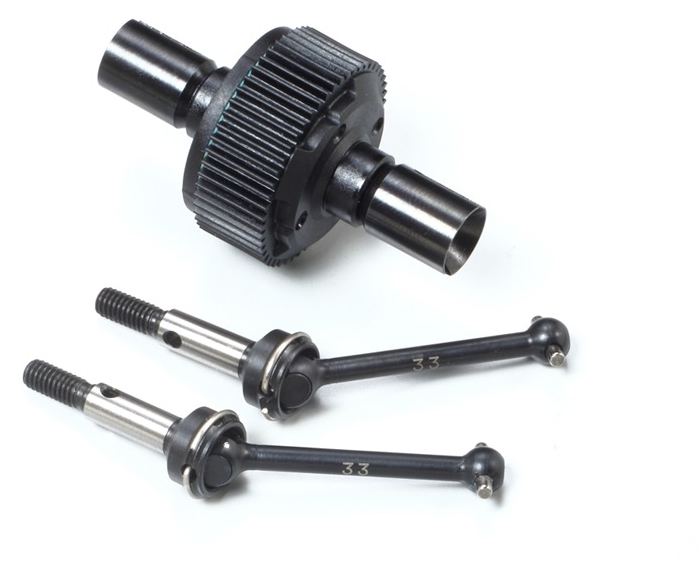

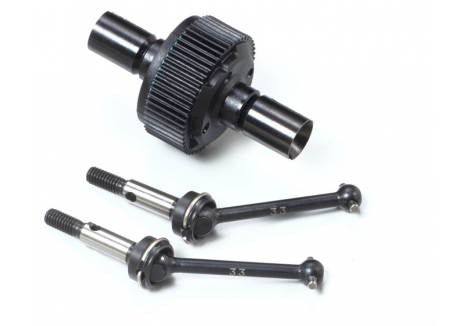

- Differential: Gear differential unit for consistent power distribution
- Drive Shafts: Universal drive shafts for efficient torque transfer
Gear Ratio and Motor
- Gear Ratio: 5.78:1 using included 20T pinion gear; adjustable between 7.22:1 and 4.81:1 with optional pinions
- Motor Compatibility: Requires Type 540 motor (sold separately)
Assembly and Compatibility
- Body Compatibility: Compatible with existing Tamiya M-chassis body parts
- Wheelbase Options: Configurable to 22.5 cm or 23.9 cm for body fitment flexibility
- Required Items: Body, tires, 2-channel R/C system with ESC, transmitter batteries, battery pack and charger
Warranty
- Warranty: 1 year manufacturer warranty included
