A True Legend

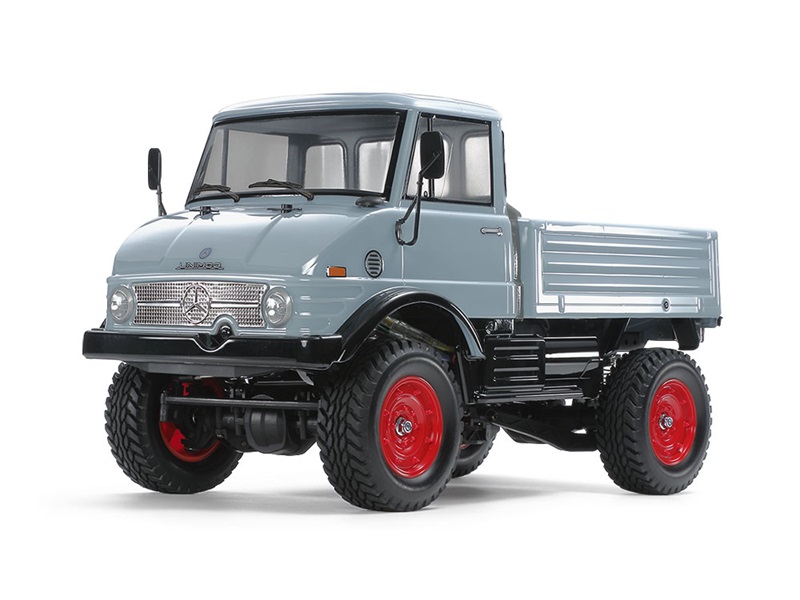

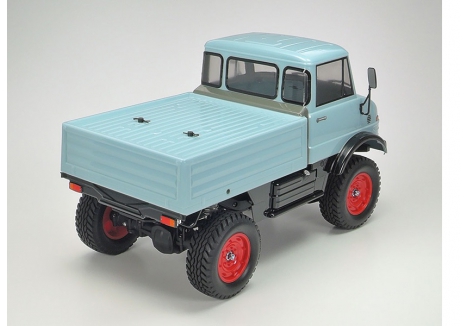

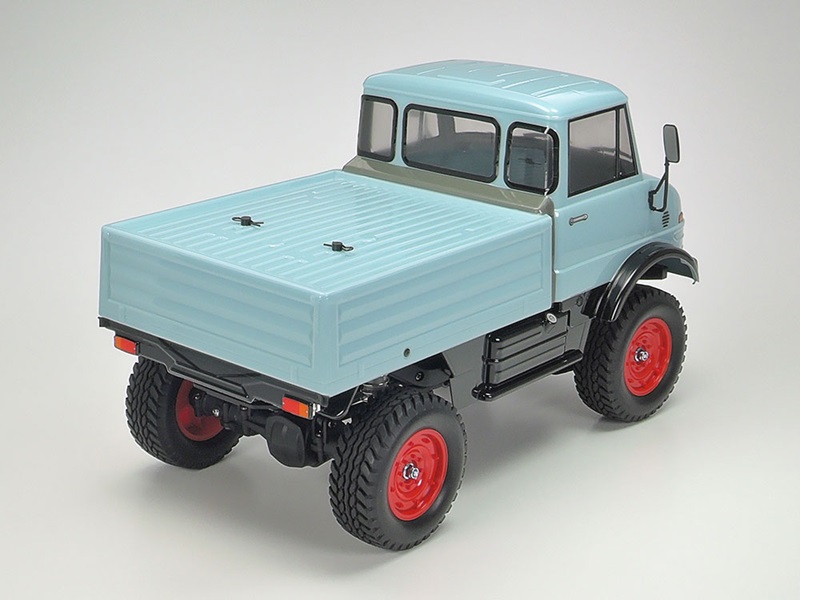

This assembly kit recreates the 406 Series Unimog that was a hit after its full-size debut in 1963, a polycarbonate body recreating the distinctive form, plus a plated depiction of the front grille also included. Take this model off-road for some serious rough riding fun!

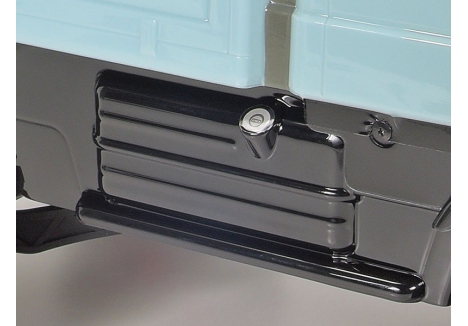

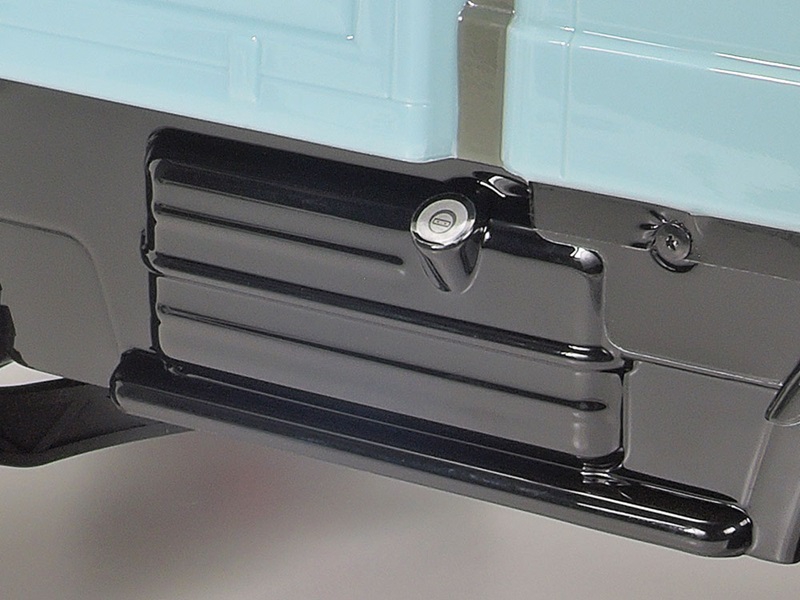

Features a durable polycarbonate body with separate parts included for side mirrors and fuel tank.
Includes block pattern tires, and red ABS wheels with a depiction of bead lock designs.
The CC-02 chassis is designed for a wide range of off-road scenes, and its ladder frame features superior durability.
The multi-purpose Mercedes-Benz Unimog is a truck with unrivalled off - road performance and its name is an acronym which stands for the German description "Universal-Motor-Gerät." The 406, which also has the ability to equip any of approximately 3,000 attachments for every imaginable task, now is depicted on the provenTamiya CC-02 chassis
This is a 1/10 R/C model assembly kit. Length: 384mm, width: 196mm, height: 224mm. Wheelbase: 242mm.

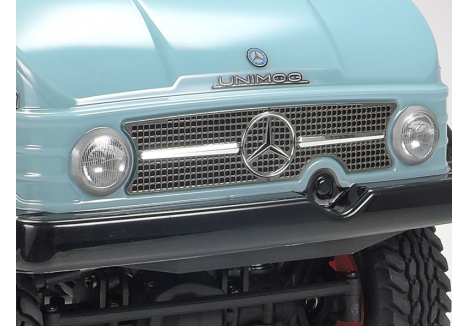

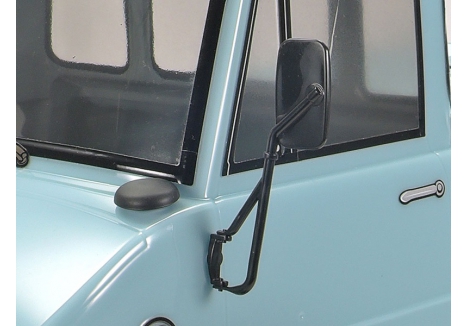

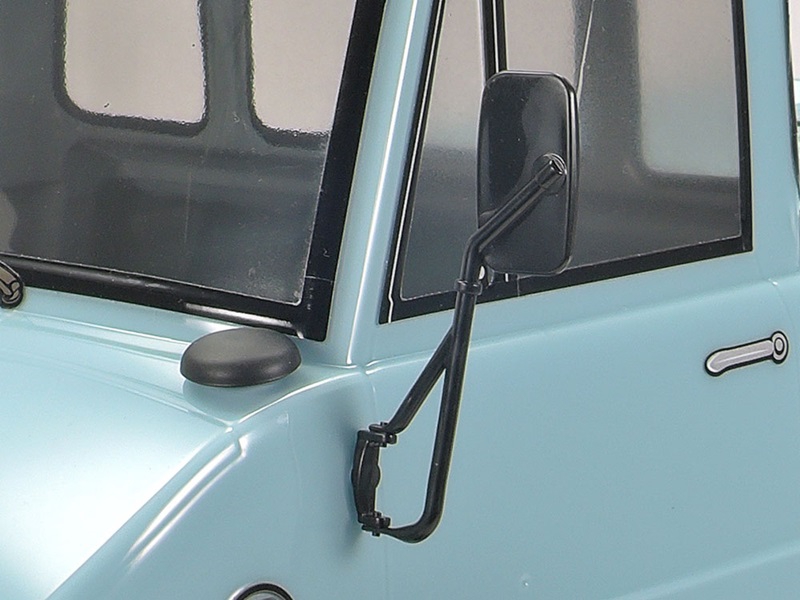

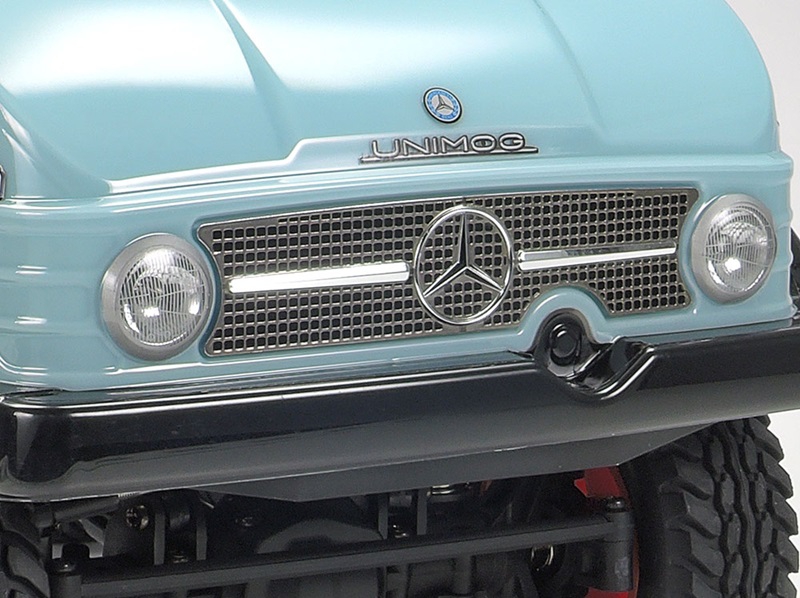

The distinctive form of the Unimog is accurately depicted in durable polycarbonate, with separate parts included for side mirrors and fuel tank, plus a metal-plated front grille and emblem.
Includes block pattern tires, and red ABS wheels with a depiction of bead lock designs.
Propeller shafts (short: 76mm) are also included.

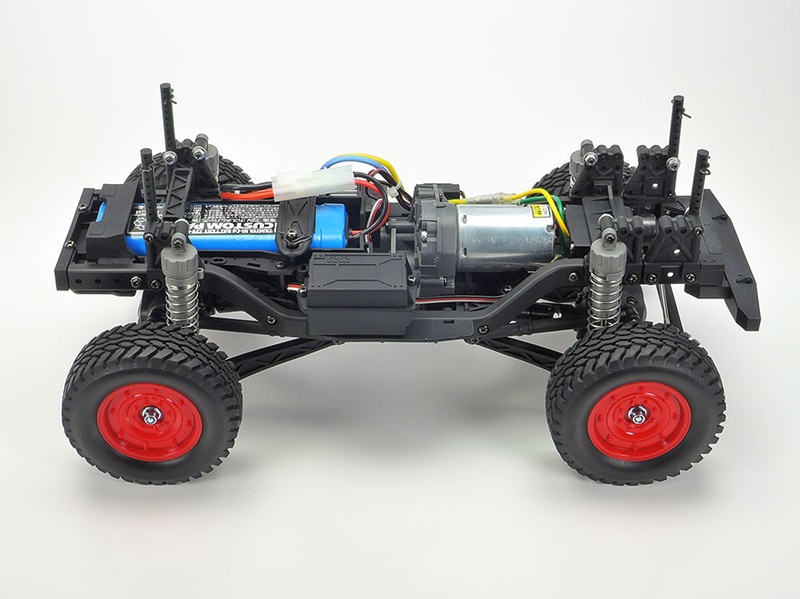

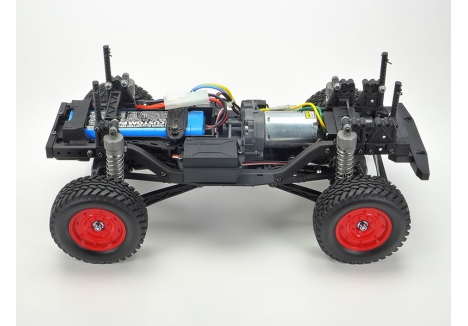

The CC-02 chassis is designed for a wide range of off-road scenes including rocky terrain, and its ladder frame is inspired by full-size vehicles and is the base for its superior durability.

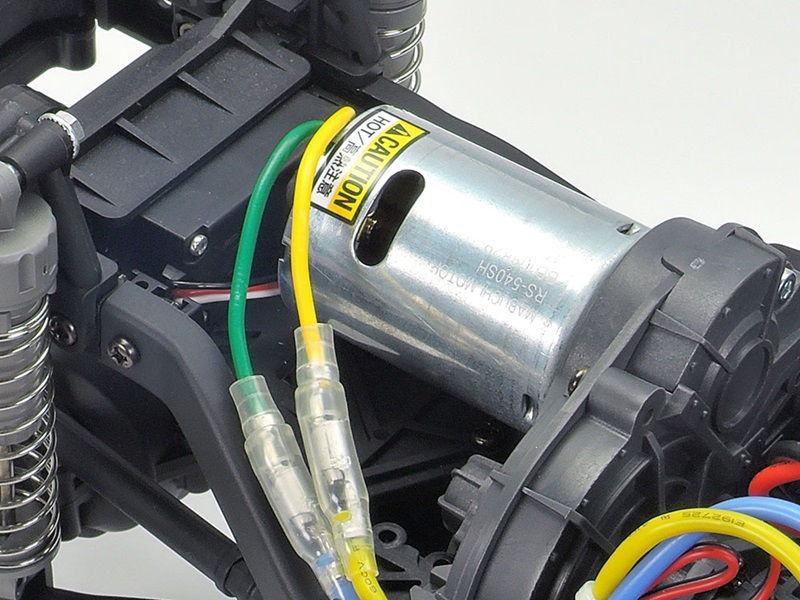

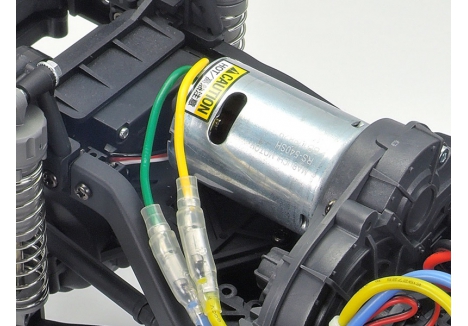

A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear.
All new TBLE-04S Electronic Speed Control
267mm wheelbase
Manufacturer Tamiya
Part Number 58692
EAN 4950344586929
Surface Type Off-Road
Motor Type Brushed
The Tamiya Mercedes-Benz Unimog 406 CC-02 RC Truck (TAM58692) brings legendary off-road capability to the 1/10 scale world. Based on the iconic Unimog U900, this Tamiya 1/10 Unimog 406 Series RC Model features a polycarbonate body with realistic detailing, including a metal-plated front grille, molded side mirrors, and air intake. Designed for rocky terrain and trail adventures, it’s built on the proven CC-02 chassis for durability and control.
Key Features of the Tamiya TAM58692 Unimog U900 Off-Road Kit
- Authentic Unimog 406 styling – curved hood, round headlights, and plated grille
- Polycarbonate body – lightweight and impact-resistant with separate detailing parts
- CC-02 chassis – ladder frame design for strength and scale realism
- Longitudinal motor layout – realistic drivetrain configuration
- Shaft-driven 4WD – delivers power to front and rear differential gears

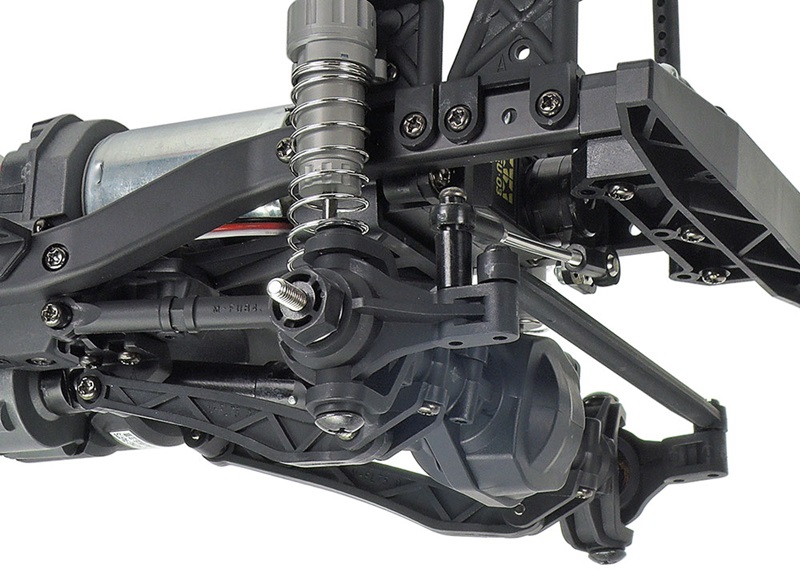

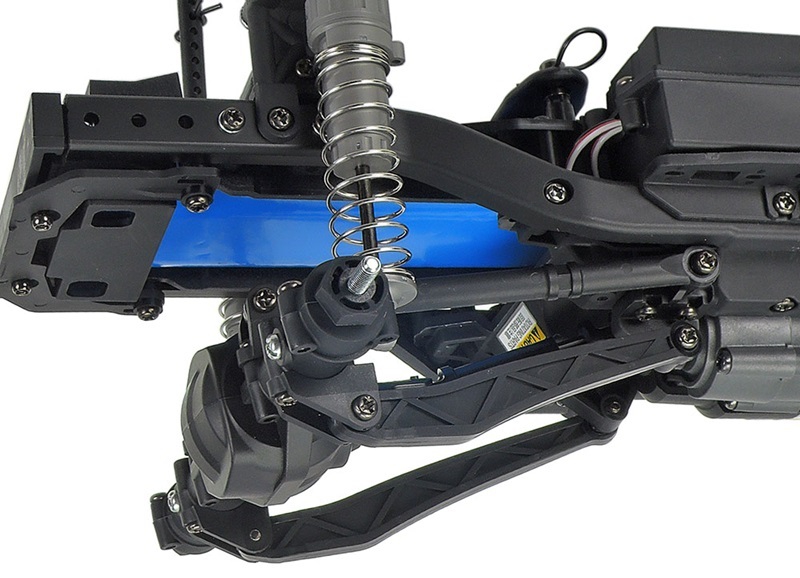

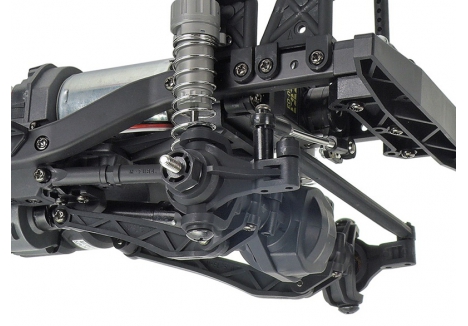

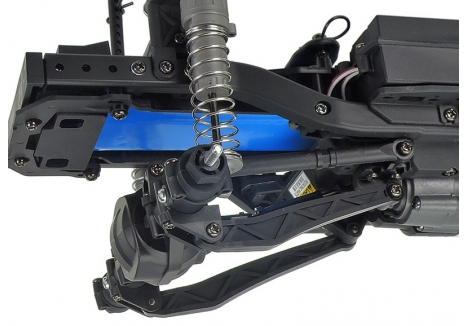

- Four-link rigid suspension – front and rear with CVA oil dampers
- Red ABS wheels – bead lock-style design with block-pattern tires for grip
Why choose the Tamiya CC-02 chassis ladder frame rock crawler?
The CC-02 chassis is engineered for rugged terrain, with a ladder frame inspired by full-size off-road vehicles. Its separated gearbox and transfer case layout mimics real-world drivetrains, while propeller shafts transmit power to bevel-type differential gears at both ends. The four-link rigid suspension and oil dampers ensure stability and articulation on rocky trails, making this an ideal Tamiya Unimog brushed 540 motor 4WD truck.
Is this the best Tamiya Unimog U900 rock crawler for beginners?
With its durable chassis, realistic body styling, and beginner-friendly assembly, this model is a top choice for newcomers to off-road RC. The included TBLE-04S ESC supports brushed and sensored brushless motors, offering upgrade flexibility. Whether you're crawling over rocks or cruising trails, it’s the best Tamiya Unimog U900 rock crawler for beginners.
Looking for an affordable Tamiya CC-02 1/10 scale off-road truck?
This kit offers premium features at a competitive price point, making it an affordable Tamiya CC-02 1/10 scale off-road truck for hobbyists and collectors alike. With scale realism and mechanical capability, it’s ready for adventure straight out of the box.
Buy Tamiya Mercedes-Benz Unimog 406 CC-02 RC kit today and experience the unmatched versatility of the Unimog legacy.
Technical Specifications of the Tamiya TAM58692
Brand, Model & Product Type
- Brand: Tamiya
- Model: TAM58692
- Product Type: Tamiya Mercedes-Benz Unimog 406 CC-02 RC Truck, Tamiya TAM58692 Unimog U900 Off-Road Kit, Tamiya 1/10 Unimog 406 Series RC Model
Dimensions & Weight
- Length: 384 mm – compact and trail-ready
- Width: 196 mm – stable stance for off-road control
- Height: 224 mm – tall profile with scale realism
- Wheelbase: 242 mm – optimized for CC-02 chassis
- Tread: 160 mm (front), 163 mm (rear)
- Tire Diameter: 90 mm
- Tire Width: 33 mm
Chassis & Drivetrain
- Chassis Type: Ladder frame – inspired by full-size off-roaders
- Motor Position: Longitudinal – behind front axle
- Drive System: Shaft-driven 4WD – realistic and efficient
- Differential Gears: 3-bevel type – front and rear
- Gear Ratio: 17.33:1 (with kit-standard 16T pinion)
- Motor Type: Type 540 brushed motor
Suspension & Steering
- Suspension: 4-link rigid suspension – front and rear
- Dampers: CVA oil dampers – smooth control on rough terrain
Body & Styling
- Body Material: Polycarbonate – lightweight and durable
- Detailing: Metal-plated front grille, molded side mirrors, air intake
- Wheels: Red ABS dish-style – bead lock design with block-pattern tires
Electronics & Compatibility
- ESC: TBLE-04S included – compatible with brushed and sensored brushless motors (21.5T+)
Required Items (Not Included)
- R/C System: 2-channel transmitter with ESC
- Transmitter Batteries: R6/AA/UM3 batteries
- Vehicle Battery: Compatible pack and charger
Warranty
- Manufacturer’s Guarantee: 1 year
