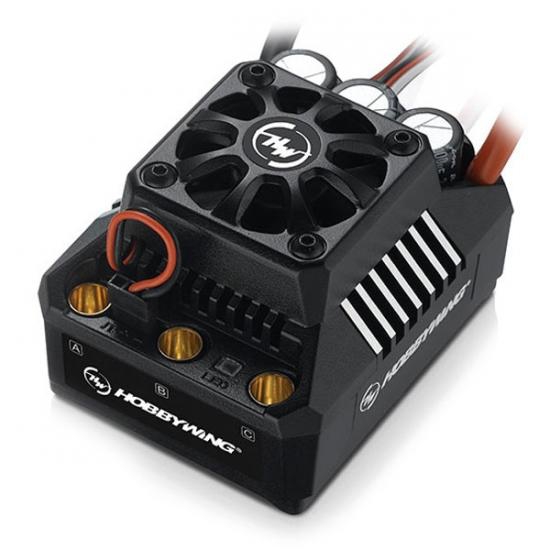

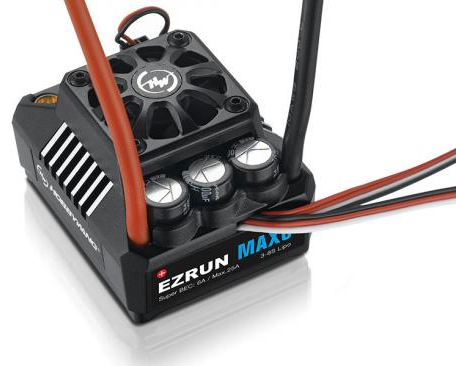

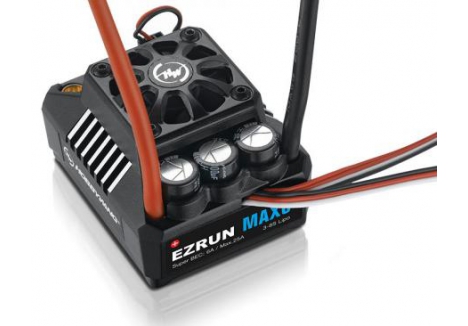

HOBBYWING EZRUN MAX6-V3 WATERPROOF SPEED CONTROLLER (FUTURA)
Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX6 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error. This ESC is applicable to various 1/6th & 1/7th scale vehicles like the Traxxas XO-1, and also suitable to various 1/8th scale heavy vehicles like the CEN GST-E. It's the ideal option for high-end aggressively powered builds.
With incredible acceleration capabilities and a rock-solid, stable output, the MAX6 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.
The MAX6 has adopted the world’s first HV built-in BEC with an output current of up to 25Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by large scale vehicles. The MAX6 also features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
The MAX6 is built with internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).

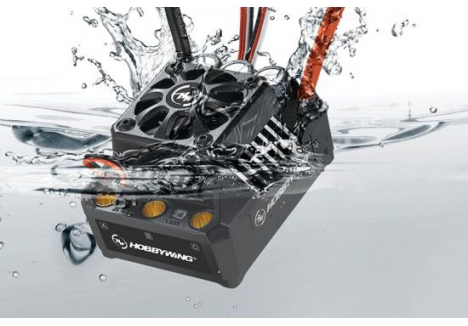

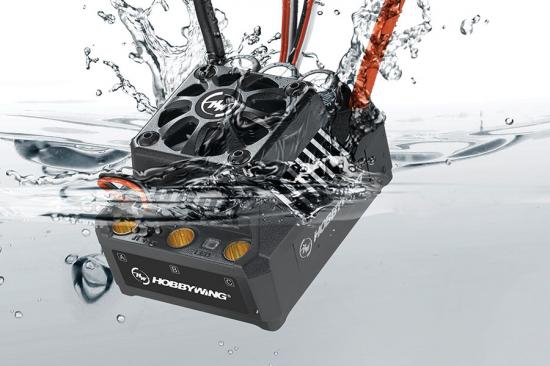

The waterproof and dust-proof design allows the MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust
HobbyWing EzRun MAX6 V3 Features:
High Reliability & Durability
Great Flexibility & Versatility
Advanced and Secure Electronic Switch
Applicable to All Weather Conditions
High Voltage Built-in BEC
Advanced and Secure Electronic Switch
Regular Firmware Updates - Free of Charge
Built-in Anti-Spark System
Maintenance Free
Spec Check:
Scale: 1/6th?1/7th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Waterproof: Yes
Cont./Peak Current: 160A/1050A
Input: 3-8S LiPo/9-24 Cells NiMH
BEC Output: Switch Mode: 6V/7.4V,6A
Input Wires: Red-10AWG-200mm*1/Black-10AWG-200mm*1
Output Wires: Black-10AWG-200mm*3
Input Connectors: No
Output Connecotors: 6.5mm Female Gold Connectors (pre-soldered onto the PCB)
Fan Size: 35.0x35.0x10.0mm
Fan Voltage Range: 5-7.4V
WiFi Module: Supported
Program Port: FAN/Program Port
Size: 70.0x56.0x46.5mm
Weight: 240g
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW30105000
- Product Type: Hobbywing HW30105000 ESC with 160A continuous and 1050A peak current, Hobbywing HW30105000 MAX6 V3 speed controller with waterproof housing, Hobbywing HW30105000 brushless ESC with 25A HV BEC and anti-spark circuit, Hobbywing HW30105000 with 3–8S LiPo input and 6V/7.4V switch-mode BEC, Hobbywing MAX6 V3 ESC for 1/6 and 1/7 scale vehicles like Traxxas XO-1, Hobbywing ESC with electronic switch and gold-plated 6.5mm connectors
- Product Colour: Black
Dimensions
- Length: 7.0 cm – compact footprint for mid-to-large scale RC platforms
- Width: 5.6 cm – allows efficient mounting in 1/6 and 1/7 scale chassis
- Height: 4.65 cm – accommodates internal cooling and protection systems
- Weight: 240 g – lightweight yet rugged for high-performance builds
Electrical and Performance Specifications
- Continuous Current: 160A – delivers stable power for aggressive acceleration and terrain control
- Peak Current: 1050A – supports full-torque launches and high-speed bursts
- Input Voltage: 3–8S LiPo / 9–24 cell NiMH – compatible with a wide range of battery setups
- Motor Compatibility: Sensorless brushless motors – optimized for high-output applications
BEC System
- BEC Type: Switch-mode – efficient and thermally stable
- BEC Output Voltage: Selectable 6V / 7.4V – supports high-voltage servo systems
- BEC Output Current: 6A – ensures reliable servo performance under load
- Maximum BEC Capability: Up to 25A – handles demanding servo configurations
Protection and Safety Features
- Waterproof Housing: Fully sealed – enables safe operation in wet, muddy, and dusty conditions
- Dustproof Design: Prevents debris intrusion – ideal for off-road and all-weather use
- Shock-Resistant Structure: Protects internal components from impact and vibration
- Anti-Spark Circuit: Integrated – protects battery connectors and prevents injury during high-voltage connection
- Electronic Switch: Rated for 50,000+ cycles – eliminates mechanical wear and failure
Connectivity and Programming
- WiFi Module Support: Enabled – allows wireless programming and firmware updates
- Program Port: Shared with fan interface – supports external configuration tools
Cooling System
- Fan Size: 3.5 × 3.5 × 1.0 cm – maintains optimal operating temperature
- Fan Voltage Range: 5–7.4V – compatible with BEC output
Wires and Connectors
- Input Wires: 10AWG Red and Black – 20 cm length for secure power delivery
- Output Wires: 10AWG Black × 3 – motor phase connections
- Input Connectors: Not included – user-configurable based on battery setup
- Output Connectors: 6.5 mm Gold-plated female connectors – pre-soldered onto PCB
Applications
- Vehicle Type: 1/6 and 1/7 scale vehicles – ideal for Traxxas XO-1 and heavy 1/8 scale builds
- Motor Type: Brushless – supports sensorless configurations
What’s Included
- 1 × Hobbywing EZRUN MAX6 V3 ESC
What You Require
- Compatible brushless motor (sensorless)
- 3–8S LiPo or 9–24 cell NiMH battery pack
- WiFi module (optional for wireless programming)
Sold Separately
Product Description of Hobbywing HW30105000 ESC with 160A continuous and 1050A peak current
The Hobbywing HW30105000 ESC with 160A continuous and 1050A peak current is a black, high-performance brushless speed controller designed for aggressive 1/6 and 1/7 scale RC builds. Engineered to handle full-torque launches, high-speed straightaways, and rugged terrain, this ESC delivers stable output and intelligent protection across a wide range of demanding conditions. Whether you're powering a Traxxas XO-1 or a heavy-duty CEN GST-E, the Hobbywing HW30105000 MAX6 V3 speed controller with waterproof housing offers unmatched durability, configurability, and responsiveness. With support for 3–8S LiPo input, a 25A HV BEC, and internal anti-spark circuitry, this ESC is built for serious performance and long-term reliability.
Key features of the Hobbywing HW30105000 ESC
- Waterproof and dustproof housing – ensures safe operation in mud, snow, and water
- 25A switch-mode HV BEC – supports high-voltage servos with selectable output
- Electronic switch – rated for over 50,000 cycles, eliminates mechanical failure
- Anti-spark circuit – protects battery connectors and prevents injury during high-voltage hookup
- Gold-plated 6.5mm connectors – pre-soldered for secure, high-current motor connection
- WiFi module support – enables wireless programming and firmware updates
How does the Hobbywing HW30105000 ESC handle aggressive power demands?
The Hobbywing HW30105000 ESC with 160A continuous and 1050A peak current is built to deliver explosive acceleration and stable output across extreme terrain. Its internal architecture is optimized for thermal stability and overload protection, allowing it to handle full-throttle launches and sustained high-speed runs without compromising performance. Whether you're executing wheelies or navigating uneven surfaces, the ESC maintains consistent torque and throttle response, making it ideal for high-end racing and bashing applications.
What makes the waterproof housing suitable for all-weather use?
The Hobbywing HW30105000 MAX6 V3 speed controller with waterproof housing features a sealed design that resists water and dust intrusion, enabling safe operation in rain, mud, snow, and sediment. This shock-resistant casing protects internal components from environmental damage, ensuring long-term reliability even in harsh conditions. For users who demand consistent performance across unpredictable terrain, the waterproof housing offers peace of mind and operational flexibility.
How does the HV BEC support high-voltage servo systems?
The Hobbywing HW30105000 brushless ESC with 25A HV BEC and anti-spark circuit includes a switch-mode BEC capable of delivering 6A continuous and up to 25A peak current. Users can select between 6V and 7.4V output to match servo requirements, ensuring optimal responsiveness and protection. This flexibility is essential for large-scale builds where servo performance directly impacts control precision. Whether you're steering a heavy-duty truck or managing throttle input on a high-speed vehicle, the BEC system provides the voltage headroom needed for smooth and reliable operation.
Why is the electronic switch superior to mechanical alternatives?
The Hobbywing ESC with electronic switch and gold-plated 6.5mm connectors features an advanced electronic switch rated for over 50,000 on/off cycles. Unlike mechanical switches, which are prone to wear, moisture intrusion, and impact-triggered shutdowns, the electronic switch offers consistent performance and long-term durability. This design eliminates common failure points and enhances reliability, especially in high-impact environments where mechanical switches often falter.
How does the anti-spark circuit improve safety?
The integrated anti-spark circuit in the Hobbywing HW30105000 brushless ESC with 25A HV BEC and anti-spark circuit protects battery connectors from damage during high-voltage connection. It prevents sudden electrical discharge that can cause physical injury or component failure, especially when using 5S–8S LiPo packs. This feature enhances safety during setup and operation, making the ESC more user-friendly and reliable for high-voltage builds.
Can the Hobbywing HW30105000 ESC be configured wirelessly?
Yes, the Hobbywing HW30105000 with 3–8S LiPo input and 6V/7.4V switch-mode BEC supports WiFi module connectivity for wireless programming and firmware updates. Users can adjust ESC parameters, monitor performance, and apply updates without physical access to the controller. This functionality streamlines setup and tuning, making it easier to optimize the ESC for specific terrain and driving styles. Combined with fan cooling and firmware support, the ESC offers a complete solution for advanced RC builders.
For users seeking a rugged, high-performance ESC with intelligent protection and wireless configurability, the affordable Hobbywing MAX6 V3 with firmware updates and shock-resistant design delivers exceptional value and control. Buy Hobbywing HW30105000 ESC with WiFi module support and fan cooling today.
Technical Specifications of Hobbywing HW30105000 ESC with 160A continuous and 1050A peak current
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW30105000
- Product Type: Hobbywing HW30105000 ESC with 160A continuous and 1050A peak current, Hobbywing HW30105000 MAX6 V3 speed controller with waterproof housing, Hobbywing HW30105000 brushless ESC with 25A HV BEC and anti-spark circuit, Hobbywing HW30105000 with 3–8S LiPo input and 6V/7.4V switch-mode BEC, Hobbywing MAX6 V3 ESC for 1/6 and 1/7 scale vehicles like Traxxas XO-1, Hobbywing ESC with electronic switch and gold-plated 6.5mm connectors
- Product Colour: Black
Dimensions
- Length: 7.0 cm – compact footprint for mid-to-large scale RC platforms
- Width: 5.6 cm – allows efficient mounting in 1/6 and 1/7 scale chassis
- Height: 4.65 cm – accommodates internal cooling and protection systems
- Weight: 240 g – lightweight yet rugged for high-performance builds
Electrical and Performance Specifications
- Continuous Current: 160A – delivers stable power for aggressive acceleration and terrain control
- Peak Current: 1050A – supports full-torque launches and high-speed bursts
- Input Voltage: 3–8S LiPo / 9–24 cell NiMH – compatible with a wide range of battery setups
- Motor Compatibility: Sensorless brushless motors – optimized for high-output applications
BEC System
- BEC Type: Switch-mode – efficient and thermally stable
- BEC Output Voltage: Selectable 6V / 7.4V – supports high-voltage servo systems
- BEC Output Current: 6A – ensures reliable servo performance under load
- Maximum BEC Capability: Up to 25A – handles demanding servo configurations
Protection and Safety Features
- Waterproof Housing: Fully sealed – enables safe operation in wet, muddy, and dusty conditions
- Dustproof Design: Prevents debris intrusion – ideal for off-road and all-weather use
- Shock-Resistant Structure: Protects internal components from impact and vibration
- Anti-Spark Circuit: Integrated – protects battery connectors and prevents injury during high-voltage connection
- Electronic Switch: Rated for 50,000+ cycles – eliminates mechanical wear and failure
Connectivity and Programming
- WiFi Module Support: Enabled – allows wireless programming and firmware updates
- Program Port: Shared with fan interface – supports external configuration tools
Cooling System
- Fan Size: 3.5 × 3.5 × 1.0 cm – maintains optimal operating temperature
- Fan Voltage Range: 5–7.4V – compatible with BEC output
Wires and Connectors
- Input Wires: 10AWG Red and Black – 20 cm length for secure power delivery
- Output Wires: 10AWG Black × 3 – motor phase connections
- Input Connectors: Not included – user-configurable based on battery setup
- Output Connectors: 6.5 mm Gold-plated female connectors – pre-soldered onto PCB
Applications
- Vehicle Type: 1/6 and 1/7 scale vehicles – ideal for Traxxas XO-1 and heavy 1/8 scale builds
- Motor Type: Brushless – supports sensorless configurations
What’s Included
- 1 × Hobbywing EZRUN MAX6 V3 ESC
What You Require
- Compatible brushless motor (sensorless)
- 3–8S LiPo or 9–24 cell NiMH battery pack
- WiFi module (optional for wireless programming)
Sold Separately
