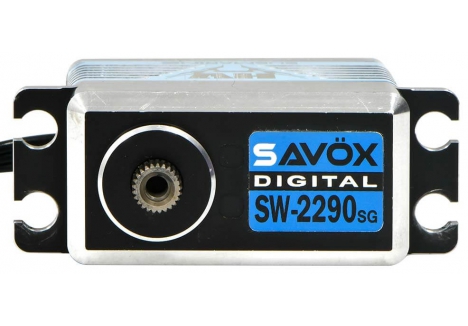

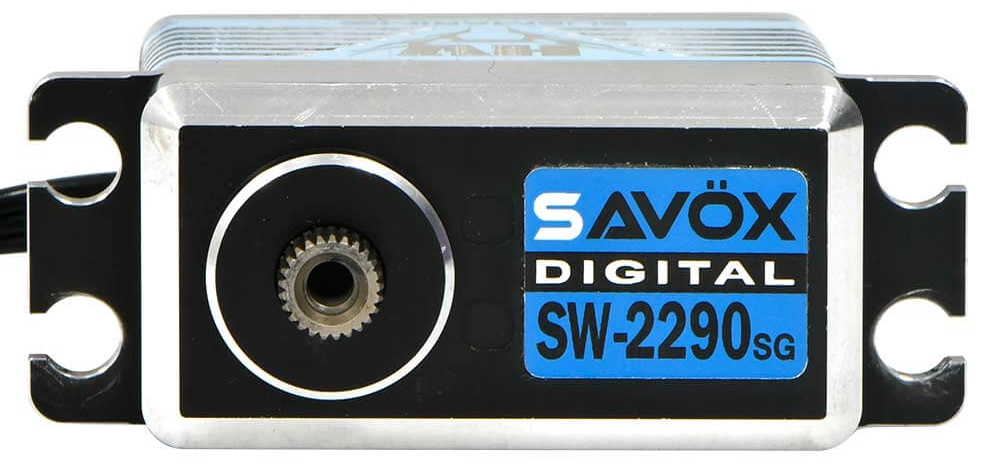

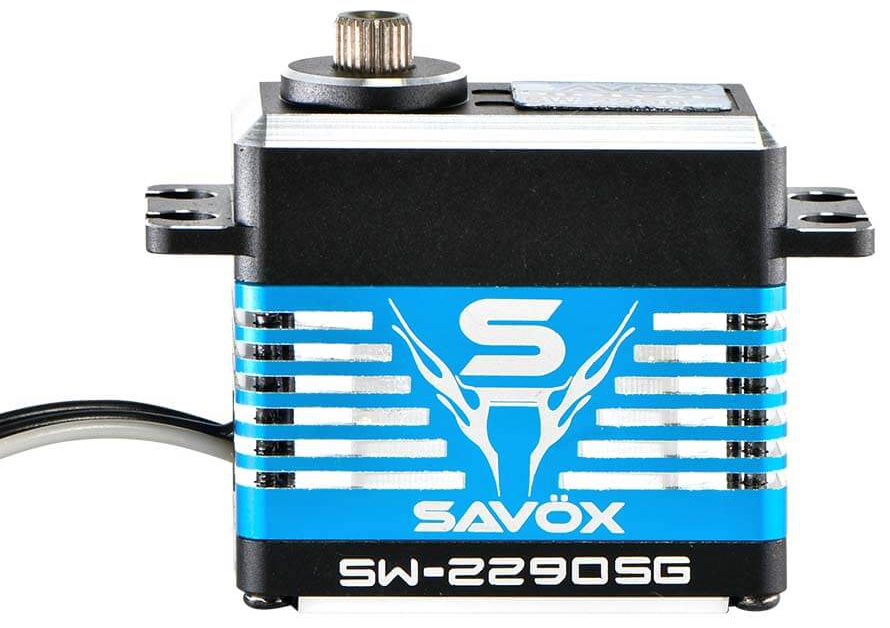

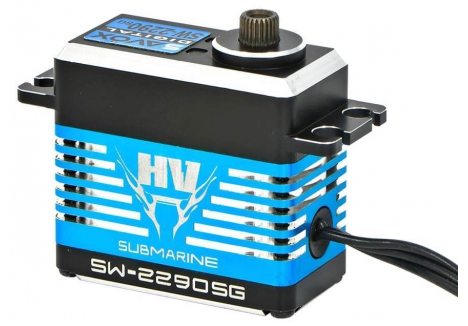

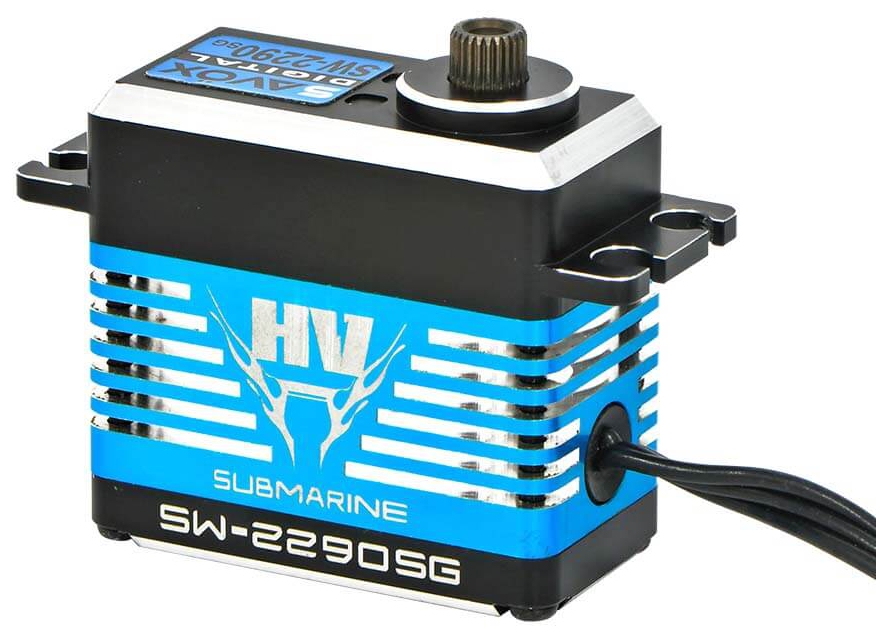

Savox HV CNC Monster Brushless Servo 55Kg/0.13s @ 7.4V Waterproof – SAV-SW2290SG

The Savox SAV-SW2290SG HV brushless servo with 55Kg torque @ 7.4V, 0.13s speed, and IP67 waterproof rating is a powerhouse in the Monster performance series, engineered for extreme-duty applications in 1/5-scale RC vehicles, robotics, and heavy-load steering systems. With a CNC-machined aluminum case, steel geartrain, and 25T spline output, this servo delivers unmatched strength, precision, and resilience in the harshest environments. Whether you're navigating rugged terrain or executing high-torque maneuvers, the SW-2290SG is built to dominate.

Key features of the Savox SAV-SW2290SG Monster brushless servo

• Torque output – 55Kg @ 7.4V and up to 70Kg @ 8.4V for heavy-duty control systems
• Speed – 0.13s response @ 7.4V with ultra-fast 0.11s @ 8.4V for rapid actuation
• Waterproof rating – IP67 certified for full protection against dust and immersion
• Construction – CNC aluminum case with steel gears and 3 precision ball bearings
• Connector – JR universal plug with black lead for plug-and-play compatibility

What makes the SW-2290SG ideal for high-performance builds?

The Savox SAV-SW2290SG Monster series servo with CNC aluminum case, steel gears, and 25T spline output is designed for builders who demand maximum torque and reliability. Its brushless motor and digital HV controller deliver 35% more power than previous generations, while the direct-drive architecture and VR potentiometer ensure precise positioning under load. Whether you're steering a large-scale crawler or controlling robotic arms, this servo offers the strength and responsiveness needed for mission-critical tasks.

How does it perform under voltage variation?

The High-voltage brushless servo with 70Kg peak torque @ 8.4V, 0.11s response, and 9200mA blocking current operates across a wide 6.0–8.4V range, making it compatible with 2S to 4S LiPo setups. Its rated current draw of 220mA and quiescent current of just 5mA ensure efficient operation, while the 9200mA blocking current capacity protects against overload during extreme maneuvers.

Is it suitable for outdoor and wet conditions?

Absolutely. The Waterproof IP67 servo with steel geartrain, direct-drive architecture, and CNC-machined aluminum housing is built to withstand mud, water, and dust without compromising performance. Its sealed casing and robust internals make it ideal for off-road RC vehicles, marine robotics, and any application where exposure to the elements is a concern.

What applications benefit most from the SAV-SW2290SG?

The Savox SW-2290SG servo with 3 ball bearings, 5mA quiescent current, and 220mA rated draw for efficient operation is perfect for 1/5-scale RC trucks, rock crawlers, robotic platforms, and heavy-duty steering systems. Its 25T spline ensures compatibility with standard servo horns, while its compact 41mm x 21mm x 39.9mm dimensions allow for easy integration into tight builds.

Buy Savox SAV-SW2290SG Monster brushless servo for 1/5-scale RC vehicles, robotics, and heavy-duty steering systems.

Brand, Model and Product Type

• Brand – Savox
• Model – SAV-SW2290SG
• Product Type – Savox SAV-SW2290SG HV brushless servo with 55Kg torque @ 7.4V, Savox Monster series servo with CNC aluminum case, steel gears, and 25T spline output, Savox digital HV servo with 3 ball bearings, JR universal connector, and 81g weight, Savox waterproof IP67 servo with steel geartrain, direct-drive architecture, and CNC-machined aluminum housing, Savox high-voltage brushless servo with 6.0–8.4V operating range, 41mm x 21mm x 39.9mm dimensions

Dimensions

• Length – 4.1 cm, suitable for standard servo trays and compact installations
• Width – 2.1 cm, optimized for tight mounting spaces in 1/5-scale RC vehicles and robotics
• Height – 3.99 cm, allows vertical clearance for steering systems and suspension setups
• Weight – 81 g, balanced for high-torque output without compromising agility

Performance and Torque

• Torque @ 6.0V – 45.0 Kg/cm, ideal for mid-voltage applications requiring strong actuation
• Torque @ 7.4V – 55.0 Kg/cm, delivers robust performance for heavy-duty steering systems
• Torque @ 8.4V – 70.0 Kg/cm, peak output for demanding robotic and RC crawler tasks
• Speed @ 6.0V – 0.16 sec/60°, suitable for controlled response in precision setups
• Speed @ 7.4V – 0.13 sec/60°, balances speed and torque for dynamic control
• Speed @ 8.4V – 0.11 sec/60°, ultra-fast actuation for competitive and responsive builds

Electrical and Motor Specifications

• Operating voltage range – 6.0V to 8.4V, supports HV configurations including 2S to 4S LiPo systems
• Motor type – Brushless motor with digital HV controller for increased efficiency and power
• Quiescent current – 5 mA, ensures minimal power draw during idle operation
• Rated current – 220 mA, optimized for consistent performance under load
• Blocking current – 9200 mA, protects against overload during extreme torque demands

Construction and Materials

• Case – CNC-machined aluminum housing for enhanced heat dissipation and structural rigidity

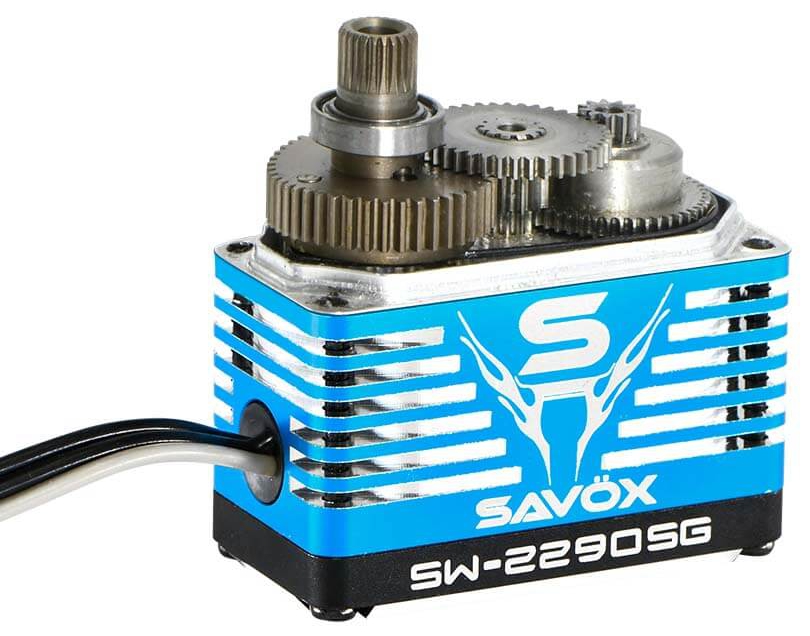

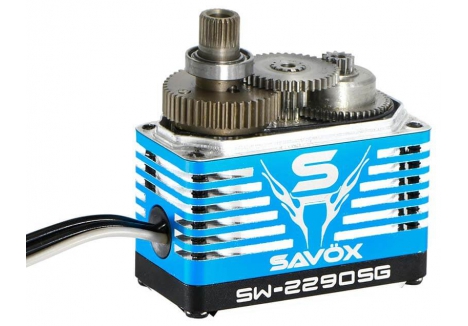

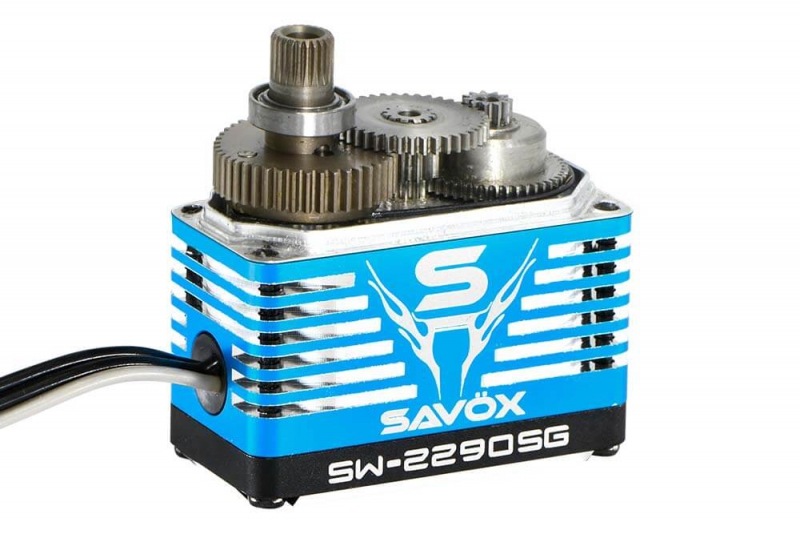

• Geartrain – Hardened steel gears for long-term durability and high-load resistance
• Bearings – 3 precision ball bearings for smooth rotation and reduced internal friction
• Positioning system – VR potentiometer with direct-drive architecture for accurate feedback and control

Connectivity and Compatibility

• Connector type – JR universal plug with black lead for seamless plug-and-play installation
• Spline type – 25T spline output compatible with standard servo horns and linkages
• Servo type – Standard-size digital HV servo for versatile integration across platforms

Protection and Environmental Resistance

• Waterproof rating – IP67 certified, fully sealed against dust and immersion for outdoor and wet conditions

What's in the Box

• 1x Savox SW-2290SG HV brushless waterproof servo
