The evolution of the Outback trail chassis hits new heights with the new Hi-Rock edition from FTX. As trail and crawler fans continue to crave both scale performance and scale looks, we have looked to address both with the Hi-Rock.

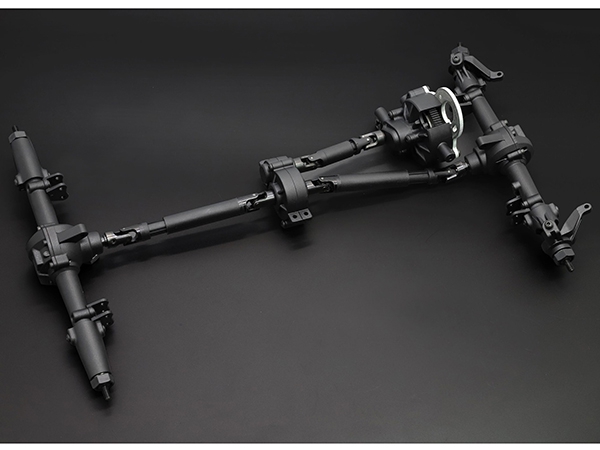

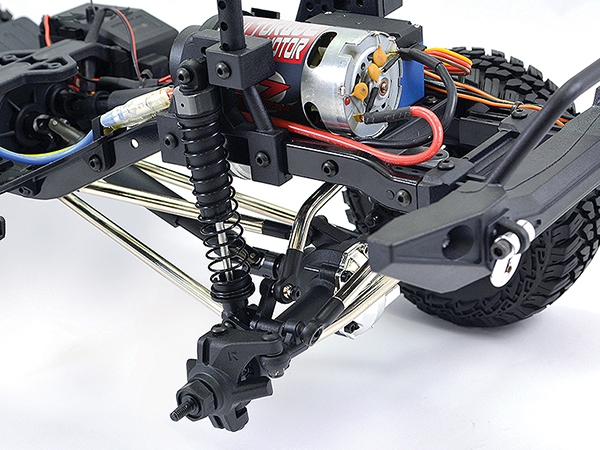

Featuring a new split transmission, the motor is now mounted directly above the front axle alongside the steering servo providing extra weight up front for better traction when climbing ascents. The steering angle has been increased to a 45° angle for further improved trail maneuverability. An adjustable drivetrain slipper can be set to protect the transmission and driveshafts in the event of a lock up, while internal axle and gearbox metal gears provide long term durability.
The split transmission layout provides a much lower centre section allowing for aftermarket interiors to be mounted for added scale realism. The moulded side chassis plates have aluminium plates on the exterior while the inner plates provide protection from the elements as well as mounting receiver and Hobbywing speed control. The moulded receiver box features additional plug in ports for LED lights and aftermarket winches.

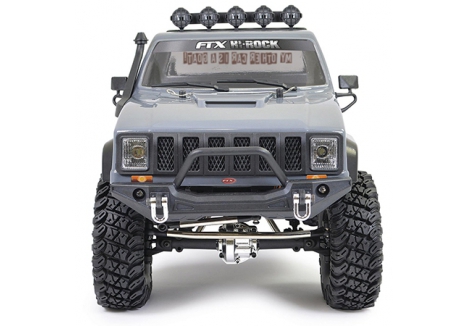

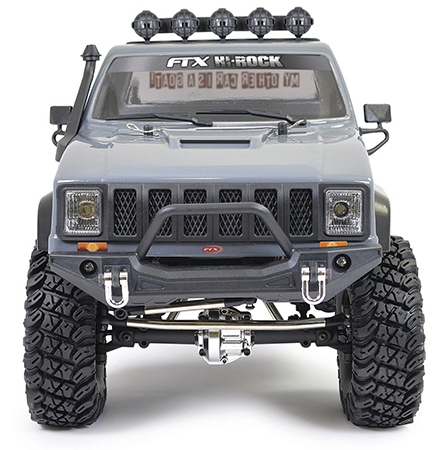

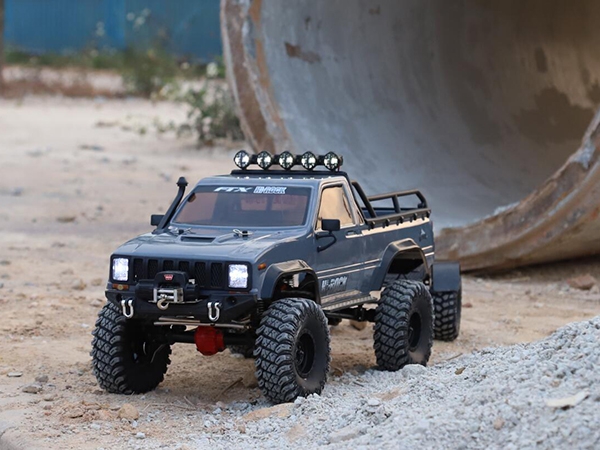

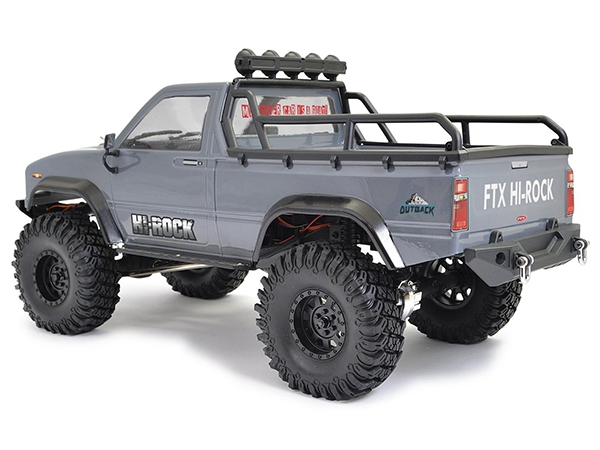

The classic pick-up inspired bodyshell comes complete with moulded accessories such as front grill & LED light buckets, snorkel, mirrors, wipers, roll bar cage and spotlights (for optional LED’s). Front and rear bumpers feature mounted LED lights and tow hooks to top off that scale look.
Take to the trails and raise the bar with the FTX Outback Hi-Rock!
Features and Specifications
99% Ready-to-Run
4ch 2.4ghz radio for lights & winch options
Hobbywing HW1040 40A Waterproof ESC
15kg metal geared waterproof servo
550 brushed 17 Turn motor
7.2v 2000mah NiMH battery & charger
Ball bearings

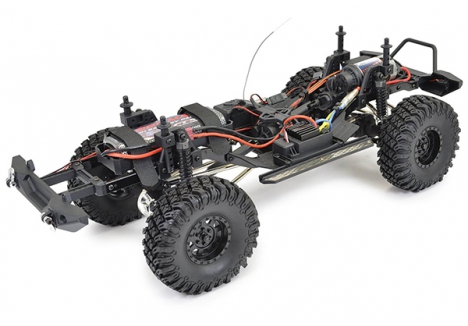

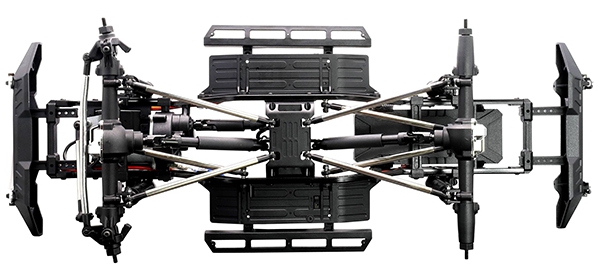

Twin rail metal frame chassis

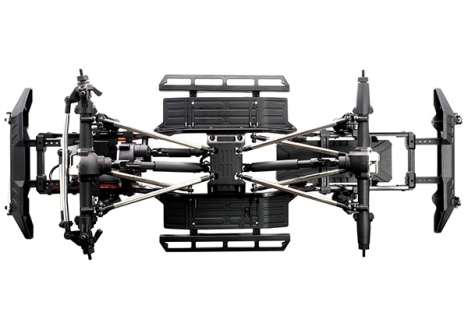

6mm steel multi-link suspension

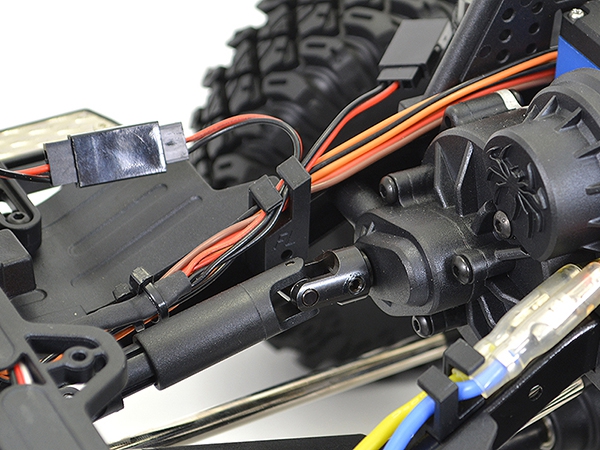

Telescopic universal driveshafts
Steel CVA front universal driveshafts
Oil filled shock absorbers
Metal axle & transmission gears
Front & rear high clearance locked axles

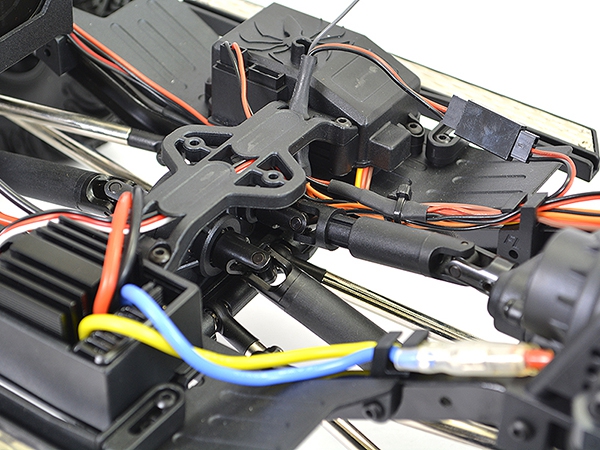

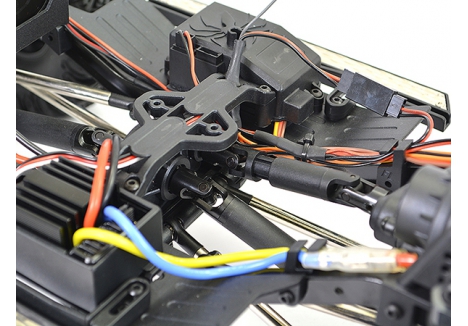

Adjustable central footplate for ESC & receiver mounting
Receiver box with external third & forth channel ports for options such as LED, sound module or winch

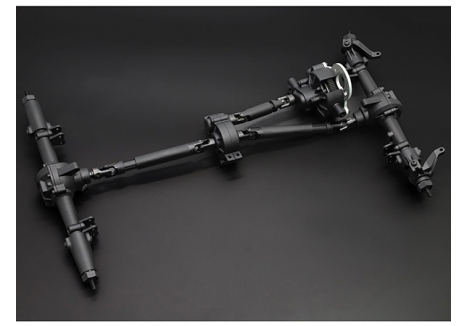

Split transmission system for better low-speed torque output
Lower mid section accommodates interiors
Transmission slipper clutch

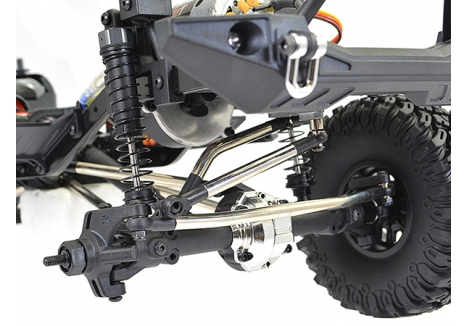

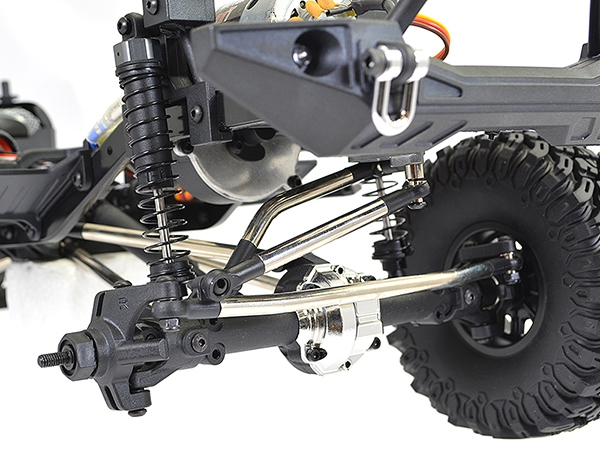

Raised chassis mounted steering servo & panhard bar

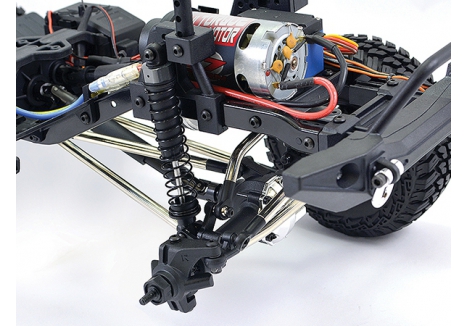

Front mounted motor for better weight bias
Scale styled wheels
High grip all terrain tyres

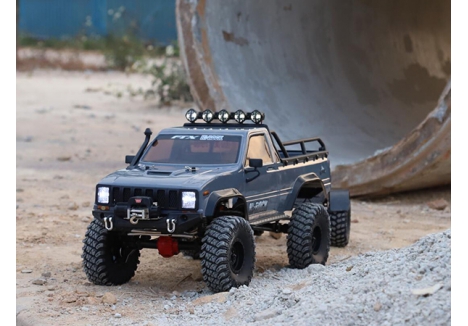

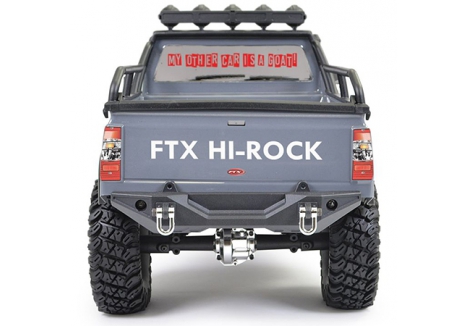

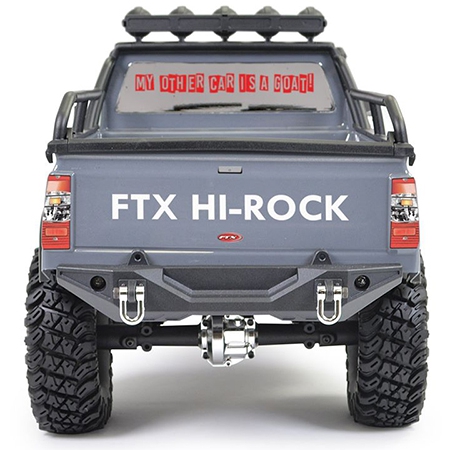

Scale looking front & rear bumpers with shackles & factory fitted LED lights
Scale side metal footplate
Moulded scale body accessories including snorkel, side mirrors & grill
4 pcs AA Alkaline Batteries required.
Specifications
Length: 560mm
Width: 240mm
Height: 240mm
Weight: 2600g
Wheelbase: 313mm
Gear Ratio: 56.6:1 – 33.3:1
Tyre Diameter: 120mm
Wheel Diameter: 54mm
Ground Clearance: 80mm
Brand, Model and Product Type
- Brand: FTX
- Model: FTX5587
- Product Type: FTX FTX5587 Outback Hi-Rock crawler RTR, FTX FTX5587 1:10 trail rock crawler, FTX FTX5587 RC crawler with split transmission, FTX FTX5587 with front-mounted motor and LED bumpers, FTX Outback Hi-Rock with waterproof ESC and metal gears
- Product Color: Pickup-style body with scale accessories (color not specified)
Dimensions
- Length: 56 cm – extended chassis for improved stability and interior mounting space
- Width: 24 cm – compact width for trail maneuverability and obstacle clearance
- Height: 24 cm – accommodates roll cage, scale accessories, and suspension travel
- Wheelbase: 31.3 cm – tuned for climbing balance and articulation
- Weight: 2.6 kg – solid build for traction and durability
- Tyre Diameter: 12 cm – high-grip all-terrain tyres for trail control
- Wheel Diameter: 5.4 cm – scale wheels with realistic styling
- Ground Clearance: 8 cm – high-clearance axles for obstacle traversal
- Gear Ratio: 56.6:1 – 33.3:1 – optimized for low-speed torque and crawl precision
Chassis and Structural Components
- Chassis Type: Twin rail metal frame – reinforced for off-road durability
- Side Plates: Moulded with aluminium exterior – adds strength and visual realism
- Footplates: Scale metal – protect electronics and enhance scale appearance
- Body Styling: Pickup-inspired shell with snorkel, mirrors, wipers, grill, and roll bar cage
- Bumpers: Front and rear with LED lights and tow hooks – functional and scale-accurate
Drivetrain and Transmission
- Drive System: 4WD shaft drive – ensures consistent traction across all wheels
- Transmission: Split layout – lowers center chassis profile and improves torque output
- Motor Position: Front-mounted – improves climbing traction and weight distribution
- Slipper Clutch: Adjustable – protects drivetrain during lockups
- Gears: Metal axle and transmission – built for long-term durability
- Driveshafts: Telescopic universal – maintain power delivery during articulation
- Front Driveshafts: Steel CVA universal – enhance steering and reduce wear
Motor and Electronics
- Motor: 550 brushed 17-turn – delivers crawl-ready torque and smooth throttle response
- ESC: Hobbywing HW1040 40A waterproof – supports consistent power and all-weather use
- Radio System: 4-channel 2.4GHz – includes ports for LED, winch, and sound module options
- Servo: 15kg metal geared waterproof – provides strong, reliable steering under load
Suspension and Handling
- Suspension Type: 6mm steel multi-link – supports articulation and terrain adaptability
- Rear Suspension: Semi-scale trailing arm – long travel for uneven surface control
- Shock Absorbers: Oil-filled – smooth out trail impacts and support tuning
- Steering System: Raised chassis-mounted servo with panhard bar – stabilizes axle movement
Battery and Charging
- Battery: 7.2V 2000mAh NiMH – included for reliable runtime and crawl consistency
- Charger: Standard NiMH charger – supports safe and efficient charging
What’s in the Box
- FTX FTX5587 Outback Hi-Rock crawler RTR
- Pre-installed 550 brushed 17-turn motor
- Hobbywing HW1040 40A waterproof ESC
- 7.2V 2000mAh NiMH battery
- NiMH charger
- 4-channel 2.4GHz radio system
What You Require
- 8 × AA batteries for transmitter
Product Description of FTX FTX5587 Outback Hi-Rock crawler RTR
The FTX FTX5587 Outback Hi-Rock crawler RTR is a purpose-built 1:10 scale trail rock crawler engineered for realism, torque, and terrain mastery. Designed to elevate the Outback platform to new heights, the Hi-Rock edition introduces a split transmission layout, front-mounted motor, and high-clearance axles—all optimized for low-speed control and climbing precision. With its classic pickup-inspired body, scale accessories, and LED-equipped bumpers, the Hi-Rock blends rugged performance with visual authenticity. The FTX FTX5587 RC crawler with split transmission is powered by a 550 brushed motor and waterproof Hobbywing ESC, delivering consistent torque and crawl-ready responsiveness. Whether you're navigating rocky trails or tackling steep ascents, the Hi-Rock is built to conquer with confidence.
Key features of the FTX FTX5587 Outback Hi-Rock crawler RTR
- Split transmission system – improves low-speed torque and lowers center chassis profile
- Front-mounted motor – enhances weight bias for improved climbing traction
- LED-equipped bumpers – add trail visibility and scale realism
- Waterproof ESC and metal gears – ensure durability and all-weather performance
- Scale body accessories – include snorkel, mirrors, grill, wipers, and roll bar cage
- Panhard bar steering – stabilizes front axle movement and improves articulation
- High-clearance axles – increase obstacle clearance and trail capability
- Aluminium footplates – reinforce side chassis and add visual detail
How does the split transmission improve crawling performance?
The FTX FTX5587 1:10 trail rock crawler features a split transmission layout that positions the motor directly above the front axle. This configuration shifts weight forward, increasing traction during ascents and improving low-speed control. The lowered midsection of the chassis accommodates aftermarket interiors, enhancing scale realism without compromising drivetrain geometry. Combined with a transmission slipper clutch, the system protects against drivetrain stress during lockups, making the Hi-Rock ideal for technical crawling and trail exploration.
Why is the front-mounted motor and panhard bar setup important?
The FTX FTX5587 with front-mounted motor and LED bumpers places the motor and steering servo above the front axle, optimizing weight distribution for climbing scenarios. This setup is paired with a panhard bar steering system, which stabilizes lateral axle movement and maintains precise steering geometry under articulation. The result is improved handling on uneven terrain and enhanced control during tight maneuvers. LED-equipped bumpers add visibility and scale realism, making the Hi-Rock both functional and visually compelling.
How do the drivetrain and suspension components support durability?
The FTX Outback Hi-Rock with waterproof ESC and metal gears includes internal metal gears in both the axles and transmission, ensuring long-term reliability under load. The 6mm steel multi-link suspension and telescopic universal driveshafts provide robust articulation and consistent power delivery. Steel CVA front universal driveshafts enhance steering efficiency, while oil-filled shock absorbers smooth out trail impacts. These components work together to deliver a crawler that’s built for endurance and capable of handling demanding terrain.
What makes the Hi-Rock visually authentic and upgrade-ready?
The FTX crawler with scale body accessories and panhard bar features a classic pickup-style shell with moulded details including snorkel, mirrors, wipers, roll bar cage, and LED-ready spotlights. Aluminium side footplates reinforce the chassis and add visual depth, while the receiver box includes external ports for optional accessories like winches or sound modules. The scale wheels and high-grip tyres complete the look, making the Hi-Rock a standout on the trail and a flexible platform for customization.
How does the Hi-Rock handle trail conditions and weather?
The affordable FTX Outback Hi-Rock with aluminium footplates and scale tyres is equipped with waterproof electronics, including a 40A Hobbywing ESC and 15kg metal geared steering servo. These components allow the crawler to operate confidently in wet, muddy, or dusty environments. The high-clearance locked axles and 80mm ground clearance enable the Hi-Rock to traverse rocks, roots, and uneven terrain with ease. With its rugged build and weather-ready design, the Hi-Rock is prepared for year-round trail adventures.
For enthusiasts seeking a crawler that combines scale realism, technical capability, and upgrade potential, the FTX FTX5587 Outback Hi-Rock crawler RTR delivers. With its split transmission, front-mounted motor, and detailed body styling, this rig is ready to raise the bar. Buy FTX FTX5587 with NiMH battery and 4ch radio system today.
Technical Specifications of FTX FTX5587 Outback Hi-Rock crawler RTR
Brand, Model and Product Type
- Brand: FTX
- Model: FTX5587
- Product Type: FTX FTX5587 Outback Hi-Rock crawler RTR, FTX FTX5587 1:10 trail rock crawler, FTX FTX5587 RC crawler with split transmission, FTX FTX5587 with front-mounted motor and LED bumpers, FTX Outback Hi-Rock with waterproof ESC and metal gears
- Product Color: Pickup-style body with scale accessories (color not specified)
Dimensions
- Length: 56 cm – extended chassis for improved stability and interior mounting space
- Width: 24 cm – compact width for trail maneuverability and obstacle clearance
- Height: 24 cm – accommodates roll cage, scale accessories, and suspension travel
- Wheelbase: 31.3 cm – tuned for climbing balance and articulation
- Weight: 2.6 kg – solid build for traction and durability
- Tyre Diameter: 12 cm – high-grip all-terrain tyres for trail control
- Wheel Diameter: 5.4 cm – scale wheels with realistic styling
- Ground Clearance: 8 cm – high-clearance axles for obstacle traversal
- Gear Ratio: 56.6:1 – 33.3:1 – optimized for low-speed torque and crawl precision
Chassis and Structural Components
- Chassis Type: Twin rail metal frame – reinforced for off-road durability
- Side Plates: Moulded with aluminium exterior – adds strength and visual realism
- Footplates: Scale metal – protect electronics and enhance scale appearance
- Body Styling: Pickup-inspired shell with snorkel, mirrors, wipers, grill, and roll bar cage
- Bumpers: Front and rear with LED lights and tow hooks – functional and scale-accurate
Drivetrain and Transmission
- Drive System: 4WD shaft drive – ensures consistent traction across all wheels
- Transmission: Split layout – lowers center chassis profile and improves torque output
- Motor Position: Front-mounted – improves climbing traction and weight distribution
- Slipper Clutch: Adjustable – protects drivetrain during lockups
- Gears: Metal axle and transmission – built for long-term durability
- Driveshafts: Telescopic universal – maintain power delivery during articulation
- Front Driveshafts: Steel CVA universal – enhance steering and reduce wear
Motor and Electronics
- Motor: 550 brushed 17-turn – delivers crawl-ready torque and smooth throttle response
- ESC: Hobbywing HW1040 40A waterproof – supports consistent power and all-weather use
- Radio System: 4-channel 2.4GHz – includes ports for LED, winch, and sound module options
- Servo: 15kg metal geared waterproof – provides strong, reliable steering under load
Suspension and Handling
- Suspension Type: 6mm steel multi-link – supports articulation and terrain adaptability
- Rear Suspension: Semi-scale trailing arm – long travel for uneven surface control
- Shock Absorbers: Oil-filled – smooth out trail impacts and support tuning
- Steering System: Raised chassis-mounted servo with panhard bar – stabilizes axle movement
Battery and Charging
- Battery: 7.2V 2000mAh NiMH – included for reliable runtime and crawl consistency
- Charger: Standard NiMH charger – supports safe and efficient charging
What’s in the Box
- FTX FTX5587 Outback Hi-Rock crawler RTR
- Pre-installed 550 brushed 17-turn motor
- Hobbywing HW1040 40A waterproof ESC
- 7.2V 2000mAh NiMH battery
- NiMH charger
- 4-channel 2.4GHz radio system
What You Require
- 8 × AA batteries for transmitter
