Product Overview

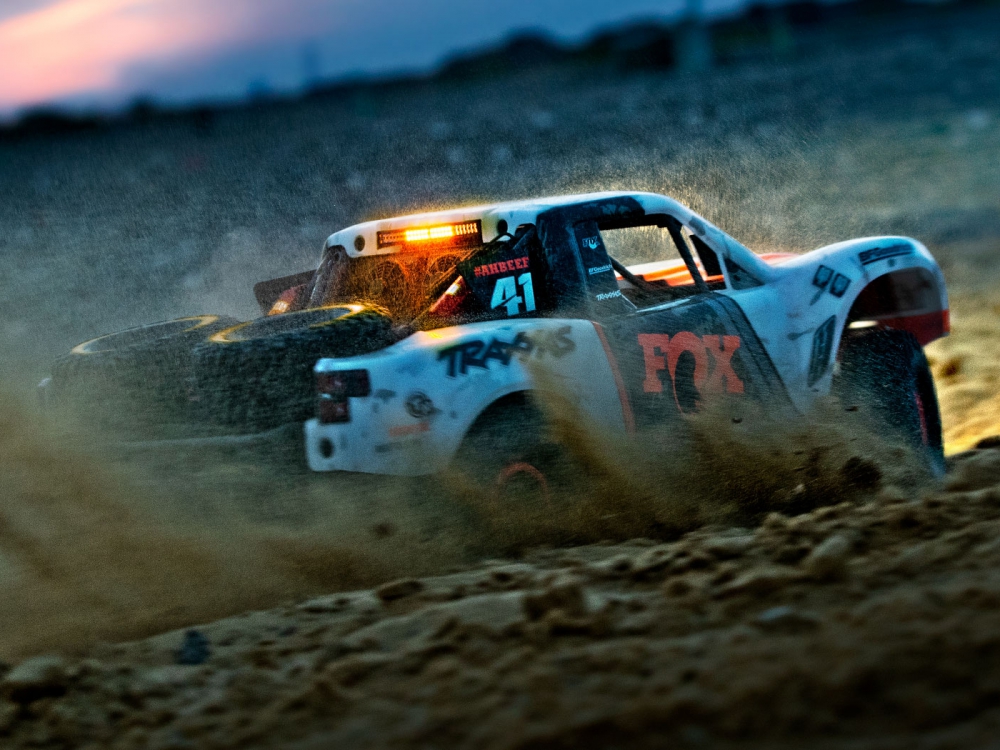

The Unlimited Desert Racer combines Pro-Scale performance with extreme 6s power for the most thrilling RC driving experience possible. It drives like a real desert truck because it's engineered like a real desert truck. A 4-link solid rear axle provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars and high-voltage lighting system to the GTR shocks, Traxxas accurately reproduced a true desert racer in both form and function.
Pro-Scale Performance
Pro-Scale is a new Traxxas innovation that captures true-scale realism and combines it with extreme 6s LiPo power and 50+ mph performance. The Traxxas Unlimited Desert Racer faithfully captures the look and feel of Trophy Trucks and Unlimited Trick Trucks as they charge hard across the desert at full speed.
Driving Realism
The Traxxas UDR is engineered on an authentic, true to scale 4-wheel drive desert race truck chassis. The 4-link solid rear axle design provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars to the 8 GTR shocks, Traxxas has accurately reproduced a true unlimited desert race chassis in both form and function.
6S Extreme Power
The 50+ mph UDR delivers its pro-level performance with brutal 6s power. The VXL-6s ESC combines massive power handling with high-tech telemetry features. An ultra-tough drivetrain harnesses the extreme power to make it easy to control and fun to drive..
Features

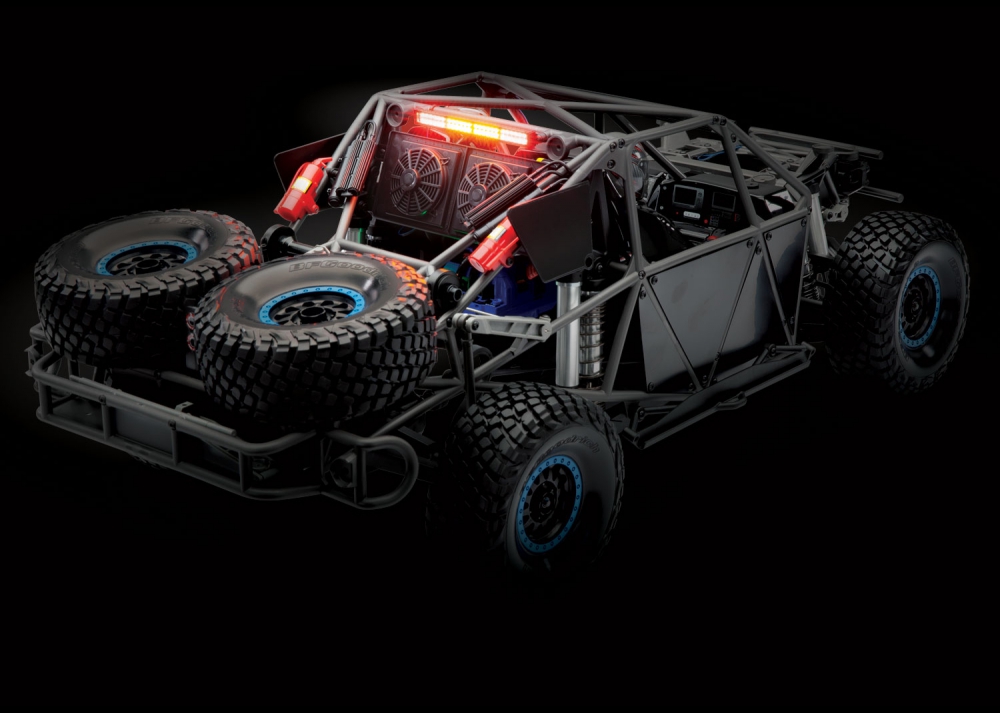

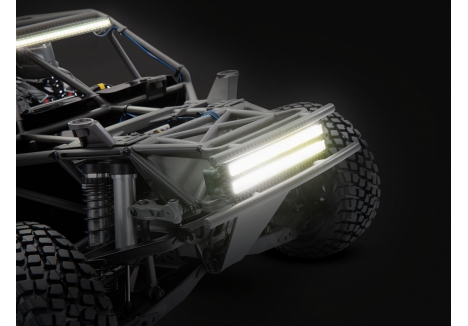

High-Voltage LED Lights
- Dual straight LED bumper-mounted LED light bars (52 LEDs each)
- Curved roof light bar (52 LEDs)
- Multifunction red and amber brake light/class light bar
- High-voltage 8-channel power amplifier for intense, brilliant LED lighting
- Regulated output for stable lighting performance (no flickering or dimming as the battery voltage changes)
VXL-6s Waterproof Electronic Speed Control
- 6s LiPo compatible
- Integrated cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sink
- 3-LED status indicators
- Powered accessory ports
- 10-gauge silicone wire
Velineon 2200kV Brushless Motor
- 4-pole 2200kV brushless motor
- 5mm output shaft
- Finned can for better heat dissipation
Up to 50+ mph with Two 3s LiPo Batteries
Traxxas Stability Management (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
Innovative Battery Compartment
- Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
- Opens from underneath without removing body
- Fixed oversized battery strap locks batteries securely into place
- Separate skid plate to protect batteries
TQi 2.4GHz High Output Radio System
- TQi 2-channel transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- High 13ms frame rate and near-zero latency for responsive control
- 5-channel micro receiver (#6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug

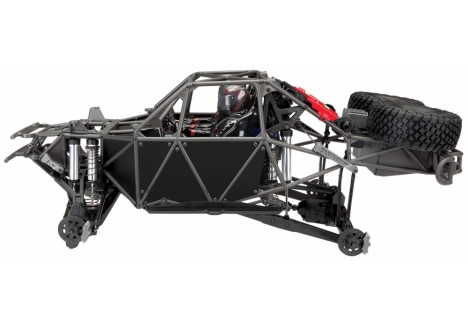

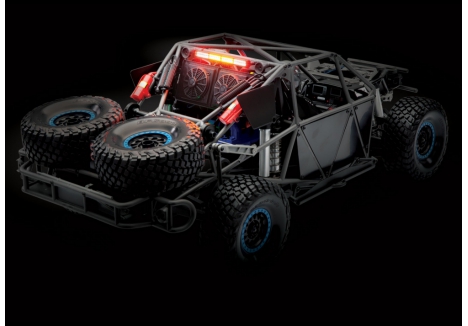

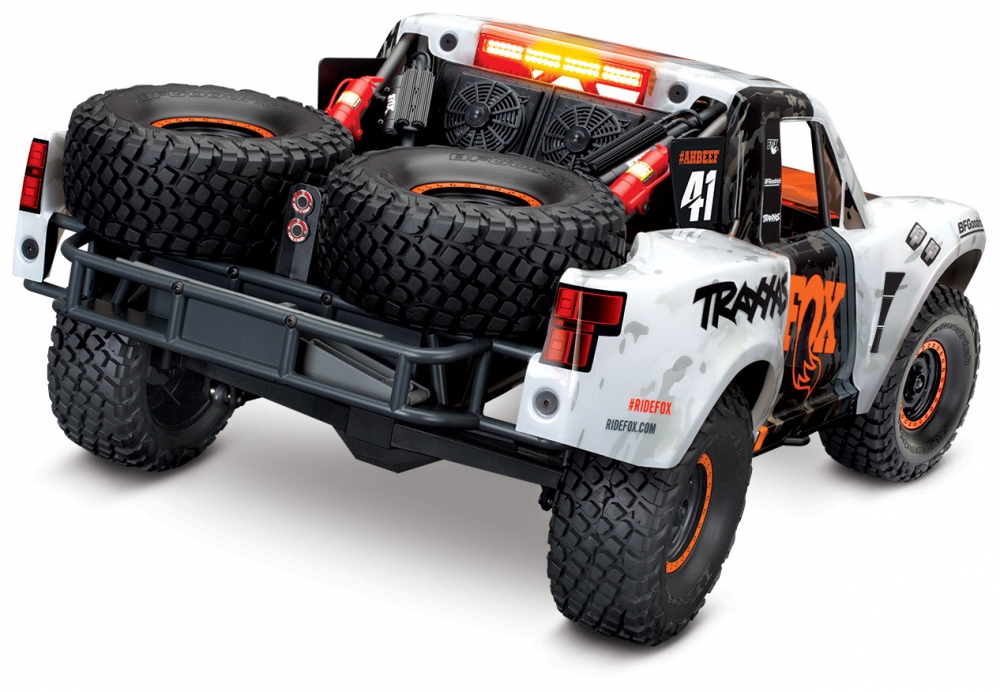

Large Pro-Scale Body with Highly Detailed Replica Parts
- Heavy-duty truck body mounts to chassis in multiple locations
- Strong and functional tube frame mimics full-size off-road racers
- Detailed interior cabin with driver figures
- Replica brake calipers and discs with integrated 17mm wheel hubs
- Two fully-functional spare tires and functional spare driveshaft
- Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools
- Realistic side plates mount to tube frame

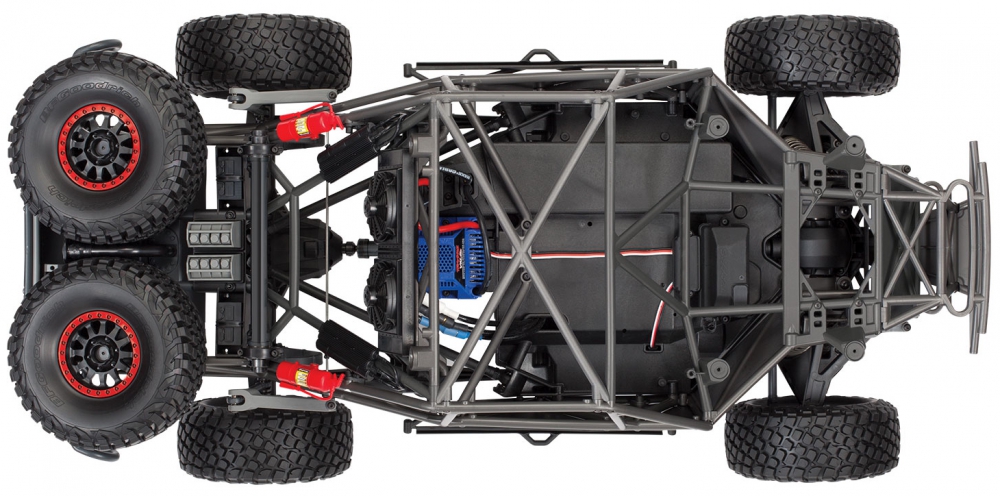

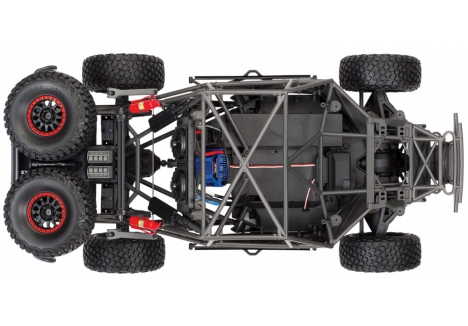

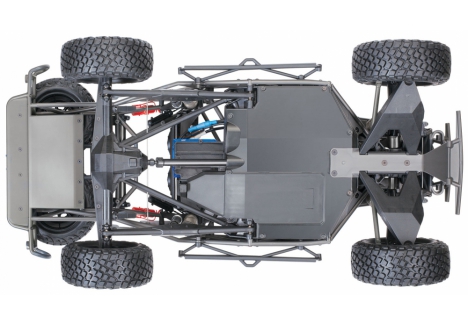

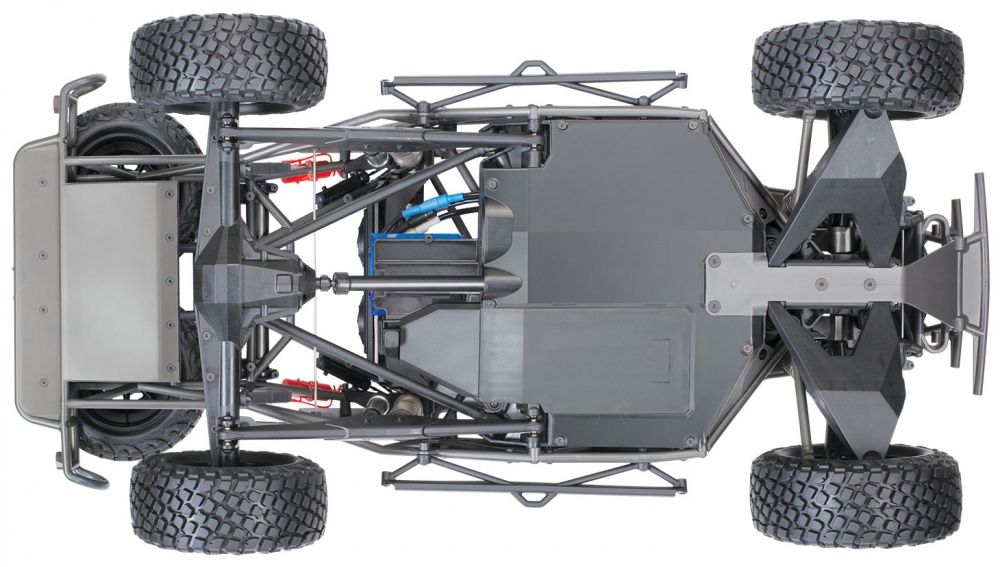

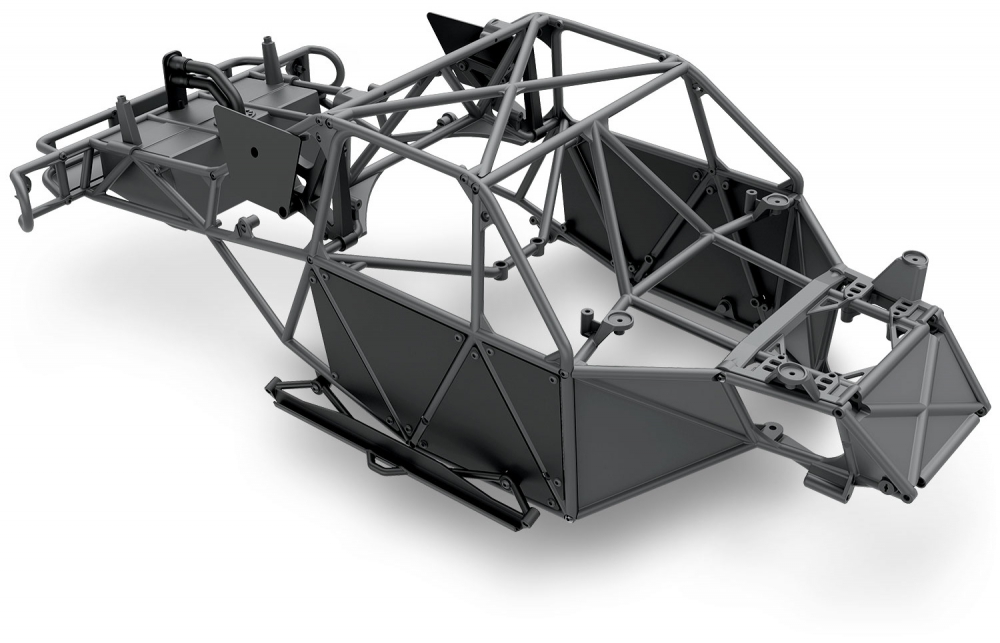

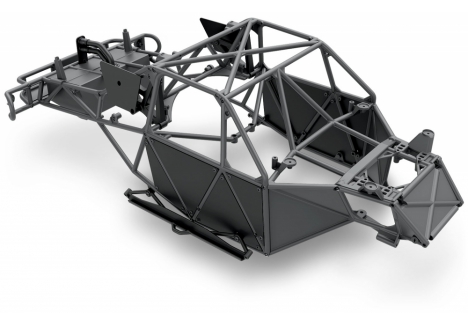

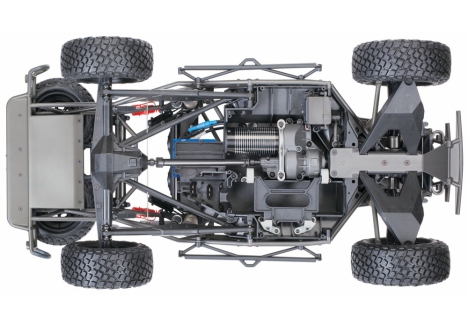

Chassis
- Composite inverted tub design
- Tough skid plates protect critical components
- Fully integrated tube frame for scale appearance and added rigidity
- Reinforced bumpers to absorb impacts
- ESC battery plugs hard mounted to chassis

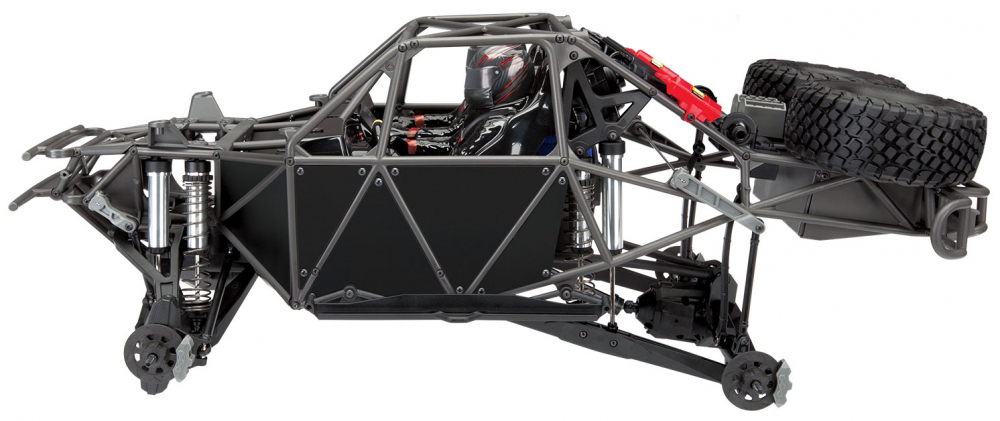

Suspension
- Provides scale looks and authentic off-road driving dynamics
- Tough independent double-wishbone front suspension with captured rod ends
- Triangulated 4-link rear suspension with solid rear axle (patent pending)
- Tough composite trailing arms
- Steel upper links with 3 optional positions for suspension tuning
- Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars
- Realistic and functional front and rear sway bars
- Detailed functional limit straps on rear axle
Steering
- Chassis mounted #2075R metal-gear servo
- Dual bellcrank design with bearings and integrated servo saver
- Solid non-adjustable steering links for rugged durability
Drivetrain
- Steel CV driveshafts (front) with 6mm stub axles
- Steel straight axle (rear)
- Oil-filled limited slip front differential
- Locked steel spool (rear)
- Heavy-duty splined front driveshaft
- Fixed-length steel rear driveshaft

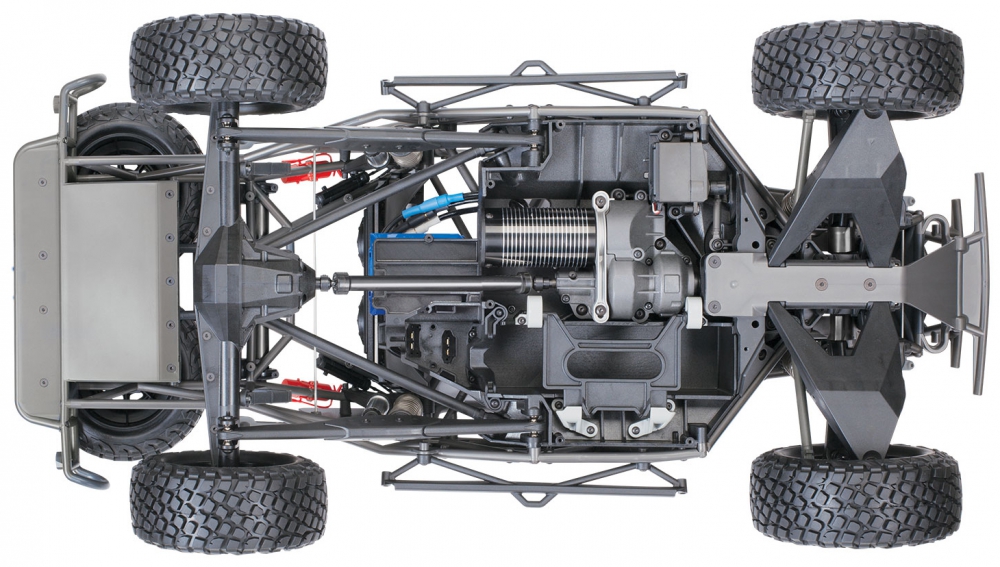

Transmission
- All-steel gear direct drive transmission
- Torque-Biasing Center Drive
- Removes as a single piece for easy maintenance
- Fixed-pin gear mesh system
Wheels and Tyres
- Replica BFGoodrich KR3 off-road tyres
- Beadlock-style 17mm dual-diameter wheels
Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
Detailed Features
Detailed Features
- Scale Realism
- Chassis
- Driveline
- Suspension
- Electronics
Whats in the Box?
- Unlimited Desert Racer with VXL-6s ESC and 2200kV motor
- Quick Start Guide
- TQi 2.4GHz radio system
- High quality maintenance tools
Needed to Complete
Batteries
Unlimited Desert Racer accepts a single 4s LiPo battery or dual 2s LiPo batteries or dual 3s LiPo batteries
Charger
Traxxas EZ-Peak Live charger (TRX2971) is recommended for easy and fast charging performance
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
ADDITIONAL INFO:
Gets this amazing Desert Buggy RC model from Traxxas. This Traxxas truck comes in a lovely size of 1/7 scale with quality electronics and accessories all pre-assembled and ready-to-run. It features an electric brushless motor that will power your car to the Max beating out the rest like Losi Racing, Arrma, or even FTX.
The TRAXXAS TRX85086-4-FOX is powered by the Velineon 2200kV Brushless Motor and VXL-6s Waterproof Electronic Speed Control which gives quality performance with speeds of 50 + mph. TRX85086-4-FOX is designed as a 4-WD model combined with Traxxas stability management system to improve straight line acceleration and braking on low-traction surfaces. This model has a battery compartment that can fit upto2 lipo batteries. TRAXXAS TRX85086-4-FOX uses a TQi 2-channel transmitter with has a waterproof receiver.
Want to test out your skills in the RC hobby with the model? Why not get this TRAXXAS TRX85086-4-FOX short course Truck at your favourite RC shop right here in Walsall? We also stock up in Losi Racing, Axial, Arrma, FTX, Team Associated, Tamiya, and all the best brands for you.
Brand, Model and Product Type
- Brand: Traxxas
- Model: C-TRX85086-4-FOX
- Product Type: Traxxas C-TRX85086-4-FOX brushless desert racer, Traxxas C-TRX85086-4-FOX electric short course truck, Traxxas C-TRX85086-4-FOX Pro-Scale 4WD RC car, Traxxas C-TRX85086-4-FOX with VXL-6s system and Fox Racing body styling, Traxxas desert truck with torque-biasing centre drive and 204-LED lighting array
Dimensions
- Length: 69.4 cm – extended chassis supports high-speed stability and scale realism
- Width: 34.5 cm – wide track enhances cornering control and suspension articulation
- Height: 26.1 cm – elevated stance accommodates long-travel suspension and LED light bars
- Wheelbase: 42 cm – optimised for desert terrain handling and suspension geometry
- Ground Clearance: 5.8 cm – suitable for off-road obstacles and uneven surfaces
- Weight: 6.1 kg – reinforced structure with steel drivetrain and aluminium shock bodies
Power System and Electronics
- Motor: Velineon 2200kV brushless motor – delivers high RPM torque and 50+ mph top speed
- ESC: VXL-6s waterproof ESC – supports 6S LiPo power and includes telemetry functionality
- ESC Features: Real-time diagnostics, voltage alerts, and performance monitoring via compatible systems
- Battery Compatibility: Dual 3S or 4S LiPo batteries – supports high-capacity packs for extended runtime
- Battery Tray Dimensions: 18.1 cm × 4.6 cm × 5.6 cm – accommodates standard LiPo configurations
- Radio System: TQi 2.4 GHz 2-channel transmitter – includes TSM receiver for enhanced stability control
- Receiver: TSM-enabled – supports adjustable traction assistance across variable terrain
- Servo: Traxxas 2075R – metal gear, high-torque waterproof digital servo for responsive steering
Drivetrain and Suspension
- Drive Type: Shaft-driven 4WD – ensures consistent traction and power distribution
- Transmission: Direct-drive with torque-biasing centre drive – improves cornering grip and acceleration
- Differential Configuration: Sealed 4-gear front and centre, locked spool rear – tuned for desert racing dynamics
- Gear Ratio: 17.89:1 – optimised for torque-heavy acceleration and terrain control
- Gear Pitch: 32 pitch – heavy-duty gearing supports high-load conditions
- Front Suspension: Independent with cantilever sway bars – enhances steering precision and terrain absorption
- Rear Suspension: 4-link solid axle – replicates full-scale Trophy Truck movement and traction
- Shock Type: GTR aluminium shocks – eight long-travel dampers for plush off-road performance
Lighting and Body Features
- Lighting System: 204-LED array – includes front, rear, brake, and accent lights for full visibility
- Body Mount: Clipless system – allows secure, tool-free body attachment and quick access
- Body Styling: FOX Racing edition – aggressive design with integrated lighting and scale realism
What’s in the Box
- 1 × Traxxas Unlimited Desert Racer C-TRX85086-4-FOX RTR model
- 1 × VXL-6s ESC (installed)
- 1 × Velineon 2200kV brushless motor (installed)
- 1 × TQi 2.4 GHz radio system
- 1 × Maintenance tools
What You Require
- 2 × 3S or 4S LiPo batteries
- 1 × Compatible LiPo charger
- 4 × AA alkaline batteries for transmitter
Sold Separately
- LiPo batteries and charger – required for operation but not included
