Overview

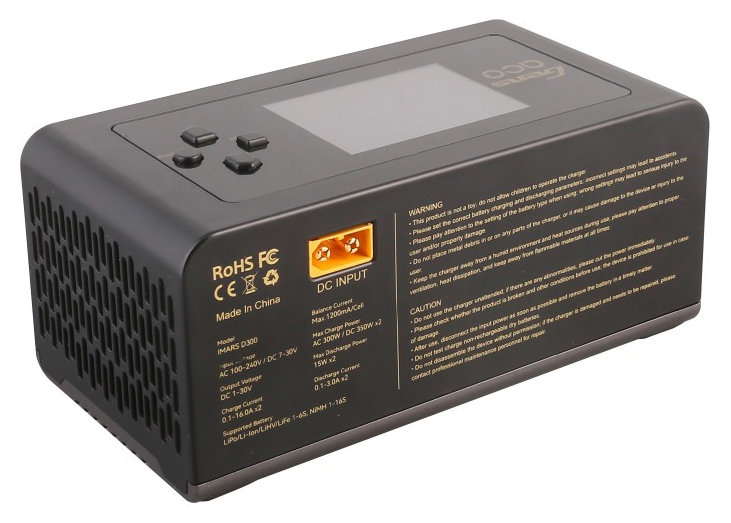

The iMars D300 AC/DC multi chemistry dual output charger is a compact yet powerful charging solution for anyone looking to charge 2 batteries simultaneously. Designed with G-Tech technology it enhances the users experience when using the G-Tech ecosphere of products allowing for charging simplicity and improved safety.
As a multi chemistry charger it gives you the flexibility to charge/balance charge 1S-6S/2S-6S lithium batteries (LiPo, Li-Ion, LiFe and LiHV) and 1S-16S NiMH meaning whatever your fly, sail, race or bash the D300 can ensure your charged and ready to go. With two individual channels you can independently charge/balance charge at a rate of up to 16A per channel with a maximum of 300W of power on AC or 350W of power on DC dependent on the power input. Beyond charging the D300 has an impressive level of extra functionality such as Discharge, Storage, DigitalPower, ExtDischarge and SyncCharging offering more versatility out of this small charging package. The Discharge function allows you to discharge batteries of multi chemistry types at variable rate of up to 3A per channel. If you are planning on leaving your batteries for a period of time it is best practice to store them with a level of charge in, this is easily done by selecting the 'Storage' function within the menu. The iMars D300 will then charger or discharge (depending on the condition of the battery) to a voltage that ensures your batteries will be in peak condition next time you go to use them. The SyncCharging function allows you to combine both charge outputs to give you a maximum charge rate of up to 23A by using a parallel charge cable (sold separately) ideal for stock racers looking to get optimum performance from their power source! DigitalPower mode allows the charger to be the equivalent of an adjustable power supply meaning you can use the charger to power items such as soldering iron or tyre warmers! Finally the ExtDischarge function allows you to quickly discharge a battery source with an XT60 connector with an external discharge load such as Tyre warmers, Soldering Iron or LED Display.
When the Gens Ace G-Tech battery is connected to the iMars D300 charger, the charger will automatically identify the battery type through the G-Tech Smart balance connector. The number of cells will be detected and the default charging current recommended by the battery manufacturer will be set. With all this data fed back to the charger it commences charging with these recommended settings ensuring the safe and efficient charging of the G-Tech battery. The iMars D300 is also fully capable of charging non G-Tech cells too thanks to the unique design of the G-Tech balance lead! You can connect a standard balance lead to the D300's balance port, however it is necessary to manually select the battery type and the required working mode to get it started. The charger can intelligently detect the cell count of the battery pack, and combined with the correctly selected battery technology will intelligently set the appropriate charge rate for the battery pack connected.

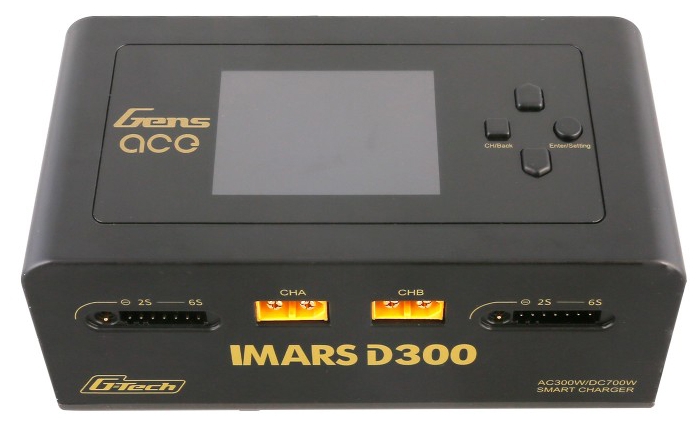

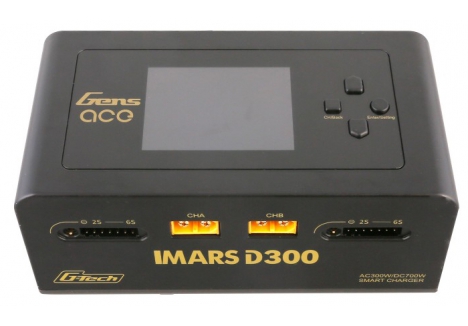

The updated and revised user interface is simple and intuitive to user allowing you to quickly and confidently navigate the menus without complication. Thanks to the 2.4inch LCD screen, all the information with great clarity regardless of the light levels. The 4 buttons located to the right of the screen provide a way to navigate the menu's and make adjustment to settings. Both battery channel's information are shown simultaneously however you can toggle between the individual channels by pressing the CH/Back button and allowing you to make adjustments to the individual channel settings. The charger has been designed to wrap all of this power and technology in as small a package as possible, allowing it to occupy as little space as possible on your pit bench or bag! Finished in a satin black, it is a sleek looking charger that looks smart wherever it resides.
From time to time the charger may require a firmware update which can be done via the USB port located above the AC Input port. As this port is powered it can be used to provide power to items such as LED desk lights and charge your phone at the same time as carrying out other functions of the charger.
Everything you need to get charging is in the box, alongside the charger itself you get the mains power lead along with the 2 x XT60-T plug adapter, 2 x XT60-EC3 adapter, 2 x XT60-EC5 adapter and USB lead. For anyone looking for a versatile and compact charging solution, the D300 provides the perfect solution at an economical price for the specification of charger.

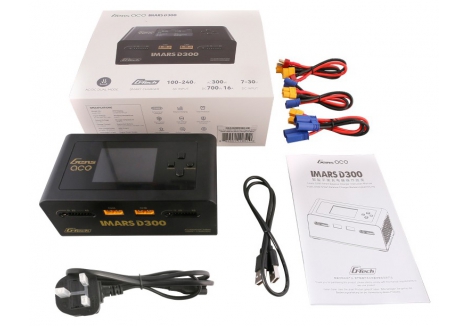

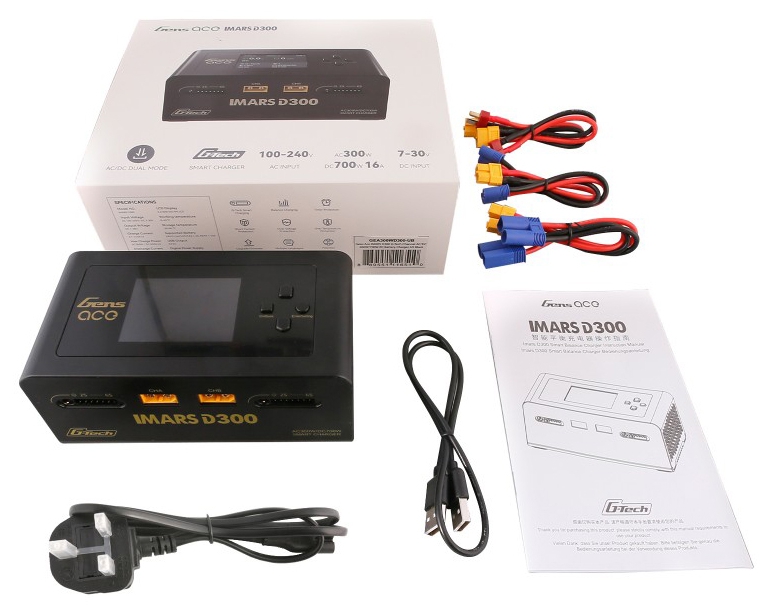

In the Box
- (1) IMars D300 Charger
- (1) UK Power lead
- (1) USB Charge Lead
- (2) XT-60 to T-Type Connector / (2) XT-60-EC3 Connector / (2) XT60-EC5 Connector
- (1) Instruction Manual
Specification
| Input Voltage: |
AC 100-240V; DC 7-30V |
|---|
| Output Voltage: |
DC 1~30V |
|---|
| Max. Input Current: |
DC 34A |
|---|
| Discharging Power: |
15W per channel |
|---|
| Charging Power: |
AC 300W; DC 350W per channel |
|---|
| Charging Current: |
0.1-16A per channel |
|---|
| Discharge Current: |
0.1~3A per channel |
|---|
| Cell Balancing: |
2S-6S(Lipo/Li-ion/LiHV/LiFe) |
|---|
| Channel: |
Dual (Channel A and B) |
|---|
| USB Output |
5V / 2.4A |
|---|
| Output connector: |
XT60 |
|---|
Features
- Dual Channel AC/DC Smart Balance Charger.
- Designed with the new G-Tech balance connector system to aid ease of charging and battery care
- Compatible with both G-Tech balance lead and standard balance leads
- 2.4inch IPS display Screen displays all charger information in great clarity whatever the light level
- Small & Lightweight Portable Design with wide-view IPS Display.
- High power charging, capable of Max 16 Amp charge rates for one channel, worldwide 100V-240V voltage versatility, AC 300 Watts, DC 700 Watts.
- Built-in DC power source for different devices.
- Controlled heat dissipation system.
- Advanced safety features, UL94-V0 Flame Retardant Grade.
- Protection of Short circuit / Over current / Overcharge / Over voltage.
- The DigitalPower function enables the charger to be used as a power supply with things such as soldering irons
- By using a parallel charge cable you can utilise the SyncCharge function that allows you to charge a single battery at up to 23A.
- With the ExtDischarge function you can quickly discharge a battery with an external discharge load allowing you to run accessories such as tyre warmers, soldering irons LED Displays anywhere at the track or field.
- The USB port allows for future firmware updates and can be done with included USB lead. It is also powered meaning you can power small devices or charge your phone from it when connected.
- Mechanical buttons ensure a positive feedback when navigating through menus and selecting fields to alter
- The updated user interface design is intuitive to use and easy navigate
Dual Output

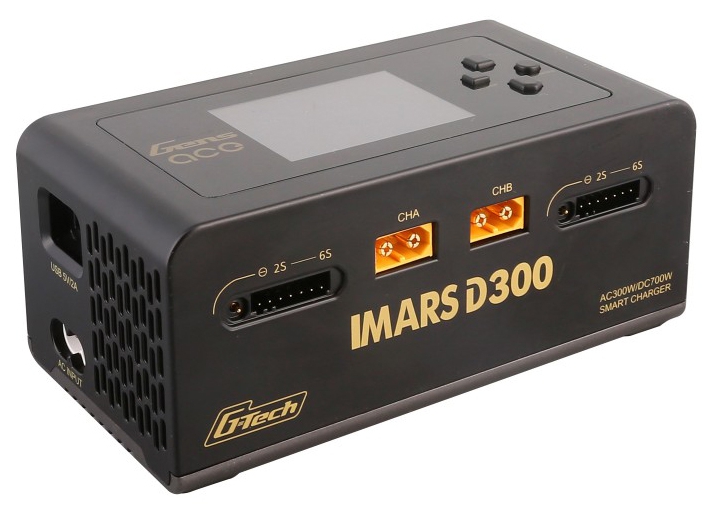

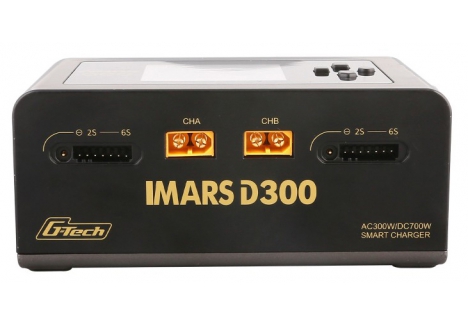

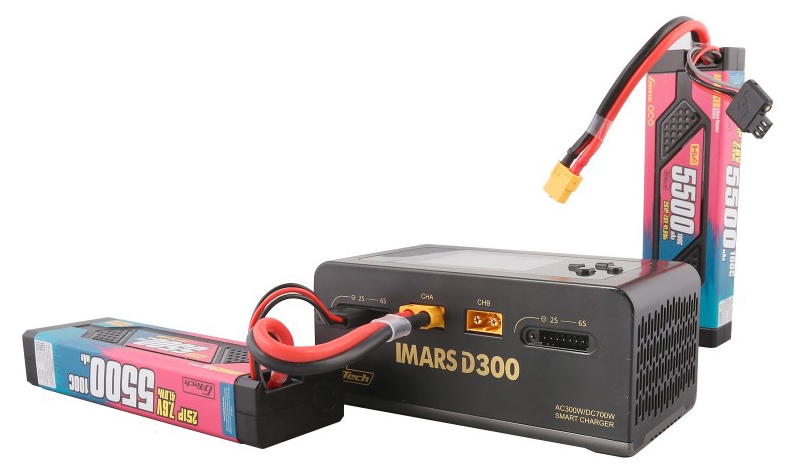

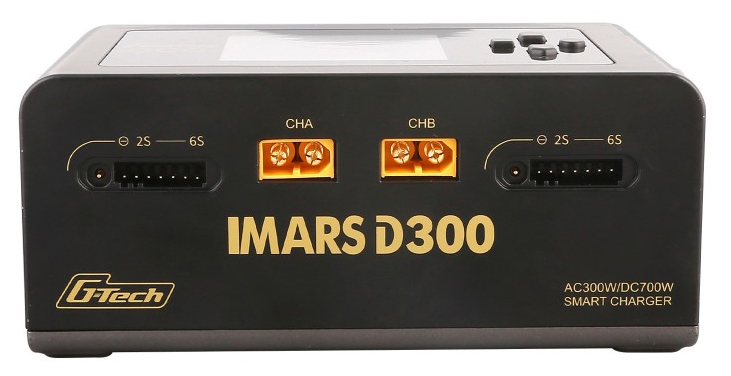

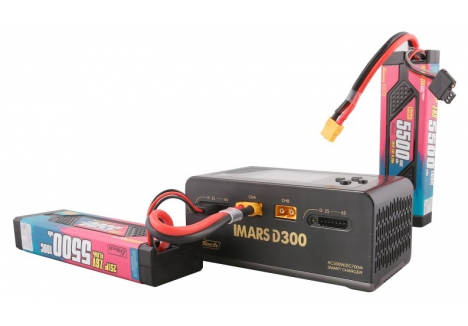

The D300 charger features 2 XT-60 outputs allowing you to charge 2 batteries simultaneously with different settings.
Updated User Interface Design
The updated user interface is intuitive and easy to navigate. Menu, field selection and channel selection are all controlled using the push buttons to the right of the screen providing positive feedback whilst in use.
G-Tech Simplicity
A Smart chip is embedded into the balance connector that enables intelligent interconnection and communication between the G-Tech battery and the smart charger regarding battery information.
Balance Port Compatibility
The G-Tech balance port design allows for both G-Tech batteries and standard balance lead type batteries to be used. This means the D300 is the perfect dual output charger for all battery types.
Compact Size

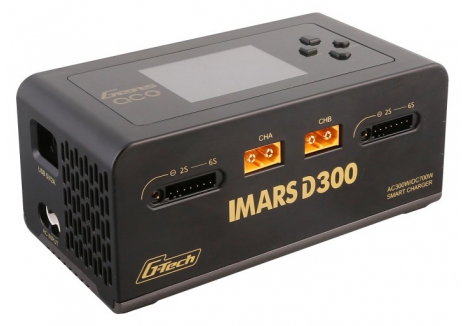

For it's capability the D300 has a small footprint meaning it takes up less space on your bench or in your pit bag.
USB-A Port
The USB-A port is for updating the chargers firmware with the included lead from time to time. The port is powered meaning you can also charge your phone and power small USB appliances such as pit lights from it whilst the other functions are in use.
DigitalPower Mode
The D300 can be turned into a power supply by selecting the DigitalPower function, allowing you to power things like tyre warmers and soldering irons.
SyncCharge Mode
Get a maximum charge rate of 23A to a single battery using a parallel charge lead (not included) and both charge ports.
ExtDischarge Mode

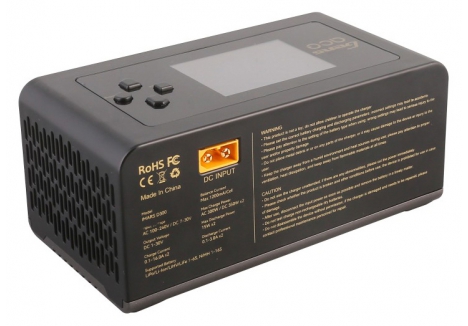

By connecting a battery to the DC input you can discharge the connected battery and use it to run accessories from either channels such as tyre warmers or a resistor.
- Weight: 530 g
- Height: 62 mm
- Length: 145 mm
- Width: 76 mm
