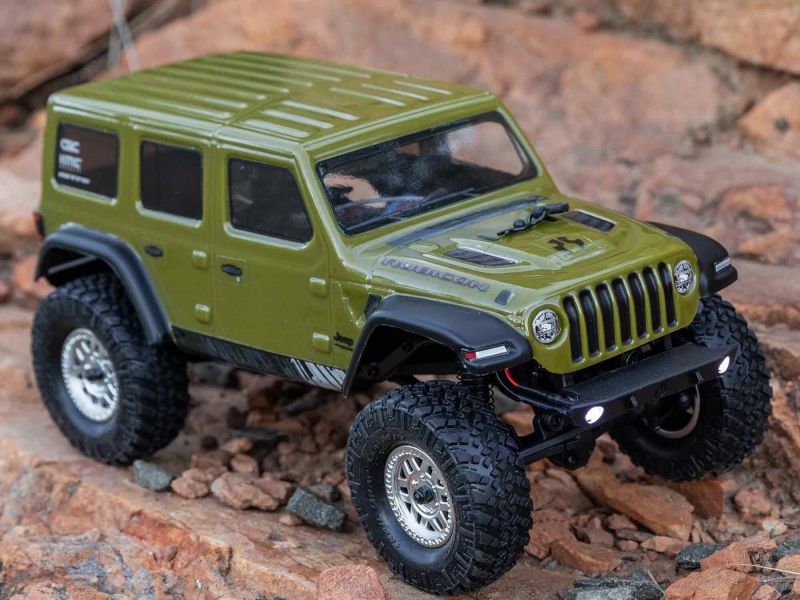

AXIAL 1/24 SCX24 Jeep Wrangler JLU 4WD Rock Crawler RTR Green C-AXI00002V3T4

• Scale: 1/24
• Model Number: C-AXI00002V3T4
• Manufacturer: Axial
• Vehicle Type: Rock Crawler
• Completion Level: Ready-to-Run (RTR)
• Assembly Type: Fully Assembled
• Drive Type: 4WD (Full-time)
• Skill Level: Level 1 (Beginner)
• Dimensions - Length: 198mm (7.8 inches)
• Dimensions - Width: 99mm (3.9 inches)
• Dimensions - Height: 104mm (4.1 inches)
• Wheelbase: 132mm (5.2 inches)
• Ground Clearance: 25.5mm (1.0 inch)
• Chassis Material: Stamped Steel Chassis Rails
• Chassis Design: C-channel with bracing
• Body Material: Polycarbonate hardtop
• Body Style: 2019 Jeep Wrangler JLU (detailed scale replica)
• Body Finish: Factory-painted (Green or Grey options)
• Motor Type: Brushed DC Electric
• Motor Size: 030
• Motor Designation: Dynamite 88T
• Motor Mount: Steel motor mount
• Pinion Gear: 10-tooth
• Spur Gear: 55-tooth
• Power System: Electric brushed
• Battery Type: 2S LiPo
• Battery Capacity: 350mAh
• Battery Voltage: 7.4V
• Battery C-Rating: 30C
• Battery Connector: PH 2.0 (High-Current Ultra Micro)
• Battery Included: Yes
• Charger Type: USB Charger
• Charger Included: Yes
• ESC Type: Brushed Speed Controller
• ESC Rating: 10A
• ESC Functions: Forward/Brake/Reverse
• ESC Features: Integral SLT2 receiver, fail-safe protection
• Radio System: Spektrum SLT2
• Radio Frequency: 2.4GHz digital spread spectrum
• Radio Channels: 2-channel
• Radio Features: Throttle travel adjust, steering travel adjust, throttle limiting
• Receiver: Integral with ESC (Spektrum SLT receiver)
• Transmitter: Spektrum SLT2 included
• Transmitter Batteries: 4x AA batteries included
• Servo: Axial AS-1 micro servo
• Servo Size: Micro scale
• Steering Type: 2-wheel steering (2WS)
• Suspension Type: Solid Axle, Front and Rear
• Front Suspension: 3-link design
• Rear Suspension: 4-link design
• Shock Type: Coil-over oil-filled
• Shock Adjustability: Preload adjustable with 1mm, 2mm, and 4mm spacers
• Differential Type: Worm Gear
• Front Differential: 16T/4T worm gear
• Rear Differential: 16T/4T worm gear
• Axles: Solid axle design with two-piece moulded composite housings
• Axle Material: Steel front and rear axles with steel stub axles
• Dogbones: Steel construction
• Drivetrain Bearings: Full ball bearings throughout (sealed cartridge bearings)
• Brakes: Integral with ESC and worm gear drag brakes
• Wheels: Licensed KMC Machete design
• Tyres: Licensed Nitto Trail Grappler M/T
• Tyre Tread: Nitto Trail Grappler M/T pattern
• Lighting: 2x LED lights in front bumper
• Features: Quick-release body (single clip for battery access)
• Included Accessories: Transmitter with 4x AA batteries, charger, manual in multiple languages
• In Box: Assembled RTR chassis, radio system, ESC/receiver combo, 350mAh LiPo battery, USB charger, Dynamite 88T motor, Axial AS-1 servo, 4x AA transmitter batteries, product manual
• LiPo Compatibility: 2S only
• Optional Accessories: Additional LiPo batteries, alternative shocks, motor upgrades, wheel options available

Overview

The Axial 1/24 SCX24 Jeep Wrangler JLU 4WD Rock Crawler RTR in stunning green is one of the most successful micro rock crawlers of all time, and now it's better than ever. Whether you're new to the world of ready to run RC cars or you're an experienced Axial enthusiast, this compact yet capable scale crawler delivers exceptional performance, stunning authenticity, and outstanding value. No matter where you are, the SCX24 Jeep Wrangler JLU makes it the scene for rock crawling fun—if you're stuck at work, go crawling on your desk; a messy room becomes a challenging obstacle course. Take your rig outside and set up an exciting trail with a few holes, rocks, and twigs. Just like the full-size Jeeps that embody adventure, the 1/24 scale SCX24 Jeep JLU is ideal for tackling almost any terrain, indoors or outdoors, and looks absolutely fantastic while doing it.

This completely assembled, fully equipped brushed RC rock crawler is a perfect choice for hobby beginners as well as for experienced Axial RC crawling enthusiasts. The updated version features plush oil-filled shocks that have been added for a suspension that smoothly absorbs bumps and stays stable over the roughest terrain, whilst reliable Spektrum electronics are included as standard. The new body colour options give you choice, and all of this is backed by the proven performance advantages of the Axial SCX24 platform. It's the complete micro rock crawling package—think small, and get ready for big adventures.

This is a genuine ready to run RC vehicle that requires absolutely nothing else to get started. Simply unbox it, charge the battery using the included USB charger, insert four AA batteries into the transmitter, and you're ready to explore. The detailed polycarbonate Jeep Wrangler JLU hardtop body rides on licensed KMC Machete wheels wrapped in licensed Nitto Trail Grappler M/T tyres, whilst two LED lights integrated into the front bumper illuminate the trail for night-time crawling adventures.

Key Features

• Full-time 4WD with Worm Gears — True full-time four-wheel drive with worm gear differentials on both front and rear axles provide massive ground clearance and strong drag brakes that keep your rig under control on steep descents and technical terrain.
• Advanced Suspension Geometry — The SCX24 features a sophisticated 3-link front and 4-link rear suspension design optimised to reduce axle steer and torque twist, allowing the chassis to articulate smoothly over rough obstacles whilst maintaining stability and traction.
• Oil-Filled Shock Absorbers — New generation oil-filled coil-over shocks deliver plush, controlled suspension travel that smoothly absorbs bumps and harsh impacts without bottoming out, with adjustable preload spacers (1mm, 2mm, and 4mm) to fine-tune your rig's handling characteristics to your preferred terrain.
• Steel C-Channel Chassis with Frame Rails — Just like the full-size 1/10 scale SCX10 platform, the SCX24 features rugged and sturdy realistic steel C-channel frame rails with bracing to keep everything intact, perfectly aligned, and ready for punishment during tough climbs and challenging terrain.
• Full Ball Bearing Drivetrain — Despite its small size, the SCX24 uses sealed cartridge ball bearings throughout the entire vehicle's drivetrain, ensuring the drive shafts and differentials spin freely with minimal friction and maximum efficiency, eliminating the wear issues associated with bushings.
• Splined and Sleeved Drive Shafts — Both front and rear drive shafts feature spline design and sleeves that allow for maximum suspension travel and articulation while maintaining consistent power delivery to the wheels during extreme crawling situations.
• Durable Steel Axles and Dogbones — Steel front and rear axles, front stub axles, and dogbones provide the strength and durability needed to keep going during tough climbs and over rough trails without flexing or breaking under load.
• Dynamite 88T Brushed Motor — A Dynamite 030-size 88T brushed electric motor provides the ideal amount of torque for making steep climbs and powering through obstacles, paired with a steel motor mount that minimises flex and protects the internal gears from damage.
• Spektrum SLT2 2.4GHz Radio System — This high-end 2-channel radio system offers professional features including throttle and steering travel adjustment and throttle limiting, with crystal-clear 2.4GHz frequency technology that eliminates the need for frequency management.
• Spektrum 10A Brushed ESC with Integral Receiver — The speed controller features Forward, Brake, and Reverse functionality with integral SLT receiver, offering smooth throttle control and integrated fail-safe protection integrated into the electronics.
• Spektrum 350mAh 2S LiPo Battery and USB Charger — A convenient 7.4V 350mAh 30C LiPo battery is included in the package along with a practical USB charger, allowing you to charge directly from any standard USB power adapter without needing separate charging equipment.
• Detailed Jeep Wrangler JLU Polycarbonate Body — The highly detailed painted hardtop body captures the iconic styling of the modern 2019 Jeep Wrangler JLU, with authentic proportions, trim details, and authentic colour options that look fantastic on display or during crawling adventures.
• Licensed KMC Machete Wheels with Nitto Trail Grappler Tyres — Realistic wheels and tyres combine genuine licensing with authentic tread patterns designed to look like proper off-road rubber, delivering scale realism and decent traction across various surfaces.
• Twin LED Front Bumper Lights — Two integrated LED lights mounted in the front bumper illuminate the trail for night-time crawling adventures, adding both functional visibility and impressive visual appeal during low-light conditions.
• Axial AS-1 Micro Servo — A dedicated micro servo handles steering inputs with precision, specifically engineered for the compact dimensions of 1/24 scale RC vehicles whilst delivering responsive directional control.
• Quick-Release Body Design — The polycarbonate body secures with just a single clip, allowing you to tilt it back instantly for quick access to the battery compartment without requiring tools or disassembly, making battery changes fast and convenient.

Technical Performance

The Axial SCX24 Jeep Wrangler JLU is engineered with meticulous attention to scale authenticity and real-world climbing performance. Measuring 198mm in length, 99mm in width, and 104mm in height with a 132mm wheelbase, this compact 1/24 scale crawler is small enough to navigate a desktop or bedroom floor yet robust enough for serious outdoor terrain. The stamped steel chassis with realistic C-channel frame rails provides the rigidity needed for technical crawling whilst maintaining authentic proportions. The Dynamite 030-size brushed motor delivers peak torque at lower speeds, essential for low-speed rock crawling and obstacle climbing, driving through a 10-tooth pinion gear meshed with a 55-tooth spur gear, creating a low-speed, high-torque drivetrain optimised for crawling rather than speed. The 16-tooth to 4-tooth worm gear differentials on both axles provide strong holding power and impressive ground clearance of 25.5mm, allowing the chassis to clear serious obstacles whilst the worm gears also function as effective drag brakes. The front and rear solid axle design with two-piece moulded composite housings keeps maintenance simple whilst steel axles deliver the durability required for demanding terrain. With 1.0 inches (25.5mm) of ground clearance and full-time 4WD, this rig can tackle technical boulder fields, root-covered trails, and rocky hillsides that would stop lesser crawlers. The Spektrum 350mAh 2S LiPo battery provides adequate runtime for extended play sessions, whilst the integrated 10A brushed ESC with Spektrum SLT receiver offers smooth power delivery and reverse capability for tactical manoeuvres on technical terrain.

What's in the Box

• (1) Assembled 1/24 SCX24 Jeep Wrangler JLU 4X4 Rock Crawler in Brushed RTR configuration
• (1) Spektrum SLT2 2.4GHz 2-channel radio system with transmitter
• (1) Spektrum 10A Brushed ESC with integral SLT receiver
• (1) Spektrum 7.4V 350mAh 2S LiPo battery with PH 2.0 connector
• (1) Spektrum USB charger for convenient battery charging
• (1) Dynamite 88T 030-size brushed motor with steel motor mount
• (1) Axial AS-1 micro servo for steering control
• (4) AA batteries for transmitter power
• (1) Complete product manual in multiple languages

Frequently Asked Questions

• Is the Axial SCX24 Jeep Wrangler JLU suitable for complete beginners to RC? — Absolutely yes. This is a fully assembled ready-to-run vehicle that requires zero building or technical knowledge. It arrives complete with radio system, battery, charger, and even transmitter batteries included. The skill level rating is Level 1, making it ideal for first-time RC owners. Simply unbox it, charge the battery, and start crawling immediately.
• What is the difference between the brushed motor and brushless versions of the SCX24? — This model features a brushed motor configuration, which delivers excellent low-speed torque perfect for rock crawling, generates less electrical noise, and operates reliably without the complexity of brushless systems. Brushless versions offer higher speed but less crawling performance. For technical rock crawling, brushed is the preferred choice.
• What battery does this SCX24 Jeep need, and how long will it run? — The vehicle includes a 7.4V 350mAh 30C LiPo battery with PH 2.0 connector. This provides adequate runtime for 15-30 minutes of casual crawling depending on terrain and driving style. Additional compatible 2S LiPo batteries are available for extended play sessions. The included USB charger makes recharging convenient from any standard USB adapter.
• Can this rock crawler handle outdoor terrain and rocks? — Yes, the SCX24 is designed for both indoor and outdoor use. The oil-filled shocks, full-time 4WD, worm gear differentials, and solid axle suspension are specifically engineered for rock crawling over real obstacles. The 25.5mm ground clearance and intelligent geometry allow it to climb rocks, traverse roots, and negotiate technical boulder fields. Licensed Nitto Trail Grappler tyres provide appropriate traction for various surfaces.
• What makes the oil-filled shocks better than standard shocks? — Oil-filled shocks contain specially formulated fluid that dampens movement more smoothly than air or springs alone, preventing the suspension from bottoming out on impacts whilst providing controlled articulation. This means smoother crawling over rough terrain, better stability, and improved obstacle handling. The adjustable preload spacers let you fine-tune damping for your specific terrain preferences.
• How long do the batteries last, and can I buy spares? — The transmitter uses four standard AA batteries, which provide many hours of operation. The 350mAh LiPo vehicle battery typically delivers 15-30 minutes of playtime depending on terrain and driving intensity. Replacement Spektrum LiPo batteries and chargers are available as optional upgrades to extend your crawling sessions.
• What is the top speed of the SCX24 Jeep? — This vehicle is optimised for low-speed rock crawling performance rather than high speed. The brushed motor and gearing deliver maximum torque for obstacle climbing and technical terrain navigation. Top speed is significantly slower than stadium trucks or buggies, but this is intentional—crawling speed control and obstacle-solving ability are the priority.
• Is the body painted and finished? — Yes, the polycarbonate Jeep Wrangler JLU hardtop body arrives factory-finished in authentic green or grey colour options with detailed trim and markings. It requires no painting, assembly, or preparation; it's ready to install and drive straight from the box.
• Can I upgrade or modify the SCX24? — Yes, the SCX24 has an active aftermarket with numerous optional upgrades available including alternative shocks, motor upgrades, tyre options, wheel choices, and drivetrain modifications. This allows you to customise the rig to your preferred setup as your skills and interests evolve.
• What radio frequency does the Spektrum SLT2 system use? — The Spektrum SLT2 operates on 2.4GHz frequency with digital spread spectrum technology, eliminating frequency management and channel conflicts. This is the same technology used in professional RC racing and offers reliable signal over excellent range.
