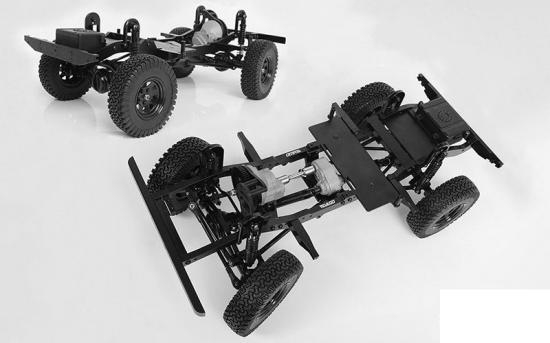

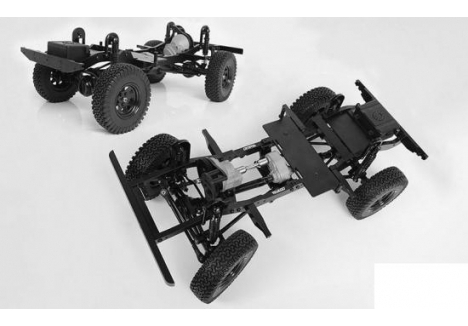

RC4WD Gelande II Truck Kit 1/10 Chassis Kit
Experience the versatility and advanced design of the G2 for yourself. Packed full of capability, the G2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.
The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II Axles.
The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.
The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!
Are you ready for your off-road experience?
Custom Designed for True To Scale Looks
Realistic Aluminum Ladder Frame Chassis
R3 Single Speed Transmission
Center Mounted Realistic 4x4 Transfer Case
Cast Metal Axles with Locked Differentials
3 Link Front and 4 Link Rear Suspension
1.9" Stamped Steel Beadlocks w/Lug Nuts
Super Grip Dirt Grabber Tires
Chassis Mounted Steering Servo
Dual Spring 80mm Scale Black Shocks
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing,
Hardened Gears
R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratios: 1.78:1
Gears - Wide Steel .8 Mod, Delrin Spur,
Slipper Clutch
Cast Yota II Axles
Ratio: 15/40 = 2.67:1
Width at Hex 180.5mm
G2 Suspension
Double Triangulated 4 Link Rear Suspension.
3 Link Front Suspension with Panhard Bar
Shock Absorbers
Dual Spring 80mm Shocks - Can be Oil Filled
Wheels
Type: 1.9'' 5 Lug Wagon Wheels
Hub: Pin Type
Width: 25mm
Back Spacing: 11mm
Bumpers
Machined Billet Aluminum, Lightweight

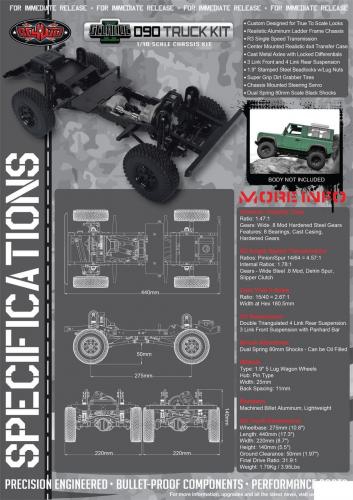

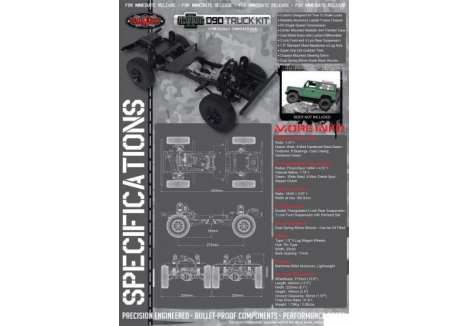

G2 Truck Dimensions
Wheelbase: 275mm (10.8")
Length: 440mm (17.3")
Width: 220mm (8.7")
Height: 140mm (5.5")
Ground Clearance: 50mm (1.97")
Final Drive Ratio: 31.9:1
Weight: 1.79Kg / 3.95Lbs
DRIVETRAIN
The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.
The G2 includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8Mod Widened Gears for durability.
Drawing on the success of the RC4WD MOA gear sets, the G2 drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.
The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.
The Driveshafts for the G2 are designed with heavy duty metal uni-joints with tough plastic shafts for great driveline angles and durability on the trails.

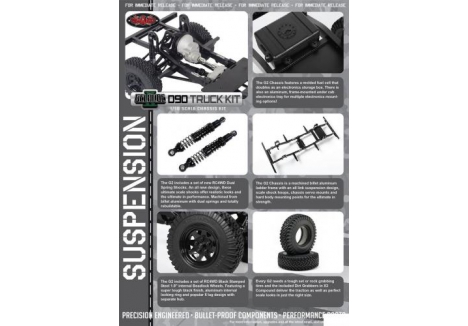

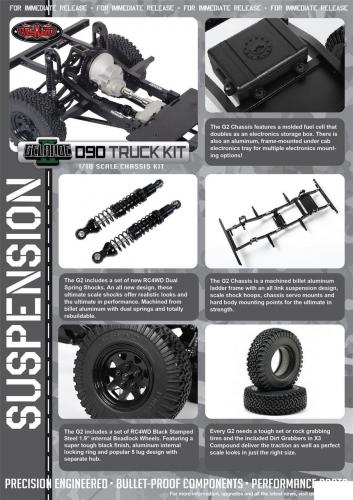

SUSPENSION
The G2 Chassis features a molded fuel cell that doubles as an electronics storage box. There is also an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options!
The G2 includes a set of new RC4WD Dual Spring Shocks. An all new design, these ultimate scale shocks offer realistic looks and the ultimate in performance. Machined from billet aluminum with dual springs and totally rebuildable.

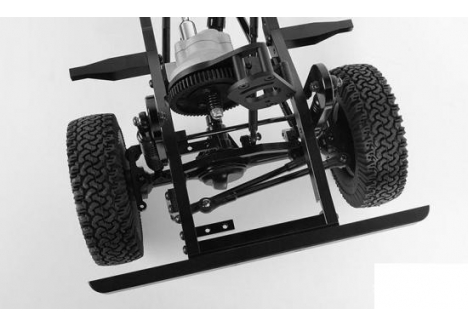

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.
The G2 includes a set of RC4WD Black Stamped Steel 1.9" internal Beadlock Wheels. Featuring a super tough black finish, aluminum internal locking ring and popular 5 lug design with separate hub.
Every G2 needs a tough set or rock grabbing tires and the included Dirt Grabbers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

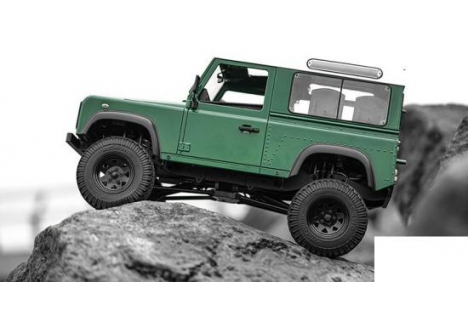

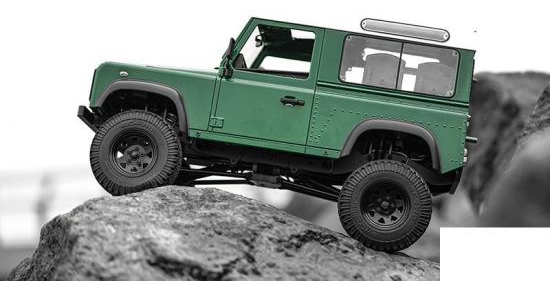

Shown installed with Gelande II D90 Hard Plastic Body Kit (Z-B0008) (after being painted green) for example (Not Included)

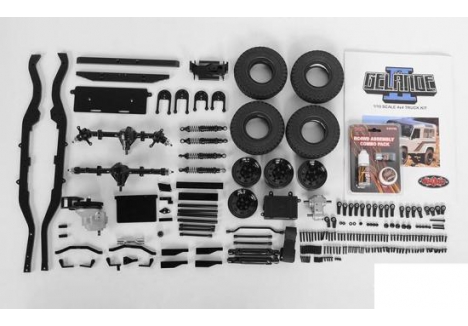

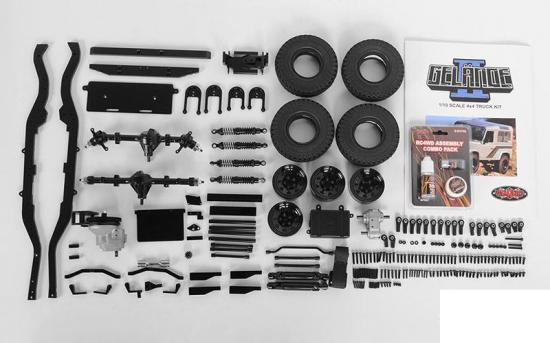

What's Included:
1x RC4WD Gelande II Truck Kit 1/10 Chassis Kit
This chassis kit requires building time of approximately 2-3 hours depending on your experience level
Notes:
While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.
Spare Wheel and Tire not included
Fits RC4WD ARB Front Winch Bar Bumper for Gelande II D90/D110 (Z-S0853) and RC4WD 1/10 Warn 9.5cti Winch (Z-S1079), but should work with RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168).
Required to Complete:
Truck Kit
Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Associated Thread Locking Adhesive
Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Electronics:
Motor (35t, 45t, or 55t)
Electronic Speed Controller "ESC" (Z-E0007)
Radio and Receiver (2 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
1x Standard Size Servo (Z-E0035)
Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
Charger (Consult your battery guide) Chargers
Replacements Parts:
Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
Body Part Numbers:
Gelande II D90 Hard Plastic Body Kit (Z-B0008)
Optional Parts:
Ultra Scale Hardened Steel Driveshaft "Ver 2" (80mm - 110mm / 3.15" - 4.33") (VVV-S0120)
1/10-1/14 D90 Small Clear Light (VVV-C0101)
1/10-1/14 D90 Large Yellow Light (Detailed) (VVV-C0093)
1/10-1/14 D90 Large Clear Light (VVV-C0095)
1/10-1/14 D90 Small Yellow Light (Detailed) (VVV-C0099)
1/10-1/14 D90 Small Red Light (Detailed) (VVV-C0097)
1/10-1/14 D90 Large Red Light (Detailed) (VVV-C0091)
RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
Tough Armor Swing Away Tire Carrier w/Fuel holder for the Gelande 2 (Z-S1296)
Blade Snow Plow Mounting kit for Gelande 2 (Z-S1504)
RC4WD Bivouac 1/10 M.O.A.B Camping Trailer w/Tent (Z-H0007)
BigDog 1/10 Dual Axle Scale Boat Trailer (Z-H0006)
Front Lamp Guard for Gelande II (D90/D110) (VVV-C0245)
Rear Ladder for Gelande II (D90/D110) (VVV-C0246)
Rear Winch Bumper for Gelande II (D90/D110) (VVV-C0244)
Land Rover Defender Design Steering Guard for Gelande II (D90/D110) (Z-S1879)
1/10 Tire Holder (D90/D110) (VVV-C0249)
Side Sliders for Gelande II D90 (VVV-C0248)
Roof Rack w/Lights for Gelande II D90 (VVV-C0241)
Roof Rack for Gelande II D90 (VVV-C0240)
K44 Ultimate Scale Cast Front Axle (Z-A0101)
RC4WD King Off-Road "Limited Edition GOLD" Scale Dual Spring Shocks (90mm) (Z-D0073)
T-Runner Classic 1.9'' Beadlock Wheels (Z-W0250)
Gold Mesh 1.9" Beadlock Wheels (Z-W0251)
Driver (Z-S0190)
Winch (Winch options)
XVD For Yota II Front Axle (Z-S0823)
Spare 5 Lug Wagon Wheel (Z-Q0023)
Spare Dirt Grabber Tire (Z-P0004)
Pintle hook and Lunette Ring (Z-S0233)
Scale Aisin/Yota Style Hubs (Z-S0196)
Trition Transfer Case (1:1 ratio) (Z-U0029)
Survivor Rear Bumper for Gelande (Z-S0698)
Gelande Side Rock Sliders (Z-S0137)
RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 (Z-S0596)
Yota II Scale Diff Cover (Z-S0907)
Tough Armor front Bumper for G2 Cruiser (Z-S1606)
Tough Armor Rear Tire Carrier for Gelande 2 (Z-S1200)
Tough Armor Rear Tire Holder for Gelande II (Z-S1357)
Shock Hoops for Trail Finder 2 Chassis (Z-S0597)
Gelande II Steering Guard (Z-S0824)
1/10 Front Light Guards for Gelande II D90/D110 (VVV-C0054)
Adventure Gelande II D90 Roof Rack (Z-C0024)
Gelande II D90/D110 Window Protection Roll Cage (Z-S0958)
Diamond Plate Accessory Pack for Gelande II D90 Body (Z-S0985)
Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
Ultra Scale Hardened Steel Driveshaft (46mm - 50mm / 1.81" - 1.96") 5mm (VVV-S0006)
K44 Scale Rear Axle (Z-A0049)
Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
Heavy Duty Metal Servo Arm 24t Hitec (Z-S0820)
Scale Accessories (Click Here)
Mud Flaps for Gelande 2 (Z-S0890)
Challenger 1.9" Scale Tires (Z-T0108)
1.9" 5 Lug Steel Wheel Hex Hub (Z-S0734)
1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
RC4WD Gelande Spare Tire Cover (Z-S0931)
Predator Track Front Axle Fitting Kit for Yota II (Z-S0918)
Land Rover 1/10 D90/D110 Metal Grill (Z-S1887)
Inner Fender Set for Gelande II D90 Body (Z-S1194)
Tow Bar Mount for Axial SCX10 (Z-S1125)
Rear Light Grill for Gelande II D90/D110 (VVV-C0082)
Land Rover Mud Flaps for Gelande II D90/D110 (Z-S1888)
Front Light Grille for Gelande II D90/D110 (Type B) (VVV-C0074)
R3 Scale Single Speed Transmission (Z-U0028)
R3 Single Speed Transmission Mounts (Z-S0802)
RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
RC4WD 1/10 Warn 9.5cti Winch (Z-S1079)
Functional Metal Light & Winch Bumper for Gelande II D90/D110 (VVV-C0125)
Rear Center Window Guard for Gelande II D90/D110 (VVV-C0124)
Rear Small Window Guards for Gelande II D90/D110 (VVV-C0122)
Side Window Guards Pair for Gelande II D90/D110 (VVV-C0121)
Complete Windows Guard Set for Gelande II D90/D110 (VVV-C0115)
Tough Armor front Bumper for G2 Cruiser (Z-S1606)
Gelande II D90/D110 - Heritage Grill (Z-S1875)
Scale Steel Punisher Shaft (77mm - 100mm / 3.03" - 3.94") (Z-S1054)
D90/110 Aluminum Front Grille and Headlight Surrounds (Z-S1654)
D90/110 Aluminum Hood and Side Vents (Z-S1656)
RC4WD ARB Bull Bar Front Bumper for G2 Cruiser (Z-X0028)
Cruiser Body Conversion Kit for D90 (Z-S1706)
Raised Hood for Gelande II D90/D110 Body (VVV-C0200)
Side Body Guards for Gelande II D90/D110 Body (VVV-C0199)
Land Rover Emblem for Gelande II D90/D110 Body (Green) (Z-S1878)
RC4WD Teraflex Diff Cover for Yota II Axle (Z-S1681)
Grid Design Steering Guard for Gelande II (D90/D110) (VVV-C0239)
Big Boss Fender Flare Set for D90/D110 (Z-S1741)
Roof Rack w/Tire Mount and IPF Lights for Gelande II D90 (VVV-C0266)
Metal Front Bumper w/Lights for Gelande II D90/D110 (VVV-C0284)
Metal Exhaust for Gelande II D110 (VVV-C0288)
Roof Rack with Tire Mount for Gelande II D90 (VVV-C0265)
Metal Front Bumper w/Stinger for Gelande II D90/D110 (VVV-C0285)
Metal Front Bumper for Gelande II D90/D110 (VVV-C0283)
Metal Front Bumper w/Stinger and Lights for Gelande II D90/D110 (VVV-C0286)
Kahn Style Wide Fenders for Gelande II D90 Body (Black) (VVV-C0312)
Kahn Style Front Lamp Guard for D90/D110 Bodies (Black) (VVV-C0318)
Kahn Style Front Grille for D90/D110 Bodies (Silver) (VVV-C0317)
Kahn Style Front Grille for D90/D110 Bodies (Black) (VVV-C0316)
Kahn Style Front Lamp Guard for D90/D110 Bodies (Silver) (VVV-C0319)
Cross Lamp Bezel for Gelande II D90/D110 (VVV-C0320)
Metal Exhaust for Gelande II D90 (VVV-C0287)
Double LED Bezel for Gelande II D90/D110 (VVV-C0321)
K44 Ultimate Scale Cast Rear Axle (Z-A0096)
Gelande II Leaf Spring Kit (Z-S1752)
RC4WD Ballistic Fabrications Diff Cover for K44 Cast Axle (Z-S1841)
RC4WD Delrin Roof Rack (Z-X0044)
Front Tube Bumper for Gelande II (D90/D110) (VVV-C0455)
Rear Tube Bumper for Gelande II (D90/D110) (VVV-C0456)
RC4WD Hawkeye 1.9'' Scale Tire (Z-T0162)
Truescale Series 1.7" Beadlock Wheels (Z-W0265)
OEM Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0258)
OEM Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0260)
OEM Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0262)
OEM Stamped Steel 1.55" Beadlock Wheels (Chrome) (Z-W0264)
RC4WD Interco IROK ND 1.55" Scale Tires (Z-T0163)
RC4WD Bilstein SZ Series 80mm Scale Shock Absorbers (Z-D0072)
RC4WD Bilstein SZ Series 90mm Scale Shock Absorbers (Z-D0075)
Ultra Punisher Shafts (83.7MM - 105MM / 3.29" - 4.13") 5MM Hole (Z-S0573)
RC4WD Ballistic Off Road Rage 1.9'' Beadlock Wheels (Z-W0261)
RC4WD Super Duty Blade Snow Plow (Red) (Z-X0041)
RC4WD Super Duty Blade Snow Plow (Yellow) (Z-X0043)
Blade Snow Plow Mounting Kit for Trail Finder 2 / G2 (Z-S1859)
RC4WD Advance Adapters Atlas II Transfer Case (1.47/1) (Z-U0037)
Scamp 1.55" Beadlock Wheels (Z-W0152)
JK 1.9" Scale Beadlock Wheels (Z-W0151)
RC4WD Rotiform Six-OR 1.55" Beadlock Wheels (Z-W0115)
RC4WD Ballistic Off Road Morax 1.7" Beadlock Wheels (Z-W0118)
RC4WD Super Duty V Snow Plow (Red) (Z-X0045)
RC4WD Super Duty V Snow Plow (Yellow) (Z-X0046)
Over/Under Drive T-Case Lower 4 Link Mount w/ Battery Tray for Gelande II (Z-S1899)
Upgrades:
RC4WD 80mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0036)
RC4WD King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
1/10 Gelande II D90 Limited Edition Pre-painted Green Body (Z-B0062)
Items of Interest: (Not required for completion)
Brand: RC4WD
Part No: Z-K0060
Barcode: 639302606360
Scale: 1:10
Power Source: Electric - No Motor
Surface Type: Off Road
Vehicle Type: Rock Crawler
Build Level: Unassembled (Kit)
Finance Options
Click to see Novuna Finance Information
Novuna Personal Finance Available on this product
| DEPOSIT |
MONTHS |
APR |
MONTHLY PAYMENTS |
TOTAL AMOUNT PAYABLE |
| 24 Month Credit |
| £38.90 |
24 |
19.9% |
24 x £17.53 |
£459.62 |
| 36 Months Credit |
| £38.90 |
36 |
19.9% |
36 x £12.71 |
£496.46 |
| 48 Months Credit |
| £38.90 |
48 |
19.9% |
48 x £10.34 |
£535.22 |
| Buy Now Pay Later 48 months (6 months Deferred) |
| £38.90 |
48 |
24.9% |
48 x £12.19 |
£624.02 |
| Buy Now Pay Later 48 months (10 months Deferred) |
| £38.90 |
48 |
24.9% |
48 x £12.89 |
£657.62 |
| Buy Now Pay Later 48 months (12 months Deferred) |
| £38.90 |
48 |
24.9% |
48 x £13.63 |
£693.14 |
We want to make sure your delivery goes smoothly, so here are some important details about our service:
- For orders above £120, we offer delivery to most mainland UK addresses. For orders under £120, we can still deliver to Northern Ireland and the outlying isles, as long as the item can be sent by Royal Mail, weighs less than 30kg, and fits within 61cm × 46cm × 46cm. Some highland and remote areas may carry an extra delivery charge as couriers often apply surcharges in these locations. If you live in one of these areas, feel free to contact us before ordering so we can confirm the delivery options and costs for you.
- Most of our products include delivery in the price. If your order is under £90, a small delivery fee will apply but do not worry this will always be clearly shown at checkout before you complete your purchase.
- Depending on what you choose at checkout, your order will usually be delivered either the next working day or within 2 working days. For next day delivery please place your order before 2:00pm. Orders are dispatched Monday to Friday only. Some items may take a little longer and if that is the case we will always show the expected delivery time on the product page.
- If your order includes items with different dispatch times we will normally wait and send everything together once all items are in stock. If one of the items is going to take a while we will give you the choice either wait for everything to arrive or let us send the available items now and deliver the rest later. It is up to you.
- We use trusted delivery partners to make sure your order gets to you safely and on time. We use DPD for next working day deliveries and Royal Mail for the 2 day option.
- As soon as your order is on its way we will send you a tracking number by email. If you provide your mobile number at checkout we will also send delivery updates straight to your phone so you can keep an eye on progress.
- If a product is marked as "Dispatched within 3 working days" delivery usually takes around 3 to 5 working days from when your order is placed.
- For customers in Inverness and other parts of the Scottish Highlands deliveries can take up to 2 working days even if you select next day delivery as couriers do not currently offer a guaranteed next day service to those areas.
