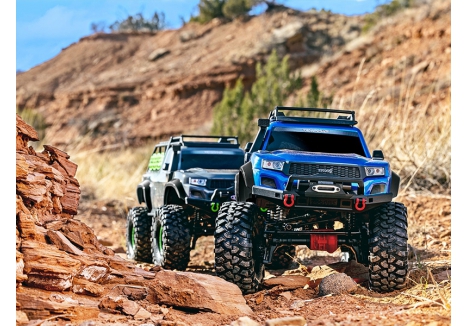

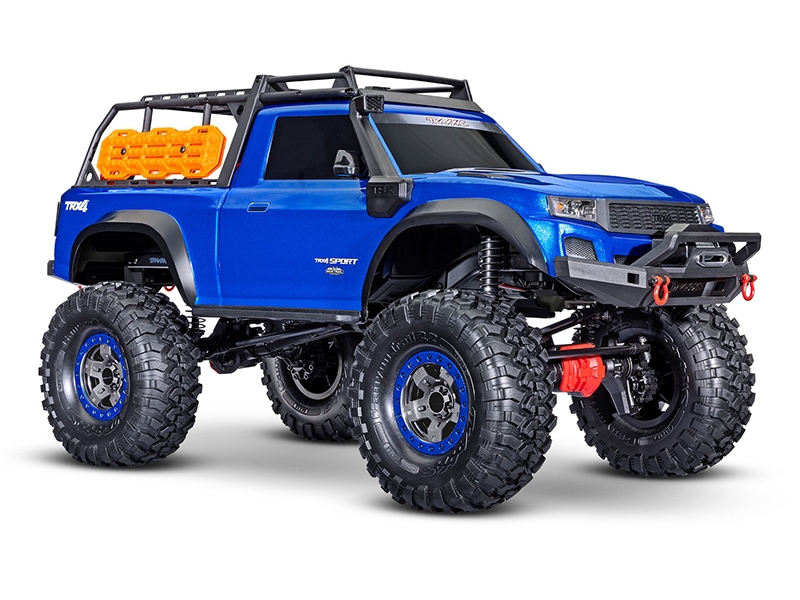

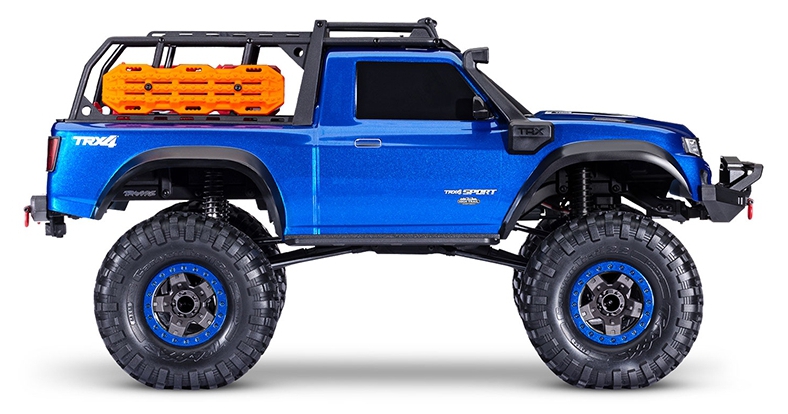

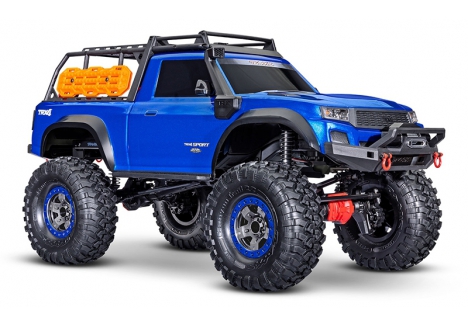

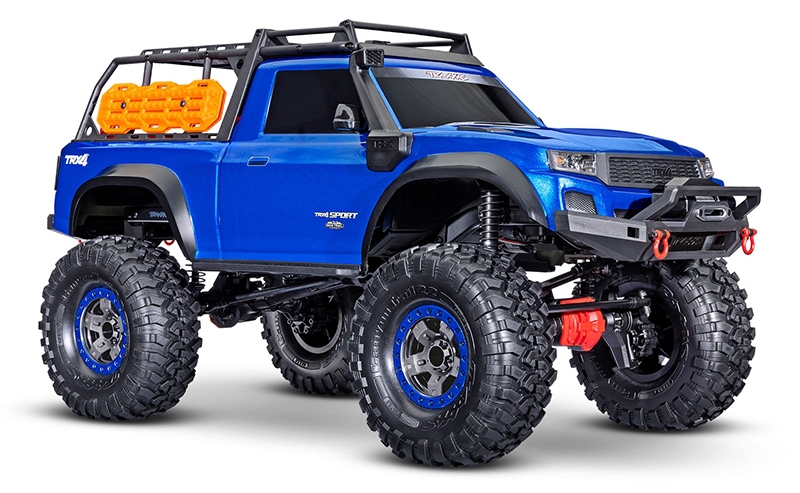

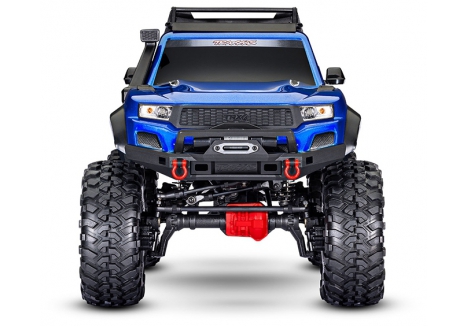

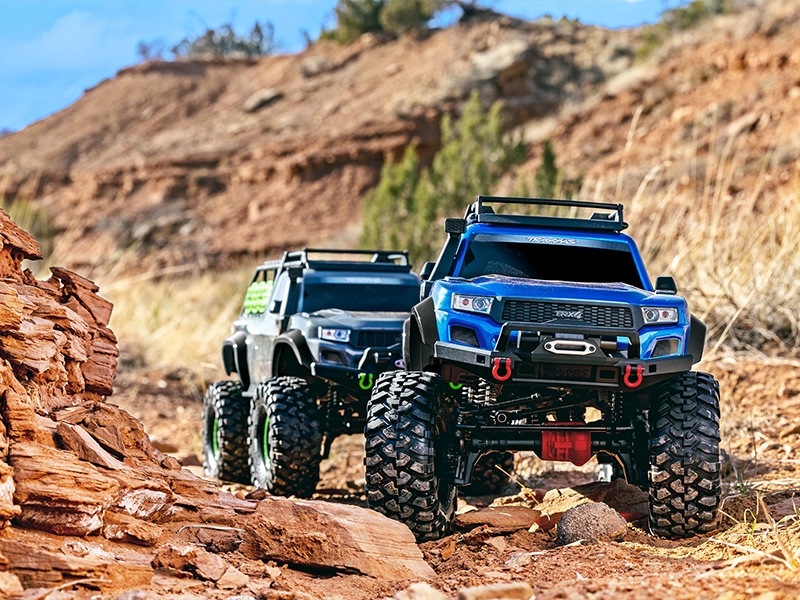

Even the toughest off-road challenges have met their match with TRX-4® Sport High Trail™ Edition. A factory-installed Long Arm Lift Kit amplifies TRX-4 Sport's performance-focused all-terrain capability with even more ground clearance. High-angle bumpers and fully-locked axles provide nearly unstoppable climbing versatility with the show-stopping looks of the High Trail Edition's rugged Expedition Rack and scale accessories.

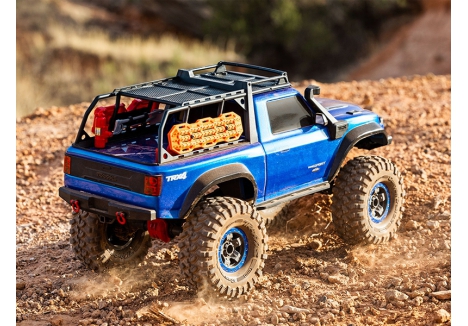

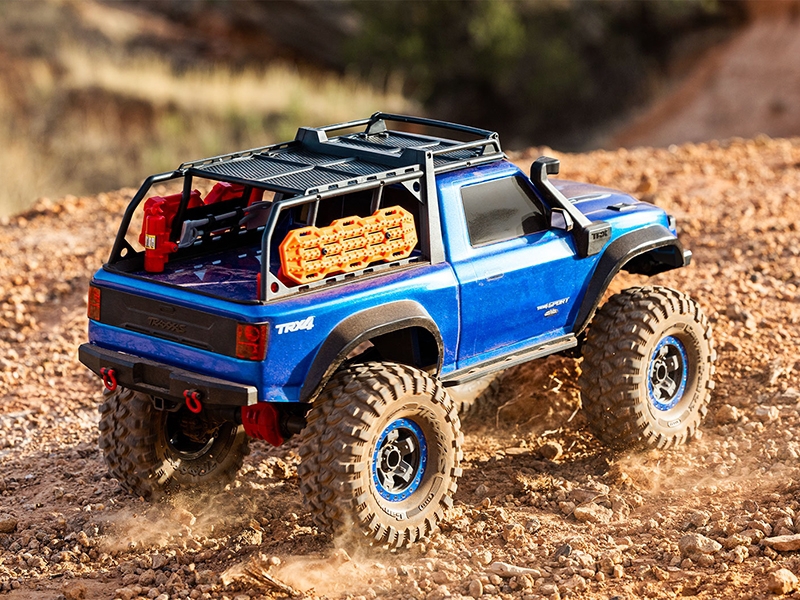

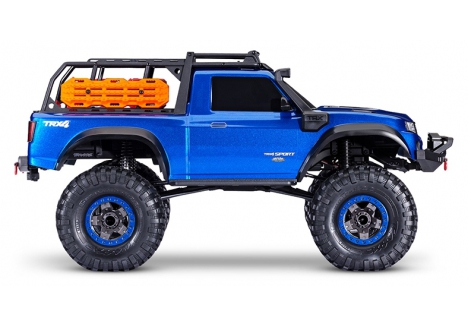

LIFTED PERFORMANCE
The High Trail Edition TRX-4 Sport gets you up and over obstacles with a factory-installed Long Arm Lift Kit for over an inch more ground clearance than the standard TRX-4. Oversize Canyon Trail tires ride on 2.2″ black 5-spoke wheels to tame the most technical trails with extreme all-terrain traction.
CLIPLESS BODY MOUNT
New to TRX-4 Sport, the High Trail Edition's clipless body combines clean flowing lines with secure latching convenience. TRX-4 Sport's hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.

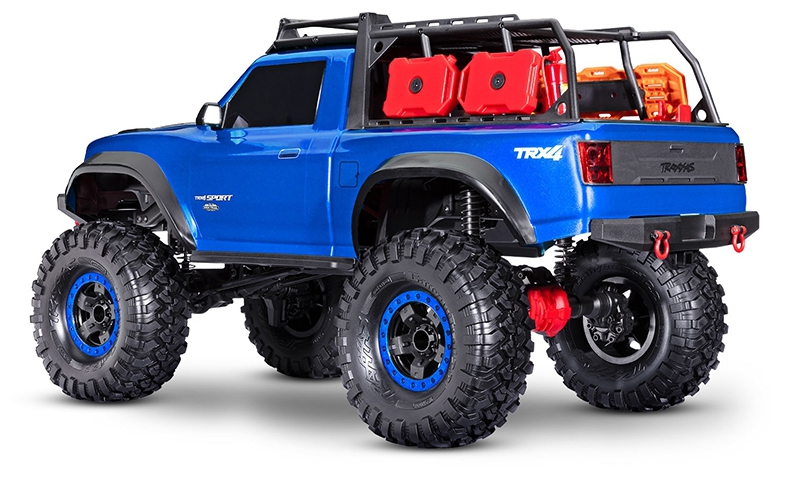

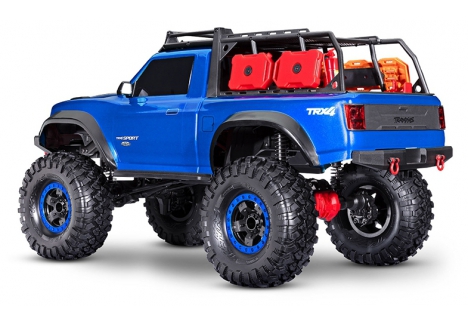

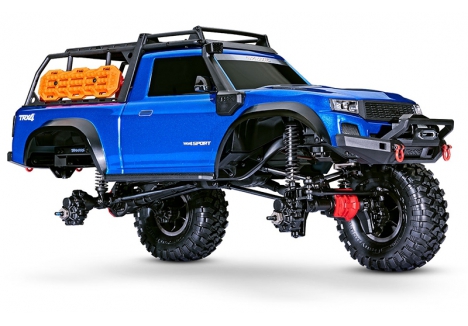

SCALE ACCESSORIES

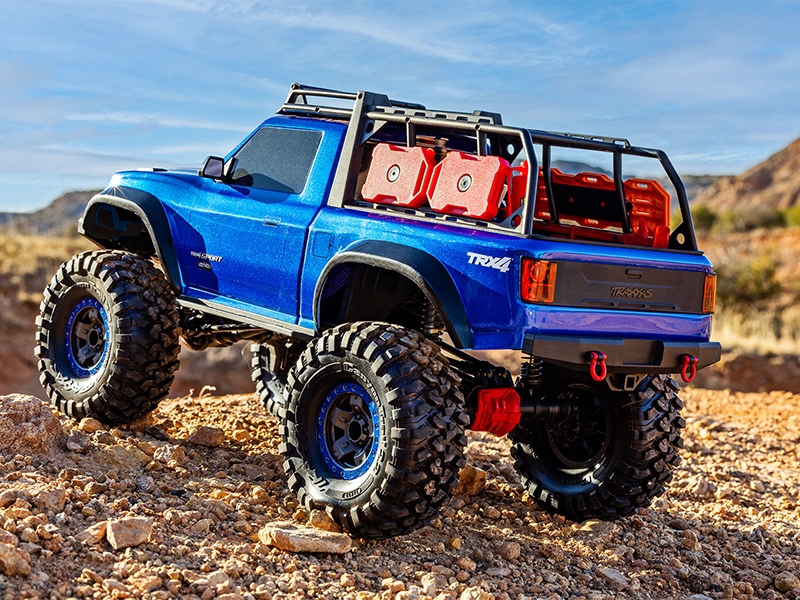

TRX-4 High Trail Edition comes fully outfitted for adventure with a tough Expedition Rack and moulded accessories. A replica snorkel, side mirrors, traction boards, fire extinguisher, jack, and fuel canisters provide extreme scale detail with inner fenders for a realistic appearance.

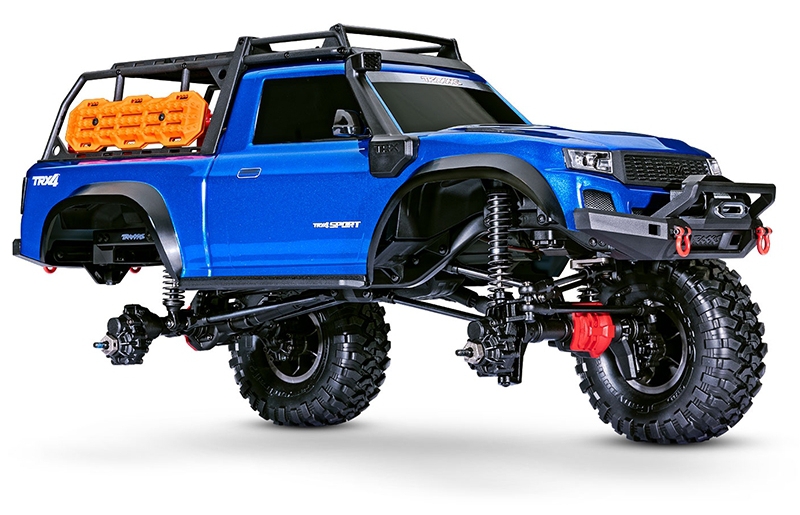

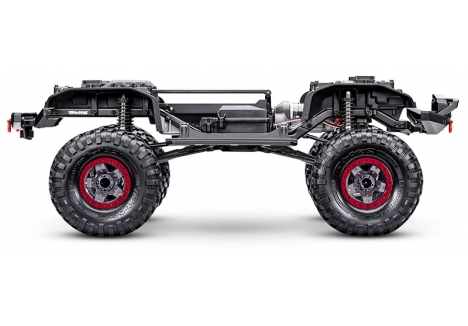

FACTORY-INSTALLED LIFT KIT
TRX-4 Sport High Trail Edition's factory-installed lift kit and oversize tires add over an inch of trail-conquering ground clearance. Extended 110mm GTS shocks deliver silky-smooth damping performance with greater wheel articulation for increased off-road capability. Extended steel links and a revised servo mount maintain TRX-4's superior suspension geometry.
OVERSIZE 2.2″ WHEELS & TYRES
Aggressive S1-compound Canyon Trail tires feature large lugs for increased grip with 2-stage foam inserts for realistic trail performance. The tires come mounted and glued to large 2.2" 5-spoke wheels with beadlock detailing.
ACCESSORY LIGHTING AVAILABLE
Take your TRX-4 Sport's realism to the next level with the optional 8085X Pro Scale® LED Light Kit. The Pro Scale® Advanced Lighting Control System adds full-function headlights, brake and reverse lights, turn signals, multiple driving modes, and much more to your TRX-4.
Specs:
Length: 22 inches (564mm)
Front Track: 10.6 inches (270mm)
Rear Track: 10.6 inches (270mm)
Center Ground Clearance: 4 inches (99mm)
Weight (w/o battery): 7.04lbs (3.20kg)
Height (overall): 10.8 inches (275mm)
Wheelbase: 12.3 inches (312mm)

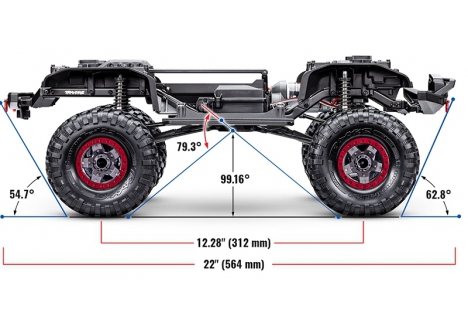

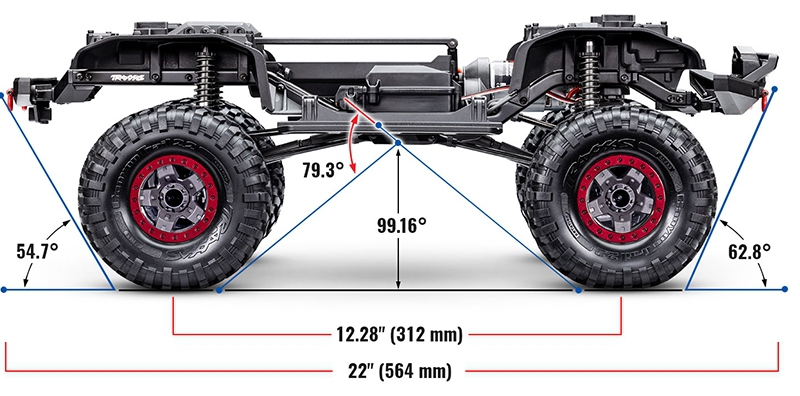

Approach Angle: 62.8°
Departure Angle: 54.7°
Breakover Angle: 79.3°
Front Shock Length: 4.33 inches (110mm)
Rear Shock Length: 4.33 inches (110mm)
Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
Front Tires: 5.3 x 2.14 inches (135 x 54mm)
Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: Single Speed
Gear Pitch: 32P
Differential Type: Spool (no differential)

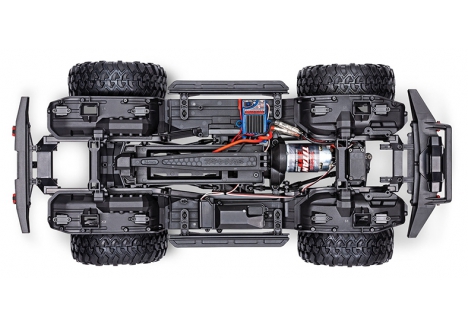

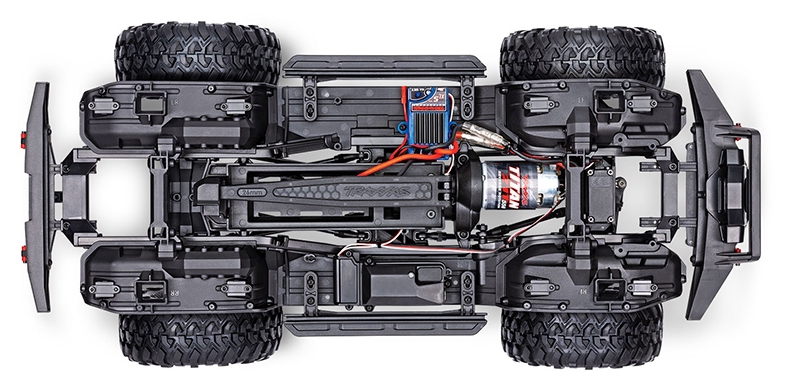

Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQ™ 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H
What’s In The Box:
TRX-4, Ready-To-Drive® model
XL-5 HV waterproof electronic speed control
Titan® 21T reverse rotation motor
TQ™ 2.4GHz radio system
High quality maintenance tools
What You’ll Need:
Batteries
TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
Charger
Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971).
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX82044-4-BLUE
- Product Type: Traxxas TRX82044-4-BLUE TRX-4 Sport High Trail Edition rock crawler, Traxxas TRX82044-4-BLUE TRX-4 Sport High Trail Edition 4WD RTR, Traxxas TRX82044-4-BLUE TRX-4 Sport High Trail lifted off-road crawler, Traxxas TRX-4 Sport High Trail Edition brushed motor crawler, Traxxas TRX-4 Sport High Trail Edition with portal axles
Dimensions
- Length: 56.4 cm – extended chassis for realistic 1/10 scale trail presence
- Width: 27 cm – wide track enhances stability across rugged terrain
- Height: 27.5 cm – accommodates lifted suspension and scale accessories
- Wheelbase: 31.2 cm – optimised for articulation and climbing control
- Ground Clearance: 9.9 cm – increased by factory-installed lift kit and portal axles
- Weight (without battery): 3.20 kg – durable yet manageable for trail performance

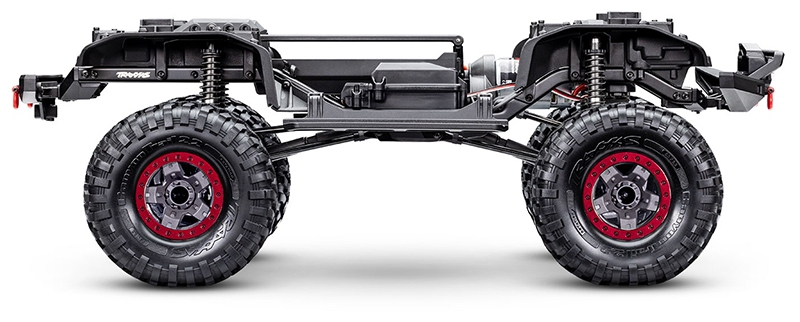

Suspension and Chassis
- Chassis Type: Reinforced steel ladder frame – full-length 1.5 cm rails with nylon composite crossmembers
- Suspension (Front): 3-link with panhard bar – tuned for precise steering geometry
- Suspension (Rear): Triangulated 4-link – maximises articulation and stability
- Shock Type: Extended aluminium GTS coilover shocks – oil-filled with threaded bodies and dual X-ring seals
- Shock Length: 11 cm – extra-long bodies for increased travel and damping
- Rod Ends: Heavy-duty with steel hollow balls – 5 mm link rods with 4 mm threaded ends
Drivetrain and Transmission
- Drive System: Full-time shaft-driven 4WD – delivers consistent torque across all wheels
- Differential Type: Spool-locked front and rear – ensures maximum traction
- Transmission: Single-speed with steel gears – includes twin friction plate slipper clutch
- Gear Pitch: 32 pitch – standardised for durability and compatibility
- Axles: Portal axles – increase ground clearance and eliminate torque twist
- Driveshafts: Steel front CV and hardened steel rear axle shafts – built for trail endurance
- Transfer Case: Steel gear – supports reliable power distribution
Motor and Electronics
- Motor: Titan 550 21T reverse rotation – includes internal cooling fan for sustained performance
- ESC: XL-5 HV waterproof – trail-tuned with five drive profiles including Crawl and Training Mode
- Voltage Range: Supports 6–7 cell NiMH (7.2–8.4 V) and 2–3S LiPo (7.4–11.1 V)
- Low Voltage Protection: Two-stage LVD – safeguards battery health
- Servo: 2075X metal gear digital – chassis-mounted with 45° steering angle
- Receiver: Traxxas 6519 3-channel micro – housed in sealed watertight box
Control and Operation
- Radio System: TQ 2.4 GHz 2-channel – ergonomic transmitter with internal antenna
- Drive Profiles: Sport, Race, Training, Trail, Crawl – selectable via EZ-Set one-button setup
- Brake System: Trail-tuned drag brake and patented hill hold – ensures control on descents
Tyres and Wheels
- Tyre Type: Canyon Trail – trail-tuned S1 compound with foam inserts
- Tyre Size: 13.5 x 5.4 cm – oversized for enhanced grip and realism
- Wheel Type: 2.2 inch 5-spoke – replica beadlock rings and pre-mounted tyres
- Hex Size: 1.2 cm – steel hex for durability
Body and Scale Accessories
- Body Type: Tough, lightweight pickup truck – metallic blue finish with molded grille and tailgate
- Mounting System: Clipless – smooth appearance with internal frame-mounted details
- Expedition Rack: Includes snorkel, side mirrors, traction boards, fire extinguisher, jack, and fuel canisters
- LED Compatibility: Headlights and tail lights are LED-ready
Battery and Power Requirements
- Battery Tray Dimensions: 15.9 x 4.7 x 2.3/2.6 cm – accommodates full-size and compact packs
- Battery Compatibility: NiMH (4–7 cell) and LiPo (2S–3S) – flexible power options
- Charger Recommendation: Traxxas EZ-Peak Live – model 2971 for fast and safe charging
What's in the Box
- TRX-4 Ready-To-Drive model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You Will Need
- Compatible NiMH or LiPo battery (2S–3S)
- Battery charger
- Four AA alkaline batteries for transmitter
Sold Separately
- Battery pack
- Battery charger
Warranty
- 1 Year Manufacturer Warranty
