Brand, Model and Product Type

• Brand: Hobbywing
• Model: HW38020343
• Product Type: Hobbywing HW38020343 combo with MAX10 G2 ESC and 3665SD 2400KV G3 motor, Hobbywing HW38020343 brushless system for 1/10 trucks and monster builds, Hobbywing HW38020343 sensored ESC/motor combo with IP67 waterproof rating, Hobbywing HW38020343 with 140A ESC and 32° turbo timing support, Hobbywing MAX10 G2 combo with smart fan control and 74% capacitor upgrade
• Product Colour: Black

Dimensions

• Motor Diameter: 3.7 cm – compact sizing for 1/10 scale truck integration
• Motor Length: 6.58 cm – accommodates high-efficiency rotor and windings
• Motor Shaft Diameter: 0.5 cm – precision-machined for secure gear engagement
• Motor Shaft Length: 1.65 cm – compatible with standard 1/10 drivetrain systems
• Motor Weight: 304.5 g – heavy-duty build for thermal stability and durability

Electrical and Performance Specifications

• ESC Continuous Current: 140A – delivers stable power for high-performance 1/10 builds
• Motor KV Rating: 2400KV – tuned for torque-rich acceleration and high-speed control
• Motor Pole Count: 4 – ensures consistent torque delivery across the RPM range
• No-Load Current: 5.2A – indicates efficient energy draw during idle operation
• Motor Resistance: 0.00816Ω – supports low heat generation and high efficiency
• Battery Compatibility: 2–4S LiPo – supports flexible voltage configurations for performance tuning

Cooling and Protection Systems

• IP67 Waterproof Rating: ESC and motor are sealed against water, dust, and debris
• Smart Fan Control: Frameless fan activates only when temperature exceeds preset threshold
• Capacitor Upgrade: 74% increase in total capacitance – improves power delivery and overload protection
• Overheat Protection: Integrated into capacitor system to prevent thermal damage
• Smart Freewheeling: Enhances drive efficiency and reduces operating temperature by up to 25°C

Connectivity and Programming

• OTA Bluetooth Module Support: Enables real-time data monitoring and firmware updates via mobile app
• Data Logging: Records throttle, voltage, current, temperature, and speed for post-run analysis

Turbo Timing and Speed Enhancement

• Turbo Timing Adjustment: Up to 32° – boosts motor speed by up to 25% with compatible G3 motors

Applications

• Vehicle Compatibility: Designed for 1/10 short course trucks, monster trucks, and off-road builds
• Use Case: Ideal for high-speed terrain, competitive racing, and aggressive bashing

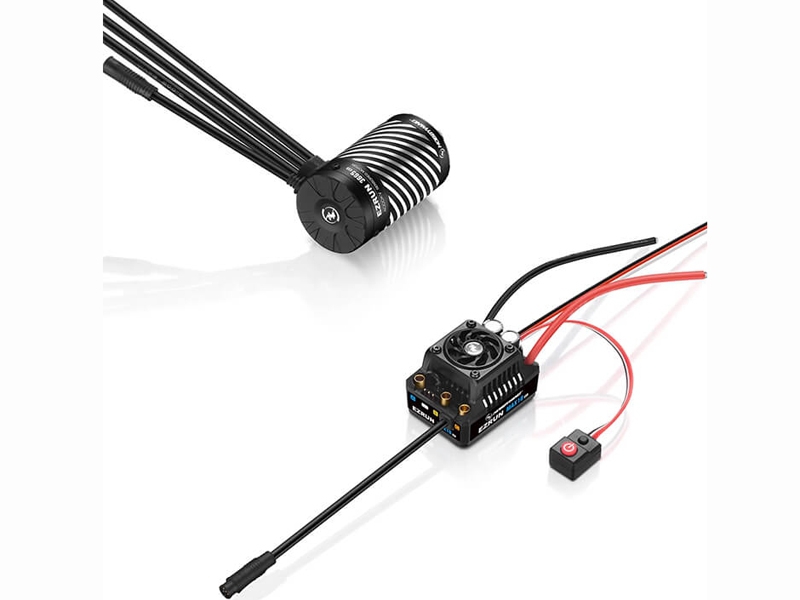

What’s in the Box

• 1 × Hobbywing MAX10 G2 140A ESC
• 1 × Hobbywing 3665SD 2400KV G3 Sensored Brushless Motor

What You Require

• 2–4S LiPo battery pack
• Compatible 1/10 scale truck chassis
• OTA Bluetooth module for app connectivity and data logging

Sold Separately

• OTA Bluetooth module

Product Description of Hobbywing HW38020343 combo with MAX10 G2 ESC and 3665SD 2400KV G3 motor

The Hobbywing HW38020343 combo with MAX10 G2 ESC and 3665SD 2400KV G3 motor is a black, sensored brushless system engineered for 1/10 trucks and monster builds. Designed to deliver precision control, high-speed performance, and rugged durability, this combo integrates IP67 waterproof protection, smart fan control, and advanced turbo timing support. Whether you're tearing through short course tracks or powering across off-road terrain, the Hobbywing HW38020343 brushless system for 1/10 trucks and monster builds offers intelligent responsiveness and thermal stability for aggressive driving conditions. With real-time app monitoring and data logging via OTA Bluetooth, this system is built for enthusiasts who demand performance and control in equal measure.

Key features of the Hobbywing HW38020343 combo

• IP67 waterproof rating – protects ESC and motor from mud, snow, and water exposure
• Smart fan control – activates cooling only when required to reduce noise and power draw
• Turbo timing support – adjustable up to 32° for enhanced top-end speed
• 74% capacitor upgrade – improves power delivery and overload protection
• 2400KV motor – tuned for torque-rich acceleration and high-speed control
• Real-time app monitoring – enables live data tracking and post-run analysis

How does IP67 waterproofing enhance off-road reliability?

The Hobbywing HW38020343 sensored ESC/motor combo with IP67 waterproof rating is built to withstand the harshest environments. Its sealed construction protects internal electronics from water, dust, and debris, allowing users to drive confidently across mud, snow, sand, and wet terrain. This level of protection ensures consistent performance and reduces the risk of electrical failure, making the combo ideal for all-weather RC applications. The waterproof sensor interface also simplifies setup, eliminating the need for additional sealing steps.

What makes smart fan control a game-changer?

The Hobbywing MAX10 G2 combo with smart fan control and 74% capacitor upgrade features intelligent start-stop technology that activates the ESC’s frameless fan only when internal temperatures exceed a preset threshold. This reduces noise, conserves power, and extends fan lifespan. Combined with the upgraded capacitor bank—which increases total capacitance by 74%—the system delivers smoother power transfer and improved thermal stability. These enhancements prevent overload and protect against capacitor failure, especially during high-current bursts.

How does turbo timing improve performance?

The Hobbywing HW38020343 with 140A ESC and 32° turbo timing support allows users to unlock up to 32 degrees of timing advance, boosting motor speed by up to 25% when paired with compatible G3 motors. This feature is ideal for racers seeking extra top-end performance without sacrificing control. Turbo timing is software-controlled and can be adjusted via the mobile app, enabling precise tuning for different track conditions and driving styles.

What are the benefits of the 2400KV motor design?

The Hobbywing 2400KV motor system with 4-pole rotor and 5mm shaft diameter is engineered for torque-rich acceleration and stable high-speed output. Its 4-pole rotor ensures consistent torque across the RPM range, while the 5mm shaft provides secure gear engagement for heavy-duty drivetrain systems. With a no-load current of 5.2A and a resistance of 0.00816Ω, the motor delivers efficient energy usage and thermal control, making it ideal for demanding 1/10 scale truck applications.

How does real-time app monitoring enhance user control?

The affordable Hobbywing ESC/motor combo with OTA Bluetooth and data logging supports real-time monitoring via the HW Link mobile app. After connecting the ESC to the OTA Bluetooth module, users can view live data including throttle input, voltage, current, temperature, and speed. The app also stores historical data for post-run analysis, helping users fine-tune performance and identify potential issues. This feature adds a layer of transparency and control that’s invaluable for competitive and recreational drivers alike.

Is this combo suitable for high-powered setups?

Absolutely. The Hobbywing HW38020343 combo with MAX10 G2 ESC and 3665SD 2400KV G3 motor supports 2–4S LiPo configurations, making it ideal for high-powered short course and off-road builds. The 140A ESC delivers stable current under load, while smart freewheeling technology reduces heat generation and improves drive efficiency. With a minimum operating temperature approximately 25°C lower than the previous generation, the combo maintains performance even under extreme conditions.

For builders seeking a waterproof, high-efficiency power system with advanced tuning and monitoring capabilities, the best Hobbywing upgrade for 2–4S LiPo setups with real-time app monitoring is ready to deliver. Buy Hobbywing HW38020343 combo for 1/10 short course and off-road trucks today.

Technical Specifications of Hobbywing HW38020343 combo with MAX10 G2 ESC and 3665SD 2400KV G3 motor

Brand, Model and Product Type

• Brand: Hobbywing
• Model: HW38020343
• Product Type: Hobbywing HW38020343 combo with MAX10 G2 ESC and 3665SD 2400KV G3 motor, Hobbywing HW38020343 brushless system for 1/10 trucks and monster builds, Hobbywing HW38020343 sensored ESC/motor combo with IP67 waterproof rating, Hobbywing HW38020343 with 140A ESC and 32° turbo timing support, Hobbywing MAX10 G2 combo with smart fan control and 74% capacitor upgrade
• Product Colour: Black

Dimensions

• Motor Diameter: 3.7 cm – compact sizing for 1/10 scale truck integration
• Motor Length: 6.58 cm – accommodates high-efficiency rotor and windings
• Motor Shaft Diameter: 0.5 cm – precision-machined for secure gear engagement
• Motor Shaft Length: 1.65 cm – compatible with standard 1/10 drivetrain systems
• Motor Weight: 304.5 g – heavy-duty build for thermal stability and durability

Electrical and Performance Specifications

• ESC Continuous Current: 140A – delivers stable power for high-performance 1/10 builds
• Motor KV Rating: 2400KV – tuned for torque-rich acceleration and high-speed control
• Motor Pole Count: 4 – ensures consistent torque delivery across the RPM range
• No-Load Current: 5.2A – indicates efficient energy draw during idle operation
• Motor Resistance: 0.00816Ω – supports low heat generation and high efficiency
• Battery Compatibility: 2–4S LiPo – supports flexible voltage configurations for performance tuning

Cooling and Protection Systems

• IP67 Waterproof Rating: ESC and motor are sealed against water, dust, and debris
• Smart Fan Control: Frameless fan activates only when temperature exceeds preset threshold
• Capacitor Upgrade: 74% increase in total capacitance – improves power delivery and overload protection
• Overheat Protection: Integrated into capacitor system to prevent thermal damage
• Smart Freewheeling: Enhances drive efficiency and reduces operating temperature by up to 25°C

Connectivity and Programming

• OTA Bluetooth Module Support: Enables real-time data monitoring and firmware updates via mobile app
• Data Logging: Records throttle, voltage, current, temperature, and speed for post-run analysis

Turbo Timing and Speed Enhancement

• Turbo Timing Adjustment: Up to 32° – boosts motor speed by up to 25% with compatible G3 motors

Applications

• Vehicle Compatibility: Designed for 1/10 short course trucks, monster trucks, and off-road builds
• Use Case: Ideal for high-speed terrain, competitive racing, and aggressive bashing

What’s in the Box

• 1 × Hobbywing MAX10 G2 140A ESC
• 1 × Hobbywing 3665SD 2400KV G3 Sensored Brushless Motor

What You Require

• 2–4S LiPo battery pack
• Compatible 1/10 scale truck chassis
• OTA Bluetooth module for app connectivity and data logging

Sold Separately

• OTA Bluetooth module
