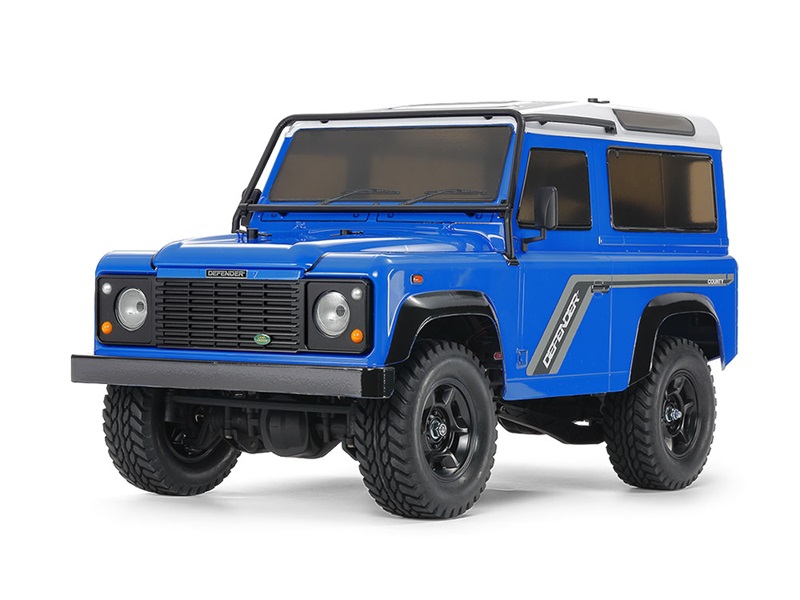

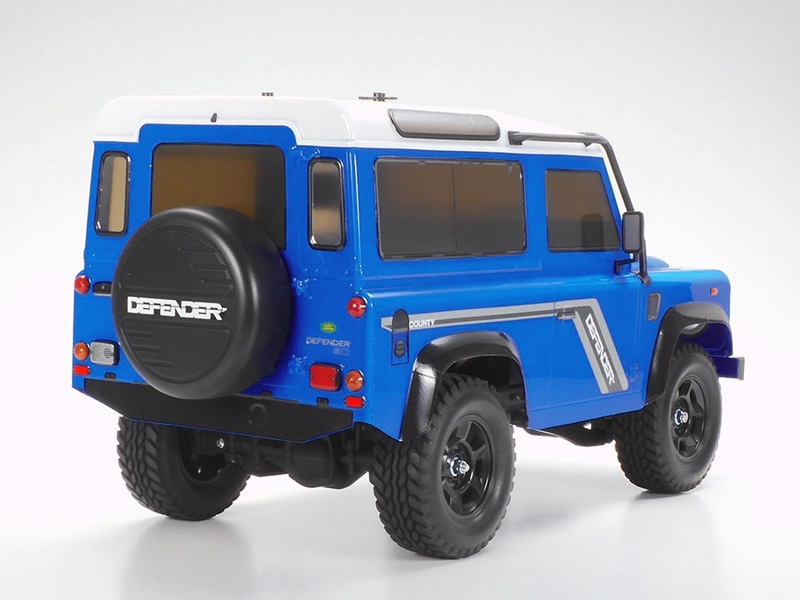

The 1990 Land Rover Defender 90 (originally depicted in Item 58657 on the CC-01 chassis) makes its way to the CC-02 chassis!
The Defender 90 is a legendary Land Rover off-road car, and its roots go back to 1948. Based on differences in wheelbases, this car has three types – the Defender 90/110/130. This R/C model depicts a 3-door model with 93-inch wheelbase.
CC-02 Chassis - Off Road, Evolved

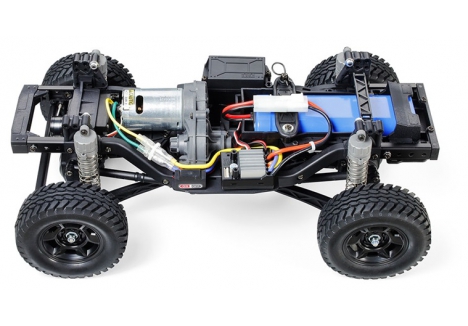

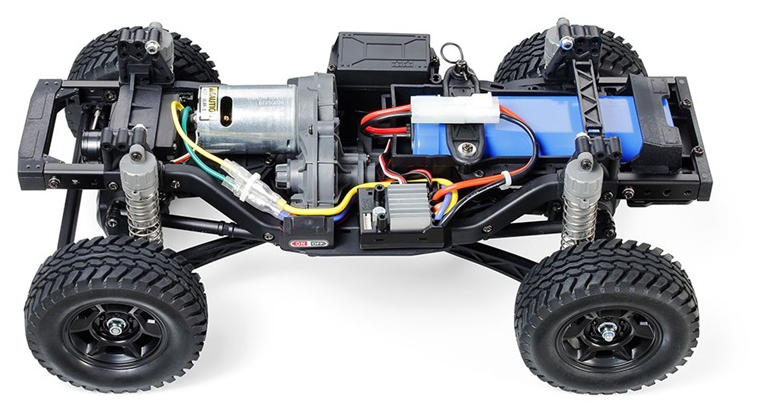

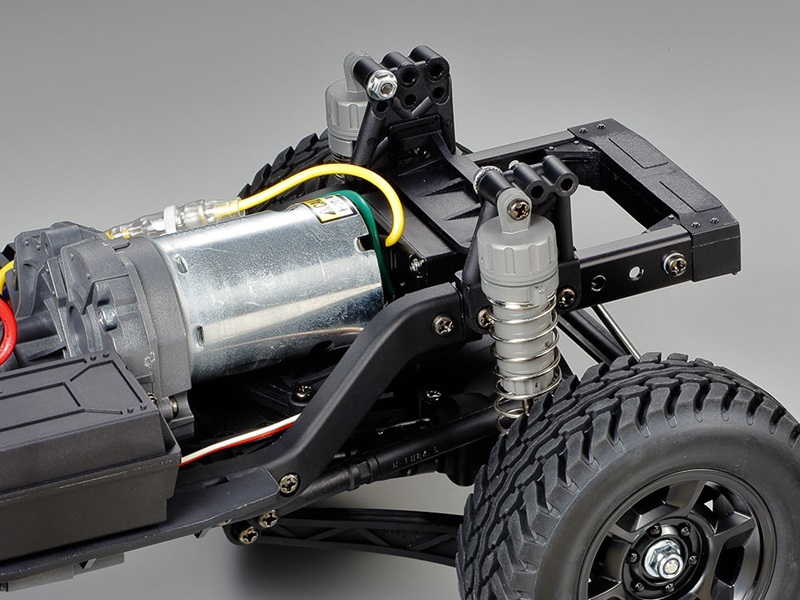

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with black wheels and grippy block pattern tires.
• 1/10 scale R/C model assembly kit. Length: 429mm, width: 200mm, height: 215mm, wheelbase (short): 242mm (CC-01S chassis).
• Polycarbonate body.
• Compatible with 5mm-diameter LEDs x2 for headlights and 5mm-diameter LEDs x6 for the rear.

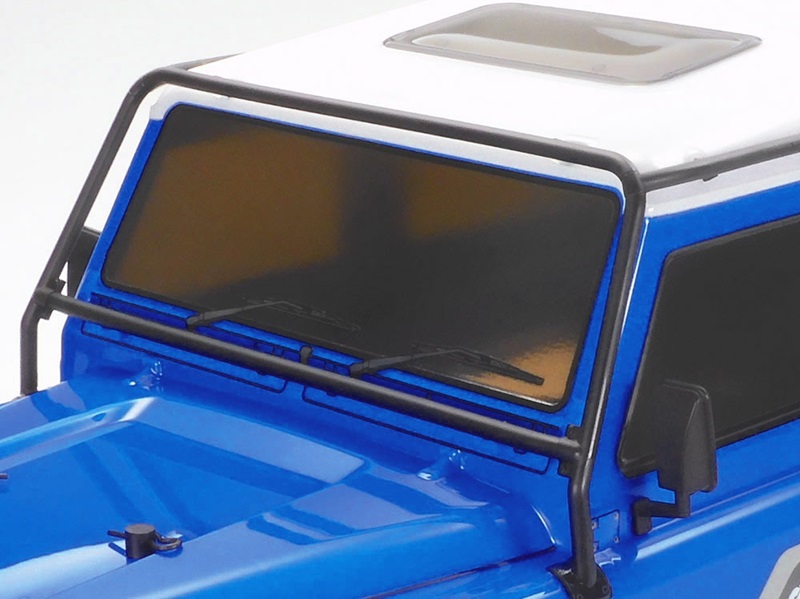

• Includes separately molded parts for grille, side mirrors, light cases and outer roll gages.

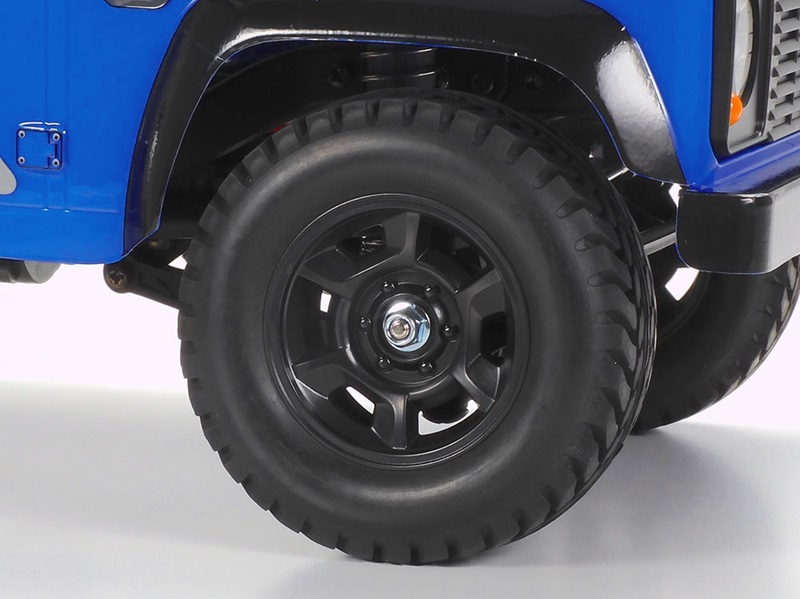

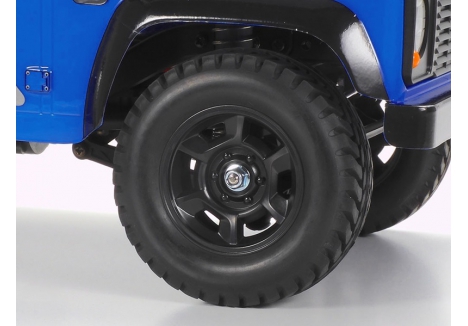

• Black ABS resin wheels are paired with semi-pneumatic all-terrain rubber tires.
• The ladder frame CC-02 chassis features superior durability and employs front/rear coil spring suspension which is great for off-road surfaces including rocky terrain.
• Includes 540 Type brushed motor.
• A wide range of Hop-Up Option Parts is available to customize the CC-02 chassis.
• Requires: 2-channel radio, steering servo, ESC, 7.2-7.4volt battery & charger, and Tamiya PS paint.
Brand: Tamiya
Part No: HC-58700
Barcode: 4950344066155
Scale: 1:10
Power Source: Electric - Brushed
Surface Type: Off Road
Vehicle Type: Touring / Rally Car
Build Level: Unassembled (Kit)
The Tamiya Land Rover Defender 90 CC-02S RC Car (TAM58700) captures the rugged charm of the 1990 short wheelbase Defender 90 with a detailed polycarbonate body and functional off-road engineering. From its squared-off silhouette to the molded roll cage and spare tire cover, this Tamiya TAM58700 1/10 Land Rover Defender Kit blends scale realism with trail-ready performance. Designed for rocky terrain and uneven surfaces, the CC-02S chassis delivers a confident drive with 4WD power and rigid suspension.
Key features of the Tamiya Land Rover Defender 90 CC-02S RC Car
- Polycarbonate body – molded with classic Defender lines and LED-compatible light cases

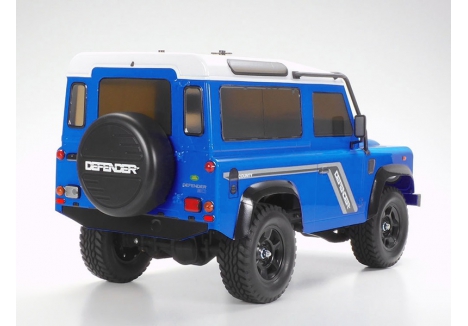

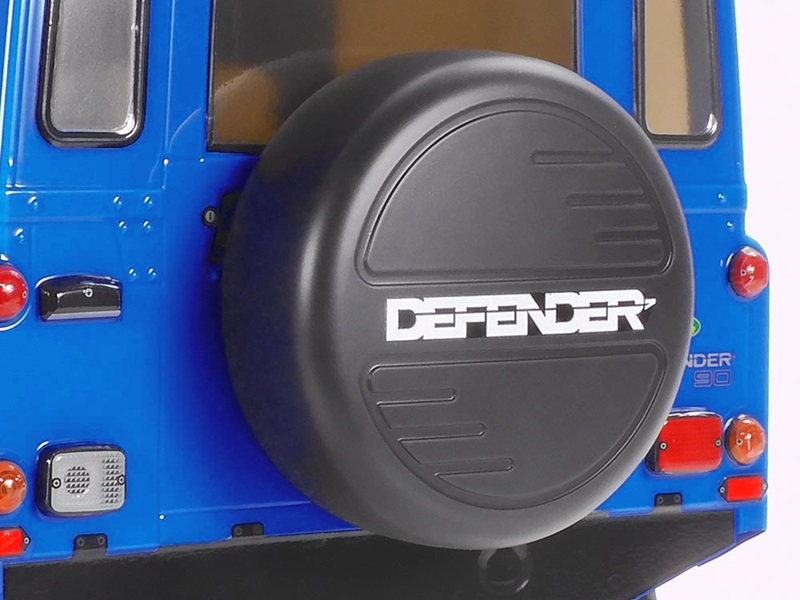

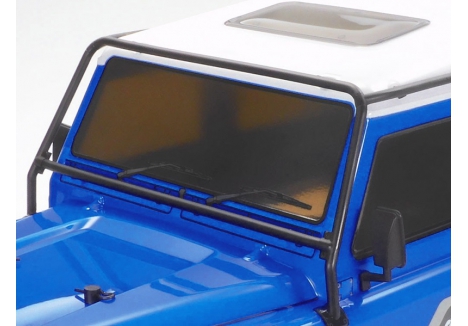

- Separate detailing parts – includes roll cage, grille, mirrors, and spare tire cover
- CC-02S chassis – short wheelbase ladder frame for durability and realism
- Longitudinal motor layout – realistic drivetrain configuration
- Shaft-driven 4WD – delivers torque to front and rear differential gears
- Four-link rigid suspension – front and rear with CVA oil dampers for terrain control
- Black six-spoke wheels – paired with block-pattern tires for grip and style
How does the Tamiya CC-02 Land Rover Defender 90 RC Model perform off-road?

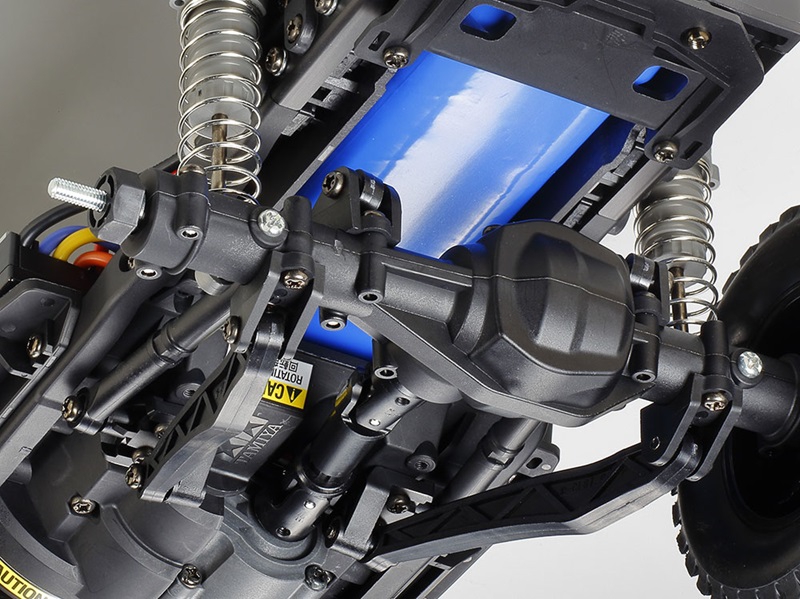

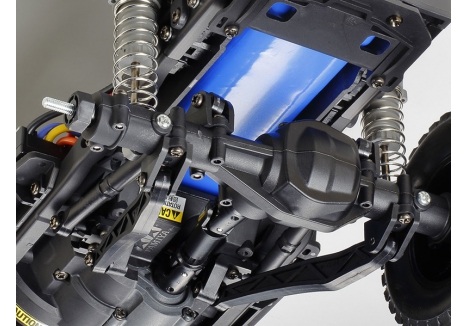

Built for trail and rocky terrain, the Tamiya CC-02 Land Rover Defender 90 RC Model features a ladder frame chassis modeled after full-size vehicles. Reinforced plastic axle housings contain 3-bevel differential gears that can be locked for low-grip surfaces. The 4WD drivetrain and rigid suspension setup ensure stability and traction across uneven ground.
What makes the Tamiya Land Rover polycarbonate RC body shell stand out?

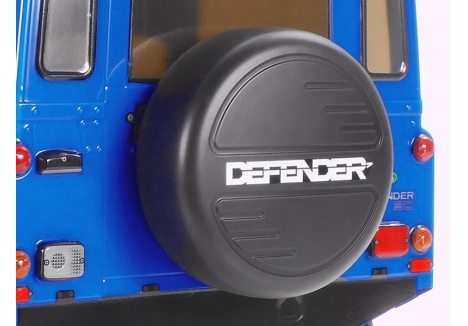

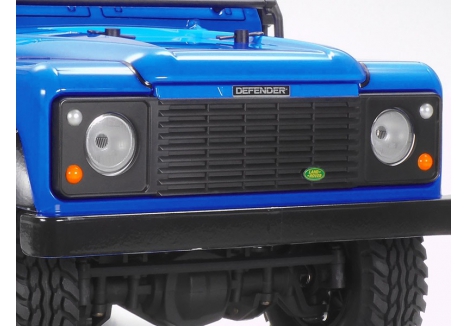

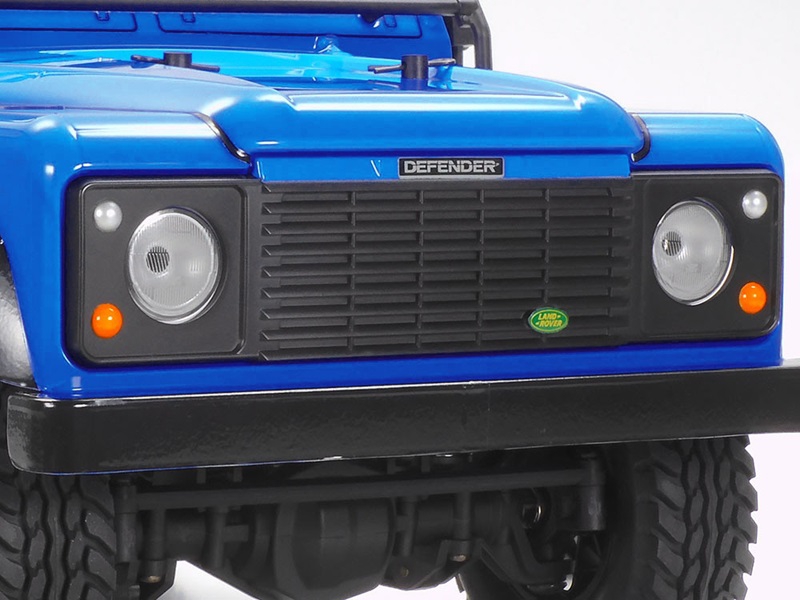

The polycarbonate shell replicates the Defender’s iconic shape with precision. Molded parts like the barred grille, roll cage, and spare tire cover add depth and realism. The body is LED-ready, allowing hobbyists to illuminate the front and rear lights for added scale detail.
Is this the best Tamiya Land Rover RC crawler for off-road terrain?
With its short wheelbase, block-pattern tires, and CVA oil dampers, this model is engineered for off-road control. Whether navigating rocky paths or trail runs, the best Tamiya Land Rover RC crawler for off-road terrain offers a balance of realism and capability.
Why choose the Tamiya Defender 90 with rigid suspension and CVA oil dampers?
The four-link suspension system absorbs shocks and maintains wheel contact, while the CVA dampers provide smooth articulation. Combined with the ladder frame and 4WD drivetrain, the Tamiya Defender 90 with rigid suspension and CVA oil dampers is built for serious terrain handling.
Looking for an affordable Tamiya CC-02 Defender short wheelbase model?
This kit offers premium features at a competitive price point, making it an affordable Tamiya CC-02 Defender short wheelbase model for hobbyists and collectors alike. With scale realism and mechanical capability, it’s ready for adventure straight out of the box.
Buy Tamiya Land Rover Defender 90 CC-02S RC kit today and experience the legacy of Land Rover in 1/10 scale.
Technical Specifications of the Tamiya Land Rover Defender 90 CC-02S RC Car
Brand, Model & Product Type
- Brand: Tamiya
- Model: TAM58700
- Product Type: Tamiya Land Rover Defender 90 CC-02S RC Car, Tamiya TAM58700 1/10 Land Rover Defender Kit, Tamiya CC-02 Land Rover Defender 90 RC Model, Tamiya CC-02 4WD ladder frame rock crawler, Tamiya Land Rover polycarbonate RC body shell
Dimensions & Weight
- Length: 42.9 cm – long enough to capture the Defender’s full profile
- Width: 20.0 cm – wide stance for trail stability
- Height: 21.5 cm – scale-accurate for off-road realism
- Wheelbase: 24.2 cm – short wheelbase for tight terrain handling
- Tread: 16.0 cm (front), 16.3 cm (rear)
- Tire Diameter: 9.0 cm
- Tire Width: 3.3 cm
Chassis & Drivetrain
- Chassis Type: Ladder frame – modeled after full-size off-road vehicles

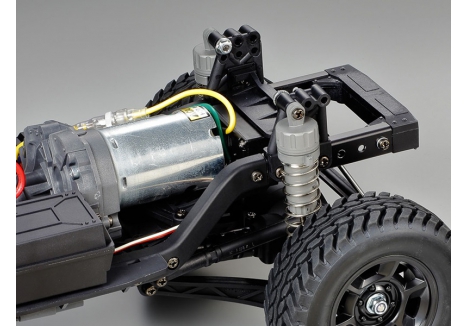

- Motor Position: Longitudinal – behind front axle
- Drive System: Shaft-driven 4WD – distributes torque to front and rear
- Differential Gears: 3-bevel type – housed in reinforced plastic axle housings
- Gear Ratio: 17.33:1 (kit-standard 16T pinion)
- Motor Type: Type 540 brushed motor
Suspension & Steering
- Suspension: 4-link rigid suspension – front and rear
- Dampers: CVA oil dampers – smooth articulation over rocky terrain
Body & Styling
- Body Material: Polycarbonate – lightweight and impact-resistant
- Detailing: Molded roll cage, grille, mirrors, spare tire cover
- LED Compatibility: Front and rear light cases ready for optional LEDs
- Wheels: Black six-spoke – paired with block-pattern tires
Required Items (Not Included)
- R/C System: 2-channel transmitter with ESC
- Transmitter Batteries: R6/AA/UM3 batteries
- Vehicle Battery: Compatible pack and charger
Warranty
- Manufacturer’s Guarantee: 1 year
