Delivery Included
1 Year Warranty

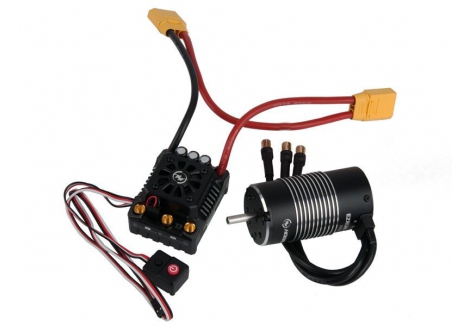

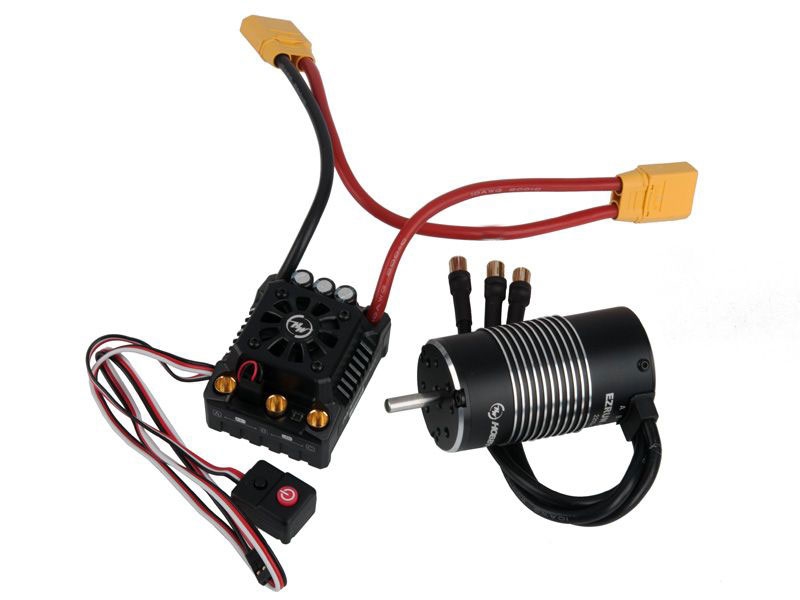

The Combo Includes:
ESC: EZRUN MAX8 V3, 1pcs
Motor: EZRUN-4274 brushless motor, 1pcs
LED Program Box
ESC Specifications:
Twin XT-90 Connectors
Cont./Peak Current: 150A/950A
Motor Type: Sensored/Sensorless brushless motor
Applications: 1/8th Touring Car, Buggy, Truggy and Monster Truck
LiPo/NiMH Cells: 3-6S LiPo/9-18S NiMH
Motor Limit 4S LiPo/12 cells: Kv=3000 (4274 size motor)
Motor Limit 6S LiPo/18 cells NiMH: Kv=2400 (4274 size motor)
BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Dimensions: 59.8x48x36.8
Weight: 173.5g
Programming Port: FAN/PRG Port
Motor Specifications:
KV: 2200Kv
Motor Lenght: 74mm
Motor Diameter: 42mm
Voltage: 2-6s (7.4 - 22.2v)
Weight: 418g
Applicable: 1/8th
Pre-Soldered 6.5mm Motor Bullets
Features
3.1 ESC is compatible with sensorless brushless motors and sensor ed brushless motors (only in sensorless mode).
3.2 Fully waterproof design for all weather conditions.
3.3 Super internal switch-mode BEC with switchable voltage of 6V/7.4V and a co nt ./peak current of 6A/15A for easily driving big tor que servos and high voltage servos.
3.4 Highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt, water, dash and etc.
3.5 Separate programming port to easily connect the LED pr ogram card or the LCD pr ogram box to the ESC.
3.6 Proportional brake with 9 levels of maximum brake for ce and 9 levels of drag brake for ce.
3.7 5 levels of acceleration/punch fr om soft to aggressive for different vehicles, tires and tracks.
3.8 Capacitor Protection:Innovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC because of overload.
3.9 Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe (thr ottle signal loss protection).
3.10 Advanced programming via portable LED pr ogram card or multifunction LCD pr ogram box.
3.11 Firmware upgrade via HOBBYWING multifunction LCD pr ogram box (item sold separately).
Manufacturer: Hobbywing
Part Number: HW38010400
Power Rating: Over 150 Amps
Battery Connector Type: XT-90
Max Lipo Volt Rating: 22.2v / 6s
KV Rating (Brushless): 2000 - 3000kv
Waterproofing: Waterproof
Battery Compatibility: LiPo/NiMh
Motor Connector Type: 6.5mm Bullets
Bore: 5mm
Brushless Motor Type: Sensored Or Sensorless
