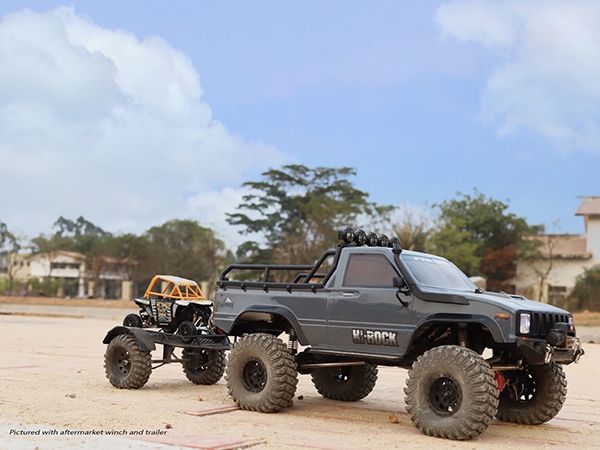

The evolution of the Outback trail chassis hits new heights with the new Hi-Rock edition from FTX. As trail and crawler fans continue to crave both scale performance and scale looks, we have looked to address both with the Hi-Rock.

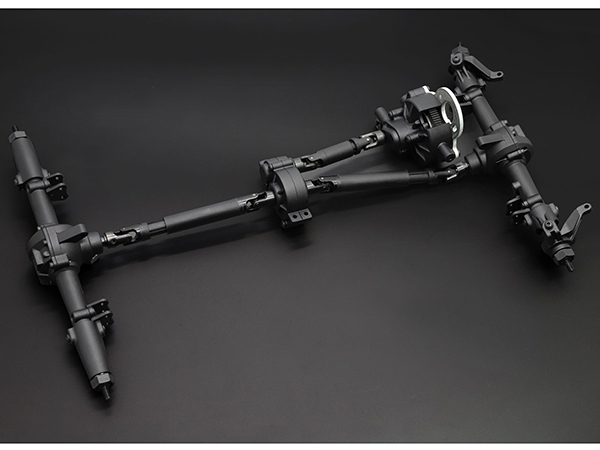

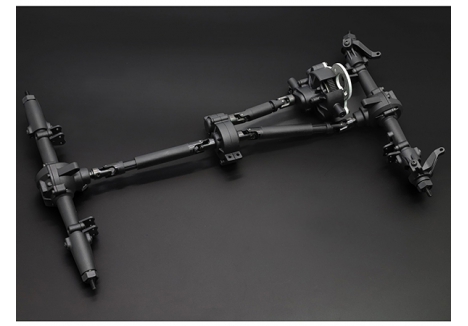

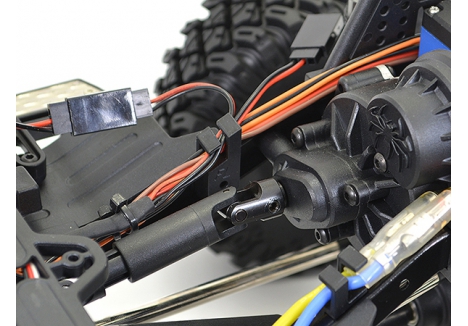

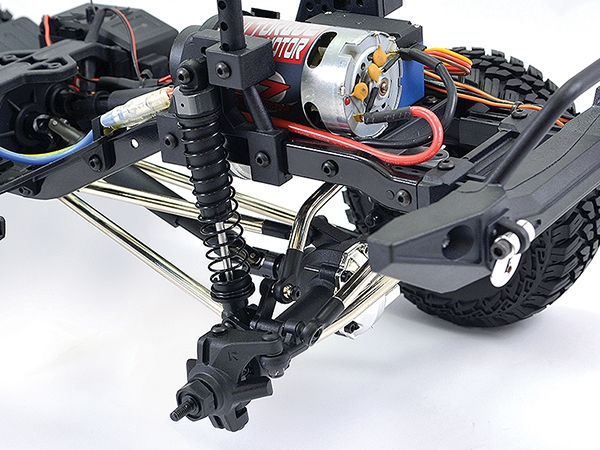

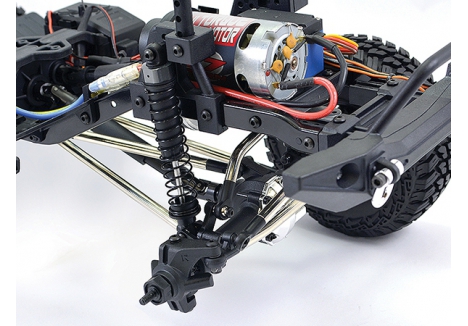

Featuring a new split transmission, the motor is now mounted directly above the front axle alongside the steering servo providing extra weight up front for better traction when climbing ascents. The steering angle has been increased to a 45° angle for further improved trail maneuverability. An adjustable drivetrain slipper can be set to protect the transmission and driveshafts in the event of a lock up, while internal axle and gearbox metal gears provide long term durability.

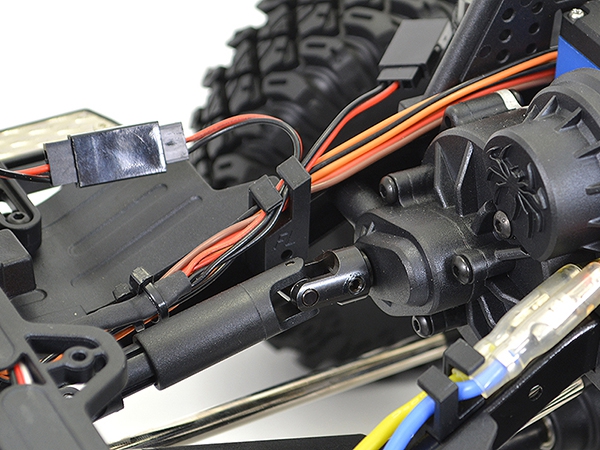

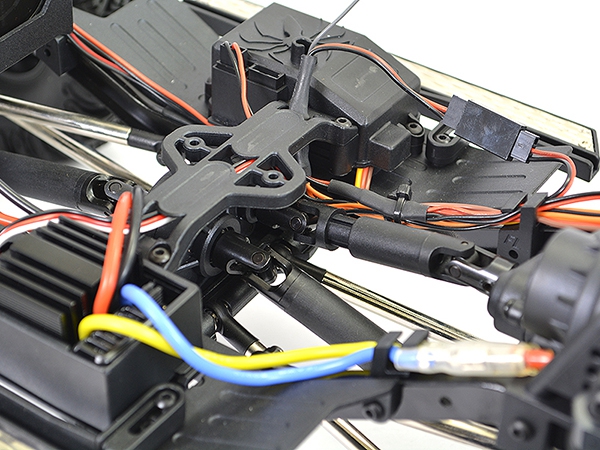

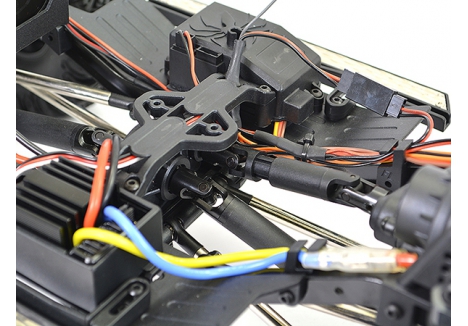

The split transmission layout provides a much lower centre section allowing for aftermarket interiors to be mounted for added scale realism. The moulded side chassis plates have aluminium plates on the exterior while the inner plates provide protection from the elements as well as mounting receiver and Hobbywing speed control. The moulded receiver box features additional plug in ports for LED lights and aftermarket winches.

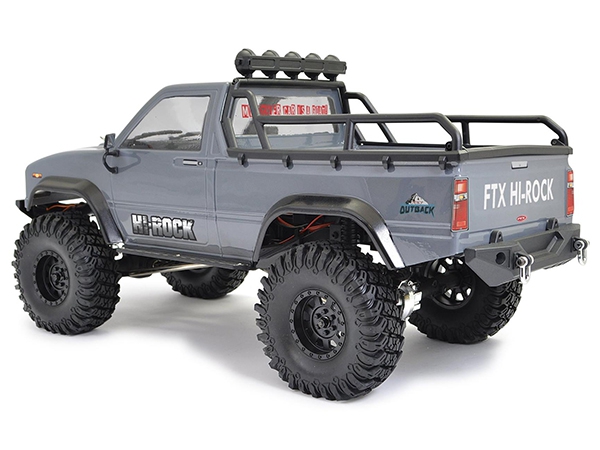

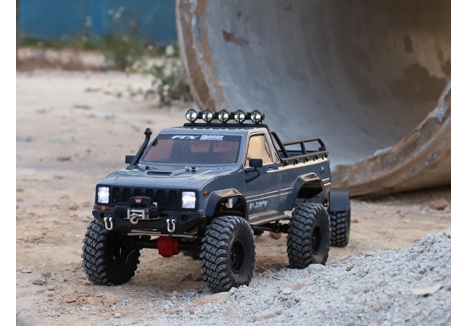

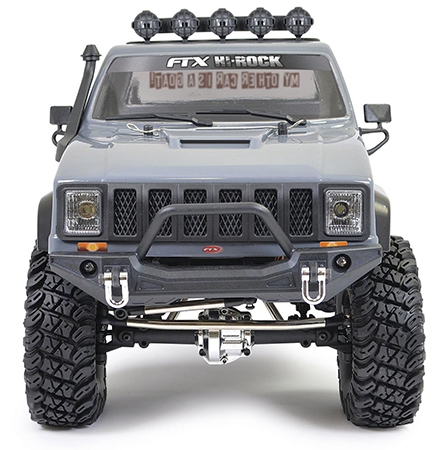

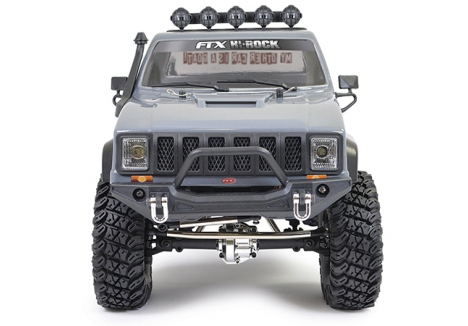

The classic pick-up inspired bodyshell comes complete with moulded accessories such as front grill & LED light buckets, snorkel, mirrors, wipers, roll bar cage and spotlights (for optional LED’s). Front and rear bumpers feature mounted LED lights and tow hooks to top off that scale look.
Take to the trails and raise the bar with the FTX Outback Hi-Rock!
Features and Specifications
99% Ready-to-Run
4ch 2.4ghz radio for lights & winch options
Hobbywing HW1040 40A Waterproof ESC
15kg metal geared waterproof servo
550 brushed 17 Turn motor
7.2v 2000mah NiMH battery & charger
Ball bearings

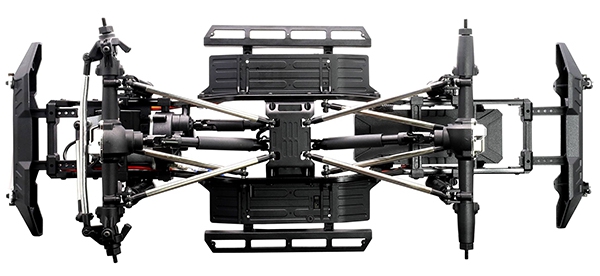

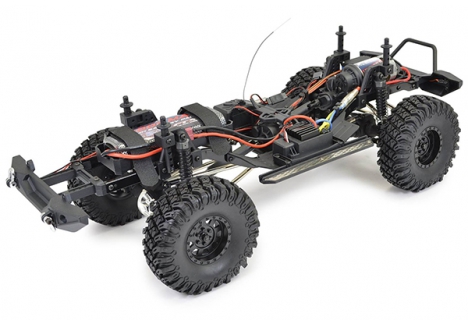

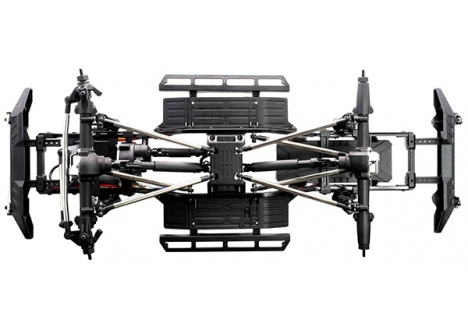

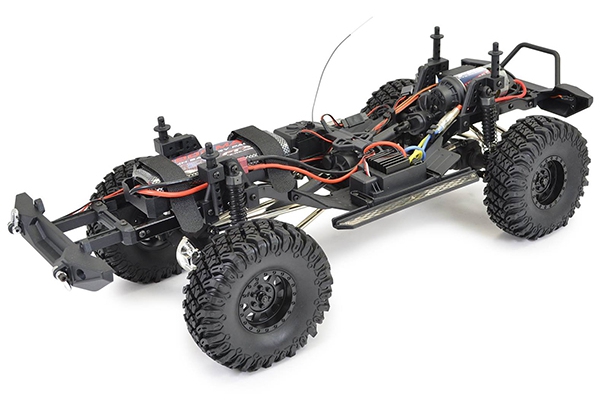

Twin rail metal frame chassis
6mm steel multi-link suspension
Telescopic universal driveshafts
Steel CVA front universal driveshafts
Oil filled shock absorbers
Metal axle & transmission gears
Front & rear high clearance locked axles
Adjustable central footplate for ESC & receiver mounting
Receiver box with external third & forth channel ports for options such as LED, sound module or winch
Split transmission system for better low-speed torque output
Lower mid section accommodates interiors
Transmission slipper clutch
Raised chassis mounted steering servo & panhard bar
Front mounted motor for better weight bias
Scale styled wheels
High grip all terrain tyres

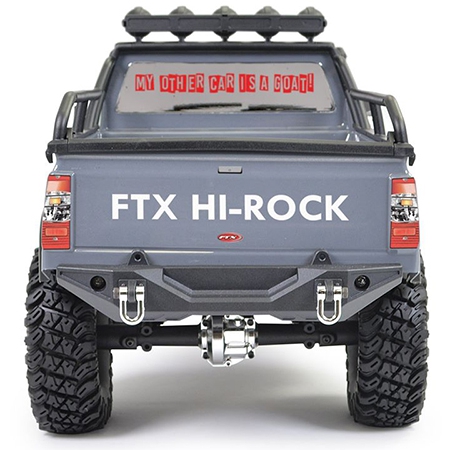

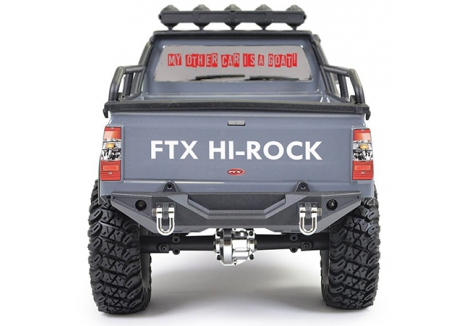

Scale looking front & rear bumpers with shackles & factory fitted LED lights
Scale side metal footplate
Moulded scale body accessories including snorkel, side mirrors & grill
4 pcs AA Alkaline Batteries required.
Specifications
Length: 560mm
Width: 240mm
Height: 240mm
Weight: 2600g
Wheelbase: 313mm
Gear Ratio: 56.6:1 – 33.3:1
Tyre Diameter: 120mm
Wheel Diameter: 54mm
Ground Clearance: 80mm
Brand, Model and Product Type
- Brand: FTX
- Model: FTX5587
- Product Type: FTX Outback Hi-Rock FTX5587 1:10 trail rock crawler, FTX FTX5587 Outback Hi-Rock 4x4 RTR crawler, FTX Outback Hi-Rock FTX5587 scale RC truck, FTX Outback Hi-Rock waterproof trail crawler, FTX 4x4 RTR crawler with LED lights FTX5587, FTX Outback Hi-Rock metal geared servo truck
Dimensions and Weight
- Length: 56 cm – extended chassis for enhanced stability and scale realism
- Width: 24 cm – balanced stance for trail and rock crawling
- Height: 24 cm – accommodates scale accessories and interior options
- Wheelbase: 31.3 cm – long wheelbase improves climbing and articulation
- Weight: 2.6 kg – optimised for traction and low-speed control
Chassis and Suspension
- Chassis: Twin rail metal frame with moulded side plates and aluminium exterior panels

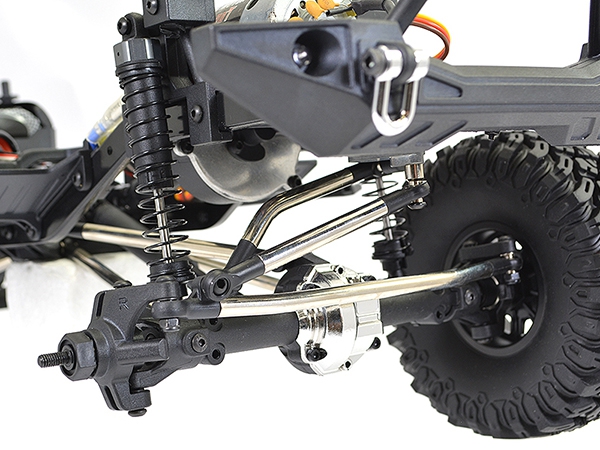

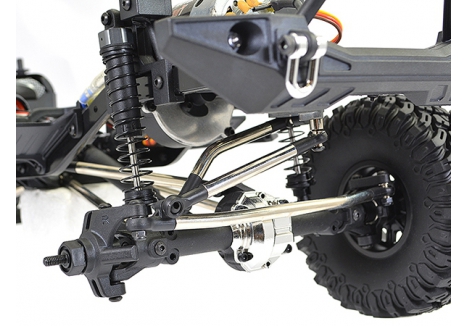

- Suspension: 6mm steel multi-link suspension for durability and articulation
- Shock Absorbers: Oil-filled shocks for consistent damping across terrain
- Ground Clearance: 8 cm – suitable for rock crawling and trail obstacles
- Footplate: Adjustable central footplate for ESC and receiver mounting
Drive System and Transmission
- Transmission: Split transmission system for improved low-speed torque
- Motor Position: Front-mounted motor for better weight bias and climbing traction
- Slipper Clutch: Adjustable drivetrain slipper to protect gears during lock-ups
- Driveshafts: Telescopic universal driveshafts and steel CVA front universal driveshafts
- Gears: Metal axle and transmission gears for long-term durability
- Gear Ratio: 56.6:1 – 33.3:1 for controlled torque output
Steering and Servo System
- Servo: 15kg waterproof metal geared steering servo for responsive control
- Steering Setup: Raised chassis-mounted servo with panhard bar
- Steering Angle: 45° for enhanced trail manoeuvrability
Power and Electronics
- ESC: Hobbywing HW1040 40A waterproof electronic speed control
- Motor: 550 brushed 17-turn motor for balanced torque and speed
- Battery: 7.2V 2000mAH NiMH battery included for reliable runtime
- Charger: Compatible NiMH charger included
- Radio System: 4-channel 2.4GHz radio with support for lights and winch options
- Receiver Box: Moulded receiver box with external third and fourth channel ports
Exterior and Scale Features
- Bodyshell: Classic pick-up inspired shell with moulded snorkel, mirrors, wipers, grill, roll bar cage, and spotlights
- Lighting: Factory-fitted LED lights in front and rear bumpers with optional light buckets
- Bumpers: Scale front and rear bumpers with shackles and tow hooks
- Tyres: High grip all terrain tyres with 12 cm diameter for trail and rock surfaces
- Wheels: Scale styled wheels with 5.4 cm diameter
- Side Plates: Scale side metal footplates for added realism
- Interior Compatibility: Lower mid-section accommodates aftermarket interiors
Warranty
- Warranty: 1 year manufacturer warranty included
