Features
- Includes 3 channel radio system, ESC and transmitter batteries
- Includes motor and on-board LiPo battery

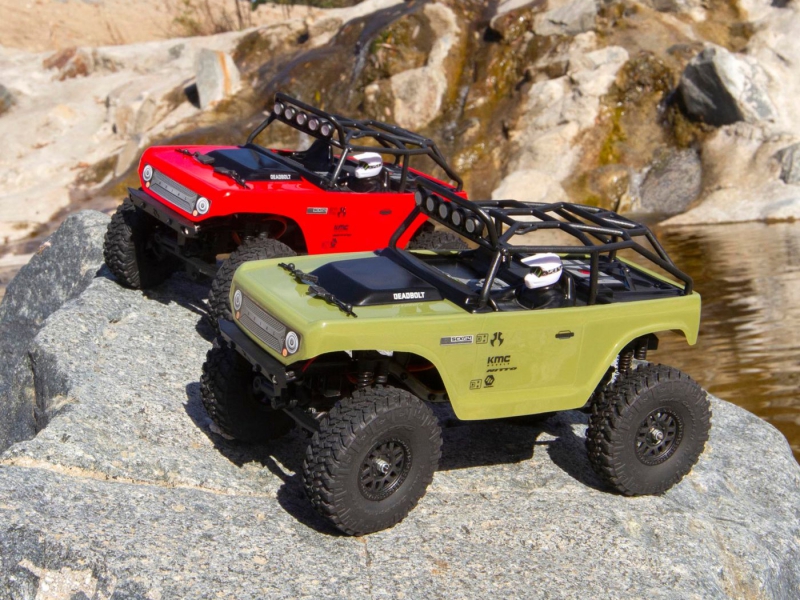

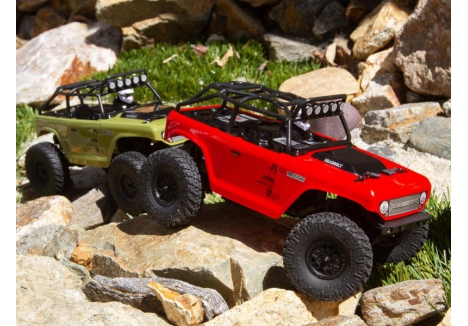

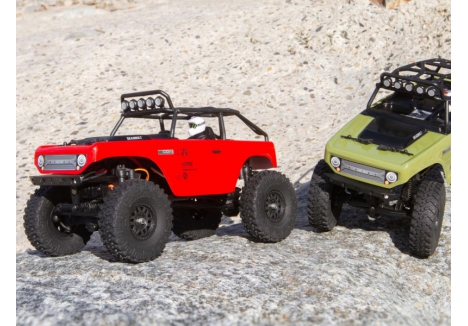

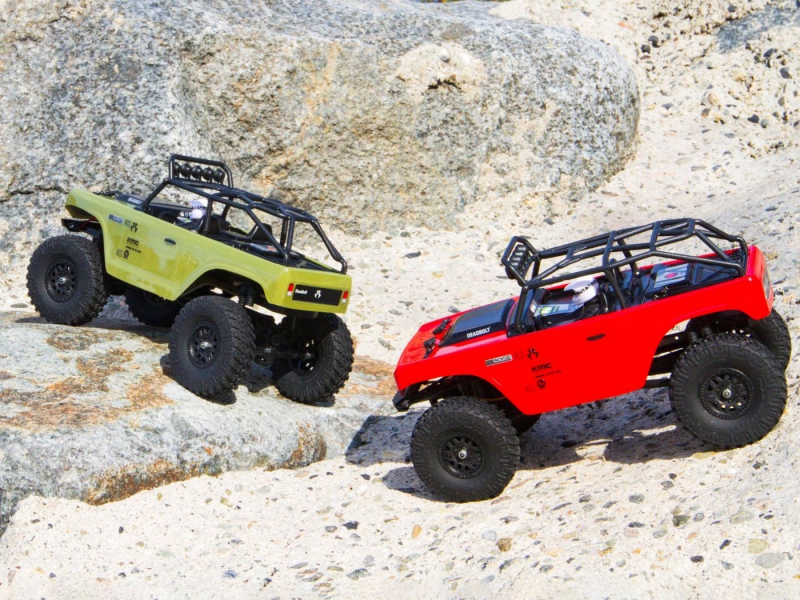

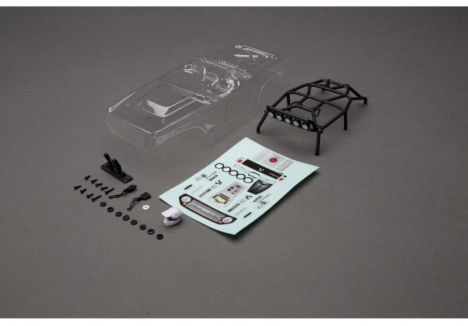

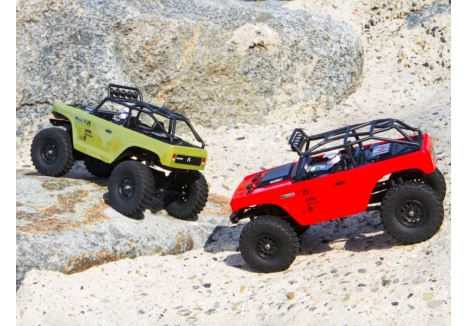

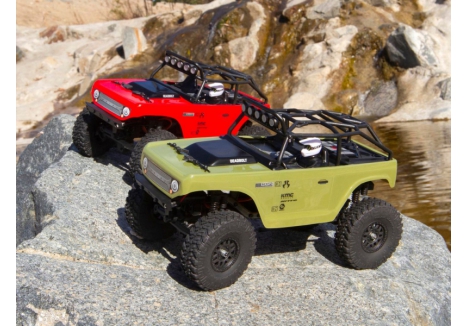

- Realistic narrow-stance rock crawler body in olive green or red
- Moulded roll cage with realistic light bar
- Realistic driver figure and many other scale details

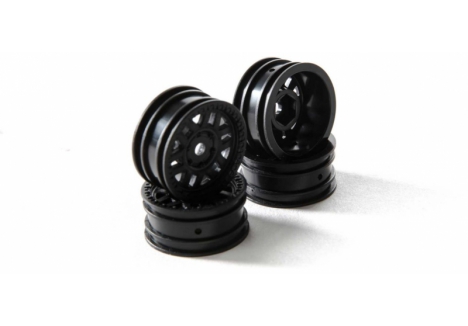

- Officially licensed KMC XD229 Machete Crawl wheels

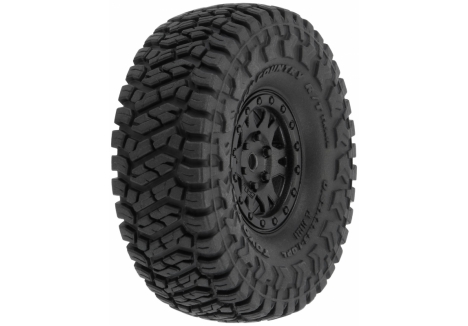

- Officially licensed Nitto Trail Grappler M/T tyres (S30 compound, large block tread)
- Full-time 4WD
- Splined and sleeved front and rear drive shafts allow for maximum suspension travel while keeping the power to the wheels

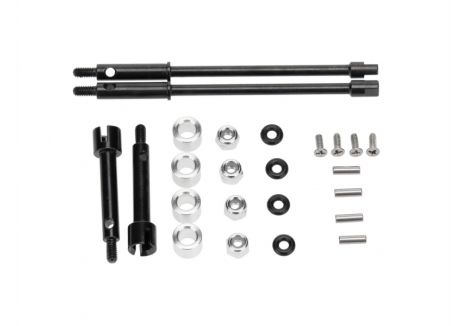

- Steel front and rear axles, front stub axles and dogbones provide strength and durability

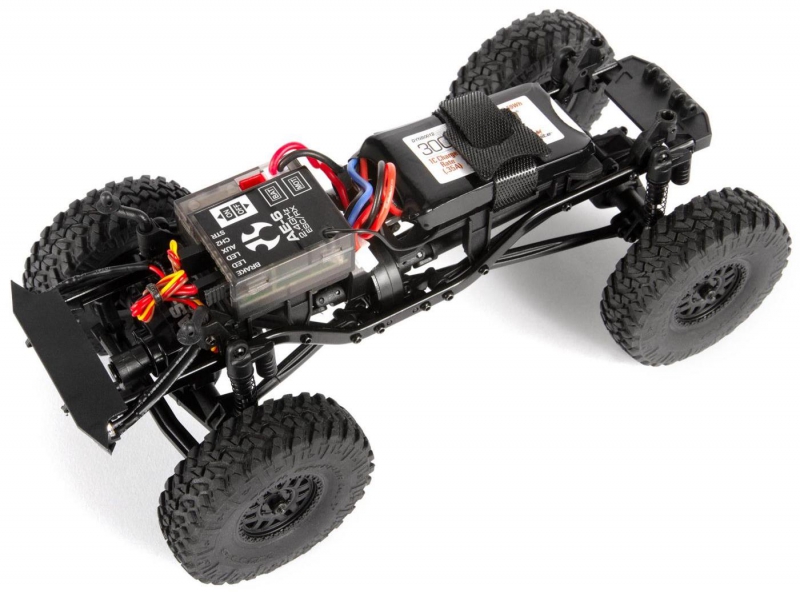

- Rugged steel C-channel frame rails with bracing keep everything rigid and aligned

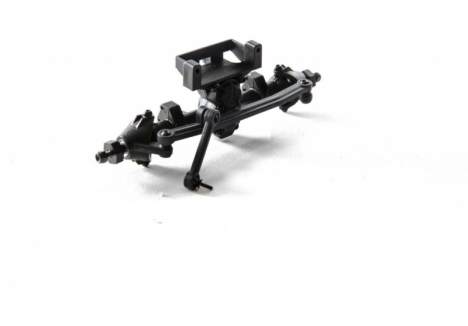

- Front and rear axles consist of a two-piece, moulded plastic solid axle design
- 3-Link front and 4-link rear suspension supply optimal handling
- Coil-over shocks with simulated reservoir and durable plastic suspension links deliver proven Axial crawling performance

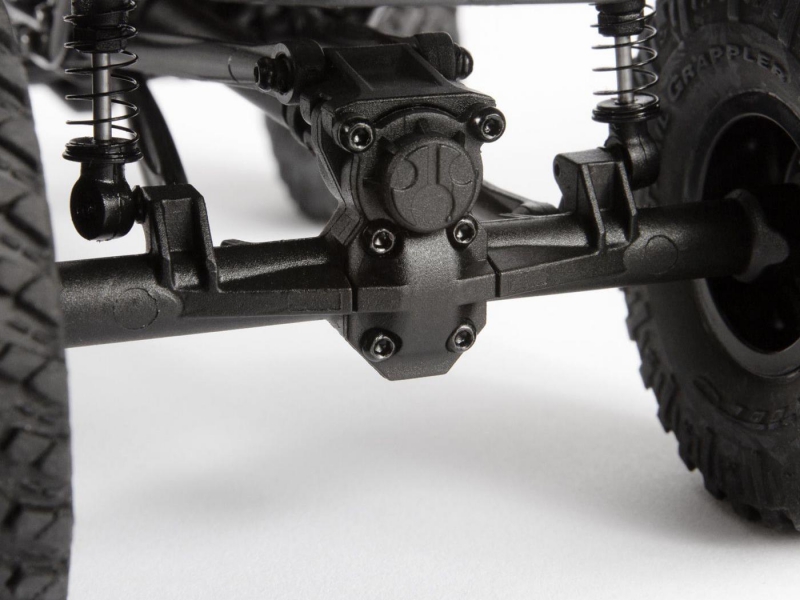

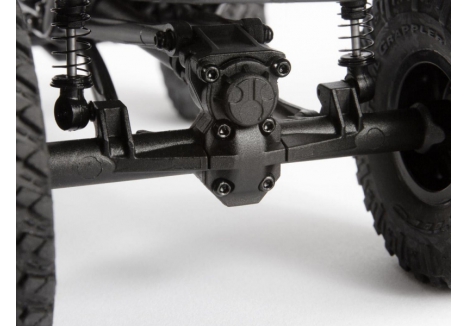

- Front and rear differentials each house a worm gear setup to power the axles and create higher ground clearance. Worm gear drive also provides a low gear ratio to reduce torque twist
- Two LEDs in the front bumper for night driving
Needed to Complete
- Nothing! Everything you need to begin having fun with your 1/24 scale Deadbolt is included!
What's in the Box?
- (1) SCX24™ Deadbolt™ 1/24 Scale 4WD Truck

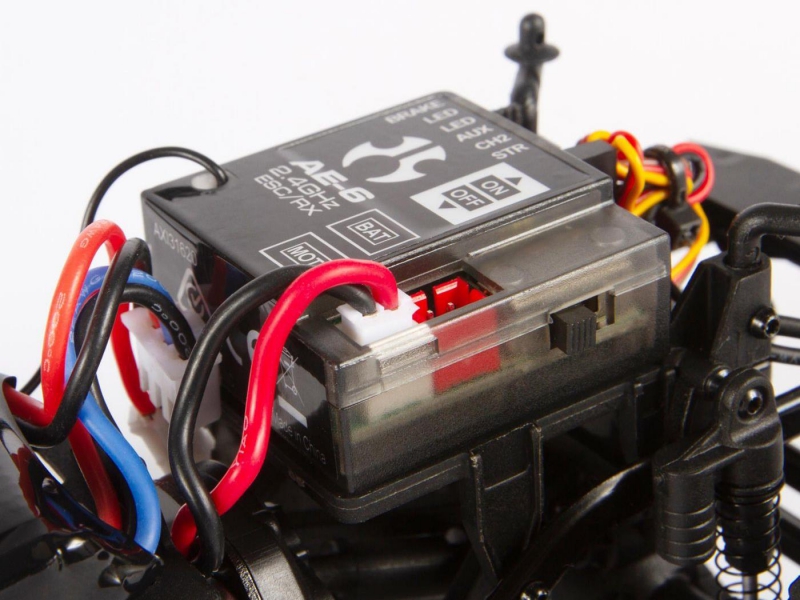

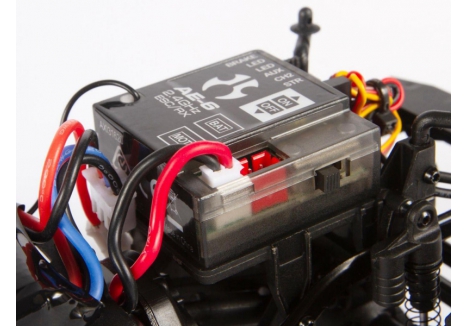

- (1) Axial AE-6 ESC/receiver combo (installed)
- (1) Dynamite® 88T brushed electric motor (installed)

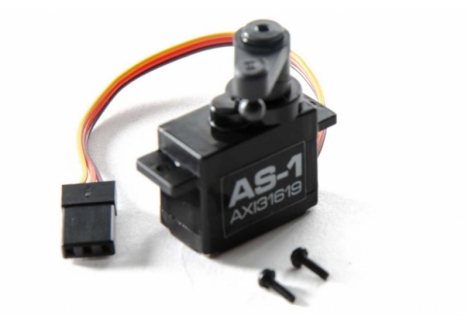

- (1) Axial AS-1 steering servo (installed)
- (1) Axial® AX-4 2.4GHz 3-channel radio
- (4) AA transmitter batteries

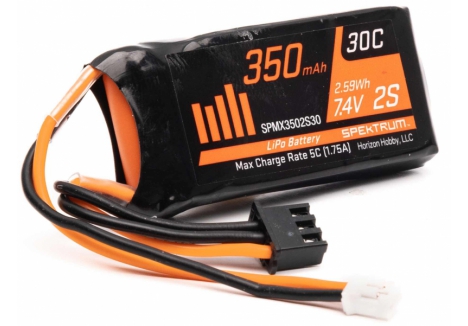

- (1) 350mAh 2S 7.4V LiPo battery

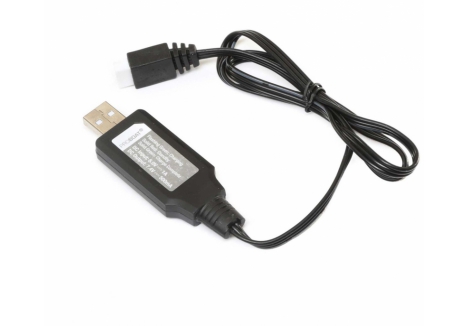

- (1) USB LiPo charger
- (1) Product Manual
Overview
At less than 8" long, it's the perfect rig to take along on your hiking, camping, and other outdoor and indoor adventures - offering factory-assembled ease, scale looks, and confident handling on any trail.

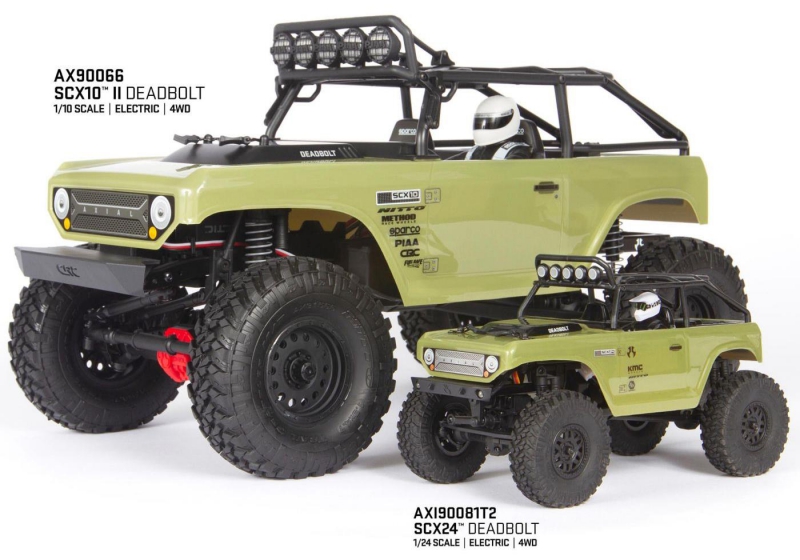

Even new modelers driving the SCX24 chassis will be well-equipped to tackle tough climbs and rough trails. Like the larger SCX10™ II chassis, this smaller version uses plenty of steel components - from the C-channel frame rails to the front and rear axles and dogbones. Even over off-road, mountainous, rocky and desert terrain, it has the strength to keep pushing onward and upward.
For the most reliable handling, the SCX24 chassis features a three-link front and four-link rear suspension. The combination of coil-over shocks and durable plastic suspension links delivers Axial-worthy crawling performance even at this small scale. The worm gear drive setup permits a high ground clearance plus a low gear ratio that reduces torque twist.

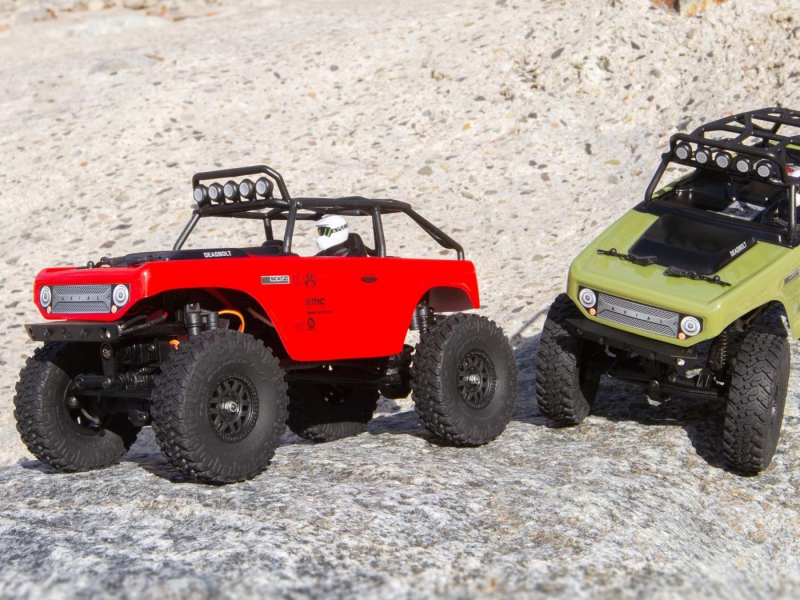

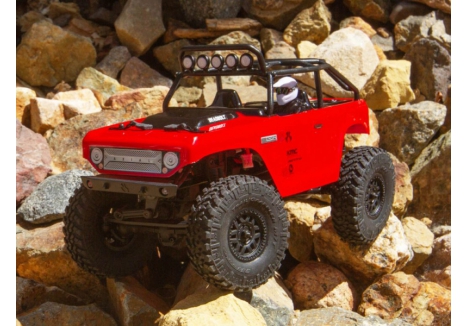

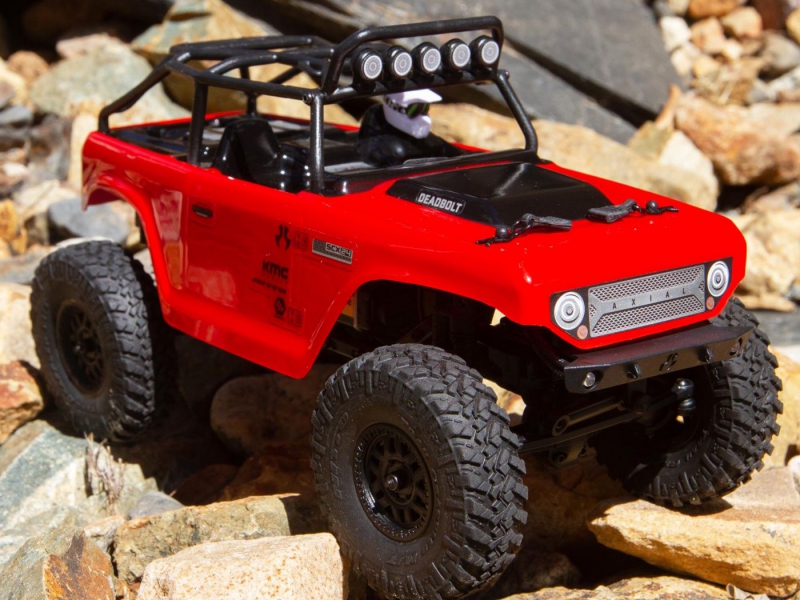

Powered by an included 180-size motor and LiPo battery, the SCX24 Deadbolt shows off competence and charisma on the trails. Check out that Deadbolt body - with its narrow stance, bulging hood, realistic driver figure, and moulded roll cage with realistic light bar. The realism continues right down to the ground, where you'll find licensed KMC XD229 Machete Crawl wheels wrapped in Nitto Trail Grappler tyres.
Adding even more to its beginner appeal, the SCX24 Deadbolt comes 100% complete and ready to run. Everything required for action is in the box: assembled and finished vehicle; Axial 3-channel 2.4GHz radio system with servo and ESC/receiver unit; Dynamite® 88T brushed electric motor and 350mAh 2S 7.4V LiPo battery; USB LiPo charger; and even four AA cells for the transmitter!
Â

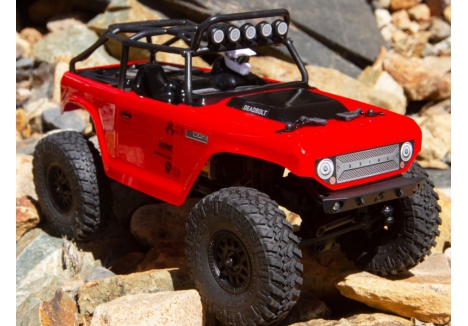

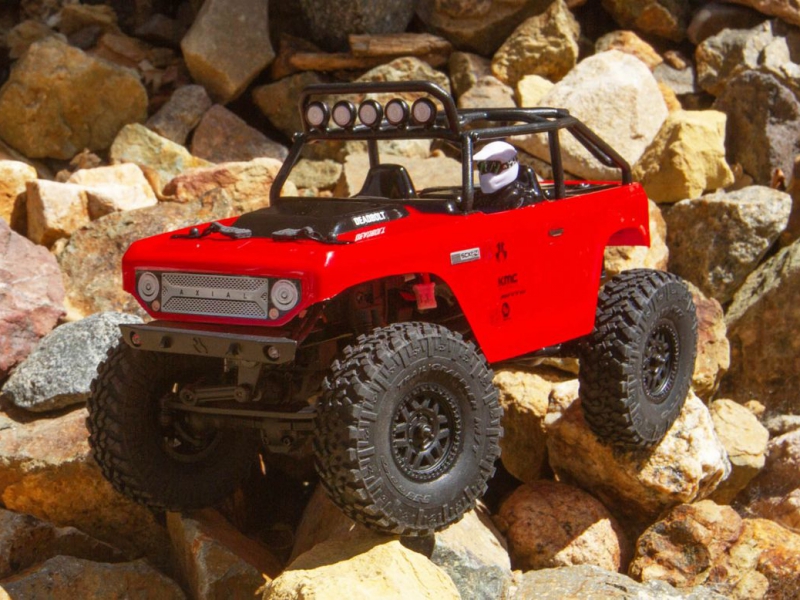

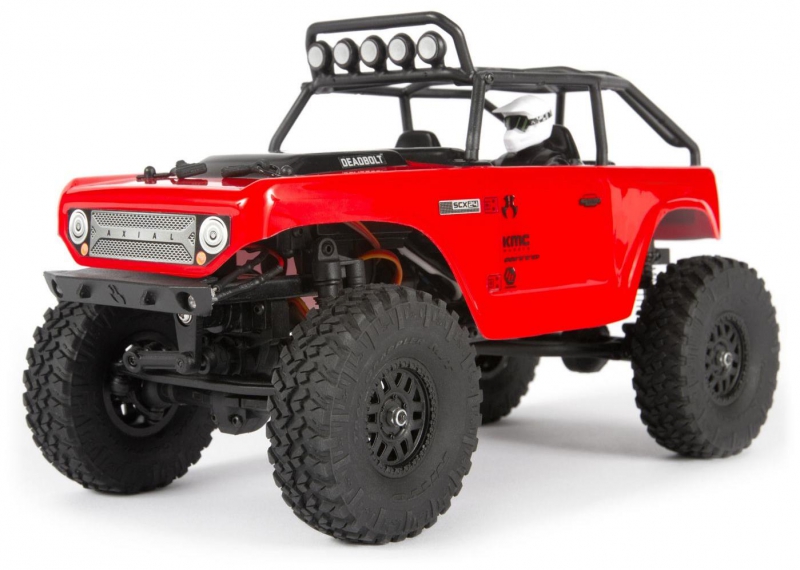

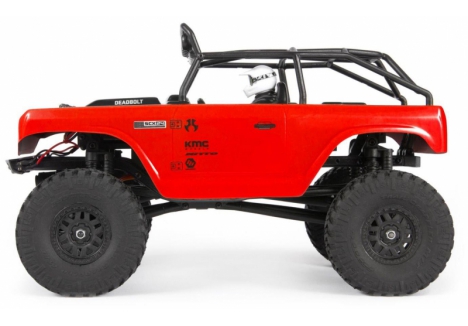

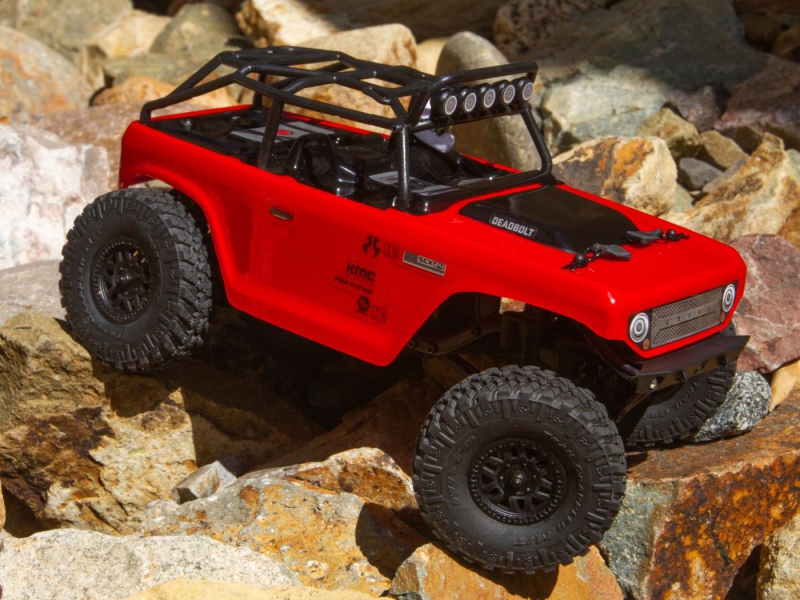

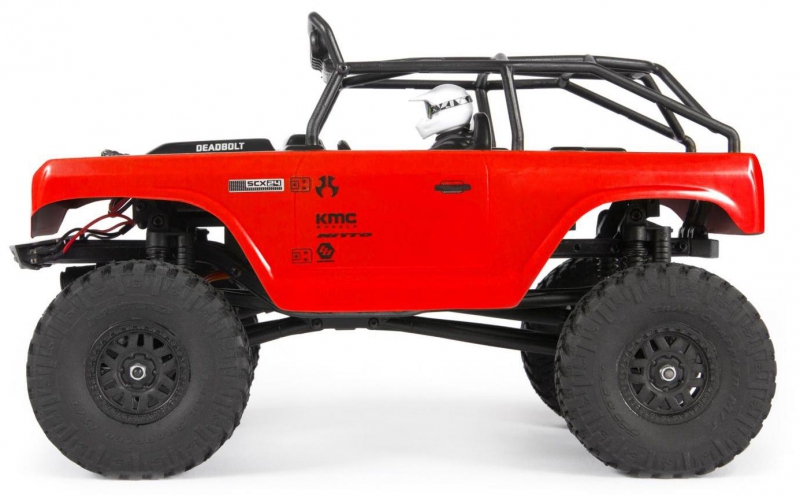

Product Description of Axial SCX24 Deadbolt 1/24 RTR Red C-AXI90081T1 rock crawler
The Axial SCX24 Deadbolt 1/24 RTR Red C-AXI90081T1 rock crawler is a compact yet highly capable off-road vehicle designed for enthusiasts who demand scale realism and rugged performance in a mini format. With a length of under 8 inches, this 1/24 scale crawler is ideal for indoor and outdoor adventures, offering factory-assembled convenience and trail-ready durability. The narrow stance, molded roll cage, and realistic driver figure give the AXIAL 1/24 SCX24 Deadbolt brushed crawler with KMC wheels AXI90081T1 a distinctive look that mirrors full-size off-road rigs. Built on the proven SCX24 chassis, this ready-to-run crawler delivers confident handling and reliable climbing ability across varied terrain.
Key features of the Axial SCX24 Deadbolt 1/24 RTR Red C-AXI90081T1 rock crawler
- Steel axles and C-channel frame - Reinforced structure for long-term durability and trail stability
- Worm gear differentials - Increased ground clearance and reduced torque twist for better crawling control
- LED lights in bumper - Enhanced visibility for night driving and scale realism
- Full ball bearing setup - Smooth drivetrain operation with reduced friction and wear
- Coil-over shocks with plastic links - Balanced suspension for responsive handling on uneven surfaces
- Licensed wheels and tyres - KMC XD229 wheels and Nitto Trail Grappler tyres for authentic off-road aesthetics and grip
- Hinged body system - Quick access to internal components for battery changes and maintenance
- 88T brushed motor - Reliable torque output for steep climbs and technical terrain
- Complete RTR package - Includes LiPo battery, USB charger, radio system, and transmitter batteries
How do steel axles and C-channel frame enhance the Axial SCX24 Deadbolt red crawler’s durability?
The Axial SCX24 Deadbolt red crawler with 3-link front and 4-link rear suspension is built around a steel C-channel chassis that mirrors the structural integrity of larger Axial platforms. This rigid frame resists flex and maintains alignment during aggressive driving. Reinforced with steel front and rear axles, stub axles, and dogbones, the drivetrain is engineered to withstand repeated impacts and torque loads. These components work together to ensure that the Axial RTR 1/24 crawler with Nitto Trail Grappler tires and KMC XD229 wheels remains stable and reliable even on rocky, mountainous, or desert terrain.
What makes the worm gear drive in the Axial SCX24 Deadbolt with worm gear drive and steel axles ideal for crawling?
The worm gear setup in the front and rear differentials of the Axial SCX24 Deadbolt with worm gear drive and steel axles delivers two key advantages: higher ground clearance and reduced torque twist. By positioning the worm screw and gear within the axle housing, the design elevates the differential pack, allowing the crawler to clear obstacles more effectively. Additionally, the low gear ratio inherent to worm gears minimizes torque-induced chassis movement, resulting in smoother and more controlled climbing. This drivetrain configuration makes the Axial SCX24 Deadbolt 1/24 RTR Red C-AXI90081T1 rock crawler exceptionally capable on steep and uneven surfaces.
Axial SCX24 Deadbolt red crawler with LED lights – built for visibility and realism
Scale realism is a hallmark of the Axial SCX24 Deadbolt red crawler with LED lights. Two bright LEDs are mounted in the front bumper, providing illumination for low-light conditions and enhancing the visual appeal of the crawler. The molded roll cage includes a realistic light bar, and the body features a narrow stance and bulging hood that replicate full-size off-road vehicles. These details, combined with the realistic driver figure, elevate the aesthetic value of the AXIAL 1/24 SCX24 Deadbolt brushed crawler with KMC wheels AXI90081T1 and make it a standout choice for scale enthusiasts.
Why is the full ball bearing setup in the mini rock crawler with 88T brushed motor and full ball bearings important?
The drivetrain of the mini rock crawler with 88T brushed motor and full ball bearings is supported by a complete set of sealed cartridge bearings. Unlike bushings, which introduce friction and wear over time, ball bearings ensure smooth rotation and efficient power transfer. This setup reduces maintenance requirements and enhances the longevity of the drivetrain. Paired with the Dynamite 88T brushed motor, which is mounted on a steel motor plate to prevent flex, the bearing-supported drivetrain allows the Axial SCX24 Deadbolt 1/24 RTR Red C-AXI90081T1 rock crawler to deliver consistent torque and climbing performance.
Axial Ready-to-run mini crawler with LiPo battery, charger, and radio included – everything you need to start crawling
The Axial Ready-to-run mini crawler with LiPo battery, charger, and radio included arrives fully assembled and equipped for immediate use. Inside the box, users will find a 350mAh 2S 7.4V LiPo battery, a USB charger, a 3-channel 2.4GHz radio system, and four AA batteries for the transmitter. The AE-6 ESC/receiver combo and AS-1 steering servo are pre-installed, streamlining setup and reducing time to first drive. This comprehensive package ensures that the Axial SCX24 Deadbolt 1/24 RTR Red C-AXI90081T1 rock crawler is ready for action straight out of the box, making it an ideal choice for beginners and experienced hobbyists alike.
Best beginner 1/24 scale RTR crawler with realistic body and LED lights – why is it beginner-friendly?
The Best beginner 1/24 scale RTR crawler with realistic body and LED lights offers a forgiving learning curve without compromising on capability. Its compact size makes it easy to transport and control, while features like worm gear drive, steel axles, and full ball bearings provide advanced crawling dynamics. The hinged body system allows quick access to internal components, simplifying battery changes and maintenance. With intuitive controls and a complete RTR setup, the Axial SCX24 Deadbolt 1/24 RTR Red C-AXI90081T1 rock crawler is a practical and engaging entry point into the world of scale RC crawling.
For those seeking an affordable mini crawler that combines scale realism with trail-ready performance, the Axial SCX24 Deadbolt 1/24 RTR Red C-AXI90081T1 rock crawler delivers exceptional value. From its steel-reinforced chassis and worm gear drivetrain to its LED lighting and licensed wheels, every detail is engineered for durability and visual appeal. To buy Axial SCX24 Deadbolt 4WD mini crawler RTR AXI90081T1, explore our latest availability and start your off-road journey with confidence.
Technical Specifications of Axial SCX24 Deadbolt 1/24 RTR Red C-AXI90081T1 rock crawler
Brand, Model and Product Type
- Brand: Axial
- Model: C-AXI90081T1
- Product Type: Axial SCX24 Deadbolt 1/24 RTR Red C-AXI90081T1 rock crawler, Buy Axial SCX24 Deadbolt 4WD mini crawler RTR AXI90081T1, AXIAL 1/24 SCX24 Deadbolt brushed crawler with KMC wheels AXI90081T1, Axial SCX24 Deadbolt with worm gear drive and steel axles, Axial RTR 1/24 crawler with Nitto Trail Grappler tires and KMC XD229 wheels, Mini rock crawler with 88T brushed motor and full ball bearings
Dimensions
- Product Length: 19.8 cm – compact size ideal for indoor and outdoor crawling
- Product Width: 9.9 cm – narrow stance for realistic scale appearance and maneuverability
- Product Height: 12 cm – includes molded roll cage and light bar for added realism
- Wheelbase: 13.35 cm – optimized for stability and climbing performance
- Tire Diameter: 5.1 cm – large block tread for grip across varied terrain
Drivetrain and Motor System
- Drive Type: Full-time 4WD for consistent traction and control
- Differential: Worm gear 16T/4T setup in both front and rear axles for increased ground clearance and reduced torque twist

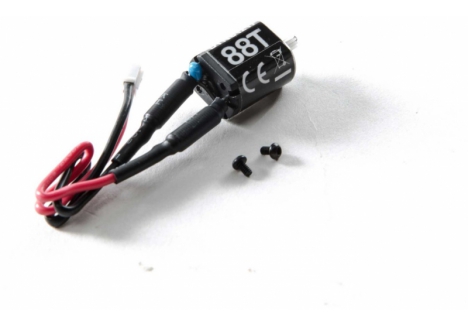

- Motor: Dynamite 88T brushed electric motor mounted on steel motor plate for torque and durability
- Gear Ratio: Low gear ratio supports steep climbs and technical crawling
- Spur Gear: 55T for balanced power delivery

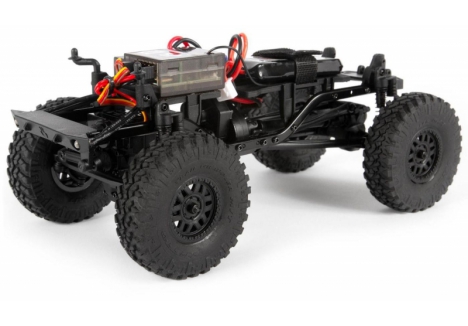

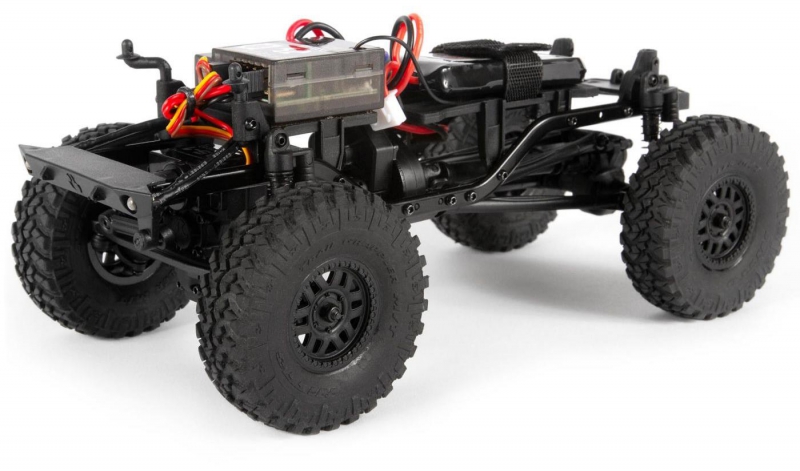

Chassis and Suspension
- Frame: Steel C-channel chassis rails with bracing for rigidity and alignment
- Axles: Steel front and rear axles, stub axles, and dogbones for strength and durability
- Suspension: 3-link front and 4-link rear setup for optimal handling and reduced axle steer
- Shock Absorbers: Coil-over shocks with simulated reservoirs and durable plastic suspension links
- Axle Design: Two-piece molded plastic solid axle construction
Wheels and Tyres
- Wheels: Officially licensed KMC XD229 Machete Crawl wheels molded in black with scale detailing
- Tyres: Officially licensed Nitto Trail Grappler M/T tyres in S30 compound with large block tread
Electronics and Control

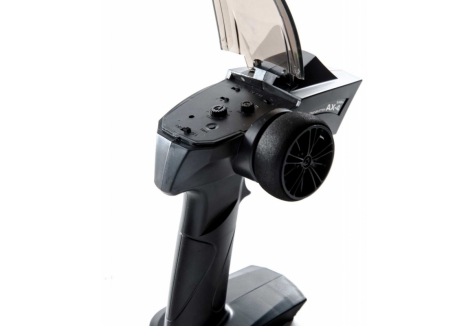

- Radio System: Axial AX-4 2.4GHz 3-channel radio included
- ESC/Receiver: AE-6 ESC/receiver combo pre-installed

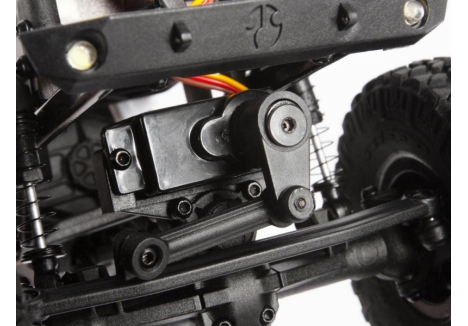

- Servo: Axial AS-1 steering servo mounted above front axle with servo saver
- Lighting: Two front bumper-mounted LED lights with additional port for optional expansion
Battery and Charging

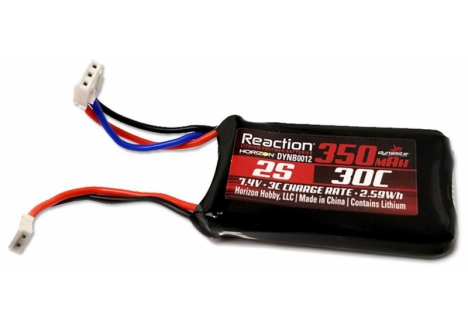

- Battery Type: 350mAh 2S 7.4V LiPo battery included
- Charger: USB LiPo charger included for convenient recharging
- Connector Type: PH 2.0 (High-Current Ultra Micro)
Build and Assembly
- Completion Level: Ready-to-run with no assembly required

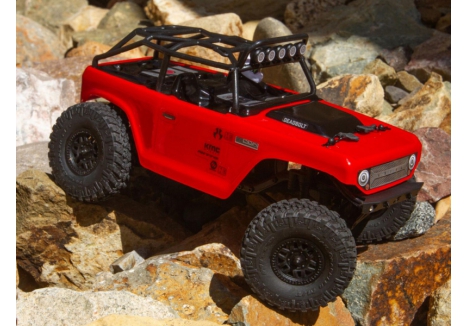

- Body: Painted red body with molded roll cage and realistic driver figure
- Body Access: Hinged body system allows quick access to battery and internal components
What’s in the Box
- Axial SCX24 Deadbolt 1/24 Scale 4WD Truck
- Axial AE-6 ESC/receiver combo (installed)
- Dynamite 88T brushed electric motor (installed)
- Axial AS-1 steering servo (installed)
- Axial AX-4 2.4GHz 3-channel radio
- 350mAh 2S 7.4V LiPo battery
- USB LiPo charger
- Four AA transmitter batteries
- 1/24 SCX24 Deadbolt 4WD Manual
What You Will Need
- Nothing – all required components are included in the box
Warranty
- 1 year manufacturer warranty
