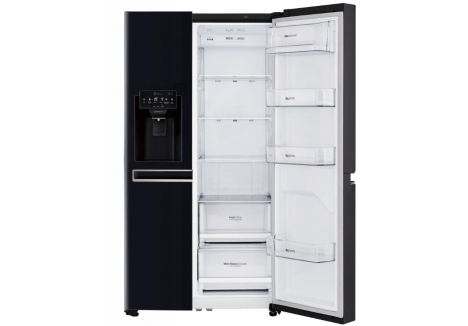

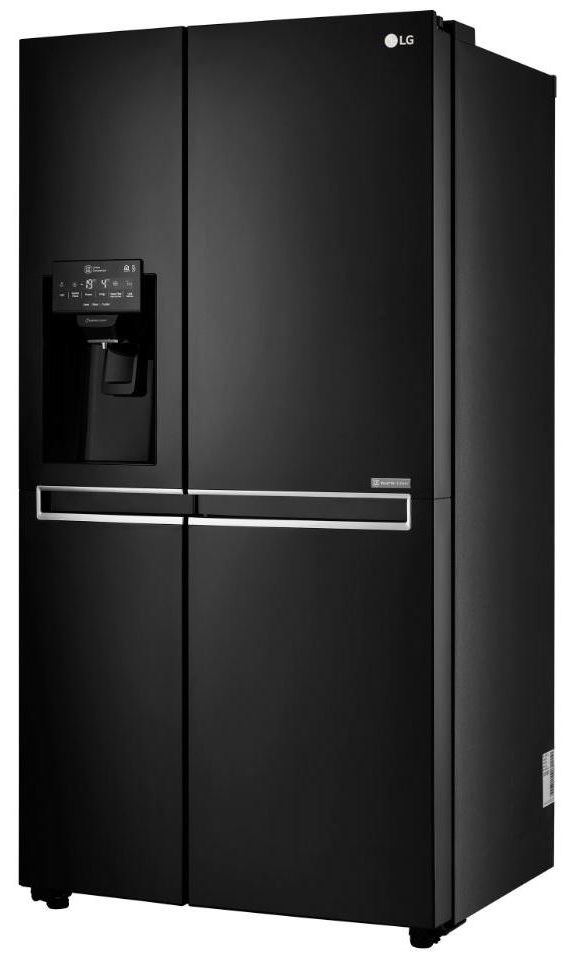

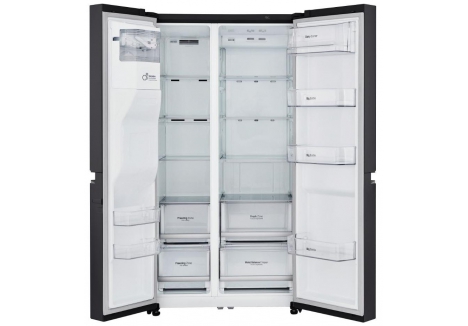

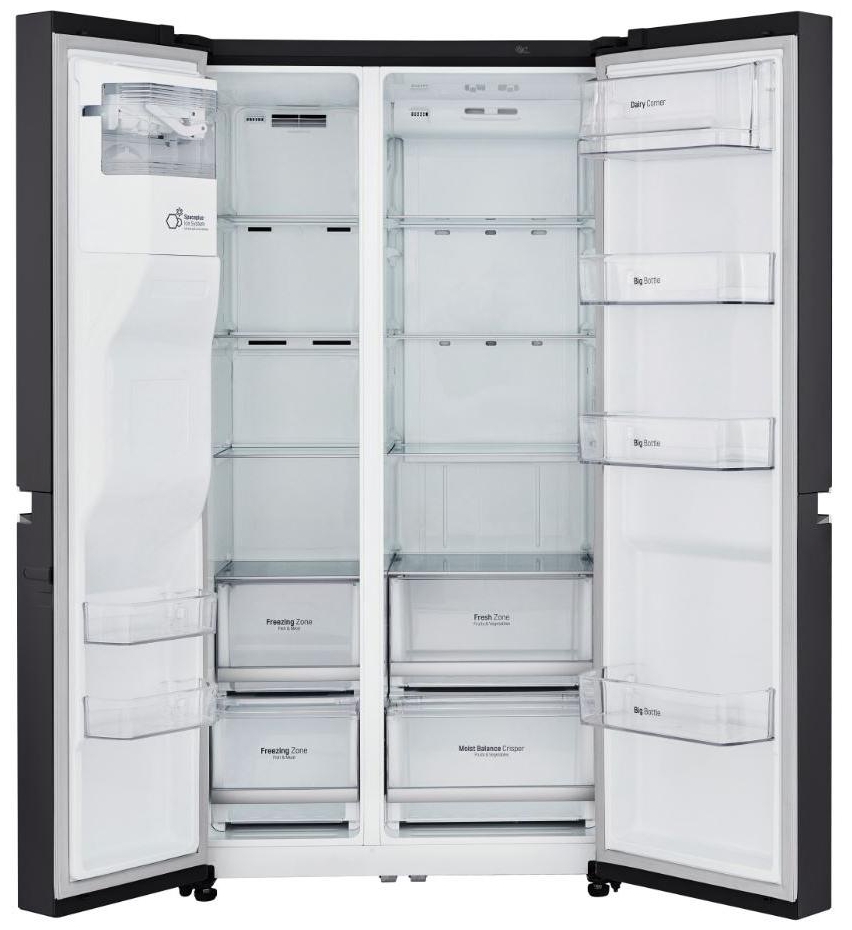

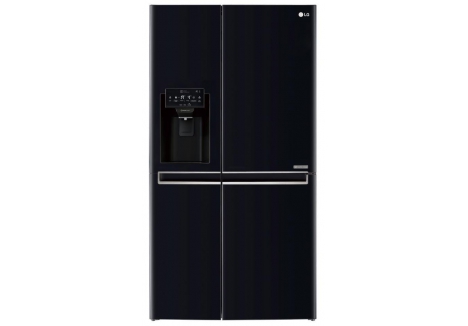

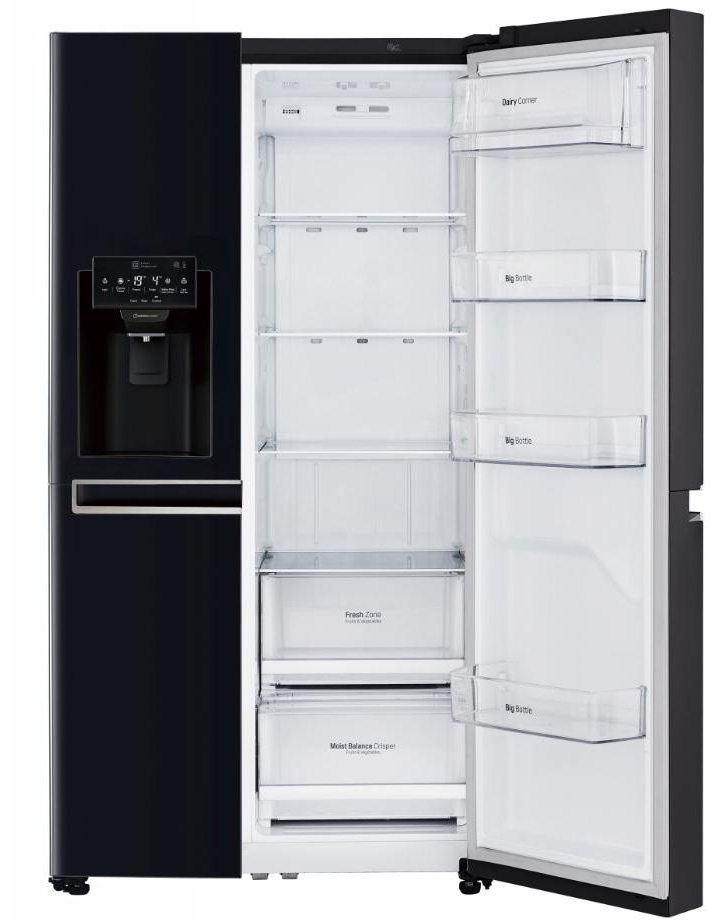

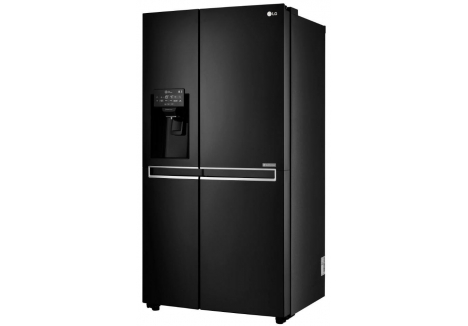

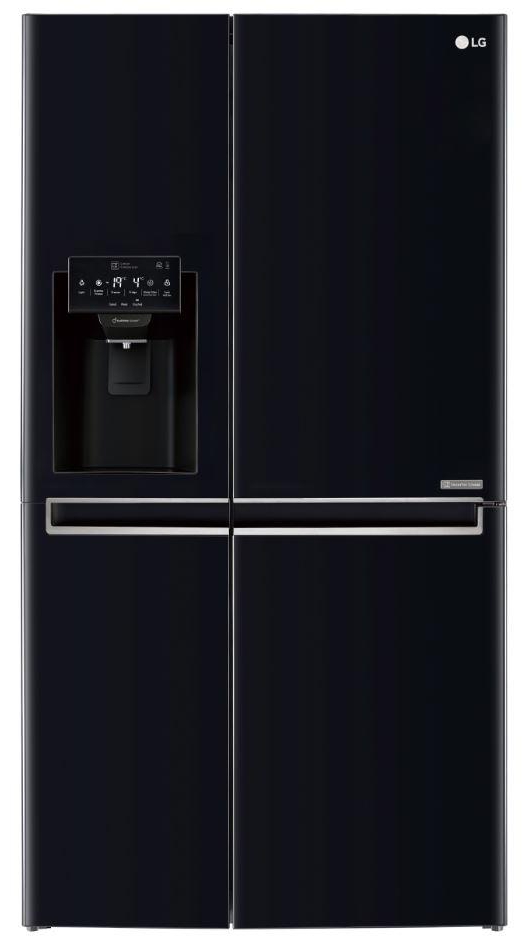

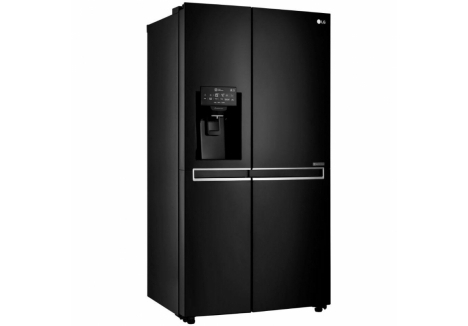

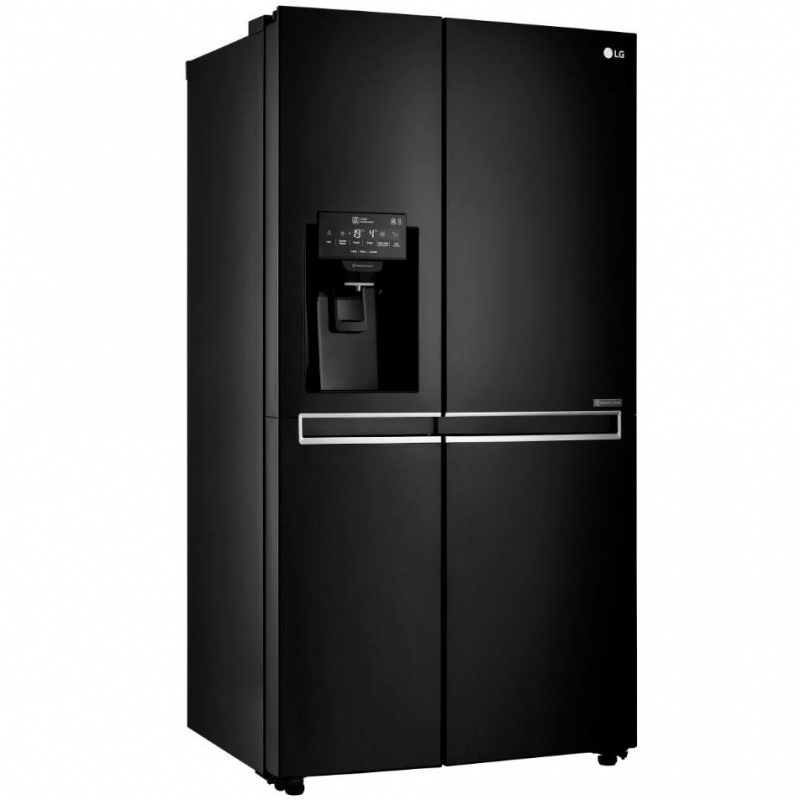

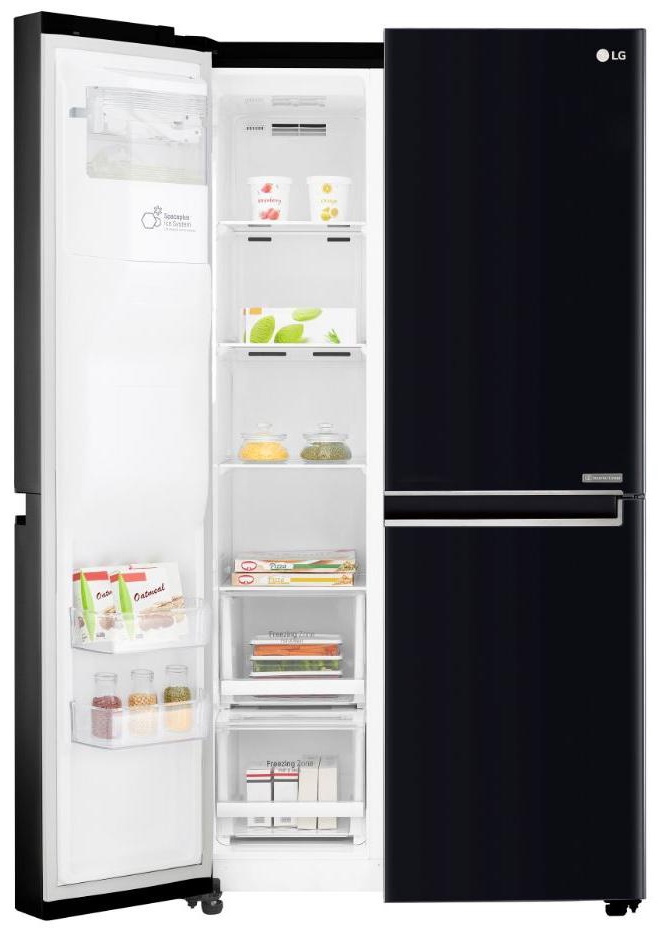

LG GSL760WBXV Refrigerator with Plumbed Water & Ice Dispenser and Smart Diagnosis

Capacity (l) - ISO Gross

• Total 668
• Freezer 246
• Refrigerator 422

Capacity (L, cu.ft.)Storage

• Total 601
• Freezer 196 (32)
• Refrigerator 405

Weight (kg)

• Net / Packing 124kg/135kg

Dimension (mm)

• Height (Net) to Top of Hinge (A) 1790
• Height (Net) to Top of Case (B) 1750
• Depth (Net) without door (C) 610
• Depth (Net) without handle (D) 733
• Depth (Net) including door & handle (E) 738
• Width (Net) 912
• Width x Height x Depth ( Product) 912 x 1790 x 738
• Width x Height x Depth ( Packing ) 968 x 1891 x 770
• Stuffing Q 20ft / 40ft / 40ft HC,Truck 14 / 36 /36

General Features

• Exterial LED Bottom-88-white
• Temperature control Digital Sensors (RT Sensor) (6) / Express Freeze
• Child Lock Yes
• Door Alarm Yes
• Temperature Function Express Cool
• Smart Diagnosis Yes
• Cooling System No Frost
• Multi-Air Flow Yes
• Sound Power(dB) 39
• Energy Efficiency Class (A+++ to D scale) A+
• Energy Consumption (kWh/year) 419
• Storage Time in Black-Out (hour) 10
• Freezing Capacity (kg) 12
• Refrigerant R600a
• Linear Compressor Yes FLB150NBMA
• Star Rating 4 Stars
• Climate Class T
• Finish (Door) - NS/PS3/SW/WB(Option) Black
• Finish (Case) - PET/ PCM (Option) Option
• Handle Type Material Plastic
• Handle Type Type (Name of handles and Easy open) Horizontal Pocket Non Ez

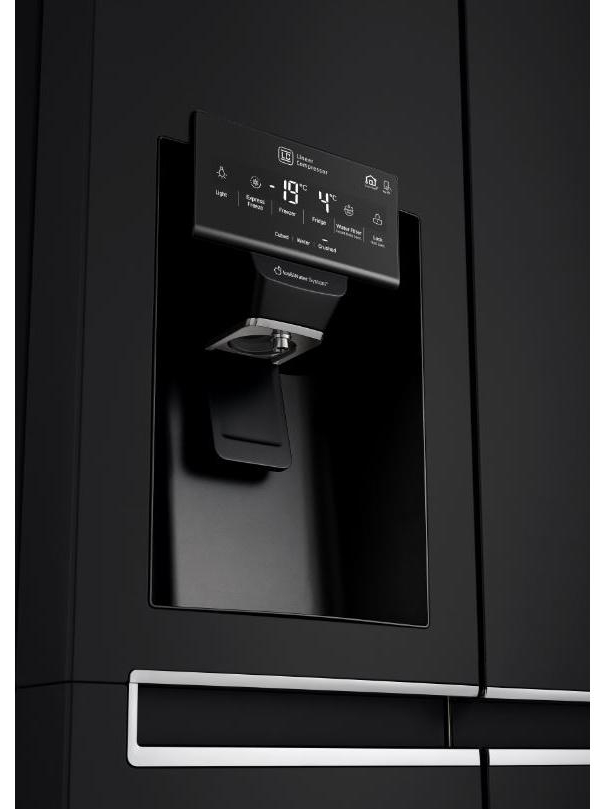

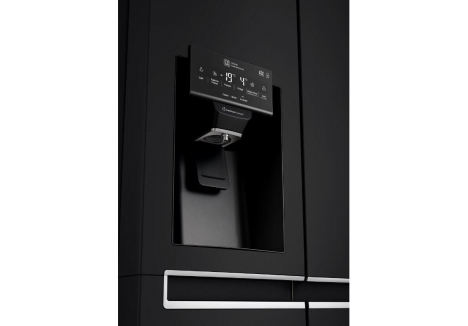

• Water Dispenser Yes
• Ice Dispenser(Cube Ice) Yes
• Crushed Ice Function Yes
• Filteration External Yes
• BioShield (Gasket) Yes

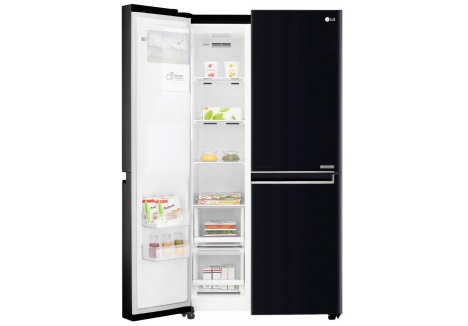

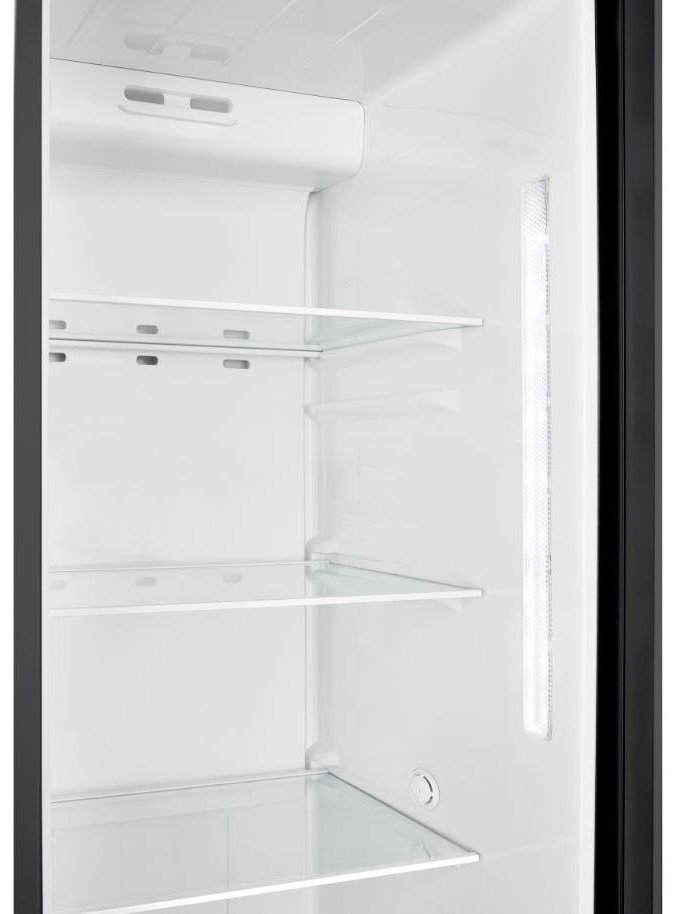

Refrigerator compartment

• Lamp LED(1)

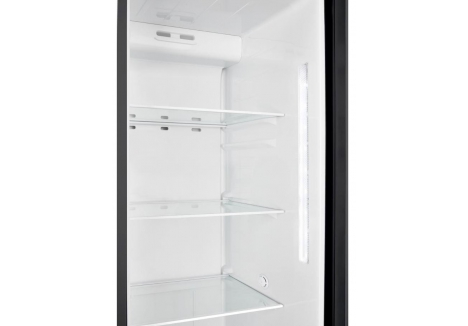

• Shelf - Tempered glass Yes (4)
• Door basket - Transparent Yes (3)

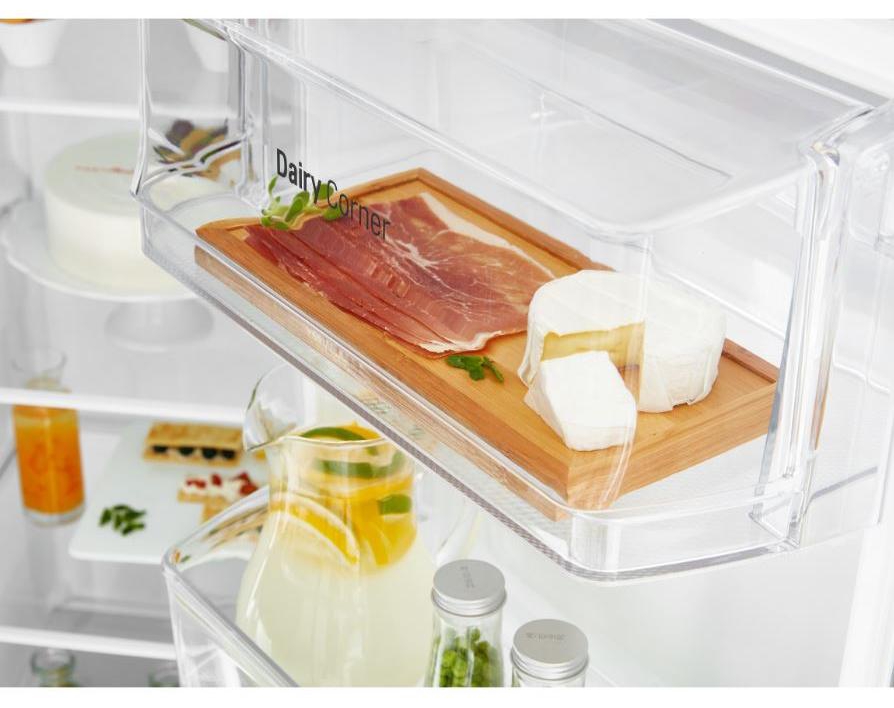

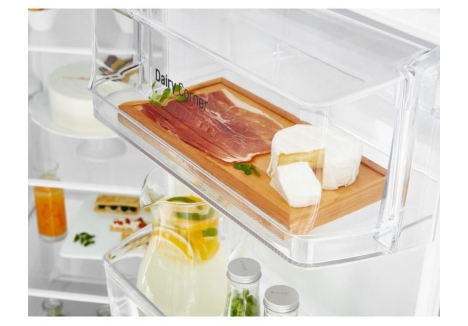

• Door basket - Dairy Corner Yes (1)
• Fresh Zone Yes
• Veg Box Cover T/V R/U - Tempered Glass Yes
• Veg Box Cover T/V R/L - Plastic Yes
• Vegetable Box (Drawer) - One Yes (2)
• Vegetable Box (Drawer) - Moist Balance Crisper Yes(Only R/L)
• Deodorizer Yes
• Egg bank Yes

Freezer compartment

• Lamp LED(1)

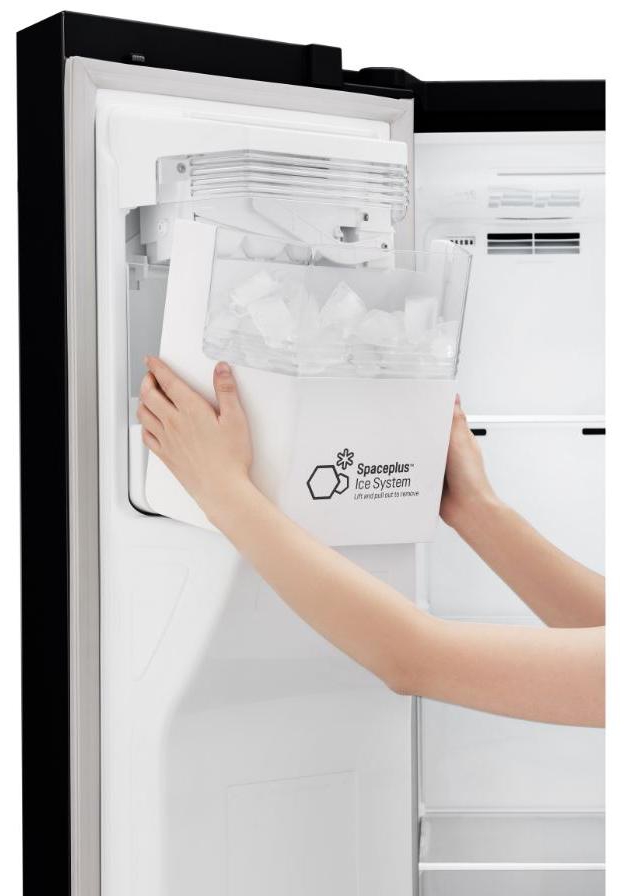

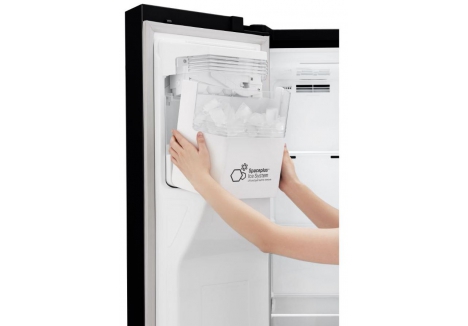

• Ice maker Automatic - Indoor
• Door basket - Transparent Yes (2)
• Shelf - Tempered glass Yes (4)
• Drawer Box Cover T/V F/U - Tempered Glass Yes
• Drawer Box Cover T/V F/L - Plastic Yes
• Drawer Transparent Yes (2)

Multi Room compartment

• Display PCB - NFC Yes
• Door Switch - Reed(DID) Yes

Guarantee - 2 years parts and labour with 10 years Linear Compressor guarantee or Commercial - 1 year parts and labour
